Andrey1970
Andrey1970
Posted
Posted (edited)

@vit9696 says. (Machine translation)



OpenCore — this name of the loader for macOS behind authorship of iNDi and other of HermitCrabs Lab. The project died, without having managed to be born, but his ideas regenerated within the Acidanthera project. As the result, under the same name was born the new loader which has incorporated the best parts of the predecessor: OpenCore II.


Edited by Andrey1970
Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)
21 hours ago, Andrey1970 said:


Hi @Andrey1970

for testing I have put csr-active-config in NVRAM/Block

In system I have in my signature I have had many problem to recover it also replacing config.plist with previous working one .

resetting nvram didn't help. always problem with Nvidia kext (black screen with signal in login screen)

Have you some advice to recover from a similar problem error?

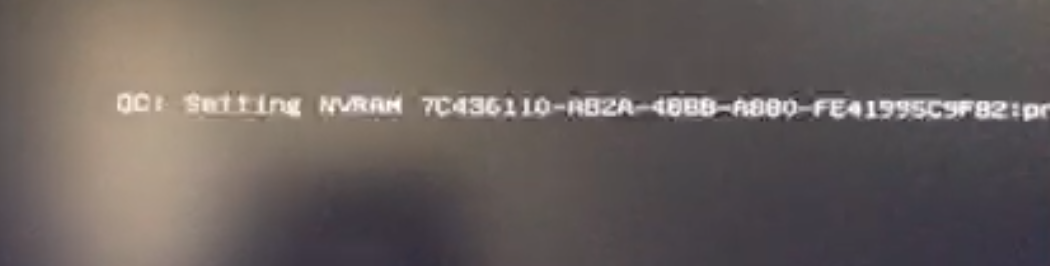

I have also a little remaining part to solve (see attached pictures)..but system is working well now




Edited by Guest
Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)

No, it confuses me the fact I have had problem with nvram (and nvidia web driver not loaded) also when I have delete csr-active-config block on config.plist..

and, I have no idea the way I have my system up again (deleting kext repairing permission clover reset nvram and so on)



Edited by Guest
Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)
1 hour ago, vandroiy2012 said:

@fabiosun



Just use


csrutil disable/enable

in recovery.



Don't need to insert this in config.plist.



It just works like on real mac.

Thank you , I have read previous @vit9696 message.. but in error case I had..this was not working... works!

Edited by Guest
Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)
1 hour ago, Andrey1970 said:

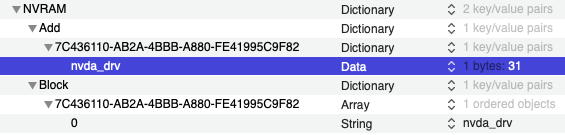

That web-driver was always, add nvda_drv in the Block too.


sorry..

if I set enable sip via recover as advised..

is there a way to have Nvidia web driver loaded correctly?

Edited by Guest
Link to comment
Share on other sites
Guest
Guest
Posted
Posted
6 minutes ago, Andrey1970 said:

You have modified web-driver? If yes, that needs to be disable SIP.

I should guess that you do.



no..original web in HS 10.13.6..



Link to comment
Share on other sites
Morpheus NS
Morpheus NS
Posted
Posted
On 4/29/2019 at 1:32 PM, PMheart said:

Could you please try if these two patches work? (which is supposed to perform the same thing as what FakeCPUID in Clover does)




#1

Base: _cpuid_set_info
Comment: FakeCPUID - Model 0xE (0x5E, SKL), 10.14
Count: 1
Enabled: YES
Find: 89C1C0E904880D
Identifier: kernel
Limit: 0
Mask: (LEAVE THIS EMPTY)
MatchKernel: 18.
Replace: B90E000000880D
ReplaceMask: (LEAVE THIS EMPTY)
Skip: 0

#2

Base: _cpuid_set_info
Comment: FakeCPUID - Ext 0x5 (0x5E, SKL), 10.14
Count: 1
Enabled: YES
Find: 89C1C1E91080
Identifier: kernel
Limit: 0
Mask: (LEAVE THIS EMPTY)
MatchKernel: 18.
Replace: B90500000080
ReplaceMask: (LEAVE THIS EMPTY)
Skip: 0





What should I change for my CPU (G4560, Kaby Lake) to make this patch work? In Clover I need FakeCPUID 0x0106E3 (usual suggestion, 0x0306A0, never worked for me). I use iMac18,2 SMBios.

Link to comment
Share on other sites
MorenoAv
MorenoAv
Posted
Posted (edited)

Hi Guys,

Good night, someone could take a look at my config.plist and help me with the following problems

1 MY resolution is enormous

2 I don t have sound

3 my bluetooth don t detect my Magic Mouse keyboard and trackpad.

Thanks in Advance

config.plist.zip

And now I have graphic glitches too...

Edited by MorenoAv
Link to comment
Share on other sites
PMheart
PMheart
Posted
Posted
14 hours ago, Morpheus NS said:



What should I change for my CPU (G4560, Kaby Lake) to make this patch work? In Clover I need FakeCPUID 0x0106E3 (usual suggestion, 0x0306A0, never worked for me). I use iMac18,2 SMBios.

Hi,



If what you need is 0x0106E3 in Clover, this is the equivalent for you:

#1

Base: _cpuid_set_info
Comment: FakeCPUID - Model 0xE (0x1E, Lynnfield), 10.14
Count: 1
Enabled: YES
Find: 89C1C0E904880D
Identifier: kernel
Limit: 0
Mask: (LEAVE THIS EMPTY)
MatchKernel: 18.
Replace: B90E000000880D
ReplaceMask: (LEAVE THIS EMPTY)
Skip: 0
#2

Base: _cpuid_set_info
Comment: FakeCPUID - Ext 0x1 (0x1E, Lynnfield), 10.14
Count: 1
Enabled: YES
Find: 89C1C1E91080
Identifier: kernel
Limit: 0
Mask: (LEAVE THIS EMPTY)
MatchKernel: 18.
Replace: B90100000080
ReplaceMask: (LEAVE THIS EMPTY)
Skip: 0



Confirmed under 10.14.5 (18F132).

Enjoy. :)



PMheart

  • Like 6
  • Thanks 1
Link to comment
Share on other sites
MorenoAv
MorenoAv
Posted
Posted
17 hours ago, MorenoAv said:

Hi Guys,

Good night, someone could take a look at my config.plist and help me with the following problems

1 MY resolution is enormous

2 I don t have sound

3 my bluetooth don t detect my Magic Mouse keyboard and trackpad.

Thanks in Advance

config.plist.zip

And now I have graphic glitches too...

 Hope someone could help me, I know that you are all busy, but a little help is welcome...

Thanks

Link to comment
Share on other sites
Morpheus NS
Morpheus NS
Posted
Posted (edited)
3 hours ago, PMheart said:

Confirmed under 10.14.5 (18F132).

Enjoy. :)



PMheart



Thank you, it worked! First time I've successfully booted my existing macOS partition with OC... now I have to figure out power management.



EDIT: I had to boot without my WiFi dongle because with it I get spammed with "bEndControlEvent = 0" messages

Edited by Morpheus NS
Link to comment
Share on other sites
uglyJoe
uglyJoe
Posted
Posted



21 hours ago, MorenoAv said:

Hi Guys,

Good night, someone could take a look at my config.plist and help me with the following problems

1 MY resolution is enormous

2 I don t have sound

3 my bluetooth don t detect my Magic Mouse keyboard and trackpad.

Thanks in Advance

config.plist.zip

And now I have graphic glitches too...



Verify that you inject layout-id, device-id and AAPL,ig-platform-id via ACPI (DSDT) and/or take a look at your DeviceProperties.

Link to comment
Share on other sites
MorenoAv
MorenoAv
Posted
Posted

Hi @uglyJoe,

Thanks for your response, but I have taken my clover SSDT-UIAC.aml and put it in the OC but didn't solve the problem... I have first to learn more about creating a config.plist that works, and then switch for good to OC, in the meantime I'll stick with clover and all works good...

Thanks anyway...

Link to comment
Share on other sites
Guest
Guest
Posted
Posted (edited)
On 5/22/2019 at 6:11 PM, Andrey1970 said:

You have modified web-driver? If yes, that needs to be disable SIP.

I should guess that you do.



Hi

No OC related problem..nvidia Pascal does not allow SIP enabled with web drivers installed in my case..Maxwell nvidia card allows SIP enabled

thanks @foskvsand @iCanaro for testing in their systems



Edited by Guest
Link to comment
Share on other sites
ammoune78
ammoune78
Posted
Posted

Hi,

Have anyone tried OC on Core2Duo machine? It sounds very interesting, thanks to the Developers: THCL and all the others! ^_^

Link to comment
Share on other sites
Rocky12
Rocky12
Posted
Posted (edited)

this is so called legacy boot USB

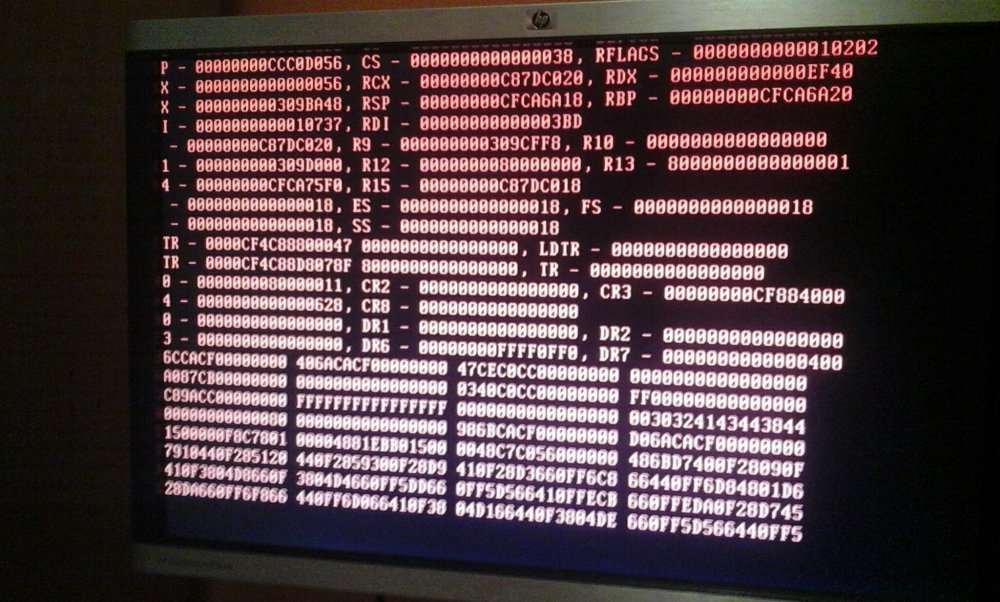

yes i did it but no success i have created  Legacy Booting USB i don,t know it is good enough but  as  soon i am trying to boot from usb  getting this red screen

attached are the files which i am usingimageproxy.jpg.6b52b7ac9f5ce7f16df1d7efc241858b.jpg

Archive.zip

Edited by Rockey12
Link to comment
Share on other sites
ammoune78
ammoune78
Posted
Posted

I believe that something is wrong, because the first time i've tried macOS High Sierra, i had the same screen. But in the case of my pavilion dv6-1380ek, i can boot using clover on GPT drive using UEFI installation, and I'm running High Sierra successfully with UEFI and all things are working well.

Now for the OC, let's try it.

Link to comment
Share on other sites
ammoune78
ammoune78
Posted
Posted (edited)
Quote
20 hours ago, Rockey12 said:

this is so called legacy boot USB

yes i did it but no success i have created  Legacy Booting USB i don,t know it is good enough but  as  soon i am trying to boot from usb  getting this red screen

attached are the files which i am usingimageproxy.jpg.6b52b7ac9f5ce7f16df1d7efc241858b.jpg

Archive.zip





I think you're missing some drivers, as HfsPlus, and the config.plist have to be cleaned from unused. The boot file not folder also need to be deleted maybe, I think it cause conflict with OC as its clover?



In my case, these settings are primordial to let the laptop to boot, and do not know how to add them into the config:



Quote

		<key>HaltEnabler</key>
		<true/>
		<key>PatchAPIC</key>
		<true/>







Quote

	<key>Devices</key>
	<dict>
		<key>Inject</key>
		<true/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>HighCurrent</key>
			<true/>
			<key>NameEH00</key>
			<false/>
		</dict>
	</dict>







Quote

	<key>Graphics</key>
	<dict>
		<key>EDID</key>
		<dict>
			<key>Inject</key>
			<false/>
		</dict>
		<key>FBName</key>
		<string>Shrike</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
		</dict>
		<key>LoadVBios</key>
		<false/>
		<key>PatchVBios</key>
		<true/>
		<key>RadeonDeInit</key>
		<false/>
	</dict>







Quote

<key>KernelAndKextPatches</key>
	<dict>
		<key>KernelLapic</key>
		<true/>







Edited by ammoune78
  • Like 1
Link to comment
Share on other sites
