[pre-release] macOS Big Sur

Matgen84 · July 12, 2020

31 minutes ago, fusion71au said:

After making the change to your config.plist NVRAM entry, don't forget to reset NVRAM from OpenCore boot menu.

Thanks @fusion71au It works now. Do you if there is a setting for also disabling Authenticated Root at the same time.
I don't understand why OC Picker show "BigSur - data" and not "BigSur HD" (I name BigSur my HD, of course)

Edited July 12, 2020 by Matgen84

Blu24 · July 12, 2020

13 hours ago, Matgen84 said:

Hi @Blu24 @crazybirdy @fusion71au

Finally, I succeed to install Big Sur Beta 2 on my USB external Hard Drive connected to Z390 Aorus Master More than 4hours for stage 2, and the others stages are long too.

TODO

disable SIP: strangely 7708000 in config.plist don't work for me

OC Picker show only BigSur - Data instead of BigSur HD

remove update snapshot

Any ideas ! Please.

Great News :thumbsup_anim:

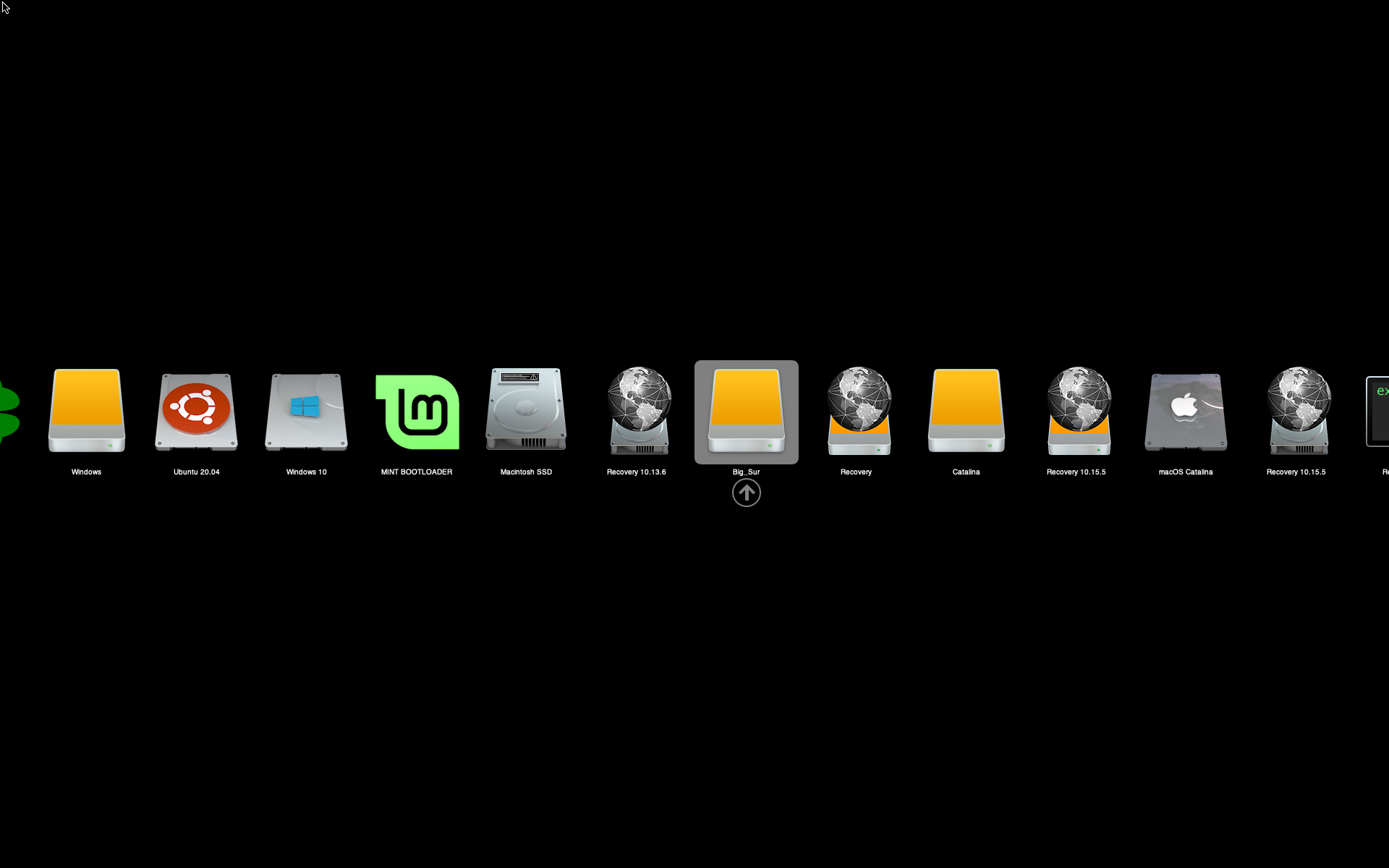

Can you please upload a screenshot of "OC Picker show only BigSur - Data instead of BigSur HD"

Regarding your installation taking so long to install, I think if you were to installed Big Sur on a spare internal drive, the installation would be much quicker

Edited July 12, 2020 by Blu24

Matgen84 · July 12, 2020

5 minutes ago, Blu24 said:

Great News

Can you please upload a screenshot of "OC Picker show only BigSur - Data instead of BigSur HD"

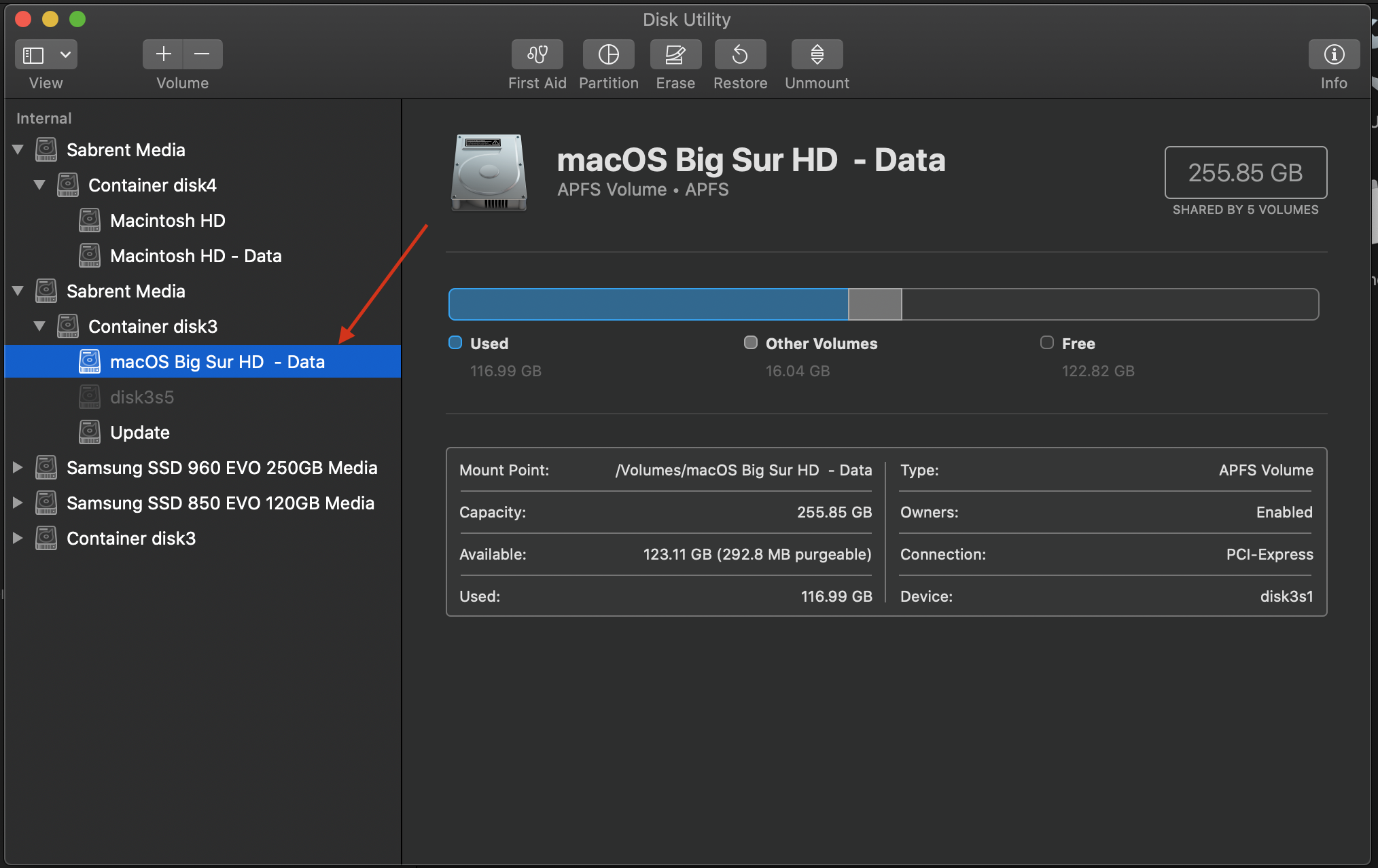

I've 3 Hard Drives: Catalina and Windows (Internal), BigSur (External)

I can't rename USB - Data to BigSur - Data for the time being. This is why you see USB - Data on the screenshot. Sorry for my bad English.

Blu24 · July 12, 2020

18 minutes ago, Matgen84 said:

I've 3 Hard Drives: Catalina and Windows (Internal), BigSur (External)

I can't rename USB - Data to BigSur - Data for the time being. This is why you see USB - Data on the screenshot. Sorry for my bad English.

Boot into Catalina
open Disk utility
In Disk Utility, right-click. rename your USB

Edited July 12, 2020 by Blu24
upload different image

SavageAUS · July 12, 2020

[mention]fusion71au [/mention]

giphy.gif&key=116947c9fedc89baefead0a11e3b2450ef130317b8a4e6ac281aaea1a35832d8

Here you go.

Sent from my iPhone using Tapatalk

Matgen84 · July 12, 2020

1 minute ago, Blu24 said:

Boot into Catalina

open Disk utility

In Disk Utility, right-click. rename your USB

Thanks I don't know why, Picker see only data partition instead of main partition :cry:

Blu24 · July 12, 2020

23 minutes ago, Matgen84 said:

Thanks I don't know why, Picker see only data partition instead of main partition

I think it's to do with the new file structure. At the moment you can access your Catalina HD from Big Sur but you can't access Big Sur from Catalina. Have you noticed "Incompatible Disk info" Top right? when you boot into Catalina?

Edited July 12, 2020 by Blu24

manmo71 · July 12, 2020

1 hour ago, MorenoAv said:

@manmo71,

I tried it, removed the said parameters and lost boot and graphic acceleration ...

Thanks

@MorenoAv I have just edited the Platform-ID for iGPU in your config.plist, everything else remains untouched.

Replace your existing config.plist (after backing up a copy) with this one and give it a try.

If this does not work, then I am out of idea's for the moment.

config.plist

Edited July 12, 2020 by manmo71

jlcdgd · July 12, 2020

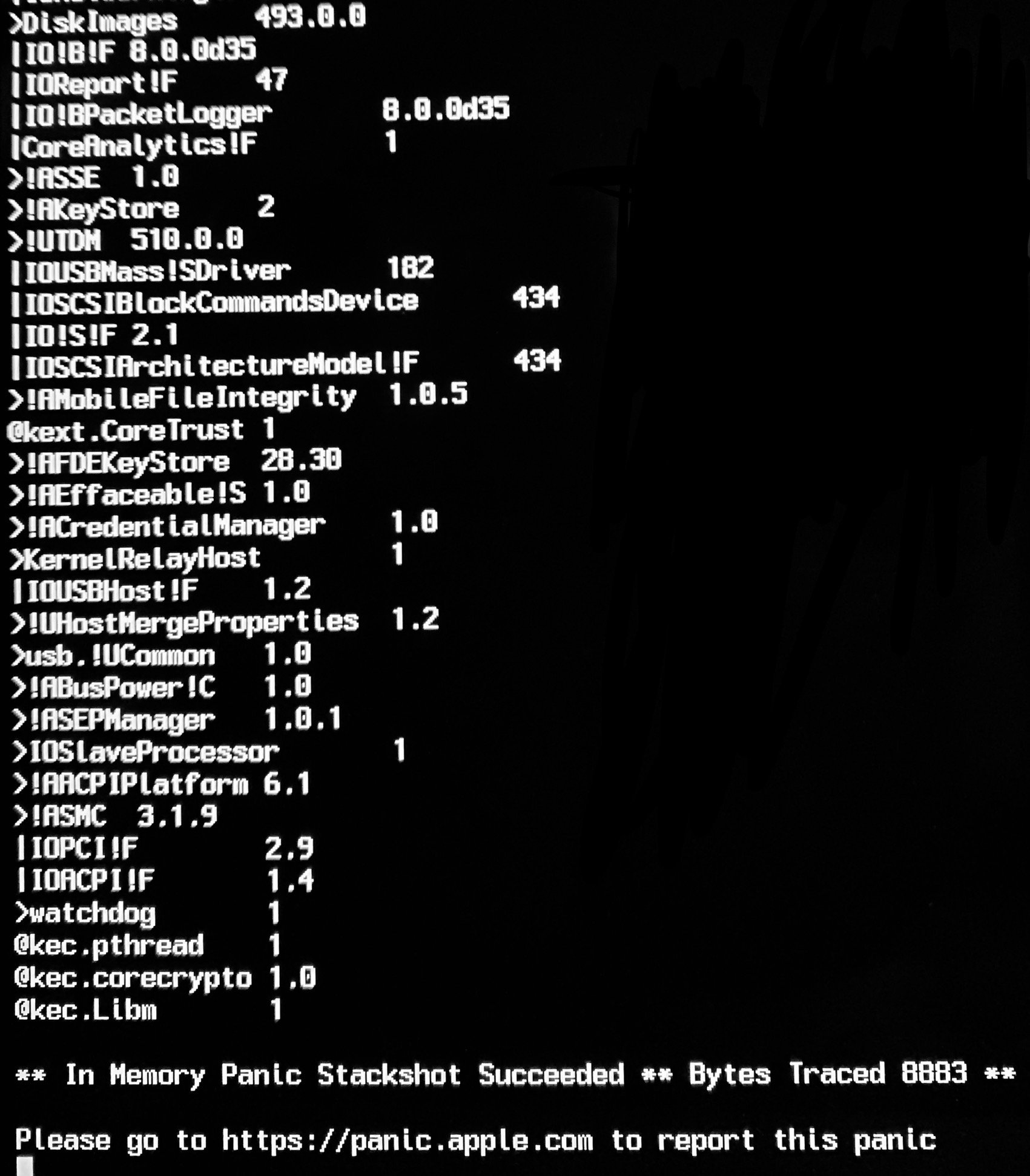

Still. having the Memory problem... any ideas?

Please find enclosed my EFi X99 Designare EX, Intel Xeon CPU E5-2670 v3 @ 2.30GHz...

https://drive.google.com/file/d/1e3azbz2J0DbX8JhbIkjaDouRobPUKIoX/view?usp=sharing

asdesoso · July 12, 2020

12 hours ago, chris1111 said:

I Just use OpenCore with the necessary good files and the good System Definiton

Hi Chris, could you upload your EFI folder for this HP Probook laptop?

Thanks.

fusion71au · July 12, 2020

36 minutes ago, Matgen84 said:
Thanks @fusion71au It works now. Do you if there is a setting for also disabling Authenticated Root at the same time.
I don't understand why OC Picker show "BigSur - data" and not "BigSur HD" (I name BigSur my HD, of course)


12 minutes ago, Matgen84 said:

Thanks I don't know why, Picker see only data partition instead of main partition

For disabling Authenticated Root, you can set the NVRAM csr-active-config parameter to 0x77080000 in OC config.plist, then resetting NVRAM through the OC boot menu or with booting to Big_Sur's Recovery/Installer USB and disabling it with csrutil in terminal (see my post on APFS Snapshot Procedure and the examples in it).

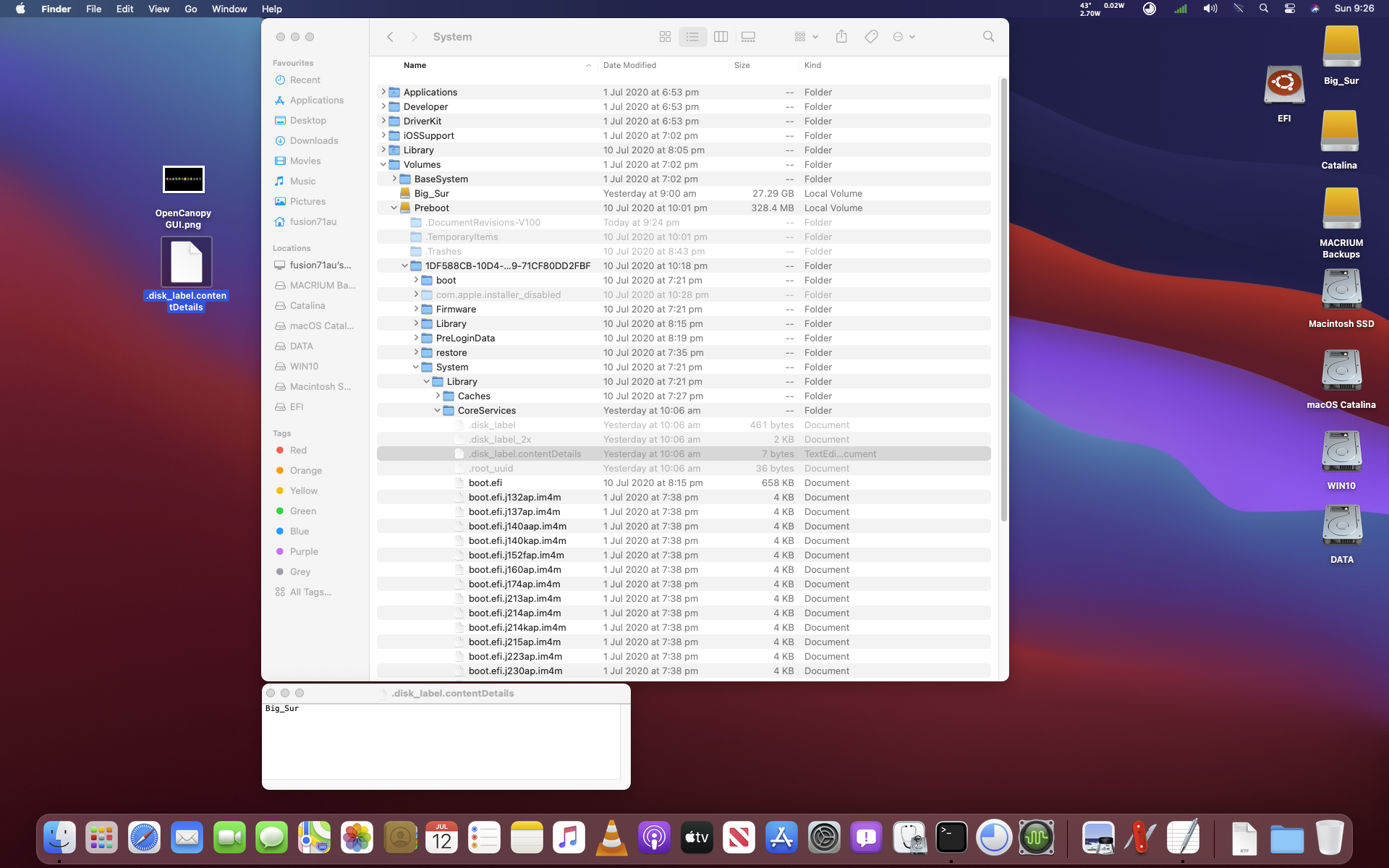

OC uses the content of the hidden text file /System/Volumes/Preboot/UUID/System/Library/CoreServices/.disk_label.contentDetails to label the macOS volume...

Spoiler

Also check your OC boot log eg if you have the debug version of OC, type in terminal

ioreg -lw0 -p IODeviceTree | grep boot-log | sort | sed 's/.*<\(.*\)>.*/\1/' | xxd -r -p

and you might see something like this output...

17:915 05:721 OCB: Should boot from 8. Big_Sur (T:2|F:0|G:0|E:1|DEF:0)
17:916 00:000 OCB: Perform boot Big_Sur to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0xD,0x0)/HD(2,GPT,C3AD6E1F-42A9-4F06-98A4-5CC879F6554E,0x64028,0x6F80FC8)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,35D21426674BBC44A2CC3FC394EAD3BC)/\1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\boot.efi (0/0)


02:217 00:000 OCB: Trying to get label from \1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\.disk_label.contentDetails
02:229 00:012 OCB: Registering entry Big_Sur (T:2|F:0|G:0|E:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0xD,0x0)/HD(2,GPT,C3AD6E1F-42A9-4F06-98A4-5CC879F6554E,0x64028,0x6F80FC8)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,35D21426674BBC44A2CC3FC394EAD3BC)/\1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\boot.efi

corint1 · July 12, 2020

32 minutes ago, Blu24 said:

I think it's to do with the new file structure. At the moment you can access your Catalina HD from Big Sur but you can't access Big Sur from Catalina. Have you noticed "Incompatible Disk info" Top right? when you boot into Catalina?

no ...i fallow you long tine, since 5 days... you are wrong in 90 % cases ..open diskutility , select data dis of big sur , open in finder ... you can copy anythyngs in this place

Matgen84 · July 12, 2020

34 minutes ago, Blu24 said:

I think it's to do with the new file structure. At the moment you can access your Catalina HD from Big Sur but you can't access Big Sur from Catalina. Have you noticed "Incompatible Disk info" Top right? when you boot into Catalina?

I can't explain myself well, sorry. When I boot on the Big Sur disk, OC only displays the data partition of Big Sur and not the System partition. So I have to boot on the data partition to start Big Sur. I hope that it's clearer.

I will continue the investigations proposed by Fusion71au

MorenoAv · July 12, 2020

1 hour ago, manmo71 said:

@MorenoAv I have just edited the Platform-ID for iGPU in your config.plist, everything else remains untouched.

Replace your existing config.plist (after backing up a copy) with this one and give it a try.

If this does not work, then I am out of idea's for the moment.

config.plist

Changed config.plist, it boots have sound, graphic acceleration... but not HEVC yet...

Thanks anyway ...

mboy · July 12, 2020

On 7/11/2020 at 6:24 AM, Matgen84 said:

Good news

Re-download BS Beta 2, recreate USB with your EFI folder, launch install to USB hard drive .... Stuck "Less than a minute remaining" since 15 minutes

Same problem trying to install on a USB3 flash drive. I was able to install successfully on an external USB2 hard drive. There was mention of the installer being unable to “bless” a USB3 drive in another forum (MacRumors).

crazybirdy · July 12, 2020

1 hour ago, jlcdgd said:

Still. having the Memory problem... any ideas?

Please find enclosed my EFi X99 Designare EX, Intel Xeon CPU E5-2670 v3 @ 2.30GHz...

Spoiler

add kernel path to config.plist/Kernel/Patch/..you will see the panic kext..

<dict>
				<key>Base</key>
				<string></string>
				<key>Comment</key>
				<string>10.16 Disable panic loaded kexts list</string>
				<key>Count</key>
				<integer>1</integer>
				<key>Enabled</key>
				<true/>
				<key>Find</key>
				<data>
				AIA6AHRE
				</data>
				<key>Identifier</key>
				<string>kernel</string>
				<key>Limit</key>
				<integer>0</integer>
				<key>Mask</key>
				<data>
				</data>
				<key>MaxKernel</key>
				<string>20.8.0</string>
				<key>MinKernel</key>
				<string>20.0.0</string>
				<key>Replace</key>
				<data>
				AIA6AOtE
				</data>
				<key>ReplaceMask</key>
				<data>
				</data>
				<key>Skip</key>
				<integer>0</integer>
			</dict>

Takiller · July 12, 2020

Finally my Big Sur beta 2 is running 99% with Opencore and I would like to thank everyone for helping each other in achieving such great hacks. I am waiting for the next challenge ;-).

The other strange thing is that when I want to modify system files I have to boot with Clover, as I still get error 66 when booting with Opencore and to be honest I don't mind, as I am learning quite a lot in the process. My Airplay is now also up & running after moving to AR5B95 wifi card. Trackpad with gestures was fixed by installing the VoodooPS2Controller-Mojave.kext in Library/Extensions, as Opencore did not want it at all and I will try later again. Now trying my luck with installing the second Intel WiFi in the 1/2 mini for the bluetooth and will let you know if I succeed ;-)

Well people of the palace I have succeeded with the installation of the second wifi card in the 1/2 mini slot of my dell, in order to have a working bluetooth from the Intel card, while I am getting wifi from the Atheros card and all is working :thumbsup_anim: :drool:

Edited July 12, 2020 by Takiller
Feedback as promised

Matgen84 · July 12, 2020

2 hours ago, fusion71au said:
For disabling Authenticated Root, you can set the NVRAM csr-active-config parameter to 0x77080000 in OC config.plist, then resetting NVRAM through the OC boot menu or with booting to Big_Sur's Recovery/Installer USB and disabling it with csrutil in terminal (see my post on APFS Snapshot Procedure and the examples in it).

OC uses the content of the hidden text file /System/Volumes/Preboot/UUID/System/Library/CoreServices/.disk_label.contentDetails to label the macOS volume...

Also check your OC boot log eg if you have the debug version of OC, type in terminal
ioreg -lw0 -p IODeviceTree | grep boot-log | sort | sed 's/.*<\(.*\)>.*/\1/' | xxd -r -p
and you might see something like this output...
17:915 05:721 OCB: Should boot from 8. Big_Sur (T:2|F:0|G:0|E:1|DEF:0)
17:916 00:000 OCB: Perform boot Big_Sur to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0xD,0x0)/HD(2,GPT,C3AD6E1F-42A9-4F06-98A4-5CC879F6554E,0x64028,0x6F80FC8)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,35D21426674BBC44A2CC3FC394EAD3BC)/\1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\boot.efi (0/0)


02:217 00:000 OCB: Trying to get label from \1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\.disk_label.contentDetails
02:229 00:012 OCB: Registering entry Big_Sur (T:2|F:0|G:0|E:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0xD,0x0)/HD(2,GPT,C3AD6E1F-42A9-4F06-98A4-5CC879F6554E,0x64028,0x6F80FC8)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,35D21426674BBC44A2CC3FC394EAD3BC)/\1DF588CB-10D4-48C2-BE99-71CF80DD2FBF\System\Library\CoreServices\boot.efi

Thanks a lot I follow all your explantations:

OC Debug: I don't have any output with Ioreg command. macOS 10.16 recognizes the right names which is not the case with Opencore. Strange.

SOLVED change name in the hidden text file /System/Volumes/Preboot/UUID/System/Library/CoreServices/.disk_label.contentDetails

Edited July 12, 2020 by Matgen84

greythorne · July 12, 2020

2 hours ago, Blu24 said:

I think it's to do with the new file structure. At the moment you can access your Catalina HD from Big Sur but you can't access Big Sur from Catalina. Have you noticed "Incompatible Disk info" Top right? when you boot into Catalina?

Blu24, yes that's what i observed too when i boot into Catalina. When in Catalina the incompatible disk message will appear and on the desktop i can see the update disk.

So you or anyone have any idea what is it and how to resolve it? Thanks.

Edited July 12, 2020 by greythorne

aryaone · July 12, 2020

8 hours ago, SavageAUS said:

Worked great for me. Got stuck at step 5 I think it was until I entered the “”
Now my DW1820A works and also fixed the lag I had with the menu bar.

Sent from my iPhone using Tapatalk

glad to hear that your DW1820a is working now on big sur
me too have dw1820a, lately i have tried the tutorial from @fusion71au and successfully delete the APFS snapshots, but when i replace bigsur's IO8211Family kext with the older one from catalina 10.15.5, i got some wrong messages when rebuild kext cache. I still insist to reboot my laptop, then it's get stuck.
if you dont mind, could you share your IO8211Family.kext that working well with DW1820a?

Edited July 12, 2020 by aryaone
some typo

asapreta · July 12, 2020

14 minutes ago, greythorne said:

Bu24, yes that's what i observed too when i boot into Catalina. When in Catalina the incompatible disk message will appear and on the desktop i can see the update disk.

So you or anyone have any idea what is it and how to resolve it? Thanks.

When I made a clean install of Big Sur via USB, this doesn't happen.

Irish_Man · July 12, 2020

14 minutes ago, greythorne said:

Bu24, yes that's what i observed too when i boot into Catalina. When in Catalina the incompatible disk message will appear and on the desktop i can see the update disk.

So you or anyone have any idea what is it and how to resolve it? Thanks.

The only way I can access to BS from Catalina is from Disk Utility. Right click/Show in Finder.

SavageAUS · July 12, 2020

glad to hear that your DW1820a is working now on big sur me too have dw1820a, lately i have tried the tutorial from [mention=846696]fusion71au[/mention] and successfully delete the APFS snapshots, but when i replace bigsur's IO8211Family kext with the older one from catalina 10.15.5, i got some wrong messages when rebuild kext cache. I still insist to reboot my laptop, then it's get stuck.
if you dont mind, could you share your IO8211Family.kext that working well with DW1820a?

I used the one from iPixelGalaxy’s video.

https://mega.nz/file/AOoTXSCJ#P6lgSvNaj_LZp-lCG2kudZccuZ9-pn355hzOp0G-UhM

I’m not sure which version of macOS it’s from to be honest.

Make sure you run all commands after you have replaced the kext.

Sent from my iPhone using Tapatalk

greythorne · July 12, 2020

1 minute ago, asapreta said:

When I made a clean install of Big Sur via USB, this doesn't happen.

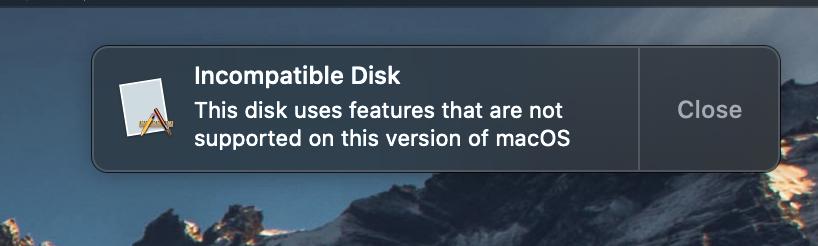

I made a clean install of BS beta 2 via USB, I observed the message and the update disk appearing.

asapreta · July 12, 2020

8 minutes ago, greythorne said:

I made a clean install of BS beta 2 via USB, I observed the message and the update disk appearing.

It doesn't happen to me, I can even use the data on the disk:
