Toshik1978 Posted January 11, 2020 Share Posted January 11, 2020 @MaLd0n I've finally updated my old i7-4790K hackintosh and looks like with new chipset/CPU I have much more issues ( Windows updated like a charm, but Hack... Spent a day to boot system. With enabled IGFX in BIOS it's impossible at all. Always got immediate "couldn't allocate runtime area". Tried all available Memory fixes (5 different drivers) - no one works. Tried 'slide=0', tried to decrease GPU memory in BIOS... So, finally disabled GPU and could boot into the system ) So, IGFX not working at all, not all USB ports available and many-many issues. VirtualSMC doesn't work - hand on boot in different parts (battery manager, processor, etc.). FakeSMC works will (but too few sensors available). So I'll highly grateful for your help again with new Hack. Here is "send me" files. Thanks an advance! Send me iMac.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 11, 2020 Author Share Posted January 11, 2020 1 hour ago, Toshik1978 said: @MaLd0n I've finally updated my old i7-4790K hackintosh and looks like with new chipset/CPU I have much more issues ( Windows updated like a charm, but Hack... Spent a day to boot system. With enabled IGFX in BIOS it's impossible at all. Always got immediate "couldn't allocate runtime area". Tried all available Memory fixes (5 different drivers) - no one works. Tried 'slide=0', tried to decrease GPU memory in BIOS... So, finally disabled GPU and could boot into the system ) So, IGFX not working at all, not all USB ports available and many-many issues. VirtualSMC doesn't work - hand on boot in different parts (battery manager, processor, etc.). FakeSMC works will (but too few sensors available). So I'll highly grateful for your help again with new Hack. Here is "send me" files. Thanks an advance! Send me iMac.zip EFI.zip use my full efi folder, if need enable igpu with this folder Link to comment Share on other sites More sharing options...

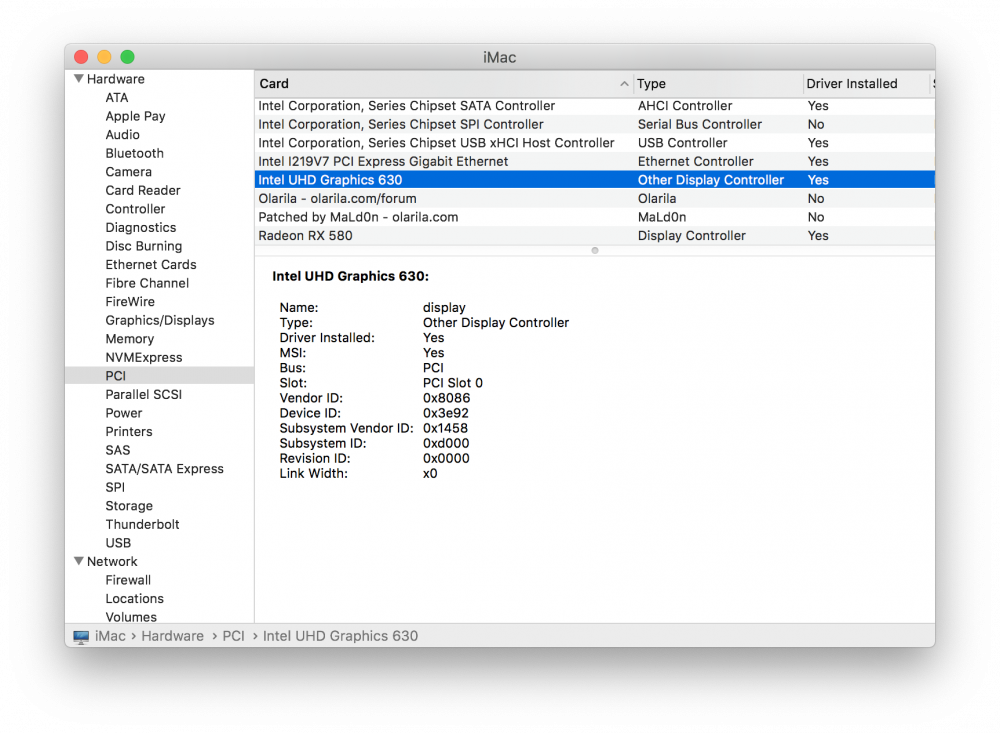

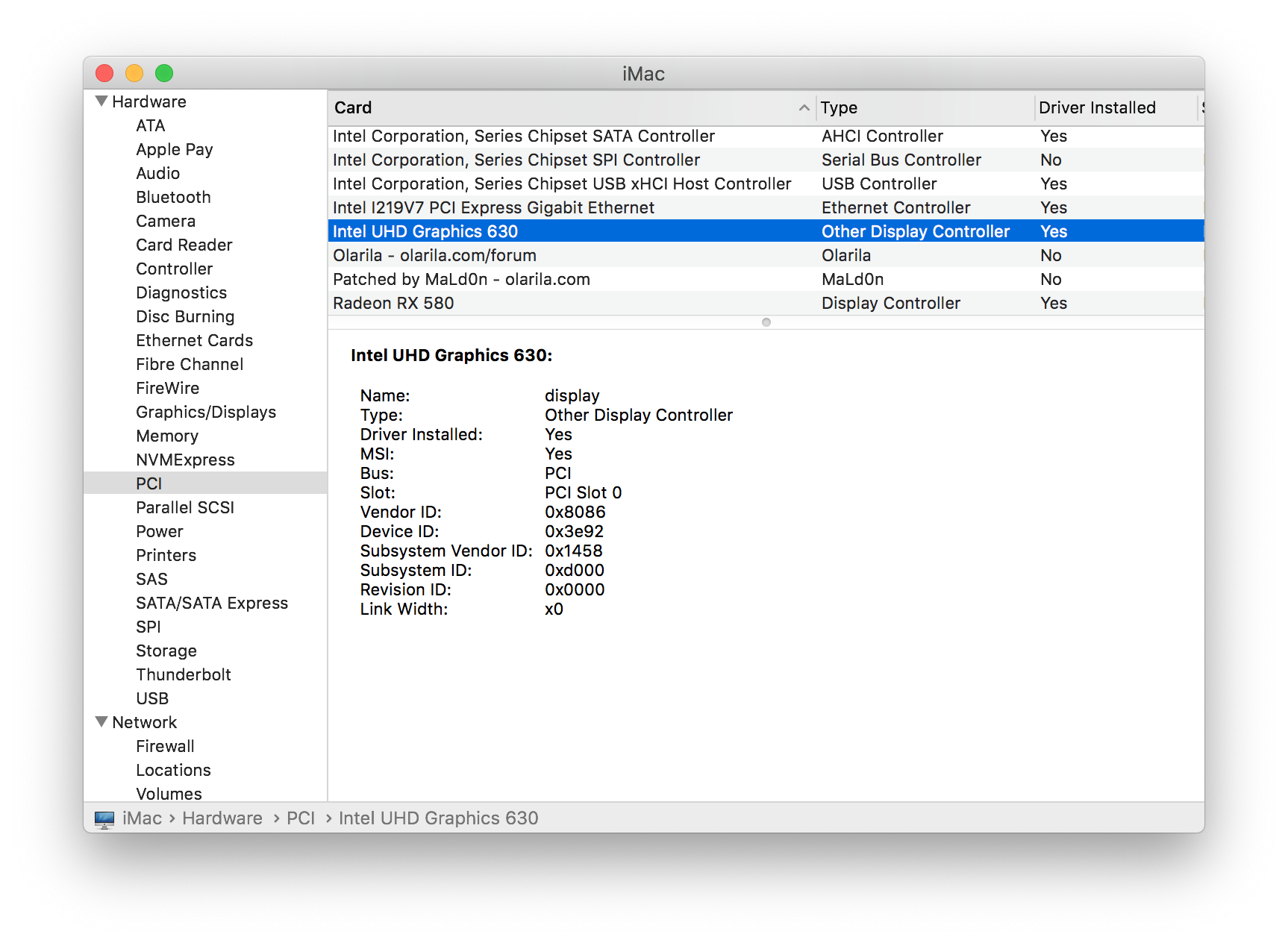

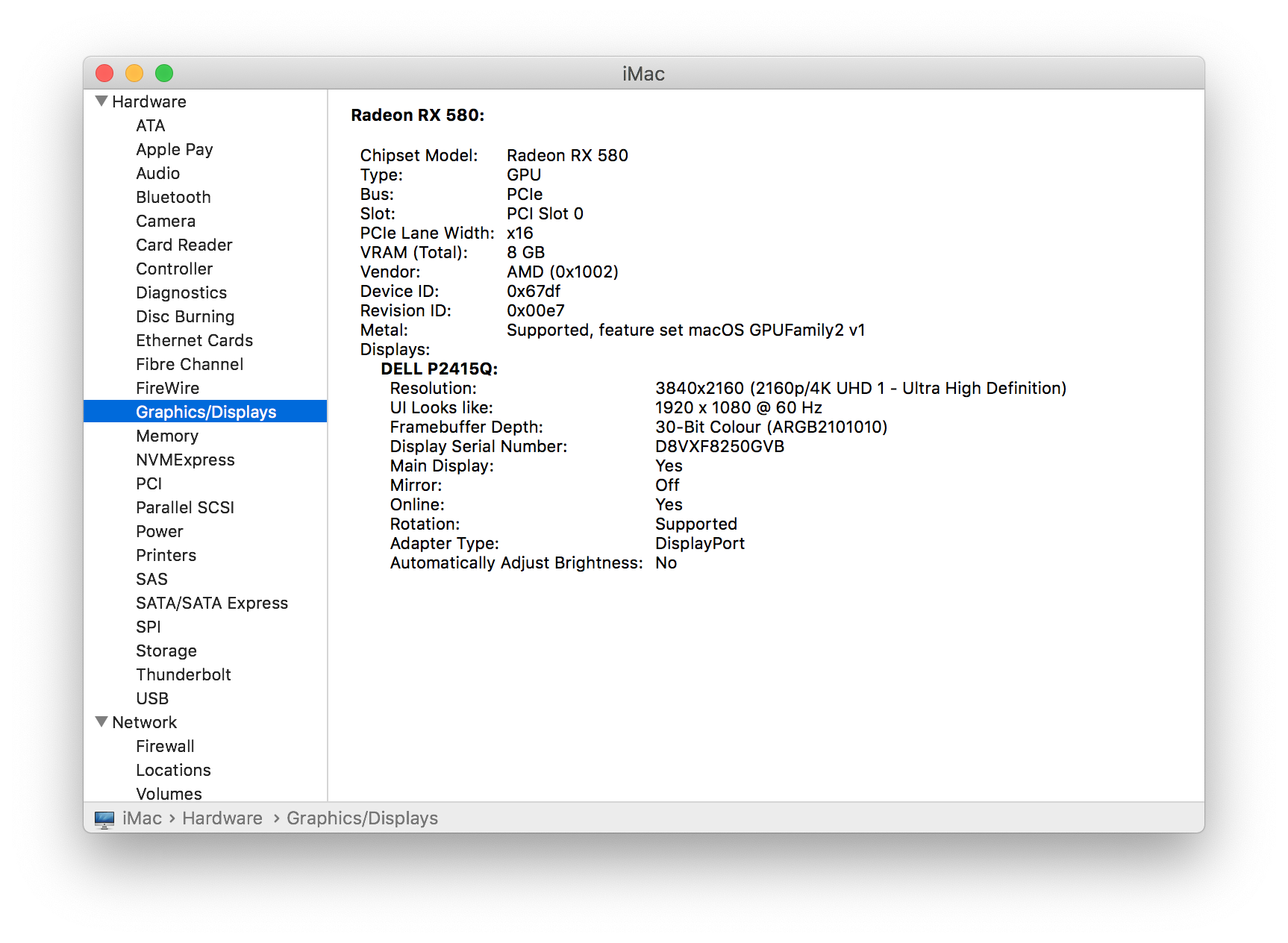

Toshik1978 Posted January 12, 2020 Share Posted January 12, 2020 (edited) 1 hour ago, MaLd0n said: EFI.zip use my full efi folder, if need enable igpu with this folder Wow! Thanks a lot, works like a charm w/o any issues! IGFX works too (I hope...). The only changes - it looks to me, that on previous hack I saw in System Report both graphic cards. But now I saw the only one. But there is the second adapter in PCI devices... Is it ok? Just in case - updated RunMe with enabled IGFX attached Send me iMac.zip Edited January 12, 2020 by Toshik1978 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 12, 2020 Author Share Posted January 12, 2020 3 hours ago, Toshik1978 said: Wow! Thanks a lot, works like a charm w/o any issues! IGFX works too (I hope...). The only changes - it looks to me, that on previous hack I saw in System Report both graphic cards. But now I saw the only one. But there is the second adapter in PCI devices... Is it ok? Just in case - updated RunMe with enabled IGFX attached Send me iMac.zip looks good Link to comment Share on other sites More sharing options...
Toshik1978 Posted January 12, 2020 Share Posted January 12, 2020 2 hours ago, MaLd0n said: looks good thank you! Link to comment Share on other sites More sharing options...
GioiaNera Posted January 12, 2020 Share Posted January 12, 2020 Hi @MaLd0n , i have same motherborad, 9600k + rx 580 nitro....with your clover folder in this post i get blank screen. Patched folder is empty in your upload, this file is not necessary? Sendme file is created with your olarilla image with generic dsdt 100/200/300 Send me -iMac.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 12, 2020 Author Share Posted January 12, 2020 13 minutes ago, GioiaNera said: Hi @MaLd0n , i have same motherborad, 9600k + rx 580 nitro....with your clover folder in this post i get blank screen. Patched folder is empty in your upload, this file is not necessary? Sendme file is created with your olarilla image with generic dsdt 100/200/300 Send me -iMac.zip Arquivo Comprimido.zip Link to comment Share on other sites More sharing options...
telepati Posted January 13, 2020 Share Posted January 13, 2020 (edited) @MaLd0n There is a problem with my RX560 I will send it to service and I am trying to boot with UHD 630 4K HDMI(Cable Ugreen HDMI 2.0 4K support) but I can't. I used framebuffer, without WEG, Inject Intel with ig-platform-id but none of them work. BIOS IGFX primary Initial display enabled. I tried almost every possible way but I cant boot its finishing verbose then loss the signal. Here is my clover folder; CLOVER.zip Note; Cant open olarila.com its just white page. Edited January 13, 2020 by telepati Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2020 Author Share Posted January 14, 2020 13 hours ago, telepati said: @MaLd0n There is a problem with my RX560 I will send it to service and I am trying to boot with UHD 630 4K HDMI(Cable Ugreen HDMI 2.0 4K support) but I can't. I used framebuffer, without WEG, Inject Intel with ig-platform-id but none of them work. BIOS IGFX primary Initial display enabled. I tried almost every possible way but I cant boot its finishing verbose then loss the signal. Here is my clover folder; CLOVER.zip Note; Cant open olarila.com its just white page. -cdfon don't work? i'm updating forum, migrate, etc 1 Link to comment Share on other sites More sharing options...
telepati Posted January 14, 2020 Share Posted January 14, 2020 4 hours ago, MaLd0n said: -cdfon don't work? i'm updating forum, migrate, etc Thank you. After removing this finally I can boot. Link to comment Share on other sites More sharing options...
1Ale1 Posted January 17, 2020 Share Posted January 17, 2020 Hi @MaLd0n, I have a few questions on how do you get working nvram on Z390 motherboards -Is the driver memoryallocation.efi the main responsible to get nvram working or are acpi patches/other stuff required to get the system to work? -could you provide further information on how memoryallocation.efi works, who wrote it and possible access to source code? -Do these fixes apply for all non-native nvram motherboards? Link to comment Share on other sites More sharing options...
Toshik1978 Posted January 19, 2020 Share Posted January 19, 2020 (edited) @MaLd0n Looks like I have no workable sleep. Sleep works fine, but immediately wake ) $ log show --style syslog | grep "Wake reason" 2020-01-19 23:13:39.772310+0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XHC 2020-01-19 23:13:39.772312+0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XHC $ pmset -g log 2020-01-19 23:13:46 +0300 DarkWake DarkWake from Normal Sleep [CDN] : due to XHC/ Using AC (Charge:0%) 9 secs 2020-01-19 23:13:46 +0300 WakeDetails DriverReason:XHC - DriverDetails: 2020-01-19 23:13:46 +0300 HibernateStats hibmode=0 standbydelaylow=86400 standbydelayhigh=86400 $ pmset -g System-wide power settings: Currently in use: standby 1 Sleep On Power Button 1 womp 0 halfdim 1 hibernatefile /var/vm/sleepimage proximitywake 0 powernap 0 autorestart 0 networkoversleep 0 disksleep 10 standbydelayhigh 86400 sleep 60 (sleep prevented by UserEventAgent, UserEventAgent, sharingd) hibernatemode 0 ttyskeepawake 1 displaysleep 60 tcpkeepalive 1 highstandbythreshold 50 standbydelaylow 86400 I have 3 internal USB connectors. USB2 for Corsair Power Supply HX750i. USB2 for native Apple BT adapter (PCIe adapter for Apple native WiFi+BT). USB3 for https://www.silverstonetek.com/product.php?pid=695&area=en. And I have one external USB-hub attached (Satechi USB3). I've tried to detach this one and it didn't solve issue. So either one of internal connectors do wakeup. Or it's smth. other. Is it possible to detect/solve such kind of issues? Tried some solutions from internet (like changing darkwake). Didn't solve issue... Thanks an advance! Edited January 19, 2020 by Toshik1978 Link to comment Share on other sites More sharing options...
1Ale1 Posted January 20, 2020 Share Posted January 20, 2020 @Toshik1978Have you tried to change hibernatemode parameter? Link to comment Share on other sites More sharing options...
Toshik1978 Posted January 20, 2020 Share Posted January 20, 2020 3 hours ago, 1Ale1 said: @Toshik1978Have you tried to change hibernatemode parameter? It didn't help me, unfortunately Link to comment Share on other sites More sharing options...

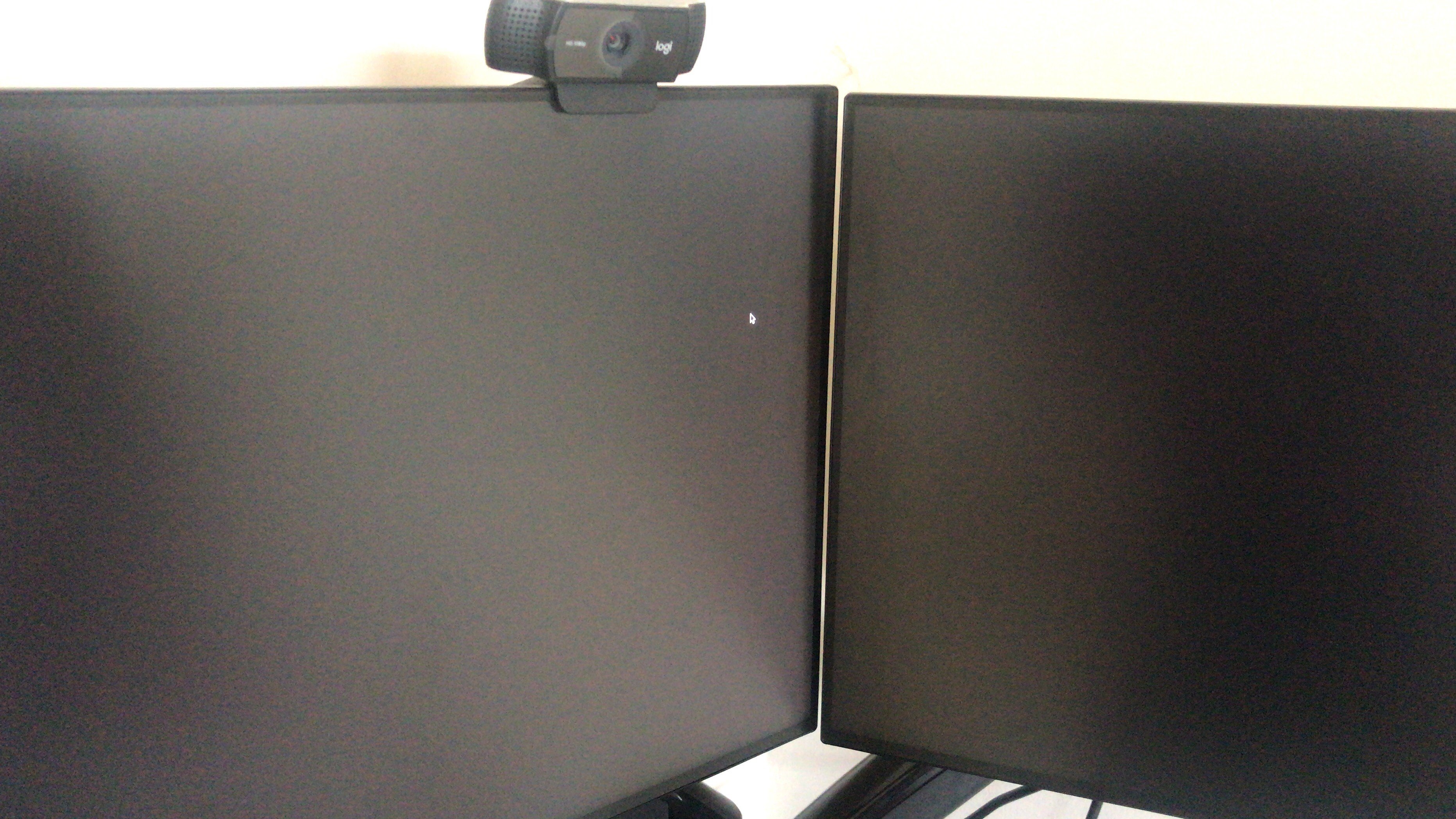

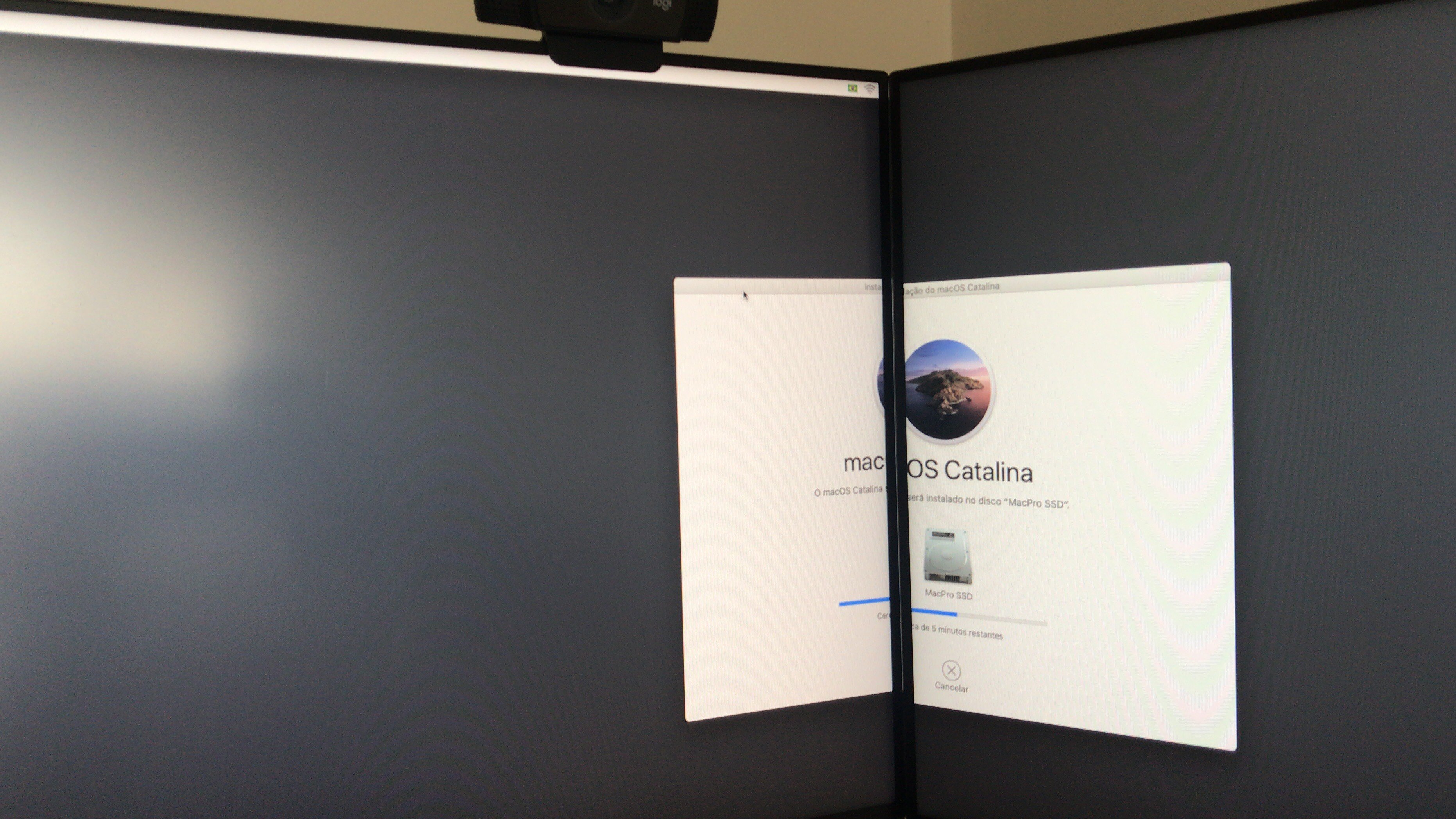

LiveSorcerer Posted January 21, 2020 Share Posted January 21, 2020 Hello, I'm having trouble finishing the update / installation of Catalina. It starts to boot, and the installation of Catalina begins, and after the screen appears that the system will be restarted to continue the installation, it does the boot again, and when it will enter to continue the installation, a black screen appears and appears only the mouse. Here is the configuration: Intel - Core i9-9900K 3.6 GHz 8-Core Processor Noctua - NH-U12A CPU Cooler Gigabyte - Z390 M GAMING Micro ATX LGA1151 Motherboard Corsair - Vengeance LPX 64GB (4 x 16 GB) DDR4-3200 Memory Samsung - 970 Evo Plus 500 GB M.2-2280 Solid State Drive (Windows 10 Pro) Samsung - 970 Evo 500 GB M.2-2280 Solid State Drive (MacOS) Gigabyte Radeon RX VEGA 56 8 GB Video Card GC-Titan Ridge Thunderbolt 3 Corsair - RM850x 80+ Gold Certified Fully Modular ATX Power 2x Dell UltraSharp 23.8 "U2419H Monitor First Boot: Second Boot: Link to comment Share on other sites More sharing options...

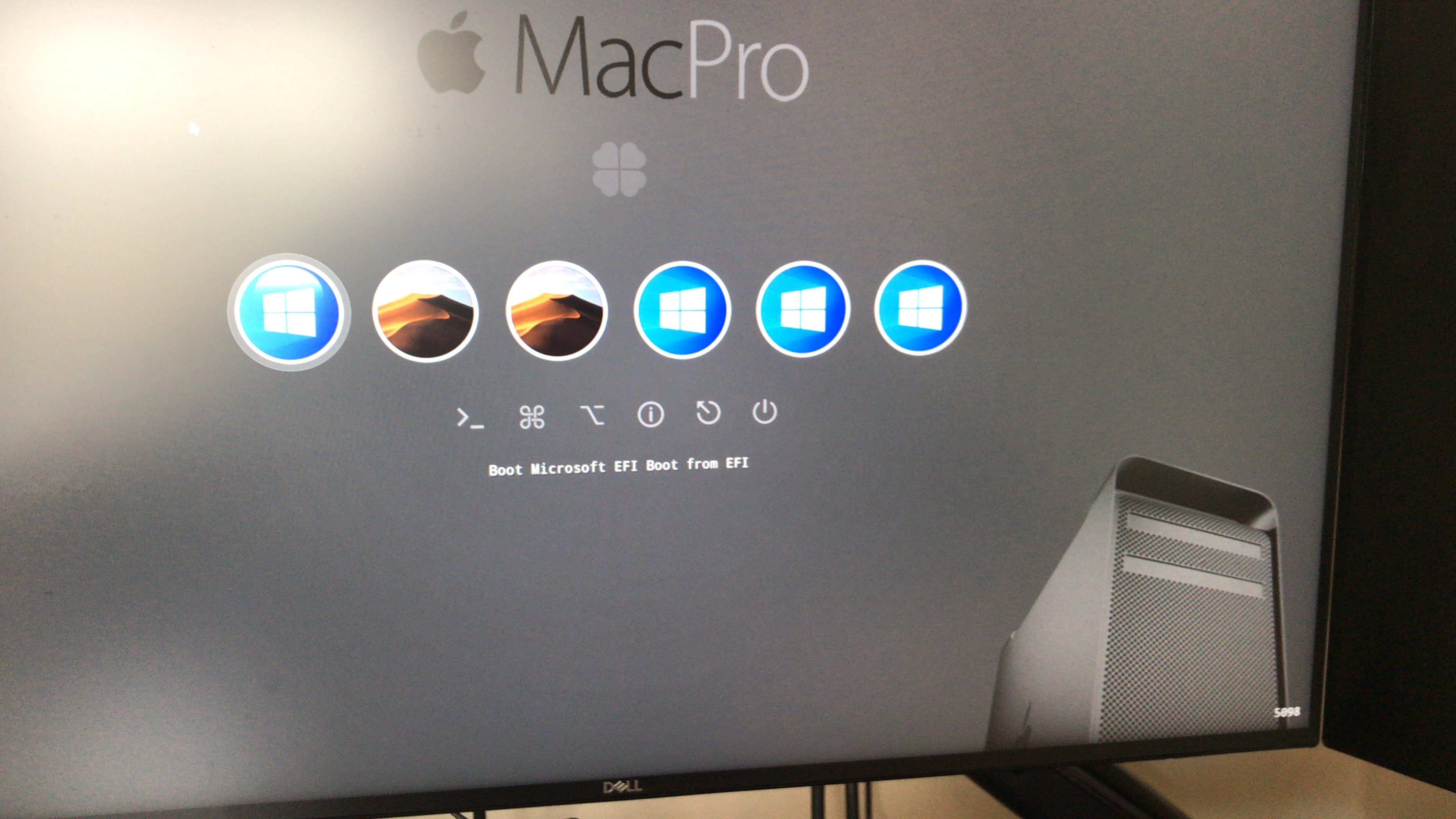

LiveSorcerer Posted January 21, 2020 Share Posted January 21, 2020 (edited) I'm at work, but when I get home I'm going to copy my EFI and post it here, to understand what might be happening. I did a Vanilla installation with Clover 5098. @MaLd0n, any idea? Edited January 21, 2020 by LiveSorcerer Link to comment Share on other sites More sharing options...

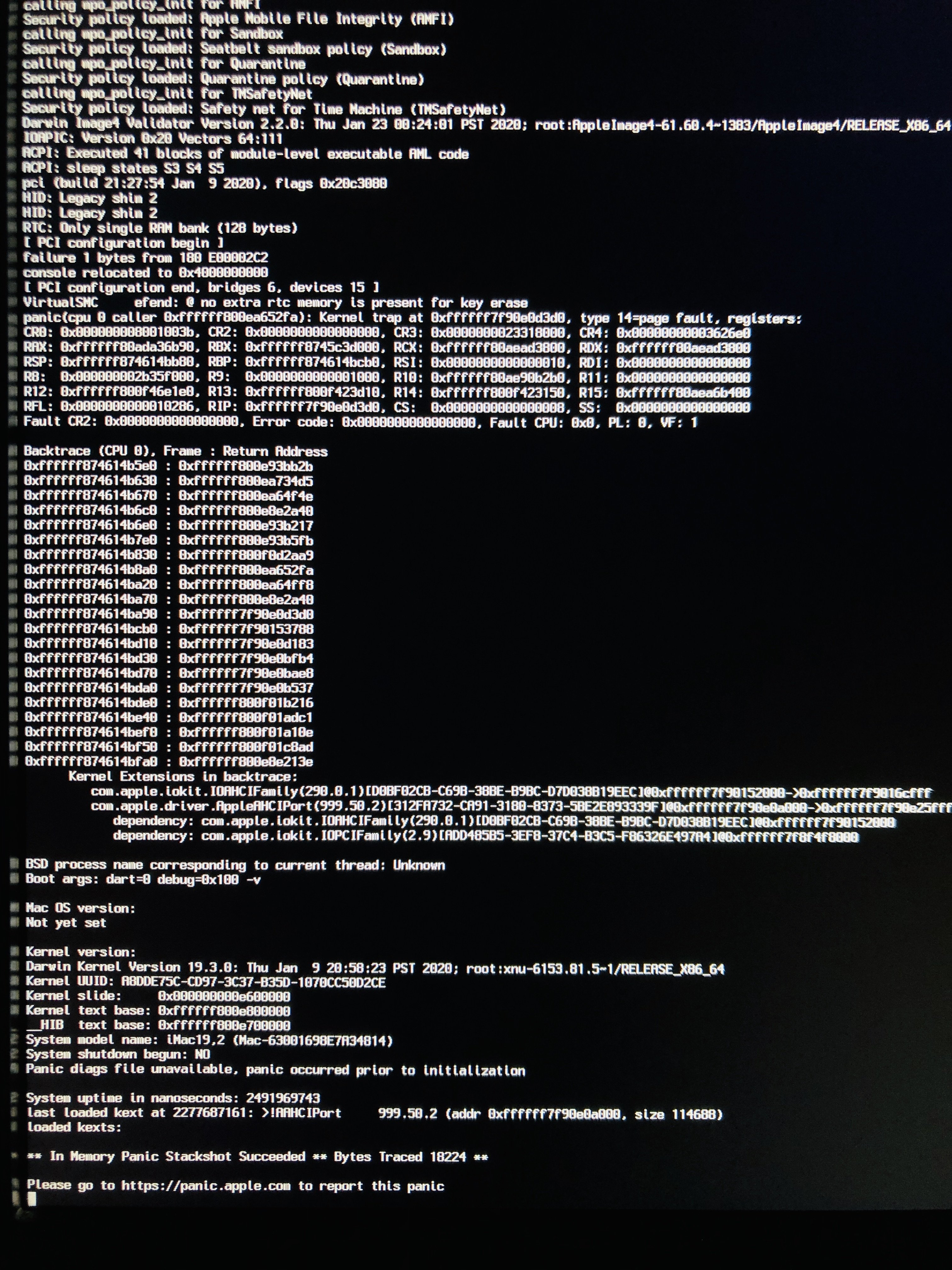

Toshik1978 Posted February 3, 2020 Share Posted February 3, 2020 (edited) @MaLd0n sorry to trouble you, but looks like I have bigger problems now. I've just updated Mac to 10.15.3 and it's not working anymore. Restore from TimeMachine backup (with 10.15.2!!) didn't help. I have panic on boot. Removing patched ACPI didn't solve it too. Is it possible to fix it somehow? W/o possibility to boot system. Thanks! PS. I can boot to Recovery! But not to the system Edited February 3, 2020 by Toshik1978 Link to comment Share on other sites More sharing options...
#McFly Posted February 3, 2020 Share Posted February 3, 2020 Fala @MaLd0n blz? Me fala onde acho esses patch's ou poderia me passar por favor? Claro que alguns são bem conhecidos e já tenho, mas outros não. Obrigado! Quote --DSDT Patches-- -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 10 ID -DMAC -REMOVE 22K LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -MIKEY -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -OPERATION REGION GPIO -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES Link to comment Share on other sites More sharing options...
polanski2k17 Posted March 22, 2020 Share Posted March 22, 2020 On 1/21/2020 at 8:51 PM, LiveSorcerer said: I'm at work, but when I get home I'm going to copy my EFI and post it here, to understand what might be happening. I did a Vanilla installation with Clover 5098. @MaLd0n, any idea? Did you get it to work !? Link to comment Share on other sites More sharing options...
XANO05 Posted May 16, 2020 Share Posted May 16, 2020 Please help me out to make my system in hackintosh.i have Gigabyte z390m gaming, sapphire rx590 gold edition, i7 9700, 32GB ram, 600 watt PSU.i try to make bootable usb. but i cant. i need "EFI" file to put in my bootable usb to the installation. please help me. thanks. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2020 Author Share Posted May 17, 2020 8 hours ago, XANO05 said: Please help me out to make my system in hackintosh.i have Gigabyte z390m gaming, sapphire rx590 gold edition, i7 9700, 32GB ram, 600 watt PSU.i try to make bootable usb. but i cant. i need "EFI" file to put in my bootable usb to the installation. please help me. thanks. update to last bios/uefi version and use my folder from first post 1 Link to comment Share on other sites More sharing options...

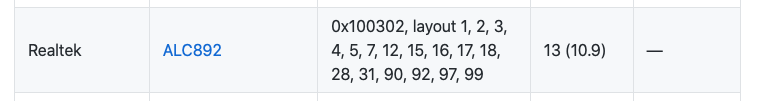

LiveSorcerer Posted May 27, 2020 Share Posted May 27, 2020 Ola @MaLd0n, qual Layout id de audio você usa nessa placa, pois aqui ele esta invertido aqui, pois o som sai no conector de microfone e o microfone na saida de audio. Estou tentando varias configurações. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 28, 2020 Author Share Posted May 28, 2020 2 hours ago, LiveSorcerer said: Ola @MaLd0n, qual Layout id de audio você usa nessa placa, pois aqui ele esta invertido aqui, pois o som sai no conector de microfone e o microfone na saida de audio. Estou tentando varias configurações. 1 Link to comment Share on other sites More sharing options...
LiveSorcerer Posted May 28, 2020 Share Posted May 28, 2020 10 hours ago, MaLd0n said: 1 Acabei de tentar e ainda continua acontecendo. Muito estranho. Não deve ser alguma outra configuraçao, na parte de boot args como lilubetaall e alcbeta que estao ativos ou outra configuraçao? Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2020 Author Share Posted June 3, 2020 use a minha pasta com o meu dsdt Link to comment Share on other sites More sharing options...
