141 posts in this topic

Recommended Posts

22 hours ago, MaLd0n said:

EFI.zip

REPLACE FULL EFI, REBOOT

After replace Full EFI, the booting stop at the white apple screen.

i delete EFI all, reinstalled [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url], and replaced the ACPI patched and config.plist. reboot.

it seems ok, all USB port word. but the front usb2 shows usb3.1.



Thanks MaLd0n.

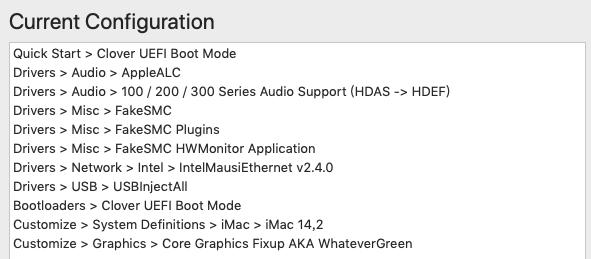

螢幕快照 2019-07-18 上午9.19.20.png

2 hours ago, iamevan66 said:

After replace Full EFI, the booting stop at the white apple screen.

i delete EFI all, reinstalled #####, and replaced the ACPI patched and config.plist. reboot.

it seems ok, all USB port word. but the front usb2 shows usb3.1.



Thanks MaLd0n.

螢幕快照 2019-07-18 上午9.19.20.png

never use tonycrap tools



made one fresh install and use my efi above, don't need install clover or other way, just mount EFI partition and paste EFI folder there

On 7/18/2019 at 11:44 AM, MaLd0n said:

never use tonycrap tools



made one fresh install and use my efi above, don't need install clover or other way, just mount EFI partition and paste EFI folder there

i see, I had note this post yet, I will try this way next week.





  • 2 weeks later...

Great work, MaLd0n!



Same motherboard with 8700K and MSI RX580 8G. Working fine with Clover for me but get Kernel Panic when I try with OpenCore.



I worked with this guide (https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/config.plist/coffee-lake) and also referred to your “OPENCORE FOLDER” for GA Z390 DESIGNARE, but the same Kernel Panic.



Have you used OpenCore with Z390 M Gaming or will you do so?

12 hours ago, youjiuzhiyi said:

Great work, MaLd0n!



Same motherboard with 8700K and MSI RX580 8G. Working fine with Clover for me but get Kernel Panic when I try with OpenCore.



I worked with this guide (https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/config.plist/coffee-lake) and also referred to your “OPENCORE FOLDER” for GA Z390 DESIGNARE, but the same Kernel Panic.



Have you used OpenCore with Z390 M Gaming or will you do so?

my OC folder, i don't use it now, but work good like Clover

EFI.zip

12 hours ago, MaLd0n said:

my OC folder, i don't use it now, but work good like Clover

EFI.zip



Cool! I just copy your EFI folder to my EFI partition and so far so good!:thumbsup_anim:








Using for 1 hour and just find something wrong with the bluetooth. Maybe a USB problem and I think could handle it. I’m using iMac19,1 SMBIOS with Clover now so I will refer to your iMacPro1,1 OpenCore settings and try to modify my own iMac19,1 OpenCore folder.



Thanks a lot and maybe ask you some questions again when I try with iMac19,1 SMBIOS:D

Edited by youjiuzhiyi
  • 3 weeks later...

@MaLd0n Hey, first of all thanks alot for this guide! It was the only one that let me install and boot on my new Z390 M Gaming.

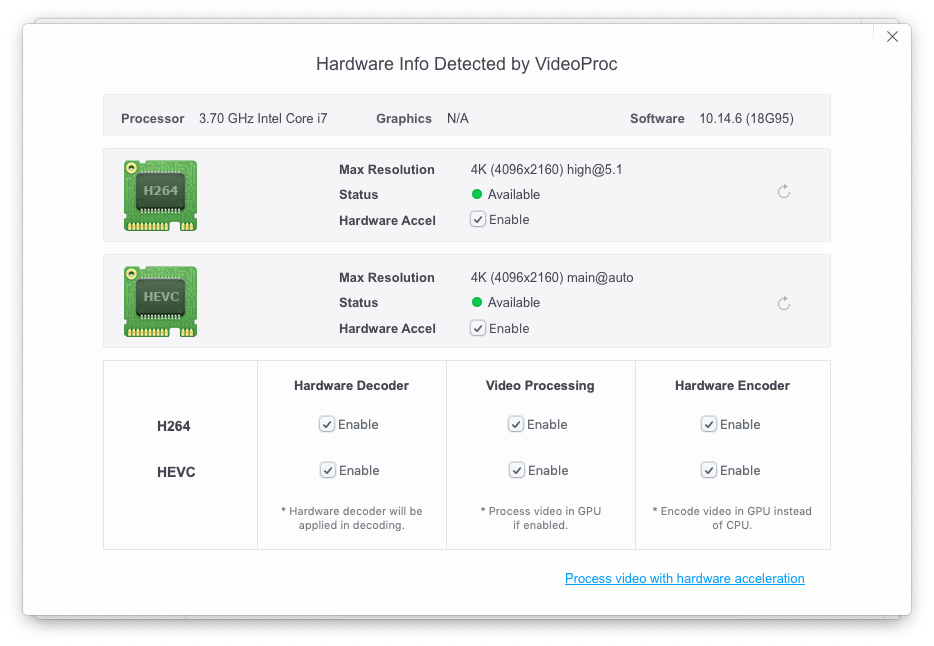

The only problem I have is, that I don't have video hardware acceleration (Preview with images doesn't work, for example).

AFAIK, I have to enable iGPU in the bios to make it work. But whenever I set it from auto to enable, I can't boot anymore and get a Couldn't allocate runtime area error.



Do you have any idea what the problem could be or how to fix it?



My system: 8700k, Gigabyte Z390 M Gaming, Vega56 running Mojave 10.14.6 (18G95)



Edited by locus
21 minutes ago, locus said:

@MaLd0n Hey, first of all thanks alot for this guide! It was the only one that let me install and boot on my new Z390 M Gaming.



The only problem I have is, that I don't have video hardware acceleration (Preview with images doesn't work, for example).

AFAIK, I have to enable iGPU in the bios to make it work. But whenever I set it from auto to enable, I can't boot anymore and get a Couldn't allocate runtime area error.



Do you have any idea what the problem could be or how to fix it?



My system: 8700k, Gigabyte Z390 M Gaming, Vega56 running Mojave 10.14.6 (18G95)



sene me files, i'll check

--Run_Me
RunMe.app
https://www.youtube.com/watch?v=k9wmIfGLe3A

On 9/10/2019 at 3:47 PM, locus said:

The only problem I have is, that I don't have video hardware acceleration (Preview with images doesn't work, for example).

AFAIK, I have to enable iGPU in the bios to make it work. But whenever I set it from auto to enable, I can't boot anymore and get a Couldn't allocate runtime area error.



Well, the iGPU seems to work when I delete WAG and add 0x3E980003 as AAPL,ig-platform-id.




  • 1 month later...
On 3/18/2019 at 4:00 AM, MaLd0n said:

---INSTALLATION TUTORIAL---



---Original Post---

https://olarila.com/forum/viewtopic.php?f=45&t=9172



---USB---

https://pikeralpha.wordpress.com/2016/07/13/simple-skylake-usb-fix-no-kexts-required/



---CLOVER FOLDER---



CLOVER.zip





--MOBO
GigaByte Z390 M Gaming


--PROCESSOR
Intel Core i9-9900K


--COOLER
CoolerMaster MasterLiquid ML120R RGB


--MEMORY
Corsair Dominator Platinum 16GB (2 x 8GB)


--GPU
Sapphiretech Radeon RX 590 8 GB GDDR5




--SSD
Samsung 970 EVO NVMe M2 Flash Drive


--POWER SUPPLY
EVGA 750 N1, 750W


--WIRELESS
TP-Link Archer T9E


--BLUETOOTH
Orico BTA-403


--CASE
Thermaltake View 21 Tempered Glass Edition


--DSDT Patches--


-FIX ERRORS AND WARNINGS
-FIX ACPI ERRORS
-REMOVE UNUSED SCOPES / DEVICES
-HIGH PRECISION EVENT TIMER
-SATA SERIE 10 ID
-DMAC
-REMOVE 22K LINES, PROBLEMATIC and UNUSED
-FIX K.P in REBOOT
-NVRAM / REAL TIME CLOCK
-SLPB
-DARWIN / WINDOWS 2015
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-REAL TIME CLOCK
-ARTC
-IRQs
-SBUS
-MIKEY
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-UAR1
-LAN
-FWHD
-USBX
-PMCR
-PPMC
-XSPI
-GMM
-IMEI
-EC
-PNLF
-ARPT
-GFX0
-NVME
-DTGP
-ACQUIRE MUT0 0XFFFF
-OPERATION REGION GPIO
-MUTEX MUT0 0x00
-EXTERNAL REFERENCES
-UNKNOWNOBJ
-HDMI / HDAU
-FULL RENAMED DEVICES



--SCREENSHOTS--


--BruceX--



--USB-C-- test with SanDisk Ultra USB-STICK 128gb



-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!

We're all here to have fun and learn from each other!

Hi MaLd0n!

serveral days ago I upgraded Mojave to Catlina, now my Audio doesn't work any more, can't find audio devices,and DISPLAY PORT doesn't work neither, while HDMI works well. Can u help me to check my clover? Many thanks!

GA-Z390M-GAMING-CF, 8700K, RX580 2304SP

Send me Justins-iMac.zip

15 hours ago, mahyclarv said:

Hi MaLd0n!

serveral days ago I upgraded Mojave to Catlina, now my Audio doesn't work any more, can't find audio devices,and DISPLAY PORT doesn't work neither, while HDMI works well. Can u help me to check my clover? Many thanks!

GA-Z390M-GAMING-CF, 8700K, RX580 2304SP

Send me Justins-iMac.zip

first use a correct clover folder, reboot and extract new send_me

https://olarila.com/files/Clover.Folder/CLOVER.SERIES.100.200.300.zip

  • 2 weeks later...

Just updated my board to F7 bios and I'm getting a circle with a slash over the apple logo at boot. Verbose says "couldn't allocate runtime area error"

After upgrading to F7 all my EFI settings were wiped out so I had to reconfigure. maybe I'm missing something?

I tried your Clover folder from CLOVER.SERIES.100.200.300.zip and am still getting same thing.

Any ideas what I can try?

18 minutes ago, buzzworm said:

I have one. You built it for me.

Machine was working fine in 10.14.6

updated bios and now it's borked

if update bios need patch again, f7 have severaL changes
