corint1 Posted May 20, 2019 Share Posted May 20, 2019 (edited) @Chanks - you have right -"Correct choice for all Hackintoshes with Polaris, Vega and Radeon VII cards as of 10.14.5 is IGPU disabled + iMacPro1,1 SMBIOS." Edited May 20, 2019 by corint1 Link to comment Share on other sites More sharing options...
CMMChris Posted May 22, 2019 Share Posted May 22, 2019 @ITzTravelInTime No, this iMac uses the 9900K with IGPU. The SMBIOS is totally optimized for IGPU rendering which is a shame because IGPU is slower than RX580 encoders. Thus for Hackintoshes it is the best to turn IGPU off and use iMacPro1,1 for best performance. Otherwise encoding will be done by IGPU. @Picasso Something is wrong with your configuration then. Otherwise it would work. Please make sure you have renamed your ACPI devices properly. 1 Link to comment Share on other sites More sharing options...
Picasso Posted May 22, 2019 Share Posted May 22, 2019 5 hours ago, CMMChris said: @ITzTravelInTime No, this iMac uses the 9900K with IGPU. The SMBIOS is totally optimized for IGPU rendering which is a shame because IGPU is slower than RX580 encoders. Thus for Hackintoshes it is the best to turn IGPU off and use iMacPro1,1 for best performance. Otherwise encoding will be done by IGPU. @Picasso Something is wrong with your configuration then. Otherwise it would work. Please make sure you have renamed your ACPI devices properly. You mean: GFX0 to IGPU HDAS to HDEF HECI to IMEI Thanks! Link to comment Share on other sites More sharing options...
CMMChris Posted May 23, 2019 Share Posted May 23, 2019 PEGP to GFX0 is important as well 1 Link to comment Share on other sites More sharing options...
PPC Posted May 23, 2019 Share Posted May 23, 2019 6 hours ago, CMMChris said: PEGP to GFX0 is important as well Hmm I turned off GFX to IGPU and PEGP to GFX0 for the SMBIOS 1,1 build. But the published wisdom is that with WEG it's not necessary. I turned them off for my 18,3 test and QiuckSync was enabled. 1 Link to comment Share on other sites More sharing options...
foskvs Posted May 23, 2019 Share Posted May 23, 2019 Those renames are useless with iMacPro1,1 SMBIOS. 2 Link to comment Share on other sites More sharing options...
CMMChris Posted May 24, 2019 Share Posted May 24, 2019 @PPC If you use Whatevergreen they are indeed not necessary but you don't need Whatevergreen for your Radeon VII. @foskvs They are not useless but necessary to get hardware acceleration for video on AMD cards. In general I prefer to add all graphics renames (HECI / MEI to IMEI, GFX0 to IGPU and PEGP to GFX0 in exactly this order) regardless if IGPU is active or not. Doesn't hurt and makes things a little easier if for whatever reason I have to enable IGPU one day. In addition, I already did see boards where GFX0 isn't removed from DSDT if IGPU is disabled. This could potentially cause issues if you only rename PEGP to GFX0 since you then have two GFX0 devices. 2 Link to comment Share on other sites More sharing options...
Picasso Posted May 24, 2019 Share Posted May 24, 2019 Whatevergreen v1.2.9 Added AMD Radeon VII to detected list Disabled automatic framebuffer usage on Polaris GPUs Added preserve-names device property to preserve current GPU names Added AppleVPA patching support, replaces NoVPAJpeg.kext (thx CMMChris and uglyJoe) Link to comment Share on other sites More sharing options...
PPC Posted May 24, 2019 Share Posted May 24, 2019 9 hours ago, CMMChris said: @PPC If you use Whatevergreen they are indeed not necessary but you don't need Whatevergreen for your Radeon VII. Hmm, I did remove WEG and would not boot. Had to flip to iGPU in BIOS, put WEG back and reboot into PCIe1. Link to comment Share on other sites More sharing options...
CMMChris Posted May 25, 2019 Share Posted May 25, 2019 Something is wrong with your config then. I am running the VII without WEG and so do a lot of other people. Feel free to provide me with your Clover folder through PM and I will have a look. Link to comment Share on other sites More sharing options...
corint1 Posted May 26, 2019 Share Posted May 26, 2019 22 hours ago, CMMChris said: Something is wrong with your config then. I am running the VII without WEG and so do a lot of other people. Feel free to provide me with your Clover folder through PM and I will have a look. I have black screen and a vga resolution before logon , if dont use WEG Link to comment Share on other sites More sharing options...
CMMChris Posted May 26, 2019 Share Posted May 26, 2019 Flash latest VBIOS and disable CSM afterwards. Link to comment Share on other sites More sharing options...
corint1 Posted May 26, 2019 Share Posted May 26, 2019 last bios...uefi boot ...without WEG , black screen and low resolution ... Link to comment Share on other sites More sharing options...
corint1 Posted June 4, 2019 Share Posted June 4, 2019 (edited) catalina ( 10.15) ---- metal some improvements ---opencl same like 14.6 beta .... Edited June 4, 2019 by corint1 Link to comment Share on other sites More sharing options...
corint1 Posted June 4, 2019 Share Posted June 4, 2019 (edited) 1 hour ago, meaganmargaret said: As for the Radeon VII, with those boot patches, things seem almost identical to the 10.14.6 beta. Similar performance, same problem (scratchy audio), at least for me. some improvements on metal test ... over 180 k in geekbench Edited June 4, 2019 by corint1 Link to comment Share on other sites More sharing options...

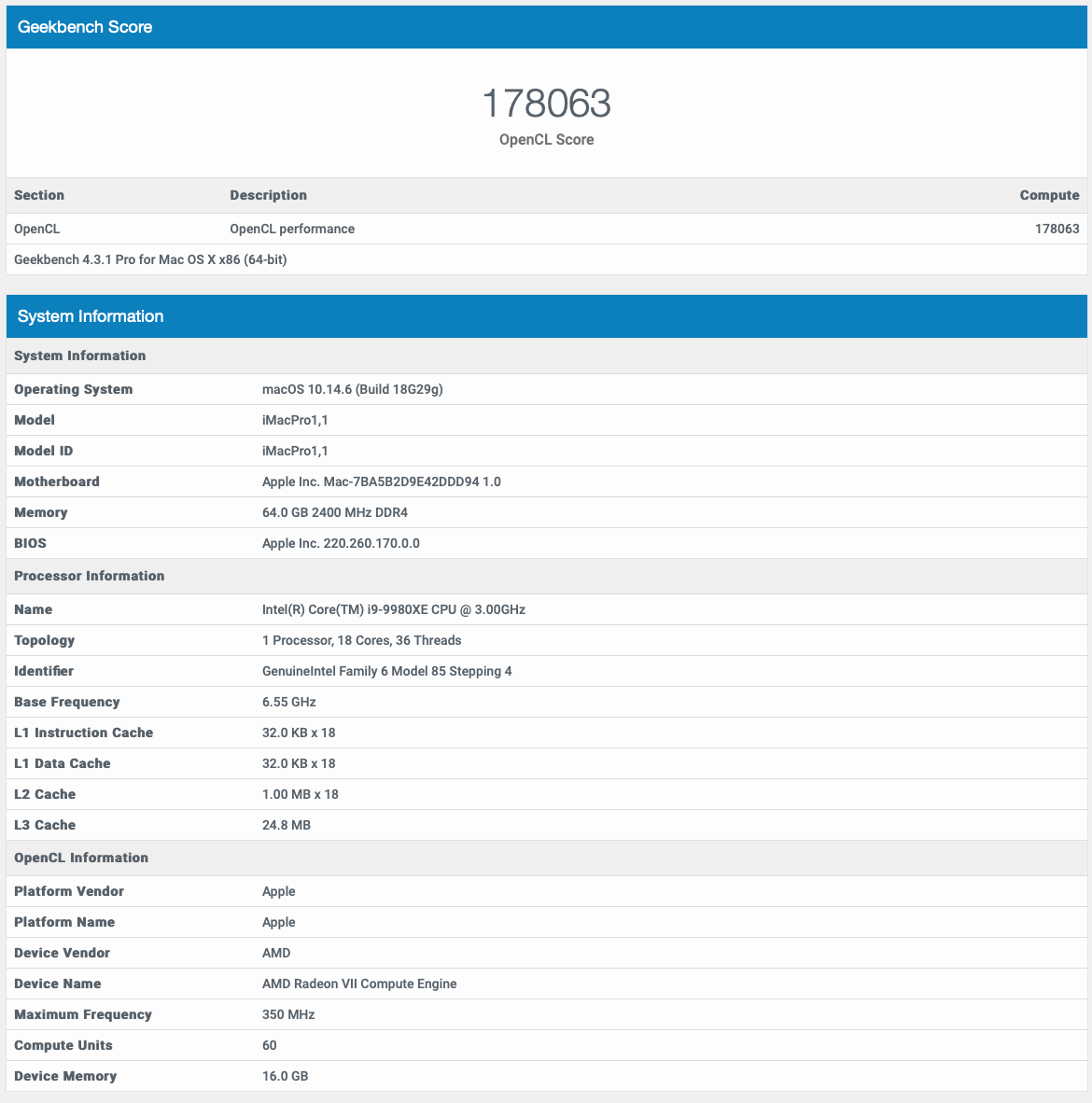

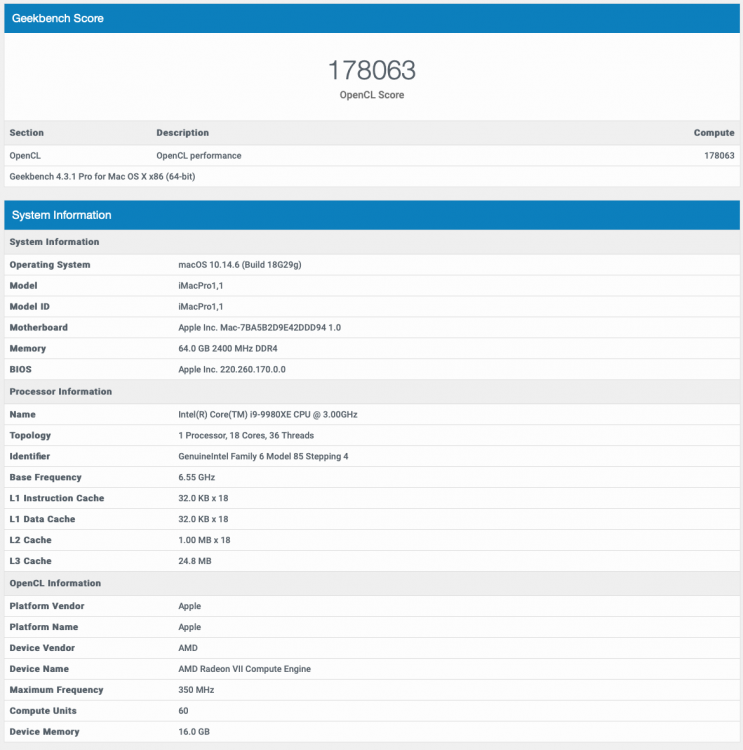

izo1 Posted June 7, 2019 Share Posted June 7, 2019 On 6/4/2019 at 2:20 PM, corint1 said: some improvements on metal test ... over 180 k in geekbench Lately I've been getting this with 10.14.6 Beta 1 (hopefully next beta is around the corner). I touched 180k once but didn't take a screenshot. I am just curious as to why the "maximum frequency" says 350Mhz, even in LuxMark it shows the same thing. This didn't happen with Vega FE I had before. Is it the macOS AMD driver reporting it this way or what? Link to comment Share on other sites More sharing options...
izo1 Posted June 12, 2019 Share Posted June 12, 2019 With 10.14.6 18G48f Beta 2, the following still have not been fixed. 1) Purple lines during the load bar 2) Scratchy DisplayPort Audio Otherwise it's pretty stable. Link to comment Share on other sites More sharing options...
Gen4ig Posted June 12, 2019 Share Posted June 12, 2019 2 hours ago, izo1 said: With 10.14.6 18G48f Beta 2, the following still have not been fixed. 1) Purple lines during the load bar Otherwise it's pretty stable. It falls into almost all category AMD Graphics cards Link to comment Share on other sites More sharing options...
izo1 Posted June 13, 2019 Share Posted June 13, 2019 17 hours ago, meaganmargaret said: So, I've installed Beta 2 of 10.14.6 and I'm really wondering what was the point of this release? I see no significant change, in anything. Has anyone seen any real change? How about enhanced functionality of some sort? My Radeon VII card is almost identical in terms of its performance and it's problems. I'm not just talking about the VII card. Overall, what is different? I don't see much of anything.... As per Dev betas, they are applying bug fixes under the hood. For me, I noticed it's a little more stable than Beta 1 when running a lot of applications and intensive tasks. Radeon VII is working fine, minus the DisplayPort audio bug and the purple lines. The performance should be better than what we have now, maybe they will shift all resources to catalina after final of 10.14.6. Link to comment Share on other sites More sharing options...
izo1 Posted June 14, 2019 Share Posted June 14, 2019 Catalina 10.15 Dev Beta 1 does not fix the purple lines and DisplayPort audio glitch either. The latter is really annoying, I can live with the purple lines, though. Link to comment Share on other sites More sharing options...

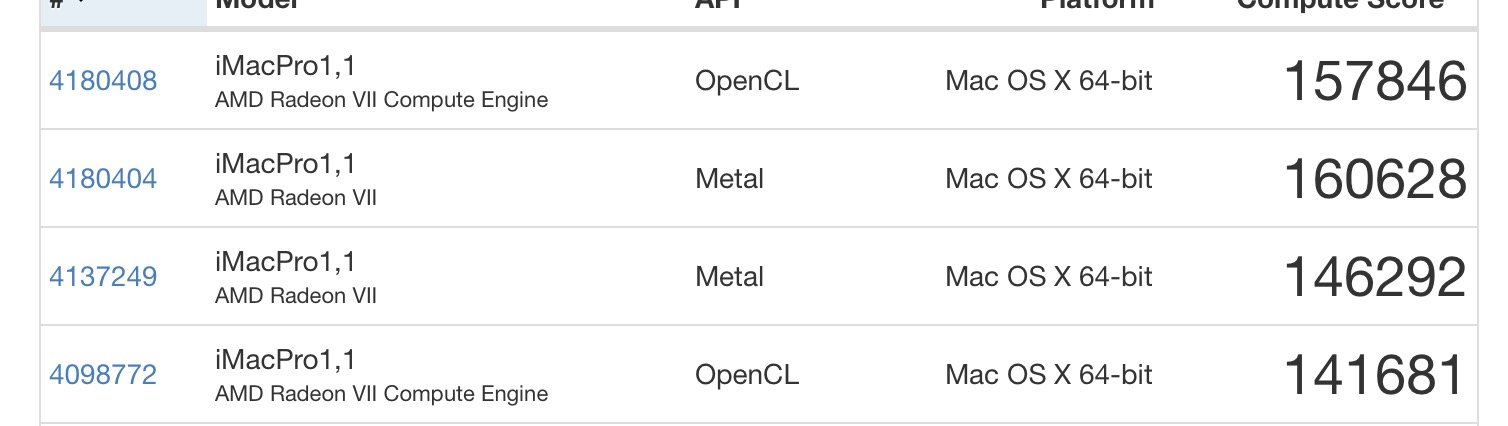

slam_jack Posted June 17, 2019 Share Posted June 17, 2019 (edited) Better results in Geekbench 4 Metal and OpenCL c ompute tests with Lilu 1.3.7 and Whatevergreen 1.3.0 (Mojave 10.14.5) Edited June 17, 2019 by slam_jack Link to comment Share on other sites More sharing options...
sl0wtarget Posted June 18, 2019 Share Posted June 18, 2019 Whatevergreen 1.3.0 you say? Link to comment Share on other sites More sharing options...
izo1 Posted June 18, 2019 Share Posted June 18, 2019 Latest Lilu + WG did nothing for me, same issues...actually OpenCL scores are lower than before. Link to comment Share on other sites More sharing options...
izo1 Posted June 19, 2019 Share Posted June 19, 2019 Update #2 with latest Lilu + WG....It actually made things worst. Audio glitch via DP now lasts forever, with previous release it would fix over time until you restarted. And performance is lower now. I don't know how the Lilu/WG dev can fix this, I made some comments but not sure if they look at it. Link to comment Share on other sites More sharing options...
Guest Posted June 22, 2019 Share Posted June 22, 2019 (edited) tested a XFX Radeon VII in my rig OSXMojave 10.14.5 Catalina 10.15 beta 2 pretty similar result with geekbench for metal and OpenCl (about 170/180K) Cinebench 15 (in 10.14.5 145 frame) Luxmark 3.1 (51000) Without weg and without any special port remapping only HDMI port is working With WEG also 2 of 3 DP ports are ok the first one from top is not seen DP Audio is fine. no scratch at all. Purple lines are there. In my Mb no Bluetooth no wifi. Only a TbEx 3 thunderbolt adapter GFX scales well under load no undervolt needs. Fans are running in a correct way Edited June 22, 2019 by Guest Link to comment Share on other sites More sharing options...
