tChibo Posted July 23, 2019 Share Posted July 23, 2019 https://browser.geekbench.com/v4/compute/4328755 FCPX BENCHMARK https://blog.alex4d.com/2013/10/30/brucex-a-new-fcpx-benchmark/ - 10.5s Link to comment Share on other sites More sharing options...

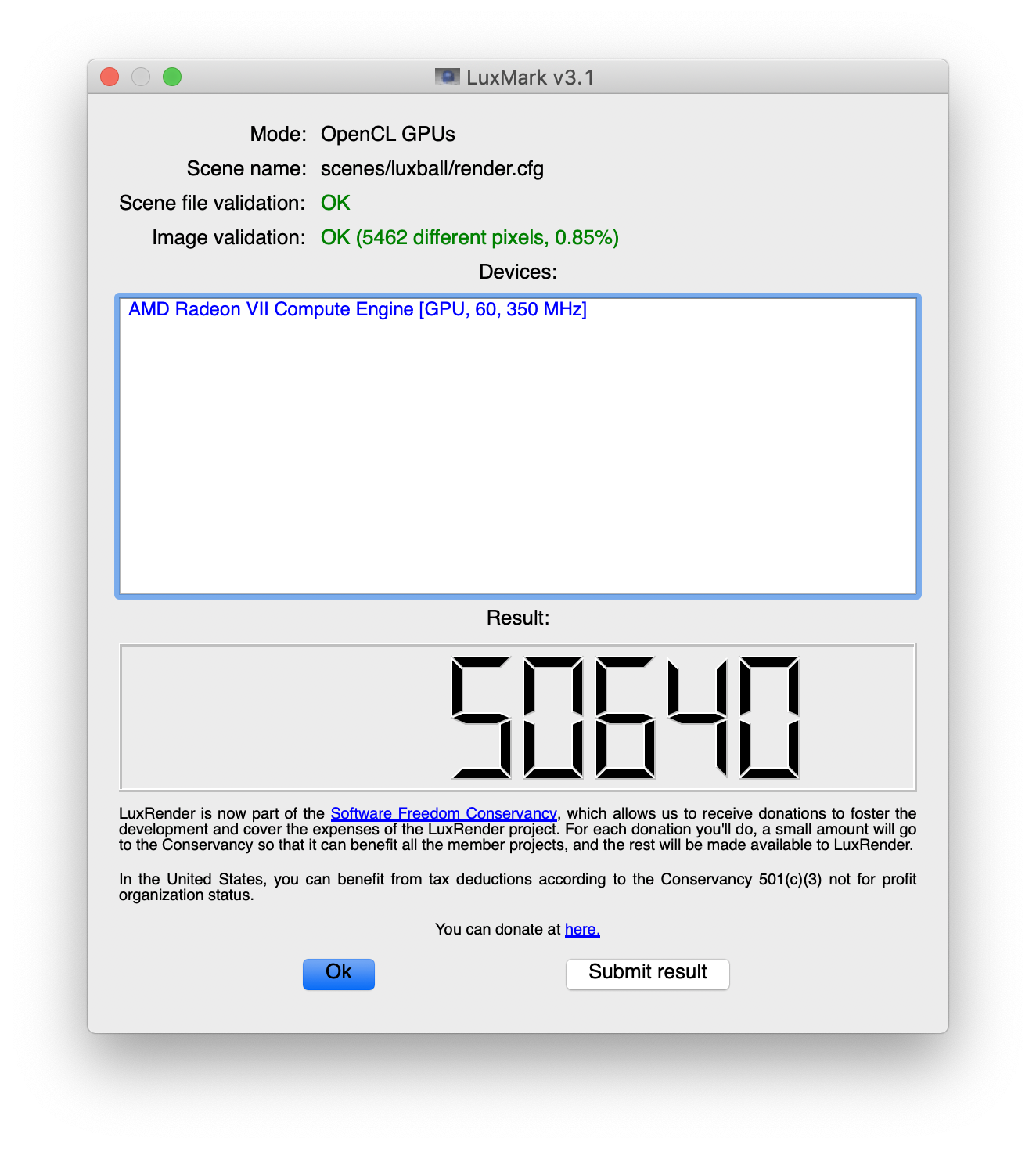

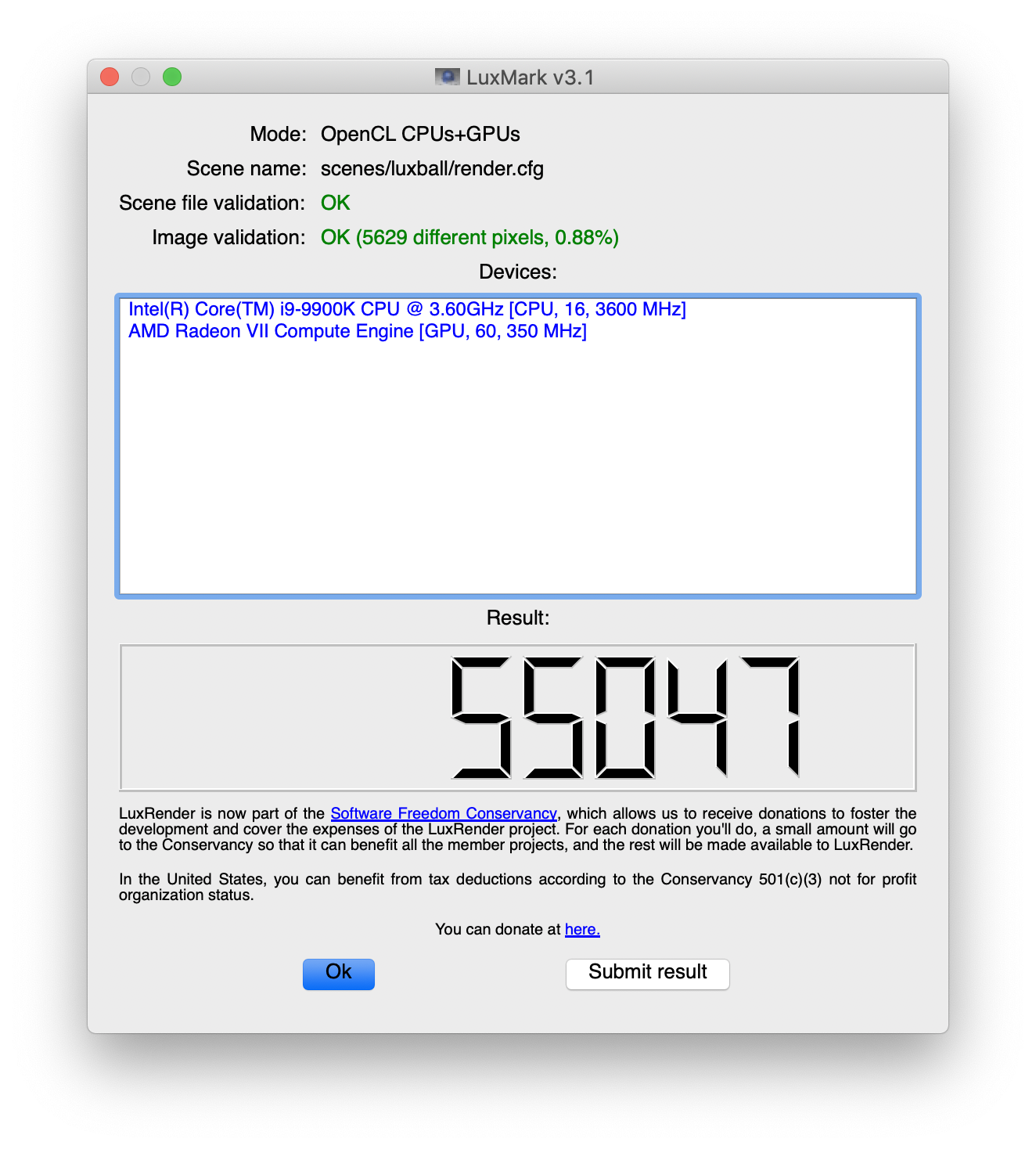

izo1 Posted July 23, 2019 Share Posted July 23, 2019 (edited) 16 minutes ago, tChibo said: https://browser.geekbench.com/v4/compute/4328755 FCPX BENCHMARK https://blog.alex4d.com/2013/10/30/brucex-a-new-fcpx-benchmark/ - 10.5s 3D performance for Radeon VII is excellent. Latest WG (non-release) fixes purple glitches. Luxmark performance is excellent. FCPX performance is excellent. GeekBench OpenCL/Metal performance is sub-par. Luxmark shows the wrong base clock for Radeon VII. DP/HDMI audio glitch in certain environments for Radeon VII. Display dips to black before login screen. This is where we are. AMD drivers for Radeon VII are bugged. Mojave 10.14.6 did not fix these issues. When the new Mac Pro comes out, expect Catalina to fix many of these issues. However, with Mojave, it's finished and we stop at lower OpenCL performance. Edited July 23, 2019 by izo1 Link to comment Share on other sites More sharing options...
tChibo Posted July 23, 2019 Share Posted July 23, 2019 1 minute ago, meaganmargaret said: So, I made the mistake of trusting the files you posted, @tChibo, and you managed to make my system not boot at all. Fortunately, I had a backup boot disk....... WTF?? try compile it yourself... Link to comment Share on other sites More sharing options...

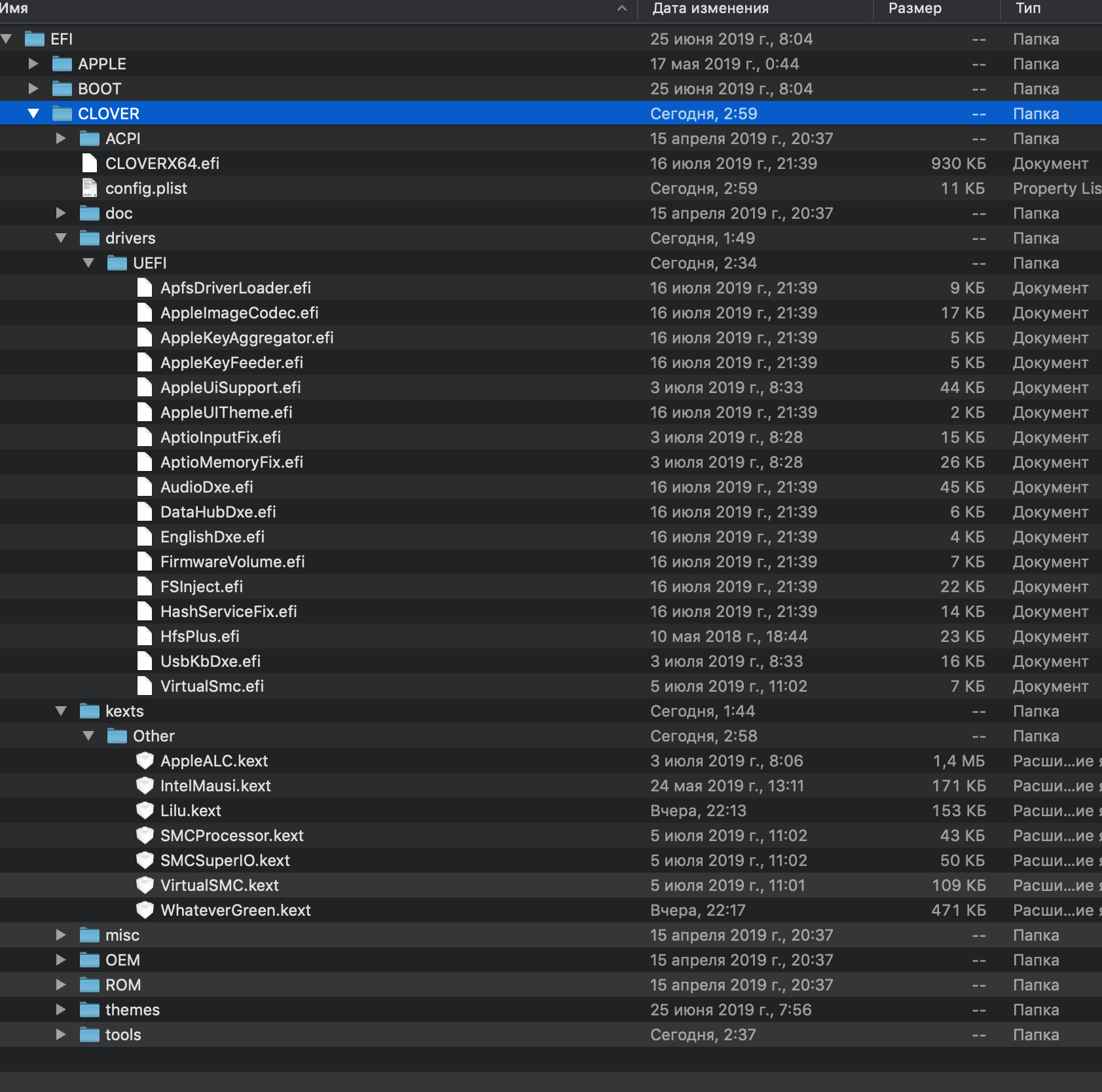

Pavo Posted July 23, 2019 Share Posted July 23, 2019 6 minutes ago, tChibo said: try compile it yourself... Holy {censored}balls, why so many UEFI Drivers? Link to comment Share on other sites More sharing options...
tChibo Posted July 23, 2019 Share Posted July 23, 2019 1 minute ago, Pavo said: Holy {censored}balls, why so many UEFI Drivers? for fv2 Link to comment Share on other sites More sharing options...
izo1 Posted July 23, 2019 Share Posted July 23, 2019 50 minutes ago, meaganmargaret said: So, I made the mistake of trusting the files you posted, @tChibo, and you managed to make my system not boot at all. Fortunately, I had a backup boot disk....... Use attached. I just built them and works fine for me. I suggest you make a USB stick for testing purposes in general, and when ready move it over to the main partition. AppleALC.kext.zip Lilu.kext.zip WhateverGreen.kext.zip Link to comment Share on other sites More sharing options...
123456789323 Posted July 23, 2019 Share Posted July 23, 2019 10 hours ago, izo1 said: It happens without WG/Lilu. It's Apple Radeon VII driver related. I've talked about the boot glitches my friend. Link to comment Share on other sites More sharing options...
ianxpluto Posted July 23, 2019 Share Posted July 23, 2019 14 hours ago, Pavo said: Its not a driver issue, it's related to how the GOP releases the firmware over to the OS to take over. So, any chance we or apple fix it? Link to comment Share on other sites More sharing options...
Pavo Posted July 23, 2019 Share Posted July 23, 2019 7 minutes ago, ianxpluto said: So, any chance we or apple fix it? Not unless someone can reverse engineer the second stage boot loading phase. Link to comment Share on other sites More sharing options...
ianxpluto Posted July 23, 2019 Share Posted July 23, 2019 On 7/21/2019 at 8:33 PM, tChibo said: WHAT???? downgrade bios to F10 Thank you, it’s working. But I will keep testing. 2 hours ago, Pavo said: Not unless someone can reverse engineer the second stage boot loading phase. Probably it’s means we can’t get any solution forever. 2 hours ago, Pavo said: Not unless someone can reverse engineer the second stage boot loading phase. Probably it’s means we can’t get any solution forever. Link to comment Share on other sites More sharing options...
tChibo Posted July 23, 2019 Share Posted July 23, 2019 57 minutes ago, ianxpluto said: Thank you, it’s working. But I will keep testing. https://applelife.ru/threads/gigabyte-z370-aorus-gaming-7-i5-8400.2719631/ thread in russian about your MB Link to comment Share on other sites More sharing options...
izo1 Posted July 24, 2019 Share Posted July 24, 2019 (edited) 15 hours ago, DSM2 said: I've talked about the boot glitches my friend. Yes, the glitches happen without WG, which is related to the Apple/AMD driver. But latest build of WG does fix it. It, along with the dip to black-hand off shouldn't happen in the first place. It will improve in Catalina, so I'm not worried. This second stage black issue started to happen with 10.14.4 or 10.14.5. It did not happen with Vega Frontier Edition, only Radeon VII (when they added support in 10.14.5). The purple lines happen with other AMD cards too since 10.14.5. Edited July 24, 2019 by izo1 Link to comment Share on other sites More sharing options...
Pavo Posted July 24, 2019 Share Posted July 24, 2019 (edited) 24 minutes ago, izo1 said: This second stage black issue started to happen with 10.14.4 or 10.14.5. It did not happen with Vega Frontier Edition, only Radeon VII (when they added support in 10.14.5). The purple lines happen with other AMD cards too since 10.14.5. This is wrong, this has happened since RX series was introduced to High Sierra. I agree that the switch has gotten longer and longer but it’s not driver related. The one thing that Apple machines have that our PCs don’t have in their ACPI tables is the VCFT which has the VBIOS with Apple EFI embedded into it. I believe this is probably a good start to determining the second stage progress bar and logo issue. It’s related how the GPU GOP gets handed off from the firmware to the OS after boot services exit and the Login Screen window handler loads. It possibly could be as easy as just adding the entire VBIOS from the GPU into that table. Edited July 24, 2019 by Pavo 1 Link to comment Share on other sites More sharing options...
izo1 Posted July 24, 2019 Share Posted July 24, 2019 59 minutes ago, Pavo said: This is wrong, this has happened since RX series was introduced to High Sierra. I agree that the switch has gotten longer and longer but it’s not driver related. The one thing that Apple machines have that our PCs don’t have in their ACPI tables is the VCFT which has the VBIOS with Apple EFI embedded into it. I believe this is probably a good start to determining the second stage progress bar and logo issue. It’s related how the GPU GOP gets handed off from the firmware to the OS after boot services exit and the Login Screen window handler loads. It possibly could be as easy as just adding the entire VBIOS from the GPU into that table. I don't know all the specifics or the technicalities, and you're most likely right, but my previous Vega Frontier Edition and Vega 64 LC did not have this issue. It went from Apple load bar > Apple load screen with no dips to black. Of course there was a small "transition" between the handoff, but it did not send a "no signal" to the monitor like it does now. They did something in 10.14.5. I don't have the Vega cards to test any more, only Radeon VII in possession. But I guess it's no big deal. Link to comment Share on other sites More sharing options...
ergot Posted July 24, 2019 Share Posted July 24, 2019 On 7/23/2019 at 3:08 AM, tChibo said: 454681_lilu1.3.8 (1).zip new weg fix boot glitches Thanks!!!! Link to comment Share on other sites More sharing options...
slam_jack Posted July 26, 2019 Share Posted July 26, 2019 On 7/23/2019 at 3:08 AM, tChibo said: 454681_lilu1.3.8 (1).zip new weg fix boot glitches I can also confirm that it works . Link to comment Share on other sites More sharing options...
ianxpluto Posted July 28, 2019 Share Posted July 28, 2019 On 7/24/2019 at 10:39 AM, izo1 said: I don't know all the specifics or the technicalities, and you're most likely right, but my previous Vega Frontier Edition and Vega 64 LC did not have this issue. It went from Apple load bar > Apple load screen with no dips to black. Of course there was a small "transition" between the handoff, but it did not send a "no signal" to the monitor like it does now. They did something in 10.14.5. I don't have the Vega cards to test any more, only Radeon VII in possession. But I guess it's no big deal. I will test it with Vega 64. 1 Link to comment Share on other sites More sharing options...
izo1 Posted August 4, 2019 Share Posted August 4, 2019 An update: Switching to SAGE/10G got rid of all DP Audio glitches for me. So it is related to Prime Deluxe II (or Prime Deluxe I). SAGE/10G also fixed my memory errors (using 128GB) compared to Prime Deluxe II. Link to comment Share on other sites More sharing options...
izo1 Posted August 15, 2019 Share Posted August 15, 2019 (edited) Anyone here with this mobo, DO NOT upgrade to 1102 BIOS for SAGE/10G unless you want to have issues with Above 4G Decoding. Having major issues (GPU/Radeon VII related), had to revert back to 0905 which is very stable. Good luck. Edited August 15, 2019 by izo1 1 Link to comment Share on other sites More sharing options...
Balamut Posted August 16, 2019 Share Posted August 16, 2019 On 8/14/2019 at 10:32 PM, izo1 said: Anyone here with this mobo, DO NOT upgrade to 1102 BIOS for SAGE/10G unless you want to have issues with Above 4G Decoding. Having major issues (GPU/Radeon VII related), had to revert back to 0905 which is very stable. Good luck. What kind of issues? 4G on/off? Link to comment Share on other sites More sharing options...
izo1 Posted August 17, 2019 Share Posted August 17, 2019 6 hours ago, Balamut said: What kind of issues? 4G on/off? 4G OFF = System is stable but still glitchy, none of USB ports work (internal and external) 4G ON = USB works, system unstable, stuttering in GPU dependent applications such as Premiere Pro. System is unusable. there is also a performance drop overall. I contacted ASUS to take down the BIOS. 1 Link to comment Share on other sites More sharing options...
Picasso Posted August 18, 2019 Share Posted August 18, 2019 20 hours ago, izo1 said: 4G OFF = System is stable but still glitchy, none of USB ports work (internal and external) 4G ON = USB works, system unstable, stuttering in GPU dependent applications such as Premiere Pro. System is unusable. there is also a performance drop overall. I contacted ASUS to take down the BIOS. @izo1 do you update your DSDT each time you upgrade bios? 1 Link to comment Share on other sites More sharing options...
izo1 Posted August 18, 2019 Share Posted August 18, 2019 8 hours ago, Picasso said: @izo1 do you update your DSDT each time you upgrade bios? No need to do that. A simple firmware update in the past does not change anything major like device paths etc. Link to comment Share on other sites More sharing options...
Guest Posted August 18, 2019 Share Posted August 18, 2019 @izo1 I have no problem by now with 1102 release I am on HS 10.13.6 and my main task with OSX are with Premiere Pro and Davinci resolve (editing and coloring) Also in windows no problem at all with these applications Could you post some sample to understand where your system fails? PS also usb are working fine (I am using above 4G on and CSM disabled, I need last CSM parameter disabled I fi I use a Thunderbolt Ex 3 as I do) without it system starts fine also with CSM enabled Link to comment Share on other sites More sharing options...
izo1 Posted August 18, 2019 Share Posted August 18, 2019 12 hours ago, fabiosun said: @izo1 I have no problem by now with 1102 release I am on HS 10.13.6 and my main task with OSX are with Premiere Pro and Davinci resolve (editing and coloring) Also in windows no problem at all with these applications Could you post some sample to understand where your system fails? PS also usb are working fine (I am using above 4G on and CSM disabled, I need last CSM parameter disabled I fi I use a Thunderbolt Ex 3 as I do) without it system starts fine also with CSM enabled I'm on Radeon VII, do not have another GPU to test, but with Above 4G on it stutters to hell with Premiere Pro on 1102. Disabling it works ok but USB is gone when 4G is off. I reverted back to 0905 because I need to get work done and don't want to deal with this right now. Link to comment Share on other sites More sharing options...
