italeffect2
italeffect2
Posted
Posted
4 hours ago, CMMChris said:

Settings are:
GPU Clock: 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500
GPU Voltage: 800 / 900 / 950 / 1000 / 1025 / 1050 / 1075 / 1100
HBM2 Clock: 167 / 500 / 800 / 945
HBM2 Voltage: 1080

Fan Idle: 700
Fan Target: 2400
Fan Minimum: 400
Fan Maximum: 4900

Target Temperatur: 55°C
Power Adjustment Range: 100%



Little issue I have: I can only put the code in my clover config.plist with Xcode. When I save the file using Clover Configurator, it changes the Hex values for some reason and it will not work anymore. Anyone knows why it does this?



Could you possibly provide what these setting look like in Xcode or config.plist?



Thanks



Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)
10 hours ago, Wackymac said:

 my appologies Vega Fe, and i had the same issue with 10.13.6 as well as 10.14



@Wackymac I recommend that you use my both kexts, because the settings is for Vega FE.



Im think that settings is progressive to use with VGTab-en.app .... use in curve..... :|



GPU Clock: 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500
GPU Voltage: 800 / 900 / 950 / 1000 / 1025 / 1050 / 1075 / 1100
HBM2 Clock: 167 / 500 / 800 / 945
HBM2 Voltage: 1080

Fan Idle: 700
Fan Target: 2400
Fan Minimum: 400
Fan Maximum: 4900

Target Temperatur: 55°C
Power Adjustment Range: 100%



Edited by max.1974
Link to comment
Share on other sites
Yangbe
Yangbe
Posted
Posted (edited)

hi, man. Here is the kext from @wyhtc  I use,  and maybe fits for me ! But I want to change the fans idle setting, it's hot and getting up until to the temp target, fans rolls up.



Original setting

Core: 1442MHz/1075mV ，Memory: 1045MHz/1075mV，Temp target: 57，Idle fan: 700rpm.



Wanting

Core: 1442MHz/1075mV ，Memory: 1045MHz/1075mV，Temp target: 45，Idle fan: 1000rpm.



Anyone will help me how to do this, I would be so grateful for you !

With Best wish.



XFX Vega 64 Air Cooling

RadeonVegaLowFansSpeed.kext.zip

Edited by darkkart
  • Like 1
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)

Sorry im not know how to do this... but you can see youtube videos using Wattman for windows, and use regedit to get this. In the posts above, okrasit post many settings...;)

Edited by max.1974
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)

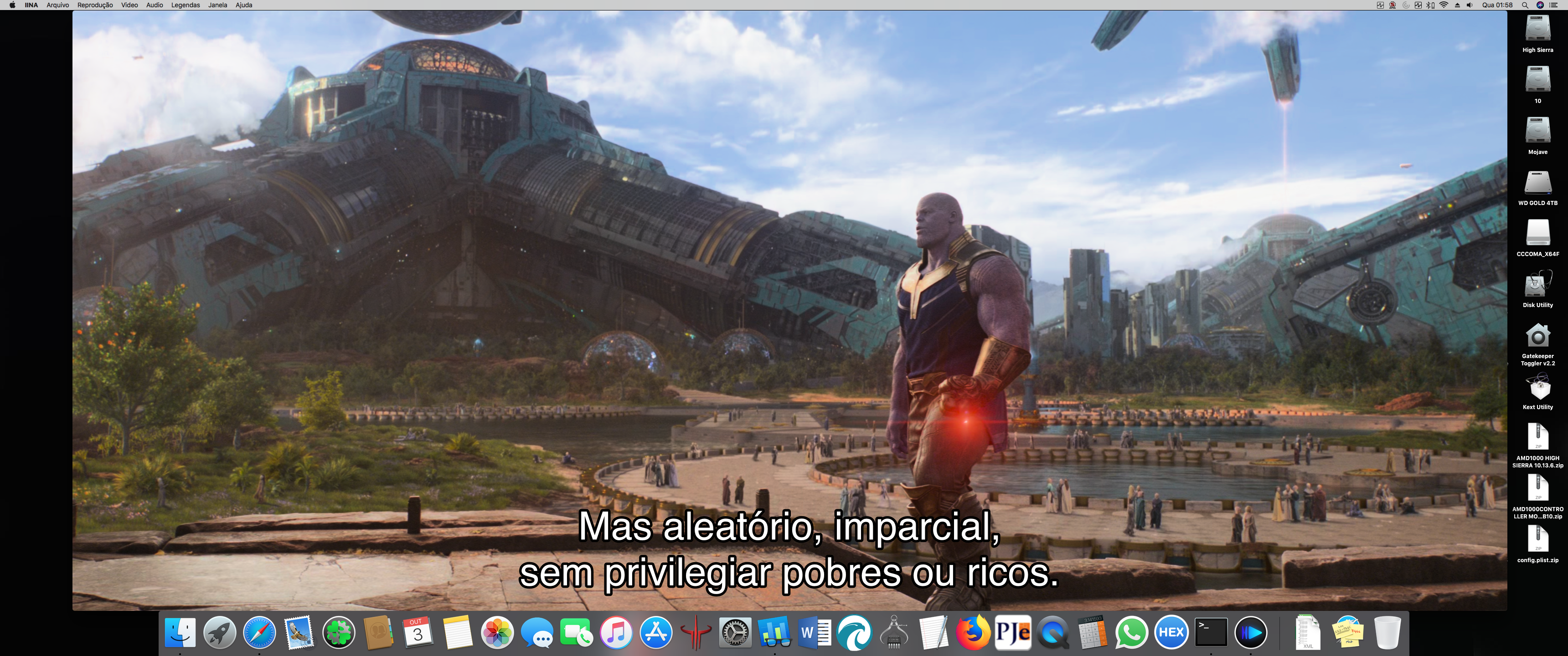

Finaly im find a away...looks good colors, clears fonts, perfect videos, high scores, and stable fan and temperature...



"Fan Speed(%)"=41

"Fan Speed(RPM)"=2010

"Temperature(C)"=34



But my card is Air Cooler...works like a charm!!! Mojave was perfect too!!! :startreck:



On 7/1/2018 at 7:16 AM, oswaldini said:

For custom water cooled ones:

Core: 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 75, Idle fan: 1000rpm

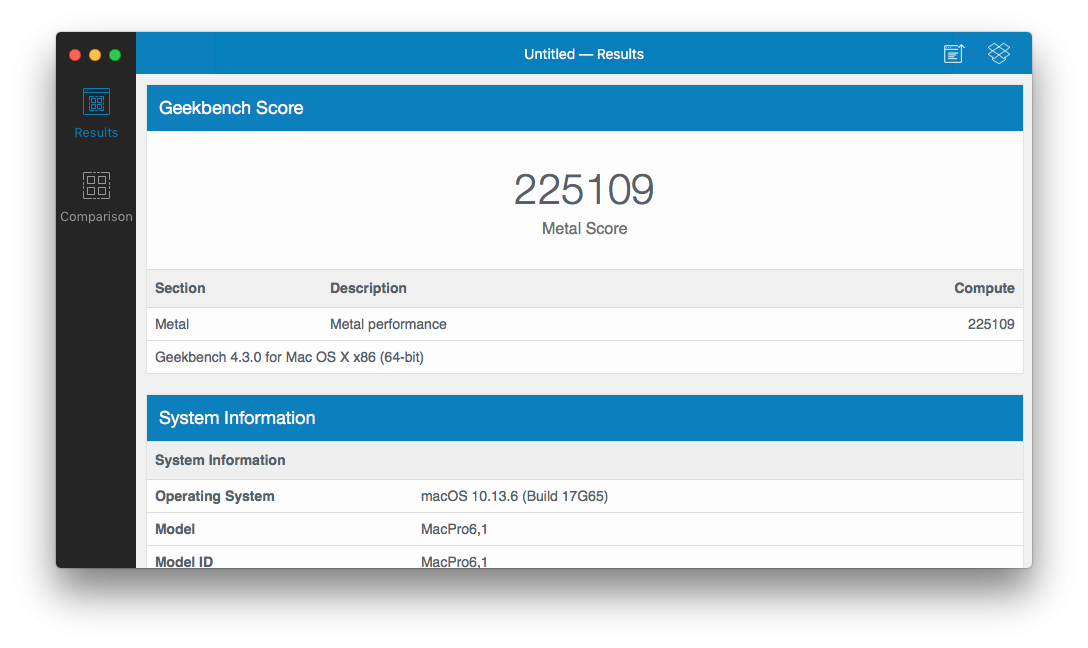

2114235190_CapturadeTela2018-10-03s01_37_23.thumb.png.ae4fe1fcaf6cc26d72768655c9cc711a.png





1290558078_CapturadeTela2018-10-03s01_58_12.thumb.png.d5b92effba5e2e573acbfd8439642202.png



Edited by max.1974
  • Like 1
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)
On 7/1/2018 at 7:16 AM, oswaldini said:

For custom water cooled ones:

Core: 1642MHz/1150mV, Memory: 1045MHz/1075mV, SOC: 1199MHz, Temp target: 75, Idle fan: 1000rpm



Hi my friend @Moviemakergr :thumbsup_anim:



Im use this kexts and works like charm, very good performance...im edit with okrasit values...codes...



AMD MOD HS 1642MHZ 1000 RPM.zip  High Sierra 10.13.6 (17G65)



AMD10000Controller.kext - Mojave beta 1 mod.zip Mojave beta 1



Just modified / add only PP_PhmSoftPowerPlayTable on info.plist...:pirate:



Quote

B6020801 005C00E1 060000EE 2B00001B 00480000 0080A903 00F04902 008E0008 00000000 00000000 00000000 00000201 5C004F02 46029400 9E01BE00 28017A00 8C00BC01 00000000 72020000 9000A802 6D014301 9701F049 02007102 02020000 00000000 08000000 00000000 05000700 03000500 00000000 00000108 84038403 B603E803 1A044C04 60047E04 01013304 01018403 000860EA 00000040 19010001 80380100 02DC4A01 0003905F 01000400 77010005 90910100 0650BD01 00070108 D04C0100 00008000 00000000 00448D01 00010000 00000000 0000DCC7 01000200 00000000 00000098 FC010003 00000000 00000000 D81B0200 04000000 00000000 00F44002 00050000 00000100 00001C64 02000600 00000001 00000068 81020007 00000000 01000000 000560EA 00000040 19010000 80380100 00DC4A01 0000905F 01000000 08286E00 00002CC9 000001F8 0B010002 80380100 03905F01 0004F491 010005D0 B0010006 38C10100 0700086C 39000000 245E0000 01FC8500 0002ACBC 00000334 D0000004 686E0100 05089701 0006B0AD 01000700 01683C01 00000104 3C410000 00000050 C3000000 00008038 01000200 00349801 00040000 01080098 85000040 B5000060 EA000050 C3000001 80BB0000 60EA0000 940B0100 50C30000 0200E100 00940B01 00401901 0050C300 000378FF 00004019 01008826 010050C3 00000440 19010080 38010080 38010050 C3000005 80380100 DC4A0100 DC4A0100 50C30000 06007701 00007701 00905F01 0050C300 00079091 01009091 01000077 010050C3 00000118 00000000 0000000B E412D007 24134B00 0A005403 90019001 90019001 90019001 90010000 00000002 04310790 01900190 01900100 00590069 004A004A 005F0073 00730064 00400090 92976096 00905500 00000000 00000000 00000000 00000000 0202D430 00000210 60EA0000 0210





or Text mode:



Quote

<key>PP_PhmSoftPowerPlayTable</key>
                <data>
                tgIIAQBcAOEGAADuKwAAGwBIAAAAgKkDAPBJAgCOAAgA
                AAAAAAAAAAAAAAAAAAIBXABPAkYClACeAb4AKAF6AIwA
                vAEAAAAAcgIAAJAAqAJtAUMBlwHwSQIAcQICAgAAAAAA
                AAgAAAAAAAAABQAHAAMABQAAAAAAAAABCIQDhAO2A+gD
                GgRMBGAEfgQBATMEAQGEAwAIYOoAAABAGQEAAYA4AQAC
                3EoBAAOQXwEABAB3AQAFkJEBAAZQvQEABwEI0EwBAAAA
                gAAAAAAAAESNAQABAAAAAAAAAADcxwEAAgAAAAAAAAAA
                mPwBAAMAAAAAAAAAANgbAgAEAAAAAAAAAAD0QAIABQAA
                AAABAAAAHGQCAAYAAAAAAQAAAGiBAgAHAAAAAAEAAAAA
                BWDqAAAAQBkBAACAOAEAANxKAQAAkF8BAAAACChuAAAA
                LMkAAAH4CwEAAoA4AQADkF8BAAT0kQEABdCwAQAGOMEB
                AAcACGw5AAAAJF4AAAH8hQAAAqy8AAADNNAAAARobgEA
                BQiXAQAGsK0BAAcAAWg8AQAAAQQ8QQAAAAAAUMMAAAAA
                AIA4AQACAAA0mAEABAAAAQgAmIUAAEC1AABg6gAAUMMA
                AAGAuwAAYOoAAJQLAQBQwwAAAgDhAACUCwEAQBkBAFDD
                AAADeP8AAEAZAQCIJgEAUMMAAARAGQEAgDgBAIA4AQBQ
                wwAABYA4AQDcSgEA3EoBAFDDAAAGAHcBAAB3AQCQXwEA
                UMMAAAeQkQEAkJEBAAB3AQBQwwAAARgAAAAAAAAAC+QS
                0AckE0sACgBUA5ABkAGQAZABkAGQAZABAAAAAAACBDEH
                kAGQAZABkAEAAFkAaQBKAEoAXwBzAHMAZABAAJCSl2CW
                AJBVAAAAAAAAAAAAAAAAAAAAAAACAtQwAAACEGDqAAAC
                EA==
                </data>



Edited by max.1974
  • Thanks 1
  • Haha 1
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)
50 minutes ago, Moviemakergr said:

Are u platinum member, :star_smile:

Thanks bro..

Why u steel on High sierra and mojave beta 1 ?

Mojave works like charm ..



So many thanks bro!! In my job I need some apps that works much better in High Sierra, like e-token to digital signature... this Mojave beta 1 is out after Mojave GM (first release 24 se t2018) ... Developer Program  :D :thanks_speechbubble:



https://www.insanelymac.com/forum/topic/334319-macos-1014-mojave-betas-dps/?do=findComment&comment=2638502

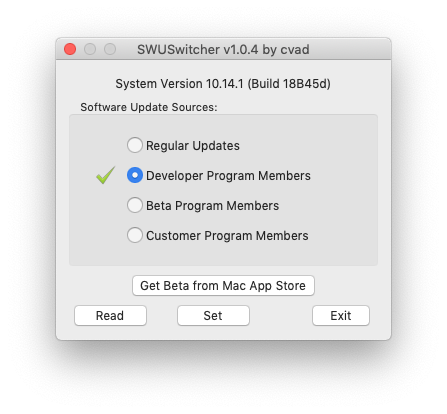

By the way... just out right now beta 2... use SWUSwitcher to set your Mac to receive news betas...:moil::rofl:

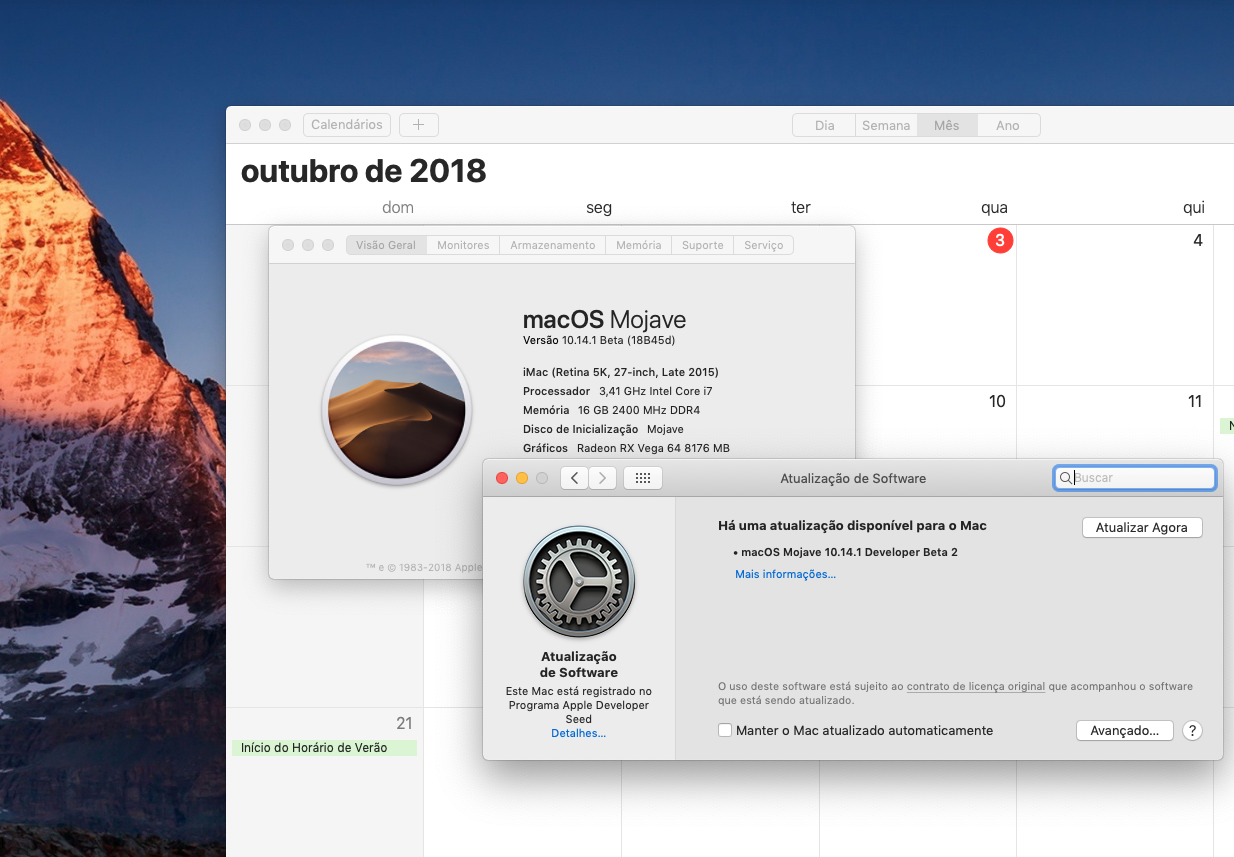

973013526_CapturadeTela2018-10-03s13_35_23.thumb.png.ffcdb6b4175c3f4f84942229c32d450b.png







SWUSwitcher.zip

Edited by max.1974
  • Thanks 1
Link to comment
Share on other sites
flyfree
flyfree
Posted
Posted

Does anybody know the core and memory voltage of Sapphire NITRO+ Vega 64?

Currently, I'm able to get 30K score on LuxMark but the fan is running at 2k rpm constantly.

If I have exact specs, I'd like to try variable fan speed control with VGTab-en.app.



Is anyone using Sapphire NITRO+ Vega 64 successfully?











  • Like 1
Link to comment
Share on other sites
flyfree
flyfree
Posted
Posted
On 9/27/2018 at 10:24 PM, max.1974 said:



Its almost same BIOS my friend, so try this kext that im post. That gave me quiet fans, and good bench scores...

Back up your kext, install with Kext Utility, and run this command in Terminal after kext finish to install:



sudo touch /System/Library/Extensions && sudo kextcache -u /



Restart/Reboot...

Enjoy...:wink_anim:



MOD AMD 10000 10.14 GM.zip



PS: The VGTab-en.app to me is completely fake... kkkkkk  its a Joke for someone who created...not change the settings...doesnt matter what I do...



Look at this BIOS settings its for XFX...



https://www.techpowerup.com/vgabios/200858/200858









Max,



Thanks for sharing this file. You saved my life.

Even the graphics card is not the same as yours, it works charmingly so far. Mine is Sapphire RX Vega 64 Nitro+.



BTW, can I ask what's the different setting between GM and Beta 1?

  • Like 1
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted (edited)
6 hours ago, flyfree said:

Max,



Thanks for sharing this file. You saved my life.

Even the graphics card is not the same as yours, it works charmingly so far. Mine is Sapphire RX Vega 64 Nitro+.



BTW, can I ask what's the different setting between GM and Beta 1?



Hi my friend @flyfree sorry late, im was in travel at work!!!



So glad to help you. :D.. about the differences, About GM, im felling more performance in beta 1 or 2. But if the GM was nice for you, im think that you not need upgrade... a little bit more power and fan issue persist little bit too in betas 1 and 2... GM is good but, not so good (to me) for Amd10000controller.kext. First posts is better quiet and good scores. The last so more loud ... but im hang on... kkkkk :boxing:



You can change only PP_PhmSoftPowerPlayTable (copy and past in info.plist) in any kext AMD10000 version...works for all Vega RX 64 controller :guitar:



Good know that help you!!! :thumbsup_anim:   So enjoy my friend!!!

Many thanks !!



:drool:

Edited by max.1974
  • Like 1
Link to comment
Share on other sites
flyfree
flyfree
Posted
Posted
58 minutes ago, max.1974 said:



Hi my friend @flyfree sorry late, im was in travel at work!!!



So glad to help you. :D.. about the differences, About GM, im felling more performance in beta 1 or 2. But if the GM was nice for you, im think that you not need upgrade... a little bit more power and fan issue persist little bit too in betas 1 and 2... GM is good but, not so good (to me) for Amd10000controller.kext. First posts is better quiet and good scores. The last so more loud ... but im hang on... kkkkk :boxing:



You can change only PP_PhmSoftPowerPlayTable (copy and past in info.plist) in any kext AMD10000 version...works for all Vega RX 64 controller :guitar:



Good know that help you!!! :thumbsup_anim:   So enjoy my friend!!!

Many thanks !!



:drool:

11



Thanks again, Max. :thumbsup_anim:



Yes, I'm doing that way you mentioned, changing only PP_PhmSoftPowerPlayTable in AMD10000Controller.kext.



I'll report here if there is any issue.

  • Like 1
Link to comment
Share on other sites
pbryanw
pbryanw
Posted
Posted (edited)
On 10/1/2018 at 10:41 AM, CMMChris said:

@okrasit Thanks! I meanwhile fixed it myself though. Created an undervolted custom config with VGTab and 1500MHz max clock that runs stable on my machine. Gets me a solid 185k score in Geekbench and 29k score in Luxmark. Also, coil whine is completely gone. Sweet!

@CMMChris - After reading through this thread, and banging my head against the wall because I didn't grasp most of it, your post suddenly made everything make sense for me - thanks!



As per your guide, I used VGTab to create custom tables for my Vega 64 (Powercolor Red Devil), then dropped them in my config.plist under Devices ->Properties



To get my GPU device address, I used gfxutil (./gfxutil -f display). It turned out to be the same address as your GPU device (so I guess this is probably a standard address for a PCI-E GPU).



After this was done, and added to my config.plist, my fans no longer spin up in Mojave after boot (before it usually took 10-20 seconds for them to turn on full blast), so I'm taking this as a sign of your method's success.



I've included the relevant portion of my config.plist below, if it might help others, and to see if anyone can see any errors with it. I guess, it would just be a case of changing the data in <key>PP_PhmSoftPowerPlayTable</key> if I want to make any fan/voltage changes in the future? Thanks :thumbsup_anim:



<key>Devices</key>
	<dict>
		<key>Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)</key>
			<dict>
				<key>PP_DisableDIDT</key>
				<integer>0</integer>
				<key>PP_DisablePowerContainment</key>
				<integer>1</integer>
				<key>PP_DisableVoltageIsland</key>
				<integer>0</integer>
				<key>PP_FuzzyFanControl</key>
				<integer>1</integer>
				<key>PP_PhmSoftPowerPlayTable</key>
				<data>
				tgIIAQBcAOEGAADuKwAAGwBIAAAAgKkDAPBJAgBkAAgA
				AAAAAAAAAAAAAAAAAAIBXABPAkYClACeAb4AKAF6AIwA
				vAEAAAAAcgIAAJAAqAJtAUMBlwHwSQIAcQICAgAAAAAA
				AAgAAAAAAAAABQAHAAMABQAAAAAAAAABCCADhAO2A+gD
				AQQaBDMETAQBAUwEAQGEAwAIYOoAAABAGQEAAYA4AQAC
				3EoBAAOQXwEABAB3AQAFkJEBAAZssAEABwEIgDgBAAAA
				gAAAAAAAAJBfAQABAAAAAAAAAACghgEAAgAAAAAAAAAA
				sK0BAAMAAAAAAAAAAMDUAQAEAAAAAAAAAADQ+wEABQAA
				AAABAAAA4CICAAYAAAAAAQAAAPBJAgAHAAAAAAEAAAAA
				BWDqAAAAQBkBAACAOAEAANxKAQAAkF8BAAAACChuAAAA
				LMkAAAH4CwEAAoA4AQADkF8BAAT0kQEABdCwAQAGwNQB
				AAcACGw5AAAAJF4AAAH8hQAAAqy8AAADNNAAAARobgEA
				BQiXAQAG7KMBAAcAAWg8AQAAAQQ8QQAAAAAAUMMAAAAA
				AIA4AQACAAAkcQEABAAAAQgAmIUAAEC1AABg6gAAUMMA
				AAGAuwAAYOoAAJQLAQBQwwAAAgDhAACUCwEAQBkBAFDD
				AAADeP8AAEAZAQCIJgEAUMMAAARAGQEAgDgBAIA4AQBQ
				wwAABYA4AQDcSgEA3EoBAFDDAAAGAHcBAAB3AQCQXwEA
				UMMAAAeQkQEAkJEBAAB3AQBQwwAAARgAAAAAAAAAC+QS
				AABYAlAACgBUA5ABkAGQAZABkAGQAZABAAAAAAACBBQH
				3ADcANwALAEAAFkAaQBKAEoAXwBzAHMAZABAAJCSl2CW
				AJBVAAAAAAAAAAAAAAAAAAAAAAACAtQwAAACEGDqAAAC
				EA==
				</data>
			</dict>



Edited by pbryanw
  • Like 3
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted
4 hours ago, pbryanw said:

@CMMChris - After reading through this thread, and banging my head against the wall because I didn't grasp most of it, your post suddenly made everything make sense for me - thanks!



As per your guide, I used VGTab to create custom tables for my Vega 64 (Powercolor Red Devil), then dropped them in my config.plist under Devices ->Properties



To get my GPU device address, I used gfxutil (./gfxutil -f display). It turned out to be the same address as your GPU device (so I guess this is probably a standard address for a PCI-E GPU).



After this was done, and added to my config.plist, my fans no longer spin up in Mojave after boot (before it usually took 10-20 seconds for them to turn on full blast), so I'm taking this as a sign of your method's success.



I've included the relevant portion of my config.plist below, if it might help others, and to see if anyone can see any errors with it. I guess, it would just be a case of changing the data in <key>PP_PhmSoftPowerPlayTable</key> if I want to make any fan/voltage changes in the future? Thanks :thumbsup_anim:




<key>Devices</key>
	<dict>
		<key>Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)</key>
			<dict>
				<key>PP_DisableDIDT</key>
				<integer>0</integer>
				<key>PP_DisablePowerContainment</key>
				<integer>1</integer>
				<key>PP_DisableVoltageIsland</key>
				<integer>0</integer>
				<key>PP_FuzzyFanControl</key>
				<integer>1</integer>
				<key>PP_PhmSoftPowerPlayTable</key>
				<data>
				tgIIAQBcAOEGAADuKwAAGwBIAAAAgKkDAPBJAgBkAAgA
				AAAAAAAAAAAAAAAAAAIBXABPAkYClACeAb4AKAF6AIwA
				vAEAAAAAcgIAAJAAqAJtAUMBlwHwSQIAcQICAgAAAAAA
				AAgAAAAAAAAABQAHAAMABQAAAAAAAAABCCADhAO2A+gD
				AQQaBDMETAQBAUwEAQGEAwAIYOoAAABAGQEAAYA4AQAC
				3EoBAAOQXwEABAB3AQAFkJEBAAZssAEABwEIgDgBAAAA
				gAAAAAAAAJBfAQABAAAAAAAAAACghgEAAgAAAAAAAAAA
				sK0BAAMAAAAAAAAAAMDUAQAEAAAAAAAAAADQ+wEABQAA
				AAABAAAA4CICAAYAAAAAAQAAAPBJAgAHAAAAAAEAAAAA
				BWDqAAAAQBkBAACAOAEAANxKAQAAkF8BAAAACChuAAAA
				LMkAAAH4CwEAAoA4AQADkF8BAAT0kQEABdCwAQAGwNQB
				AAcACGw5AAAAJF4AAAH8hQAAAqy8AAADNNAAAARobgEA
				BQiXAQAG7KMBAAcAAWg8AQAAAQQ8QQAAAAAAUMMAAAAA
				AIA4AQACAAAkcQEABAAAAQgAmIUAAEC1AABg6gAAUMMA
				AAGAuwAAYOoAAJQLAQBQwwAAAgDhAACUCwEAQBkBAFDD
				AAADeP8AAEAZAQCIJgEAUMMAAARAGQEAgDgBAIA4AQBQ
				wwAABYA4AQDcSgEA3EoBAFDDAAAGAHcBAAB3AQCQXwEA
				UMMAAAeQkQEAkJEBAAB3AQBQwwAAARgAAAAAAAAAC+QS
				AABYAlAACgBUA5ABkAGQAZABkAGQAZABAAAAAAACBBQH
				3ADcANwALAEAAFkAaQBKAEoAXwBzAHMAZABAAJCSl2CW
				AJBVAAAAAAAAAAAAAAAAAAAAAAACAtQwAAACEGDqAAAC
				EA==
				</data>
			</dict>





Oh great!! Very good!! would you said how settings are you using? Thanks!!!!!

  • Like 1
Link to comment
Share on other sites
zozomester
zozomester
Posted
Posted (edited)

Hi, how to install RadeonVegaLowFansSpeed.kext to Mac Pro High Sierra 10.13.6?

I have Sapphire Vega 64 Limited edition. I have Fan Issue, to high RPM (2400).

Do you know something about it?



Thank!!

Edited by zozomester
  • Like 1
Link to comment
Share on other sites
pbryanw
pbryanw
Posted
Posted (edited)



On 10/6/2018 at 10:08 PM, max.1974 said:



Oh great!! Very good!! would you said how settings are you using? Thanks!!!!!

@max.1974Thanks! I'm using pretty much the same settings as CMMChris posted, with a few tweaks to fan speed & target temp for my card. So:



GPU Clock: 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500
GPU Voltage: 800 / 900 / 950 / 1000 / 1025 / 1050 / 1075 / 1100
HBM2 Clock: 167 / 500 / 800 / 945
HBM2 Voltage: 1100



Fan Idle: 0
Fan Target: 1250
Fan Minimum: 400
Fan Maximum: 2000



Target Temperature: 80°C
Power Adjustment Range: 100%



I've using the Silent Bios on my GPU. In Windows this means the fans don't spin up when the graphics card is idle. I don't know if this can be achieved in macOS? When I try and find fan speed in terminal using:

ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan'

I get a "Fan Speed(RPM)" of 562. So, I'm still unsure what the best fan settings in VGTab are for my card (any help would be appreciated).



I also wonder if the card's SoftPowerPlayTable could be extracted from Windows (I run a dual-boot system), and entered into the <key>PP_PhmSoftPowerPlayTable</key>in order to give a more accurate fan and clock/voltage profile under macOS?

13 hours ago, zozomester said:

Hi, how to install RadeonVegaLowFansSpeed.kext to Mac Pro High Sierra 10.13.6?

@zozomester - I'm guessing you're using a Hackintosh, and the Clover bootloader, so just put it in your CLOVER -> kexts -> Other folder and it should work on next boot.

Edited by pbryanw
  • Like 1
Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted
11 hours ago, zozomester said:

Hi, how to install RadeonVegaLowFansSpeed.kext to Mac Pro High Sierra 10.13.6?

I have Sapphire Vega 64 Limited edition. I have Fan Issue, to high RPM (2400).

Do you know something about it?



Thank!!

Please, post your hardware and system...:happymac:



Link to comment
Share on other sites
Pluskat5000Schiffe
Pluskat5000Schiffe
Posted
Posted
10 hours ago, max.1974 said:

Please, post your hardware and system...:happymac:





Just install Mojave. I have Sapphire RX Vega 64 Nitro+ almost perfect fan conditions:



  • Sysdef = iMacPro1,1
  • I Have Intel UHD630 graphics as iGPU / renderdevice too, (this has impact on fan behaviour, activate in bios / GPU PCI +iGpu / in Mojave it will automatically install).
  • I have only whatsevergreen.kext (latest) in kext folder otherwise black screen issue,
  • After boot fan's are turned off and stay off 0RPM.
  • While 3D usage Gpu 100% usage GPU fans work as normal,
  • After 3D usage Gpu 100% usage GPU fans fall off to 1500RPM,
  • Sleep / Wake restores normal condition to Idle = 0RPM

Not completely perfect but far better compared to HS 10.13.6 and I can live with it.

  • Thanks 1
Link to comment
Share on other sites
zozomester
zozomester
Posted
Posted

My hardware is:     :apple: Mac Pro 2009-5.1, 12 x Xeon X5690 3,46Ghz, 64Gb 1333MHZ, Amfeltec Squid with 4x Toshiba XG5 256GB M.2 SSDs, Kingston HyperX Predator SSD M.2 + HHHL PCIe adapter 960GB (System Disk), Sapphire Vega64 Limited Edition, Inateck KT4004 USB 3.0, Wifi AC/BT4.0



My System:   Macos 10.13.6





Thank You!

Link to comment
Share on other sites
Max.1974
Max.1974
Posted
Posted
5 minutes ago, zozomester said:

My hardware is:     :apple: Mac Pro 2009-5.1, 12 x Xeon X5690 3,46Ghz, 64Gb 1333MHZ, Amfeltec Squid with 4x Toshiba XG5 256GB M.2 SSDs, Kingston HyperX Predator SSD M.2 + HHHL PCIe adapter 960GB (System Disk), Sapphire Vega64 Limited Edition, Inateck KT4004 USB 3.0, Wifi AC/BT4.0



My System:   Macos 10.13.6





Thank You!



Basically you need use with your setting as you want, and insert PP_PhmSoftPowerPlayTable and codes on RadeonVegaLowFansSpeed.kext



Try install with kext utility this:



Silent Fan: already inserted settings...

RadeonVegaLowFansSpeed.kext.zip



After install and before restart your Mac  run in terminal this command:



sudo touch /System/Library/Extensions && sudo kextcache -u /



Restart and enjoy...



If not work or you need another settings, you can call me on pm :wink_anim:!!





  • Like 1
Link to comment
Share on other sites
zozomester
zozomester
Posted
Posted
5 minutes ago, max.1974 said:



Basically you need use with your setting as you want, and insert PP_PhmSoftPowerPlayTable and codes on RadeonVegaLowFansSpeed.kext



Try install with kext utility this:



Silent Fan: already inserted settings...

RadeonVegaLowFansSpeed.kext.zip



After install and before restart your Mac  run in terminal this command:



sudo touch /System/Library/Extensions && sudo kextcache -u /



Restart and enjoy...



If not work or you need another settings, you can call me on pm :wink_anim:!!





Ok, Thank! Tomorrow I try and write ...

  • Like 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
