camillionario Posted August 15, 2017 Share Posted August 15, 2017 Can you upload clover log? 나의 LG-F800S 의 Tapatalk에서 보냄 of course, here you go preboot.log.zip Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 Installing now on desktop. Kept changes from @xtddd but I also noticed I still had EmuVariableUefi on usb stick . Laptop still needs looking at. Great Link to comment Share on other sites More sharing options...
hackintosh1984 Posted August 15, 2017 Share Posted August 15, 2017 EFIPayloads: - IM101.88Z.00CF.B00.1708080133 - IM111.88Z.0037.B00.1708080241 - IM112.88Z.005B.B00.1708080439 - IM121.88Z.004D.B00.1708080012 - IM131.88Z.010F.B00.1708080805 - IM141.88Z.0122.B00.1708080806 - IM142.88Z.0122.B00.1708080739 - IM143.88Z.0122.B00.1708080732 - IM144.88Z.0183.B00.1708080656 - IM151.88Z.0211.B00.1708080656 - MB61.88Z.00CB.B00.1708080203 - MB71.88Z.003D.B00.1708080317 - MBA31.88Z.0067.B00.1708080355 - MBA41.88Z.007B.B00.1708072159 - MBA51.88Z.00F4.B00.1708080803 - MBA61.88Z.0103.B00.1708080653 - MBP101.88Z.00F2.B00.1708080809 - MBP102.88Z.010B.B00.1708080805 - MBP111.88Z.0142.B00.1708080655 - MBP112.88Z.0142.B00.1708080655 - MBP61.88Z.005A.B00.1708072217 - MBP71.88Z.003D.B00.1708080058 - MBP81.88Z.004D.B00.1708080655 - MBP91.88Z.00D7.B00.1708080744 - MM41.88Z.0045.B00.1708072325 - MM51.88Z.007B.B00.1708080744 - MM61.88Z.010B.B00.1708080649 - MM71.88Z.0224.B00.1708080033 - MP61.88Z.0120.B00.1708080652 - IM161.88Z.0212.B00.1708080033 - IM162.88Z.0212.B00.1708080033 - IM171.88Z.0110.B00.1708080012 - IM181.88Z.0151.B00.1708080034 - IM183.88Z.0151.B00.1708080034 - MB101.88Z.0154.B00.1708080122 - MB81.88Z.0168.B00.1708080033 - MB91.88Z.0159.B00.1708080011 - MBA71.88Z.0171.B00.1708072210 - MBP114.88Z.0177.B00.1708080033 - MBP121.88Z.0171.B00.1708080033 - MBP131.88Z.0212.B00.1708080127 - MBP132.88Z.0233.B00.1708080034 - MBP133.88Z.0233.B00.1708080034 - MBP141.88Z.0167.B00.1708080034 - MBP142.88Z.0167.B00.1708080034 - MBP143.88Z.0167.B00.1708080129 SMCJSONs: - Mac-031B6874CF7F642A: 2.14f24 - Mac-189A3D4F975D5FFC: 2.16f68 - Mac-27ADBB7B4CEE8E61: 2.15f7 - Mac-2BD1B31983FE1663: 2.19f12 - Mac-35C1E88140C3E6CF: 2.12f143 - Mac-35C5E08120C7EEAF: 2.24f32 - Mac-3CBD00234E554E41: 2.18f15 - Mac-42FD25EABCABB274: 2.22f16 - Mac-473D31EABEB93F9B: 2.36f97 - Mac-65CE76090165799A: 2.33f10 - Mac-66E35819EE2D0D05: 2.37f20 - Mac-77EB7D7DAF985301: 2.17f7 - Mac-7DF21CB3ED6977E5: 2.13f15 - Mac-81E3E92DD6088272: 2.21f92 - Mac-937CB26E2E02BB01: 2.27f2 - Mac-9AE82516C7C6B903: 2.35f105 - Mac-9F18E312C5C2BF0B: 2.26f2 - Mac-A369DDC4E67F1C45: 2.31f36 - Mac-A5C67F76ED83108C: 2.38f7 - Mac-B809C3757DA9BB8D: 2.34f2 - Mac-BE0E8AC46FE800CC: 2.25f87 - Mac-DB15BD556843C820: 2.33f10 - Mac-E43C1C25D4880AD6: 2.28f7 - Mac-F60DEB81FF30ACF6: 2.20f18 - Mac-FA842E06C61E91C5: 2.23f11 - Mac-FFE5EF870D7BA81A: 2.32f20 FirmwareFeatures(Mask): - IM131.88Z.010F.B00.1708080805: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00de137 - IM141.88Z.0122.B00.1708080806: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00fe137 - IM142.88Z.0122.B00.1708080739: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00fe137 - IM143.88Z.0122.B00.1708080732: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00fe137 - IM144.88Z.0183.B00.1708080656: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xf00fe137 - IM151.88Z.0211.B00.1708080656: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xf80fe137 - MBA41.88Z.007B.B00.1708072159: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xd00de137 - MBA51.88Z.00F4.B00.1708080803: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00de137 - MBA61.88Z.0103.B00.1708080653: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00fe137 - MBP101.88Z.00F2.B00.1708080809: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00de137 - MBP102.88Z.010B.B00.1708080805: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00de137 - MBP111.88Z.0142.B00.1708080655: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe80fe137 - MBP112.88Z.0142.B00.1708080655: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe80fe137 - MBP91.88Z.00D7.B00.1708080744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xc00de137 - MM51.88Z.007B.B00.1708080744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xd00de137 - MM61.88Z.010B.B00.1708080649: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe00de137 - MP61.88Z.0120.B00.1708080652: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe80fe136 - IM171.88Z.0110.B00.1708080012: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - IM181.88Z.0151.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - IM183.88Z.0151.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - MB101.88Z.0154.B00.1708080122: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe13e - MB91.88Z.0159.B00.1708080011: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe13e - MBP131.88Z.0212.B00.1708080127: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - MBP132.88Z.0233.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - MBP133.88Z.0233.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe13e - MBP141.88Z.0167.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - MBP142.88Z.0167.B00.1708080034: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe136 - MBP143.88Z.0167.B00.1708080129: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc0fe13e I have use to my PC config iMac 10,1 and new EFIPayloads - IM101.88Z.00CF.B00.1708080133 , what set value for FirmwareFeaturesMask and FirmwareFeatures, because not is on that list info? Very thanks for help. Link to comment Share on other sites More sharing options...
Loloflat6 Posted August 15, 2017 Share Posted August 15, 2017 Well done ( after some hesitation ) : - Always Clover_v2.4k_r4104 - no change in my apf.efi driver ( driver from june) - no change in smbios or firmewarefeatures Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 @Sherlocks Here is the bootlog from my SkyLake 6700K on GA-Z170X-Gaming 5 GA-Z170X-Gaming 5 - i7 6700K.rtf Link to comment Share on other sites More sharing options...
Sherlocks Posted August 15, 2017 Share Posted August 15, 2017 of course, here you go preboot.log.zip thank you for log. @Sherlocks Here is the bootlog from my SkyLake 6700K on GA-Z170X-Gaming 5 thanks. i got it Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 Hi there. Have any of you guys seen new support added for polaris12 (rx550) in latest DP? Its probably not / no. From 2 months ago: > There is no 699F device ID in the kexts to allow Polaris 12 work in Mac OS. I just ask because the polaris12 has fewer CUs than rx460. So when we tried to spoof it today (on sierra 12.6) to be rx460, it just hard resets during boot time. Maybe its trying to address processing units which are not there, and then crashes. Anyhow this is not a problem for me. Just thought to ask while still have the card in hands. In few days / couple of weeks I will return this card back to retailer anyhow due to fan noise issue / coil whine. And then revert back to passive gt1030 instead. What confused me was I bought this card (not checking carefuly!), just assuming it was already supported. Since a lot earlier on there was a news finding stuff like Polaris12 id in kexts: https://forums.appleinsider.com/discussion/197513/trio-of-new-amd-gpu-references-for-possible-mac-refresh-found-in-latest-macos-sierra-beta Ah well. If I'm not mistaking the device ID for RX550 is 1002699F and I can't find it any of the AMDFramebuffer kext files. So no, it's not added to the latest version. 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted August 15, 2017 Share Posted August 15, 2017 I have use to my PC config iMac 10,1 and new EFIPayloads - IM101.88Z.00CF.B00.1708080133 , what set value for FirmwareFeaturesMask and FirmwareFeatures, because not is on that list info? Very thanks for help.Try install without FF FFM. Then tell me result. Some smbios model are not clean. We need to clean 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
camillionario Posted August 15, 2017 Share Posted August 15, 2017 thank you for log. thanks. i got it Is everything all right or is there something to consider? Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted August 15, 2017 Share Posted August 15, 2017 @ricoc90 The new patch looks healthy. But why not use AirportBrcmFixup instead? (You also need Lilu v1.1.6 of course) Within Sierra, the only way I can make my Archer T6E work is by using find: 81f952aa 00007529 -> replace: 81f952aa 00006690 Otherwise my wireless won't work (No hardware found). Something about Brcm4360 start failed. I just tried AirportBrcmFixup. The kext is loaded but it gives me the same problem: Brcm4360 start failed -> No hardware found Within High Sierra I don't need that patch, since Wifi works OOB. Only Handoff doesn't. Handoff works when I either replace AirPortBrcm4360.kext with the one from Sierra and use the same patch, OR if I add my device ID to high Sierra's AirPortBrcm4360.kext's info.plist, OR, when I use Fake PCI ID 41e4,4331. Actually, it uses BrcmNIC-MFG per default and I could not find a way to make Handoff work on it. It only works if I force macOS to load AirPortBrcm4360.kext Link to comment Share on other sites More sharing options...
SavageAUS Posted August 15, 2017 Share Posted August 15, 2017 Is battery indicator fixed in beta 6? Still waiting to install on my laptop so I thought I'd ask first. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted August 15, 2017 Share Posted August 15, 2017 Is everything all right or is there something to consider? your log is good. i want log. reboot, in gui, go setting, on graphic, check injectnvidia, exit and boot and get log thanks Link to comment Share on other sites More sharing options...

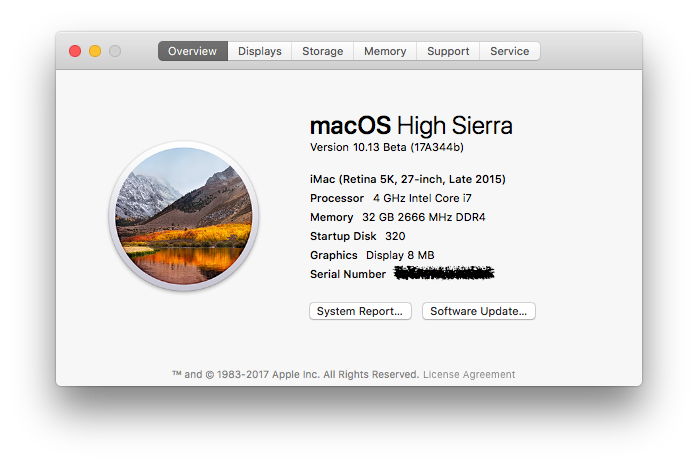

xtddd Posted August 15, 2017 Share Posted August 15, 2017 Installing now on desktop. Kept changes from @xtddd but I also noticed I still had EmuVariableUefi on usb stick . Laptop still needs looking at. Sent from my SM-G930F using Tapatalk my mb is also Z170 and graphic is gtx960 Here is the EFI folder I used to install macOS High Sierra 17A344b on my SkyLake machine. great guide Well done ( after some hesitation ) : - Always Clover_v2.4k_r4104 - no change in my apf.efi driver ( driver from june) - no change in smbios or firmewarefeatures very good luck! @cyberdevs you can remove "apple rtc,kernel pm,asusaicpupm in config.plist @@cyberdevs hi..you use smbios imac17.1 but i cant see your blackscreen kext in clover 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 my mb is also Z170 and graphic is gtx960 great guide very good luck! @cyberdevs you can remove "apple rtc,kernel pm,asusaicpupm in config.plist Thanks Do you have a GA-Z170X-Gaming 5 mobo too? Without AppleRTC BIOS wouldn't reset? and Without KernelPm it wouldn't boot I haven't tested the new versions of Clover yet. Link to comment Share on other sites More sharing options...
xtddd Posted August 15, 2017 Share Posted August 15, 2017 Thanks Do you have a GA-Z170X-Gaming 5 mobo too? Without AppleRTC BIOS wouldn't reset? and Without KernelPm it wouldn't boot I haven't tested the new versions of Clover yet. my mb is z170-hd3 and runs 10.12.6 without these parameters Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 my mb is z170-hd3 and runs 10.12.6 without these parameters Without KernelPm my system won't boot. Link to comment Share on other sites More sharing options...
xtddd Posted August 15, 2017 Share Posted August 15, 2017 Without KernelPm my system won't boot. OK Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 OKEversince BIOS update f20 KernelPm is needed for Gigabyte Z170X-Gaming 5 mainboards. What is your BIOS version? Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
Loloflat6 Posted August 15, 2017 Share Posted August 15, 2017 (edited) Just a little issue : Can't see my existing recovery partition when i boot in Clover : dev/disk3 (synthesized): #: TYPE NAME SIZE IDENTIFIER 0: APFS Container Scheme - +119.2 GB disk3 Physical Store disk0s2 1: APFS Volume Macintosh-HD 33.0 GB disk3s1 2: APFS Volume Preboot 29.4 MB disk3s2 3: APFS Volume Recovery 519.6 MB disk3s3 4: APFS Volume VM 2.1 GB disk3s4 Driver apfs.efi DP6 fixed the bug and updated clover to r4173 Edited August 19, 2017 by Loloflat6 Link to comment Share on other sites More sharing options...

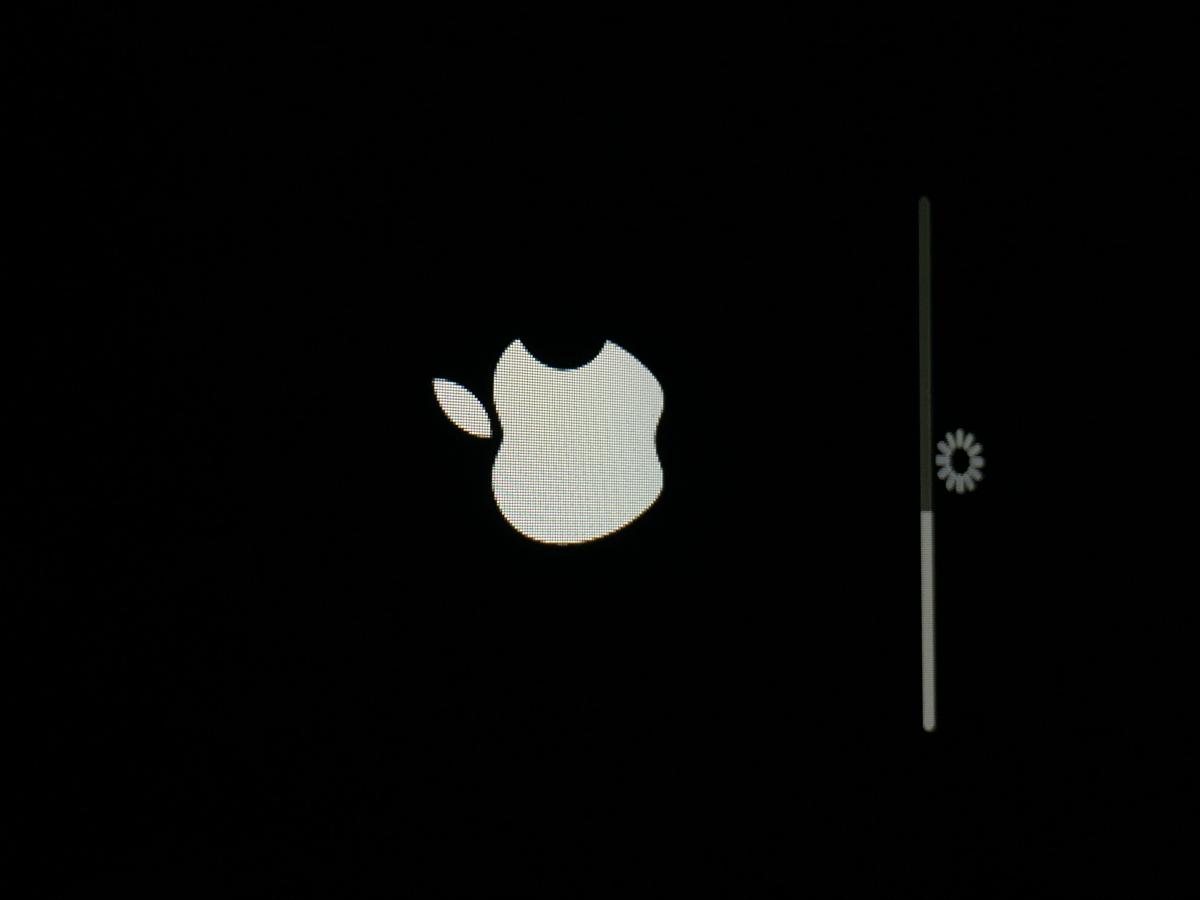

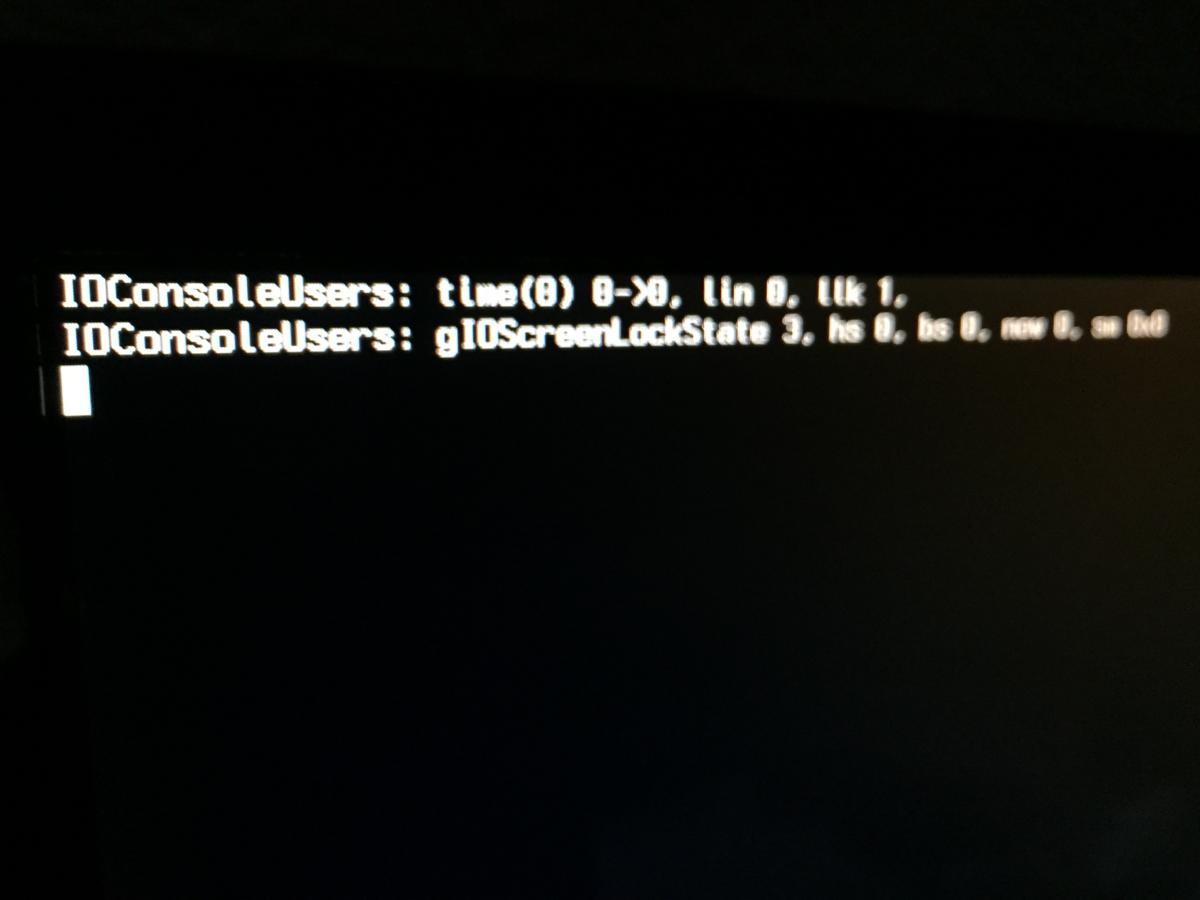

camillionario Posted August 15, 2017 Share Posted August 15, 2017 your log is good. i want log. reboot, in gui, go setting, on graphic, check injectnvidia, exit and boot and get log thanks Well but, do not load the graphics and stay here Preboot preboot.log.7z 1 Link to comment Share on other sites More sharing options...
xtddd Posted August 15, 2017 Share Posted August 15, 2017 Eversince BIOS update f20 KernelPm is needed for Gigabyte Z170X-Gaming 5 mainboards. What is your BIOS version? Sent from my iPhone using Tapatalk 2.17 i dont update bios version Link to comment Share on other sites More sharing options...
SavageAUS Posted August 15, 2017 Share Posted August 15, 2017 Eversince BIOS update f20 KernelPm is needed for Gigabyte Z170X-Gaming 5 mainboards. What is your BIOS version? Sent from my iPhone using Tapatalk I'm on bios f22a on mine and I'm using xtddd suggestion and I could boot. Will test more tomorrow and let you know. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 15, 2017 Share Posted August 15, 2017 I'm on bios f22a on mine and I'm using xtddd suggestion and I could boot. Will test more tomorrow and let you know. Sent from my SM-G930F using Tapatalk I'm on the same BIOS but it could not boot. I had to leave the house I will do more tests later Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
luky35 Posted August 15, 2017 Share Posted August 15, 2017 Install no problem Link to comment Share on other sites More sharing options...
Sherlocks Posted August 15, 2017 Share Posted August 15, 2017 Well but, do not load the graphics and stay here IMG_3138.JPG IMG_3139.JPG Preboot preboot.log.7z Use injectnvidia right?Injectnvidia + use web driver. Still can't boot? Its just test for check ram size calculation. 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
