[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell


MaLd0n
2,509 posts in this topic

Recommended Posts

  • 3 weeks later...
On 9/20/2019 at 12:32 AM, duyvbsp said:

Hello @MaLd0n



I try use your CLOVER folder to boot my old clevo P370EM laptop but i'm stuck.



My specs: i7-3610QM, 8GB DDR3, GTX970M single



I attach my usb EFI folder bellow



Pls help me to boot into macOS installation. Thanks a lot



EFI.rar

check if problem is Embedded Controller Device

55 minutes ago, Paolo7297 said:

Hello! @MaLd0n i tried to upgrade to catalina but the updater does not start.

And also i'm not able to pair pamu slide (at first pair it's all okay, from the second one there are problems), there's something wrong here?

Can you check my clover folder?

Send me MacBook-Asus.zip

u need check what cause it, idk

Link to comment
Share on other sites

  • 3 weeks later...

hi can anyone help

my spec is i7 860 lynnfield,  mobo dfi lanparty p55 t3eh9, xfx rx470

i installed with uni beast method



im stuck during apple loading,

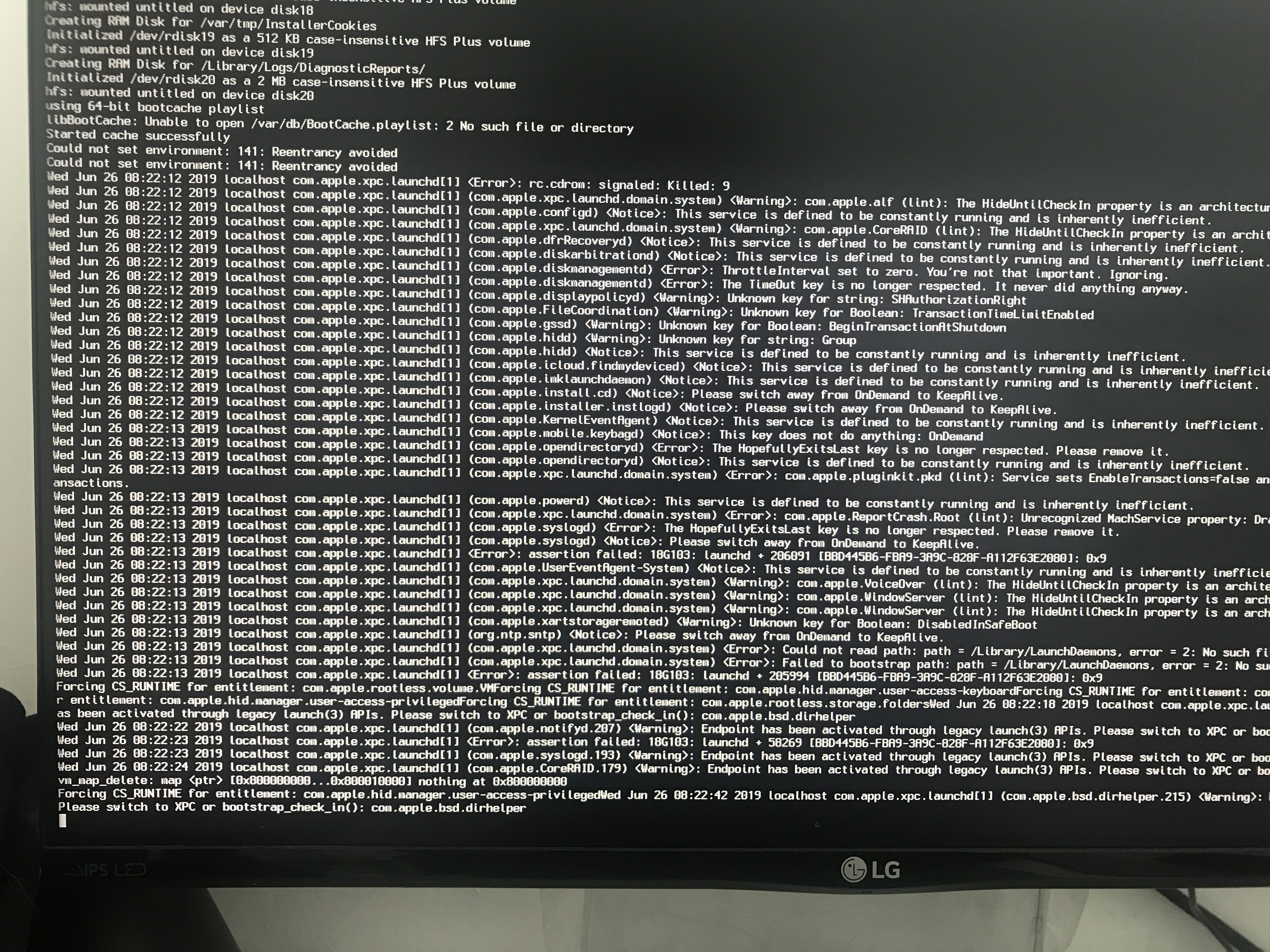

it restart every half way verbose picture attached right before restart







Edited by amuse.me
Link to comment
Share on other sites

2 hours ago, amuse.me said:

hi can anyone help

my spec is i7 860 lynnfield,  mobo dfi lanparty p55 t3eh9, xfx rx470

i installed with uni beast method



im stuck during apple loading,

it restart every half way verbose picture attached right before restart







xfx is very problematic card under macos

Link to comment
Share on other sites

  • 1 month later...
1 hour ago, desmocrash said:

Hello MaLd0n
Following an installation of high sierra
the usb3 no longer works. Can you help me please
Thank you

Asus z97m-Plus, I7 4770, hub Usb3

Envoyez-moi Imac-Pro-de-eusebio.zip

use this efi folder, reboot and extract new send_me

https://olarila.com/files/Clover.Folder/CLOVER.SERIES.CHIPSET.zip

Link to comment
Share on other sites

  • 2 weeks later...
On 12/21/2019 at 2:10 AM, MaLd0n said:

+++++++

Dear Doctor ,
I'm trying to upgrade my Mojave(10.14.1 works fine) to Catalina(10.15.2).
As usual,
I make a USB disk:  sudo ----------------
install  clover 5102 to USB
copy current EFI to USB EFI
Then first boot: Panic of course, following the panic info ,I put the AppleMCEreportDisabler.kext in USB then fixed(i think)
The second try still no luck, it goes further but still not in the installation screen. The info always scroll out of the screen(mad)..

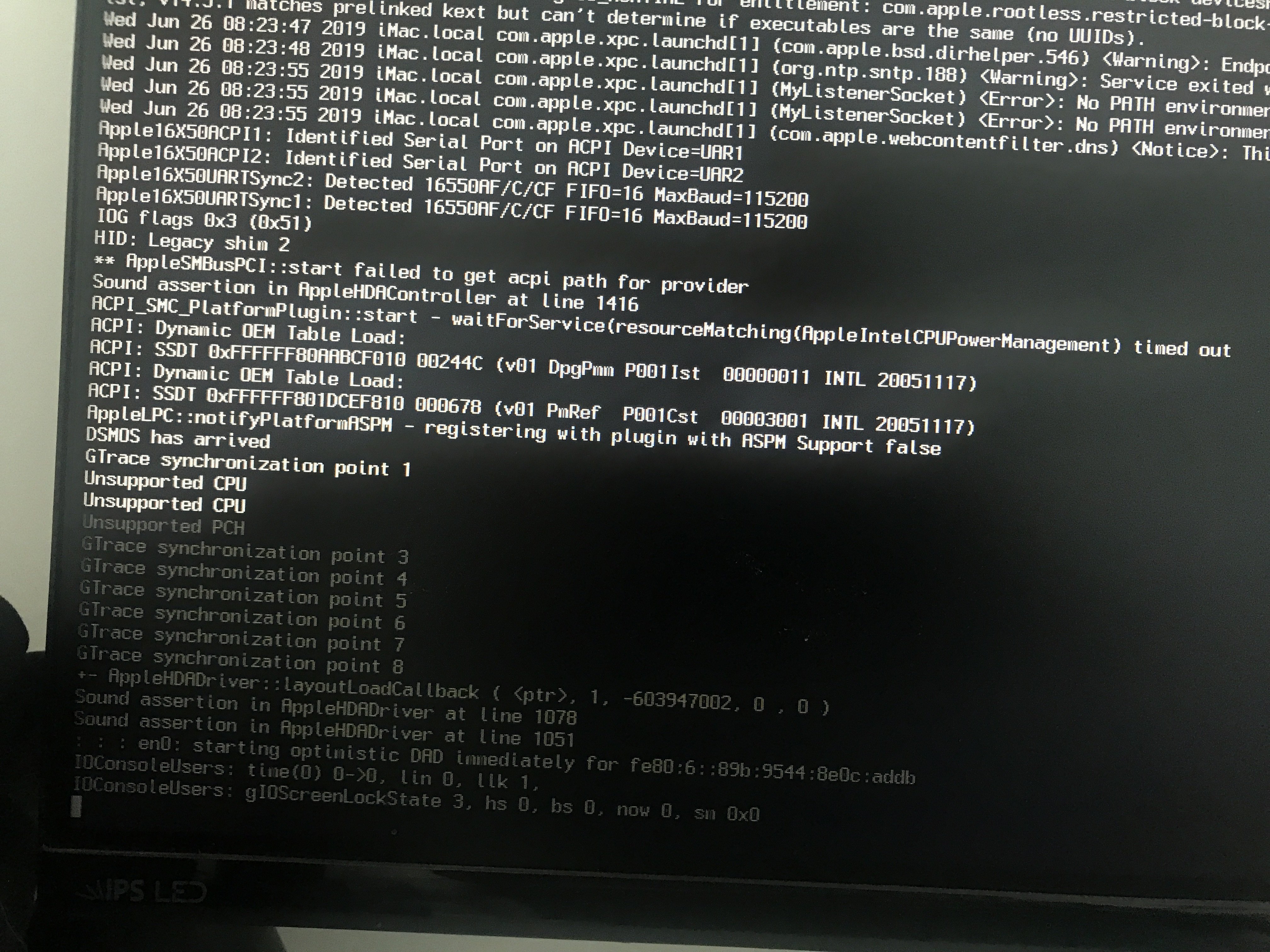

panic: Setting P-Limit is unsupported on this system!






I'm wondering, could you make a general issues(Q&A) for Upgrade User? Apple always upgrading, it is very very   VERY   annoying( I'm experienced  10.12-->10.13-->10.14--> crazzzzy!) . .

Hardware: c602 + 2670x2 + nVidia GT740

Edited by wham17wham
Link to comment
Share on other sites

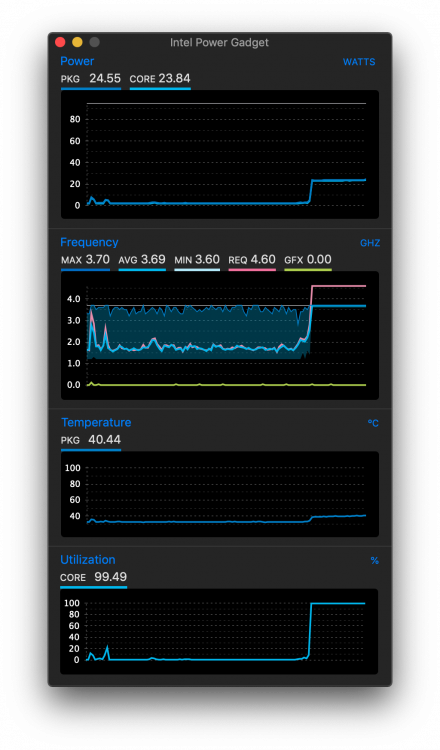

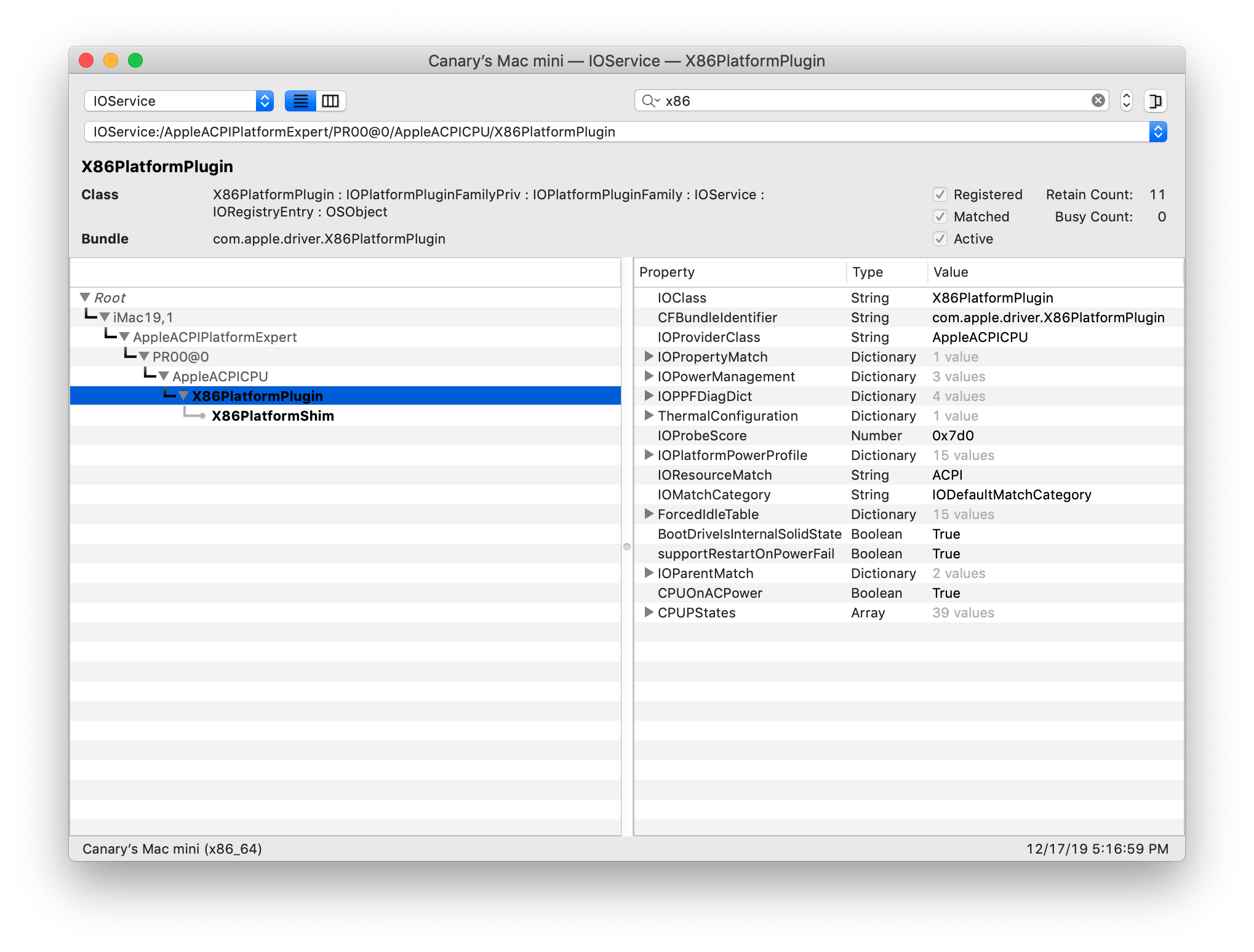

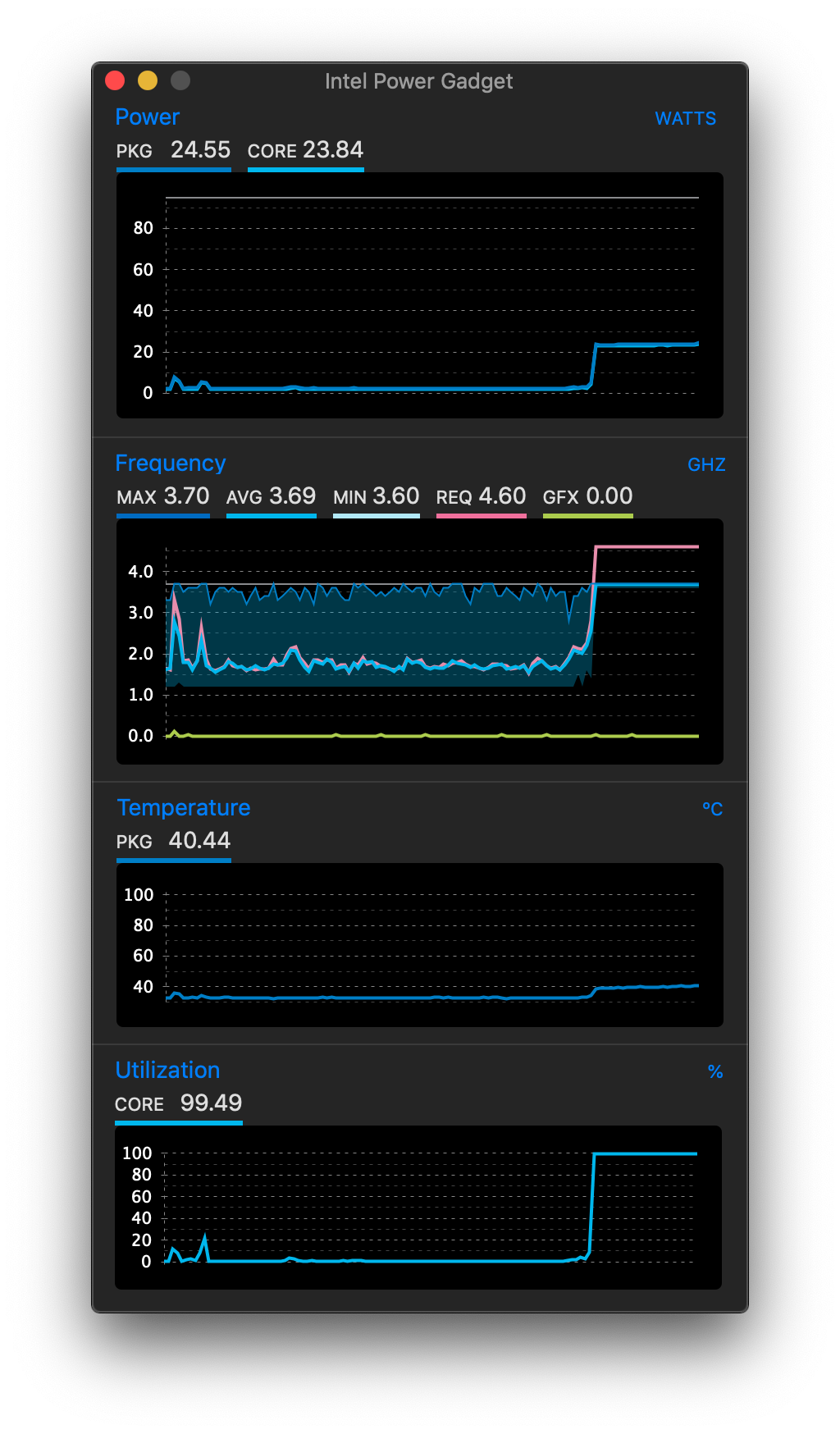

Hello @MaLd0n I added the PluginType flag to my config.plist and I see the correct plugin loaded in IOReg but when I run CPU stress tests, Intel Power Gadget shows that while it is correctly requesting (Req) 4.6Ghz, the Max never goes beyond 3.7Ghz (see screenshot). Also strange is that at full load, the temperature never rises above 40C.



I also installed Ubuntu and ran stress tests on the same machine, and the CPU correctly ramped up to 4.6Ghz, so it would seem it is not a BIOS issue.

For reference, Geekbench 4 on macOS gives ~4700 SC & ~18000 MC, while on Ubuntu I get ~6000 SC & ~22000 MC.



Any help would be appreciated!

Screen Shot 2019-12-17 at 5.17.17 PM (1).png

Screen Shot 2019-12-17 at 5.19.21 PM.png

Link to comment
Share on other sites

  • 3 weeks later...

Hi,

I installed Catalina and it went fine. It seems to work fine except for one thing. It freeze on me whenever I used it for a while (could be hour or mins) and I had to do a hard reboot. I am at a dead end. Can you help me troubleshoot it?

Thanks

Link to comment
Share on other sites

  • 2 weeks later...

Hi,

very happy to see that tou can help me.

i have a asus z97 ac wifi 4790k with a 970 M2 1To, 980Ti, i16 go ddr3 1600. I  have installed High sierra with tonymac tools.... sorry, but i have to start from a point,  and the boot is very very slow. slower than my capitan with an ssd crucial. when i use fcpx the app quit. perhaps because the project is too heavy.

Can you give me some advice please ?

bye

Link to comment
Share on other sites

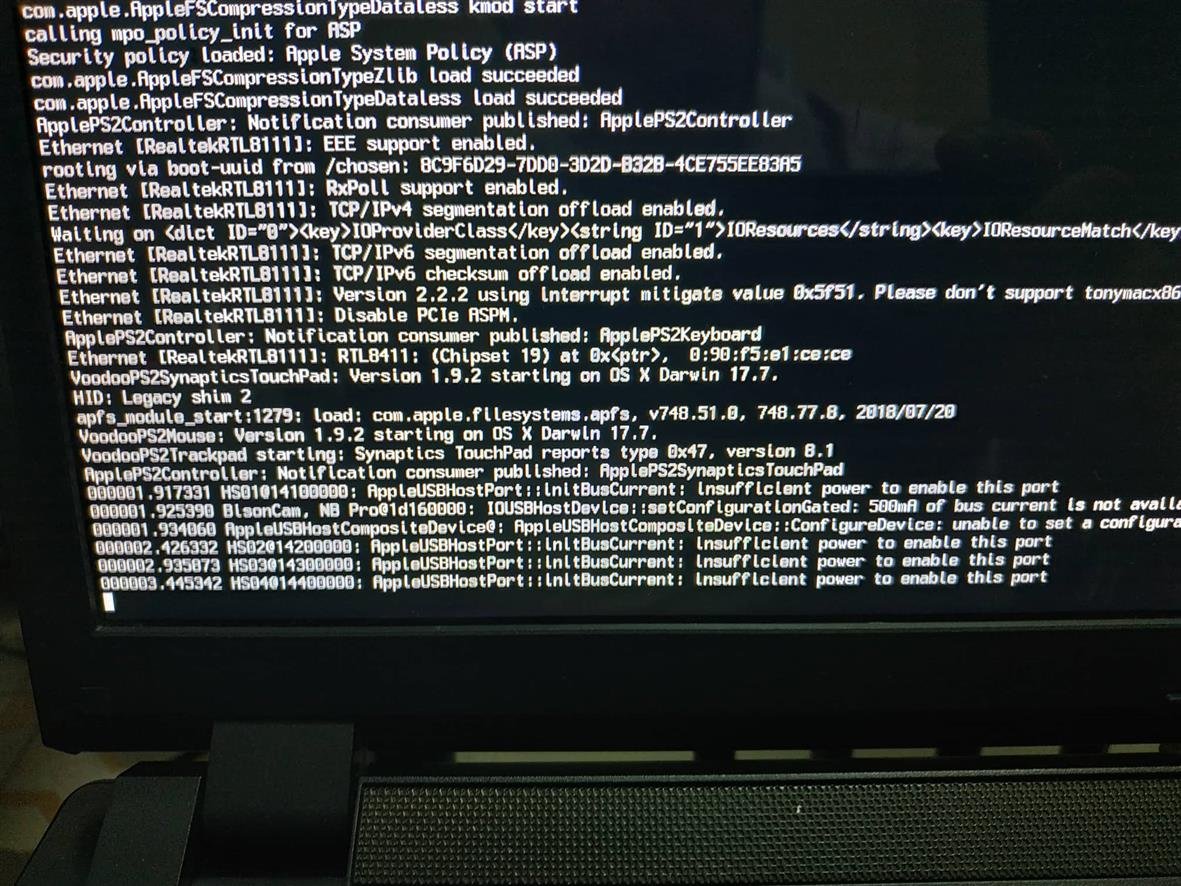

Hi MaLd0n, I recently installed Catalina but I'm running into USB power delivery issues rendering some USB ports unusable. I enabled InjectUSB and HighCurrent but it doesn't fix the issue.



With Catalina USBInjectAll + USB Port Limit Patch doesn't work anymore. Might have something to do with the EC in Catalina?

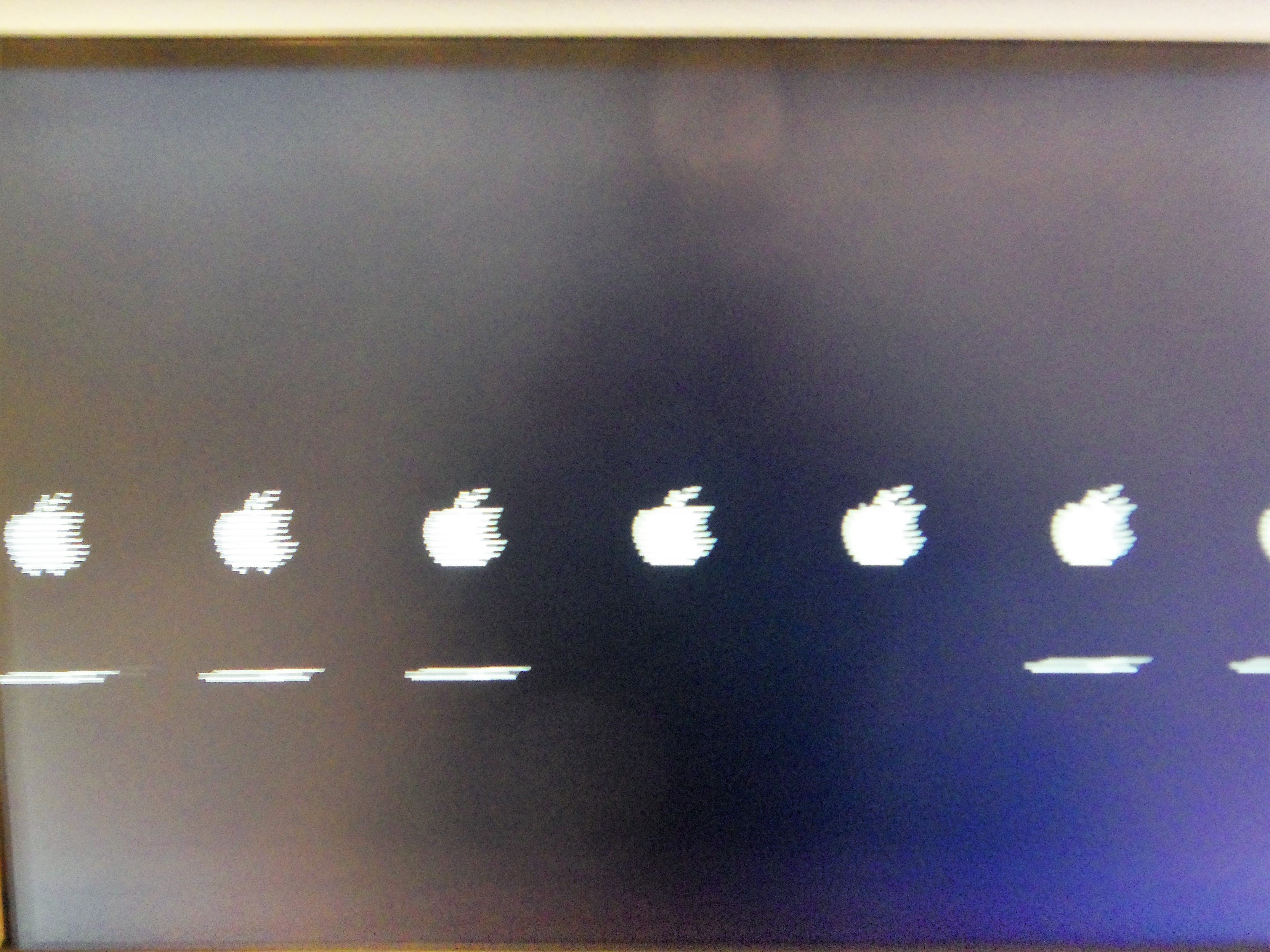

I get the Apple logo distortion similar to this for a second before booting the login screen and everything works fine after.




Send me Jasons-iMac.zip

Edited by jason761
Link to comment
Share on other sites

Hi MaLd0n



I upgraded my system from El Capitan to Mojave. I have a sandy bridge mobo. ASUS P8H67-M. I had sleep on El Capitan, but for some reason I don't after the update to Mojave.



This is what happens. When I put the system to sleep the computer goes to sleep, but when I wake it up the screen doesn't come back and the keyboard caps-locks led blinks if any key is pressed, just that. Motherboard has a led that states "DRAM" and starts flashing in red. Also the reset button of the motherboard stops working. Only way to shut off the computer is by using the long press on the power button. Can you help me with this one? If you can, what do you need from me?





Boot: Clover r5071

MB: P8H67-M
GraphicC: Nvidia GT640

USB3: Inateck KTU3FR-4P - PCI card that works OOB with OSX



Content of Clover/Kexts/Other:
AppleAlc.kext

Lilu.Kext

RealtekRTL8111.kext
USBInjectAll.kext

VirtualSMC.kext

WhateverGreen.kext
