[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell


MaLd0n
2,509 posts in this topic

Recommended Posts

12 hours ago, MaLd0n said:

DSDT.aml.zip



some things u need solve via bootloader

Hi



I placed the DSDT.aml in Clover/ACPI/Patched



I verified that in clover it's configured the same DSDT name.



I rebooted and once booted I tried to put the machine on sleep. I got the same bad results as before. Goes to sleep but can't come back. It reboots, but DRAM led is red and screen turned off. Reset button doesn't work neither on this state.



Anything else I should try? Do you need more info?

Link to comment
Share on other sites

On 2/12/2020 at 4:39 PM, MaLd0n said:

remove FakePCIID.XHCIMux



Is this kext not required for certain Intel USB 3 controllers according to this page? I have 8086:8cb1.



Would you be able to show me a guide to fix the Apple logo distortion? It's only a minor cosmetic bug.



Sorry here are the system specs

Intel i7-4770k

Asus Maximus VII Hero

16GB DDR3 1600MHz

Link to comment
Share on other sites

  • 1 month later...

Dell XPS One AiO 27



https://drive.google.com/file/d/1ONUMGV6CiQt-SGapIfBupEWO2ZCVGK4d/view?usp=sharing&fbclid=IwAR07DBGUW1nIlbt-5hXApWjClP1gC6s_dALYhPBqr-KgmfMYzdRsVzmGNeIProcesor: i7-3770S
Ram: 2x4GB DDR3 (kości laptopowe)
GPU: Intel HD 4000 + GT640M (-wegnoegpu)
Dźwięk ALC275
WiFi + BT DW1702 AR9485
Ethernet: AR8161
Please not connect not looking for a BT device system cataliton please
Link to comment
Share on other sites

@MaLd0nDell XPS One AiO 27
Procesor: i7-3770S
Ram: 2x4GB DDR3 (kości laptopowe)
GPU: Intel HD 4000 + GT640M (-wegnoegpu)
Dźwięk ALC275
WiFi + BT DW1702 AR9485
Ethernet: AR8161
Please not connect not looking for a BT device system cataliton please
https://www117.zippyshare.com/v/ZquRZiRz/file.html?fbclid=IwAR09_ZvHq0v-LaC1s_cgJIZRIncbfvoh20HTM4aw_cuylQf79mGQfW3gwG8 ALL add BT or wifi fix ALL config.plist

Link to comment
Share on other sites

16 hours ago, Faradis said:

I have an RTX 2080 as my gpu and i know latest OSX dont support this

what are my options???

my other Hardware is in my SIG

disable nvidia via dsdt/ssdt or bootloader and use intelhd

Link to comment
Share on other sites

22 hours ago, MaLd0n said:

-wegnoegpu

and i need to use the on-board Display output??

cause in windows OS i use The GPU and currently i am using the GPU display output for my Monitor

Edited by Faradis
Link to comment
Share on other sites

  • 2 months later...

Hello MaLd0n

I was able to configure the OpenCore folder and boot from it but I'm still struggling with the PlatformInfo section of the config.plist. After booting and starting up MacOS, when I go to System Information app the system freezes and stop working. I'm doing something wrong for sure configuring the PlatformInfo section in the OpenCore config file. Could  you take a look at my config files in OpenCore and Clover to see if I can have in the OpenCore config file something similar to what I have in the clover config file?config Clover.plist.zip

config Clover.plist.zip

Link to comment
Share on other sites

  • 1 month later...

hi i need configplist for

Motherboard
SAMSUNG ELECTRONICS CO. LTD. NP510R5E-A01UB (SOCKET 0)
CPU
Intel(R) Core(TM) i5-3230M CPU @ 2.60GHz Ivy Bridge
Graphics
Generic PnP Monitor (1366x768@60Hz)
Intel HD Graphics 4000 (Samsung)

Storage
    953GB SPCC Solid State Disk (SATA (SSD))

8,00GB Dual-Channel DDR3 @ 665MHz (9-9-9-24)
Link to comment
Share on other sites

Hi @MaLd0n
I have problem booting to Installation Screen using olarila Mojave Image.

My system is Dell T5500
Xeon E5620@2.4GHz

7GB RAM

A16 BIOS

Sapphire Pulse RX 570 8Gb

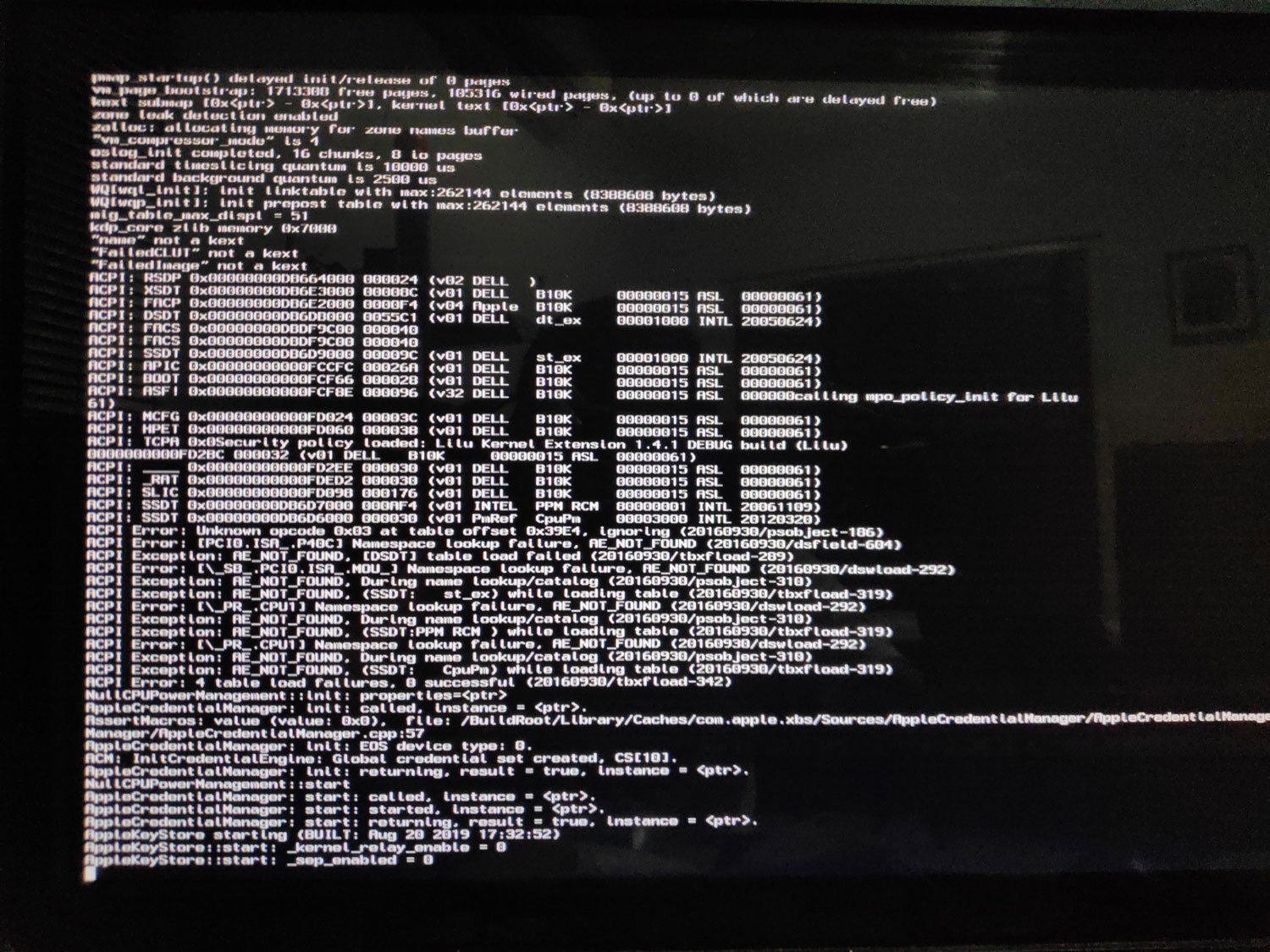

My first trial using default EFI from the image, it got stuck at this state:

Spoiler



2nd trial i'm using EFI folder for Serie 5, 6, 7, 8, 9 with Clover Bootloader, resulting black screen.
This is my preboot.log

Kinda need your help, please..

Thank you
-Rio

Link to comment
Share on other sites

Thanks for your guide, it worked like a charm after two days of trying hard and not getting anything done.

Everything works right after the install, wich is weird since after installing clover, mounting the EFI and copying the files from my bootstick (EFI and Clover), when i try to boot i just end in a boot.efi EXIT error and cant even get into verbose anymore, by that time its not working from the stick anymore aswell. Any idea what i do wrong?

Link to comment
Share on other sites

  • 2 weeks later...
On 7/24/2020 at 5:36 PM, n3squ1ck said:

Thanks for your guide, it worked like a charm after two days of trying hard and not getting anything done.

Everything works right after the install, wich is weird since after installing clover, mounting the EFI and copying the files from my bootstick (EFI and Clover), when i try to boot i just end in a boot.efi EXIT error and cant even get into verbose anymore, by that time its not working from the stick anymore aswell. Any idea what i do wrong?

go to OpenCore



or use oc quirks and clear nv ram with f11 key first time

  • Like 1
Link to comment
Share on other sites

On 8/4/2020 at 2:19 PM, MaLd0n said:

go to OpenCore



or use oc quirks and clear nv ram with f11 key first time

Thank you =)

Can i use my existing EFI folder for OpenCore? I have a fully working EFI Folder for my Yoga 260, but id love to try switching to open core

Link to comment
Share on other sites

14 hours ago, n3squ1ck said:

Thank you =)

Can i use my existing EFI folder for OpenCore? I have a fully working EFI Folder for my Yoga 260, but id love to try switching to open core

some things yes like video patch

Link to comment
Share on other sites

  • 4 weeks later...
On 1/31/2018 at 11:55 AM, wek said:

Hi MaLd0n,



The trackpad is Synaptics Mouse, Synaptics 12C, Wacom + Pen.

Will the Pen digitizer will work? the touch is working.



I will try your new DSDT and report back..



Many Thanks

Hello, My device is the same as yours



Could you please tell me, yours trackpad multi-finger operation same as macbook's touchpad



What are the configurations & Which kext



Thx for your kind

Link to comment
