Holymac Posted January 7, 2018 Share Posted January 7, 2018 use power button DSDT.Holymac FINAL.zip i'll check ir later For this one the system stays asleep but doesn't wake on keyboard or mouse 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2563912 Share on other sites More sharing options...
MaLd0n Posted January 7, 2018 Author Share Posted January 7, 2018 For this one the system stays asleep but doesn't wake on keyboard or mouse Yes, just in Power Button i'll check in wek 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2563916 Share on other sites More sharing options...
Chris Stocker Posted January 8, 2018 Share Posted January 8, 2018 Thank you again bro. I would like to make a donation to you. Do you have a PayPal? Just cause I don't have bitcoins . Just hit his "Beer" link at the bottom of his posts. Don't buy him too much, he will drink it all at once. 2 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564165 Share on other sites More sharing options...
YoYelloW Posted January 8, 2018 Share Posted January 8, 2018 Maldon, i have created new ioregs etc.. The second screen still does not work with the new latest clover you send... as said before this board only has 3 display ports... 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564224 Share on other sites More sharing options...
luky35 Posted January 8, 2018 Share Posted January 8, 2018 @MaLd0n hi, If I make Bootdiak with DiakMaker X7 tool for H. Sierra, do I have to install Clover to start the installation? Thanks. 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564294 Share on other sites More sharing options...
Holymac Posted January 8, 2018 Share Posted January 8, 2018 Yes, just in Power Button i'll check in wek No hurry here, I am very grateful you are willing to help so quickly and frequently Noticed another side effect since using the DSDTs, the hackintosh wakes up at night and never falls asleep again. Powernap is disabled. 2018-01-08 00:48:53.543898+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: RTC XHC (Alarm) 2018-01-08 00:48:53.543898+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: RTC XHC (Alarm) 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564381 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 Maldon, i have created new ioregs etc.. The second screen still does not work with the new latest clover you send... as said before this board only has 3 display ports... need read about it in the forum search you did not find anything? ioreg is beautiful @MaLd0n hi, If I make Bootdiak with DiakMaker X7 tool for H. Sierra, do I have to install Clover to start the installation? Thanks. u need installation Clover and replace with my folder No hurry here, I am very grateful you are willing to help so quickly and frequently Noticed another side effect since using the DSDTs, the hackintosh wakes up at night and never falls asleep again. Powernap is disabled. 2018-01-08 00:48:53.543898+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: RTC XHC (Alarm) 2018-01-08 00:48:53.543898+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: RTC XHC (Alarm) u need disable wake from lan in power settings 2 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564408 Share on other sites More sharing options...
YoYelloW Posted January 8, 2018 Share Posted January 8, 2018 need read about it in the forum search you did not find anything? ioreg is beautiful i found this: http://www.insanelymac.com/forum/topic/324503-dual-screen-not-working/which talks about changing the output ports. but im not sure how to change these (maybe you know this?) Reading the ioreg, i see that it "thinks" it had HDMI and DVI ports as well, but they are not present on the board. only 3 DP ports.. 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564432 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 i found this: http://www.insanelymac.com/forum/topic/324503-dual-screen-not-working/which talks about changing the output ports. but im not sure how to change these (maybe you know this?) Reading the ioreg, i see that it "thinks" it had HDMI and DVI ports as well, but they are not present on the board. only 3 DP ports.. You have a good job for the next days, but user Hervé explain all 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564500 Share on other sites More sharing options...
YoYelloW Posted January 8, 2018 Share Posted January 8, 2018 You have a good job for the next days, but user Hervé explain all The thread sure helps, but im not sure how to edit these ports, is this dome in the DSDT or with a config.plist... 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564512 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 use in config.plist check ur config.plist, i apply one, is disable, check 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564518 Share on other sites More sharing options...

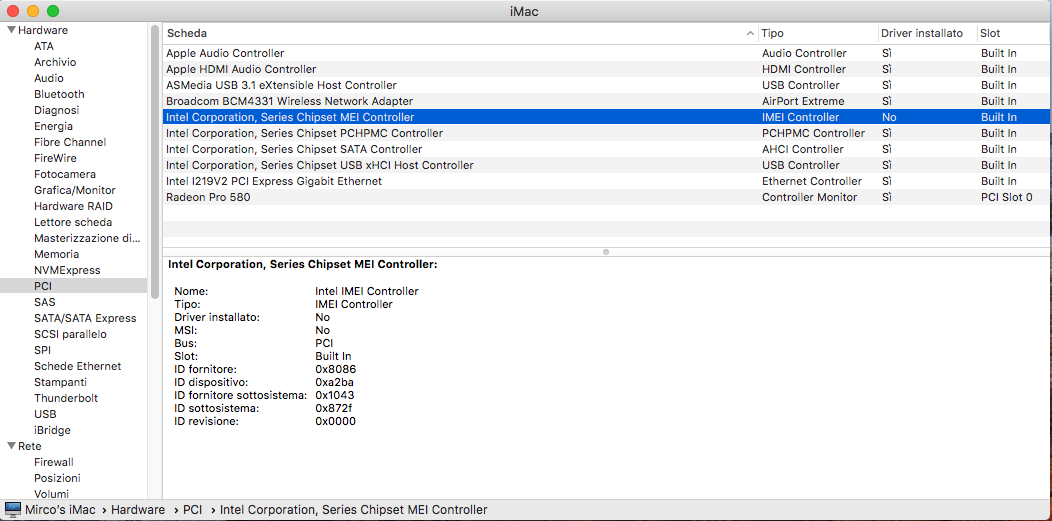

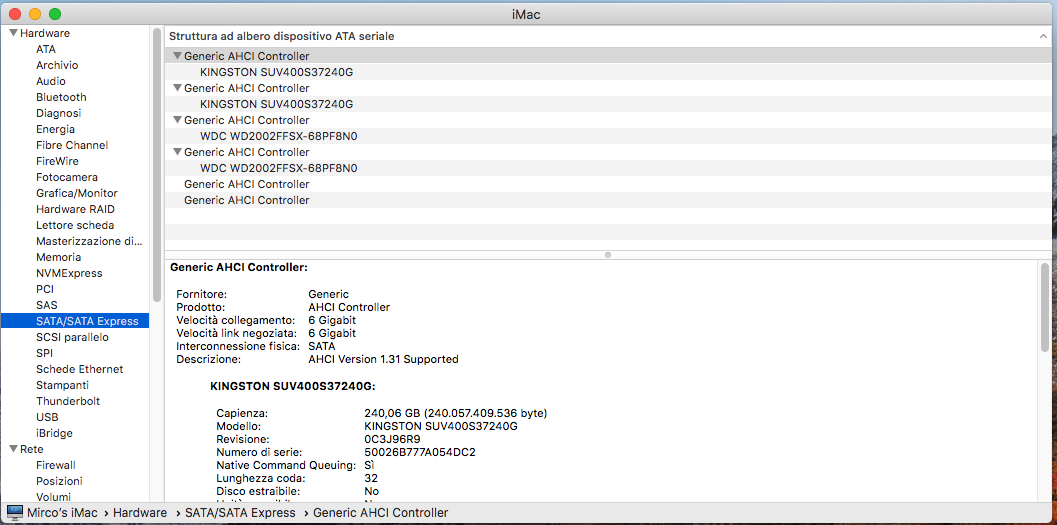

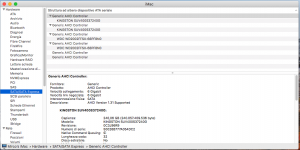

Check-IN Posted January 8, 2018 Share Posted January 8, 2018 Replace, Reboot, New ioreg with new files CLOVER.zip MaLd0n thanx for reply! I attach the new IO reg. Now i can see the PCI in System Profiler but, as You can see from the pics, the driver MEi in not installed (??) and the SATA AHCI Controller is GENERIC... I also attach a report of AIDA because I also installed a Thunderbolt EX3 card and I would like to enable the integrated Intel Hd 630 video card that is currently disabled. Let me know Thank you! Mirco’s iMac.ioreg.zip Report_ AIDA_.html.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564551 Share on other sites More sharing options...
kujalnik Posted January 8, 2018 Share Posted January 8, 2018 CLOVER.zip new ioreg after reboot back to home in a few hours, i edit for u hi Maldon!! I'm sorry it took so long. Thank you! Andrej’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564572 Share on other sites More sharing options...
dolgarrenan Posted January 8, 2018 Share Posted January 8, 2018 Hello MaLd0n, I've been reading your post, trying to figure few things out, but it seems kind of hard. I would like to make the exact same ACPI table, but instead of an DSDT, a SSDT. Bios can be a problem if anything is changed and I think it is more perpetual with an SSDT. I've run through problems, as you can imagine.. I have a bit of experience with ACPI but not enough. My first problem has come at the time to correctly recognise my VEGA FE, which seems impossible or the system to recognise. Here I send you the IOreg data plus EFI, hopefully we could build a complete SSDT out of this and have everything integrated IOReg+EFI.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564579 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 MaLd0n thanx for reply! I attach the new IO reg. Now i can see the PCI in System Profiler but, as You can see from the pics, the driver MEi in not installed (??) and the SATA AHCI Controller is GENERIC... I also attach a report of AIDA because I also installed a Thunderbolt EX3 card and I would like to enable the integrated Intel Hd 630 video card that is currently disabled. Let me know Thank you! DSDT.sata.zip Thunderbolt, u need a Windows, go to thunderbolt manufacturer page, install updates about ur Thunderbolt(in Windows), after it, work in mac, need only a patches for work better IMEI only load if u use intelhd graphics hi Maldon!! I'm sorry it took so long. Thank you! looks good 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564704 Share on other sites More sharing options...
eway Posted January 8, 2018 Share Posted January 8, 2018 Hey Maldon! Happy New Year to All! Here's my hack ASUS P270-A I7 7700 k Nvidia TG 640 I have hard times with audio, built-in doesn't work nor the external Orion Studio USB2 (which was working for while and suddenly stopped to work without doing anything) Reboot, Shut-down became slower after that. Would you get an eye with that problem please. many thanks in advance. Eway EFI.zip Eway’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564723 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 Hello MaLd0n, I've been reading your post, trying to figure few things out, but it seems kind of hard. I would like to make the exact same ACPI table, but instead of an DSDT, a SSDT. Bios can be a problem if anything is changed and I think it is more perpetual with an SSDT. I've run through problems, as you can imagine.. I have a bit of experience with ACPI but not enough. My first problem has come at the time to correctly recognise my VEGA FE, which seems impossible or the system to recognise. Here I send you the IOreg data plus EFI, hopefully we could build a complete SSDT out of this and have everything integrated i dont use ssdts, i like rape DSDT, SSDT is a secondary and just inject in DSDT Hey Maldon! Happy New Year to All! Here's my hack ASUS P270-A I7 7700 k Nvidia TG 640 I have hard times with audio, built-in doesn't work nor the external Orion Studio USB2 (which was working for while and suddenly stopped to work without doing anything) Reboot, Shut-down became slower after that. Would you get an eye with that problem please. many thanks in advance. Eway EFI.zip Eway’s iMac.zip put ur serials again CLOVER.zip ur Nvidia work native? 2 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564729 Share on other sites More sharing options...
eway Posted January 8, 2018 Share Posted January 8, 2018 Wow Faster than the lightning thank u so much. For GFX I use NvidiaGraphicsFixup.kext Will try that in a while and I'll keep u posted. thank U again Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564780 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 dont need plug in type, just replace folder and check, send me new ioreg after reboot 2 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564783 Share on other sites More sharing options...
eway Posted January 8, 2018 Share Posted January 8, 2018 Ok, built-in audio's working, but Orion studio stays quiet. Hack is still slow to reboot/shutdown. USB 3.0 is working. here's the IOREG. Eway’s iMac.zip Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564902 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Author Share Posted January 8, 2018 https://en.antelopeaudio.com/support/download/ 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564911 Share on other sites More sharing options...
eway Posted January 8, 2018 Share Posted January 8, 2018 https://en.antelopeaudio.com/support/download/ That's the first thing I did, The problem is quite different. I have a time machine backup. When I install sierra from scratch or use the time machine backup it works with the driver perfectly. After severals reboot it stops to work, I don't know why. the driver itself as a feature to rebuilt audio, but it still doesn't work. I really don't know what's going wrong. If I install a working backup with the orion working, with the IOREG would you see what the problem is? many thanks for your time. 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2564933 Share on other sites More sharing options...
MaLd0n Posted January 9, 2018 Author Share Posted January 9, 2018 try without any Audio driver like AppleAlc or VoodooHda, use only driver for ur pro audio device 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2565053 Share on other sites More sharing options...
dingailin_11 Posted January 9, 2018 Share Posted January 9, 2018 Hello,Can you help me with my dsdt stuff? i7 8700K+Z370 gaming 5 also the system cant recognize the name of 8700K just 3.7GHZ unkown,any ideas to fix this? CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2565085 Share on other sites More sharing options...

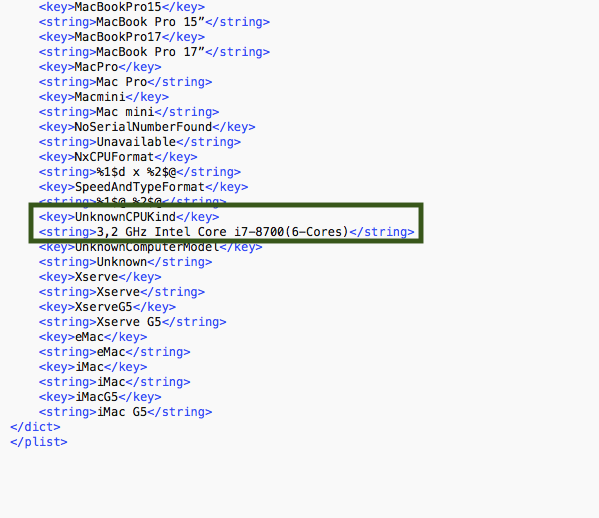

MaLd0n Posted January 9, 2018 Author Share Posted January 9, 2018 Hello,Can you help me with my dsdt stuff? i7 8700K+Z370 gaming 5 also the system cant recognize the name of 8700K just 3.7GHZ unkown,any ideas to fix this? CLOVER.zip unkown cpu run in terminal open . /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/Resources/English.lproj/ and edit.. 1 Link to comment https://www.insanelymac.com/forum/topic/321872-guide-catalina-bigsur-monterey-on-mobos-serie-100-200-300-400-500-600-skylake-kabylake-coffeelake-cometlake-rocketlake-alderlake-dsdt/page/61/#findComment-2565326 Share on other sites More sharing options...
