Dengekiko Posted January 4, 2018 Share Posted January 4, 2018 i update with x299 folder next week try CLOVER.zip Okay, thank you - I will try it! i update with x299 folder next week try CLOVER.zip Oh my gosh! it worked I can get into installation now!! You're a God! Is there anything special I should do during installation / post installation just so I don't mess up. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 after install check first post, i need files 2 Link to comment Share on other sites More sharing options...
Dengekiko Posted January 4, 2018 Share Posted January 4, 2018 after install check first post, i need files I'll have to post it tomorrow because it is getting late here but thanks so much! Talk to you tomorrow. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 I'll have to post it tomorrow because it is getting late here but thanks so much! Talk to you tomorrow. k let me know 1 Link to comment Share on other sites More sharing options...
thomas1968 Posted January 4, 2018 Share Posted January 4, 2018 Hi Maldon Would you please help me with a DSDT ? Hardware: Gigabyte Z370 Aorus Ultra Gaming i5 8600K nvidia 1070 samsung ssd 250Gb 16Gb Ram I followed your instructions on post 1, installation (High Sierra) was smooth, only added IntelMausiEthernet Thanks ins advance Thomas Send me tom’s iMac.zip CLOVER.zip tom’s iMac.ioreg.zip 1 Link to comment Share on other sites More sharing options...
ryokun6 Posted January 4, 2018 Share Posted January 4, 2018 Hey Maldon, I've been using your DSDT for Z370-G for a while, everything was great until today it stopped loading Nvidia Web Driver. Removing the DSDT works but I can't recover from sleep. One change could be that I installed a PCI-E USB-C card. Here's my IOReg and Clover folder. Thanks! Files were too big so I uploaded them on Dropbox https://www.dropbox.com/sh/2n4ds7q3all0s6g/AAAAaG-KaxdkHW5p3OphGpYEa?dl=0 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 Hi Maldon Would you please help me with a DSDT ? Hardware: Gigabyte Z370 Aorus Ultra Gaming i5 8600K nvidia 1070 samsung ssd 250Gb 16Gb Ram I followed your instructions on post 1, installation (High Sierra) was smooth, only added IntelMausiEthernet Thanks ins advance Thomas DSDT.aml.zip 1 Link to comment Share on other sites More sharing options...

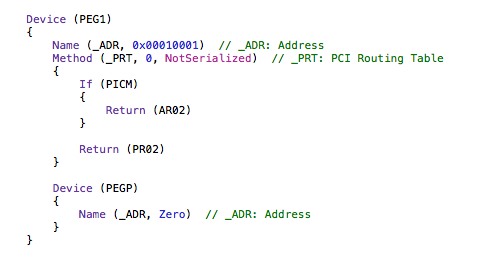

MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 Hey Maldon, I've been using your DSDT for Z370-G for a while, everything was great until today it stopped loading Nvidia Web Driver. Removing the DSDT works but I can't recover from sleep. One change could be that I installed a PCI-E USB-C card. Here's my IOReg and Clover folder. Thanks! Files were too big so I uploaded them on Dropbox https://www.dropbox.com/sh/2n4ds7q3all0s6g/AAAAaG-KaxdkHW5p3OphGpYEa?dl=0 here, try without mod and add, just replace, test ur USBs CLOVER.zip check, dont use rename patch, u urename PEGP to GFX0(GFX0 is a Video device) and check... ur card usb-c stay inside peg1/pegp...u rename to gfx0 use only GFX0 to IGPU and NvidiaGraphicsFixup.kext rename PEG0/PEGP to PEG0/GFX0 on the fly for u 1 Link to comment Share on other sites More sharing options...
thomas1968 Posted January 4, 2018 Share Posted January 4, 2018 Hi Maldon I've pasted your file into APCI/patched (nothing else) now system won't boot Did I miss something ?? Thanks in advance 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 Hi Maldon I've pasted your file into APCI/patched (nothing else) now system won't boot Did I miss something ?? Thanks in advance press O key in Clover boot screen, go to Acpi Patching/DSDT Name and put DSDT02.aml u need specif config in config.plist, like fix regions, gfx0 to igpu Here is a serie 300 preset clover, check all configs CLOVER serie 300.zip 1 Link to comment Share on other sites More sharing options...
thomas1968 Posted January 4, 2018 Share Posted January 4, 2018 press O key in Clover boot screen, go to Acpi Patching/DSDT Name and put DSDT02.aml u need specif config in config.plist, like fix regions, gfx0 to igpu Here is a serie 300 preset clover, check all configs CLOVER serie 300.zip Hi Maldon It's working now (even shutdown), thank you very much Thomas 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 Hi Maldon It's working now (even shutdown), thank you very much Thomas use h_ec to ec too change H_EC to EC 485f4543 45435f5f for load ec 1 Link to comment Share on other sites More sharing options...

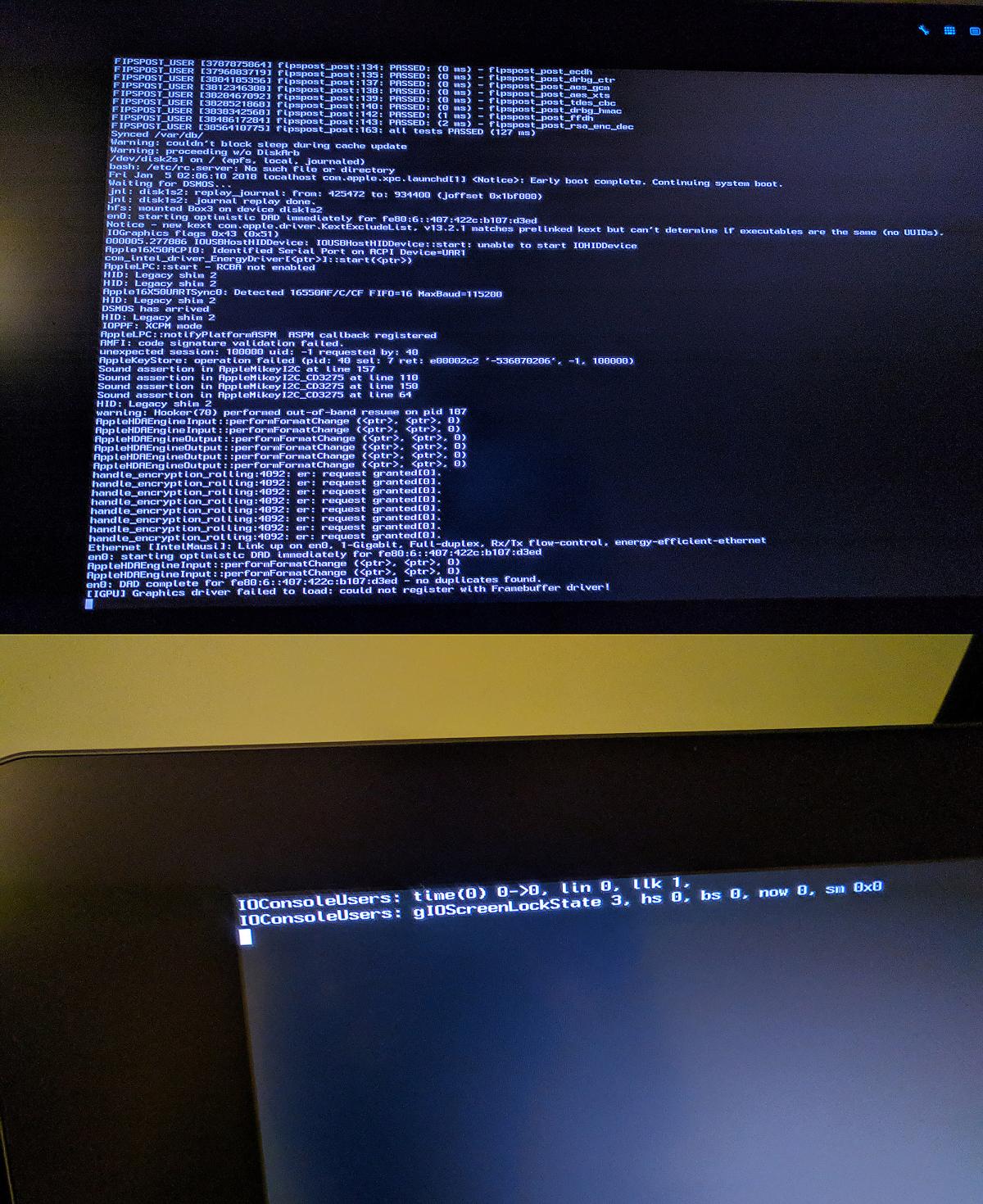

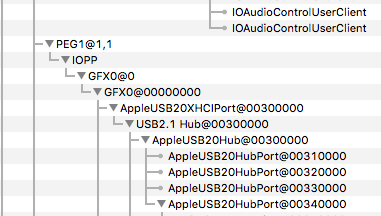

ryokun6 Posted January 4, 2018 Share Posted January 4, 2018 here, try without mod and add, just replace, test ur USBs CLOVER.zip check, dont use rename patch, u urename PEGP to GFX0(GFX0 is a Video device) and check... ur card usb-c stay inside peg1/pegp...u rename to gfx0 MaLd0n 2018-01-04 às 13.05.14.png MaLd0n 2018-01-04 às 13.05.34.png use only GFX0 to IGPU and NvidiaGraphicsFixup.kext rename PEG0/PEGP to PEG0/GFX0 on the fly for u Thanks! You're awesome. Sometimes boot hangs at gIOScreenLockState 3, do you know why? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 4, 2018 Author Share Posted January 4, 2018 Thanks! You're awesome. Sometimes boot hangs at gIOScreenLockState 3, do you know why? try config.plist.zip 2 Link to comment Share on other sites More sharing options...
41089 Posted January 4, 2018 Share Posted January 4, 2018 dont remember, update ur bios for last version and send me ur original DSDT, extract with F4 in clover boot screen, send me one ioreg too Hey MaLd0n thanks a lot for the help! my bios version is 0605, Ioreg and DSDT are in the zip 41089 DSDT FILES.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Author Share Posted January 5, 2018 Hey MaLd0n thanks a lot for the help! my bios version is 0605, Ioreg and DSDT are in the zip Replace full folder, reboot, send me new ioreg CLOVER.zip *u use NVIDIA in second slot? appears into PEG1, common is PEG0, PEG1 is rare 1 Link to comment Share on other sites More sharing options...
41089 Posted January 5, 2018 Share Posted January 5, 2018 Replace full folder, reboot, send me new ioreg CLOVER.zip *u use NVIDIA in second slot? appears into PEG1, common is PEG0, PEG1 is rare Yea I do, I didn't think it would be an issue, should I move it up into PEG0? or does that now mess with the new DSDT? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Author Share Posted January 5, 2018 Yea I do, I didn't think it would be an issue, should I move it up into PEG0? or does that now mess with the new DSDT? second slot have same speed? or only first work a full speed? if work full speed, n problem u can use same DSDT for all, just change hardware 1 Link to comment Share on other sites More sharing options...

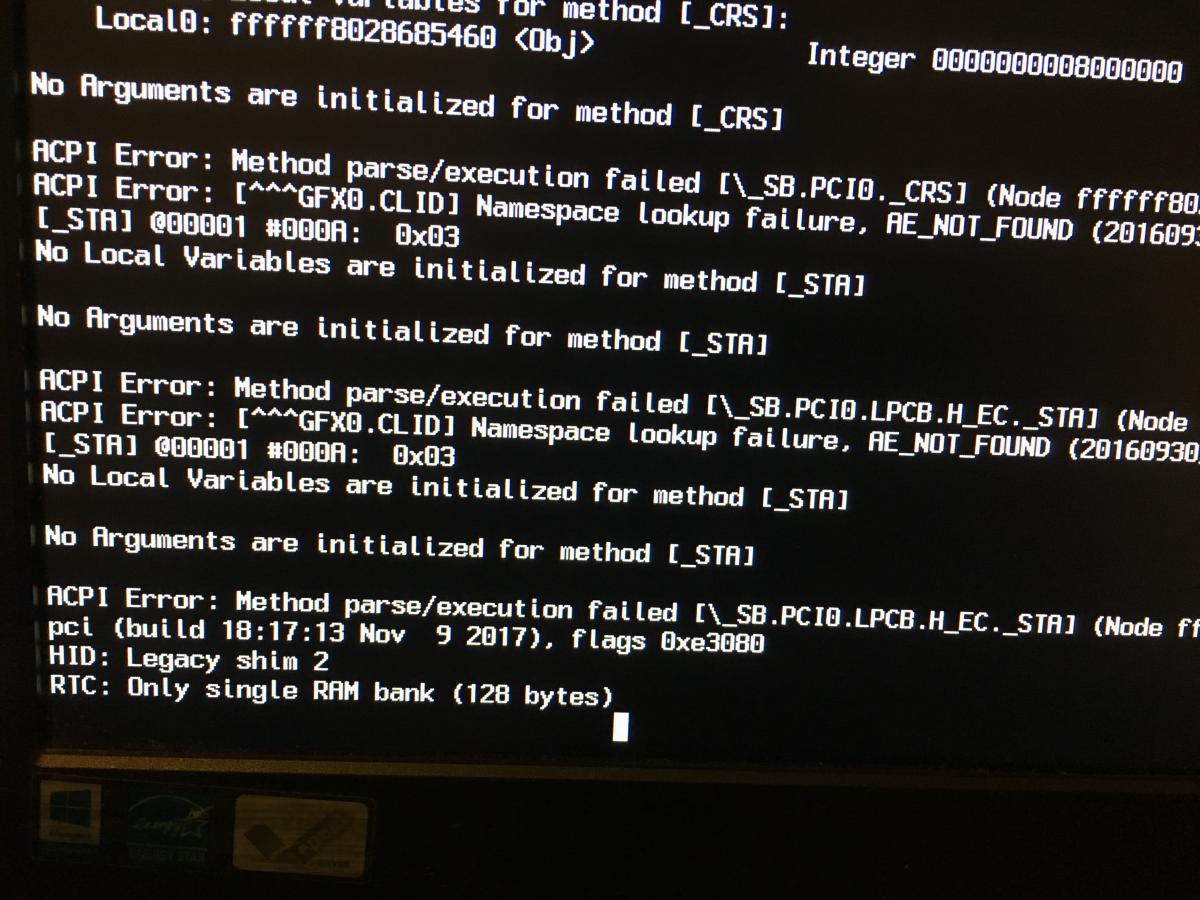

41089 Posted January 5, 2018 Share Posted January 5, 2018 second slot have same speed? or only first work a full speed? if work full speed, n problem u can use same DSDT for all, just change hardware Ive benchmarked the GPU and it runs on full speed so I'll keep it as is hmmmmmm. so the new clover folder gives me this IGPU error and then proceeds to a blank screen flashing those 2 lines every 5 seconds or so. Do I need to inject intel in clover to fix this? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Author Share Posted January 5, 2018 Ive benchmarked the GPU and it runs on full speed so I'll keep it as is hmmmmmm. so the new clover folder gives me this IGPU error and then proceeds to a blank screen flashing those 2 lines every 5 seconds or so. Do I need to inject intel in clover to fix this? ye, inject intel, check here config.plist.zip in bios u have option to disable intelHD? Link to comment Share on other sites More sharing options...
41089 Posted January 5, 2018 Share Posted January 5, 2018 ye, inject intel, check here config.plist.zip in bios u have option to disable intelHD? Thank you, and yes I'm fairly certain I can disable intelHD. Ill try these options and get back to ya 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Author Share Posted January 5, 2018 Thank you, and yes I'm fairly certain I can disable intelHD. Ill try these options and get back to ya if u dont use IntelHD, the best is disable it, but many ppl use it for hardware acelleration u can use key O in clover boot screen / graphics / inject intel Link to comment Share on other sites More sharing options...
41089 Posted January 5, 2018 Share Posted January 5, 2018 if u dont use IntelHD, the best is disable it, but many ppl use it for hardware acelleration u can use key O in clover boot screen / graphics / inject intel thats good to know, cheers! Got it booting fine now and got you a new IOreg 41089_New_ioreg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Author Share Posted January 5, 2018 thats good to know, cheers! Got it booting fine now and got you a new IOreg ioreg look good i apply HDMI Nvidia DSDT.41089 HDMI NVIDIA 9xx.zip u test sleep? i put wake in power button only, it's ok for u? IntelHD full Disable Good! Link to comment Share on other sites More sharing options...
41089 Posted January 5, 2018 Share Posted January 5, 2018 ioreg look good i apply HDMI Nvidia DSDT.41089 HDMI NVIDIA 9xx.zip u test sleep? i put wake in power button only, it's ok for u? IntelHD full Disable Good! hahaha no half measures and sleep works, so far everything running fine. its 3AM here so I'll do some more testing tomorrow but for now, huge thank you! I appreciate it! 1 Link to comment Share on other sites More sharing options...
