wern apfel Posted May 13, 2021 Share Posted May 13, 2021 1 hour ago, wern apfel said: AppleHDAController can be loaded with a delay, I'll try that later. This makes no sense, since HDAController is anyway loaded after AppleALC. 50 minutes ago, matgeo said: Tried also something else , without CC loaded. Started with boot argument alcverbs=1 (as per AppleALC guide) , copied alc-verb to usr/local/bin, executed the command "alc-verb 0x19 0x707 0x20" and sound from external speakers is back. This is the same, hda-verb is a client of CodecCommnder alc-verb of AppleALC. I ordered an Intel NUC which also has this TRRS jack, then I can do some more tests. It seems that it works with CC because it's loaded later. This script is adapted to your codec. realtek256.sh.zip Link to comment Share on other sites More sharing options...
matgeo Posted May 13, 2021 Share Posted May 13, 2021 39 minutes ago, wern apfel said: This script is adapted to your codec. realtek256.sh.zip 1.19 kB · 0 downloads Channel/StreamID: DAC 1 = 00 DAC 2 = 00 Pin Control: IntMic = 00 ExtMic = 25 IntSpeaker = 00 Headphones = 00 GPIO: Direction = 00 Enable = 00 Data = 00 Unsolicited Enable: IntSpeaker = 00 Headphones = 83 IntMic = 00 ExtMic = 85 Power State: IntSpeaker = 30 Headphones = 33 IntMic = 30 ExtMic = 30 Link to comment Share on other sites More sharing options...
LockDown Posted May 14, 2021 Share Posted May 14, 2021 9 hours ago, wern apfel said: Does this computer have a physical internal speaker? Try layout 16, no autoswitch mode anymore, maybe it work this way? Also try layout 17. AppleALC.kext.zip 1.21 MB · 1 download It has an internal speaker. With 16, same issue. With 17, Headphone did not show up even i plug it. Only Internal Speaker is visible but i lost sound this time . Link to comment Share on other sites More sharing options...
mengshi Posted May 14, 2021 Share Posted May 14, 2021 On 1/4/2021 at 7:52 AM, mengshi said: Just out of curiosity, I had a look at the XML of ID-99 and ID-7 - they look completely different! So I have no idea how or who got it to work (It was added in 1.1.2). I also took screenshots of the pin info from Hackintool of ID-7 vs ID-99 below: @MacPeet codec_dump.txt.zip Any thoughts ? This is inregarding ALC887 - id 1,7 etc vs id-99. id-99 SPDIF (digital out) works but USB sound doesn't, whereas id 1,7 etc - Digital out don't work but USB does. If only id-99 can somehow merge with id-1,7 etc. Link to comment Share on other sites More sharing options...
MacPeet Posted May 14, 2021 Share Posted May 14, 2021 @mengshi Your codec dump and id99 has SPDIF on 17-16 ID1 and ID7 have SPDIF at 30-6 try this with id 7 (30-6 changed to 17-16): AppleALC.kext.zip USB audio has nothing to do with AppleALC. Link to comment Share on other sites More sharing options...
SolidMecury Posted May 14, 2021 Share Posted May 14, 2021 (edited) @MacPeet Could you please help me with getting the audio working with MSI MPG B550 Gaming Edge Wifi board. I have tried all the layout ids available in the doc. I took a codec dump from linux and tried patching AppleAPLC.text with ConfigData generated from the dump using pin configurator but no luck. The motherboard spec says it uses ALC1200 but in fact its using ALCS1200A as per the codec dump. Btw, the patched kext gave a static crackling noise when anything was played at max volume. I have attached the codec dump and also DSDT if required. codec_dump.txtDSDT.dslDSDT.aml Edited May 14, 2021 by SolidMecury Link to comment Share on other sites More sharing options...
SolidMecury Posted May 15, 2021 Share Posted May 15, 2021 (edited) Today I noticed that the audio is working with the kext I have patched but it works only when I do cold start. I have a dual boot configuration with Windows. When I restart from windows and boot into Mac OS, audio doesn't work though all the output devices are listed. But when I shutdown completely and then boot to Mac OS, audio works fine. Found couple of old threads where users have suggested not to use Realtek driver in windows and use the windows default driver or always do cold start. How can I fix this properly? Edited May 15, 2021 by SolidMecury Link to comment Share on other sites More sharing options...
MacPeet Posted May 15, 2021 Share Posted May 15, 2021 The problem is known on some computers. Windows writes values into the nvram (SystemAudioVolume and SystemAudioVolumeDB) that macOS cannot work with. Use the cold start or try to enter SystemAudioVolume and SystemAudioVolumeDB in OC / nvram / Delete. Link to comment Share on other sites More sharing options...

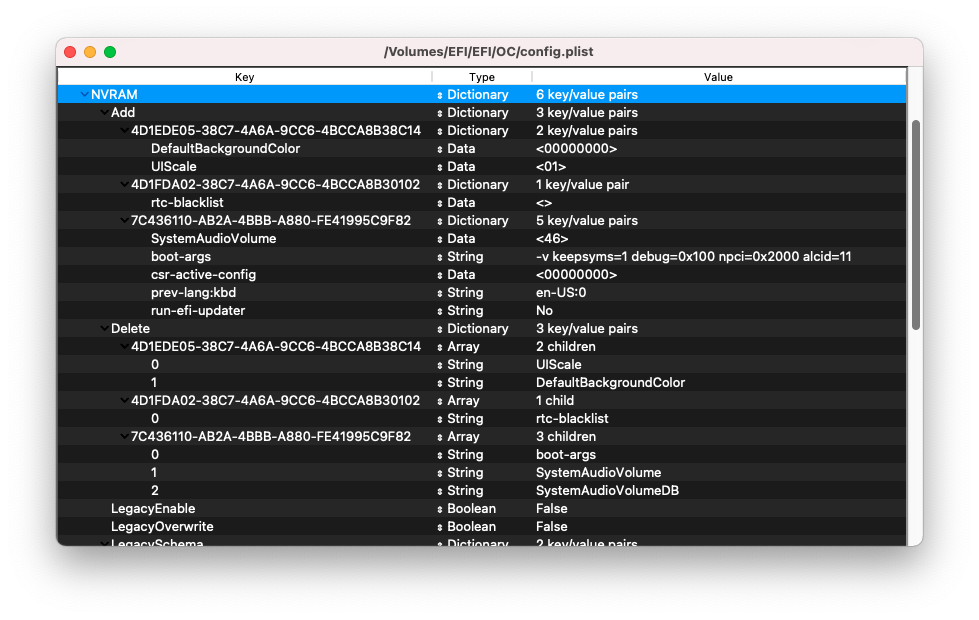

SolidMecury Posted May 15, 2021 Share Posted May 15, 2021 Added under delete like you have suggested but still the issue persists. Could you check whether the keys have been added properly? Link to comment Share on other sites More sharing options...
MacPeet Posted May 15, 2021 Share Posted May 15, 2021 Type is Data Link to comment Share on other sites More sharing options...
SolidMecury Posted May 15, 2021 Share Posted May 15, 2021 I think it's data when the value need to be set like in Add. But with delete it must be the key so it has to be string. Am I wrong? Link to comment Share on other sites More sharing options...
SolidMecury Posted May 15, 2021 Share Posted May 15, 2021 Does usisng emulated nvram helps? Link to comment Share on other sites More sharing options...

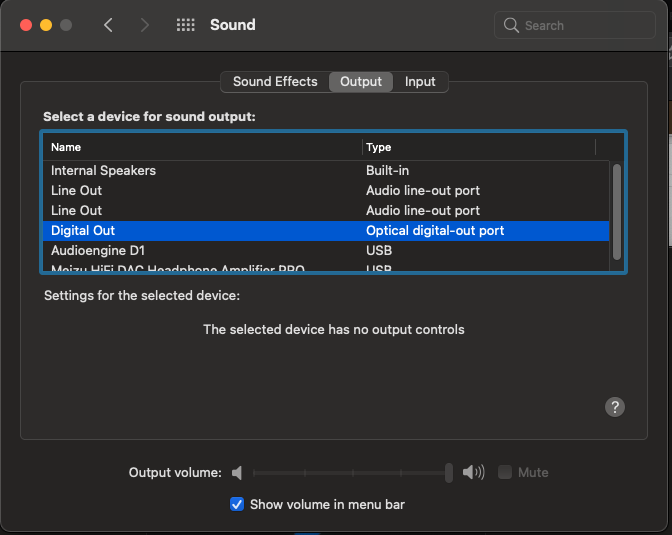

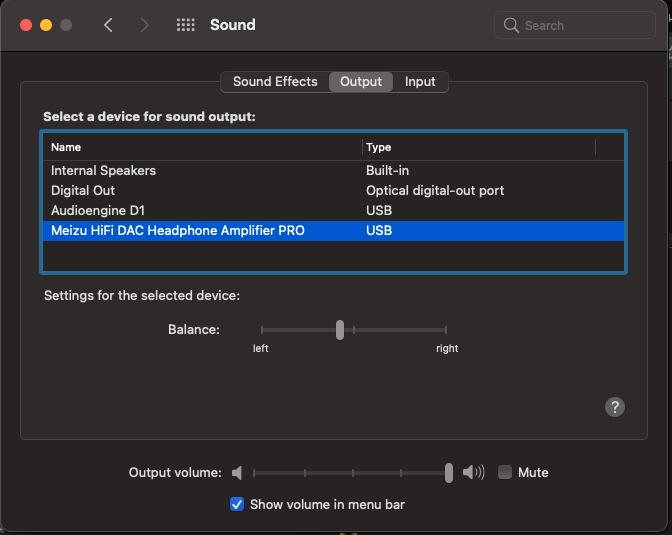

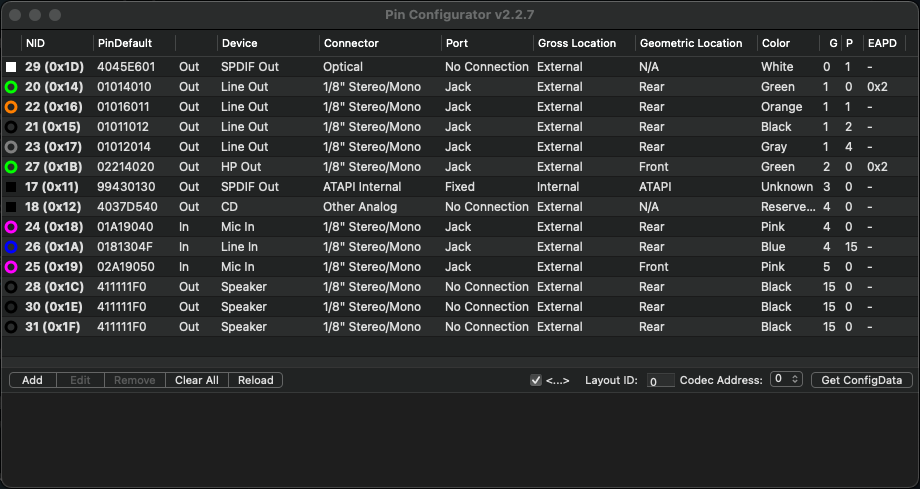

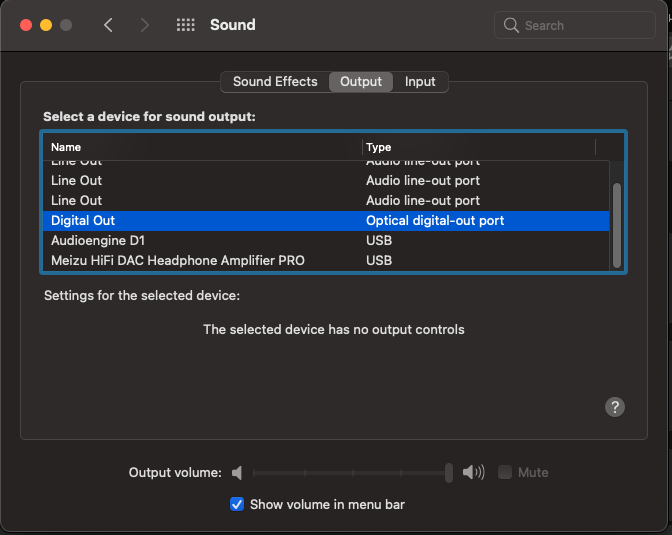

mengshi Posted May 15, 2021 Share Posted May 15, 2021 (edited) 18 hours ago, MacPeet said: @mengshi Your codec dump and id99 has SPDIF on 17-16 ID1 and ID7 have SPDIF at 30-6 try this with id 7 (30-6 changed to 17-16): AppleALC.kext.zip 1.19 MB · 1 download USB audio has nothing to do with AppleALC. @Macpeet Thanks so much but unfortunately it doesn't work. Let me show a few screencaps. 1. With unmodified AppleALC, id-1, digital out doesn't work. USB works and can detect both USB devices 2. With your modified AppleALC, id-7, digital doesn't work, both USB devices detected and work. Essentially behaves identical to id-1. 3. With unmodified AppleALC, id-99, digital out works, USB Audioengine D1 doesn't work (this device has both USB and optical SPDIF input -changing it to usb input doesn't work, optical input works), Meizu HiFi Dac USB works. Note the number of outputs changed. --------------------------------------- Pin configurator from codec dump: id-99 works the best. I can live with this. Thanks for helping. Edited May 15, 2021 by mengshi grammar Link to comment Share on other sites More sharing options...
wern apfel Posted May 23, 2021 Share Posted May 23, 2021 @matgeo I've made some progress with the TRRS jack issue, but not completely fixed, I will upload a sample if it's fixed. On 5/14/2021 at 2:37 AM, ellaosx said: It has an internal speaker. With 16, same issue. With 17, Headphone did not show up even i plug it. Only Internal Speaker is visible but i lost sound this time . Do you have a codec dump? I have an Optiplex that has the same issue and has been fixed. It has internal speakers, line-out and headphones, does yours have the same? Link to comment Share on other sites More sharing options...
LockDown Posted May 24, 2021 Share Posted May 24, 2021 @wern apfel I have Internal Speakers & Headphones only. I can provide you with the codec dump later. Thank You Link to comment Share on other sites More sharing options...
matgeo Posted May 24, 2021 Share Posted May 24, 2021 8 hours ago, wern apfel said: @matgeo I've made some progress with the TRRS jack issue, but not completely fixed, I will upload a sample if it's fixed. Great. Waiting. Link to comment Share on other sites More sharing options...
LockDown Posted May 24, 2021 Share Posted May 24, 2021 @wern apfel ellaosx_codec-dump.txt Link to comment Share on other sites More sharing options...
wern apfel Posted May 25, 2021 Share Posted May 25, 2021 On 5/24/2021 at 12:52 PM, ellaosx said: @wern apfel ellaosx_codec-dump.txt 31.21 kB · 1 download I expected an Linux-dump, but the Voodoo-dump is also good. Try this kext. AppleALC.kext.zip Link to comment Share on other sites More sharing options...
theroadw Posted May 25, 2021 Share Posted May 25, 2021 Thanks in advance, I'm having a problem with my CX8400 codec and I believe the problem is caused by power management and was wondering if there's a method for patching that using AppleALC. The problem is that the speaker output stops working randomly, and by switching to headphones and back to speaker, audio returns for a few seconds, then again silence. There are no errors reported anywhere, and as far as the system is concerned it thinks there's audio coming out of the speaker. After a lot of hair pulling, I believe the problem is most likely related to something that AppleHDA is doing when it knows the laptop is under battery power. If the laptop doesn't have a working battery manager kext, then the audio codec and speaker out work as expected. Under AC power and as long as the laptop doesn't go to sleep, the audio codec works as expected, but if the battery is discharged past a certain spot, and the battery manager does a full poll, then the speaker output starts muting again. VoodooHDA doesn't use AppleHDA and doesn't present these problems at all under battery power or after sleep, So it's only the combo "working battery" and AppleHDA that create the problem, so I suspect a power saving "feature" gone bad. Anyone knows of a patch that will bypass this "feature" so I can test? Cheers! Link to comment Share on other sites More sharing options...
biscate Posted May 26, 2021 Share Posted May 26, 2021 12 hours ago, theroadw said: Thanks in advance, I'm having a problem with my CX8400 codec and I believe the problem is caused by power management and was wondering if there's a method for patching that using AppleALC. The problem is that the speaker output stops working randomly, and by switching to headphones and back to speaker, audio returns for a few seconds, then again silence. There are no errors reported anywhere, and as far as the system is concerned it thinks there's audio coming out of the speaker. After a lot of hair pulling, I believe the problem is most likely related to something that AppleHDA is doing when it knows the laptop is under battery power. If the laptop doesn't have a working battery manager kext, then the audio codec and speaker out work as expected. Under AC power and as long as the laptop doesn't go to sleep, the audio codec works as expected, but if the battery is discharged past a certain spot, and the battery manager does a full poll, then the speaker output starts muting again. VoodooHDA doesn't use AppleHDA and doesn't present these problems at all under battery power or after sleep, So it's only the combo "working battery" and AppleHDA that create the problem, so I suspect a power saving "feature" gone bad. Anyone knows of a patch that will bypass this "feature" so I can test? Cheers! Have the same problem with my Acer IceLake 1035G1 and Conexant CX8400 audio codec. Any help is very welcome. Link to comment Share on other sites More sharing options...
LockDown Posted May 26, 2021 Share Posted May 26, 2021 15 hours ago, wern apfel said: I expected an Linux-dump, but the Voodoo-dump is also good. Try this kext. AppleALC.kext.zip 1.16 MB · 1 download It does not work because the plist doesnt contain any configData Link to comment Share on other sites More sharing options...
wern apfel Posted May 26, 2021 Share Posted May 26, 2021 1 hour ago, ellaosx said: It does not work because the plist doesnt contain any configData It seems that I have to run the compiler twice for the ConfigData to be there. AppleALC.kext.zip Link to comment Share on other sites More sharing options...
LockDown Posted May 28, 2021 Share Posted May 28, 2021 @wern apfel Hi. with layout 16, it now saves to Internal Spaker. But i dont have Headphones. Sound directs to Internal Speaker even Headphone is plugged. Link to comment Share on other sites More sharing options...
wern apfel Posted May 29, 2021 Share Posted May 29, 2021 On 5/28/2021 at 7:58 AM, ellaosx said: @wern apfel Hi. with layout 16, it now saves to Internal Spaker. But i dont have Headphones. Sound directs to Internal Speaker even Headphone is plugged. That's weird, try this kext, layout 15, 16 and 17, they are different configured. AppleALC.kext.zip Link to comment Share on other sites More sharing options...
LockDown Posted May 30, 2021 Share Posted May 30, 2021 12 hours ago, wern apfel said: try this kext, layout 15, 16 and 17, they are different configured. 15 = No sound coming from Internal Speaker & Headphones 16 = Internal Speaker is OK. No Headphones 17 = No Output visible Link to comment Share on other sites More sharing options...
