AppleALC — dynamic AppleHDA patching

[MacPeet]

Try SwitchMode 20-12-2 and 21-12-2 and as an extra LineOut 27-13-3



or



20-12-2 and 27-12-2 and HP separately with 21-13-3



If you don't need port 21 (HP), then you can also try SwitchMode 20-12-2 and 27-13-3.



Also try both: configure node 27 as LineOut or as HP.

[Guest 5T33Z0]

On 3/7/2016 at 11:46 PM, vit9696 said:

5. Autogenerated Info.plist made with the help of this utility.



Does somebody still have the above mentioned tool to autogenerate the info.plist?

[andreew75]

I have a Chuwi Corebook X Pro laptop. Coffee Lake
Intel I5-8259U
Intel Iris Plus 655

OC 0.8.2

I successfully installed Monterey 12.5, however there is no sound and I can't resolve this issue.
As Windows shows, my audio device is Intel Smart Sound.
Hackintool defines the device ID as 0x9DC8.

Can someone suggest a solution? Any of your advice

Edited July 24, 2022 by andreew75

[Allan]

1 hour ago, andreew75 said:

I have a Chuwi Corebook X Pro laptop. Coffee Lake
Intel I5-8259U
Intel Iris Plus 655

I successfully installed Monterey 12.5, however there is no sound and I can't resolve this issue.
As Windows shows, my audio device is Intel Smart Sound.
Hackintool defines the device ID as 0x9DC8.

Can someone suggest a solution? Any of your advice

Did you tried VoodooHDA instead?

[mengshi]

3 hours ago, andreew75 said:

I have a Chuwi Corebook X Pro laptop. Coffee Lake
Intel I5-8259U
Intel Iris Plus 655

I successfully installed Monterey 12.5, however there is no sound and I can't resolve this issue.
As Windows shows, my audio device is Intel Smart Sound.
Hackintool defines the device ID as 0x9DC8.

Can someone suggest a solution? Any of your advice



When all else fails, get a USB DAC. Even apple's own USB DAC is highly rated. https://www.apple.com/my/shop/product/MU7E2ZA/A/usb-c-to-35-mm-headphone-jack-adapter



[andreew75]

12 hours ago, Allan said:

Did you tried VoodooHDA instead?

First, I would like to get the sound to work using the AppleALC method, since Dortania's claims that device-id 9DC8 has support for the controller patch.

https://github.com/acidanthera/AppleALC/wiki/Supported-codecs

VoodooHDA is an extreme method, and I will not use it yet

[ameenjuz]

On 7/24/2022 at 11:32 AM, andreew75 said:

First, I would like to get the sound to work using the AppleALC method, since Dortania's claims that device-id 9DC8 has support for the controller patch.

https://github.com/acidanthera/AppleALC/wiki/Supported-codecs

VoodooHDA is an extreme method, and I will not use it yet

Hi andreew75  i also couldn't get to working my Intel smart sound tec

Do you have any solution? Everything is working fine except sound

If you found any solution for this controller please keep aware me

Because without sound hackintosh is  incompletable

As you said your controller is supported alc

Mine controller also supported alc but i couldn't found any realtek dev id ven id under windows

I saw under device menager intel smart sound tec dev id

Look like this



• Intel(R) Audio for displays device ids:
INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101&REV_1000
INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101

• Intel Smart Sound - audio controller:
PCI\VEN_8086&DEV_02C8&SUBSYS_1260152D&REV_00
PCI\VEN_8086&DEV_02C8&SUBSYS_1260152D
PCI\VEN_8086&DEV_02C8&CC_040100
PCI\VEN_8086&DEV_02C8&CC_0401

• ESAuDriver Device
ACPI\VEN_ESSX&DEV_8336&SUBSYS_152D1262
ACPI\ESSX8336
*ESSX8336

[andreew75]

have you tried the solution posted here

https://github.com/Ab2774/Lenovo-IdeaPad-320-14-IKB-Hackintosh/releases

[Slice]

11 hours ago, andreew75 said:

have you tried the solution posted here

https://github.com/Ab2774/Lenovo-IdeaPad-320-14-IKB-Hackintosh/releases

There is same AppleALC.



Intel SmartSound ESSX has no solution in hackintosh world.

[andreew75]

16 hours ago, Slice said:

There is same AppleALC.



Intel SmartSound ESSX has no solution in hackintosh world.

then it is not clear why Dortania declares support ISST

[rafale77]

38 minutes ago, andreew75 said:

then it is not clear why Dortania declares support ISST



Could you show us where you saw this declaration? This is the first I heard of it.

[oldman20]

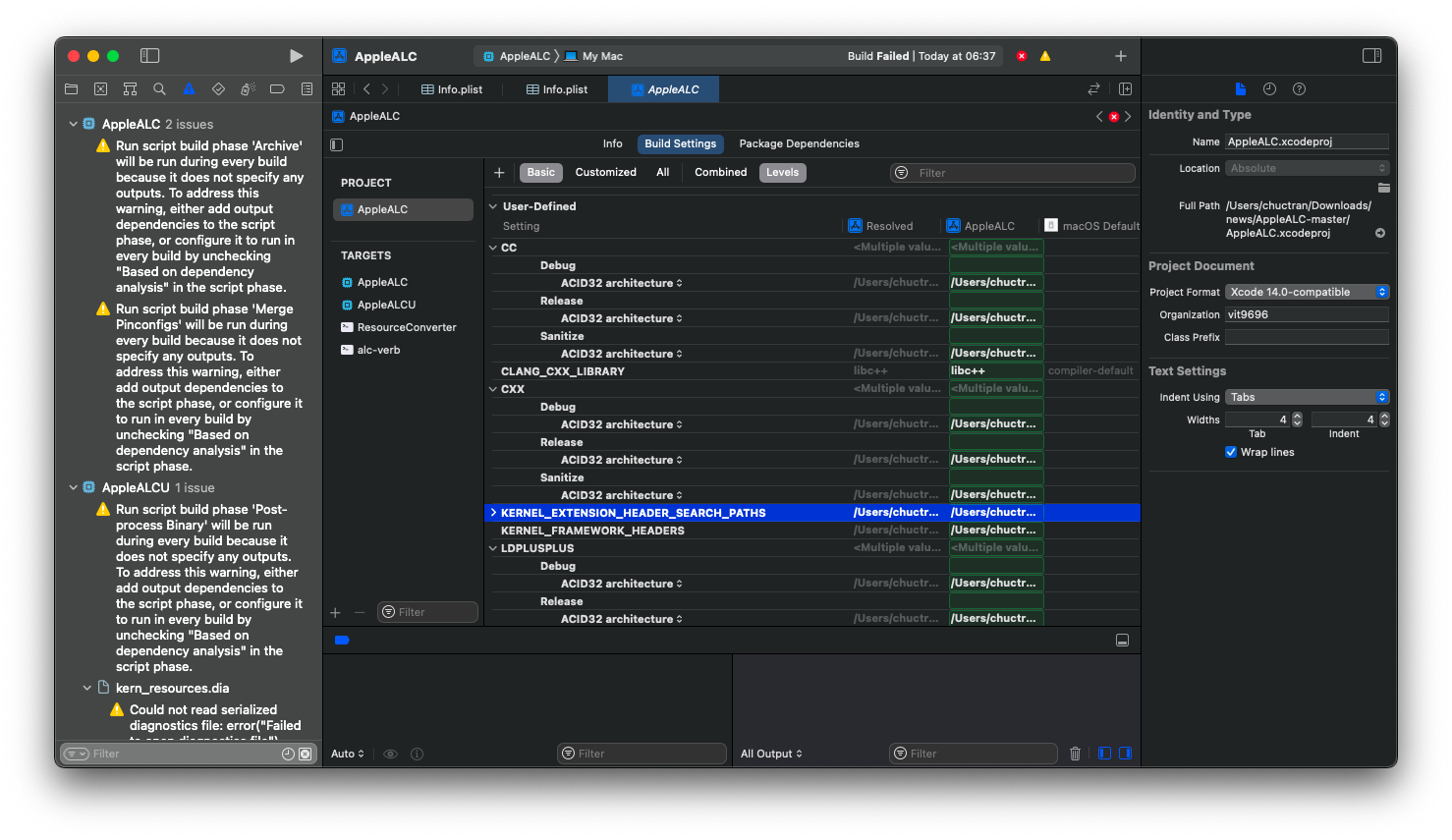

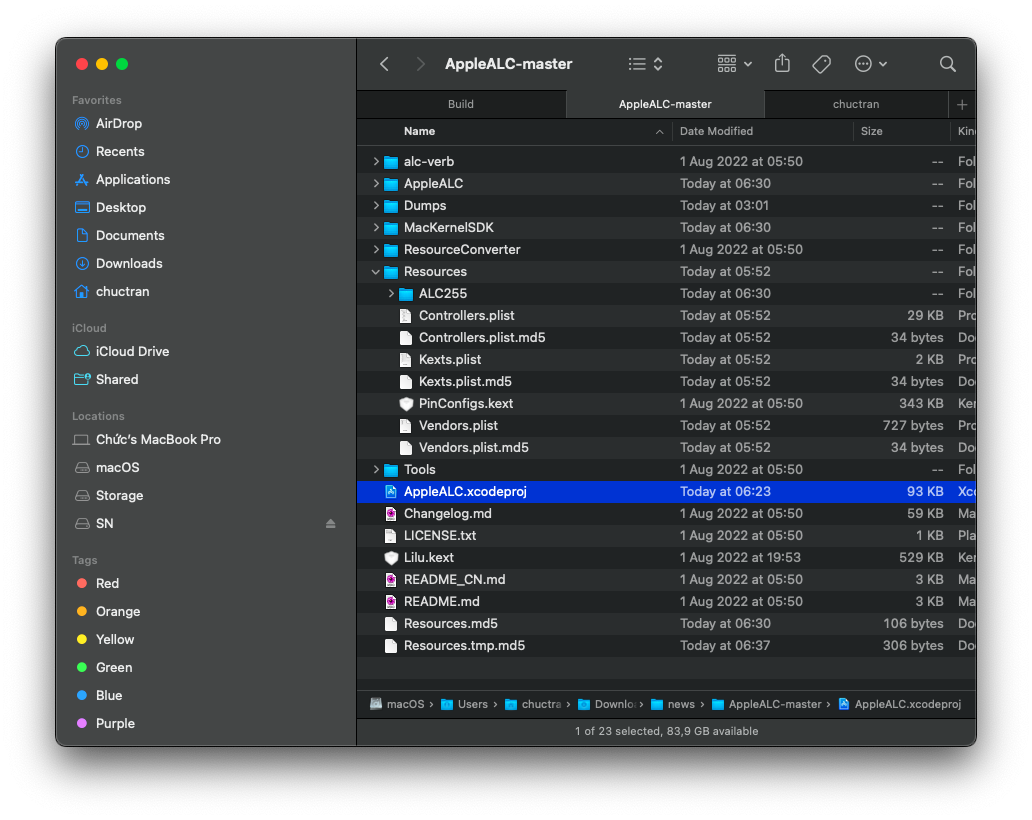

I tried to Fix it myself but I can't get compile. Here are the files that I made

codeverbs.txt

layout71.xmlPlatforms71.xml

Thank!

[andreew75]

11 hours ago, rafale77 said:



Could you show us where you saw this declaration? This is the first I heard of it.

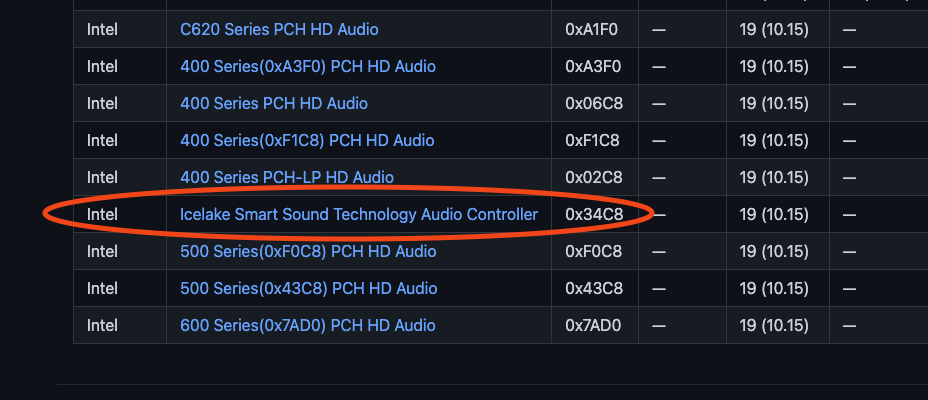

https://github.com/acidanthera/AppleALC/wiki/Supported-codecs



[Slice]

1 hour ago, andreew75 said:

https://github.com/acidanthera/AppleALC/wiki/Supported-codecs



ACPI\VEN_ESSX&DEV_8336&SUBSYS_152D1262?

[andreew75]

7 hours ago, Slice said:

ACPI\VEN_ESSX&DEV_8336&SUBSYS_152D1262?

Yes, I have device ACPI\VEN_ESSX&DEV_8326&SUBSYS_27821A60

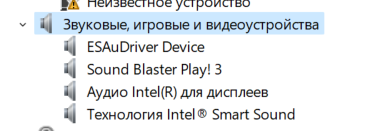

Also in audio devices there is this



Slice, could any of this make the sound work?

Sound Blaster Play this is an external sound card.



[rafale77]

9 hours ago, andreew75 said:

https://github.com/acidanthera/AppleALC/wiki/Supported-codecs

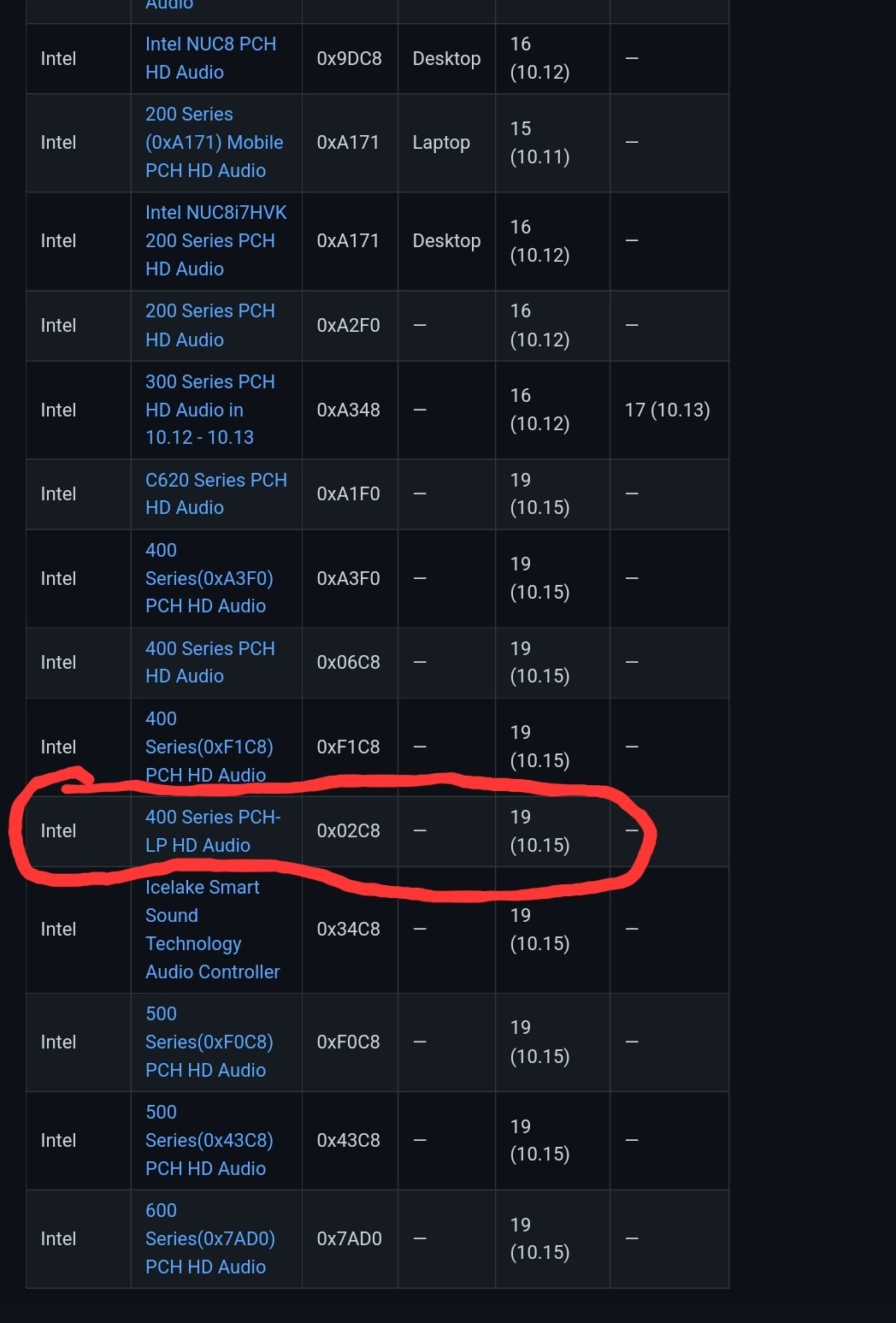

Not to be nitpicking but this is not in Dortania. It is also a very specific device for the mobile line of Icelake which name their PCH codec SST likely because it has similar features and is different from the ones in desktop platforms which requires a separate driver as it is a separated device from the PCH codec. On mine SST is an I2C device and is completely unsupported by MacOS. Instead I am running on the 400 Series PCH HD audio.

[biscate]

My laptop has ISST and since AppleALC 1.6.6 (Added Conexant CX11970 (CX8400) layout-id 13 for Acer Swift 3 SF31* (Ice Lake) by m0d16l14n1), internal speakers and headphone work pretty well. There is no solution for internal mic, but I still can connect an external mic to the P3 connector.



[andreew75]

23 hours ago, rafale77 said:

On mine SST is an I2C device and is completely unsupported by MacOS. Instead I am running on the 400 Series PCH HD audio.

could you explain how you implemented this?

[rafale77]

1 hour ago, andreew75 said:

could you explain how you implemented this?

Not really sure what you are asking here. What configuration/hardware are you trying to implement?



To try to be clear as to what my understanding is:

There are Controllers and Codec chips. The codec is what you need to focus on and the SST is usually a codec.

That one you have listed just happens to be the name of the IceLake controller.

My systems has the 400 series PCH HD and an ALC codec + an SST codec. The SST codec is not supported and I just use one of the profiles in AppleALC to use the ALC codec.

Edited August 4, 2022 by rafale77

[Slice]

Usually chip of audio codec connected to PCI device PciRoot(0x0)/Pci(0x1f,0x3). VoodooHDA and AppleHDA have PCI command set to tune audio codec.

But we have a new reality. Some codecs attached to I2C and should be tuned by I2C commands.

We have a project VoodooI2C. So one developer should join VoodooI2c with VoodooHDA to make the driver for such sound.

[andreew75]

23 hours ago, rafale77 said:

What configuration/hardware are you trying to implement?



I see such information that Windows shows me



ESAuDriver Device

ACPI\VEN_ESSX&DEV_8326&SUBSYS_27821A60

ACPI\ESSX8326

*ESSX8326



Intel(R) Display-Audio

INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101&REV_1000

INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101



Intel Smart Sound Technology

INTELAUDIO\CTLR_DEV_9DC8&LINKTYPE_03&DEVTYPE_04&VEN_8086&DEV_AE34&SUBSYS_02062782&REV_0001



Edited August 5, 2022 by andreew75

[rafale77]

55 minutes ago, andreew75 said:

I see such information that Windows shows me



ESAuDriver Device

ACPI\VEN_ESSX&DEV_8326&SUBSYS_27821A60

ACPI\ESSX8326

*ESSX8326



Intel(R) Display-Audio

INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101&REV_1000

INTELAUDIO\FUNC_01&VEN_8086&DEV_280B&SUBSYS_80860101



Intel Smart Sound Technology

INTELAUDIO\CTLR_DEV_9DC8&LINKTYPE_03&DEVTYPE_04&VEN_8086&DEV_AE34&SUBSYS_02062782&REV_0001





You have both the intel onboard SST codec which is not supported by MacOS or AppleALC because it is an I2C device as @Slice was referring to and an Everest Semiconductor codec. I am pretty sure it isn't supported either. I am not sure how it is connected on the board as the I2S reference is making me think that it is not on the PCIe bus either.



See here and here.

Edited August 5, 2022 by rafale77

[andreew75]

rafale77, Thank you for your attention to my problem and your time.👋
I will carefully learn the VoodooI2C project, maybe it will help me solve the sound problem

[oldman20]

hello, currently what method for enable ExtMic in jack combo 3.5?

[Guest 5T33Z0]

@oldman20

• Check in System Preferences/Sound/Input if you can select the External Mic manually. If not, try another ALC Layout ID. They are listed here: https://github.com/dreamwhite/ChonkyAppleALC-Build/blob/master/Realtek/ALC255.md
• If none of them work, you probably have to create your own ALC Layout-ID (for advanced users only!): https://github.com/5T33Z0/AppleALC-Guides
