[AMD] OS X El Capitan (10.11) Kernel Testing & Release (for help use the Help Topic)

1,259 posts in this topic

Recommended Posts

Apple has taken a very long time and just the xnu source was finally released for El Capitan.



So the source for OS X El Capitan released 7:00 +/- PM GMT






https://opensource.apple.com/release/os-x-1011/

Edited by Duran Keeley
Added extra info

Share this post


Link to post
Share on other sites
Advertisement

now I'm going to build the kernel, I hope that everything will work.



that was my first test with this error message, now must look for solutions to fix these errors:






undef: ___llvm_profile_get_size_for_buffer_internal
undef: _mach_approximate_time
undef: _blacklistMods
undef: ___llvm_profile_write_buffer_internal
undef: _confblacklistCount
undef: _confblacklistEnabled
undef: _blacklistEnabled
undef: _confblacklistMods
Undefined symbols for architecture x86_64:
"___llvm_profile_get_size_for_buffer_internal", referenced from:
OSKextGrabPgoDataLocked(OSKext*, bool, unsigned char*, unsigned long long*, char*, unsigned long long) in OSKext.cpo
"_mach_approximate_time", referenced from:
_thread_unblock in sched_prim.o
_thread_dispatch in sched_prim.o
(maybe you meant: _commpage_update_mach_approximate_time)
"_blacklistMods", referenced from:
IOCatalogue::addDrivers(OSArray*, bool) in IOCatalogue.cpo
"___llvm_profile_write_buffer_internal", referenced from:
OSKextGrabPgoDataLocked(OSKext*, bool, unsigned char*, unsigned long long*, char*, unsigned long long) in OSKext.cpo
"_confblacklistCount", referenced from:
IOCatalogue::addDrivers(OSArray*, bool) in IOCatalogue.cpo
"_confblacklistEnabled", referenced from:
IOCatalogue::addDrivers(OSArray*, bool) in IOCatalogue.cpo
"_blacklistEnabled", referenced from:
IOCatalogue::addDrivers(OSArray*, bool) in IOCatalogue.cpo
"_confblacklistMods", referenced from:
IOCatalogue::addDrivers(OSArray*, bool) in IOCatalogue.cpo
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use -v to see invocation)
make[3]: *** [/users/mein/spakk/10.11_SSSEPlus_V1/BUILD/obj/RELEASE_X86_64//kernel.unstripped] Error 1
make[2]: *** [build_all] Error 2
make[1]: *** [build_all_bootstrap_RELEASE^X86_64^NONE] Error 2
make: *** [install] Error 2









same error message when I create vanillia kernel







undef: ___llvm_profile_get_size_for_buffer_internal
undef: ___llvm_profile_write_buffer_internal
Undefined symbols for architecture x86_64:
"___llvm_profile_get_size_for_buffer_internal", referenced from:
OSKextGrabPgoDataLocked(OSKext*, bool, unsigned char*, unsigned long long*, char*, unsigned long long) in OSKext.cpo
"___llvm_profile_write_buffer_internal", referenced from:
OSKextGrabPgoDataLocked(OSKext*, bool, unsigned char*, unsigned long long*, char*, unsigned long long) in OSKext.cpo
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use -v to see invocation)
make[3]: *** [/users/mein/spakk/xnu-3247.1.106/BUILD/obj/RELEASE_X86_64//kernel.unstripped] Error 1
make[2]: *** [build_all] Error 2
make[1]: *** [build_all_bootstrap_RELEASE^X86_64^NONE] Error 2
make: *** [all] Error 2



Edited by spakk

Share this post


Link to post
Share on other sites

Reserved:

Post to be used for an updated list of current kernels.

-- UPDATED 22 Dec 2015 - 14:12 --


y2k4u - 09 Dec 2015 - 5:53 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175370

y2k4u - 10 Dec 2015 - 04:48 AM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175398

y2k4u - 13 Dec 2015 - 09:40 AM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175594

Micky1979 - 13 Dec 2015 - 7:38 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175640

y2k4u - 13 Dec 2015 - 9:00 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175649

Bronya - 13 Dec 2015 - 10:03 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175657

y2k4u - 14 Dec 2015 - 5:33 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175710

Shaneee - 16 Dec 2015 - 12:28 AM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175828

Shaneee - 16 Dec 2015 - 6:33 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175867

Shaneee - 17 Dec 2015 - 2:10 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=175951

Tora Chi Yo - 17 Dec 2015 - 3:27 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=175965

spakk - 19 Dec 2015 - 05:47 AM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=176060

spakk - 19 Dec 2015 - 07:07 AM
http://www.insanelymac.com/forum/topic/309765-amd-os-x-el-capitan-1011-kernel-testing-release-for-help-use-the-help-topic/page-22?p=2198819&do=findComment&comment=2198819

spakk - 19 Dec 2015 - 07:58 AM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=176067

y2k4u, on 19 Dec 2015 - 1:12 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=176077

y2k4u - 19 Dec 2015 - 5:09 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=176091

y2k4u - 19 Dec 2015 - 1:12 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=176077

Shaneee - 21 Dec 2015 - 9:43 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=176176

Shaneee - 21 Dec 2015 - 11:14 PM
http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=176183



Bronya - 22 Dec 2015 - 02:03 PM

http://www.insanelymac.com/forum/topic/309765-amd-os-x-el-capitan-1011-kernel-testing-release-for-help-use-the-help-topic/?p=2199510



Shaneee - 22 Dec 2015 - 02:21 PM

http://www.insanelymac.com/forum/topic/309765-amd-os-x-el-capitan-1011-kernel-testing-release-for-help-use-the-help-topic/?p=2199511



Edited by Shaneee
Updated Kernel List

Share this post


Link to post
Share on other sites

it is not easy to fix the problem, any help to resolve the problem above (see spoiler into post # 3) is welcome.



Edit:



We should first try to build the vanillia kernel when the kernel have successfully built, then we can try to built the AMD kernel.damn difficult, unfortunately, there is no post from other users who have tried to resolve the issue.

Share this post


Link to post
Share on other sites

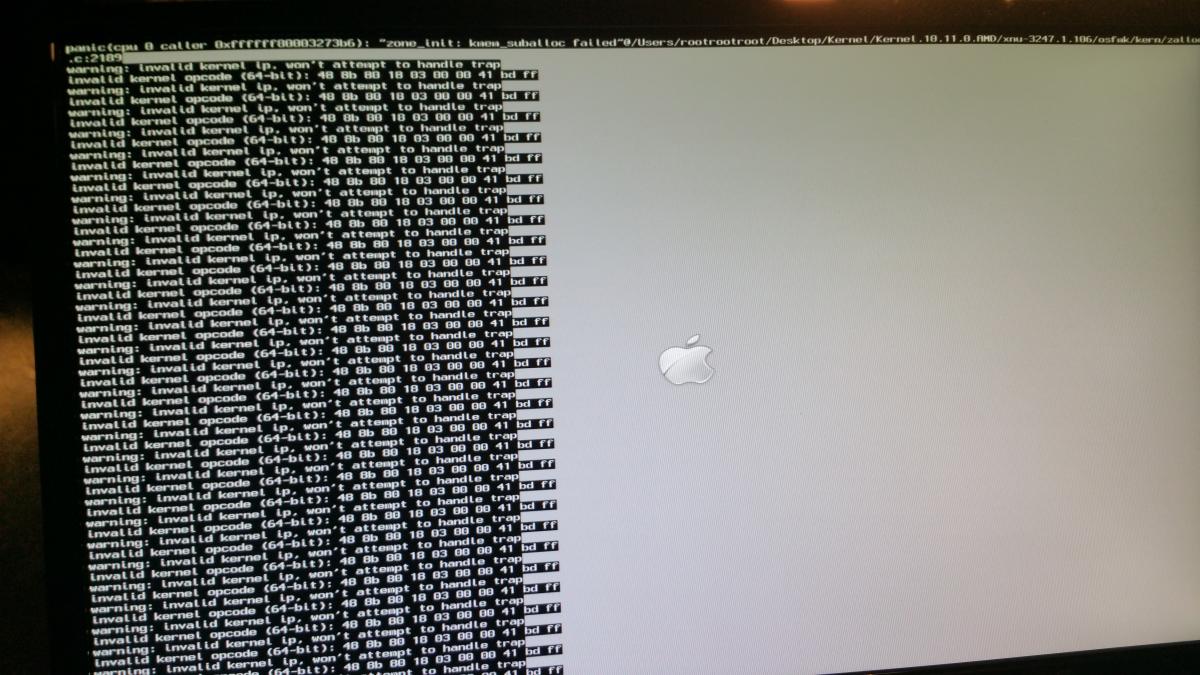

 @y2k4u, Kernel does not work with my CPU, but very good that you have found a way to build the kernel.  :thumbsup_anim:


Share this post


Link to post
Share on other sites

Hi Folks,



Attached is the long awaited El Capitan 10.11.0 kernel for AMD.  Test away... and I hope you enjoy doing it!



attachicon.gif10110R1.zip

I'll test today.

Share this post


Link to post
Share on other sites

I've got this spamming in console. Its the only thing in console actually.

09/12/2015 15:17:15.000 syslogd[21]: Received message size 312 overflows work queue limit 10240000 - dropping message

Share this post


Link to post
Share on other sites



I've got this spamming in console. Its the only thing in console actually.

09/12/2015 15:17:15.000 syslogd[21]: Received message size 312 overflows work queue limit 10240000 - dropping message

El Cappy seems to like spamming the log on my intel hack it spammed soething about fonts.

On a serious note how do you get it to load the kernel? I used CIM but all I have is an app on my usb drive -- so no /System/Libray foler so I can make a kernels folder :huh: .

Thanks

Share this post


Link to post
Share on other sites

El Cappy seems to like spamming the log on my intel hack it spammed soething about fonts.

On a serious note how do you get it to load the kernel? I used CIM but all I have is an app on my usb drive -- so no /System/Libray foler so I can make a kernels folder :huh: .

Thanks



I used the Disk Utility method of restoring BaseSystem ect. Never used CreateInstallMedia before.

Share this post


Link to post
Share on other sites

I used the Disk Utility method of restoring BaseSystem ect. Never used CreateInstallMedia before.

I'm sure there is a chameleon/enoch flag to load the kernel from somewhere else.

Share this post


Link to post
Share on other sites

Here is the next iteration of the El Capitan 10.11.0 AMD kernel.  Install on a clean system; otherwise, your mileage may vary.



10110R2.zip



I haven't updated my system to 10.11.2 but it's good to know that the previous kernel is working on that as system as well.

Share this post


Link to post
Share on other sites

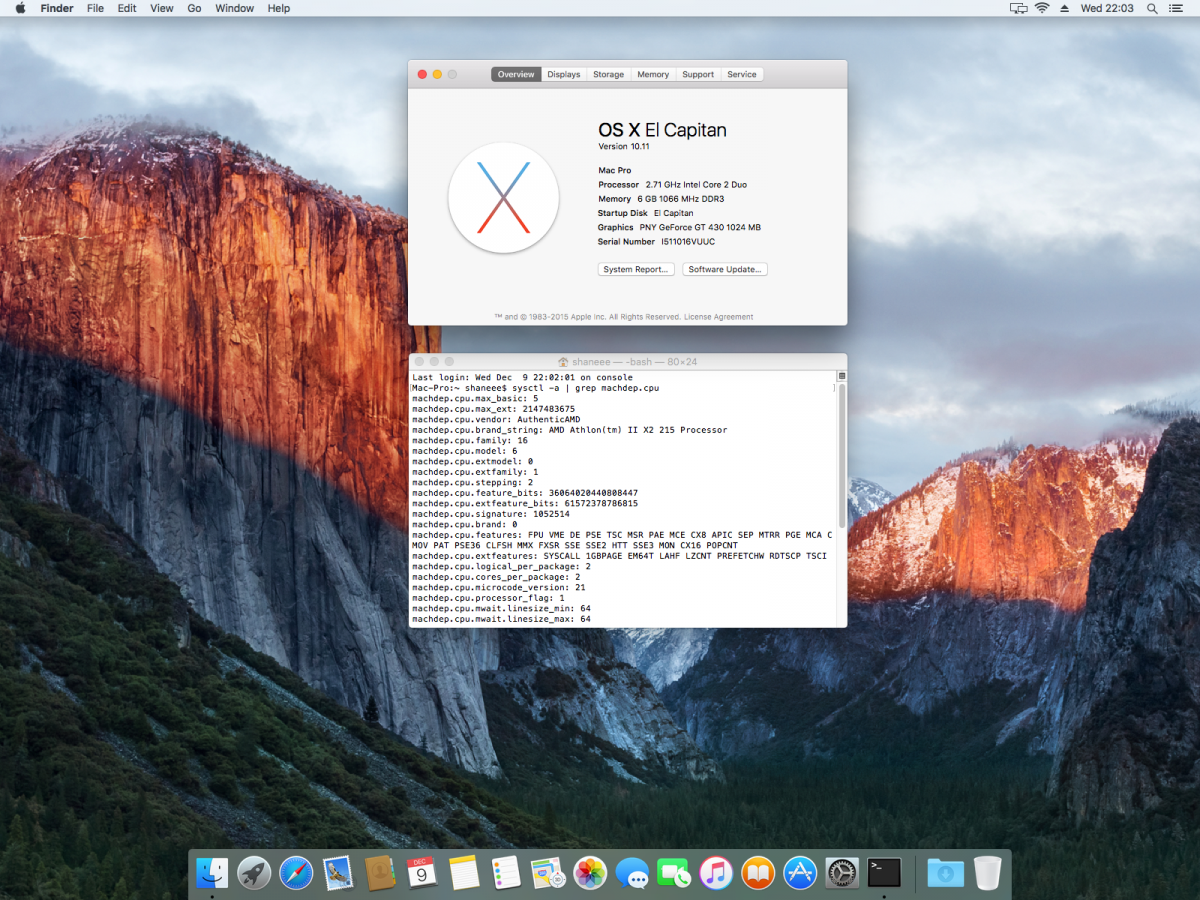

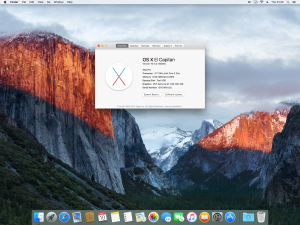

Can't post a screenshot ATM but I confirm the first kernel works very good with 10.11 ! I also confirm that EVOReboot.kext cause opcode errors (at least on my system).



Oh and iCloud works OOB :shock: ! OMG ! :drool:



Now, time to update to 10.11.2 and play with new kernel :).



Congrats to y2k4u, you did an awesome work and made the move to El Capitan incredibly easy ! :thumbsup_anim:



And of course, congrats to everyone that make AMD Hackintoshing possible !

Share this post


Link to post
Share on other sites

Yes.. Kernel can boot in my sig, 10.11. 1, the problem just like jsl said @usb or this general problem for non intel chip

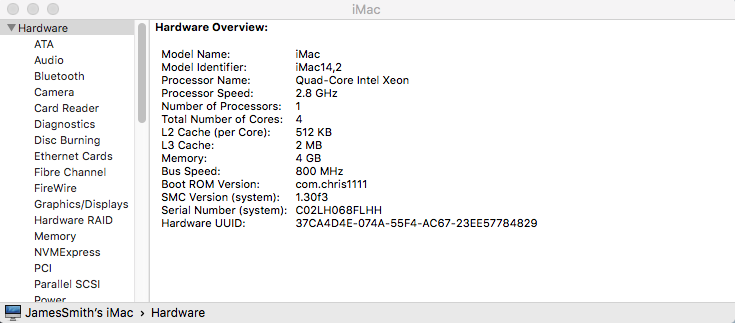

@jsl what smbios are you using?

iMac 14,2


Share this post


Link to post
Share on other sites

Anyone else having trouble with some pkg installers failing and simple apps not opening. Getting this error alot in crash logs,

Crashed Thread:        5  Dispatch queue: com.apple.root.user-interactive-qos

Share this post


Link to post
Share on other sites
