HP Z400/Z600/Z800 Workstations OS X 10.10.x/10.11.x Installation

[MacPeet]

@Rockey12



Here some testing for you and other users:



Clover on the fly audio is the best method. No problems and no intervention for updates.



Clover_Audio_on_the_fly_patch.zip



The package includes:

Original (Vanilla) AppleHDA for Capitan including layout28.zml.zlib and Platforms.zml.zlib

realtekALC.kext for ConfigData



instructions:

1. Install AppleHDA by S/L/E with SIP 0x67

2. Copy realtekALC.kext by EFI/Clover/kexts/10.11/

3. Inject Clover's Kext to activate "Yes"

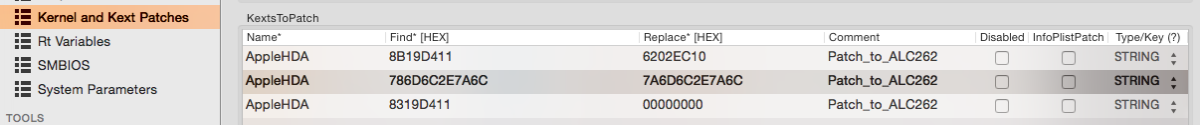

4. Add the following in a config.plist with CloverConfigurator:

5. rebuild cache (sudo kextcache -prelinked-kernel)

6. Reboot and have fun



[gkourk6522]

Hi

After a lot try to setup my z800 with el capitan 10.11.4 Beta (15E49a) finally almost done

First I would like to thanks the forum and all the users that sharing information



My setup procedure is:

first using http://www.insanelymac.com/forum/topic/307920-guide-clover-dell-precision-690-workstation/?st=0

this clover setup to make the usb with 10.11.3

then Post Installer HP Z800 http://www.insanelymac.com/forum/topic/307920-guide-clover-dell-precision-690-workstation/page-12?do=findComment&comment=2220137

I boot without any bootflags  in this step i have many freezes in finder

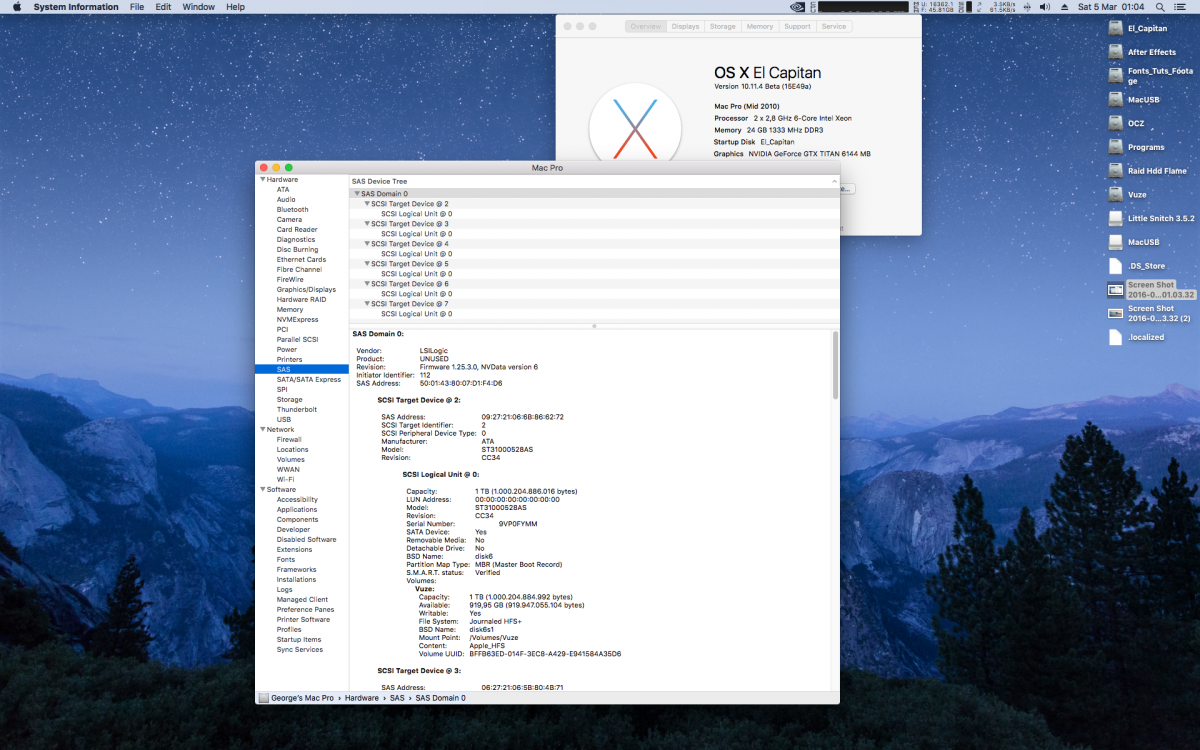

then i update to 10.11.4 Beta (15E49a) and now all works normal         and the sas controller



many thanks to Chris 1111 and the Clover team





the only problem are the audio and the memory banks

i haven't audio but i didn't try to fix it

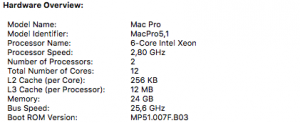

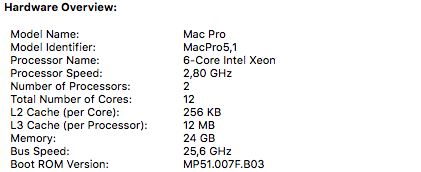

and the memory i have 12 banks of 4gb =48gb ram and el capitan recognise 6 banks  = 24gb i don't now if it is any configuration in clover



thanks



ps i don't know how to upload screenshots

[gkourk6522]

please don't forget to give the credit to Chris 1111 who made these wonderful Installer  and the Clover team for the Execelant bootloader

AppleHDA+CodecCommander+DSDT in post 135



AppleHDA+CodecCommander+DSDT   is that for audio

[gkourk6522]

audio works

[gkourk6522]





I  will stay here for the next year



[keksonja]

I am finally booted inside OS X  now i have to do a post install..... THANKS! ROCKEY AND CHRIS!!!



Gkoruk how did you make LSI work i have 2 LSI cards inside now with 2 raids and also another ATTO card... I did not disconnect anything it booted

[gkourk6522]

I am finally booted inside OS X  now i have to do a post install..... THANKS! ROCKEY AND CHRIS!!!



Gkoruk how did you make LSI work i have 2 LSI cards inside now with 2 raids and also another ATTO card... I did not disconnect anything it booted

It works by default when i update to 10.11.4 beta

[keksonja]

new….getting..better..and.better…

[djfremen]

Confirmed working with z400 and 10.11 (El Cap)



What a breeze compared to Enoch method.



1. Create USB key via Chris1111

2. Copy files / DSDT into EFI partition of USB key (inside the 10.11 folder for kext)

3. Boot from USB key.

4. Install OS -- without boot flags - reboot.

5. Load OS, use post install via Chris1111.

6. Mount EFI partition and move DSDT and Kext files from USB key to folders.

7. Repair permissions.

8. Install Audio as above (Codec Commander)

9. Update to Beta (if you want).



Excellent work everyone. Clover is vastly superior due to the hidden Kext / DSDT files and update potential.

[Blaggah]

@djfremen which machine did you just install to? Did you install Yosemite or El Capitan? I'm only asking because I was to update my HP Z400 to El Capitan if possible with clover.

[djfremen]

@djfremen which machine did you just install to? Did you install Yosemite or El Capitan? I'm only asking because I was to update my HP Z400 to El Capitan if possible with clover.

Just updated.

[Blaggah]

Awesome, do you mean sharing your kext folder? I just want to compare with mine just in case I'm missing one or two.

[gkourk6522]

Hi

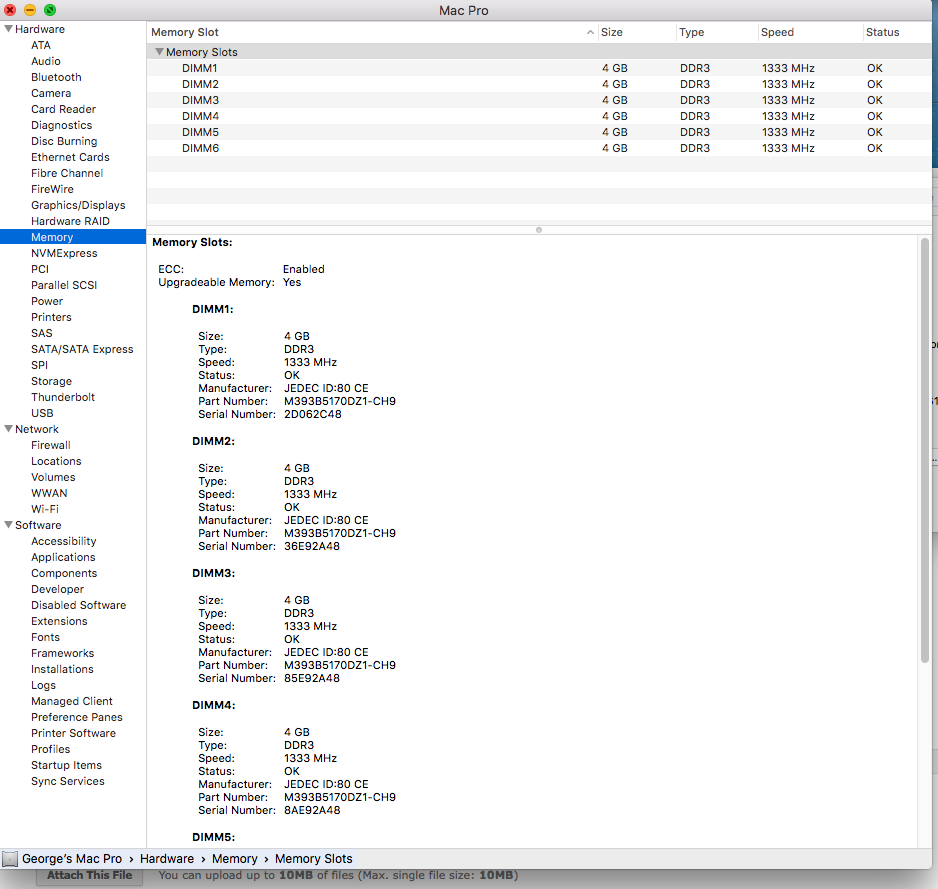

I have a problem with memory banks my system configuration has 12 banks of 4gb ram for 2 x cpu the problem is el capitan recognise the half memory



 (mavericks recognise all banks)



can anyone help me to solve i think is inside clover configuration

config.plist.zip



thanks a lot









[gkourk6522]

Try this



Thanks A LOT



It works



Clover is the best

[gkourk6522]

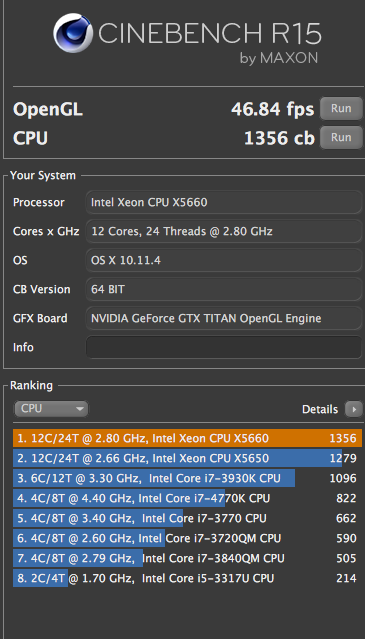

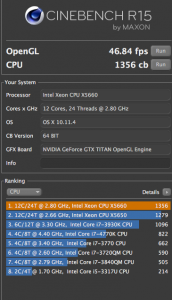

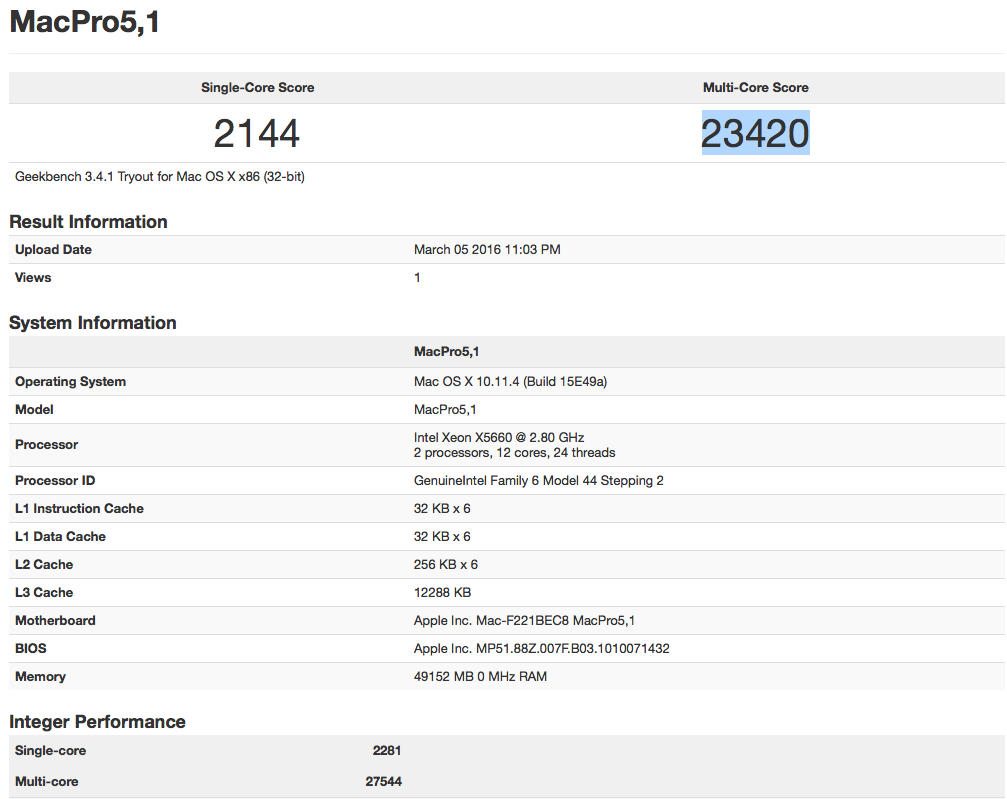

Some performance

[Blaggah]

Just updated.

I tried it last night with already made usb for precision 690, just replaced the dsdt and kexts inside kexts folder in efi and nothing shows up after the clover bootloader.  I just remade another vanilla usb with the universal os x installer by chris, will try again soon and report back.

[MacPeet]

Yes, the best method for Capitan is Clover.



I wonder about the use of CodecComander. Your ALC262 has no EAPD. The Kext includes nothing for ALC262. The patched AppleHDA of Mavericks or Yosemite also work with Capitan. The best method is on the fly.



Some fixes are not necessary because they are in DSDT it (AddDTGP, FixIPIC and more).

Audio-Inject 28 with Clover is not necessary if HDEF is fixed in the DSDT.



rootless is no longer necessary (it was only during the Capitan beta < GM. Was replaced by SIP.)

PCIRootUID=0 is standard in Clover, I think



Here's what to test:



try.zip



I have "HDA / hda-gfx" inserted for HDMI audio

when non-native HDMI support (AMD and Nvidia):

HDMIAudio.kext.zip

to EFI/Clover/kexts/10.11/



Here what for cosmetics:



Folder icon z800 for your desktop to store important data for the love HP:



z800_folder.zip

...

z600_folder.zip

z400_folder.zip



For About This Mac:



SystemLogo.tiff.zip

...

z600_SystemLogo.tiff.zip

z400_SystemLogo.tiff.zip



copy to



/Applications/Utilities/System Information.app/Contents/Resources/



For About This Mac, Change the black Monitor:



public.generic-lcd.icns.zip



copy to



/System/Library/CoreServices/CoreTypes/Contents/Resources/public.generic-lcd.icns



For About This Mac, Memory:





insert, add or replace your free text at MAC_MEMORY_TEXT at



/Applications/Utilities/System Information.app/Contents/Resources/German.lproj/SPInfo.strings

or

/Applications/Utilities/System Information.app/Contents/Resources/English.lproj/SPInfo.strings

or

...



have fun

[gkourk6522]

Now i make a fresh install to ssd does anyone know how to fix shutdown?

[chris1111]

Now i make a fresh install to ssd does anyone know how to fix shutdown?

The shut Down fix is  included on Post Installer  Clover RC Script on Destination Volume

Working on Dell Precision 690 !

[djfremen]

The shut Down fix is included on Post Installer Clover RC Script on Destination Volume

Working on Dell Precision 690 !

Quick question about this installer.



Where specifically is it installing to and what changes is it making?



Is it going to S/L/E or elsewhere?



Is it possible to point it to the EFI / Clover partition?



Thanks!

[chris1111]

Quick question about this installer.



Where specifically is it installing to and what changes is it making?



Is it going to S/L/E or elsewhere?



Is it possible to point it to the EFI / Clover partition?



Thanks!

Post Installer contain only the Bootloader Clover Mode ESP (EFI Parttion)

Contain also Clover Panel and RC Script Clover thats it



Rockey12 gives me only EFI folder for Build this Installer

I am not change the EFI provided by Rockey12

[jaymack]

For those of you who have El Capitan up and running on an HP Z400 using Clover. I would like to know what version of Clover was used, which Post Installer, DSDT file and where was it placed. I want to know any files that were added to the EFI Clover folder, and any other information and or files needed for a successful Install.  Thanking you in advance.

[kif.007]

this test. I'm 10.11.4 El Capitan on HPZ400. Otherwise clover Version 3354

config.plist.zip

DSDT.aml.zip

kexts.zip

[Blaggah]

this test. I'm 10.11.4 El Capitan on HPZ400. Otherwise clover Version 3354

Ok will try again with these files and see if It'll work because my last two attempts didn't work for me.  Thanks

[jaymack]

I was able to install using Clover for El Capitan, but it is in French. I did not see the choice of either US or UK English.
