[AMD] Yosemite Kernel Testing (for help use the Help Topic)

Bronya · February 17, 2015

this L3 Not 8MB

You really not realized !

If no support L3 , then auto enable emulation L3 !!!!

You realized ???? Or you want speak that i don't understand ???

ameris_cyning · February 17, 2015

For the last two weeks I have been complaining about VoodooHDA audio cutoff problems

I really would like this to be looked into

Meowthra · February 17, 2015

You really not realized !

If no support L3 , then auto enable emulation L3 !!!!

You realized ???? Or you want speak that i don't understand ???

rc3 cpuid

                /* Emulate virtual cache Start */
                /* Bronzovka: Emulate virtual cache size */
                if(cache_size == 0)
                {
                    //no L3 - emulate enable size =)
                    info_p->cache_size[L1I]  	= 65536;
                    info_p->cache_size[L1D]  	= 16384;
                    info_p->cache_size[L2U]  	= 2097152;
                    info_p->cache_size[L2U]  	= 8388608;
                    info_p->cache_sharing[L1I] 	= cores;
                    info_p->cache_sharing[L1D] 	= cores;
                    info_p->cache_sharing[L2U] 	= cores;
                    info_p->cache_sharing[L3U] 	= cores;

                    info_p->cache_partitions[L1I]	= 1;
                    info_p->cache_partitions[L1D]	= 1;
                    info_p->cache_partitions[L2U]	= 1;
                    info_p->cache_partitions[L3U]	= 1;
                    info_p->cache_linesize = 64;
                    linesizes[L1I] = info_p->cache_linesize;
                    linesizes[L1D] = info_p->cache_linesize;
                    linesizes[L2U] = info_p->cache_linesize;
                    linesizes[L3U] = info_p->cache_linesize;

info_p->cache_size[L2U] = 8388608

8388608 = 8MB

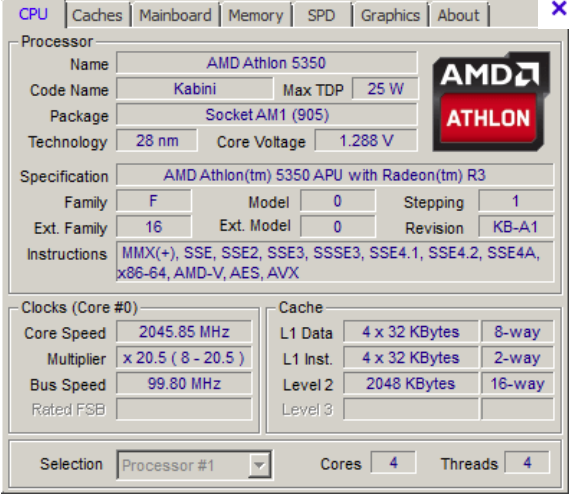

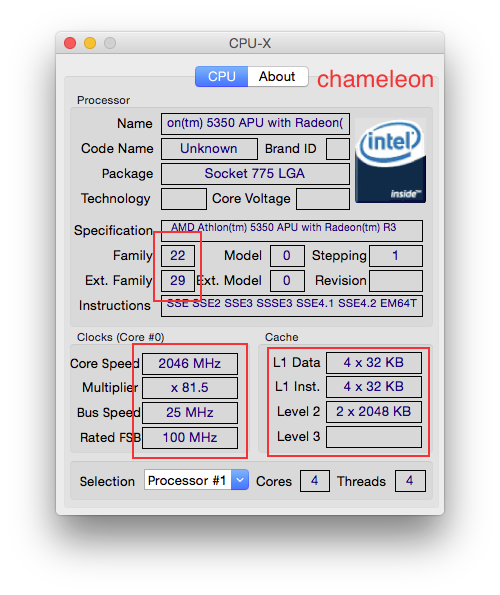

windows cpu-z

Sorry

I do not know to add L3 8MB Cache

Athlon Can to Become FX

Bronya · February 17, 2015

rc3 cpuid

info_p->cache_size[L2U] = 8388608

8388608 = 8MB

windows cpu-z

Sorry

I do not know to add L3 8MB Cache

Athlon Can to Become FX

Yes , info_p->cache_size[L2U] = 8388608 - this emulation !!!

I added this for normal work . If i no added this emulation - this slow work . Because system 10.9.x need in use L3 cache .

If you are not want to use emulation, i can delete the emulation .

Sorry ! I found error in cupid rc3 . Need replace info_p->cache_size[L2U] to info_p->cache_size[L3U] . Then info_p->cache_size[L3U] = 8388608 ))))))

This emulation for VMware and parallel desktop , because if vmware don't support amd , then need enable emulation L1,2,3 . ))

Meowthra · February 17, 2015

For the last two weeks I have been complaining about VoodooHDA audio cutoff problems

I really would like this to be looked into

Try FiX TSC

V1 RealFreq

V2 AnV-TSC-Try-Fix

Feedback TEST CPU frequency & Audio Cutoff Problems results

1010-REV-8C.zip

Bronya · February 17, 2015

Tora Chi Yo, i read your 1010-REV-8C.zip - is wrong programming . :\ .

1) v1 RealFreq - this my adapting work .

2) v2 AnV-TSC-Try-Fix - this same my adapting work . But AnV - this Intel and getFakeMSR() !

You confuse a lot (((( .

ameris_cyning · February 17, 2015

Negative. That did not work. Audio still cutsoff

gils83 · February 17, 2015

false , false and false but works good !!! :hysterical:

gils83 · February 17, 2015

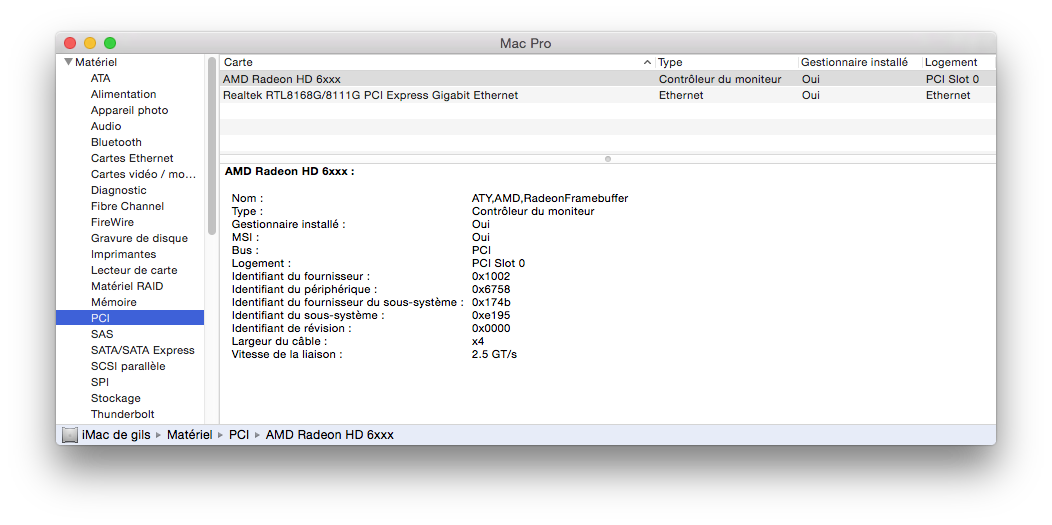

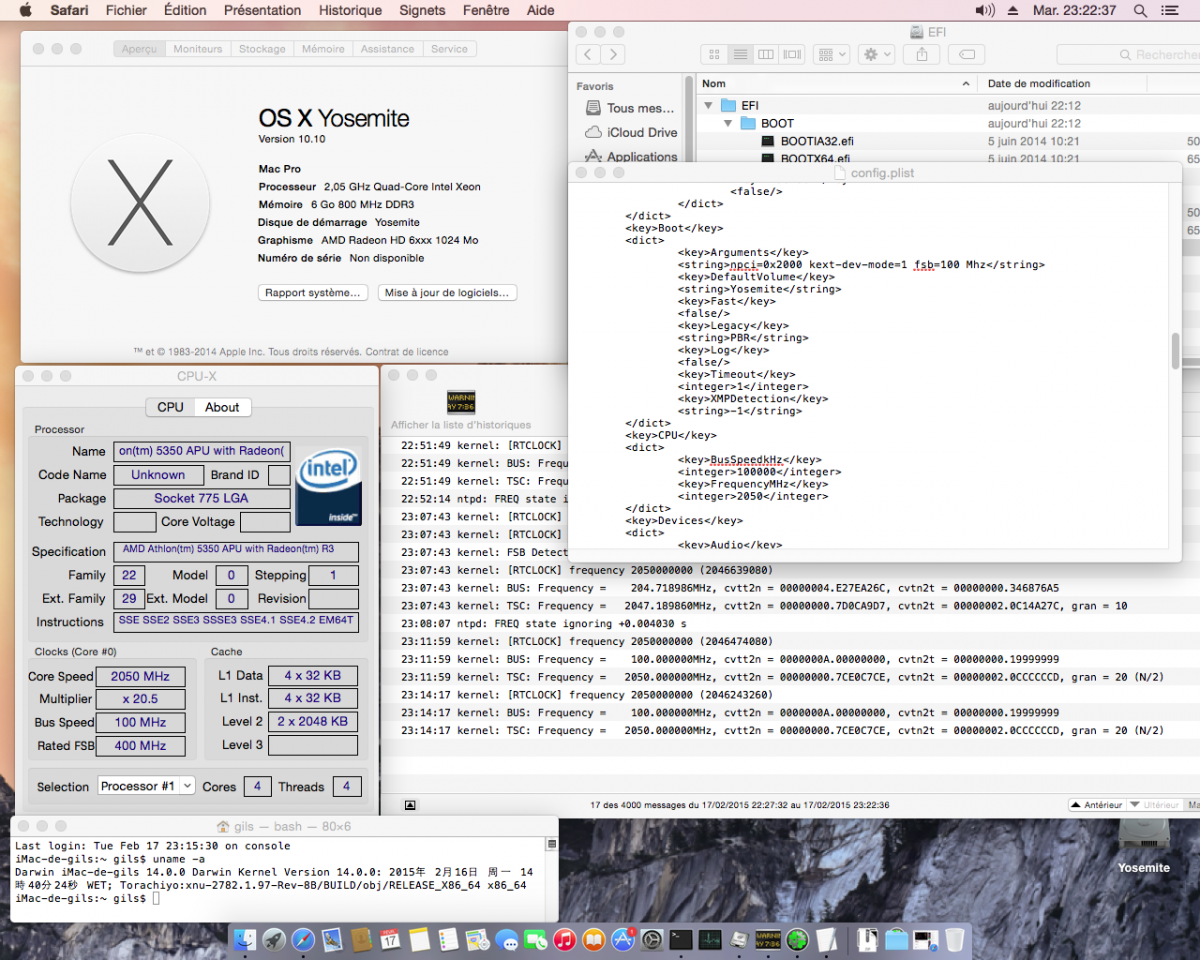

Clover 2695 fix cpuid cosmetic at 80 % UEFI Bios Aptio :yes:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_TMR_40000</key>
				<true/>
				<key>AddIMEI_80000</key>
				<true/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_WAK_200000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<true/>
			</dict>
			<key>EnableC7</key>
			<false/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC4</key>
			<false/>
			<key>EnableC2</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
                <key>Arguments</key>
		<string>npci=0x2000 kext-dev-mode=1 fsb=100 Mhz</string>
                <key>DefaultVolume</key>
		<string>Yosemite</string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<string>-1</string>
        </dict>
	<key>CPU</key>
	<dict>
		<key>BusSpeedkHz</key>
		<integer>100000</integer>
		<key>FrequencyMHz</key>
		<integer>2050</integer>
        </dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>metal</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Lotus</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>VRAM</key>
		<integer>1024</integer>
		<key>VideoPorts</key>
		<integer>2</integer>

		</dict>
		<key>PatchVBios</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<true/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

yakei · February 17, 2015

Try FiX TSC

V1 RealFreq

Feedback TEST CPU frequency & Audio Cutoff Problems results

1010-REV-8C

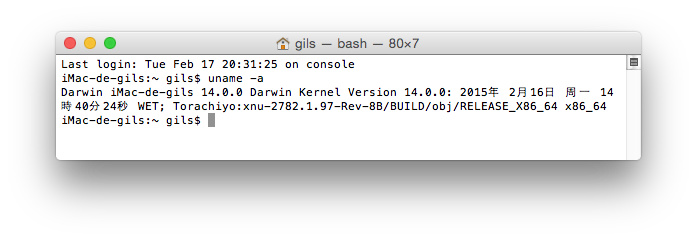

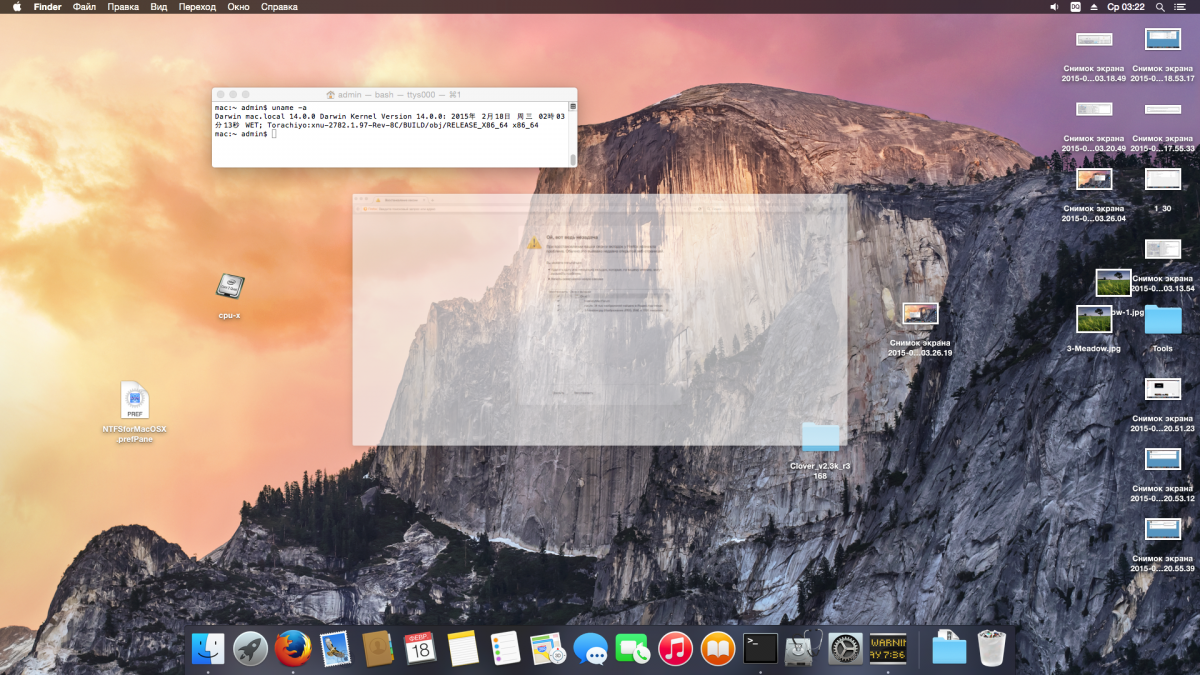

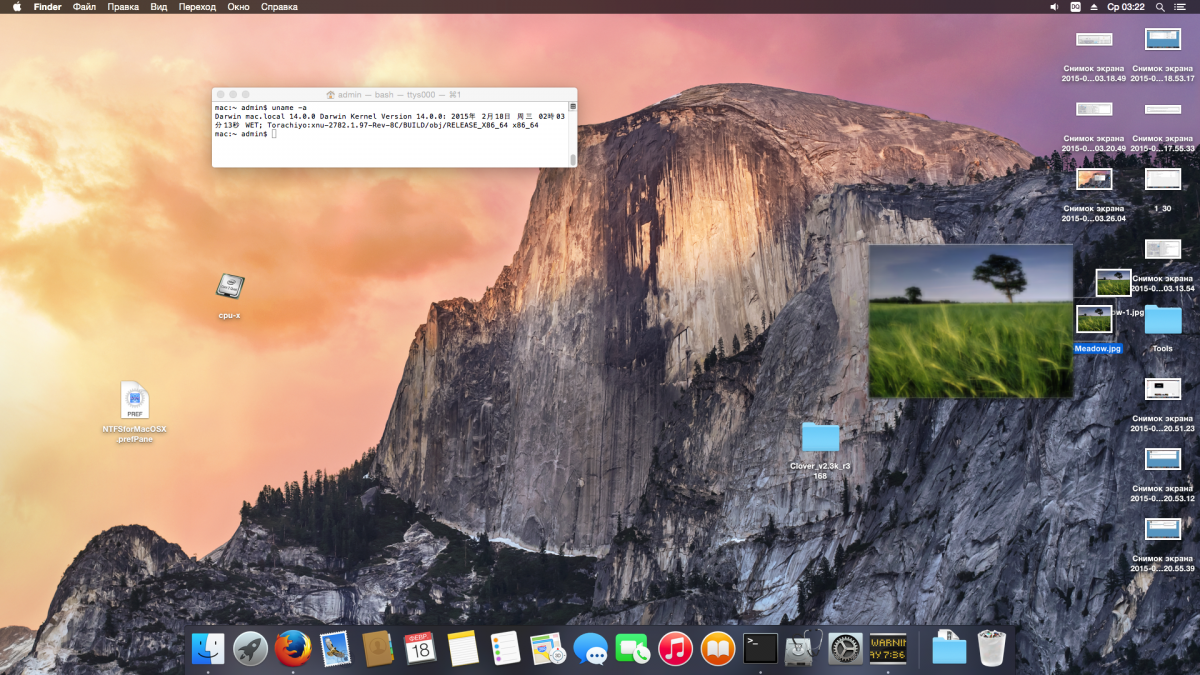

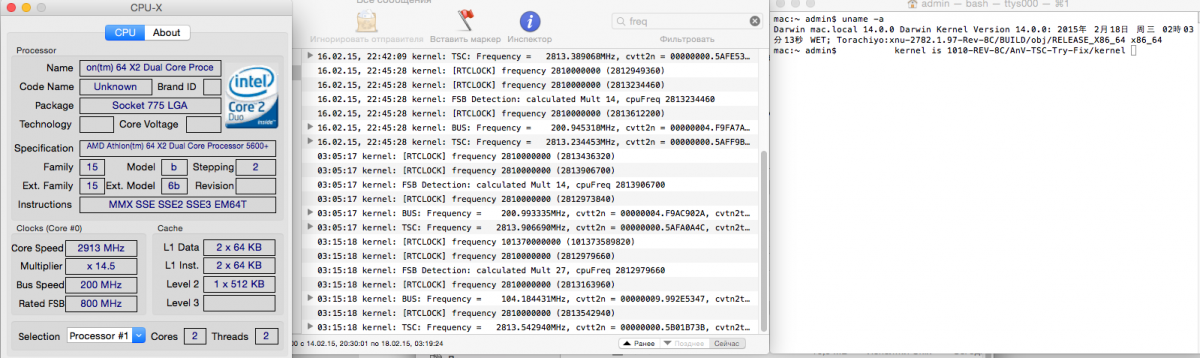

test result from 1010 Rev 8C

function ok.

Can no changes to 1010_Rev 8B determine

Torachiyo:xnu-2782.1.97-REV-8C/BUILD/obj/RELEASE_X86_64 x86_64

gils83 · February 17, 2015

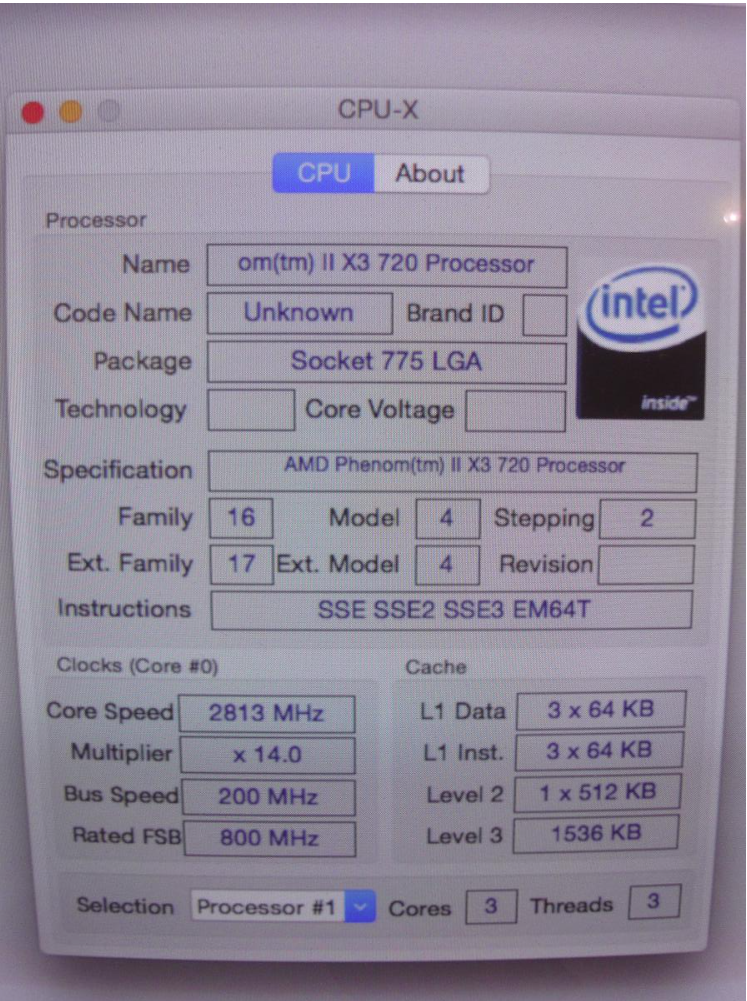

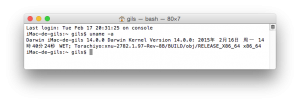

test result from 1010 Rev 8C

function ok.

Can no changes to 1010_Rev 8B determine


Torachiyo:xnu-2782.1.97-REV-8C/BUILD/obj/RELEASE_X86_64 x86_64

kyh3im · February 18, 2015

Try FiX TSC

V1 RealFreq

V2 AnV-TSC-Try-Fix

Feedback TEST CPU frequency & Audio Cutoff Problems results

Could those glitches be because i don't have l3 cache? I haven't opened anything webkit related and i still have them. I pressed a spacebar on my desktop to open a picture and another pic is just how firefox started after it crashed.

lpukraine · February 18, 2015

Try to Fix TSC for Intel Pentium & Cpuid L3 Cache

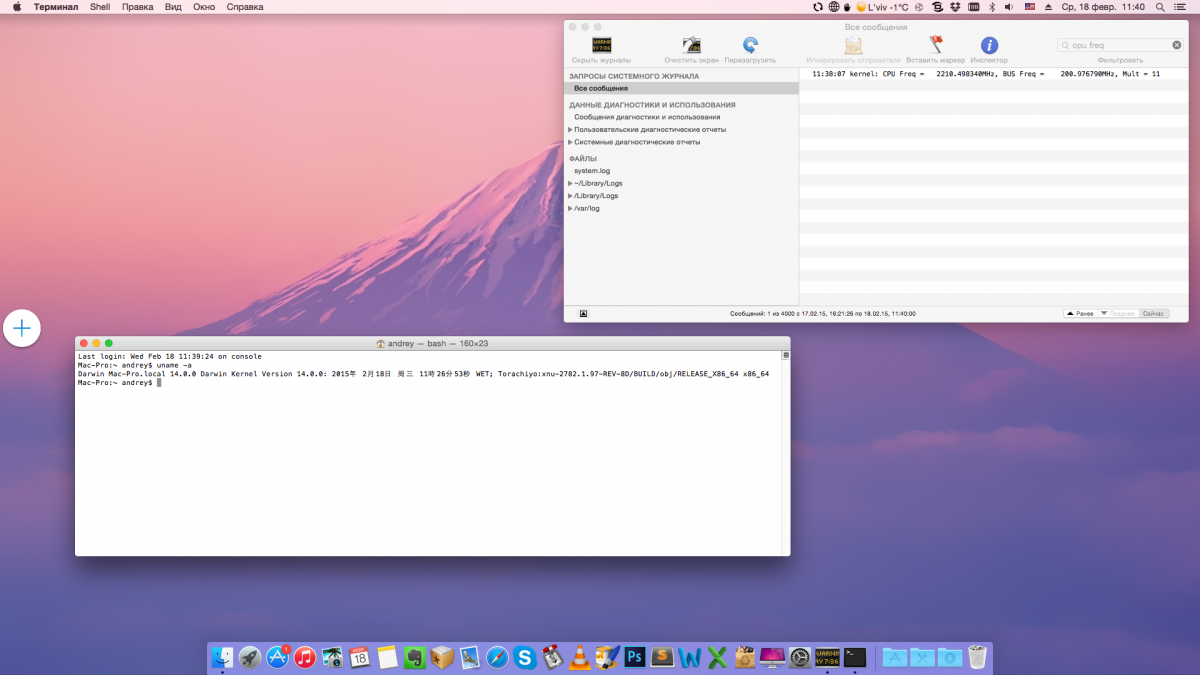

open /Applications/Utilities/Console.app Search for string : CPU Freq

TEST CPU Frequency & L3 Cache

Working well with my CPU.

tragediana150 · February 18, 2015

Could those glitches be because i don't have l3 cache? I haven't opened anything webkit related and i still have them. I pressed a spacebar on my desktop to open a picture and another pic is just how firefox started after it crashed.

This is TSC error. Tora Chi Yo has right. I had these problems with Mountain Lion and Mavericks when I was working on Athlon X2. TSC Fix should resolve the problem

gedna · February 18, 2015

Hello everyone

Isee amd scene is still active, im still on 10.6.8 and im thinking to give Yosemite a try, but im on old machine, phenom 9600 4gb ram 8500gt geforce, What kind of kernel can you guys recommend?

Sorry if im on wrong forum thread

have a nice day!

Bronya · February 18, 2015

This is TSC error. Tora Chi Yo has right. I had these problems with Mountain Lion and Mavericks when I was working on Athlon X2. TSC Fix should resolve the problem

Hi ! Please test sound with kernel 10.7.5 ! #608 .

Kernel 10.8.5 tomorrow !

gils83 · February 18, 2015

tomorrow for 10.8.5

lpukraine · February 19, 2015

Add AMD64 Socket 754 Processor Support

but The new version Chameleon Don't seem to support some older motherboards

My 754 motherboard Unable to start Chameleon

So Unable TEST 754 CPU

If AMD Socket 939 or other CPU Can Work TSC FIX Completed

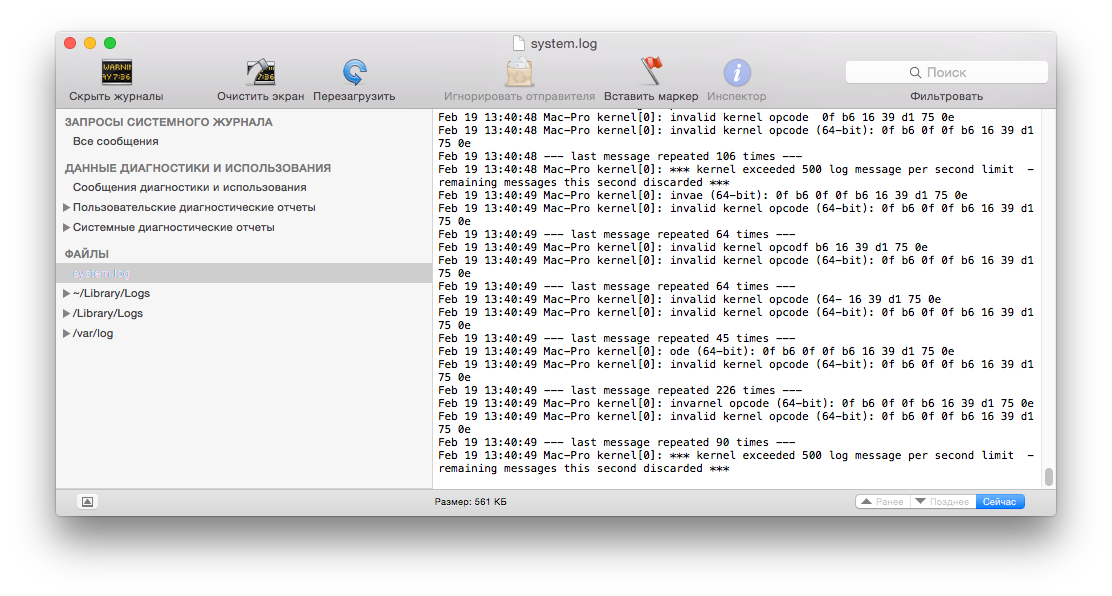

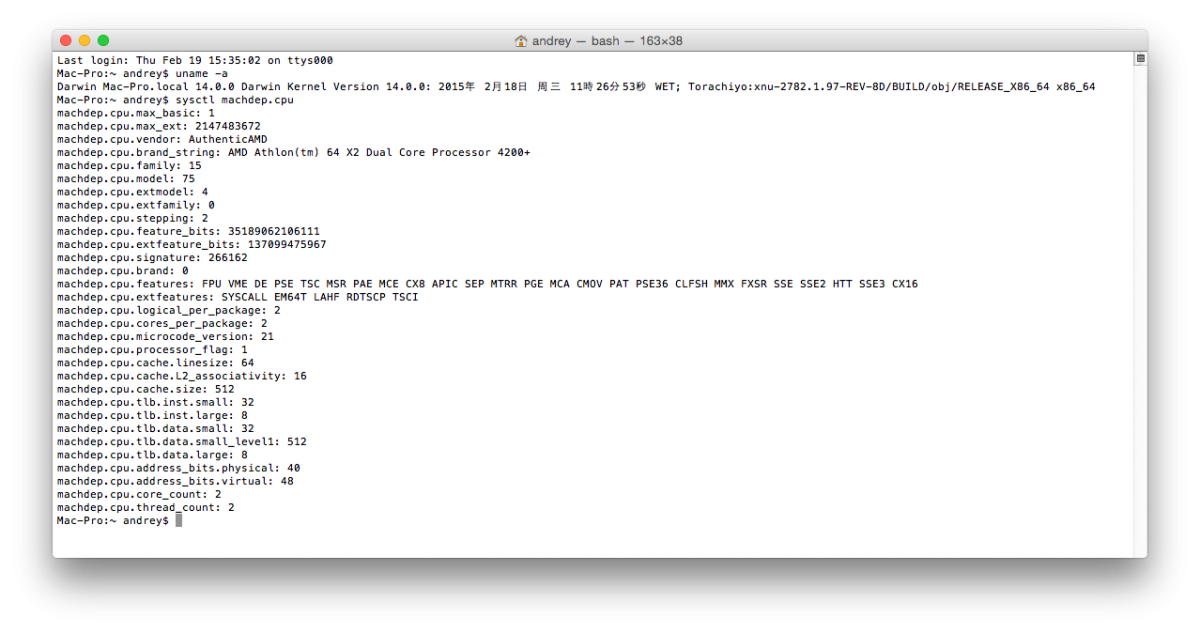

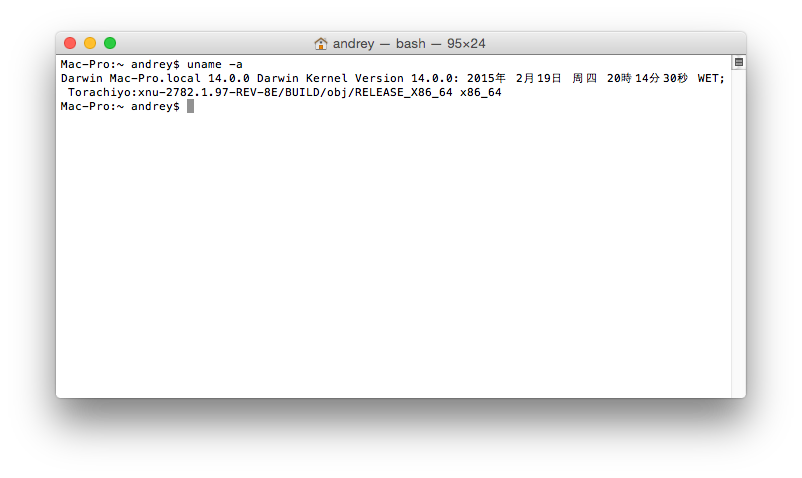

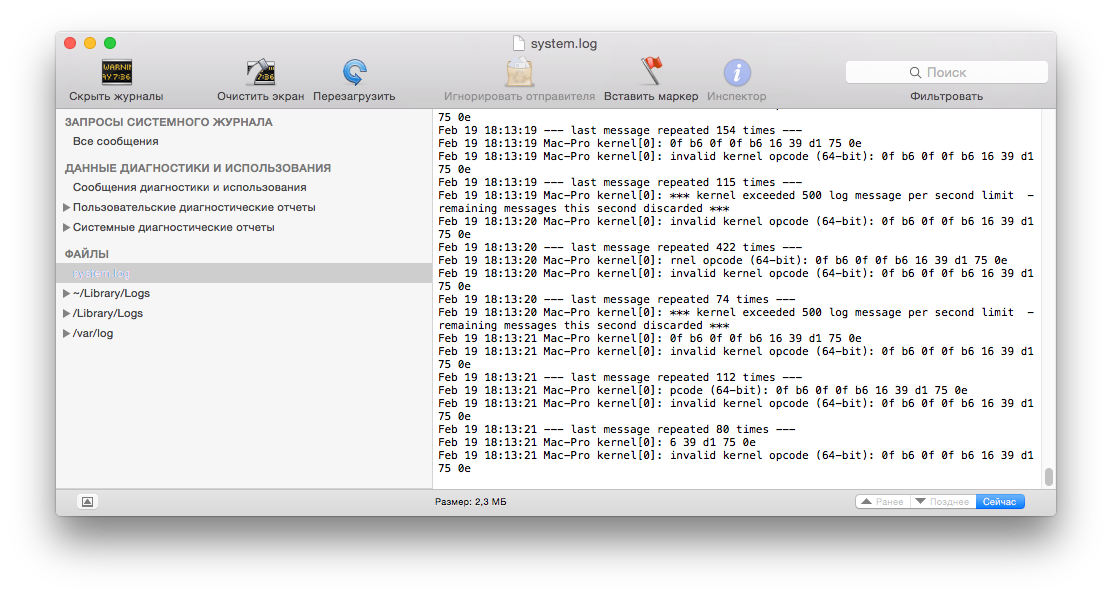

kernel works on my config, but huge amount of error in log:

lpukraine · February 19, 2015

ok I deleted 754 support

Anyway currently no bootloadler support 754 motherboard

Old ver Darwin Bootloader 5.0.x supported 754 motherboard

but work on the Mac OS 10.5 Only.

Retest error log

Unfortunately the same result:

lpukraine · February 19, 2015

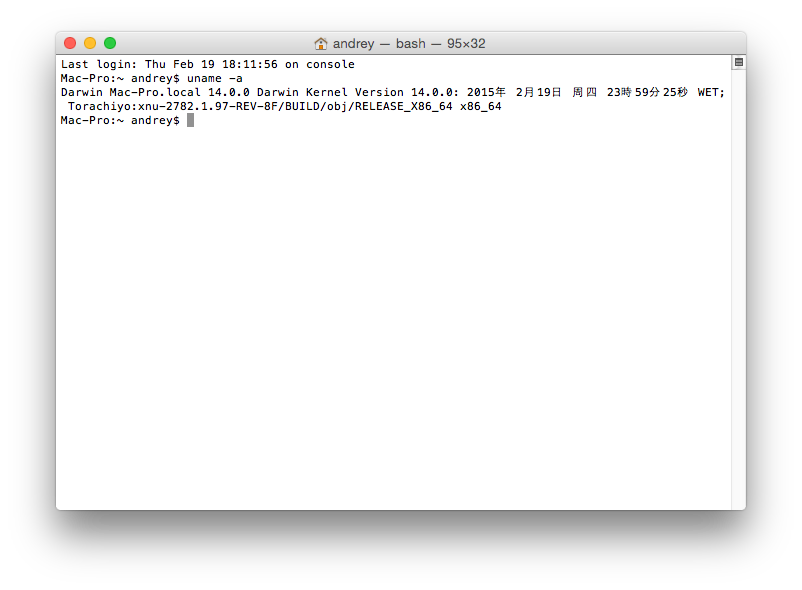

Your OS Update to 10.10.2 + Kext Patch ????

Use 10.10.1 without any fixes/patches.

No use this kernel:

Works very well!

Edited February 19, 2015 by lpukraine

jsl · February 19, 2015

ok I deleted 754 support

Anyway currently no bootloadler support 754 motherboard

Old ver Darwin Bootloader 5.0.x supported 754 motherboard

but work on the Mac OS 10.5 Only.

Retest error log

Hi, where is the link for 1010-REV-8D.zip which's supposed to be more compatible with AM2(940 pins) CPU ?

kyh3im · February 19, 2015

This is TSC error. Tora Chi Yo has right. I had these problems with Mountain Lion and Mavericks when I was working on Athlon X2. TSC Fix should resolve the problem

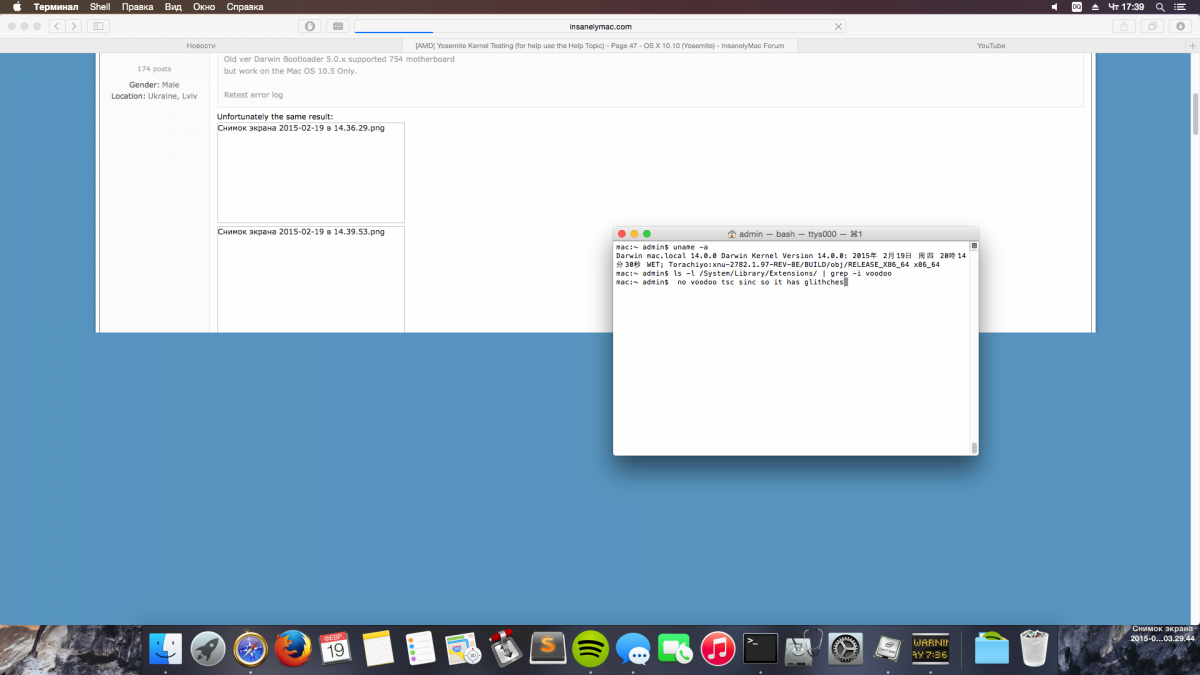

Thanx to lpukraine i figured what was the problem i didn't have a voodootscsync.kext. So i installed it. I've been testing 1010-REV-8d.zip for about a day and it works smooth

UPDATE:

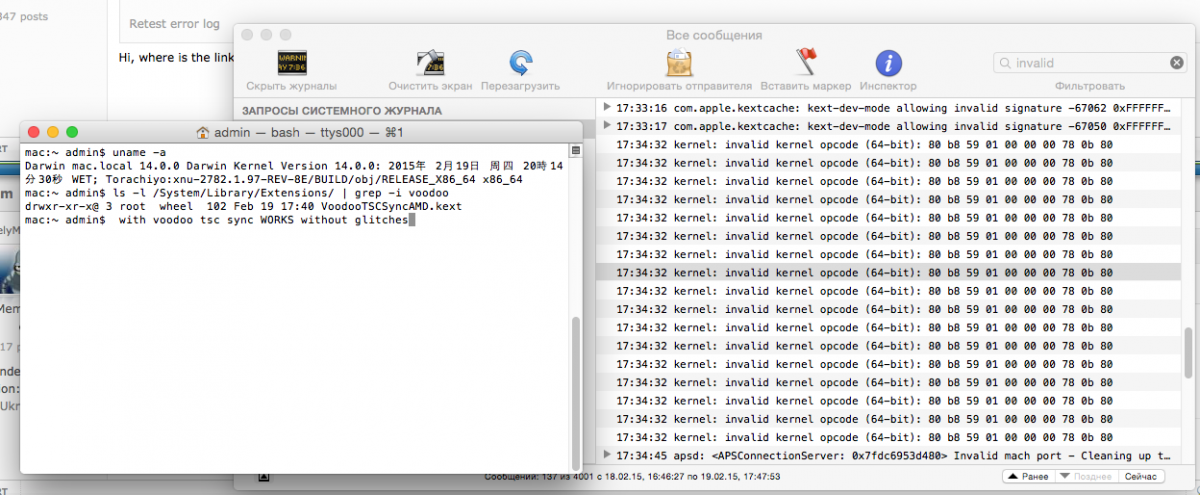

I tested 1010-rev-8E kernel without voodoo tsp sync and i have glithes and with that kext i don't have them.

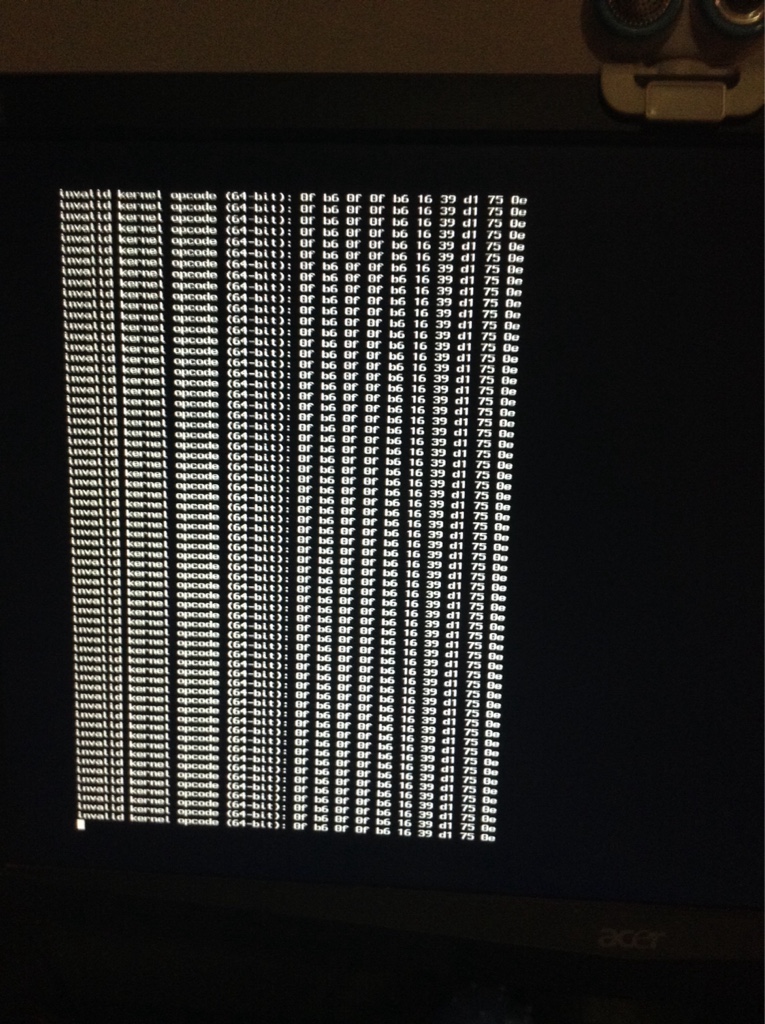

PS. When i boot kernel i see some invalid kernel opcode (64-bit): 80 b8 59 01 00 00 00 78 0b 80 but i don't see a trouble about that

lpukraine · February 19, 2015

ok I recovered TSC code

add support AMD 11h processor Only

and cupid L3 Cache error fix

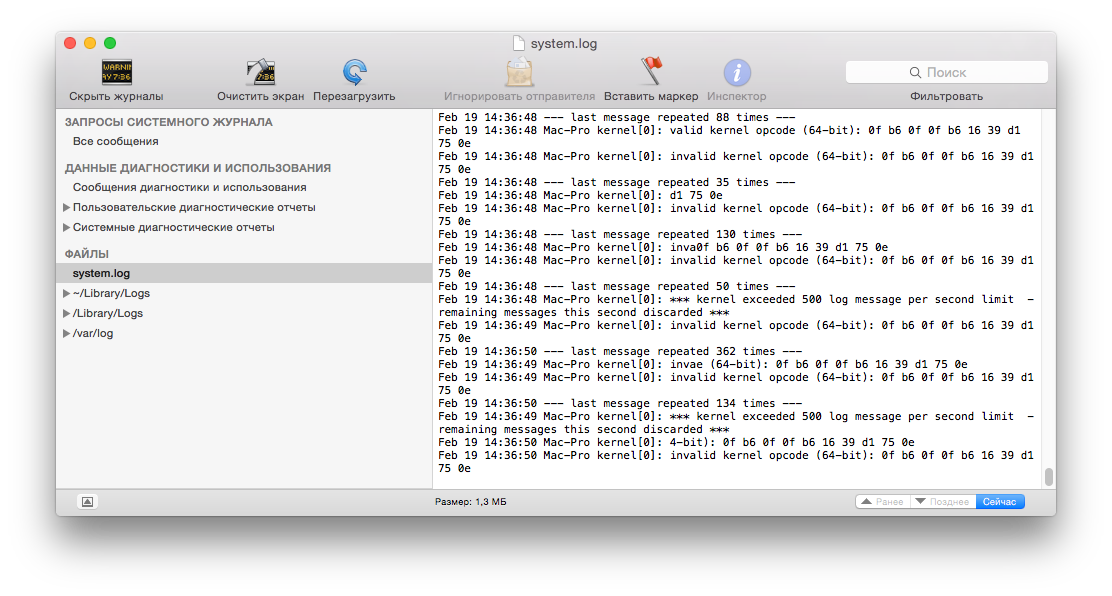

With last three versions of kernel system works, but a lot of errors in log:

lpukraine · February 19, 2015

The error kernel don’t preserve

Sorry Retest

I want to know where the problem of K8

Same as with previous versions.

System boots and works. But error is still present(

Meowthra · February 19, 2015


Same as with previous versions.

System boots and works. But error is still present(

I Divided into two code test it

1010-REV-8H.zip

[AMD] Yosemite Kernel Testing (for help use the Help Topic)

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
