[AMD] Yosemite Kernel Testing (for help use the Help Topic)


Duran Keeley
 Share

1,948 posts in this topic

Recommended Posts

ça je savais ;) [ийгщеу] I though you tested 10.10.2 on screenshot.



Yes :)



je n'ai pas envie de changer toute l'Extension , pour le voir fonctionner 10.10.2/3 , je veux l'Extension 14C109 fonctionnel , donc je teste des kernel ;)



I did not want to change any Extension to see him run 10.10.2 / 3, I want the functional 14C109 Extension, so I tested the kernel



Я не хочу, чтобы изменить любое расширение, чтобы увидеть его запустить 10.10.2 / 3, я хочу функциональную 14C109 Расширение, так что я тестировал ядро



我不想改變任何分機看到他跑10.10.2/3,我想功能14C109擴展,所以我測試的內核

Link to comment
Share on other sites

Yes :)



je n'ai pas envie de changer toute l'Extension , pour le voir fonctionner 10.10.2/3 , je veux l'Extension 14C109 fonctionnel , donc je teste des kernel ;)



I did not want to change any Extension to see him run 10.10.2 / 3, I want the functional 14C109 Extension, so I tested the kernel



Salut Gils ;)

Je comprends pas bien, sur ton screenshot, tu es en version 10.10.2 (14C109) avec un kernel 14.0.0 donc logiquement, ça ne peut pas fonctionner comme tu l'as toi même dit. Que vient faire cette histoire d'Extension ?



Hello Gils

I'm not sure to understand. On your screenshot, you are on 10.10.2 (14C109) with a 14.0.0 kernel so, it can't work :wacko:  as you said you already know. What is this "Extension" thing you mentionned ?

  • Like 1
Link to comment
Share on other sites

Salut Gils ;)

Je comprends pas bien, sur ton screenshot, tu es en version 10.10.2 (14C109) avec un kernel 14.0.0 donc logiquement, ça ne peut pas fonctionner comme tu l'as toi même dit. Que vient faire cette histoire d'Extension ?



Hello Gils

I'm not sure to understand. On your screenshot, you are on 10.10.2 (14C109) with a 14.0.0 kernel so, it can't work :wacko:  as you said you already know. What is this "Extension" thing you mentionned ?



la méthode est simple ; il s'agit de copier l'Extension 10.10.1 dans la 14C109 pour la voir fonctionner avec un kernel 10.10 mais ce n'est pas intéressant ;)

Link to comment
Share on other sites

Mais si c'est intéressant, enfin j'essaie juste de régler ce problème avec la 10.10.2 :P

Sure it is, I'm just trying to fix that issue with 10.10.2 update :)



Quelles extensions ? AppleACPIPlatform.kext & IOPCIFamily.kext ? Je l'ai fait mais j'ai un invalid kernel opcode

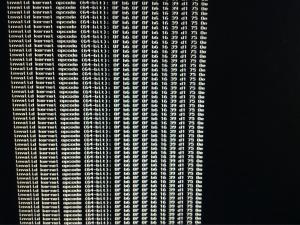

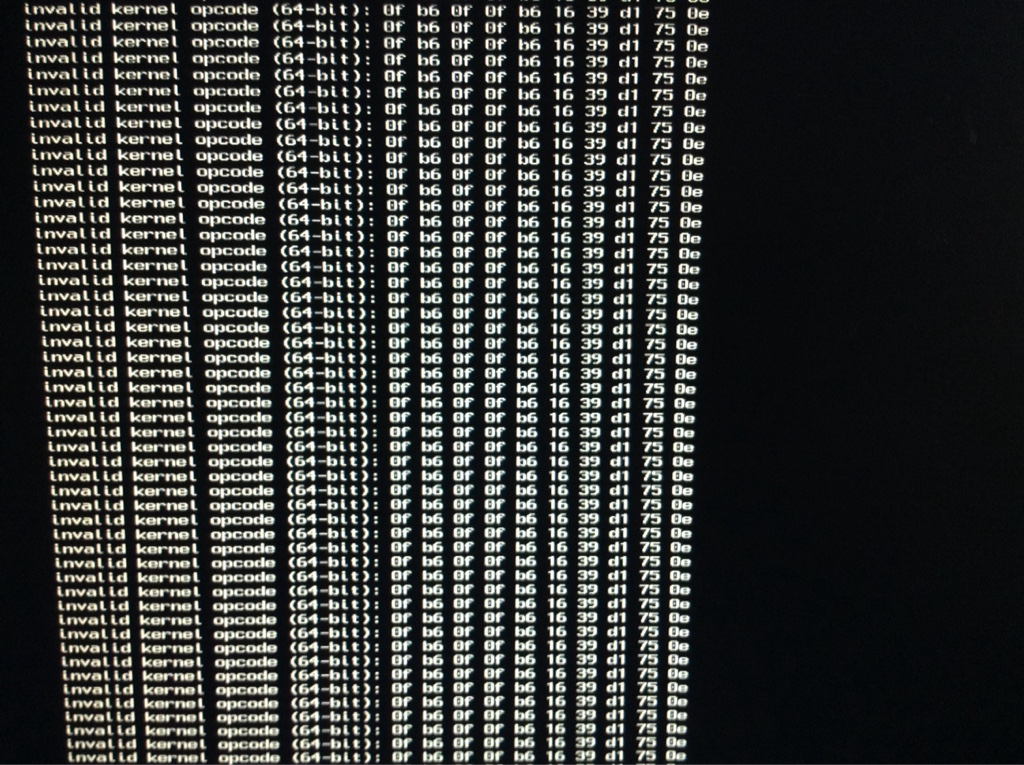

Which ones ? AppleACPIPlatform.kext & IOPCIFamily.kext ? I tried but I have an invalid kernel opcode

Link to comment
Share on other sites

Mais si c'est intéressant, enfin j'essaie juste de régler ce problème avec la 10.10.2 :P

Sure it is, I'm just trying to fix that issue with 10.10.2 update :)



Quelles extensions ? AppleACPIPlatform.kext & IOPCIFamily.kext ? Je l'ai fait mais j'ai un invalid kernel opcode



Which ones ? AppleACPIPlatform.kext & IOPCIFamily.kext ? I tried but I have an invalid kernel opcode



toute l'Extension apparemment  , Sandbox et AppleMatch suffisent normalement , je préfère attendre , je suis entre 2 , j'ai fait ma MAJ via menu pomme et je ne peux pas redémarrer sans le bon kernel  'j'écris un peu d'Anglais histoire de pas me faire engueuler !!  :hysterical:  "



all Extension apparently Sandbox and AppleMatch normally enough, I prefer to wait, I'm between 2, I made my MAJ via Apple menu and I can not restart without the proper kernel

  • Like 1
Link to comment
Share on other sites

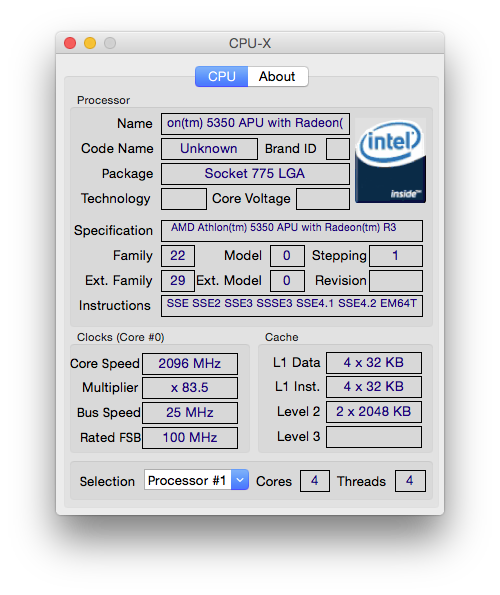

@Gils, test the kernel attached below on your Kabini CPU.

I take it is an AMD Athlon 5350? (2,05 Ghz)

Remove fsb=100 and busratio=21

Only specify fsb if it still does not work...

I added the required TSC code to the sources...

It gets the busratio from the AMD COFFVID MSR register so it should always be correct...

Let me know as I looked up some info on the CPU... Kabini = model 22 (which was missing in the tsc.c file).

It should now properly scale the clock...

It should not use much of the opemu as those CPU's have plenty of instructions...



Some info:

http://tweakers.net/pricewatch/376732/amd-athlon-5350-boxed/specificaties/

Instruction sets:
AES, AVX, MMX, SSE, SSE2, SSE3, SSE4, SSE4.1, SSE4.2, SSSE3, x86-64

I uploaded the sources to my Github parts... easier that way...

NOTE: Patch was not updated...

BSA_YOS_R8D_10.10.2.zip

  • Like 3
Link to comment
Share on other sites

@Gils, test the kernel attached below on your Kabini CPU.

I take it is an AMD Athlon 5350? (2,05 Ghz)

Remove fsb=100 and busratio=21

Only specify fsb if it still does not work...

I added the required TSC code to the sources...

It gets the busratio from the AMD COFFVID MSR register so it should always be correct...

Let me know as I looked up some info on the CPU... Kabini = model 22 (which was missing in the tsc.c file).

It should now properly scale the clock...

It should not use much of the opemu as those CPU's have plenty of instructions...



Some info:

http://tweakers.net/pricewatch/376732/amd-athlon-5350-boxed/specificaties/

Instruction sets:
AES, AVX, MMX, SSE, SSE2, SSE3, SSE4, SSE4.1, SSE4.2, SSSE3, x86-64

I uploaded the sources to my Github parts... easier that way...

NOTE: Patch was not updated...





Currently On the Mac OS


Possible use to the instruction set

Look Xnu /osfmk/i386/commpage/commpage.c
Function commpage_init_cpu_capabilities

		case 9:
			bits |= kHasAVX1_0;
			/* fall thru */
		case 8:
			bits |= kHasSSE4_2;
			/* fall thru */
		case 7:
			bits |= kHasSSE4_1;
			/* fall thru */
		case 6:
			bits |= kHasSupplementalSSE3;
			/* fall thru */
		case 5:
			bits |= kHasSSE3;
			/* fall thru */
		case 4:
			bits |= kHasSSE2;
			/* fall thru */
		case 3:
			bits |= kHasSSE;
			/* fall thru */
		case 2:
			bits |= kHasMMX;



AVX1.0
SSE4.2
SSE4.1
SSSE3   <<< Minimum Requirements
SSE3
SSE2
SSE
MMX

K10 FX & APU Series Supported Currently Mac All May be Used instruction set


K8 K10 because less than the minimum requirement No SSSE3
So Need SSSE3 Emulator

10.10.2 xnu version number is xnu-2782.10.72


Darwin Kernel Version 14.1.0: Mon Dec 22 23:10:38 PST 2014; root:xnu-2782.10.72~2/RELEASE_X86_64

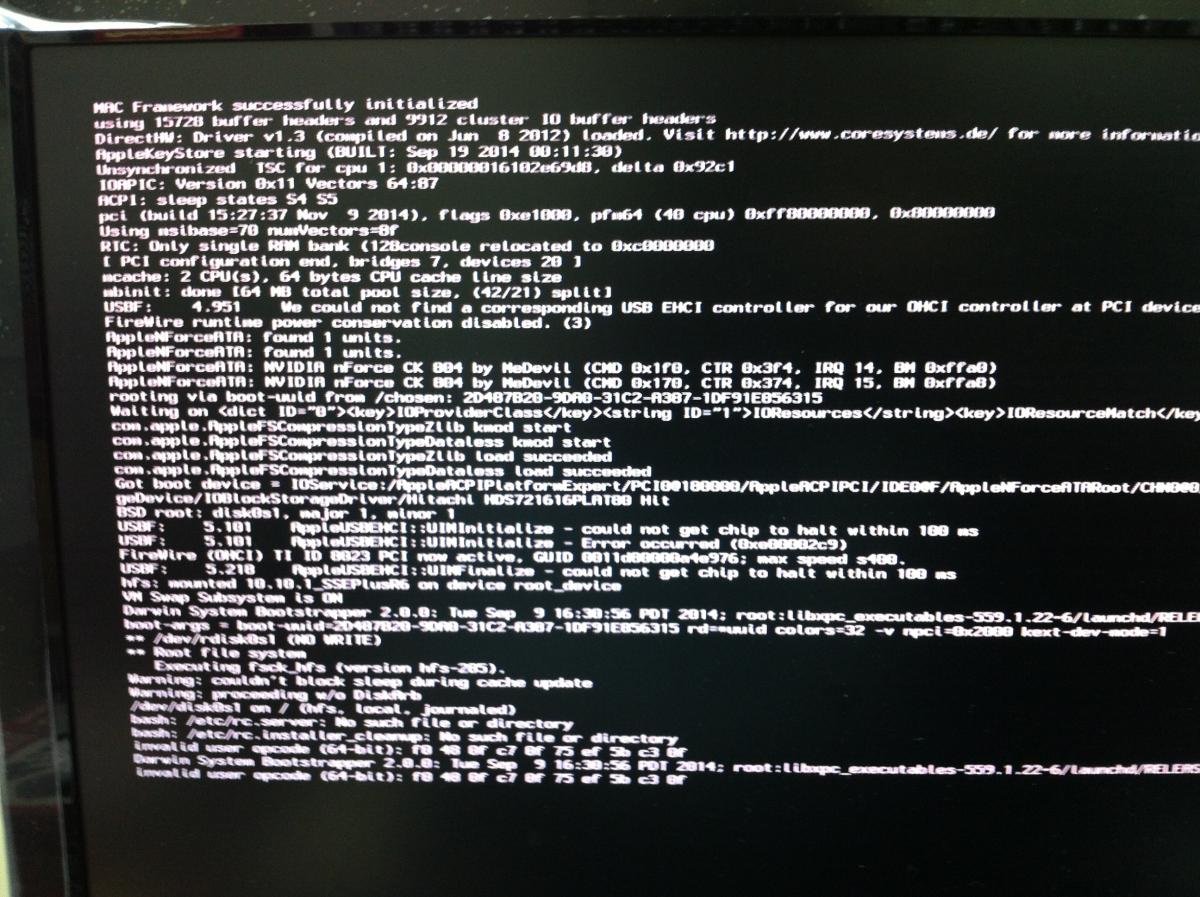

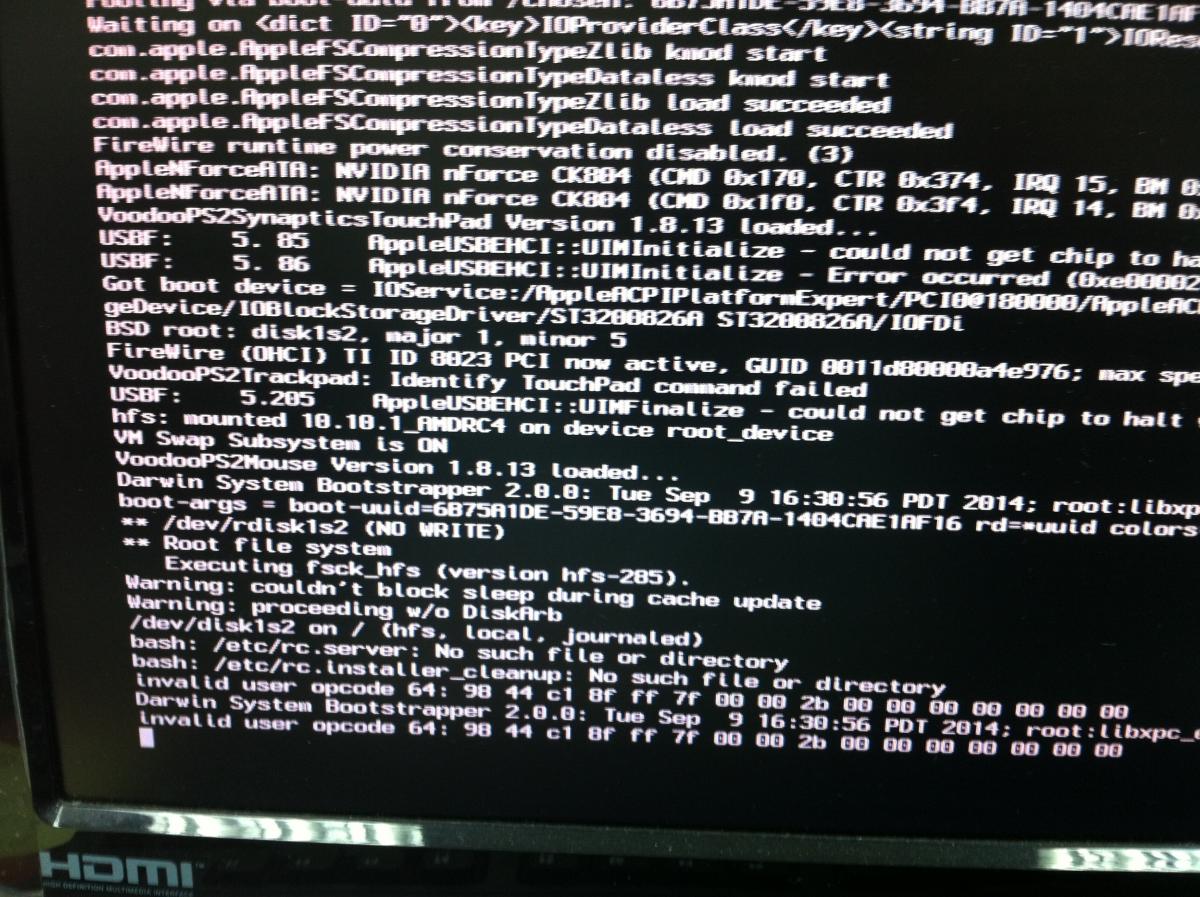

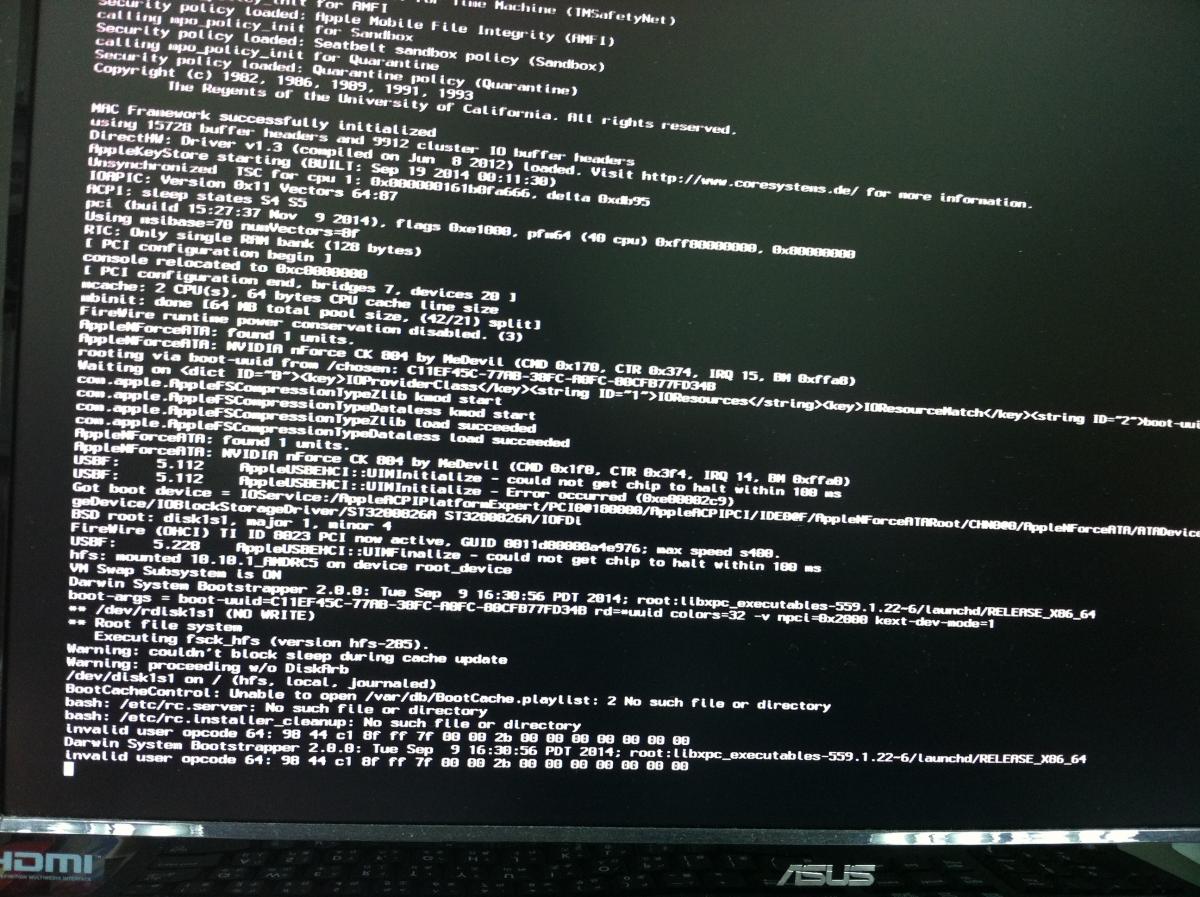

Now APU Use xnu-2782.1.97 Kernel to invalid kernel opcode

This means that the New xnu Seems to have been redefined register
  • Like 1
Link to comment
Share on other sites

Can u pass me a link for Safari preview Webkit?



Anyone has cracking audio.....for me audio is stuttering a lot, ALC889, any way to solve?Use  VoodooHDA

I also have audio stuttering not cracking/crackling on ALC889 using Voodoo HDA 2.87



I am using AMD kernel (1010-SSEPLUS-Rev.6)



My build is:



Motherboard: AMD Crosshair V

CPU: Phenom II 1090t

RAM: 16GB DDR3

Graphics Card: Quadro FX 3800

HardDrive: Seagate 1TB



EDIT:

Hi Tora Chi Yo!

I now get panic from your patch.diff !

I found and fix (modified) ! Now without panic !



1) In sse3_run() :

// SSE3 Type 1

    if((*bytep == 0x66 && bytep[1] == 0x0f && bytep[2] != 0x38) || (*bytep == 0x66 && bytep[1] == 0x0f && bytep[2] != 0x3A)) <<-- you see 0x3a and 0x38 <<-- you should delete and should how show :

// SSE3 Type 1

    if((*bytep == 0x66 && bytep[1] == 0x0f ) || (*bytep == 0x66 && bytep[1] == 0x0f ))  < because 0x38 and 0x3a - this only for ssse3 =)))



2) in operands()

in mod==2 i fix :



//INS    phaddw xmm0, xmmword ptr [rax+1020304h]

address = reg_sel[base] + ...

to

address = reg_sel[index] + ...



and other fix ... )))





Include patch.diff )

Now without glitches in safari from my opemu )))



attachicon.gifkernel_10.10_all_amd_rc5.zip

Just tested this kernel ( kernel_10.10_all_amd_rc5 ) and it fixed the audio stutter problem on my ALC 889.

Link to comment
Share on other sites

 RC-5 TEST RESULTS


tested on

  • MOBO: Gigibyte GA78LMT-USB3
  • PROCESSOR : AMD Phenom ii x6 1055t
  • GRAPHICS : His icooler 7770 GHz edition
  • RAM : Corsair Ven. 8GB



APPLICATION SUPPORT

  •       XCODE LATEST WORKS
  •      ALL Adobe CC and CC 2014 apps work perfect, but CS6 apps not working... {does not matter, why use CS6 when CC works}
  •      MS OFFICE 11 WORKS
  •      iLIFE WORKS
  •      VLC {works, but no sync audio-video sync without "fsb=XXX and busratio=XX"(same fix for audio issues also read below   if having problems)}
  •     all thumbnails and avatars work



BUGS : Nothing so far



WORKING

  1. app store
  2. avr programming possible, usbasp working natively



NOT WORKING SO FAR :

  1. ​iCloud not working
  2. iMessage
  3. facetime
  4. others


GUIDE

AUDIO FIX {audio crackling and to of sync problems}

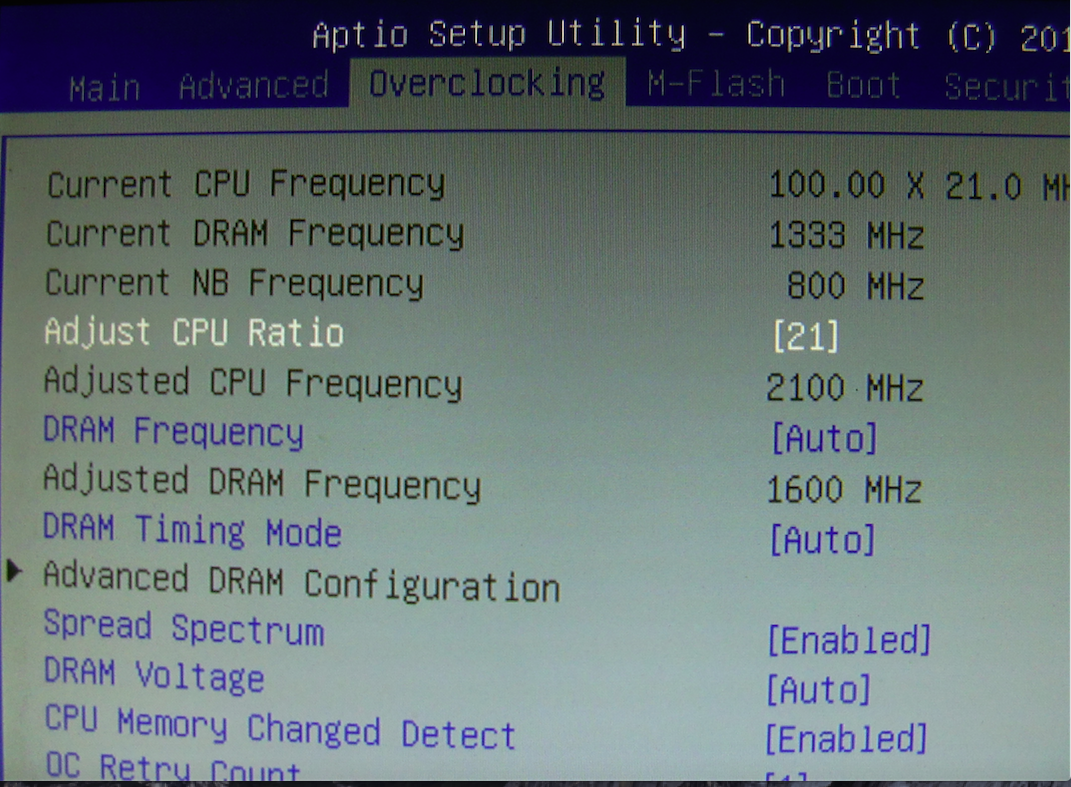

  1. Go to bios and set your cpu bus speed and multiplier
  2. busratio will be something like 200 or something and multiplier will be 14,15, or something
  3. set multiplier to maximum (this will be the XX in busratio=XX)
  4. the bus speed is XXX in fsb=XXX

edit : easy way

  1. download cpu-x
  2. 29w8en4.png
  3. open the app ... here multiplier = busratio and Bus Speed = fsb
  4. save and enjoy
Link to comment
Share on other sites

@Gils, test the kernel attached below on your Kabini CPU.

I take it is an AMD Athlon 5350? (2,05 Ghz)

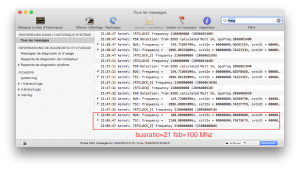

Remove fsb=100 and busratio=21

Only specify fsb if it still does not work...

I added the required TSC code to the sources...

It gets the busratio from the AMD COFFVID MSR register so it should always be correct...

Let me know as I looked up some info on the CPU... Kabini = model 22 (which was missing in the tsc.c file).

It should now properly scale the clock...

It should not use much of the opemu as those CPU's have plenty of instructions...



Some info:

http://tweakers.net/pricewatch/376732/amd-athlon-5350-boxed/specificaties/

Instruction sets:
AES, AVX, MMX, SSE, SSE2, SSE3, SSE4, SSE4.1, SSE4.2, SSSE3, x86-64

I uploaded the sources to my Github parts... easier that way...

NOTE: Patch was not updated...

Using this kernel in 10.10.1. it's flawless in my system. you guys are geniuses.

things that have NEVER worked on my hack now work. Thank you very much...

no corrupted images anywhere. can select objects in finder. compiling works. and more.

iCloud still has half implementation with work around but it's good enough for me.

Thank you again. Testing stability.

  • Like 3
Link to comment
Share on other sites

HI Bronya



//INS phaddw xmm0, xmmword ptr [rax+1020304h]



[rax+.....]



this rax is Base Not Index




if index in Pointer [ ] is display [rax*2] or[rax*4] or[rax*8]

index register  in Pointer Must is [index * Scaling factor]


Ok ! Tnx ! =)))

Link to comment
Share on other sites



Currently On the Mac OS


Possible use to the instruction set

Look Xnu /osfmk/i386/commpage/commpage.c
Function commpage_init_cpu_capabilities

		case 9:
			bits |= kHasAVX1_0;
			/* fall thru */
		case 8:
			bits |= kHasSSE4_2;
			/* fall thru */
		case 7:
			bits |= kHasSSE4_1;
			/* fall thru */
		case 6:
			bits |= kHasSupplementalSSE3;
			/* fall thru */
		case 5:
			bits |= kHasSSE3;
			/* fall thru */
		case 4:
			bits |= kHasSSE2;
			/* fall thru */
		case 3:
			bits |= kHasSSE;
			/* fall thru */
		case 2:
			bits |= kHasMMX;



AVX1.0
SSE4.2
SSE4.1
SSSE3   <<< Minimum Requirements
SSE3
SSE2
SSE
MMX

K10 FX & APU Series Supported Currently Mac All May be Used instruction set


K8 K10 because less than the minimum requirement No SSSE3
So Need SSSE3 Emulator

10.10.2 xnu version number is xnu-2782.10.72


Darwin Kernel Version 14.1.0: Mon Dec 22 23:10:38 PST 2014; root:xnu-2782.10.72~2/RELEASE_X86_64


Now APU Use xnu-2782.1.97 Kernel to invalid kernel opcode

This means that the New xnu Seems to have been redefined register







:)

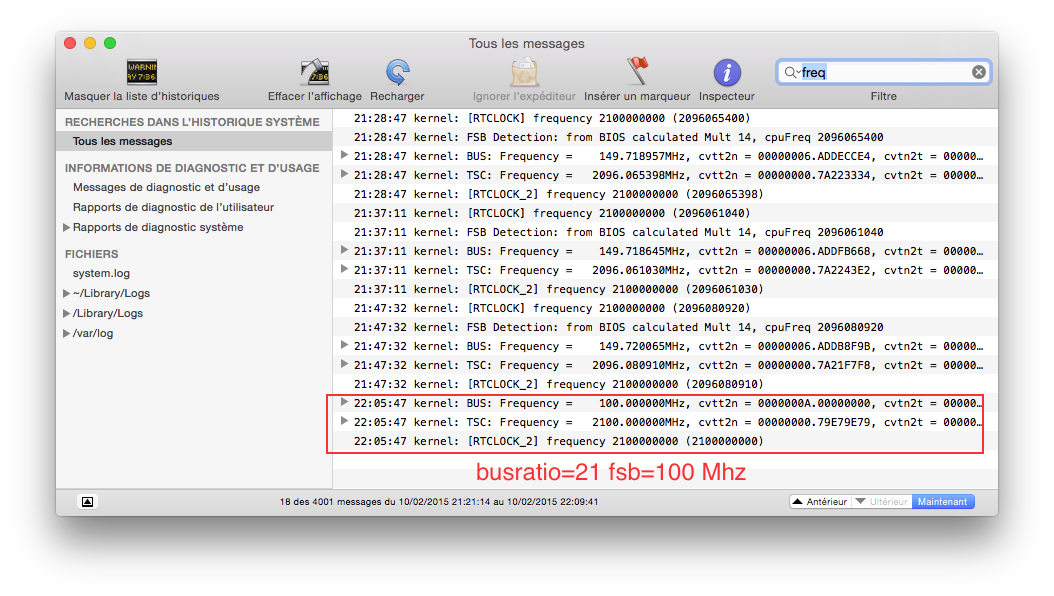

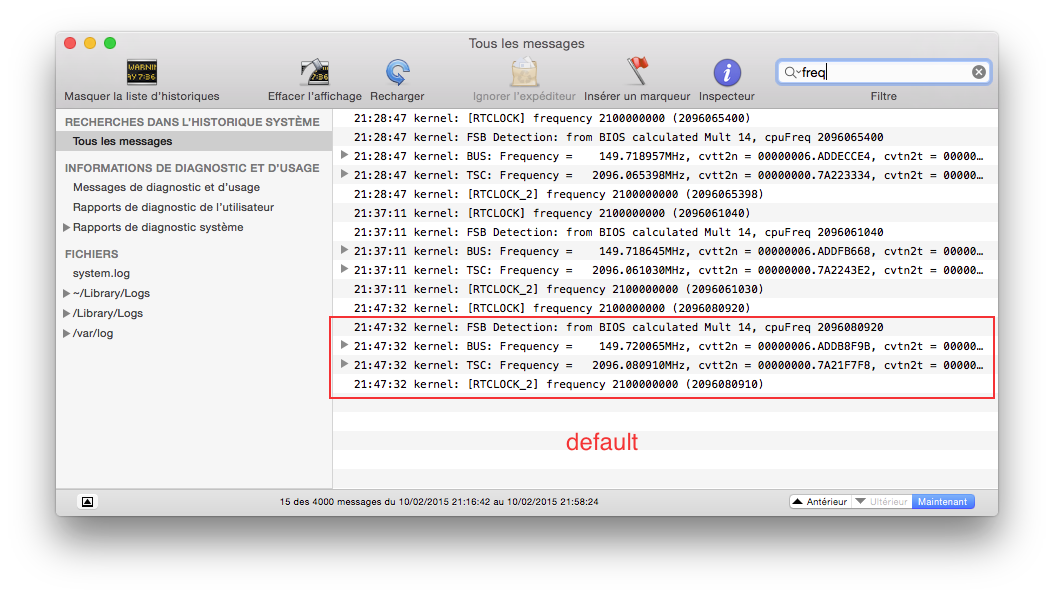

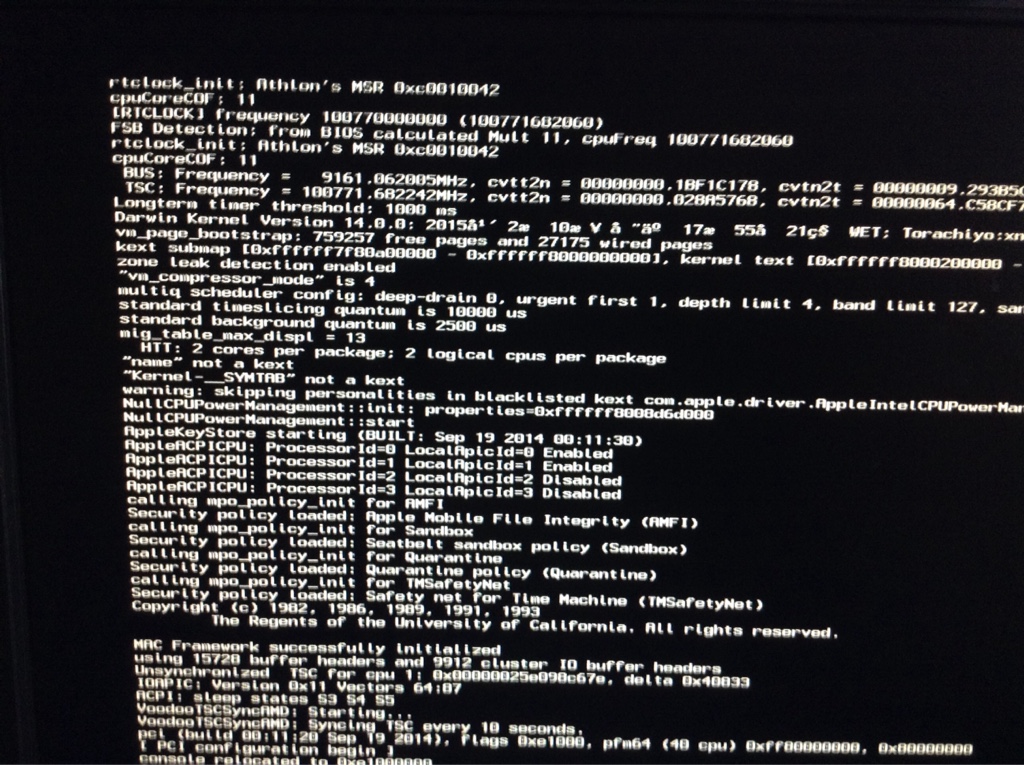

10.10/10.10.1 works good , but look TSC , it's not correct default .





Link to comment
Share on other sites

I tested both kernel_10.10_all_amd_rc5 and 1010-SSEPlus-rev7 both worked incredibly well. (no sound issues with ALC 889).



The only problem I have is incorrect frequency detection.



My AMD Phenom II 1090t is getting clocked at 3.61Ghz instead of its stock 3.2Ghz. (Online it says that 3.6Ghz is the turbo core clock for my processor. Coincidence??)



Hopefully this helps.

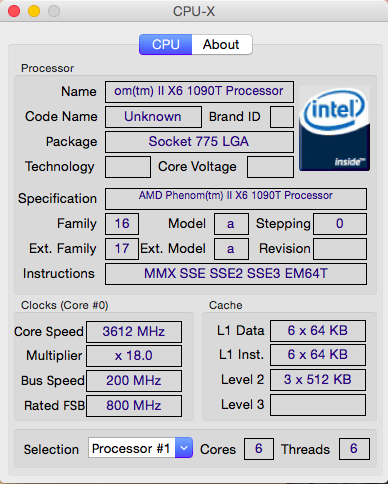

The picture of CPU-x attached is with 1010-SSEPlus-rev7 kernel.


  • Like 1
