Aigors · June 23, 2014

You need to read again my quote, and BTW your laptop has Intel HM76 that is mobile chipset, and no is not supported.

And my nick is "THe KiNG" .

Sorry for nick mistake, but i was from my smartphone thanks

xelanaiznac · June 23, 2014

hI xelanaiznac!

If you need to use latest kozlek FakeSMC with Ozmosis 894M, you have to put only Fakesmc in Bios with ozmosis stuff, then you have to put in Efi/Quo/Extensions/Common directory: kozlek FakeSMC and all he's sensors with AppleIntelE1000e.kext that's all, but in System/Library/Extensions only put patched AppleHDA.kext, your patched DSDT.aml in Efi/Quo/ACPI/Load directory: but please don't use DSDT Editor, use MacIASL and PJALM Patch Repository for Gigabyte Z87X-UD4H. No need other kexts like USBXHCI and etc...

All work just fine with this board !

i tried as you said, creating the Efi/Quo/Extensions/Common (with fakesmc 6.9 and sensors) on the usb installer and putting in firmware only fakesmc 6.9by kozlec.

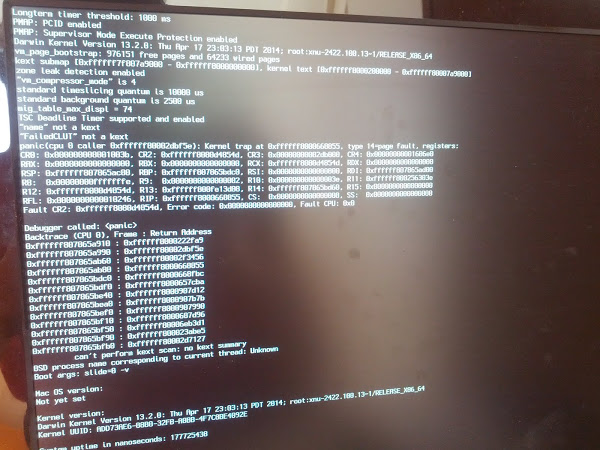

doing this i can't load the installer because of a kernel panic.

now i'm installing 10.9.3 by using slice fakesmc into firmware and then i will put on S/L/E fakesmc 6.9+plugins. i'll keep you updated.

U are doing something wrong,nothing more to say.

thanks for your help. if i put fakesmc 6.9 +sensor in S/L/E, what i have to put into firmware? smcemulator.fss or fakesmc.fss by slice? if i put fakesmc.fss by kozlec 6.9 i have kernel panic

xelanaiznac · June 23, 2014

Thanks. It's served me well so far alright

@xelanaiznac: FakeSMC should load ok from /S/L/E. I've had 5.3.901 and 6.9.1315 working here with CPU and GPU sensor plugins. I have slice's FakeSMC 3.3.1 in the BIOS.

tried as you suggested. i put fakesmc 3.3.1 by slice into bios and everything is ok. then i put fakesmc + sensor 6.9 by kozlec in S/L/E. result is kernel panic as you can see on the image attached. what can i do????

xpamamadeus · June 23, 2014

i tried as you said, creating the Efi/Quo/Extensions/Common (with fakesmc 6.9 and sensors) on the usb installer and putting in firmware only fakesmc 6.9by kozlec.

doing this i can't load the installer because of a kernel panic.

now i'm installing 10.9.3 by using slice fakesmc into firmware and then i will put on S/L/E fakesmc 6.9+plugins. i'll keep you updated.

thanks for your help. if i put fakesmc 6.9 +sensor in S/L/E, what i have to put into firmware? smcemulator.fss or fakesmc.fss by slice? if i put fakesmc.fss by kozlec 6.9 i have kernel panic

As i already say before.

If u put kext in S/L/E no need for kexts in firmware then!

xelanaiznac · June 23, 2014

As i already say before.

If u put kext in S/L/E no need for kexts in firmware then!

thank you, it works!

sorry for my mistake but other users (ammoune78 and ridley) wrote that i had to put fakesmc both in firmware and in S/L/E

Riley Freeman · June 23, 2014

Does it kernel panic if you try and boot it again? I had that happen when switching between kozlek and slice FakeSMCs in the BIOS. After a reboot it loaded fine.

Otherwise you're probably better going with Clover for now. One of Ozmosis's main draws (for me anyway) was having everything in the BIOS. Now that we're installing to /S/L/E again the advantages it has over Clover are reduced.

Ah I see you have it working now. FakeSMC in the BIOS is so you can boot a vanilla install disc or the recovery partition. Once you have a running system the copy in /S/L/E will override the one in BIOS.

ammoune78 · June 23, 2014

thank you, it works!

sorry for my mistake but other users (ammoune78 and ridley) wrote that i had to put fakesmc both in firmware and in S/L/E

As i said before! You have two choices:

- Put only FakeSMC in Bios and the same one in Efi partition with all its sensors and AppleIntelE1000e, in this case, you don't need the FakeSMC in S/L/E, and only AppleHDA in S/L/E, this one is my favorite.

- Put FakeSMC in S/L/E with all its sensors, in this case, you don't need it in Firmware or EFI partition, but the only disadvantage, is that you have to put it in S/L/E at every Re-Installation of OS X.

You have to know, If for exemple, you want to use kozlek 6.9.1315, you have to put exactly this one in Firmware and in EFI partition in Common path, in this case, you don't need it in S/L/E and you don't need other versions in anywhere, and if you use two versions of FakeSMC at same time you should have "KP".

I'm on MacBook Pro, and if you want, i can make a Ozmosis Firmware for your board without any change of ACPI tables, and i can make a DSDT with only necessary patches that you can put it in EFI partition.

Good luck!

Aigors · June 23, 2014

In case of a fresh installation, what kind of fakesmc i have to put in bios?

ammoune78 · June 23, 2014

In case of a fresh installation, what kind of fakesmc i have to put in bios?

Put whatever you want, but only one version :wink_anim: .

Riley Freeman · June 23, 2014

I'm using slice's one as it's signed. Makes things easier for Yosemite.

xelanaiznac · June 23, 2014

Once you have a running system the copy in /S/L/E will override the one in BIOS.

that's not true for me.

for example, if i put the signed kozlec version in bios, or if i use the smcemulator in bios i have a working system.

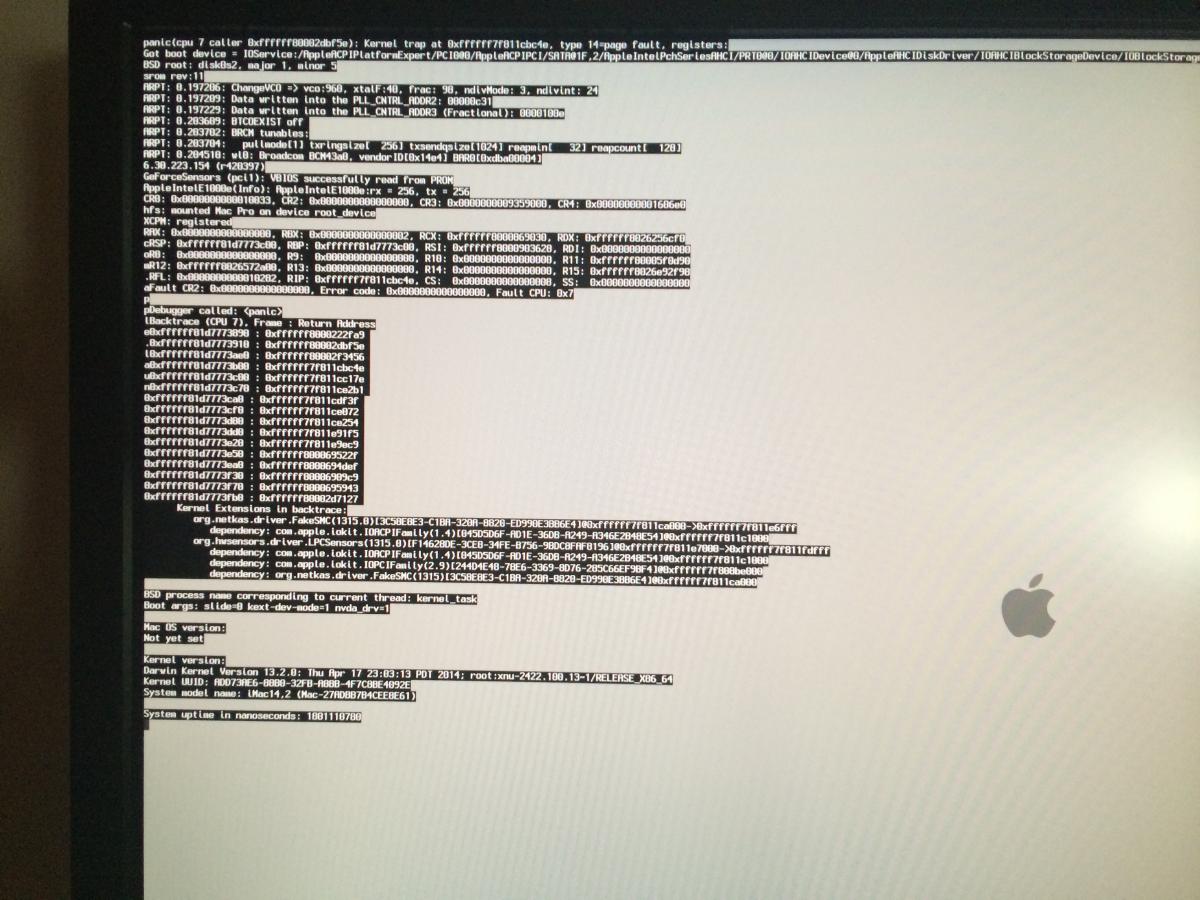

as soon as i put the kozlec 6.9 in SLE i can't load the system cause i have the apple goo boot screen with the circle running to infinite.

so it does not override the bios version

As i said before! You have two choices:

- Put only FakeSMC in Bios and the same one in Efi partition with all its sensors and AppleIntelE1000e, in this case, you don't need the FakeSMC in S/L/E, and only AppleHDA in S/L/E, this one is my favorite.

You have to know, If for exemple, you want to use kozlek 6.9.1315, you have to put exactly this one in Firmware and in EFI partition in Common path, in this case, you don't need it in S/L/E and you don't need other versions in anywhere, and if you use two versions of FakeSMC at same time you should have "KP".

This does not work for me. putting fakesmc 6.9 both into bios and into efi partition gives me kernel panic!

if i put the 6.9kozlec into efi partition but no into bios, everything is ok. what can i do?

I'm using slice's one as it's signed. Makes things easier for Yosemite.

is there a way to have a signed kozlec 6.9 version?

5.3 kozlec version gives me all sensors working exept from the gpu one (maybe because it is old and i have a 780ti)

3.3.1by slice gives me only cpu and gpu temp but it doesn't give me all the other sensors (temps, voltage, fans etc)

Riley Freeman · June 23, 2014

I haven't used the original Ozmosis smcemulator kext but kozlek's kexts override slice's here. It's all down to bundle version numbers. It probably won't override if you use the same version in both places so don't put kozlek's 6.9 in bios and /S/L/E. You don't have to have FakeSMC in the BIOS but it's kinda the whole point of using Ozmosis. Which is why I suggested you might be better off with Clover.

xpamamadeus · June 23, 2014

I haven't used the original Ozmosis smcemulator kext but kozlek's kexts override slice's here. It's all down to bundle version numbers. It probably won't override if you use the same version in both places so don't put kozlek's 6.9 in bios and /S/L/E. You don't have to have FakeSMC in the BIOS but it's kinda the whole point of using Ozmosis. Which is why I suggested you might be better off with Clover.

S/L/E its the place for kexts.

One in bios its only for install process.

If u wanna have always latest kozlek version its best to not have any kext in bios,and its faster that way..

MrJoas97 · June 23, 2014

I tried to extract the bios, remove CSM_CORE and add my kernel extensios but I keep getting this kernel panic. I am using the original smcemulatorkext. When I flash the extracted bios without adjustments it works. Below are the extracted bios, the extracted bios with adjustments and the panic itself. Any suggestions?

https://www.dropbox.com/s/4copcsppwpnnp4h/extracted_bios.rom

https://www.dropbox.com/s/qoldwxkg5t83get/extracted_bios_with_adjustments.rom

Riley Freeman · June 23, 2014

S/L/E its the place for kexts.

One in bios its only for install process.

If u wanna have always latest kozlek version its best to not have any kext in bios,and its faster that way..

Kexts in the BIOS is better. I've been sticking with kozlek's 5.3.901 for a while now. The newer ones display my GPU memory clock incorrectly.

The bigger issue for me is losing ethernet and USB3 from the BIOS. This means no ethernet and USB3 in the recovery partition or vanilla usb installers. The EFI partition should be the answer here but 894 won't load any kexts from it. I've verified that it's reading the partition OK by dropping in a DSDT.aml but it makes no effort to look for or load any kexts.

xpamamadeus · June 23, 2014

Kexts in the BIOS is better.

Then say apple to put kexts into their firmware...

they are really wrong to put kexts into S/L/E ...

Aigors · June 23, 2014

I tried to extract the bios, remove CSM_CORE and add my kernel extensios but I keep getting this kernel panic. I am using the original smcemulatorkext. When I flash the extracted bios without adjustments it works. Below are the extracted bios, the extracted bios with adjustments and the panic itself. Any suggestions?

https://www.dropbox.com/s/4copcsppwpnnp4h/extracted_bios.rom

https://www.dropbox.com/s/qoldwxkg5t83get/extracted_bios_with_adjustments.rom

some kexts cant be inserted into bios, tray with minimal number of kexts

xelanaiznac · June 23, 2014

Kexts in the BIOS is better. I've been sticking with kozlek's 5.3.901 for a while now. The newer ones display my GPU memory clock incorrectly.

The bigger issue for me is losing ethernet and USB3 from the BIOS. This means no ethernet and USB3 in the recovery partition or vanilla usb installers. The EFI partition should be the answer here but 894 won't load any kexts from it. I've verified that it's reading the partition OK by dropping in a DSDT.aml but it makes no effort to look for or load any kexts.

fantastic, problem solved.

i have done a clean installation with slice fakesmc into bios. then i put the kozlec 6.9 with sensors into SLE.

after that i rebooted, but the system doesn't load. i rebooted again and voila, everything is working (with kozlec 6.9 overriding slice fakesmc put into bios).

thanks to all of you

Riley Freeman · June 23, 2014

Great! Sometimes it's best to start over again with a fresh install.

ArcticFox · June 24, 2014

Trying to make a fresh bios but I'm running into big problems.

I've deleted the modules I can delete after NetworkStackSet, replaced filesystem with enhancedfat and I can only install a few modules from ozmosis before I run out of space in volume 01.

Below is the stock firmware without anything modified, what can I do so I can load enhancedfat, extfs, hermitshellx64, hfsplus, ozmosis, ozmosisdefaults, ozmosistheme, partitiondxe and smcemulatorkext?

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  795000   |    192    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information              |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   795000  |    192    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|19F40C|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|006EF458|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|006FF870|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 02E670 (185 KB)    Bytes Used       : 1B1990 (1734 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  795000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00BBDE|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000CE3B|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000D908|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|00012920|004581|DRVR|
|005|FileSystem     |93022F8C-1F09-47EF-BBB2-5814FF609DF5|00016EA1|007EC1|DRVR|
|006|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|0001ED62|0135E5|FRFM|
|007|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|00032347|00097D|FRFM|
|008|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|00032CC4|18D099|DXEC|
|009|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001BFD5D|012501|DRVR|
|010|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001D225E|0054CD|DRVR|
|011|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D772B|00DA59|DRVR|
|012|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001E5184|00E071|DRVR|
|013|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001F31F5|0037D9|DRVR|
|014|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001F69CE|001F69|DRVR|
|015|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F8937|0013AD|DRVR|
|016|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F9CE4|00D6A1|DRVR|
|017|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|00207385|000B1C|FRFM|
|018|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|00207EA1|004F25|DRVR|
|019|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|0020CDC6|0017AD|DRVR|
|020|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|0020E573|001C5D|DRVR|
|021|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|002101D0|002159|DRVR|
|022|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|00212329|001A11|DRVR|
|023|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|00213D3A|005701|DRVR|
|024|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|0021943B|0017F5|DRVR|
|025|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|0021AC30|001455|DRVR|
|026|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|0021C085|00AF75|DRVR|
|027|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|00226FFA|0025DD|DRVR|
|028|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|002295D7|00020D|FRFM|
|029|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|002297E4|002FD9|DRVR|
|030|               |E53734A3-E594-4C25-B1A2-081445650F7F|0022C7BD|004C61|    |
|031|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|0023141E|002461|    |
|032|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0023387F|002FD5|DRVR|
|033|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|00236854|003861|DRVR|
|034|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|0023A0B5|000E29|DRVR|
|035|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|0023AEDE|0010D5|DRVR|
|036|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|0023BFB3|02EE99|DRVR|
|037|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|0026AE4C|000B49|DRVR|
|038|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|0026B995|001F61|DRVR|
|039|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|0026D8F6|000655|DRVR|
|040|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|0026DF4B|01170D|DRVR|
|041|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|0027F658|007235|DRVR|
|042|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|0028688D|003FE1|DRVR|
|043|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|0028A86E|0027A5|DRVR|
|044|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|0028D013|00213C|PEIM|
|045|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|0028F14F|001105|DRVR|
|046|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|00290254|001C49|DRVR|
|047|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|00291E9D|00106D|DRVR|
|048|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|00292F0A|000A09|DRVR|
|049|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|00293913|001C39|DRVR|
|050|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|0029554C|0016A9|DRVR|
|051|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|00296BF5|0029B9|DRVR|
|052|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|002995AE|0035CD|DRVR|
|053|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|0029CB7B|001A39|DRVR|
|054|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|0029E5B4|000C61|DRVR|
|055|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|0029F215|0025F5|DRVR|
|056|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|002A180A|0087A1|DRVR|
|057|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A9FAB|0028FD|DRVR|
|058|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002AC8A8|000FC5|DRVR|
|059|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002AD86D|001B29|DRVR|
|060|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002AF396|000C3D|DRVR|
|061|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002AFFD3|002BAD|DRVR|
|062|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002B2B80|003255|DRVR|
|063|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002B5DD5|000D35|DRVR|
|064|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002B6B0A|0001D0|FRFM|
|065|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002B6CDA|0034FD|FRFM|
|066|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002BA1D7|00E535|DRVR|
|067|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C870C|007BE1|DRVR|
|068|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002D02ED|0009C9|DRVR|
|069|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002D0CB6|001218|RAW |
|070|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002D1ECE|0013B1|DRVR|
|071|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002D327F|00998D|DRVR|
|072|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002DCC0C|0032C9|    |
|073|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002DFED5|00211C|PEIM|
|074|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002E1FF1|006F75|DRVR|
|075|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E8F66|001D31|DRVR|
|076|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002EAC97|0029B1|DRVR|
|077|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002ED648|0034A1|DRVR|
|078|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002F0AE9|0111D5|DRVR|
|079|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|00301CBE|001BB9|DRVR|
|080|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|00303877|001145|DRVR|
|081|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|003049BC|000373|FRFM|
|082|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|00304D2F|0000D6|FRFM|
|083|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|00304E05|0025E9|DRVR|
|084|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|003073EE|002151|DRVR|
|085|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|0030953F|000B89|DRVR|
|086|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|0030A0C8|0015F1|DRVR|
|087|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|0030B6B9|0002D6|FRFM|
|088|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|0030B98F|000DF9|DRVR|
|089|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|0030C788|0015B5|DRVR|
|090|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|0030DD3D|0044AD|DRVR|
|091|               |821D110C-D0A3-4CF7-AEF3-E28088491704|003121EA|080025|FRFM|
|092|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0039220F|004049|DRVR|
|093|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|00396258|00273D|DRVR|
|094|AsUndiDxe      |603DC12F-BF47-4683-9D56-C8893C638A88|00398995|009A85|DRVR|
|095|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|003A241A|0167E9|DRVR|
|096|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003B8C03|004191|DRVR|
|097|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003BCD94|004075|DRVR|
|098|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003C0E09|0057E9|DRVR|
|099|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003C65F2|0002DD|DRVR|
|100|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003C68CF|000EA9|DRVR|
|101|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003C7778|0014D9|DRVR|
|102|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003C8C51|07F749|DRVR|
|103|               |A08276EC-A0FE-4E06-8670-385336C7D093|0044839A|000435|FRFM|
|104|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|004487CF|0033F5|DRVR|
|105|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|0044BBC4|004775|DRVR|
|106|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|00450339|004CA1|DRVR|
|107|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00454FDA|002095|DRVR|
|108|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|0045706F|000B3D|DRVR|
|109|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|00457BAC|000DF5|DRVR|
|110|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|004589A1|001221|DRVR|
|111|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|00459BC2|0013ED|DRVR|
|112|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|0045AFAF|00058D|DRVR|
|113|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|0045B53C|001B6D|DRVR|
|114|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|0045D0A9|00ABC5|DRVR|
|115|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|00467C6E|00ABCD|DRVR|
|116|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|0047283B|000CE5|DRVR|
|117|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|00473520|00007C|FRFM|
|118|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0047359C|001385|DRVR|
|119|               |76D5CF91-0C55-434E-97C2-D2825C82E610|00474921|001C25|    |
|120|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|00476546|0055E1|DRVR|
|121|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|0047BB27|0011ED|DRVR|
|122|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0047CD14|000C31|DRVR|
|123|               |94AB6AED-9719-48EF-831C-2E9C29758C33|0047D945|0000C2|FRFM|
|124|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|0047DA07|000643|FRFM|
|125|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|0047E04A|000B32|FRFM|
|126|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0047EB7C|000825|DRVR|
|127|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|0047F3A1|0000B0|FRFM|
|128|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|0047F451|001BE1|DRVR|
|129|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|00481032|001411|DRVR|
|130|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|00482443|001A3D|DRVR|
|131|               |FBF95065-427F-47B3-8077-D13C60710998|00483E80|001159|FRFM|
|132|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|00484FD9|00064D|FRFM|
|133|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|00485626|0058CD|    |
|134|               |D2596F82-F0E1-49FA-95BC-62012C795728|0048AEF3|0003B9|FRFM|
|135|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|0048B2AC|003F59|DRVR|
|136|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|0048F205|09B9C5|DRVR|
|137|               |A59A0056-3341-44B5-9C9C-6D76F7673817|0052ABCA|0000A7|FRFM|
|138|               |63819805-67BB-46EF-AA8D-1524A19A01E4|0052AC71|004EBD|FRFM|
|139|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|0052FB2E|0104C9|FRFM|
|140|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|0053FFF7|001CC9|DRVR|
|141|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|00541CC0|006349|DRVR|
|142|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|00548009|000F2D|DRVR|
|143|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|00548F36|0019ED|FRFM|
|144|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|0054A923|0036C5|DRVR|
|145|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|0054DFE8|005C39|DRVR|
|146|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|00553C21|0014D1|DRVR|
|147|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|005550F2|0057B5|DRVR|
|148|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|0055A8A7|000F81|DRVR|
|149|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|0055B828|001941|DRVR|
|150|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|0055D169|001725|DRVR|
|151|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|0055E88E|00AD1D|DRVR|
|152|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|005695AB|002CB5|FRFM|
|153|               |142204E2-C7B1-4AF9-A729-923758D96D03|0056C260|000B75|FRFM|
|154|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0056CDD5|000635|FRFM|
|155|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|0056D40A|001849|DRVR|
|156|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0056EC53|0008B9|DRVR|
|157|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0056F50C|002F59|DRVR|
|158|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|00572465|0037F9|DRVR|
|159|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|00575C5E|004B59|DRVR|
|160|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|0057A7B7|00D3A5|DRVR|
|161|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|00587B5C|000C19|DRVR|
|162|TcpDxe         |B1625D3C-9D2D-4E0D-B864-8A763EE4EC50|00588775|00BC59|DRVR|
|163|Dhcp4Dxe       |8DD9176E-EE87-4F0E-8A84-3F998311F930|005943CE|006F1D|DRVR|
|164|Ip4ConfigDxe   |8F9296EF-2880-4659-B857-915A8901BDC8|0059B2EB|0047E5|DRVR|
|165|Ip4Dxe         |8F92960F-2880-4659-B857-915A8901BDC8|0059FAD0|008C79|DRVR|
|166|Mtftp4Dxe      |61AFA223-8AC8-4440-9AB5-762B1BF05156|005A8749|0056BD|DRVR|
|167|Udp4Dxe        |10EE5462-B207-4A4F-ABD8-CB522ECAA3A4|005ADE06|005719|DRVR|
|168|Dhcp6Dxe       |8DD9176D-EE87-4F0E-8A84-3F998311F930|005B351F|006B5D|DRVR|
|169|Ip6Dxe         |8F92960E-2880-4659-B857-915A8901BDC8|005BA07C|010599|DRVR|
|170|Mtftp6Dxe      |61AFA251-8AC8-4440-9AB5-762B1BF05156|005CA615|0056DD|DRVR|
|171|Udp6Dxe        |10EE54AE-B207-4A4F-ABD8-CB522ECAA3A4|005CFCF2|005419|DRVR|
|172|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|005D510B|00DC91|DRVR|
|173|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|005E2D9C|018841|    |
|174|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|005FB5DD|001A45|DRVR|
|175|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|005FD022|038DFD|DRVR|
|176|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|00635E1F|001B69|DRVR|
|177|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|00637988|007F79|DRVR|
|178|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|0063F901|00400D|DRVR|
|179|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|0064390E|0014B9|DRVR|
|180|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|00644DC7|00124D|DRVR|
|181|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|00646014|0015D9|DRVR|
|182|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|006475ED|001401|DRVR|
|183|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|006489EE|001061|DRVR|
|184|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|00649A4F|000A98|FRFM|
|185|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|0064A4E7|00011B|FRFM|
|186|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|0064A602|001175|DRVR|
|187|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|0064B777|100DB1|DRVR|
|188|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|0074C528|044C8D|FRFM|
|189|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|007911B5|000B51|DRVR|
|190|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|00791D06|001241|DRVR|
|191|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|00792F47|000275|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 001E44 (  7 KB)    Bytes Used       : 7931BC (7756 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001969|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C300|00335E|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F660|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|00770900|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771178|038DF2|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007A9F70|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA218|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007ABEA8|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007AD7F8|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002AC2|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E04A0|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4020|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE68|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC830|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED160|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E8|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC58|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC78|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF098|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD10|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0760|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C38|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B40|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE8|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2918|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3140|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37B0|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A8|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DC0|000FF5|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB8|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B68|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C10|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1E0|000E20|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007F10 ( 31 KB)    Bytes Used       : 0C80F0 (800 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 036580 ( 217 KB)   Total Bytes Used : 7C9A80 (7974 KB)   |
+-----------------------------------------------------------------------------+

This one is with filesystem replaced and tcpdxe dhcp4dxe ip4configdxe ip4dxe mtftpdxe udp4dxe dhcp6dxe ip6dxe mtftp6dxe udp6dxe deleted

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  795000   |    182    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information       	      |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   795000  |    182    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|1873F8|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|006D7458|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|006E7870|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 046688 (281 KB)    Bytes Used       : 199978 (1638 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  795000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00BBDE|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000CE3B|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000D908|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|00012920|004581|DRVR|
|005|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00016EA1|00343A|DRVR|
|006|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|0001A2DB|0135E5|FRFM|
|007|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|0002D8C0|00097D|FRFM|
|008|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|0002E23D|18D099|DXEC|
|009|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001BB2D6|012501|DRVR|
|010|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001CD7D7|0054CD|DRVR|
|011|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D2CA4|00DA59|DRVR|
|012|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001E06FD|00E071|DRVR|
|013|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001EE76E|0037D9|DRVR|
|014|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001F1F47|001F69|DRVR|
|015|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F3EB0|0013AD|DRVR|
|016|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F525D|00D6A1|DRVR|
|017|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|002028FE|000B1C|FRFM|
|018|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|0020341A|004F25|DRVR|
|019|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|0020833F|0017AD|DRVR|
|020|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|00209AEC|001C5D|DRVR|
|021|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|0020B749|002159|DRVR|
|022|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|0020D8A2|001A11|DRVR|
|023|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|0020F2B3|005701|DRVR|
|024|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|002149B4|0017F5|DRVR|
|025|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|002161A9|001455|DRVR|
|026|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|002175FE|00AF75|DRVR|
|027|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|00222573|0025DD|DRVR|
|028|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|00224B50|00020D|FRFM|
|029|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|00224D5D|002FD9|DRVR|
|030|               |E53734A3-E594-4C25-B1A2-081445650F7F|00227D36|004C61|    |
|031|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|0022C997|002461|    |
|032|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0022EDF8|002FD5|DRVR|
|033|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|00231DCD|003861|DRVR|
|034|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|0023562E|000E29|DRVR|
|035|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|00236457|0010D5|DRVR|
|036|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|0023752C|02EE99|DRVR|
|037|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|002663C5|000B49|DRVR|
|038|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|00266F0E|001F61|DRVR|
|039|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|00268E6F|000655|DRVR|
|040|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|002694C4|01170D|DRVR|
|041|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|0027ABD1|007235|DRVR|
|042|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|00281E06|003FE1|DRVR|
|043|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|00285DE7|0027A5|DRVR|
|044|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|0028858C|00213C|PEIM|
|045|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|0028A6C8|001105|DRVR|
|046|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|0028B7CD|001C49|DRVR|
|047|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|0028D416|00106D|DRVR|
|048|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|0028E483|000A09|DRVR|
|049|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|0028EE8C|001C39|DRVR|
|050|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|00290AC5|0016A9|DRVR|
|051|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|0029216E|0029B9|DRVR|
|052|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|00294B27|0035CD|DRVR|
|053|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|002980F4|001A39|DRVR|
|054|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|00299B2D|000C61|DRVR|
|055|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|0029A78E|0025F5|DRVR|
|056|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|0029CD83|0087A1|DRVR|
|057|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A5524|0028FD|DRVR|
|058|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002A7E21|000FC5|DRVR|
|059|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002A8DE6|001B29|DRVR|
|060|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002AA90F|000C3D|DRVR|
|061|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002AB54C|002BAD|DRVR|
|062|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002AE0F9|003255|DRVR|
|063|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002B134E|000D35|DRVR|
|064|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002B2083|0001D0|FRFM|
|065|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002B2253|0034FD|FRFM|
|066|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002B5750|00E535|DRVR|
|067|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C3C85|007BE1|DRVR|
|068|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002CB866|0009C9|DRVR|
|069|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002CC22F|001218|RAW |
|070|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002CD447|0013B1|DRVR|
|071|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002CE7F8|00998D|DRVR|
|072|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002D8185|0032C9|    |
|073|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002DB44E|00211C|PEIM|
|074|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002DD56A|006F75|DRVR|
|075|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E44DF|001D31|DRVR|
|076|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002E6210|0029B1|DRVR|
|077|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002E8BC1|0034A1|DRVR|
|078|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002EC062|0111D5|DRVR|
|079|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|002FD237|001BB9|DRVR|
|080|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|002FEDF0|001145|DRVR|
|081|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|002FFF35|000373|FRFM|
|082|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|003002A8|0000D6|FRFM|
|083|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|0030037E|0025E9|DRVR|
|084|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|00302967|002151|DRVR|
|085|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|00304AB8|000B89|DRVR|
|086|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|00305641|0015F1|DRVR|
|087|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|00306C32|0002D6|FRFM|
|088|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|00306F08|000DF9|DRVR|
|089|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|00307D01|0015B5|DRVR|
|090|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|003092B6|0044AD|DRVR|
|091|               |821D110C-D0A3-4CF7-AEF3-E28088491704|0030D763|080025|FRFM|
|092|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0038D788|004049|DRVR|
|093|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|003917D1|00273D|DRVR|
|094|AsUndiDxe      |603DC12F-BF47-4683-9D56-C8893C638A88|00393F0E|009A85|DRVR|
|095|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|0039D993|0167E9|DRVR|
|096|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003B417C|004191|DRVR|
|097|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003B830D|004075|DRVR|
|098|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003BC382|0057E9|DRVR|
|099|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003C1B6B|0002DD|DRVR|
|100|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003C1E48|000EA9|DRVR|
|101|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003C2CF1|0014D9|DRVR|
|102|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003C41CA|07F749|DRVR|
|103|               |A08276EC-A0FE-4E06-8670-385336C7D093|00443913|000435|FRFM|
|104|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|00443D48|0033F5|DRVR|
|105|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|0044713D|004775|DRVR|
|106|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|0044B8B2|004CA1|DRVR|
|107|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00450553|002095|DRVR|
|108|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|004525E8|000B3D|DRVR|
|109|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|00453125|000DF5|DRVR|
|110|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|00453F1A|001221|DRVR|
|111|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|0045513B|0013ED|DRVR|
|112|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|00456528|00058D|DRVR|
|113|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|00456AB5|001B6D|DRVR|
|114|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|00458622|00ABC5|DRVR|
|115|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|004631E7|00ABCD|DRVR|
|116|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|0046DDB4|000CE5|DRVR|
|117|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|0046EA99|00007C|FRFM|
|118|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0046EB15|001385|DRVR|
|119|               |76D5CF91-0C55-434E-97C2-D2825C82E610|0046FE9A|001C25|    |
|120|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|00471ABF|0055E1|DRVR|
|121|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|004770A0|0011ED|DRVR|
|122|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0047828D|000C31|DRVR|
|123|               |94AB6AED-9719-48EF-831C-2E9C29758C33|00478EBE|0000C2|FRFM|
|124|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|00478F80|000643|FRFM|
|125|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|004795C3|000B32|FRFM|
|126|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0047A0F5|000825|DRVR|
|127|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|0047A91A|0000B0|FRFM|
|128|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|0047A9CA|001BE1|DRVR|
|129|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|0047C5AB|001411|DRVR|
|130|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|0047D9BC|001A3D|DRVR|
|131|               |FBF95065-427F-47B3-8077-D13C60710998|0047F3F9|001159|FRFM|
|132|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|00480552|00064D|FRFM|
|133|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|00480B9F|0058CD|    |
|134|               |D2596F82-F0E1-49FA-95BC-62012C795728|0048646C|0003B9|FRFM|
|135|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|00486825|003F59|DRVR|
|136|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|0048A77E|09B9C5|DRVR|
|137|               |A59A0056-3341-44B5-9C9C-6D76F7673817|00526143|0000A7|FRFM|
|138|               |63819805-67BB-46EF-AA8D-1524A19A01E4|005261EA|004EBD|FRFM|
|139|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|0052B0A7|0104C9|FRFM|
|140|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|0053B570|001CC9|DRVR|
|141|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|0053D239|006349|DRVR|
|142|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|00543582|000F2D|DRVR|
|143|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|005444AF|0019ED|FRFM|
|144|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|00545E9C|0036C5|DRVR|
|145|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|00549561|005C39|DRVR|
|146|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|0054F19A|0014D1|DRVR|
|147|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|0055066B|0057B5|DRVR|
|148|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|00555E20|000F81|DRVR|
|149|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|00556DA1|001941|DRVR|
|150|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|005586E2|001725|DRVR|
|151|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|00559E07|00AD1D|DRVR|
|152|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|00564B24|002CB5|FRFM|
|153|               |142204E2-C7B1-4AF9-A729-923758D96D03|005677D9|000B75|FRFM|
|154|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0056834E|000635|FRFM|
|155|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|00568983|001849|DRVR|
|156|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0056A1CC|0008B9|DRVR|
|157|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0056AA85|002F59|DRVR|
|158|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|0056D9DE|0037F9|DRVR|
|159|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|005711D7|004B59|DRVR|
|160|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|00575D30|00D3A5|DRVR|
|161|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|005830D5|000C19|DRVR|
|162|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|00583CEE|00DC91|DRVR|
|163|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|0059197F|018841|    |
|164|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|005AA1C0|001A45|DRVR|
|165|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|005ABC05|038DFD|DRVR|
|166|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|005E4A02|001B69|DRVR|
|167|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|005E656B|007F79|DRVR|
|168|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|005EE4E4|00400D|DRVR|
|169|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|005F24F1|0014B9|DRVR|
|170|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|005F39AA|00124D|DRVR|
|171|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|005F4BF7|0015D9|DRVR|
|172|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|005F61D0|001401|DRVR|
|173|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|005F75D1|001061|DRVR|
|174|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|005F8632|000A98|FRFM|
|175|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|005F90CA|00011B|FRFM|
|176|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|005F91E5|001175|DRVR|
|177|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|005FA35A|100DB1|DRVR|
|178|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|006FB10B|044C8D|FRFM|
|179|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|0073FD98|000B51|DRVR|
|180|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|007408E9|001241|DRVR|
|181|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|00741B2A|000275|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 053261 (332 KB)    Bytes Used       : 741D9F (7431 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001969|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C300|00335E|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F660|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|00770900|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771178|038DF2|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007A9F70|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA218|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007ABEA8|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007AD7F8|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002AC2|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E04A0|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4020|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE68|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC830|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED160|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E8|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC58|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC78|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF098|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD10|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0760|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C38|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B40|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE8|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2918|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3140|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37B0|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A8|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DC0|000FF5|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB8|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B68|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C10|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1E0|000E20|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007F10 ( 31 KB)    Bytes Used       : 0C80F0 (800 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 04E598 ( 313 KB)   Total Bytes Used : 7B1A68 (7878 KB)   |
+-----------------------------------------------------------------------------+

xpamamadeus · June 24, 2014

Trying to make a fresh bios but I'm running into big problems.

I've deleted the modules I can delete after NetworkStackSet, replaced filesystem with enhancedfat and I can only install a few modules from ozmosis before I run out of space in volume 01.

Below is the stock firmware without anything modified, what can I do so I can load enhancedfat, extfs, hermitshellx64, hfsplus, ozmosis, ozmosisdefaults, ozmosistheme, partitiondxe and smcemulatorkext?

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  795000   |    192    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information              |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   795000  |    192    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|19F40C|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|006EF458|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|006FF870|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 02E670 (185 KB)    Bytes Used       : 1B1990 (1734 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  795000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00BBDE|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000CE3B|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000D908|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|00012920|004581|DRVR|
|005|FileSystem     |93022F8C-1F09-47EF-BBB2-5814FF609DF5|00016EA1|007EC1|DRVR|
|006|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|0001ED62|0135E5|FRFM|
|007|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|00032347|00097D|FRFM|
|008|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|00032CC4|18D099|DXEC|
|009|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001BFD5D|012501|DRVR|
|010|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001D225E|0054CD|DRVR|
|011|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D772B|00DA59|DRVR|
|012|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001E5184|00E071|DRVR|
|013|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001F31F5|0037D9|DRVR|
|014|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001F69CE|001F69|DRVR|
|015|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F8937|0013AD|DRVR|
|016|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F9CE4|00D6A1|DRVR|
|017|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|00207385|000B1C|FRFM|
|018|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|00207EA1|004F25|DRVR|
|019|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|0020CDC6|0017AD|DRVR|
|020|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|0020E573|001C5D|DRVR|
|021|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|002101D0|002159|DRVR|
|022|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|00212329|001A11|DRVR|
|023|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|00213D3A|005701|DRVR|
|024|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|0021943B|0017F5|DRVR|
|025|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|0021AC30|001455|DRVR|
|026|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|0021C085|00AF75|DRVR|
|027|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|00226FFA|0025DD|DRVR|
|028|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|002295D7|00020D|FRFM|
|029|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|002297E4|002FD9|DRVR|
|030|               |E53734A3-E594-4C25-B1A2-081445650F7F|0022C7BD|004C61|    |
|031|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|0023141E|002461|    |
|032|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0023387F|002FD5|DRVR|
|033|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|00236854|003861|DRVR|
|034|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|0023A0B5|000E29|DRVR|
|035|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|0023AEDE|0010D5|DRVR|
|036|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|0023BFB3|02EE99|DRVR|
|037|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|0026AE4C|000B49|DRVR|
|038|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|0026B995|001F61|DRVR|
|039|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|0026D8F6|000655|DRVR|
|040|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|0026DF4B|01170D|DRVR|
|041|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|0027F658|007235|DRVR|
|042|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|0028688D|003FE1|DRVR|
|043|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|0028A86E|0027A5|DRVR|
|044|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|0028D013|00213C|PEIM|
|045|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|0028F14F|001105|DRVR|
|046|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|00290254|001C49|DRVR|
|047|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|00291E9D|00106D|DRVR|
|048|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|00292F0A|000A09|DRVR|
|049|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|00293913|001C39|DRVR|
|050|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|0029554C|0016A9|DRVR|
|051|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|00296BF5|0029B9|DRVR|
|052|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|002995AE|0035CD|DRVR|
|053|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|0029CB7B|001A39|DRVR|
|054|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|0029E5B4|000C61|DRVR|
|055|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|0029F215|0025F5|DRVR|
|056|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|002A180A|0087A1|DRVR|
|057|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A9FAB|0028FD|DRVR|
|058|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002AC8A8|000FC5|DRVR|
|059|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002AD86D|001B29|DRVR|
|060|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002AF396|000C3D|DRVR|
|061|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002AFFD3|002BAD|DRVR|
|062|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002B2B80|003255|DRVR|
|063|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002B5DD5|000D35|DRVR|
|064|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002B6B0A|0001D0|FRFM|
|065|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002B6CDA|0034FD|FRFM|
|066|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002BA1D7|00E535|DRVR|
|067|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C870C|007BE1|DRVR|
|068|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002D02ED|0009C9|DRVR|
|069|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002D0CB6|001218|RAW |
|070|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002D1ECE|0013B1|DRVR|
|071|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002D327F|00998D|DRVR|
|072|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002DCC0C|0032C9|    |
|073|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002DFED5|00211C|PEIM|
|074|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002E1FF1|006F75|DRVR|
|075|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E8F66|001D31|DRVR|
|076|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002EAC97|0029B1|DRVR|
|077|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002ED648|0034A1|DRVR|
|078|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002F0AE9|0111D5|DRVR|
|079|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|00301CBE|001BB9|DRVR|
|080|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|00303877|001145|DRVR|
|081|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|003049BC|000373|FRFM|
|082|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|00304D2F|0000D6|FRFM|
|083|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|00304E05|0025E9|DRVR|
|084|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|003073EE|002151|DRVR|
|085|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|0030953F|000B89|DRVR|
|086|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|0030A0C8|0015F1|DRVR|
|087|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|0030B6B9|0002D6|FRFM|
|088|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|0030B98F|000DF9|DRVR|
|089|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|0030C788|0015B5|DRVR|
|090|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|0030DD3D|0044AD|DRVR|
|091|               |821D110C-D0A3-4CF7-AEF3-E28088491704|003121EA|080025|FRFM|
|092|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0039220F|004049|DRVR|
|093|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|00396258|00273D|DRVR|
|094|AsUndiDxe      |603DC12F-BF47-4683-9D56-C8893C638A88|00398995|009A85|DRVR|
|095|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|003A241A|0167E9|DRVR|
|096|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003B8C03|004191|DRVR|
|097|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003BCD94|004075|DRVR|
|098|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003C0E09|0057E9|DRVR|
|099|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003C65F2|0002DD|DRVR|
|100|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003C68CF|000EA9|DRVR|
|101|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003C7778|0014D9|DRVR|
|102|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003C8C51|07F749|DRVR|
|103|               |A08276EC-A0FE-4E06-8670-385336C7D093|0044839A|000435|FRFM|
|104|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|004487CF|0033F5|DRVR|
|105|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|0044BBC4|004775|DRVR|
|106|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|00450339|004CA1|DRVR|
|107|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00454FDA|002095|DRVR|
|108|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|0045706F|000B3D|DRVR|
|109|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|00457BAC|000DF5|DRVR|
|110|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|004589A1|001221|DRVR|
|111|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|00459BC2|0013ED|DRVR|
|112|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|0045AFAF|00058D|DRVR|
|113|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|0045B53C|001B6D|DRVR|
|114|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|0045D0A9|00ABC5|DRVR|
|115|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|00467C6E|00ABCD|DRVR|
|116|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|0047283B|000CE5|DRVR|
|117|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|00473520|00007C|FRFM|
|118|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0047359C|001385|DRVR|
|119|               |76D5CF91-0C55-434E-97C2-D2825C82E610|00474921|001C25|    |
|120|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|00476546|0055E1|DRVR|
|121|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|0047BB27|0011ED|DRVR|
|122|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0047CD14|000C31|DRVR|
|123|               |94AB6AED-9719-48EF-831C-2E9C29758C33|0047D945|0000C2|FRFM|
|124|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|0047DA07|000643|FRFM|
|125|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|0047E04A|000B32|FRFM|
|126|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0047EB7C|000825|DRVR|
|127|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|0047F3A1|0000B0|FRFM|
|128|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|0047F451|001BE1|DRVR|
|129|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|00481032|001411|DRVR|
|130|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|00482443|001A3D|DRVR|
|131|               |FBF95065-427F-47B3-8077-D13C60710998|00483E80|001159|FRFM|
|132|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|00484FD9|00064D|FRFM|
|133|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|00485626|0058CD|    |
|134|               |D2596F82-F0E1-49FA-95BC-62012C795728|0048AEF3|0003B9|FRFM|
|135|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|0048B2AC|003F59|DRVR|
|136|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|0048F205|09B9C5|DRVR|
|137|               |A59A0056-3341-44B5-9C9C-6D76F7673817|0052ABCA|0000A7|FRFM|
|138|               |63819805-67BB-46EF-AA8D-1524A19A01E4|0052AC71|004EBD|FRFM|
|139|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|0052FB2E|0104C9|FRFM|
|140|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|0053FFF7|001CC9|DRVR|
|141|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|00541CC0|006349|DRVR|
|142|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|00548009|000F2D|DRVR|
|143|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|00548F36|0019ED|FRFM|
|144|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|0054A923|0036C5|DRVR|
|145|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|0054DFE8|005C39|DRVR|
|146|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|00553C21|0014D1|DRVR|
|147|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|005550F2|0057B5|DRVR|
|148|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|0055A8A7|000F81|DRVR|
|149|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|0055B828|001941|DRVR|
|150|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|0055D169|001725|DRVR|
|151|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|0055E88E|00AD1D|DRVR|
|152|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|005695AB|002CB5|FRFM|
|153|               |142204E2-C7B1-4AF9-A729-923758D96D03|0056C260|000B75|FRFM|
|154|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0056CDD5|000635|FRFM|
|155|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|0056D40A|001849|DRVR|
|156|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0056EC53|0008B9|DRVR|
|157|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0056F50C|002F59|DRVR|
|158|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|00572465|0037F9|DRVR|
|159|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|00575C5E|004B59|DRVR|
|160|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|0057A7B7|00D3A5|DRVR|
|161|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|00587B5C|000C19|DRVR|
|162|TcpDxe         |B1625D3C-9D2D-4E0D-B864-8A763EE4EC50|00588775|00BC59|DRVR|
|163|Dhcp4Dxe       |8DD9176E-EE87-4F0E-8A84-3F998311F930|005943CE|006F1D|DRVR|
|164|Ip4ConfigDxe   |8F9296EF-2880-4659-B857-915A8901BDC8|0059B2EB|0047E5|DRVR|
|165|Ip4Dxe         |8F92960F-2880-4659-B857-915A8901BDC8|0059FAD0|008C79|DRVR|
|166|Mtftp4Dxe      |61AFA223-8AC8-4440-9AB5-762B1BF05156|005A8749|0056BD|DRVR|
|167|Udp4Dxe        |10EE5462-B207-4A4F-ABD8-CB522ECAA3A4|005ADE06|005719|DRVR|
|168|Dhcp6Dxe       |8DD9176D-EE87-4F0E-8A84-3F998311F930|005B351F|006B5D|DRVR|
|169|Ip6Dxe         |8F92960E-2880-4659-B857-915A8901BDC8|005BA07C|010599|DRVR|
|170|Mtftp6Dxe      |61AFA251-8AC8-4440-9AB5-762B1BF05156|005CA615|0056DD|DRVR|
|171|Udp6Dxe        |10EE54AE-B207-4A4F-ABD8-CB522ECAA3A4|005CFCF2|005419|DRVR|
|172|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|005D510B|00DC91|DRVR|
|173|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|005E2D9C|018841|    |
|174|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|005FB5DD|001A45|DRVR|
|175|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|005FD022|038DFD|DRVR|
|176|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|00635E1F|001B69|DRVR|
|177|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|00637988|007F79|DRVR|
|178|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|0063F901|00400D|DRVR|
|179|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|0064390E|0014B9|DRVR|
|180|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|00644DC7|00124D|DRVR|
|181|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|00646014|0015D9|DRVR|
|182|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|006475ED|001401|DRVR|
|183|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|006489EE|001061|DRVR|
|184|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|00649A4F|000A98|FRFM|
|185|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|0064A4E7|00011B|FRFM|
|186|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|0064A602|001175|DRVR|
|187|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|0064B777|100DB1|DRVR|
|188|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|0074C528|044C8D|FRFM|
|189|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|007911B5|000B51|DRVR|
|190|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|00791D06|001241|DRVR|
|191|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|00792F47|000275|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 001E44 (  7 KB)    Bytes Used       : 7931BC (7756 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001969|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C300|00335E|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F660|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|00770900|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771178|038DF2|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007A9F70|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA218|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007ABEA8|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007AD7F8|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002AC2|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E04A0|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4020|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE68|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC830|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED160|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E8|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC58|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC78|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF098|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD10|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0760|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C38|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B40|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE8|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2918|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3140|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37B0|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A8|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DC0|000FF5|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB8|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B68|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C10|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1E0|000E20|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007F10 ( 31 KB)    Bytes Used       : 0C80F0 (800 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 036580 ( 217 KB)   Total Bytes Used : 7C9A80 (7974 KB)   |
+-----------------------------------------------------------------------------+

This one is with filesystem replaced and tcpdxe dhcp4dxe ip4configdxe ip4dxe mtftpdxe udp4dxe dhcp6dxe ip6dxe mtftp6dxe udp6dxe deleted

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  795000   |    182    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information       	      |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   795000  |    182    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|1873F8|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|006D7458|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|006E7870|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 046688 (281 KB)    Bytes Used       : 199978 (1638 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  795000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00BBDE|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000CE3B|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000D908|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|00012920|004581|DRVR|
|005|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00016EA1|00343A|DRVR|
|006|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|0001A2DB|0135E5|FRFM|
|007|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|0002D8C0|00097D|FRFM|
|008|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|0002E23D|18D099|DXEC|
|009|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001BB2D6|012501|DRVR|
|010|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001CD7D7|0054CD|DRVR|
|011|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D2CA4|00DA59|DRVR|
|012|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001E06FD|00E071|DRVR|
|013|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001EE76E|0037D9|DRVR|
|014|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001F1F47|001F69|DRVR|
|015|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F3EB0|0013AD|DRVR|
|016|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F525D|00D6A1|DRVR|
|017|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|002028FE|000B1C|FRFM|
|018|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|0020341A|004F25|DRVR|
|019|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|0020833F|0017AD|DRVR|
|020|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|00209AEC|001C5D|DRVR|
|021|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|0020B749|002159|DRVR|
|022|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|0020D8A2|001A11|DRVR|
|023|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|0020F2B3|005701|DRVR|
|024|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|002149B4|0017F5|DRVR|
|025|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|002161A9|001455|DRVR|
|026|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|002175FE|00AF75|DRVR|
|027|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|00222573|0025DD|DRVR|
|028|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|00224B50|00020D|FRFM|
|029|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|00224D5D|002FD9|DRVR|
|030|               |E53734A3-E594-4C25-B1A2-081445650F7F|00227D36|004C61|    |
|031|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|0022C997|002461|    |
|032|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0022EDF8|002FD5|DRVR|
|033|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|00231DCD|003861|DRVR|
|034|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|0023562E|000E29|DRVR|
|035|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|00236457|0010D5|DRVR|
|036|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|0023752C|02EE99|DRVR|
|037|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|002663C5|000B49|DRVR|
|038|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|00266F0E|001F61|DRVR|
|039|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|00268E6F|000655|DRVR|
|040|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|002694C4|01170D|DRVR|
|041|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|0027ABD1|007235|DRVR|
|042|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|00281E06|003FE1|DRVR|
|043|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|00285DE7|0027A5|DRVR|
|044|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|0028858C|00213C|PEIM|
|045|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|0028A6C8|001105|DRVR|
|046|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|0028B7CD|001C49|DRVR|
|047|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|0028D416|00106D|DRVR|
|048|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|0028E483|000A09|DRVR|
|049|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|0028EE8C|001C39|DRVR|
|050|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|00290AC5|0016A9|DRVR|
|051|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|0029216E|0029B9|DRVR|
|052|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|00294B27|0035CD|DRVR|
|053|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|002980F4|001A39|DRVR|
|054|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|00299B2D|000C61|DRVR|
|055|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|0029A78E|0025F5|DRVR|
|056|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|0029CD83|0087A1|DRVR|
|057|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A5524|0028FD|DRVR|
|058|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002A7E21|000FC5|DRVR|
|059|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002A8DE6|001B29|DRVR|
|060|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002AA90F|000C3D|DRVR|
|061|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002AB54C|002BAD|DRVR|
|062|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002AE0F9|003255|DRVR|
|063|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002B134E|000D35|DRVR|
|064|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002B2083|0001D0|FRFM|
|065|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002B2253|0034FD|FRFM|
|066|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002B5750|00E535|DRVR|
|067|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C3C85|007BE1|DRVR|
|068|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002CB866|0009C9|DRVR|
|069|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002CC22F|001218|RAW |
|070|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002CD447|0013B1|DRVR|
|071|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002CE7F8|00998D|DRVR|
|072|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002D8185|0032C9|    |
|073|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002DB44E|00211C|PEIM|
|074|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002DD56A|006F75|DRVR|
|075|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E44DF|001D31|DRVR|
|076|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002E6210|0029B1|DRVR|
|077|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002E8BC1|0034A1|DRVR|
|078|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002EC062|0111D5|DRVR|
|079|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|002FD237|001BB9|DRVR|
|080|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|002FEDF0|001145|DRVR|
|081|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|002FFF35|000373|FRFM|
|082|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|003002A8|0000D6|FRFM|
|083|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|0030037E|0025E9|DRVR|
|084|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|00302967|002151|DRVR|
|085|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|00304AB8|000B89|DRVR|
|086|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|00305641|0015F1|DRVR|
|087|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|00306C32|0002D6|FRFM|
|088|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|00306F08|000DF9|DRVR|
|089|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|00307D01|0015B5|DRVR|
|090|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|003092B6|0044AD|DRVR|
|091|               |821D110C-D0A3-4CF7-AEF3-E28088491704|0030D763|080025|FRFM|
|092|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0038D788|004049|DRVR|
|093|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|003917D1|00273D|DRVR|
|094|AsUndiDxe      |603DC12F-BF47-4683-9D56-C8893C638A88|00393F0E|009A85|DRVR|
|095|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|0039D993|0167E9|DRVR|
|096|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003B417C|004191|DRVR|
|097|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003B830D|004075|DRVR|
|098|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003BC382|0057E9|DRVR|
|099|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003C1B6B|0002DD|DRVR|
|100|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003C1E48|000EA9|DRVR|
|101|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003C2CF1|0014D9|DRVR|
|102|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003C41CA|07F749|DRVR|
|103|               |A08276EC-A0FE-4E06-8670-385336C7D093|00443913|000435|FRFM|
|104|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|00443D48|0033F5|DRVR|
|105|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|0044713D|004775|DRVR|
|106|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|0044B8B2|004CA1|DRVR|
|107|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00450553|002095|DRVR|
|108|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|004525E8|000B3D|DRVR|
|109|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|00453125|000DF5|DRVR|
|110|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|00453F1A|001221|DRVR|
|111|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|0045513B|0013ED|DRVR|
|112|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|00456528|00058D|DRVR|
|113|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|00456AB5|001B6D|DRVR|
|114|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|00458622|00ABC5|DRVR|
|115|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|004631E7|00ABCD|DRVR|
|116|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|0046DDB4|000CE5|DRVR|
|117|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|0046EA99|00007C|FRFM|
|118|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0046EB15|001385|DRVR|
|119|               |76D5CF91-0C55-434E-97C2-D2825C82E610|0046FE9A|001C25|    |
|120|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|00471ABF|0055E1|DRVR|
|121|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|004770A0|0011ED|DRVR|
|122|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0047828D|000C31|DRVR|
|123|               |94AB6AED-9719-48EF-831C-2E9C29758C33|00478EBE|0000C2|FRFM|
|124|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|00478F80|000643|FRFM|
|125|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|004795C3|000B32|FRFM|
|126|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0047A0F5|000825|DRVR|
|127|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|0047A91A|0000B0|FRFM|
|128|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|0047A9CA|001BE1|DRVR|
|129|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|0047C5AB|001411|DRVR|
|130|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|0047D9BC|001A3D|DRVR|
|131|               |FBF95065-427F-47B3-8077-D13C60710998|0047F3F9|001159|FRFM|
|132|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|00480552|00064D|FRFM|
|133|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|00480B9F|0058CD|    |
|134|               |D2596F82-F0E1-49FA-95BC-62012C795728|0048646C|0003B9|FRFM|
|135|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|00486825|003F59|DRVR|
|136|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|0048A77E|09B9C5|DRVR|
|137|               |A59A0056-3341-44B5-9C9C-6D76F7673817|00526143|0000A7|FRFM|
|138|               |63819805-67BB-46EF-AA8D-1524A19A01E4|005261EA|004EBD|FRFM|
|139|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|0052B0A7|0104C9|FRFM|
|140|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|0053B570|001CC9|DRVR|
|141|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|0053D239|006349|DRVR|
|142|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|00543582|000F2D|DRVR|
|143|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|005444AF|0019ED|FRFM|
|144|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|00545E9C|0036C5|DRVR|
|145|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|00549561|005C39|DRVR|
|146|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|0054F19A|0014D1|DRVR|
|147|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|0055066B|0057B5|DRVR|
|148|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|00555E20|000F81|DRVR|
|149|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|00556DA1|001941|DRVR|
|150|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|005586E2|001725|DRVR|
|151|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|00559E07|00AD1D|DRVR|
|152|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|00564B24|002CB5|FRFM|
|153|               |142204E2-C7B1-4AF9-A729-923758D96D03|005677D9|000B75|FRFM|
|154|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0056834E|000635|FRFM|
|155|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|00568983|001849|DRVR|
|156|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0056A1CC|0008B9|DRVR|
|157|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0056AA85|002F59|DRVR|
|158|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|0056D9DE|0037F9|DRVR|
|159|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|005711D7|004B59|DRVR|
|160|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|00575D30|00D3A5|DRVR|
|161|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|005830D5|000C19|DRVR|
|162|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|00583CEE|00DC91|DRVR|
|163|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|0059197F|018841|    |
|164|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|005AA1C0|001A45|DRVR|
|165|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|005ABC05|038DFD|DRVR|
|166|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|005E4A02|001B69|DRVR|
|167|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|005E656B|007F79|DRVR|
|168|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|005EE4E4|00400D|DRVR|
|169|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|005F24F1|0014B9|DRVR|
|170|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|005F39AA|00124D|DRVR|
|171|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|005F4BF7|0015D9|DRVR|
|172|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|005F61D0|001401|DRVR|
|173|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|005F75D1|001061|DRVR|
|174|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|005F8632|000A98|FRFM|
|175|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|005F90CA|00011B|FRFM|
|176|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|005F91E5|001175|DRVR|
|177|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|005FA35A|100DB1|DRVR|
|178|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|006FB10B|044C8D|FRFM|
|179|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|0073FD98|000B51|DRVR|
|180|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|007408E9|001241|DRVR|
|181|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|00741B2A|000275|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 053261 (332 KB)    Bytes Used       : 741D9F (7431 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001969|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C300|00335E|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F660|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|00770900|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771178|038DF2|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007A9F70|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA218|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007ABEA8|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007AD7F8|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002AC2|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E04A0|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4020|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE68|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC830|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED160|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E8|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC58|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC78|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF098|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD10|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0760|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C38|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B40|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE8|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2918|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3140|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37B0|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A8|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DC0|000FF5|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB8|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B68|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C10|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1E0|000E20|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007F10 ( 31 KB)    Bytes Used       : 0C80F0 (800 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 04E598 ( 313 KB)   Total Bytes Used : 7B1A68 (7878 KB)   |
+-----------------------------------------------------------------------------+

Do not insert extfs, hermitshellx64,partitiondxe.

insert all others.

if u dont have space for others then try without ozmosistheme

ArcticFox · June 24, 2014

OK thanks!

Managed to get everything in apart from hermitshell and ozmosistheme and everything is working great, I thought you had to have ALL the files.

Having problems with my GPU now, tried posting in Graphics section but no one is bothering to reply.

I only get HDMI out on my R9 280X, how would I go about trying a new framebuffer with Ozmosis?

xpamamadeus · June 25, 2014

OK thanks!

Managed to get everything in apart from hermitshell and ozmosistheme and everything is working great, I thought you had to have ALL the files.

Having problems with my GPU now, tried posting in Graphics section but no one is bothering to reply.

I only get HDMI out on my R9 280X, how would I go about trying a new framebuffer with Ozmosis?

U need inject it by editing DSDT.tools in first post.

ArcticFox · June 25, 2014

I tried to make a DSDT but there is no GFX0, PEGP with any reference to aty,framebuffer by using Maciasl and no one has done a DSDT for my board H87M-HD3 bios version F8.

System DSDT.zip

xelanaiznac · June 25, 2014

hi guys. which is the minimum requested files for the firmware? i mean:

-enhancedfat OK

-ozmosis OK

-ozmosisdefault OK

-hfsplus OK

-partitionDXE is this a must have?

-DisablerKext is this a must have?

-does ozomoistheme work with z87x gigabyte? should i delete anything while insering it?

thank you

other question: any difference in insering them as are or insering them as compressed with mmtool?

Ozmosis

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
