Clover General discussion

October 5, 2017

^ Yup, I can confirm that. With 10.6 install image attached, Kext injection for 10.13 doesn't work anymore and Snow Leopard is first macOS entry (after Windows 10)

4:101  0:000  === [ ScanLoader ] ========================================
4:101  0:000  - [01]: 'EFI'
4:101  0:000  - [02]: 'Mac OS X Install DVD'
4:132  0:030          AddLoaderEntry for Volume Name=Mac OS X Install DVD
4:169  0:037      Check if volume Is Hibernated:
4:169  0:000      Check sleep image 'by signature':
4:229  0:060      using default sleep image name = \private\var\vm\sleepimage
4:249  0:019      sleepimage not found -> Not Found
4:249  0:000      hibernated: no - sign
4:249  0:000  Icon 13 decoded, pointer CC977098
4:250  0:000  getList: sysver=10.6, Short=10.6
4:250  0:000  Added mKext=FakeSMC.kext, MatchOS=10.6
4:251  0:001  getList: sysver=Other, Short=
4:254  0:002  - [03]: 'Snow Leopard'
4:255  0:001  - [09]: 'EFI'
4:258  0:003  - [12]: 'EFI'
4:261  0:003          AddLoaderEntry for Volume Name=EFI
4:261  0:000       skipped because path `PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,AD2445F4-B02A-4107-AB58-A8FAE3930F74,0xE1800,0x32000)\EFI\microsoft\Boot\bootmgfw.efii` already exists for another entry!
4:261  0:000  - [16]: 'Preboot', hidden
4:261  0:000  - [17]: 'High Sierra SSD'
4:273  0:011          AddLoaderEntry for Volume Name=High Sierra SSD
4:279  0:006      Check if volume Is Hibernated:
4:279  0:000      Check sleep image 'by signature':
4:287  0:008      using default sleep image name = \private\var\vm\sleepimage
4:292  0:004      sleepimage not found -> Not Found
4:292  0:000      hibernated: no - sign
4:292  0:000  Icon 17 decoded, pointer CC871D98
4:298  0:005  - [18]: 'Recovery'
4:300  0:001          AddLoaderEntry for Volume Name=Recovery
4:301  0:001  Icon 20 decoded, pointer CCA53C98
4:304  0:003  - [19]: 'VM'

chris1111 · October 5, 2017

Well, since r4235 afaik "Other" folder is working fine for kext_inject; not only for FakeSMC but also another kexts ie. Lilu, AppleALC, ApplePS2 are loadable to boot High Sierra. The problem till r4238 is if they were placed on 10.13. Correct?

For me Yes

But now I test to another SSD and its not work in 10.13

Something is wrong with Clover, I am not understand why 4222 woks all the way on any Folder for any OS X

^ Yup, I can confirm that. With 10.6 install image attached, Kext injection for 10.13 doesn't work anymore and Snow Leopard is first macOS entry (after Windows 10)

4:101  0:000  === [ ScanLoader ] ========================================
4:101  0:000  - [01]: 'EFI'
4:101  0:000  - [02]: 'Mac OS X Install DVD'
4:132  0:030          AddLoaderEntry for Volume Name=Mac OS X Install DVD
4:169  0:037      Check if volume Is Hibernated:
4:169  0:000      Check sleep image 'by signature':
4:229  0:060      using default sleep image name = \private\var\vm\sleepimage
4:249  0:019      sleepimage not found -> Not Found
4:249  0:000      hibernated: no - sign
4:249  0:000  Icon 13 decoded, pointer CC977098
4:250  0:000  getList: sysver=10.6, Short=10.6
4:250  0:000  Added mKext=FakeSMC.kext, MatchOS=10.6
4:251  0:001  getList: sysver=Other, Short=
4:254  0:002  - [03]: 'Snow Leopard'
4:255  0:001  - [09]: 'EFI'
4:258  0:003  - [12]: 'EFI'
4:261  0:003          AddLoaderEntry for Volume Name=EFI
4:261  0:000       skipped because path `PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,AD2445F4-B02A-4107-AB58-A8FAE3930F74,0xE1800,0x32000)\EFI\microsoft\Boot\bootmgfw.efii` already exists for another entry!
4:261  0:000  - [16]: 'Preboot', hidden
4:261  0:000  - [17]: 'High Sierra SSD'
4:273  0:011          AddLoaderEntry for Volume Name=High Sierra SSD
4:279  0:006      Check if volume Is Hibernated:
4:279  0:000      Check sleep image 'by signature':
4:287  0:008      using default sleep image name = \private\var\vm\sleepimage
4:292  0:004      sleepimage not found -> Not Found
4:292  0:000      hibernated: no - sign
4:292  0:000  Icon 17 decoded, pointer CC871D98
4:298  0:005  - [18]: 'Recovery'
4:300  0:001          AddLoaderEntry for Volume Name=Recovery
4:301  0:001  Icon 20 decoded, pointer CCA53C98
4:304  0:003  - [19]: 'VM'

Try 4222 and its work

cecekpawon · October 5, 2017

For Clover.

October 6, 2017

For Clover.

Works for me :thumbsup_anim:

4:048  0:000  getList: sysver=10.6, Short=10.6
4:049  0:000  Added mKext=FakeSMC.kext, MatchOS=10.6
4:050  0:001  getList: sysver=10.7, Short=10.7
4:050  0:000  getList: sysver=10.8, Short=10.8
4:050  0:000  getList: sysver=10.9, Short=10.9
4:050  0:000  getList: sysver=10.10, Short=10.10
4:050  0:000  getList: sysver=10.11, Short=10.11
4:050  0:000  getList: sysver=10.12, Short=10.12
4:051  0:000  getList: sysver=10.13, Short=10.13
4:051  0:000  Added mKext=IntelMausiEthernet.kext, MatchOS=10.13
4:051  0:000  Added mKext=USB_Injector.kext, MatchOS=10.13
4:051  0:000  Added mKext=FakeSMC.kext, MatchOS=10.13
4:052  0:001  Added mKext=AppleALC.kext, MatchOS=10.13
4:055  0:002  ---| added plugin=PinConfigs.kext, MatchOS=10.13
4:055  0:000  Added mKext=Lilu.kext, MatchOS=10.13
4:056  0:000  getList: sysver=10.14, Short=10.14
4:056  0:000  Extra kext folder of 10.14 does not found - skip
4:056  0:000  getList: sysver=10.15, Short=10.15
4:056  0:000  Extra kext folder of 10.15 does not found - skip
4:056  0:000  getList: sysver=10.16, Short=10.16
4:056  0:000  Extra kext folder of 10.16 does not found - skip
4:056  0:000  getList: sysver=10.17, Short=10.17
4:056  0:000  Extra kext folder of 10.17 does not found - skip
4:056  0:000  getList: sysver=10.18, Short=10.18
4:056  0:000  Extra kext folder of 10.18 does not found - skip
4:056  0:000  getList: sysver=10.19, Short=10.19
4:056  0:000  Extra kext folder of 10.19 does not found - skip
4:056  0:000  getList: sysver=10.20, Short=10.20
4:056  0:000  Extra kext folder of 10.20 does not found - skip

39:672  0:000  OSVesion: 10.13.1, ShortOSVersion=10.13, uni-vers=10.13,
39:672  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
39:672  0:000  current kext name Lilu.kext Match 10.13, while sysver: 10.13
39:672  0:000  current kext name AppleALC.kext Match 10.13, while sysver: 10.13
39:672  0:000  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
39:672  0:000  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
39:672  0:000  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
39:672  0:000  current kext name FakeSMC.kext Match 10.6, while sysver: 10.13
39:672  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
39:672  0:000  current kext name Lilu.kext Match 10.13, while sysver: 10.13
39:672  0:000  Extra kext: EFI\CLOVER\kexts\10.13\Lilu.kext
39:675  0:002  current kext name AppleALC.kext Match 10.13, while sysver: 10.13
39:675  0:000  Extra kext: EFI\CLOVER\kexts\10.13\AppleALC.kext
39:679  0:003    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
39:789  0:110  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
39:789  0:000  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
39:802  0:013  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
39:802  0:000  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
39:807  0:005  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
39:807  0:000  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
39:814  0:006  current kext name FakeSMC.kext Match 10.6, while sysver: 10.13
39:815  0:001  Custom boot screen not used because entry has unset use graphics
39:815  0:000  Closing log

bronxteck · October 6, 2017

any idea what this mean? it's in boot log. I am trying to figure out why NVRAM.plist is not generating

" UEFI with NVRAM? no, Boot0082 not exists "

tluck · October 6, 2017

any idea what this mean? it's in boot log. I am trying to figure out why NVRAM.plist is not generating

" UEFI with NVRAM? no, Boot0082 not exists "

what happens if you run the script manually like this:

sudo /etc/rc.shutdown.d/80.save_nvram_plist.local

bronxteck · October 6, 2017

Hey tluck I figured it out. the issue is clover installers RC script option to install on all bootable volumes does not seem to work on HighSierra APFS maybe not at all lol.

I have Sierra as main, and HS as second os. when I install clover to Sierra volume so that it installs to EFI I selected RC option for all osx volumes.

it did not create the RC scripts in HS/etc. I had to install clover to second volume HighSierra then delete EFI directory on root of HS and then thats when I saw rc scripts where in HS etc folder.

any idea why selecting the option in clover installer did not work as it's supposed too?

fusion71au · October 6, 2017

For Clover.

Your patch for Clover r4238 also works for me. All kexts in folders /10.xx and /Other detected...

Thanks @cecekpawon!

Edit

@Slice has made the necessary changes in the official repo.

Kext injection for Clover r4239 works as well from all folders /10.xx and /Other - preboot_r4239.log attached.

Thanks @Slice!

Can someone upload a zip of 4237 and help me install the files from windows?? TIA! [EDIT] or a patched 4238 and a lil help with installing the files from windows....

@og-phantom,

CLOVERX64.efi attached in r4238.zip file and How to Manually Install Clover in Windows .

preboot_r4238patched.log.zip

Clover_v2.4k_r4238_cecekpawon_patched.zip

preboot_r4239.log.zip

r4238.zip

og-phantom · October 6, 2017

Well,

4238 hosed my install and now no folders are being injected. Not even other. Can someone upload a zip of 4237 and help me install the files from windows?? TIA! [EDIT] or a patched 4238 and a lil help with installing the files from windows....

Badruzeus · October 6, 2017

Well,

4238 hosed my install and now no folders are being injected. Not even other. Can someone upload a zip of 4237 and help me install the files from windows?? TIA! [EDIT] or a patched 4238 and a lil help with installing the files from windows....

.. using Windows U may need this? And plz note that r4237-4238 were only for testing purpose.

Badruzeus · October 6, 2017

Thanks @cecekpawon & @Slice for r4239; now it works under 10.13.1:

bootlog.log_a43sj_r4239.txt.zip

Slice · October 6, 2017

Thanks @cecekpawon & @Slice for r4239; now it works under 10.13.1:

Do you have any kext in Other folder?

57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13

Badruzeus · October 6, 2017

Do you have any kext in Other folder?

57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13

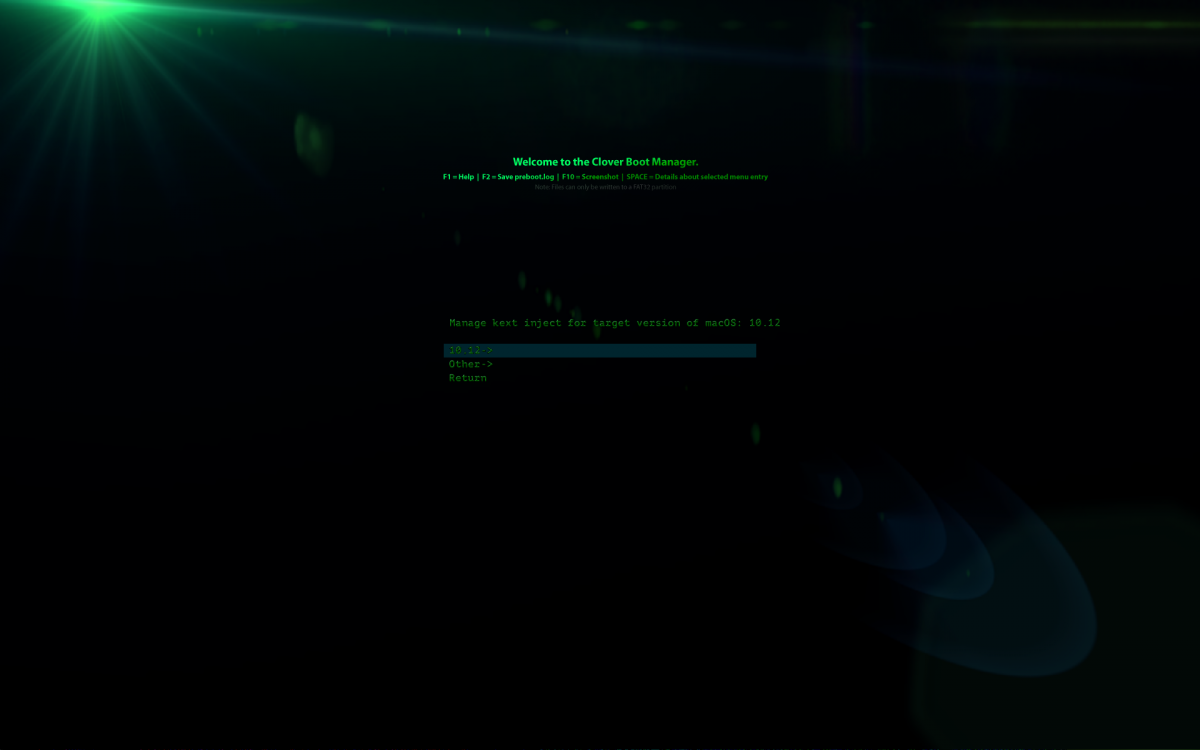

No, I don't. Only inside 10.11 & 10.13. Another folders begun from 10.6 I leave there, I mean w/o removing them my 10.11 kexts also well injected to boot El Capitan. Thanks.

chris1111 · October 6, 2017

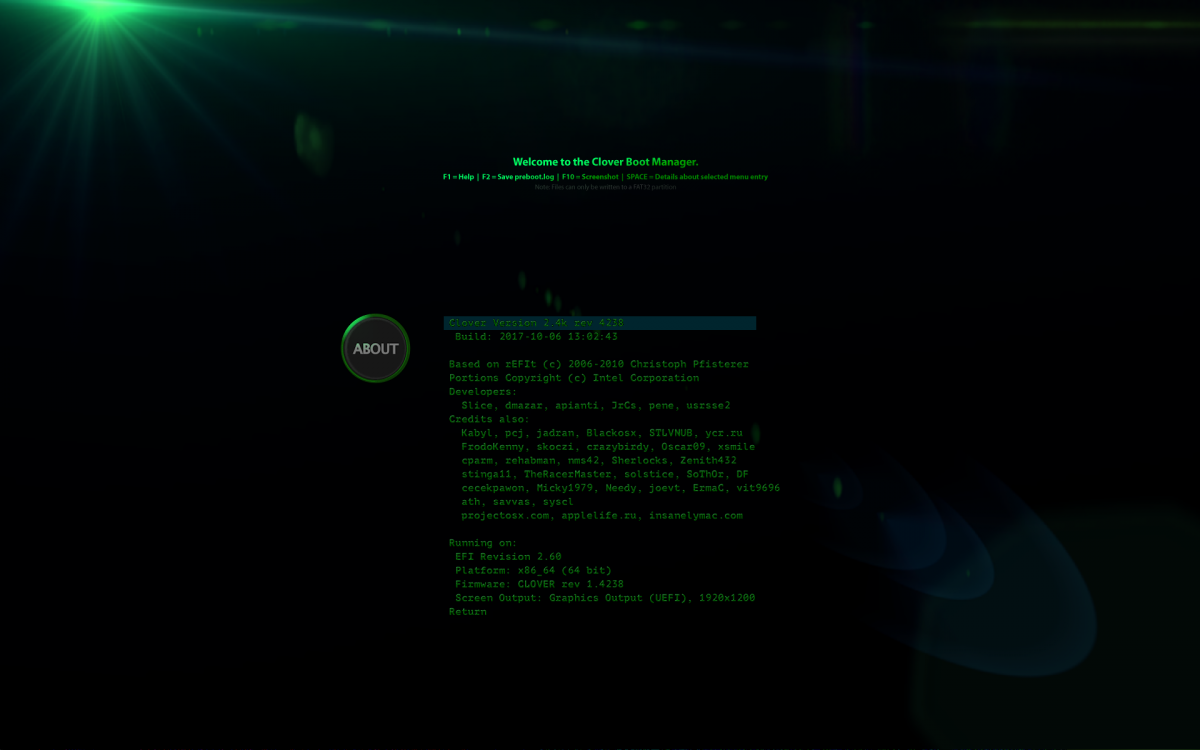

4239 Works 10.13

Works 10.16

thanks all fix like this

Log 10.6 Clover 4239

Log 10.13 4239 :wink_anim:

4239 -10.6-LOG.zip

Clover 4239 -10.13- Log.txt.zip

fusion71au · October 6, 2017

Hi Slice,

With Clover r4239, I get a boot stall when booting into 10.13.1beta (17B25c). In the boot log, "arch=" and there is an error relating to RealtekRTL8111.kext "Thinning failed" ---> hang is like when FakeSMC fails to load...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD84198
30:081  0:000  Use origin smbios table type 1 guid.
30:082  0:000  Preparing kexts injection for arch= from EFI\CLOVER\kexts\Other
30:082  0:000  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
30:165  0:082  Thinning failed: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
30:165  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
30:215  0:050    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
30:244  0:028    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
30:244  0:000  Preparing kexts injection for arch= from EFI\CLOVER\kexts\10.13
30:244  0:000  Extra kext: EFI\CLOVER\kexts\10.13\VoodooHDA.kext
30:371  0:127  Extra kext: EFI\CLOVER\kexts\10.13\AppleHDADisabler.kext

No problem with r4239 and booting into 10.13 (17A405)

FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD83198
37:575  0:000  Use origin smbios table type 1 guid.
37:576  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
37:576  0:000  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
37:645  0:069  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
37:695  0:050    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
37:724  0:028    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
37:725  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
37:725  0:000  Extra kext: EFI\CLOVER\kexts\10.13\VoodooHDA.kext
37:852  0:127  Extra kext: EFI\CLOVER\kexts\10.13\AppleHDADisabler.kext

Also no problem with @cecekpawon's patched r4238 booting into 10.13 or 10.13.1beta

54:322  0:346  GetOSVersion: 10.13.1 (17B25c)
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD87198
54:355  0:000  Use origin smbios table type 1 guid.
54:356  0:000  OSVesion: 10.13.1, ShortOSVersion=10.13, uni-vers=10.13,
54:356  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
54:356  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
54:356  0:000  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
54:425  0:069  current kext name FakeSMC.kext Match Other, while sysver: 10.13
54:425  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
54:475  0:050    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
54:504  0:028    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
54:504  0:000  current kext name VoodooHDA.kext Match 10.13, while sysver: 10.13
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.13, while sysver: 10.13
54:504  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13
54:504  0:000  current kext name VoodooHDA.kext Match 10.7, while sysver: 10.13
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.7, while sysver: 10.13
54:504  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
54:504  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
54:504  0:000  current kext name FakeSMC.kext Match Other, while sysver: 10.13
54:504  0:000  current kext name VoodooHDA.kext Match 10.13, while sysver: 10.13
54:504  0:000  Disabled kext: EFI\CLOVER\kexts\10.13\VoodooHDA.kext
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.13, while sysver: 10.13
54:504  0:000  Disabled kext: EFI\CLOVER\kexts\10.13\AppleHDADisabler.kext
54:504  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13
54:504  0:000  current kext name VoodooHDA.kext Match 10.7, while sysver: 10.13
54:504  0:000  current kext name AppleHDADisabler.kext Match 10.7, while sysver: 10.13

Boot Logs.zip

October 6, 2017

^ Yup. r4239 and 10.13.1 results in AppleACPICPU time-out here. All 10.13 kexts in 10.13 folder. Bootlog coming right up.

Edit: I get the "Thinning failed" message on FakeSMC.kext, IntelmausiEthernet.kext, AppleALC.kext and Lilu.kext (so, all kexts except USB_Injector.kext)

30:533  0:000  Preparing kexts injection for arch= from EFI\CLOVER\kexts\Other
30:533  0:000  Preparing kexts injection for arch= from EFI\CLOVER\kexts\10.13
30:533  0:000  Extra kext: EFI\CLOVER\kexts\10.13\Lilu.kext
30:535  0:002  Thinning failed: EFI\CLOVER\kexts\10.13\Lilu.kext
30:535  0:000  Extra kext: EFI\CLOVER\kexts\10.13\AppleALC.kext
30:538  0:003  Thinning failed: EFI\CLOVER\kexts\10.13\AppleALC.kext
30:538  0:000    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
30:649  0:111  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
30:663  0:013  Thinning failed: EFI\CLOVER\kexts\10.13\FakeSMC.kext
30:663  0:000  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
30:668  0:005  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
30:675  0:006  Thinning failed: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
30:675  0:000  Custom boot screen not used because entry has unset use graphics
30:675  0:000  Closing log

preboot.log.zip

Matgen84 · October 6, 2017

Hi,

r4239 and 10.13 only results in AppleACPICPU boot stall here (Kext stall 240s, 3 times) and black screen: no injection in pre-bootlog.

r4239 and 10.13 + Other: only Other injection work and boot fine

preboot_Clover_r4239_10-13+Other.log.zip

preboot_Clovder_r4239_10-13_Only.log.zip

Slice · October 6, 2017

r4239 and 10.13 + Other: only Other injection work and boot fine

34:185  0:049  GetOSVersion: 10.12

Badruzeus · October 6, 2017

....

With Clover r4239, I get a boot stall when booting into 10.13.1beta (17B25c). In the boot log, "arch=" and there is an error relating to RealtekRTL8111.kext "Thinning failed" ---> hang is like when FakeSMC fails to load...

Hmmb, sounds strange. I was also using r4239 under 10.13.1 (17B25C) but got no problem with Slice's FakeSMC (v3.5.0) & RealtekRTL8111 (v2.2.1).

Or did U mean the problems only occurred if they placed on "Other" folder to boot hSierra? Since I've placed them on "10.13" folder, using Legacy.. that maybe the main different here.

2:707  0:000  Now is 6.10.2017,  6:29:43 (GMT)
2:707  0:000  Starting Clover revision: 4239 on CLOVER EFI
2:707  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.11.6 | XCODE: 8.2]
...... .....  ...

56:644  0:000  === [ StartLoader ] =======================================
56:644  0:000  Finally: ExternalClock=24MHz BusSpeed=99773kHz CPUFreq=2195MHz PIS: hw.busfrequency=96000000Hz
56:644  0:000  Loading boot.efi  status=Success
57:085  0:441  GetOSVersion: 10.13.1 (17B25c)
...... .....  ...

57:119  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 1EC14E18
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 1EC14E18
57:140  0:020  Use origin smbios table type 1 guid.
57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
57:140  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
57:140  0:000  Extra kext: EFI\CLOVER\kexts\10.13\RealtekRTL8111.kext
57:163  0:022  Extra kext: EFI\CLOVER\kexts\10.13\ACPIBatteryManager.kext
57:176  0:012  Extra kext: EFI\CLOVER\kexts\10.13\CalDigitFastIO.kext
57:190  0:013  Extra kext: EFI\CLOVER\kexts\10.13\ApplePS2SmartTouchPad.kext
57:225  0:035    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Keyboard.kext
57:235  0:010    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Controller.kext
57:240  0:004  Extra kext: EFI\CLOVER\kexts\10.13\Lilu.kext
57:259  0:018  Extra kext: EFI\CLOVER\kexts\10.13\AsusNBFnKeys.kext
57:271  0:011  Extra kext: EFI\CLOVER\kexts\10.13\AppleALC.kext
57:306  0:034    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
57:549  0:243  Extra kext: EFI\CLOVER\kexts\10.13\CalDigitUSBxHCI.kext
57:589  0:040  Extra kext: EFI\CLOVER\kexts\10.13\AsusACPIBackLightPanel.kext
57:603  0:013  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
57:632  0:029  SetStartupDiskVolume:
57:632  0:000    * Volume: 'macOS High Sierra'
...... .....  ...

Is there any unresolved patch when U were compiling r4239 binary using buildclover script? (I don't think so, though)

(I attached my compiled r4239 below, thanks).

r4239_boot6.zip

ajsurin · October 6, 2017

@syscl - any more thoughts on the Haswell-E issue?

October 6, 2017

@Badruzeus: Strange. Yours is working. I guess something indeed messed up during compiling (XCODE9).

Note: When booting yours, Clover said something about the prelinked text (+- 4 lines). It went too fast to actually read what it said and the logs doesn't show anything related to it.

14:251  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
14:252  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
14:252  0:000  Extra kext: EFI\CLOVER\kexts\10.13\Lilu.kext
14:254  0:002  Extra kext: EFI\CLOVER\kexts\10.13\AppleALC.kext
14:258  0:003    |-- PlugIn kext: EFI\CLOVER\kexts\10.13\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
14:368  0:110  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
14:382  0:013  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
14:388  0:006  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
14:397  0:008  Custom boot screen not used because entry has unset use graphics
14:397  0:000  Closing log

Edit:

Here it is:

KernelRelocBase = 0
Found PRELINK_TEXT, 64bit
at 600D00: vmaddr = 0xFFFFFF0001096000, vmsize = 0x53F9000
PrelinkTextLoadCmdAddr = 0x600D00, PrelinkTextAddr = 0x1096000. PrelinkTextSize = 0x53F9000
Found PRELINK_INFO, 64bit
vmaddr = 0x0648F000
vmsize = 0x00295000
__info found at 6010D8: addr = 0xFFFFFF000648F000, size = 0x2947D2
PrelinkInfoLoadCmdAddr = 0x6010D8, PrelinkInfoAddr = 0x648F000, PrelinkInfoSize = 0x2947D2

Matgen84 · October 6, 2017

34:185  0:049  GetOSVersion: 10.12

Sorry for my bad english

I forgot to say that my Sierra HDD was connected. After select USB by F8 for booting, I try r4239 with USB installer.

I don't understand your answer. what is the correct procedure in this case for testing?

Badruzeus · October 6, 2017

@Badruzeus: Strange. Yours is working. I guess something indeed messed up during compiling (XCODE9).

Note: When booting yours, Clover said something about the prelinked text (+- 4 lines). It went too fast to actually read what it said and the logs doesn't show anything related to it.

....

Oops, my bad... I forgot to rolled-back my previous change on /rEFIt_UEFI/Platform/kernel_patcher.c:

My compiled r4239 above was using..

#define KERNEL_DEBUG 2

instead of...

#define KERNEL_DEBUG 0

I think, that was the caused. Sorry, need to recompile it again (with XCode 8.2 under 10.11.6). Thanks..

cecekpawon · October 6, 2017

@Badruzeus: Strange. Yours is working.

Maybe you get mixed up with my prev patches?

svn revert -R rEFIt_UEFI/
svn up

October 6, 2017

Maybe you get mixed up with my prev patches?
svn revert -R rEFIt_UEFI/
svn up

Yeah I thought the same. I thought tc would be okay, but apparently not

I recompiled and it's working now. Thanks!

Clover General discussion

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
