nicozan Posted October 23, 2016 Share Posted October 23, 2016 @ nicozan I saw you have vboxhfs in your efi driver folder on the screenshot above, which is slower. Did you try to use hfsplus.efi? Default the clover setup deletes hfsplus.efi and copies vboxhfs into your driver folder, because hfsplus isn´t free. Maybe thats your "slow" boot problem. Could i remove it and install hfsplus.efi via clover configurator in driver64x.efi? Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
wastez Posted October 23, 2016 Share Posted October 23, 2016 Just use the driver in the attachment and delete the vboxhfs driver. @ slice Can you tell me which additional modules are needed for FileVault2? I know hfsplus must be the hfs driver for it to work. HFSPlus.efi Link to comment Share on other sites More sharing options...
nicozan Posted October 23, 2016 Share Posted October 23, 2016 Just use the driver in the attachment and delete the vboxhfs driver . Thanks wastez, just try now but same result. Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
bronxteck Posted October 24, 2016 Share Posted October 24, 2016 have you tried selecting the partition you want to boot from the startup prefpane to see if it helps? Link to comment Share on other sites More sharing options...
nicozan Posted October 24, 2016 Share Posted October 24, 2016 If do u mean clover menù, i always boot from OS X partition. Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Slice Posted October 24, 2016 Share Posted October 24, 2016 To the clover developer: A key in the config.plist would be great which allows to skip the GUI timeout if a hibernate image is detected. This would make the the wake in hibernate mode faster, if somebody wants it. Thanks for the idea. Made in rev 3850. Link to comment Share on other sites More sharing options...
nicozan Posted October 24, 2016 Share Posted October 24, 2016 You have to resolve the time out of Sierra booting (60sec) with new realease of bootloader. Could you? Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
nicozan Posted October 24, 2016 Share Posted October 24, 2016 Finally resolved the problem of slow booting of Sierra with all version of Clover. Problem was kekt of analogic audio in 10.12 AppleALC . With binomium Clover-Sierra, this kekt is wrong injected and sometimes (often) , sistem goes in time out. Solution: remove AppleALC from 10.12 and disabling integrated audio from motherboard. But for me was not a problem because I ve hdmi audio of GTX760 via dsdt patched! My message to clover developer: please relook clover bootloader (all version) and develope one wich is compatible with applealc for correct booting of Sierra. Link to comment Share on other sites More sharing options...
savvas Posted October 24, 2016 Share Posted October 24, 2016 Just use the driver in the attachment and delete the vboxhfs driver. @ slice Can you tell me which additional modules are needed for FileVault2? I know hfsplus must be the hfs driver for it to work. You should add AppleEvent protocol, working AppleImageCodec, working FirmwareVolume protocol, Png/Bmp decoder , working AppleKeymapAggregator, wrapper for key event's and for UI. And then you'll get working boot.efi login ui. All stuff you can grab from apple firmware My advice – just wait for open source implementation in Clover EFi, or as I mentioned above take all proprietary stuff from FW Link to comment Share on other sites More sharing options...
mhaeuser Posted October 24, 2016 Share Posted October 24, 2016 You should add AppleEvent protocol, working AppleImageCodec, working FirmwareVolume protocol, Png/Bmp decoder , working AppleKeymapAggregator, wrapper for key event's and for UI. And then you'll get working boot.efi login ui. All stuff you can grab from apple firmware My advice – just wait for open source implementation in Clover EFi you additionally need the USB KB driver (may be shim) and an image file in a FV,,, Link to comment Share on other sites More sharing options...
savvas Posted October 24, 2016 Share Posted October 24, 2016 you additionally need the USB KB driver (may be shim) and an image file in a FV,,, Yep, I just didn't say it cause Slice created commit with your's driver. Link to comment Share on other sites More sharing options...
Slice Posted October 24, 2016 Share Posted October 24, 2016 you additionally need the USB KB driver (may be shim) and an image file in a FV,,, My FV has images Link to comment Share on other sites More sharing options...
wastez Posted October 24, 2016 Share Posted October 24, 2016 Thanks for the idea. Made in rev 3850. Really great you implemented it so fast, thanks so much. Link to comment Share on other sites More sharing options...
thenightflyer Posted October 24, 2016 Share Posted October 24, 2016 @slice I want to write about a strange "issue" i've with clover from the previous versions (from 37xx on) till the last one. In my config.plist i've only 2 boot arguments, npci=0x2000 and darkwake=0 When clover starts, if i read in config menu as boot arguments it adds automatically other 2 lines, kext-dev-mode=1 and rootless=0 even if my config.plist hasn't those lines... How can you explain this? I'm using Sierra 10.12 Link to comment Share on other sites More sharing options...
Slice Posted October 24, 2016 Share Posted October 24, 2016 delete /nvram.plist. It is hidden so do this from terminal with sudo. 1 Link to comment Share on other sites More sharing options...
smolderas Posted October 25, 2016 Share Posted October 25, 2016 Hello Slice and everyone, what does "SMCHelper-64.efi" do exactly and will it work with legacy (non-UEFI) boot? If not, will it be available for legacy booting? Cheers and respect... Link to comment Share on other sites More sharing options...
LockDown Posted October 25, 2016 Share Posted October 25, 2016 none but reports Link to comment Share on other sites More sharing options...

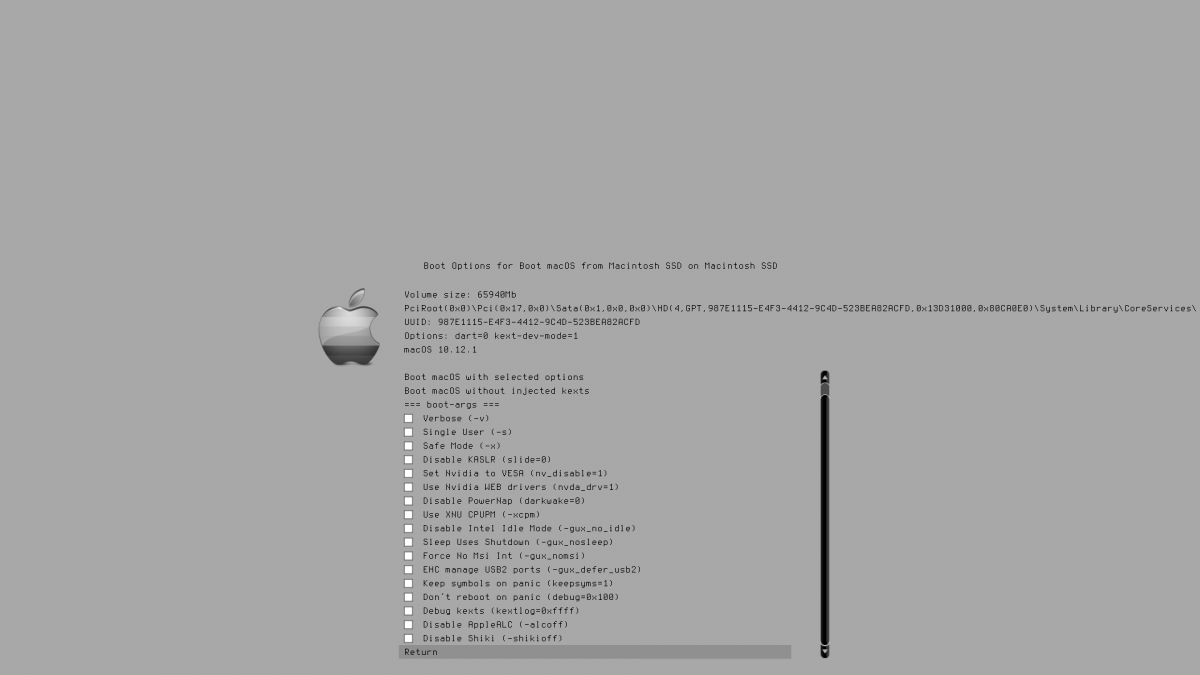

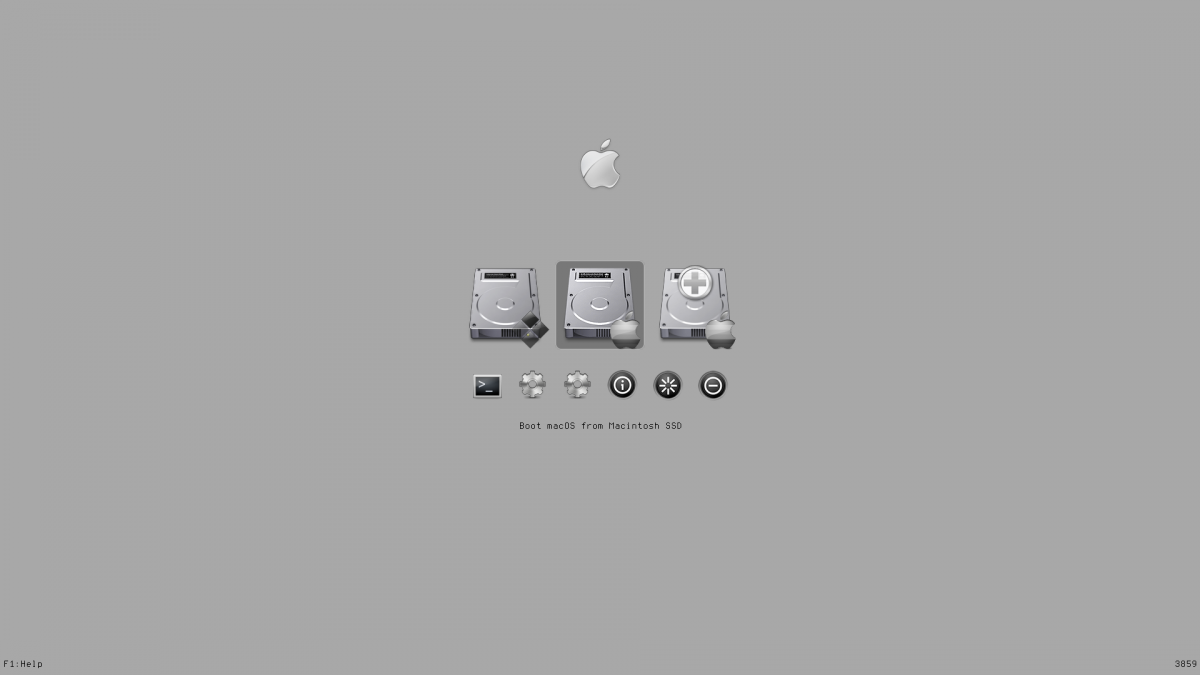

Sherlocks Posted October 25, 2016 Share Posted October 25, 2016 i found bug in latest clover r3859 press spacebar i dont touch all options. just return first gui press enter stop like this screenshot. thanks in advance Link to comment Share on other sites More sharing options...
nicozan Posted October 25, 2016 Share Posted October 25, 2016 Finally resolved the problem of slow booting of Sierra with all version of Clover. Problem was kekt of analogic audio in 10.12 AppleALC . With binomium Clover-Sierra, this kekt is wrong injected and sometimes (often) , sistem goes in time out. Solution: remove AppleALC from 10.12 and disabling integrated audio from motherboard. But for me was not a problem because I ve hdmi audio of GTX760 via dsdt patched! My message to clover developer: please relook clover bootloader (all version) and develope one wich is compatible with applealc for correct booting of Sierra. Anybody interest? Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Slice Posted October 25, 2016 Share Posted October 25, 2016 Anybody interest? Inviato dal mio iPhone utilizzando Tapatalk Clover has no relation to AppleALC. They are fully compatible and independent from each other. vit9696 also uses Clover. i found bug in latest clover r3859 press spacebar i dont touch all options. just return first gui press enter stop like this screenshot. thanks in advance And what is the bug? I see normal boot without verbose mode. Verbose mode is unchecked as I see on your screen. Link to comment Share on other sites More sharing options...
calibre™ Posted October 25, 2016 Share Posted October 25, 2016 nicozan whats got clover to do with that? Link to comment Share on other sites More sharing options...
Sherlocks Posted October 25, 2016 Share Posted October 25, 2016 Clover has no relation to AppleALC. They are fully compatible and independent from each other. vit9696 also uses Clover. And what is the bug? I see normal boot without verbose mode. Verbose mode is unchecked as I see on your screen. Yes. I tried normal boot. But clover is not detect normal boot after return first gui without check any options. Its common pattern if i want to just see clover option. i see this happen latest verison. 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
nicozan Posted October 25, 2016 Share Posted October 25, 2016 For my system, removing Apple Alc from 10.12 resolved problem of slow booting with 3773. Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
phi777 Posted October 25, 2016 Share Posted October 25, 2016 @sherlocks maybe clover unchecks any option you need for booting? clover really overrides the options if the menu is opened. Link to comment Share on other sites More sharing options...
Sherlocks Posted October 25, 2016 Share Posted October 25, 2016 @sherlocks maybe clover unchecks any option you need for booting? clover really overrides the options if the menu is opened. AgreeLike you said, if menu is opened one time and return first gui, i cant boot. Maybe Clover take a some overrides when return with no option(?). Reboot system. Get gui with no menu open, its no problem. 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
