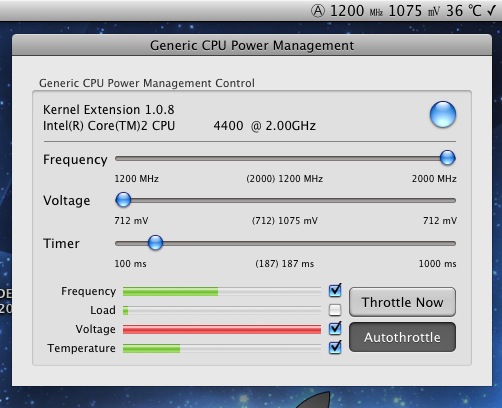

mitch_de Posted October 14, 2008 Share Posted October 14, 2008 Hi, superhai. With newest versions some wrong with vids (and pstates). I only seem to have 2 pstates (min MHZ and max MHZ, nothing between. VIDs : Only one?! (last version more) Control app shows at slider min/max same, much to less values (712mV). Setting is 1075mV , but that stays same, min MHZ and max MHZ - before it changes. GA-EP35-DS3 (ACPI-Bug - no PSTATES), C2D 4400, 960MHZ Bus (240), 2400 MHZ (OC from 2000) debug log: GenericCPUPowerManagement: [Debug] Starting probe... GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 0 (0) named CPU0 GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 1 (1) named CPU1 GenericCPUPowerManagement: [Debug] Enhanced Intel Speedstep is supported GenericCPUPowerManagement: [Debug] CPU type Intel® Core2 CPU 4400 @ 2.00GHz [6f2] GenericCPUPowerManagement: [Debug] CPU low 7125/10 mV step 125/10 mV mobile 0 GenericCPUPowerManagement: [Debug] CPU bus frequency is 200 MHz GenericCPUPowerManagement: [Debug] CPU max frequency 2000 MHz MSR ratio a GenericCPUPowerManagement: [Debug] CPU min frequency 1200 MHz MSR ratio 6 GenericCPUPowerManagement: [Debug] Thermal Junction Max is 100 C current temperature is 33 C GenericCPUPowerManagement: [Debug] Got ACPI CPU 0 named CPU0 GenericCPUPowerManagement: [Debug] ACPI Machine type 1 GBT GenericCPUPowerManagement: [Debug] Pass p-control from BIOS, writing 34 to port b2 GenericCPUPowerManagement: [Warning] No ACPI p-states in table GenericCPUPowerManagement: [Debug] Got ACPI CPU 1 named CPU1 GenericCPUPowerManagement: [Warning] No ACPI p-states in table GenericCPUPowerManagement: [Debug] Got ACPI CPU 2 named CPU2 GenericCPUPowerManagement: [Warning] No ACPI p-states in table GenericCPUPowerManagement: [Debug] Got ACPI CPU 3 named CPU3 GenericCPUPowerManagement: [Warning] No ACPI p-states in table GenericCPUPowerManagement: [Debug] I/O Kit CPU count (2) is different from ACPI CPU count (4) GenericCPUPowerManagement: [Debug] P-state 0 -> fid 10, vid 0 GenericCPUPowerManagement: [Debug] P-state 1 -> fid 9, vid 0 GenericCPUPowerManagement: [Debug] P-state 2 -> fid 8, vid 0 GenericCPUPowerManagement: [Debug] P-state 3 -> fid 6, vid 0 GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: [Debug] EIST Enabled and Unlocked GenericCPUPowerManagement: [Debug] Clock rate: CPU 2000 MHz - Bus 800 MHz - Dec 1000 MHz GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1 GenericCPUPowerManagement: [Debug] Bus/CPU rate 10 - den 2 GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0 GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz GenericCPUPowerManagement: [Debug] CPU min/max (1200 MHz - 2000 MHz) GenericCPUPowerManagement: [Debug] Bus min/max (800 MHz - 800 MHz) GenericCPUPowerManagement: [Debug] Auto timeout 250, high 600, low 400 GenericCPUPowerManagement: [Debug] We have loaded completely and ready for action bash-3.2# THANKS for adding temp Link to comment Share on other sites More sharing options...
Superhai Posted October 14, 2008 Author Share Posted October 14, 2008 Hi, superhai.With newest versions some wrong with vids (and pstates). I only seem to have 2 pstates (min MHZ and max MHZ, nothing between. VIDs : Only one?! (last version more) Control app shows at slider min/max same, much to less values (712mV). Setting is 1075mV , but that stays same, min MHZ and max MHZ - before it changes. I found the bug, will fix it soon, until further you can set the VID-override to true in Info.plist, or remove the other VID entries. I set default to 4 p-states, I dont think it will be any gain to have more than 4. Link to comment Share on other sites More sharing options...
frauhottelmann Posted October 14, 2008 Share Posted October 14, 2008 Mh, I just got a KP after I installed the new kext. Will see what I can do... Link to comment Share on other sites More sharing options...
Nadeem Posted October 14, 2008 Share Posted October 14, 2008 Core2Duo e6400 - Temperature bar is not working with latest kext and app. Voodoo Kernel Beta 2c. Link to comment Share on other sites More sharing options...
mrroboto Posted October 14, 2008 Share Posted October 14, 2008 with the latest app and kext my cpu doesn't thorottle anymore. it's stucked to 800MHz, don't know if it's just the app. Link to comment Share on other sites More sharing options...
mitch_de Posted October 14, 2008 Share Posted October 14, 2008 with the latest app and kext my cpu doesn't thorottle anymore. it's stucked to 800MHz, don't know if it's just the app. I would use the debug .kext like i did some posts before (kextload it) and submit the dmesg output that superhai can see whats happended. The more such debug dmesg the faster superhai can fix that little bugs. Link to comment Share on other sites More sharing options...
Fourof4 Posted October 15, 2008 Share Posted October 15, 2008 This works like a charm for me.. but when I created kext cache in my EFI booting partition, KP occurred.. I am aware that this is beta but just thought people might want to know Link to comment Share on other sites More sharing options...
Superhai Posted October 15, 2008 Author Share Posted October 15, 2008 If you got a kernel panic and want that fixed, please boot in -s start the kext (kextload path/to/the.kext) take a picture of the panic and post it to me. It is useless to just tell me that it panics. Link to comment Share on other sites More sharing options...
frauhottelmann Posted October 15, 2008 Share Posted October 15, 2008 I will, I will. As I said I will see what I can do to help you. I just didn't have the time yet. Link to comment Share on other sites More sharing options...
xbc Posted October 15, 2008 Share Posted October 15, 2008 Here's mine from a T7500 C2 @ 2.200 ioreg -lw0 | grep PerformanceStateArray | | "PerformanceStateArray" = (<99080000b88800000a0000000a0000002e0c00002e0c0000>,<98080000b88800000a0000000a0000002b0b00002b0b0000>,<40060000d85900000a0000000a0000001c0800001c080000>,<b0040000803e00000a0000000a0000001206000012060000>,<20030000b03600000a0000000a0000000b8800000b880000>) Link to comment Share on other sites More sharing options...
gosunsgo Posted October 16, 2008 Share Posted October 16, 2008 Ok stupid question here: Tried the kext and app and it seems to work (i see the values changing in the top bar when i use progs etc.) I will give the specific of my CPU and output of all the commands when i get home. (Intel T8100 core2duo on XPS M1530) My (stupid) question is: without this kext do I have the CPU always at max speed ? Or this kext is just for cosmetic purposes ? (don't want to offend anyone with my comment) If this kext enables the throttling it seems to me that the battery should last longer isnt'it? Thanks Link to comment Share on other sites More sharing options...
gosunsgo Posted October 16, 2008 Share Posted October 16, 2008 Ok here are my results: ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x1e,"Temperature"=0x22,"High jump"=0x258,"Voltage"=0x3b6,"Timer"=0xfa,"Low jump"=0x190,"Frequency"=0x320,"Kext Timer"=0x158,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x13,"Frequency ID"=0x88} "CPU Init" = {"CTL max"=0x4b27,"FSB frequency min"=0x190,"Signature"=0x10676,"FSB frequency max"=0x320,"CTL min"=0x8813,"Kext unlock"=No,"Kext version"=0x10008,"Brand string"="Intel® Core2 Duo CPU T8100 @ 2.10GHz","Voltage max"=0x4b0,"Frequency min"=0x258,"Frequency max"=0x7d0,"Voltage min"=0x3b6} next: ioreg -lw0 | grep PerformanceStateArray | | "PerformanceStateArray" = (<35080000007d00000a0000000a000000274b0000274b0000>,<34080000187900000a0000000a000000224a0000224a0000>,<40060000085200000a0000000a0000001c0800001c080000>,<b0040000c83200000a0000000a0000001706000017060000>,<20030000102700000a0000000a0000001388000013880000>) and finally: grep GenericCPUPowerManagement /var/log/system.log Oct 16 14:00:10 Macintosh kernel[0]: GenericCPUPowerManagement: [Warning] Unable to get ACPI powerstates Oct 16 14:00:10 Macintosh kernel[0]: GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad Oct 16 14:00:10 Macintosh kernel[0]: GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ Oct 16 14:24:29 Macintosh kernel[0]: GenericCPUPowerManagement: [Warning] Unable to get ACPI powerstates Oct 16 14:24:29 Macintosh kernel[0]: GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad Oct 16 14:24:29 Macintosh kernel[0]: GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ Oct 16 18:41:02 Macintosh kernel[0]: GenericCPUPowerManagement: [Warning] Unable to get ACPI powerstates Oct 16 18:41:02 Macintosh kernel[0]: GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad Oct 16 18:41:02 Macintosh kernel[0]: GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ that's all it seems to work as i can put all info on the top bar and they change when i do stuff. The one thing it is wrong is that in the app the max frequency is 2000Mhz while my cpu should ahve max 2100 Link to comment Share on other sites More sharing options...
aprodigy Posted October 16, 2008 Share Posted October 16, 2008 listen guys, superhai said: post it TO ME, not post it IN HERE. this sub-forum is about the latest news and information on the hackintosh scene. this sub-forum is definately NOT for resolving any trouble you're having with your OSx86-build or whatsoever...! so, gosunsgo & company, continue with posting stuff like that in here and i'll just close the topic! you guys just clutter it up till it doesn't make sense in here anymore. darn! Link to comment Share on other sites More sharing options...
pritthish Posted October 16, 2008 Share Posted October 16, 2008 working absolutely fine for me on my dell inspiron 1525 my only gripe with the application though, is the data it puts on the menubar is there any way i could turn off the data it displays on the menubar (pretty trivial gripe, i know, but still...) Link to comment Share on other sites More sharing options...
gosunsgo Posted October 16, 2008 Share Posted October 16, 2008 sorry i thought the whole point was test the kext and post the results in here. I read the the entire topic twice and that's what i understood Sorry again for cluttering it! Link to comment Share on other sites More sharing options...
aprodigy Posted October 16, 2008 Share Posted October 16, 2008 well then, did you read this? Forum Guidelines and Information, What this forum is for! - http://forum.insanelymac.com/index.php?showtopic=90975 Link to comment Share on other sites More sharing options...
gosunsgo Posted October 16, 2008 Share Posted October 16, 2008 again sorry, I just followed a link from another topic and i found this one. Than i saw everybody posting their results of the requested command and i thought "that's a way maybe i can help out" seeing nobody posted enything about the cpu I am using For sure i was mistaken. No more posts from me that's for sure Link to comment Share on other sites More sharing options...
TheGreatDeceiver Posted October 16, 2008 Share Posted October 16, 2008 well then, did you read this? Forum Guidelines and Information, What this forum is for! - http://forum.insanelymac.com/index.php?showtopic=90975 well, what is your problem? nowhere in superhai's starting post does he say "post to me". it says please post your results. superhai's post " Public early beta of Generic Intel Enhanced SpeedStep app & kext" specifically asks the community for help by posting their results from a couple commands he provides. if this was posted in the root of the Forum "New Releases and Updates" I would understand your concerns. If superhai's post isn't appropriate in this category then it needs to be moved. This is not the fault of the folks who replied. btw. in the forum guidelines it reads: "This forum is to separate discussion of various new releases (be it drivers, applications or OSx86 builds on the OSx86 scene). " This includes superhai's new driver/app combination. And it says this should be posted exactly here to keep it clear from the OSX installation forum. edit 1: and yes, let's get back to the topic. looking forward to new kext/app from superhai. edit 2: update Oct 19. now it reads "post the output of this to me" indeed. Link to comment Share on other sites More sharing options...
roidm Posted October 18, 2008 Share Posted October 18, 2008 well, what is your problem? nowhere in superhai's starting post does he say "post to me". it says please post your results. superhai's post " Public early beta of Generic Intel Enhanced SpeedStep app & kext" specifically asks the community for help by posting their results from a couple commands he provides. if this was posted in the root of the Forum "New Releases and Updates" I would understand your concerns. If superhai's post isn't appropriate in this category then it needs to be moved. This is not the fault of the folks who replied. btw. in the forum guidelines it reads: "This forum is to separate discussion of various new releases (be it drivers, applications or OSx86 builds on the OSx86 scene). " This includes superhai's new driver/app combination. And it says this should be posted exactly here to keep it clear from the OSX installation forum. I agree Link to comment Share on other sites More sharing options...
macoff Posted October 18, 2008 Share Posted October 18, 2008 gosunsgo & company...darn! And with whom you refiers "company"??? OMG!!! DARN??? MacOff Link to comment Share on other sites More sharing options...
pere Posted October 18, 2008 Share Posted October 18, 2008 I agree also... Link to comment Share on other sites More sharing options...
mitch_de Posted October 18, 2008 Share Posted October 18, 2008 Back to the main thing we are in this treat , speedstep!, please. Link to comment Share on other sites More sharing options...
Superhai Posted October 19, 2008 Author Share Posted October 19, 2008 There are some changes to the kext, so read the first post. Link to comment Share on other sites More sharing options...
Chrysaor Posted October 19, 2008 Share Posted October 19, 2008 Edit: Posted dmesg in Superhai forum. For T8100, T8300, T9300, T9500, X9000 Tj is 105. Here is the datasheet for T8100, T8300, T9300, T9500, X9000: http://download.intel.com/design/mobile/da...ts/31891401.pdf Link to comment Share on other sites More sharing options...
TheGreatDeceiver Posted October 19, 2008 Share Posted October 19, 2008 There are some changes to the kext, so read the first post. thank you. posted my results on your board. tgdeceiver Link to comment Share on other sites More sharing options...
