Xess666 Posted October 25, 2008 Share Posted October 25, 2008 add more information C2D T5600 @ 1.83Ghz on Asus A8jp "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x28,"Temperature"=0x26,"High jump"=0xfa,"Voltage"=0x3b6,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x3e4,"Kext Timer"=0xc07,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x13,"Frequency ID"=0x6} "CPU Init" = {"CTL max"=0xb29,"FSB frequency min"=0x298,"Signature"=0x6f6,"FSB frequency max"=0x298,"CTL min"=0x613,"Kext unlock"=No,"Kext version"=0x1000f,"Brand string"="Intel® Core2 CPU T5600 @ 1.83GHz","Voltage max"=0x4c9,"Frequency min"=0x3e4,"Frequency max"=0x722,"Voltage min"=0x3b6} Link to comment Share on other sites More sharing options...
Superhai Posted October 25, 2008 Author Share Posted October 25, 2008 Version 10.0.15 did not work well on mine, it's stuck most of the time at 600Mhz, and rarely throttling to 900Mhz.On the previous version, it did throttle between 1200Mhz and 1600Mhz (no 1400Mhz). There are som oddities with your voltage id. Post me the output of you Info.plist Link to comment Share on other sites More sharing options...
Chrysaor Posted October 25, 2008 Share Posted October 25, 2008 Version 10.0.15 did not work well on mine, it's stuck most of the time at 600Mhz, and rarely throttling to 900Mhz.On the previous version, it did throttle between 1200Mhz and 1600Mhz (no 1400Mhz). ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " "CPU Status" = {"Auto Throttle"=Yes,"Load"=0xc8,"Temperature"=0x26,"High jump"=0x12c,"Voltage"=0x2d5,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x258,"Kext Timer"=0x112e,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0xf,"Frequency ID"=0x86} "CPU Init" = {"CTL max"=0x801,"FSB frequency min"=0x190,"Signature"=0x6fd,"FSB frequency max"=0x320,"CTL min"=0x8601,"Kext unlock"=Yes,"Kext version"=0x1000f,"Brand string"="Intel® Core2 Duo CPU T5470 @ 1.60GHz","Voltage max"=0x2d5,"Frequency min"=0x258,"Frequency max"=0x640,"Voltage min"=0x2d5} I have the same issue, it falls to SLFM (600Mhz) on max throttle. Link to comment Share on other sites More sharing options...
Superhai Posted October 25, 2008 Author Share Posted October 25, 2008 I have the same issue, it falls to SLFM (600Mhz) on max throttle. Please post the ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " Link to comment Share on other sites More sharing options...
lzymac Posted October 25, 2008 Share Posted October 25, 2008 There are som oddities with your voltage id. Post me the output of you Info.plist I changed my VID min and max to 1, and it worked fine on the previous versions (13 and 14). How can I make a output from my info.plist? Please let me know if you need anything else. Thanks Link to comment Share on other sites More sharing options...
Chrysaor Posted October 25, 2008 Share Posted October 25, 2008 Please post the ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " I did, its on post #242. (its from the last version of .14 but problem is same with .15) Link to comment Share on other sites More sharing options...
jimmyfob Posted October 25, 2008 Share Posted October 25, 2008 Just Wanted to clear Tjmax issues im still seeing regarding the E8400 E8500 and E8600 cpus, the tjmax is 95'C NOT 100 or 105 but it is actually 95*C so super if you could correct this when you find the time or remember that would be great. Thanks so much, your hard work is enjoyed every day by many of us... Link to comment Share on other sites More sharing options...
Superhai Posted October 26, 2008 Author Share Posted October 26, 2008 I changed my VID min and max to 1, and it worked fine on the previous versions (13 and 14). How can I make a output from my info.plist? Please let me know if you need anything else. Thanks I would recommend to set VID to minimum value supported by your cpu. But you can set it to whatever you feel like... on your own risk. Anyway, I think I have sorted out the problem, so try to download the newer version and try. I did, its on post #242. (its from the last version of .14 but problem is same with .15) Ok, try the new version I have uploaded. Just Wanted to clear Tjmax issues im still seeing regarding the E8400 E8500 and E8600 cpus, the tjmax is 95'C NOT 100 or 105 but it is actually 95*C so super if you could correct this when you find the time or remember that would be great. Nice to hear, but have you any documentation for your claim? Actually what I see is E/Q8xxx and E/Q7xxx should be 100. Exception is on Extreme cpus. Link to comment Share on other sites More sharing options...
lzymac Posted October 26, 2008 Share Posted October 26, 2008 Great work Superhai. The new version works great on my R61 Thinkpad. The laptop now runs much faster and cooler. Thank you very much! Link to comment Share on other sites More sharing options...
Chrysaor Posted October 26, 2008 Share Posted October 26, 2008 Ok, try the new version I have uploaded. Working great, thanks. Link to comment Share on other sites More sharing options...
TmR Posted October 26, 2008 Share Posted October 26, 2008 Hi here is the Info of my Pentium M 750. "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x190,"Temperature"=0x0,"High jump"=0x12c,"Voltage"=0x3dc,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0xc78,"Kext Timer"=0x246,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x12,"Frequency ID"=0x6} "CPU Init" = {"CTL max"=0xe29,"FSB frequency min"=0x850,"Signature"=0x6d8,"FSB frequency max"=0x850,"CTL min"=0x612,"Kext unlock"=No,"Kext version"=0x1000f,"Brand string"="Intel® Pentium® M processor 1.86GHz","Voltage max"=0x54c,"Frequency min"=0xc78,"Frequency max"=0xc51,"Voltage min"=0x3dc} Showing wrong Frequency Link to comment Share on other sites More sharing options...
thestevo Posted October 26, 2008 Share Posted October 26, 2008 ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU" "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x50,"Temperature"=0x30,"High jump"=0x12c,"Voltage"=0x39d,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x258,"Kext Timer"=0x954,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x13,"Frequency ID"=0x86} "CPU Init" = {"CTL max"=0x4c22,"FSB frequency min"=0x190,"Signature"=0x10676,"FSB frequency max"=0x320,"CTL min"=0x8611,"Kext unlock"=No,"Kext version"=0x1000f,"Brand string"="Intel® Core2 Duo CPU T9300 @ 2.50GHz","Voltage max"=0x471,"Frequency min"=0x258,"Frequency max"=0x9c4,"Voltage min"=0x39d} Thanks Superhai. Link to comment Share on other sites More sharing options...
Superhai Posted October 26, 2008 Author Share Posted October 26, 2008 Hi here is the Info of my Pentium M 750. Showing wrong Frequency What is your fsb frequency? 133? And what is showing in system profiler? And no AMD users who wants to be beta tester? Link to comment Share on other sites More sharing options...
MrZeroo00 Posted October 27, 2008 Share Posted October 27, 2008 Core Duo T2050, do I need to change something? The frequency isn't well detected! "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x3e8,"Temperature"=0x40,"High jump"=0x12c,"Voltage"=0x4ee,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x835,"Kext Timer"=0x2e6,"Kext Online"=Yes,"Current state"=0x0,"Voltage ID"=0x2c,"Frequency ID"=0xc} "CPU Init" = {"CTL max"=0xc2c,"FSB frequency min"=0x854,"Signature"=0x6e8,"FSB frequency max"=0x854,"CTL min"=0x62c,"Kext unlock"=No,"Kext version"=0x1000f,"Brand string"="Genuine Intel® CPU T2050 @ 1.60GHz","Voltage max"=0x4ee,"Frequency min"=0xc7e,"Frequency max"=0x835,"Voltage min"=0x4ee} Link to comment Share on other sites More sharing options...
Superhai Posted October 27, 2008 Author Share Posted October 27, 2008 Core Duo T2050, do I need to change something? The frequency isn't well detected! You need correct FSB. What does it show in system profiler? Link to comment Share on other sites More sharing options...
WalterMAC Posted October 27, 2008 Share Posted October 27, 2008 Very nice tool for undervolting. For my T7300 this settings works well. <key>voltageid-max</key> <integer>22</integer> <key>voltageid-min</key> <integer>11</integer> 2000 Mhz @ 0,9875 V 600 Mhz @ 0,850 V This settings are stable. I used Prime95 under vista for more then 1 hour. Link to comment Share on other sites More sharing options...
Chrysaor Posted October 27, 2008 Share Posted October 27, 2008 Very nice tool for undervolting. For my T7300 this settings works well. <key>voltageid-max</key> <integer>22</integer> <key>voltageid-min</key> <integer>11</integer> 2000 Mhz @ 0,9875 V 600 Mhz @ 0,850 V This settings are stable. I used Prime95 under vista for more then 1 hour. How do you calculate the voltageids? I use 1.0375v for 12x (2400Mhz) under Windows. What would be the voltageid-max for that? Also, I thought Intel restricted the min vid to 0.950v? You can't go any lower than that in rmclock. Link to comment Share on other sites More sharing options...
FavleX Posted October 27, 2008 Share Posted October 27, 2008 Great work Superhai. could someone help me to find the right settings in info.plist for my wind. Max cpu is 1984 (Bios 1.09 @ 24%) and minimum at 800 or a bit less.. When loaded the cpu freq is wrong Link to comment Share on other sites More sharing options...
Superhai Posted October 27, 2008 Author Share Posted October 27, 2008 How do you calculate the voltageids?I use 1.0375v for 12x (2400Mhz) under Windows. What would be the voltageid-max for that? Also, I thought Intel restricted the min vid to 0.950v? You can't go any lower than that in rmclock. core/p4 cpus = 712,5 + 12,5 * FID earlier = 700 + 16 * FID (1037,5 - 712,5) / 12,5 = FID = 26 (0x1A) You have to run in SLFM to get lower voltage than 950 mV When loaded the cpu freq is wrong It would help if you post output of ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU" Link to comment Share on other sites More sharing options...
FavleX Posted October 27, 2008 Share Posted October 27, 2008 It would help if you post output of ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU" +-o GenericCPUPowerManagement <class GenericCPUPowerManagement, registered, matched, active, busy 0, retain 4> "CFBundleIdentifier" = "com.superhai.driver.GenericCPUPowerManagement" "IOMatchCategory" = "GenericCPUPowerManagement" "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x50,"Temperature"=0x24,"High jump"=0xfa,"Voltage"=0x384,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0xc7e,"Kext Timer"=0x178,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0xf,"Frequency ID"=0x6} "IOClass" = "GenericCPUPowerManagement" "CPU Init" = {"CTL max"=0xc23,"FSB frequency min"=0x854,"Signature"=0x106c2,"FSB frequency max"=0x854,"CTL min"=0x60f,"Kext unlock"=No,"Kext version"=0x10010,"Brand string"="Intel(R) Atom(TM) CPU N270 @ 1.60GHz","Voltage max"=0x47e,"Frequency min"=0xc7e,"Frequency max"=0x835,"Voltage min"=0x384} Link to comment Share on other sites More sharing options...
BlackCH Posted October 27, 2008 Share Posted October 27, 2008 Last version works great here! With previous versions I couldnt get under 1200 mHz, while mercurysquad's kext throttles down to 800 mHz. With your lastest build I can go down to 600 mHz! great job! I post the output here just in case: bash-3.2# ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU" +-o GenericCPUPowerManagement <class GenericCPUPowerManagement, registered, matched, active, busy 0, retain 4> "CFBundleIdentifier" = "com.superhai.driver.GenericCPUPowerManagement" "IOMatchCategory" = "GenericCPUPowerManagement" "CPU Status" = {"Auto Throttle"=No,"Load"=0x32,"Temperature"=0x39,"High jump"=0x12c,"Voltage"=0x3b6,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x320,"Kext Timer"=0x1b1,"Kext Online"=Yes,"Current state"=0x2,"Voltage ID"=0x13,"Frequency ID"=0x88} "IOClass" = "GenericCPUPowerManagement" "CPU Init" = {"CTL max"=0xa25,"FSB frequency min"=0x190,"Signature"=0x6fd,"FSB frequency max"=0x320,"CTL min"=0x8613,"Kext unlock"=No,"Kext version"=0xffffffff80010010,"Brand string"="Intel(R) Core(TM)2 Duo CPU T7250 @ 2.00GHz","Voltage max"=0x497,"Frequency min"=0x258,"Frequency max"=0x7d0,"Voltage min"=0x3b6} Link to comment Share on other sites More sharing options...

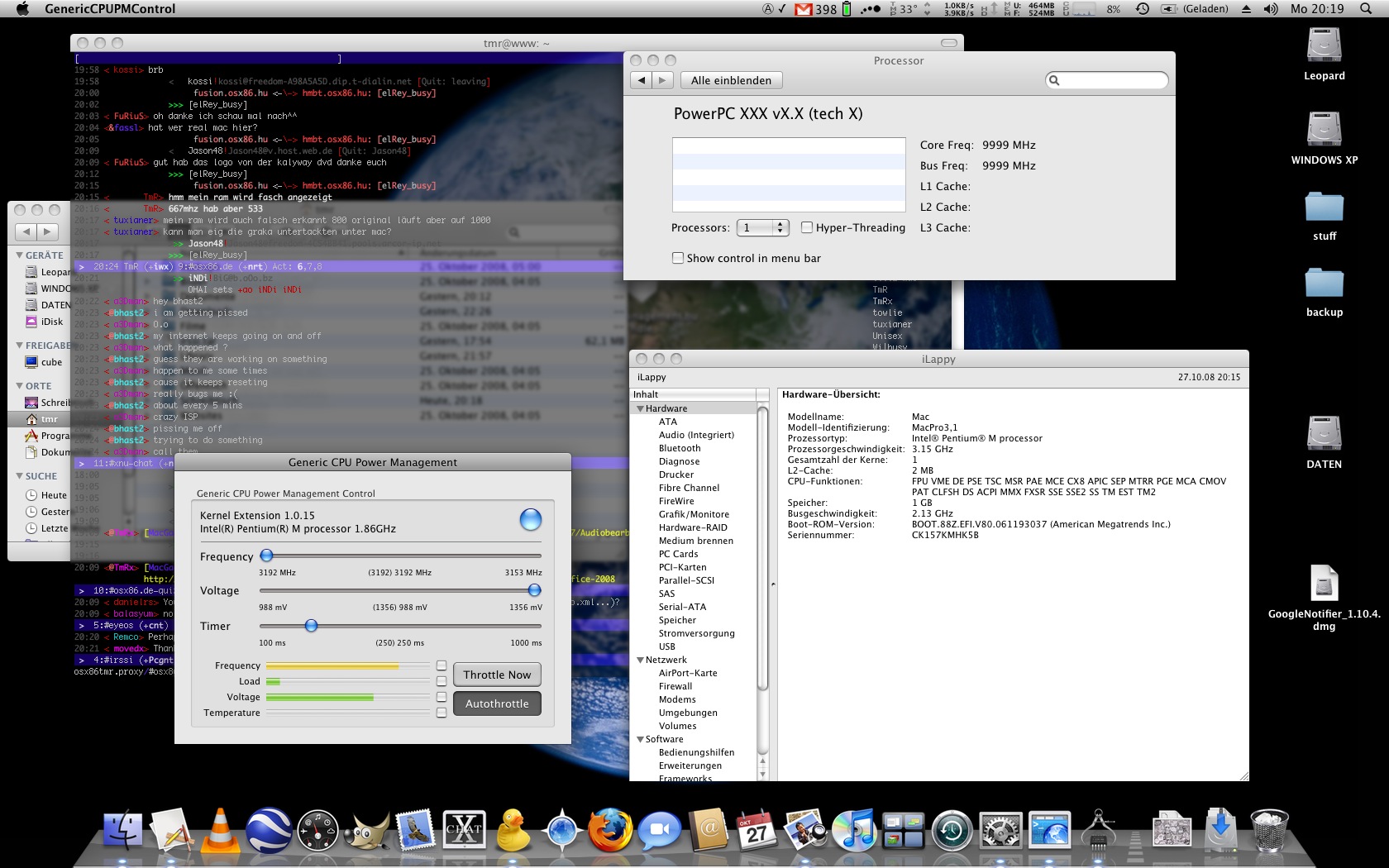

TmR Posted October 27, 2008 Share Posted October 27, 2008 What is your fsb frequency? 133? And what is showing in system profiler? Yes my fsb frequency is 133. Uh System-profiler showing 3.15Ghz.My ram recognised wrong too in System-Profiler 667 but it's 533. I've added a CPU-Z dump. cpuz.txt Link to comment Share on other sites More sharing options...
Superhai Posted October 27, 2008 Author Share Posted October 27, 2008 Yes my fsb frequency is 133. Uh System-profiler showing 3.15Ghz.My ram recognised wrong too in System-Profiler 667 but it's 533. The kext depends on correct fsb frequency, on your system the fsb seem to be 4 times higher than what it is supposed to be. Link to comment Share on other sites More sharing options...
mrroboto Posted October 27, 2008 Share Posted October 27, 2008 with the latest verision my cpu is stucked to 600Mhz. T8100 2.1MHz. MrRoboto:Extensions mrroboto$ sudo dmesg | grep GenericCPUPowerManagement GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ GenericCPUPowerManagement: Unloading GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/ Link to comment Share on other sites More sharing options...
Superhai Posted October 27, 2008 Author Share Posted October 27, 2008 with the latest verision my cpu is stucked to 600Mhz. T8100 2.1MHz. Post the output of this ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " Link to comment Share on other sites More sharing options...
