Mojave MBR HFS Firmware Check Patch 10.14.x

crazybirdy
 Share

1 Screenshot

About This File

Patched OSInstaller.framework to allow macOS 10.14 installation on MBR HFS+ partition.



To use those patched files you must follow HowTo to create an USB installer. You can't just run the app downloaded from Mac App Store.

The patch is made base on 落下爱@pcbeta 10.10.x MBR patch method, and more patch for 10.14 HFS Firmware check by crazybirdy.



What is this patched OSInstaller doing?
1. Patch the MBR check, allow macOS 10.14 installation on MBR partition.
2. Patch the Firmware check, bypass the error of "An error occurred while verifying firmware".
3. Patch to stop auto-convert to APFS , "ConvertToAPFS=false" is no longer worked with 10.14.
4. This patched MBR OSInstaller will never convert to APFS, and will always install as HFS+ partition.
5. This patched MBR OSInstaller method works with both MBR HFS+ and GPT HFS+ partition (GPT+recovery).

No longer need to set new SMbiosversion, FirmwareFeatures, and FirmwareFeaturesMask with this MBR-patch.



What's the difference between createinstallmedia method, MBR-Manual-Method, and MBR-Automatic-Method?
As the following....
1. createinstallmedia method,

    needs stage 1, stage 2 installation process, which is worked with GUID partition only, always convert to APFS format.
2. MBR-Manual-Method (same as 10.12),

    install via stage 2 manually, which is worked with both MBR and GUID, HFS+ and APFS, will never convert the partition format.

    We can manually format as MBR or GPT, HFS+ or APFS on installation screen like as 10.12.

    We can manually select MBR HFS+ partition to install 10.13 and 10.14 on installation screen now.

    Needn't to update the MBR-Manual-Method files, it will still work on 10.13, and 10.14 future versions, I think so.

    It can be installed as Fresh installation on formated blank partition only, but can't be installed as update from previous version.

3. MBR-Automatic-Method (new for 10.13+),

    install via stage 2 automatically, which is worked with both MBR and GUID, HFS+ and APFS, will never convert the partition format.

    It can be installed as Fresh installation on formated blank partition, and can be installed as update from previous version.


How to make 10.14 installer for MBR (MBR-Manual-Method)?

Just use EasyMBR-InstallerMaker to make installer, it works with both MBR and GPT.

Read HowTo inside the dmg first, same as 10.12.

Read HowTo Q/A Q5. How to patch to work with CPU SSE4.1 only for Mojave?
Read HowTo Q/A Q6. How to download the full installer app via swscan.apple.com, instead of App Store?
Read HowTo Q/A Q7. How to update 10.14.x combo-update to MBR and GPT with installScript directly?



How to make 10.14 installer for MBR (MBR-Automatic-Method)?

Just use 14MBRinstallerMaker to make installer, it works with both MBR and GPT.

Read HowTo inside the dmg first, same as 10.13.

Read HowTo Q/A Q5. How to patch to work with CPU SSE4.1 only for Mojave?
Read HowTo Q/A Q6. How to download the full installer app via swscan.apple.com, instead of App Store?
Read HowTo Q/A Q7. How to update 10.14.x combo-update to MBR and GPT with installScript directly?



And, need a SMBIOS supported with /System/Library/CoreServices/PlatformSupport.plist.







Q6. How to download the full installer app via swscan.apple.com, instead of App Store?
A6. Some people download installer app from App Store, and get only 18 MB size, not the complete installer app (5.68 GB). You should boot to 10.12, or 10.13 to download it again from App Store, or use script Q6-DownloadFullApp/installScript_1014fullapp to download the full installer app via swscan.apple.com.






What's New in Version 10.14.x

Released

2020.07.13    Update Old-macOS-10+11+12/installScript_1012fullapp.

2020.05.30    Update Readme.

2020.02.25    Update Q7-Update-installScript.

2020.01.30    Update Q7-Update-installScript.

2019.12.06    Update Q6-DownloadFullApp

2019.11.02    Add Old-macOS-10+11+12/installScript_1012fullapp.

2019.11.01    Update Q7-Update-installScript.

2019.10.10    Update Q7-Update-installScript, Q8-MBR-Update1014

2019.09.28    Update to 10.14.6.18G103 (MBR-Auto-Method14)

2019.09.11    Update Q6-DownloadFullApp.

2019.08.26    Update to 10.14.6.18G95 (MBR-Auto-Method14)

2019.08.02    Update to 10.14.6.18G87 (MBR-Auto-Method14)

2019.07.23    Update to 10.14.6.18G84 (MBR-Auto-Method14)

2019.06.20    MBR HFS+ is back for 10.15 now via MBR-Manual-Method.

2019.06.04    End of MBR and HFS+, there is no more MBR HFS+ patch available for 10.15 OSInstaller.

2019.05.14    Update to 10.14.5. (MBR-Auto-Method14)

2019.03.26    Add support to 10.14.4 BaseSystem.dmg. (MBR-EasyInstallerMaker)

2019.02.13    Update script to make update-installer-dmg on Desktop. (Q7-Update-installScript/installScript_101X)

  • Like 23
  • Thanks 15
 Share
Previous File High Sierra MBR and Firmware Check Patch
Next File Catalina MBR HFS Firmware Check Patch

User Feedback

Recommended Comments



crazybirdy
1 hour ago, Matgen84 said:

Hi @crazybirdy



For this instant, I can't download full 10.14.2 with your InstallScript_1014Fullapp, only update.



Some solutions, please



Thanks



Works fine and download finished here. I don't know what's error with yours?




Link to comment
Share on other sites
Matgen84
6 minutes ago, crazybirdy said:



Works fine and download finished here. I don't know what's error with yours?






041-19985-----> less than 3Go here. Others maOS begin by 091-XXX. So In understand why? Thanks.



Sorry for my ad english

Link to comment
Share on other sites
crazybirdy
Just now, Matgen84 said:



041-19985-----> less than 3Go here. Others maOS begin by 091-XXX. So In understand why? Thanks.



Sorry for my ad english



you must get curl download error, need to download files as URL manually as (y/n) shows to you.

Link to comment
Share on other sites
Matgen84
3 minutes ago, crazybirdy said:



you must get curl download error, need to download files as URL manually as (y/n) shows to you.

Ok. To download manually, the answer is "y" I suppose. I try that

Link to comment
Share on other sites
crazybirdy
30 minutes ago, Matgen84 said:

Ok. To download manually, the answer is "y" I suppose. I try that



No, you need put files to /tmp/xxxxxxx before y/n.

Link to comment
Share on other sites
Matgen84
25 minutes ago, crazybirdy said:



No, you need put files to /tmp/xxxxxxx before y/n.



Sorry I don't understand very well english. How I can do that before answer y/n, these files aren't downloading yet

Edited by Matgen84
Link to comment
Share on other sites
crazybirdy
49 minutes ago, Matgen84 said:



Sorry I don't understand very well english. How I can do that before answer y/n, these files aren't downloading yet

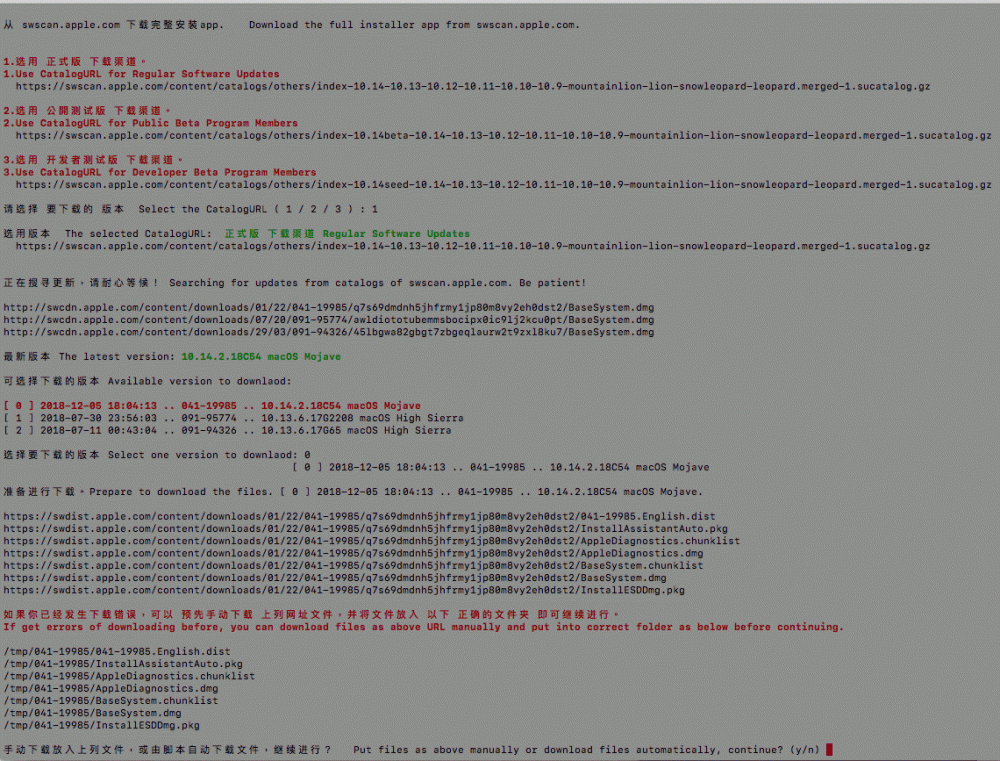

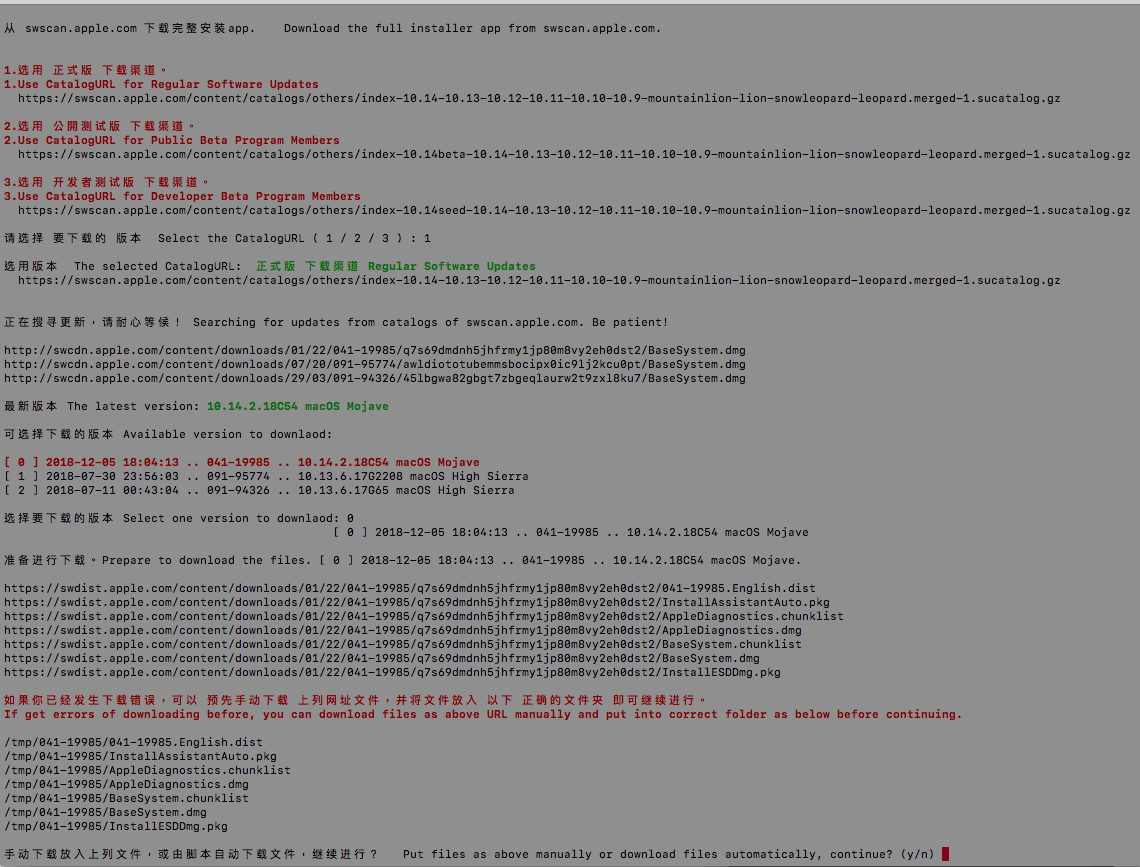

You can see it before (y/n).

Quote

准备进行下载。Prepare to download the files. [ 0 ] 2018-12-05 18:04:13 .. 041-19985 .. 10.14.2.18C54 macOS Mojave.

https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/041-19985.English.dist
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/InstallAssistantAuto.pkg
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/AppleDiagnostics.chunklist
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/AppleDiagnostics.dmg
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/BaseSystem.chunklist
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/BaseSystem.dmg
https://swdist.apple.com/content/downloads/01/22/041-19985/q7s69dmdnh5jhfrmy1jp80m8vy2eh0dst2/InstallESDDmg.pkg

如果你已经发生下载错误，可以 预先手动下载 上列网址文件，并将文件放入 以下 正确的文件夹 即可继续进行。
If get errors of downloading before, you can download files as above URL manually and put into correct folder as below before continuing.

/tmp/041-19985/041-19985.English.dist
/tmp/041-19985/InstallAssistantAuto.pkg
/tmp/041-19985/AppleDiagnostics.chunklist
/tmp/041-19985/AppleDiagnostics.dmg
/tmp/041-19985/BaseSystem.chunklist
/tmp/041-19985/BaseSystem.dmg
/tmp/041-19985/InstallESDDmg.pkg

手动下载放入上列文件，或由脚本自动下载文件，继续进行？   Put files as above manually or download files automatically, continue? (y/n)



Link to comment
Share on other sites
Matgen84
50 minutes ago, crazybirdy said:



You can see it before (y/n).





Ok. I understand now



Thanks for your great job :)



Note: why there is curl download error

Link to comment
Share on other sites
crazybirdy
34 minutes ago, Matgen84 said:

Ok. I understand now

Thanks for your great job :)



Note: why there is curl download error



I don't know, it happened sometimes here.

Normally, I would like to download manually for big size files as BaseSystem.dmg and InstallESDDmg.pkg.

Link to comment
Share on other sites
Matgen84
2 minutes ago, crazybirdy said:



I don't know, it happened sometimes here.

Normally, I would like to download manually for big size files as BaseSystem.dmg and InstallESDDmg.pkg.



Thanks :) For me, it's the first time since Mojave Beta.

  • Like 1
Link to comment
Share on other sites
Crabhunter

I've just updated from 10.14.1 to 10.14.2 using the Q7 script.

The update initially failed, I think it's because I chose the combo update.

I then tried again using just the 10.14.2 update from the list and it installed ok.

I then rebooted and ran sudo update_dyld_shared_cache -force and rebooted again.

This produced loads of errors that I've attached here.

I'm unable to launch app store or safari.

Mike

Error.rtf

  • Like 2
Link to comment
Share on other sites
gengik84
1 hour ago, Crabhunter said:

I've just updated from 10.14.1 to 10.14.2 using the Q7 script.

The update initially failed, I think it's because I chose the combo update.

I then tried again using just the 10.14.2 update from the list and it installed ok.

I then rebooted and ran sudo update_dyld_shared_cache -force and rebooted again.

This produced loads of errors that I've attached here.

I'm unable to launch app store or safari.

Mike

Error.rtf

Replace this framework in /System/Library/PrivateFrameworks

After open Safari and other Apple app.

AppleMediaServices.framework.zip

  • Like 4
Link to comment
Share on other sites
illdev

Followed Crabhunters advice to choose regular update instead of combo updater and it worked in the VM! Combo updater was the first thing I tried and it lead to endless reboots of the VM. With regular updater everything is fine.

Additionally to updating dyld caches and rebuilding kextcaches in single user mode, AppleMediaServices.framework was replaced to get the everything running again. So far it seems to be fine:

Spoiler






Thanks to everyone involved, especially crazybirdy, of course!

Edited by illdev
  • Like 3
Link to comment
Share on other sites
Crabhunter

After replacing AppleMediaServices.framework all is well :)

That was on my Mojave install on a spare USB drive.

I'm now going ahead with the update on my main install.

Thanks for all the help.

Mike

  • Like 2
Link to comment
Share on other sites
crazybirdy
1 hour ago, CrashMidnick said:

Patching telemetry.plugin does not work anymore with 10.14.3. Replacing original one from 10.13.6 worked.



Bad news, not test 10.14.3 with 775 CPU here, only test with i3-2100.

Link to comment
Share on other sites
Dans1975

I ran the update for 14.10.3 and safari, App Store, Maps, Calendar and mail will not open ... error message

apps are looking for a file in private frameworks that isn't there...

that file is no there on my MacBook so I suspect it has to do with the install?

Sandbox creation failed: failed to compile sandbox profile

/System/Library/PrivateFrameworks/AppleMediaServices.framework/Versions/A/Resources/framework.sh



Looks like all the internal Mac apps...

What needs to be cleared/rebuilt?



Oh wait, I saw the comments above looks like the solution for now... Dans





YES...installed AppleMediaServices.framework from zip file above and all back to normal......



Edited by Dans1975
Link to comment
Share on other sites
Dans1975

Can someone explain what the problem is with apple.mediaservices??? in private frameworks >??

The fix works fine, but would like to understand why that error message kept coming up in the crash report.



Thanks

Dans

Link to comment
Share on other sites
iaihc

製作 macOS Mojave 10.14 MBR 安裝盤，你需要兩個分區，

一個 A.Disk1mbrInstaller, 最小空間: 2.5 GB，這是開機安裝盤。

一個 B.Disk2InstallData, 最小空間: 25.0 GB，這是你即將安裝 10.14 的系統分區。



Make macOS Mojave 10.14 MBR installer, you need two partitions,

one for A.Disk1mbrInstaller, minimal size: 2.5 GB, hdd or USB, MBR or GPT, this is MBR-installer boot disk.

one for B.Disk2InstallData, minimal size: 25.0 GB, MBR hdd, this is which one you want to install 10.14 now.



已找到 Found /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/OSInstaller

已找到 Found /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/Disk2InstallData/.IAProductInfo

已找到 Found /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/Disk2InstallData/macOS Install Data/index.sproduct

已找到 Found /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/Disk2InstallData/macOS Install Data/MacOSXInstaller.choiceChanges

已找到 Found /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/Disk2InstallData/macOS Install Data/minstallconfig.xml





You will need three steps to make installer.



1.Drag in the full Installer App (from Finder): ............................................. it's the Full Installer App.

2.Drag in the partition to write Disk1mbrInstaller as /Volumes/xxxxx (from Finder): ......... it's the USB for MBR Installer.

3.Drag in the partition to write Disk2InstallData as /Volumes/xxxxx (from Finder): .......... it's the HDD to install Mojave now.





1.拖入 原始 Installer App :

1.Drag in the full Installer App (from Finder): /Applications/Install\ macOS\ Mojave.app



  選用的 Installer App 版本為   10.14.4 18E226

  The selected Installer App is 10.14.4 18E226



  Disk1mbrInstaller 至少 2.5 GB 空間

  先格盤為 HFS, Mac OS 擴展 分區，所有資料將被刪除



  Disk1mbrInstaller, minimal size: 2.5 GB, hdd or USB, MBR or GPT.

  Please format as HFS, Mac OS Extended partition, all data will be removed.



2.拖入 要寫入的 Disk1mbrInstaller 安裝盤分區 /Volumes/xxxxx :

2.Drag in the partition to write Disk1mbrInstaller as /Volumes/xxxxx (from Finder): /Volumes/USB



  Disk2InstallData 至少 25.0 GB 空間

  即為 現在要安裝 10.14 的 系統分區

  可安裝至 空白分區 或 現有系統 如 10.12.6

  建議選用 HFS+, Mac OS 擴展 (日誌式) 分區，本區資料將被保留



  Disk2InstallData, minimal size: 25.0 GB MBR hdd

  This is which one you want to install 10.14 now.

  You can install to a blank partition, or update to earlier version like as 10.12.6

  Select one HFS+, Mac OS Extended (Journaled) partition, all data will be reserved.



3.拖入 要寫入的 Disk2InstallData 系統盤分區 /Volumes/xxxxx :

3.Drag in the partition to write Disk2InstallData as /Volumes/xxxxx (from Finder): /Volumes/M550



4.選用 已經修改過的 OSInstaller 文件 :

4.Select the patched MBR OSInstaller file:

  /Users/macos/Downloads/OSInstaller.MBR.10.14.3.18D42/OSInstaller



Disk /Volumes/macOS Base System/ ejected



正在開啓/Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg

Opening /Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg



未找到 /Volumes/InstallESD/Packages/OSInstall.mpkg

Not found /Volumes/InstallESD/Packages/OSInstall.mpkg



logout

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.



[进程已完成]

Link to comment
Share on other sites
iaihc

正在開啓/Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg

Opening /Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg



未找到 /Volumes/InstallESD/Packages/OSInstall.mpkg

Not found /Volumes/InstallESD/Packages/OSInstall.mpkg



please help me

Link to comment
Share on other sites
crazybirdy
2 hours ago, iaihc said:

正在開啓/Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg

Opening /Applications/Install macOS Mojave.app/Contents/SharedSupport/InstallESD.dmg



未找到 /Volumes/InstallESD/Packages/OSInstall.mpkg

Not found /Volumes/InstallESD/Packages/OSInstall.mpkg



please help me



Check the md5 of InstallESD.dmg.



InstallESD.dmg 文件不完整！你應該無法在 Finder 手動開啟 InstallESD.dmg，可能需要重新下載！



建議你用新的腳本，因為 10.14.4 18E226 有變化！

Edited by crazybirdy
Link to comment
Share on other sites
kingbrazile

I successfully mbr patched but there I somthing didn't work it's image restore file when try open image in installer disk utility nothing opened

Edited by kingbrazile
Link to comment
Share on other sites
crazybirdy
3 hours ago, kingbrazile said:

I successfully mbr patched but there I somthing didn't work it's image restore file when try open image in installer disk utility nothing opened



Sorry, I don't understand what you said.



Edited by crazybirdy
Link to comment
Share on other sites
×
×
  • Create New...
