drudess Posted January 12, 2008 Share Posted January 12, 2008 MODEL: inspiron 1520 (stac9205) VERSION: paulo's APPLEHDA.kext (I am using paulo's ktext from jan the 6th) WORKS: sound output, automatic switch between Headphones and Speakers.input displays as availble but untested COMMENT: with last applehda.kext (post 110),all sound doesn't work Drudess Link to comment Share on other sites More sharing options...
hellobber Posted January 12, 2008 Share Posted January 12, 2008 I have done this and my Dell D630 's sigmatel 9205 works OK. Here is my steps:first: download this file from this thread under leopard info.zip (first to unzip it, it is a info file) AppleHDA.text Sigmatel 9205.txt AppleHDAPatcherv1.20.app (1)relplace AppleHDA.kext (2)repair permitions (3)HDAPather, drag the Stac9205.txt to the AppleHDAPatcherv1.20 Program icon ,and release mouse, the patcher will run. In put the password,it will pather the kext. (4)replace info, copy the Info file form the Info.zip to the content of the AppleHDA.kext, input the password to confirm. (5)repair permitions (6)reboot When success, A speaker appears on the top menu. I would like to thank all of you,especially bari86 and paulo-131. You make my leopard soundble!! Link to comment Share on other sites More sharing options...
hellobber Posted January 12, 2008 Share Posted January 12, 2008 It works for my DELL D630 sigmatel 9205, Thank bari86 and paulo-131 very much. Here are my steps: first: download this file from http://forum.insanelymac.com/index.php?sho...rt=#entry567023 by paulo-131 info.zip (first to unzip it, it is a info file) AppleHDA.text Sigmatel 9205.txt AppleHDAPatcherv1.20.app (1)relplace AppleHDA.kext (2)repair permitions (3)HDAPather, drag the Stac9205.txt to the AppleHDAPatcherv1.20 Program icon ,and release mouse, the patcher will run. In put the password,it will pather the kext. (4)replace info, copy the Info file form the Info.zip to the content of the AppleHDA.kext, input the password to confirm. (5)repair permitions (6)reboot When success, A speaker appears on the top menu. Link to comment Share on other sites More sharing options...
Paulo-131 Posted January 12, 2008 Share Posted January 12, 2008 Ok i try to sum up : - What did Hellober should work with all Dell Computers (Latitude, Inspiron, Vostro) - After you get that file working, try this one (post 66) : AppleHDA.kext It should add support for headphones and jack input - If it works, try this one (post 83) : AppleHDA.kext It should add support for automatic switch between Headphones and Speakers At this step, Mute and Mic In don't work. - The next file (post 110) : AppleHDA.kext seems to only work on my D830 (it should add Mute and Mic In) If you have post 83 file working, you can try these files: - File 1 : based on post 83 : should work for all who have post 83 working. It doesn't add any feature. - File 2 : should add Mic Input compared to post 83 - File 3 : should add Mute compared to posrt 83 (it s normal if there is not Mic In) Please tell me what files don't work with you. Thanks. Edit : better with files ... AppleHDA1.kext.zip AppleHDA2.kext.zip AppleHDA3.kext.zip Link to comment Share on other sites More sharing options...
!!___!! Posted January 12, 2008 Share Posted January 12, 2008 Model: Dell Vostro 1700 Version: Kext1; Kext2; Kext3 Working: Kext1: External Mic, Internal Speakers, Line-Out, Switching Kext2: External Mic, Internal Speakers, Line-Out, Switchin, + Unknown Input Device(see attatched File) Kext3: External Mic, Internal Speakers, Line-Out, Switchin, Mute Button! Not Working : Kext1: Internal Mic, Mute-Button Kext2: Internal Mic, Mute-Button Kext3: Internal Mic Thanks for fixing Mute!! kext2.tiff Link to comment Share on other sites More sharing options...
speedy859 Posted January 12, 2008 Share Posted January 12, 2008 Model: Dell Latitude D830, BIOS A02, Kalyway 10.5.1 Version: kext2: everything that is supposed to work, works Version: kext3: simply does not work at all. I dont know, maybe i need to update bios? although it seems strange that kext2 should work completely and kext3 not at all Link to comment Share on other sites More sharing options...
Paulo-131 Posted January 12, 2008 Share Posted January 12, 2008 Model: Dell Latitude D830, BIOS A02, Kalyway 10.5.1Version: kext2: everything that is supposed to work, works Version: kext3: simply does not work at all. I dont know, maybe i need to update bios? although it seems strange that kext2 should work completely and kext3 not at all Yes you could try to update BIOS, i have AO5. Maybe there is also a difference between Iaktos and Kalyway. Link to comment Share on other sites More sharing options...
roneil4 Posted January 12, 2008 Share Posted January 12, 2008 Model: Dell Latitude D630, BIOS A04, Kalyway 10.5.1 Original Kext (posted by hellobober) works with Speakers only Post 66 kext does not work with speakers, but DOES work with headphones (unlike the original) I don't know if it makes sense to continue to test kexts, because the post 66 kext doesn't work, but if it does make sense to do so I will. Link to comment Share on other sites More sharing options...
Paulo-131 Posted January 12, 2008 Share Posted January 12, 2008 Model: Dell Latitude D630, BIOS A04, Kalyway 10.5.1Original Kext (posted by hellobober) works with Speakers only Post 66 kext does not work with speakers, but DOES work with headphones (unlike the original) I don't know if it makes sense to continue to test kexts, because the post 66 kext doesn't work, but if it does make sense to do so I will. What output do you see in Preferences ? Do you have only Headphones ? Link to comment Share on other sites More sharing options...
dodo_z Posted January 12, 2008 Share Posted January 12, 2008 Ok i try to sum up :- What did Hellober should work with all Dell Computers (Latitude, Inspiron, Vostro) Not for me I tried everything discussed in here, but still no success. I have a Dell Vostro 1700 running iAtkos v.1.0, too. Maybe there are different hardware setups or firmware versions used? Hoping for a installer fixing all the probs left Link to comment Share on other sites More sharing options...
Matteo80 Posted January 13, 2008 Share Posted January 13, 2008 ok, ....with applehda.kext 3 mute button works. ( thanks) internal mic still doesn't work. external mic WORKS with applehda.kext 2 mute button doesn't work, internal mic doesn't work, output ok.I don't know if it is important but with this kext, in "system preferences -----> sound" i can see: "unknow" didn't appear with applehdakext 3 and with applehda.kext topic 83. Link to comment Share on other sites More sharing options...

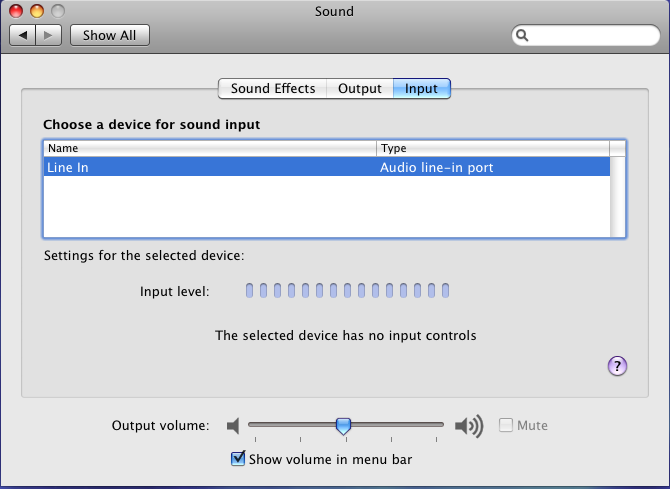

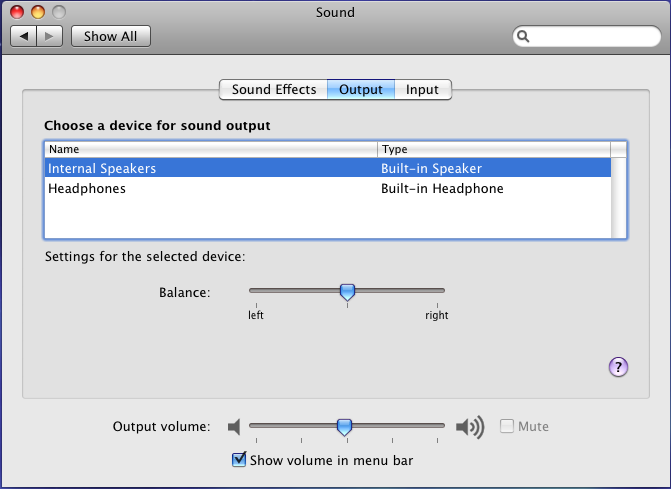

roneil4 Posted January 13, 2008 Share Posted January 13, 2008 I just wanted to let you know, paulo, that speakers were showing up in my preferences. Screenshots are attached. When I switch output to headphones the headphones work. Also, I tried your automatic switching kext earlier, and it didn't work with my speakers either, but it did automatically switch to the headphones instead of making me doing it manually. This suggests that something may be wrong with the speaker setup. I am also attaching my codec dump from Suse 10.3. Thanks Paulo! codec_dump1.txt Link to comment Share on other sites More sharing options...
rlight Posted January 13, 2008 Share Posted January 13, 2008 Model: Dell Latitude D630, BIOS A05, Toh 10.5.1 Original Kext (posted by hellobober) works with Speakers only Post 66 kext and all kexts after do not work with speakers, but DO work with headphones Any suggestions to get this working with speaker and headphones? Link to comment Share on other sites More sharing options...
roneil4 Posted January 13, 2008 Share Posted January 13, 2008 rlight, does your system ever hang on shutdown with this kext? My system always hangs on shutdown now, and I want to know if it is something wrong with my setup or if it is a problem more people are having. Link to comment Share on other sites More sharing options...
cyonix Posted January 13, 2008 Share Posted January 13, 2008 Model: Dell Precision M4300, BIOS A04, iAtkos 1.0i Headphone and internal speakers works mic not work, show an unknown device media keys (vol+,-) works mute doesnt work the lowest position doesnt mute sound, but the media player (ex.: vlc) volume position Link to comment Share on other sites More sharing options...
rlight Posted January 13, 2008 Share Posted January 13, 2008 roneil4, It usually shuts down but I have to press the power button for 5 seconds to get the power and Bluetooth LED to turn off. Occasionally I will get a kernel panic on shutdown. I use the mach_sleep kernel. Link to comment Share on other sites More sharing options...
roneil4 Posted January 13, 2008 Share Posted January 13, 2008 That's the same thing that happens to me, it shuts down but still leaves the power light on, but I never get a kernel panic. Link to comment Share on other sites More sharing options...
iwantsound44 Posted January 14, 2008 Share Posted January 14, 2008 paulo or someone please help me get my sound working i would greatly appreciate it. i have the dell vostro 1500 laptop..... Now i am not as advanced as everyone else on this thread so a complete walkthrough would be so great thank you so much. my sound is sigmatel 9205 i want sound so bad thanks Link to comment Share on other sites More sharing options...
clarence007 Posted January 14, 2008 Share Posted January 14, 2008 Try this as it worked for my dell D620. Link to comment Share on other sites More sharing options...
iwantsound44 Posted January 14, 2008 Share Posted January 14, 2008 try what could some explain to me what do do exactly Link to comment Share on other sites More sharing options...
clarence007 Posted January 14, 2008 Share Posted January 14, 2008 Stac9200.txt Sorry attachment now in!! Stac9200.txt Link to comment Share on other sites More sharing options...
iwantsound44 Posted January 14, 2008 Share Posted January 14, 2008 how do i downloadwhen i click it a new windows opens up Link to comment Share on other sites More sharing options...
TheMan08 Posted January 14, 2008 Share Posted January 14, 2008 WTF do i do with that text file??? Link to comment Share on other sites More sharing options...
roneil4 Posted January 14, 2008 Share Posted January 14, 2008 If you did some research, you would already know what to do with it. People with sigmatel 9200 sound cards should not come here, and their sound cards are already working. Look up AppleHDAPatcher and download the applehdapatcher application. Once you have that, drag the text file onto the application, and it will patch your system. Please don't come here again though, it will only clutter this thread if you make requests about other sound cards. Link to comment Share on other sites More sharing options...
gerodrx Posted January 14, 2008 Share Posted January 14, 2008 For the ones asking: First Start at Post #1. Then if you think you cant wait continue reading post 49 or 83 or 110. Small howto for vostro 1500. Download any stac9205.txt or sigmatel9205.txt you find in this thread. Search in this forum an App named: "AppleHDA patcher" from Taruga. Drag and drop your .txt to the icon then after it has finished download the file at post 83 or 49 (83 worked for me) and then Drag and drop at /System/Library/Extensions/ Replace the existing one. Repair Disk permission(at terminal write diskutil repairPermissions / ) and Restart. Voila.... Test your volume up or down and be happy. Link to comment Share on other sites More sharing options...
