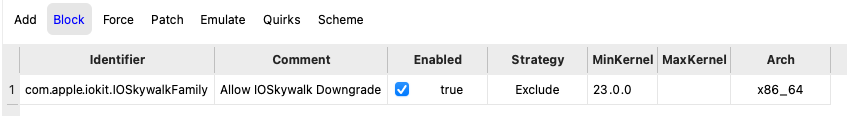

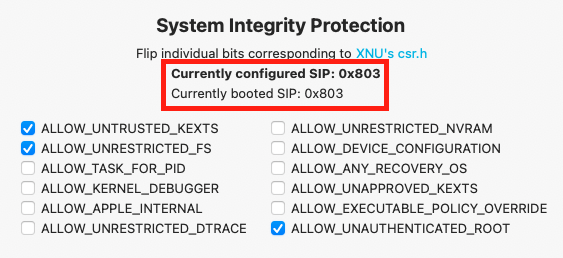

Matgen84 Posted October 3, 2023 Share Posted October 3, 2023 (edited) 58 minutes ago, windowless31 said: The Sonoma upgrade on the Dell XPS 15-9560 worked fine with OpenCore-0.9.4 and current kexts. Of course, the DW1830 does not work. I would like to change that with the OCLP. As soon as I added AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext, as well as the kernel block for IOSkywalk downgrade to config.plist, Sonoma does not start anymore. csr-active-config is 03080000 SecureBootModel is Disabled SMBIOS MacBookPro 15.1 Started with the old config, I get the following crash log: IOUserServer(com.apple.DriverKit.AppleUserECM.ctrl-0x100000666) has crashed too many times @IOUserServer.cpp:4216 ... Process name corresponding to current thread (0xffffff90acdc40f8): com.apple.DriverKit.AppleUserECM Can someone please help me? Best regards Update Opencore to latest release, same for kexts and try again 😊 MacBookPro 15,1 is not compatible with Sonoma. Edited October 3, 2023 by Matgen84 Link to comment Share on other sites More sharing options...
SavageAUS Posted October 3, 2023 Author Share Posted October 3, 2023 The Sonoma upgrade on the Dell XPS 15-9560 worked fine with OpenCore-0.9.4 and current kexts. Of course, the DW1830 does not work. I would like to change that with the OCLP. As soon as I added AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext, as well as the kernel block for IOSkywalk downgrade to config.plist, Sonoma does not start anymore. csr-active-config is 03080000 SecureBootModel is Disabled SMBIOS MacBookPro 15.1 Started with the old config, I get the following crash log:IOUserServer(com.apple.DriverKit.AppleUserECM.ctrl-0x100000666) has crashed too many times@IOUserServer.cpp:4216...Process name corresponding to current thread (0xffffff90acdc40f8): com.apple.DriverKit.AppleUserECM Can someone please help me? Best regards If using AMFIPass I believe you need to use the beta boot arg for it. -amfipassbeta and not amfi=0x80. Sent from my iPhone using Tapatalk 5 Link to comment Share on other sites More sharing options...
miliuco Posted October 3, 2023 Share Posted October 3, 2023 1 hour ago, windowless31 said: As soon as I added AMFIPass.kext, IOSkywalkFamily.kext, IO80211FamilyLegacy.kext, as well as the kernel block for IOSkywalk downgrade to config.plist, Sonoma does not start anymore. csr-active-config is 03080000 SecureBootModel is Disabled SMBIOS MacBookPro 15.1 Upload here your config.plist. 2 Link to comment Share on other sites More sharing options...
windowless31 Posted October 3, 2023 Share Posted October 3, 2023 Thank you very much for the answers. Here is my config. config XPS15-9560.zip Link to comment Share on other sites More sharing options...

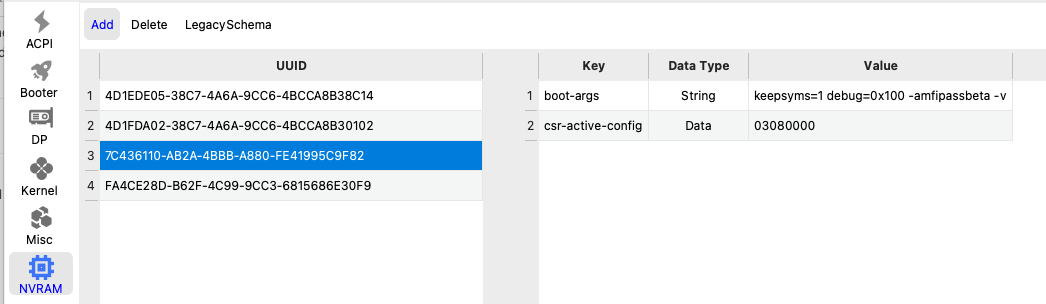

mariosun Posted October 3, 2023 Share Posted October 3, 2023 (edited) 18 minutes ago, windowless31 said: Thank you very much for the answers. Here is my config. config XPS15-9560.zip 6.48 kB · 1 download maybe -amipassbeta as bootarg (add minus)? Edited October 3, 2023 by mariosun 1 Link to comment Share on other sites More sharing options...
windowless31 Posted October 3, 2023 Share Posted October 3, 2023 I had no minus before anfipassbeta. I have changed that now. Now the hackbook already switches from verbose mode to graphics mode. The login screen should appear immediately, then there is a restart. Link to comment Share on other sites More sharing options...
mariosun Posted October 3, 2023 Share Posted October 3, 2023 verbose is due your -v bootarg restart idk Have you tried to reset your Nvram? in my system i can use or amfi=0x80 as bootarg or the kext plus -amfipassbeta with no problems at all in both condition 1 Link to comment Share on other sites More sharing options...
windowless31 Posted October 3, 2023 Share Posted October 3, 2023 (edited) 3 hours ago, mariosun said: verbose is due your -v bootarg Yes, I know 3 hours ago, mariosun said: Have you tried to reset your Nvram? nvram takes place via NVRAM / Delete 3 hours ago, mariosun said: in my system i can use or amfi=0x80 as bootarg or the kext plus -amfipassbeta with no problems at all in both condition That it works for you but does not help me, thanks anyway. I have also tested the boot-arg amfi=0x80, unfortunately it does not work either. Edited October 3, 2023 by windowless31 Link to comment Share on other sites More sharing options...
windowless31 Posted October 3, 2023 Share Posted October 3, 2023 Is it related to the Intel frame buffer? But without the wifi patch texts, the startup works in macOS Sonoma. Link to comment Share on other sites More sharing options...
miliuco Posted October 3, 2023 Share Posted October 3, 2023 1 hour ago, windowless31 said: Is it related to the Intel frame buffer? But without the wifi patch texts, the startup works in macOS Sonoma. Not sure what your issue is. I don't see anything related in config.plist except - before amfipassbeta (you have already tried with this fixed). Sonoma wifi settings are ok. I have no help, sorry. 1 Link to comment Share on other sites More sharing options...
windowless31 Posted October 3, 2023 Share Posted October 3, 2023 Thanks anyway 1 Link to comment Share on other sites More sharing options...

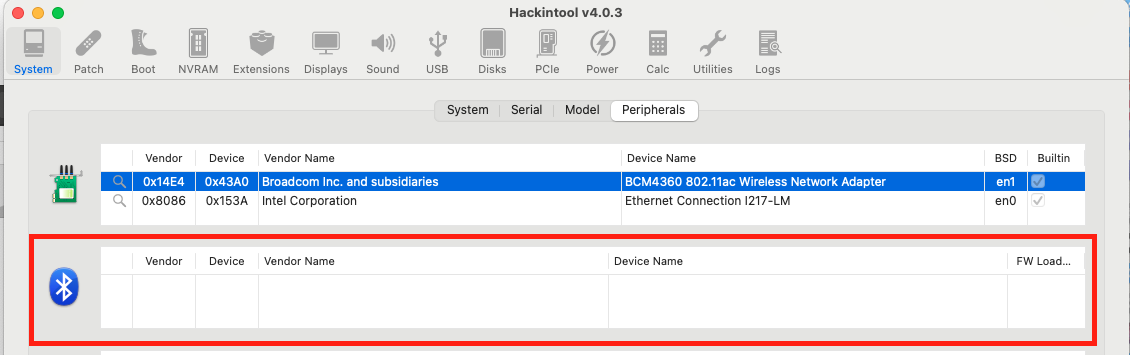

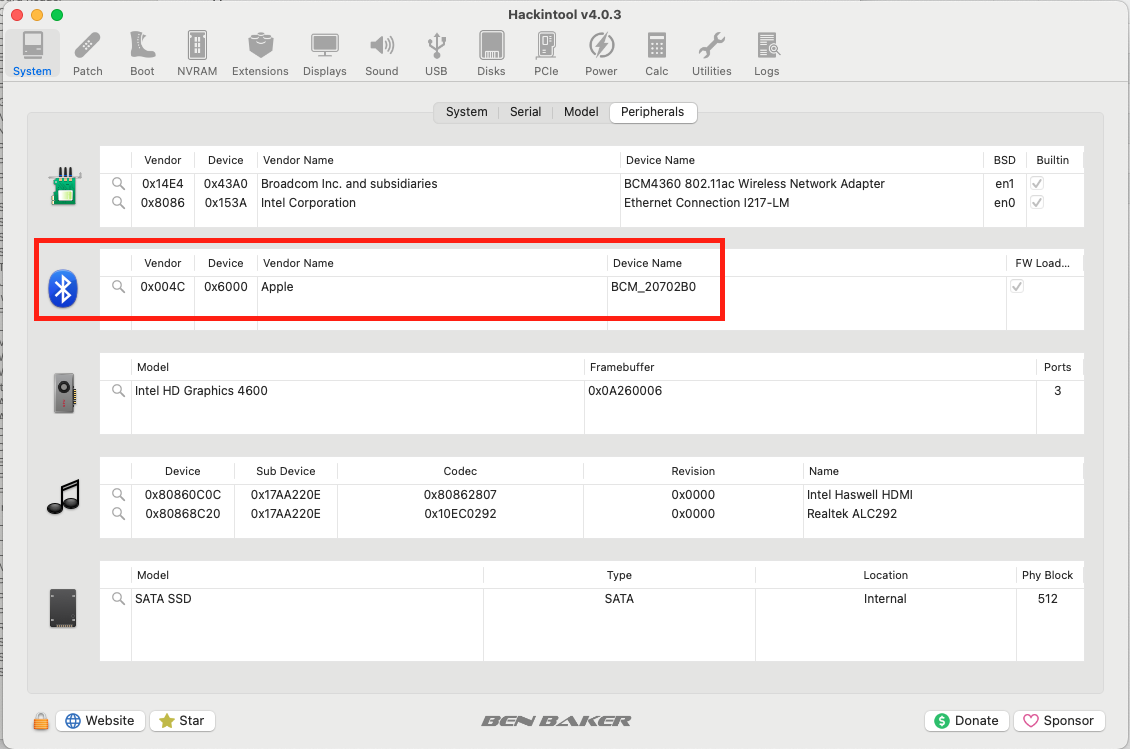

Max.1974 Posted October 3, 2023 Share Posted October 3, 2023 (edited) 14 hours ago, HyperX7 said: You can find my EFI folder at the link. My system is the Asus Vivobook i7-10870 written in my signature. Today I started using it by removing the amp=0x80 command from bootargs. Thanks. https://disk.yandex.com/d/ivfCACbzDSIDCQ Hi @HyperX7 im change some little thinks on your config.plist, change some kexts and add some boot-args. You need use Hackintool and extract all plists reference to your devices only about BCM4352 reference, and insert on Opencore in DeviceProperties menu. Need get your own internal@.... And them add compatible > String > pcie14e4,43a0 After that not forget use only one EFI on boot, and type ResetNvram Your AirportBrcmfixup.kext is loading, because to my EFI works like that. If your was a wireless card "native", you will get KP. Here your EFI Hope help you. EFI Hyperx Sonoma VivoBook i7-10870 UHD 630.zip Edited October 3, 2023 by Max.1974 1 Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 3, 2023 Share Posted October 3, 2023 Guys I have a weird problem I did bring back wifi successfully but I ran into some issues. using amfi=0x80 boot arg will block some apps like creative cloud which I really need, I used AMFIPass.kext instead the boot arg but when I use OCLP and root patches, the system will not boot without that boot args any idea? I tried amfipassbeta boot args but didnt help opencore 0.9.5 OCLP: 1.0.1 iMac19,1 brcm4360 (archer t9) z390-p Link to comment Share on other sites More sharing options...
Max.1974 Posted October 3, 2023 Share Posted October 3, 2023 3 minutes ago, amirali mahmoudi said: Guys I have a weird problem I did bring back wifi successfully but I ran into some issues. using amfi=0x80 boot arg will block some apps like creative cloud which I really need, I used AMFIPass.kext instead the boot arg but when I use OCLP and root patches, the system will not boot without that boot args any idea? I tried amfipassbeta boot args but didnt help opencore 0.9.5 OCLP: 1.0.1 iMac19,1 brcm4360 (archer t9) z390-p Are you try this boot-args? ipc_control_port_options=0 -lilubetaall Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 (edited) 2 hours ago, Max.1974 said: Are you try this boot-args? ipc_control_port_options=0 -lilubetaall Didnt work system not booting Edited October 4, 2023 by amirali mahmoudi 1 Link to comment Share on other sites More sharing options...
Max.1974 Posted October 4, 2023 Share Posted October 4, 2023 7 hours ago, amirali mahmoudi said: Didnt work system not booting If you wanted, share your EFI to analyze Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 (edited) 2 hours ago, Max.1974 said: If you wanted, share your EFI to analyze sure I would be appreciated if you look into it. coffee lake, z390 p, rx590 8gb, BRCM 4360 ( Archer T9) config.plist Edited October 4, 2023 by amirali mahmoudi Link to comment Share on other sites More sharing options...
Cyberdevs Posted October 4, 2023 Share Posted October 4, 2023 10 hours ago, amirali mahmoudi said: Guys I have a weird problem I did bring back wifi successfully but I ran into some issues. using amfi=0x80 boot arg will block some apps like creative cloud which I really need, I used AMFIPass.kext instead the boot arg but when I use OCLP and root patches, the system will not boot without that boot args any idea? I tried amfipassbeta boot args but didnt help opencore 0.9.5 OCLP: 1.0.1 iMac19,1 brcm4360 (archer t9) z390-p If you are using AMFIPass.kext you need to add -amfipassbeta boot arg otherwise it won't work. 1 Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 3 minutes ago, Cyberdevs said: If you are using AMFIPass.kext you need to add -amfipassbeta boot arg otherwise it won't work. I've Added that boot args but still not booting without amfi=0x80 Link to comment Share on other sites More sharing options...
Cyberdevs Posted October 4, 2023 Share Posted October 4, 2023 8 minutes ago, amirali mahmoudi said: I've Added that boot args but still not booting without amfi=0x80 In the config file you've attached there is no -amfipassbeta boot arg Link to comment Share on other sites More sharing options...
SavageAUS Posted October 4, 2023 Author Share Posted October 4, 2023 (edited) 39 minutes ago, amirali mahmoudi said: sure I would be appreciated if you look into it. coffee lake, z390 p, rx590 8gb, BRCM 4360 ( Archer T9) config.plist 42.94 kB · 0 downloads Do you really need all the tools? Misc > Tools. Device Properties look a lil funky for iGPU. NVRAM > ADD you have alcid as boot arg and also listed in device properties. Kernel > ADD you have intel wifi / BT kexts but your trying to use Broadcom? Also might help if you list Lilu and VirtualSMC first in the kext order. config.plist Make sure you have latest AMFIPass https://github.com/dortania/OpenCore-Legacy-Patcher/blob/main/payloads/Kexts/Acidanthera/AMFIPass-v1.3.1-RELEASE.zip Edited October 4, 2023 by SavageAUS Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 2 minutes ago, SavageAUS said: Do you really need all the tools? Misc > Tools. Device Properties look a lil funky for iGPU. NVRAM > ADD you have alcid as boot arg and also listed in device properties. Kernel > ADD you have intel wifi / BT kexts but your trying to use Broadcom? Also might help if you list Lilu and VirtualSMC first in the kext order. I'll remove alcid my BT ( handoff) won't work without intel kext I fixed modern wifi and it's working fine only with amfi=-x80 boot args which block creative cloud from running. and the system will not boot ( when root patches ) without amfi=0x80 and that is my problem. I don't know why AMFIPass.kext won't work for me If you have any suggestions or if you can please change my config.plist so I would be really appreciated Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 (edited) 1 hour ago, Cyberdevs said: In the config file you've attached there is no -amfipassbeta boot arg I've tried amfipassbeta but the problem still exist I found that bluetoolfixup kext prevent system from booting Edited October 4, 2023 by amirali mahmoudi Link to comment Share on other sites More sharing options...
amirali mahmoudi Posted October 4, 2023 Share Posted October 4, 2023 1 hour ago, SavageAUS said: Do you really need all the tools? Misc > Tools. Device Properties look a lil funky for iGPU. NVRAM > ADD you have alcid as boot arg and also listed in device properties. Kernel > ADD you have intel wifi / BT kexts but your trying to use Broadcom? Also might help if you list Lilu and VirtualSMC first in the kext order. config.plist 57.83 kB · 1 download Make sure you have latest AMFIPass https://github.com/dortania/OpenCore-Legacy-Patcher/blob/main/payloads/Kexts/Acidanthera/AMFIPass-v1.3.1-RELEASE.zip I've tested the config you sent. system boot after root patches, but no BT and no wifi I've tried many things, and found out the blutoolfixup kext prevent system from boot after root patches without amfi=0x80 and when I remove that kext I dont BT and WIFI still disabled! Link to comment Share on other sites More sharing options...
Cyberdevs Posted October 4, 2023 Share Posted October 4, 2023 6 minutes ago, amirali mahmoudi said: I've tested the config you sent. system boot after root patches, but no BT and no wifi I've tried many things, and found out the blutoolfixup kext prevent system from boot after root patches without amfi=0x80 and when I remove that kext I dont BT and WIFI still disabled! Please update your signature with your hardware specs so people can help you easier. Link to comment Share on other sites More sharing options...
