On 8/26/2021 at 8:49 PM, gnpaone said:

Major bugs:

Firstly, everything (all functions similar to original Mac/original supported Apple Card readers) works fine and upto the mark for a standard user and could not be complained and is almost perfect.

1. After multiple hotplugs (both short interval between hotplugs as well as long intervals - less likely this issue occurs like 20-25 times for long interval case (here "interval" in the sense consists time gap between removing sdcard from reader and inserting, as well as inserting sdcard for a long time and removing the sdcard and inserting sdcard again - both cases) like 8-10 times, the card reader fails to detect the card, so now I removed the card and inserted back and it detects card in IOReg alongwith partitions but disk utility and Mac doesn't show up partitions to open, read and write; now I again removed my card and inserted, only now it detects as normal. This happens for every some number of hotplugs. (I uploaded my logs below but I am not sure if you can figure out that number of hotplugs to find the issue, nevertheless it's the 5th or 6th insertion (from last) of card into the reader)

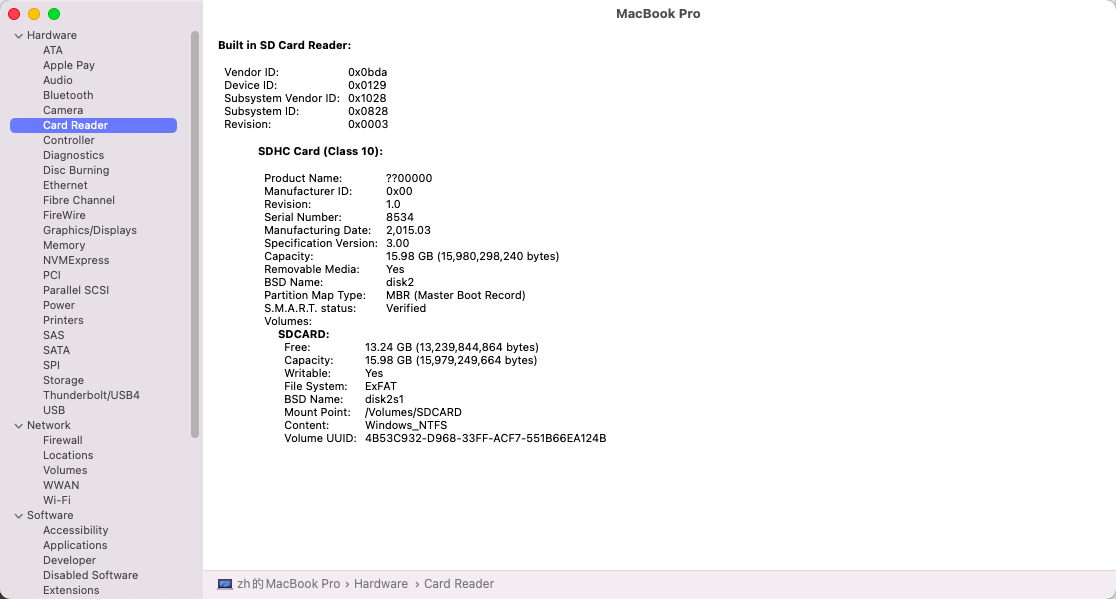

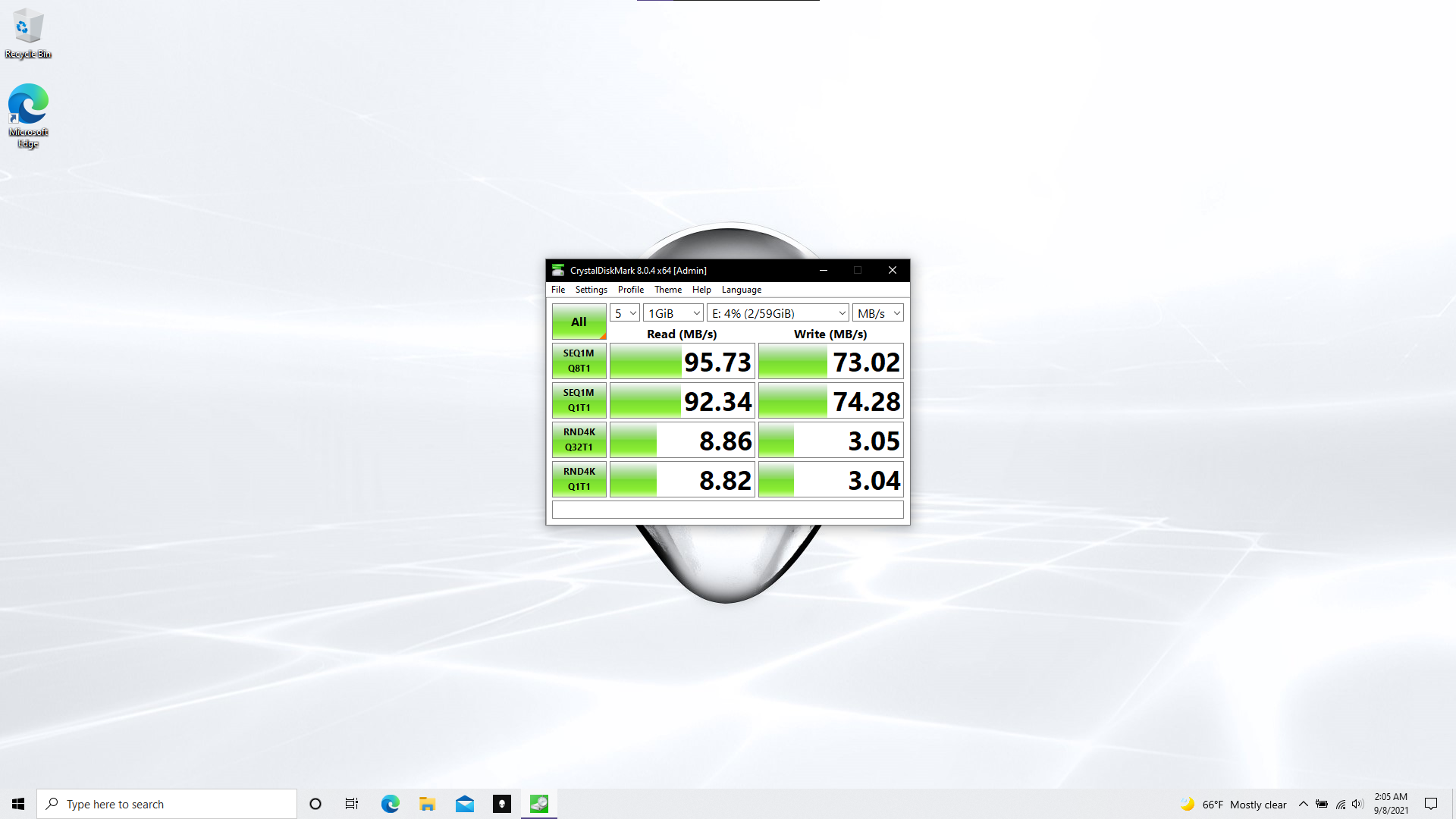

@Austere.J I am using the newly released v0.9.7 and so far I managed to capture the screenshot of this bug. It not only occurs at some specific number of times but at any number of card insertions including first insertion after boot. Please check the insertion_1 screenshot as well as it's log attached below in zip file.



Edit: I forgot to refresh my system information in second insertion screenshot 😅 so please don't think it doesn't display, it displays correct info.

rtsx-25dfa14.zip

Edited by gnpaone
Link to comment
Share on other sites

report

1. sleep with inserted sdcard

2. wakeup with inserted sdcard, screen is black, i can't see anything. i have to force reboot



1. sleep without inserted sdcard

2. wakeup without inserted sdcard, screen is back. it's normal.



thanks

Link to comment
Share on other sites

On 6/19/2021 at 7:56 PM, Allan said:

Tested here, but my RTL8411B PCI Express Card Reader (0x10EC5287) is on the Not Yet list 😕



I've followed the instruction to use the Debug version btw, if there's anything I can do to help, count with me.



I'm waiting 😁







It's working fine on my RTL8411B so far.  Still testing but it boots up and shows up in System Info.  Thanks!

  • Like 1
Link to comment
Share on other sites

Ohh, but it's working for me (I mean the sleep function with card inserted). I think it specific/depends on whole hardware/cpu (like kaby lake, ice lake, etc probably). Are u using Opencore or Clover? And cpu model please? I think it's Clover and i7 6500u right (according to your signature)?
i7 6500u and OC. there was no this issue in previous alpha verion.
go sleep is no problem with inserted sdcard.
just when wakeup with inserted sdcard from sleep, show black screen

Sent from my SM-N960N using Tapatalk

Link to comment
Share on other sites

RTS5129

I'm almost always getting a kernel panic when putting the computer to sleep with the card inserted. Out of curiosity, I ejected the card from disk utility and did not physically remove the card, and the panic still occurs.

I'm not good with logs, I just saved the report that came up when rebooted.

report.txt

Link to comment
Share on other sites

On 8/28/2021 at 6:12 PM, Sherlocks said:

report

1. sleep with inserted sdcard

2. wakeup with inserted sdcard, screen is black, i can't see anything. i have to force reboot



1. sleep without inserted sdcard

2. wakeup without inserted sdcard, screen is back. it's normal.



thanks

Yeah, you are right, the recent version creates this issue. It's fine with previous builds. I cleared my nvram and tested and it's exactly the same issue as you stated (previously I didn't clear, sorry)

Edited by gnpaone
Link to comment
Share on other sites

Sleep Wake failure in EFI

Failure code:: 0x00000000 0x0000001f

Please IGNORE the below stackshot

================================================================
Date/Time:        2021-08-30 16:02:01.336 +0530
OS Version:       ??? ??? (Build ???)
Architecture:     x86_64
Report Version:   32

Data Source:      Stackshots
Shared Cache:     0C9EB0DE-F5CE-3AFC-8F08-0C6DB1E7FC44 slid base address 0x7fff20061000, slide 0x61000

Event:            Sleep Wake Failure
Duration:         0.00s
Steps:            1

Boot args:        -wegnoegpu msgbuf=10485760 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Time Awake Since Boot: 21s



Process:          swd [363]
Architecture:     x86_64
Footprint:        380 KB
Time Since Fork:  0s
Num samples:      1 (1)

  Thread 0x94e    1 sample (1)    priority 4 (base 4)
  <thread QoS background (requested background), thread darwinbg, process darwinbg, IO tier 2>
  1  start + 1 (libdyld.dylib + 89917) [0x7fff2038af3d] 1
    1  ??? [0x109d20454] 1
      1  ??? [0x109d201e8] 1
        1  __stack_snapshot_with_config + 10 (libsystem_kernel.dylib + 146934) [0x7fff2035cdf6] 1
         *1  ??? [0xffffff80002331f6] 1
           *1  ??? [0xffffff800094001e] 1
             *1  ??? [0xffffff800084a211] 1
               *1  ??? [0xffffff800025651f] 1
                 *1  ??? [0xffffff800028d86d] (running) 1

  Binary Images:
        0x7fff20339000 -     0x7fff20368fff  libsystem_kernel.dylib (7195.141.2) <B51DEA59-1260-35C6-B7B6-AA6D8459ECEC>  /usr/lib/system/libsystem_kernel.dylib
        0x7fff20375000 -     0x7fff203b0fff  libdyld.dylib (852.2)               <11007DE4-ABE1-3079-BF1C-4D0EADA884DD>  /usr/lib/system/libdyld.dylib

It happens for recently released versions (including nightly builds).



Detailed report:

panic(cpu 0 caller 0xffffff80191c57d6): Kernel trap at 0xffffff801ee8b1a4, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000000c8, CR3: 0x000000001fbe7000, CR4: 0x00000000003626e0
RAX: 0x0000000000000000, RBX: 0xffffff936bd171e0, RCX: 0xffffff936ba4fe08, RDX: 0xffffff801ee6f990
RSP: 0xffffffa0bff9bd00, RBP: 0xffffffa0bff9bd20, RSI: 0xffffffa0bff9bd58, RDI: 0x0000000000000000
R8:  0x0000000000000000, R9:  0x0000000000000000, R10: 0x0000000000000000, R11: 0x0000000000000008
R12: 0xffffff936bd171e0, R13: 0xffffff801ee7ac10, R14: 0x0000000000000000, R15: 0xffffff936ba4fcc0
RFL: 0x0000000000010286, RIP: 0xffffff801ee8b1a4, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00000000000000c8, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffffa0bff9b720 : 0xffffff801908e04d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffffa0bff9b770 : 0xffffff80191d4e13 mach_kernel : _kdp_i386_trap + 0x143
0xffffffa0bff9b7b0 : 0xffffff80191c540a mach_kernel : _kernel_trap + 0x55a
0xffffffa0bff9b800 : 0xffffff8019032a2f mach_kernel : _return_from_trap + 0xff
0xffffffa0bff9b820 : 0xffffff801908d86d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffa0bff9b940 : 0xffffff801908db63 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffffa0bff9b9b0 : 0xffffff801989dc0a mach_kernel : _panic + 0x54
0xffffffa0bff9ba20 : 0xffffff80191c57d6 mach_kernel : _sync_iss_to_iks + 0x2c6
0xffffffa0bff9bba0 : 0xffffff80191c54bd mach_kernel : _kernel_trap + 0x60d
0xffffffa0bff9bbf0 : 0xffffff8019032a2f mach_kernel : _return_from_trap + 0xff
0xffffffa0bff9bc10 : 0xffffff801ee8b1a4 science.firewolf.rtsx : __ZN14IOSDHostDriver20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x14
0xffffffa0bff9bd20 : 0xffffff801ee6fb75 science.firewolf.rtsx : __ZN14IOSDHostDevice20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x65
0xffffffa0bff9bd80 : 0xffffff801ee73613 science.firewolf.rtsx : __ZN27RealtekCardReaderController20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x53
0xffffffa0bff9bdb0 : 0xffffff801ee7acc9 science.firewolf.rtsx : __ZN30RealtekUSBCardReaderController22fetchDeviceStatusGatedEP18IOTimerEventSource + 0xb9
0xffffffa0bff9bde0 : 0xffffff80197f47e5 mach_kernel : __ZN18IOTimerEventSource15timeoutSignaledEPvS0_ + 0xa5
0xffffffa0bff9be50 : 0xffffff80197f46e6 mach_kernel : __ZN18IOTimerEventSource17timeoutAndReleaseEPvS0_ + 0xc6
0xffffffa0bff9be80 : 0xffffff80190d4605 mach_kernel : _thread_call_delayed_timer + 0x4a5
0xffffffa0bff9bef0 : 0xffffff80190d5574 mach_kernel : _thread_call_delayed_timer + 0x1414
0xffffffa0bff9bfa0 : 0xffffff801903213e mach_kernel : _call_continuation + 0x2e
      Kernel Extensions in backtrace:
         science.firewolf.rtsx(0.9.7)[BD84FF5A-47A2-3938-AC4F-0ED2E6B1FA30]@0xffffff801ee52000->0xffffff801ef4dfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[F7AA4BAF-35CF-3784-A50C-5FD9CDCBE488]@0xffffff801bb6c000->0xffffff801bb94fff
            dependency: com.apple.iokit.IOStorageFamily(2.1)[6CD2A6EC-9FFC-370D-8FEE-C8016E5C6BBA]@0xffffff801bc6f000->0xffffff801bc80fff
            dependency: com.apple.iokit.IOUSBHostFamily(1.2)[3FDCC3CF-64A8-3794-A52C-5D8DE43A8265]@0xffffff801be8a000->0xffffff801bf18fff

Process name corresponding to current thread: kernel_task
Boot args: -wegnoegpu msgbuf=10485760 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G95

Kernel version:
Darwin Kernel Version 20.6.0: Wed Jun 23 00:26:31 PDT 2021; root:xnu-7195.141.2~5/RELEASE_X86_64
Kernel UUID: FECBF22B-FBBE-36DE-9664-F12A7DD41D3D
KernelCache slide: 0x0000000018e00000
KernelCache base:  0xffffff8019000000
Kernel slide:      0x0000000018e10000
Kernel text base:  0xffffff8019010000
__HIB  text base: 0xffffff8018f00000
System model name: MacBookPro16,1
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 1540132268209
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000016697097146
  Sleep   : 0x000001666daa06c2 0x000000075614680c 0x0000000000000000
  Wake    : 0x000001666fbde45e 0x00000000ff3046ea 0x000001666e2529c3

rtsx-25dfa14-x.log.zip

rtsx-25dfa14-x1.log.zip

Edited by gnpaone
Link to comment
Share on other sites

Any way to get mine working with this kext?

I have both kexts RealtekCardReaderFriend.kext & RealtekCardReader.kext

I am trying with a Samsung 32 EVO SDHC & a generic SDHC 4Gb on my laptop (specs in sig) on Monterey.

Screen Shot 2021-08-30 at 11.12.38 pm.png

Screen Shot 2021-08-30 at 11.11.54 pm.png

Edited by SavageAUS
Link to comment
Share on other sites

Thanks for adding support for the RTS5260!

The driver is not fully working for me yet, but it seems that it’s almost ready.

It seems to detect my card reader, but is unable to mount a card in Finder/Disk Utility.

On a good note, it looks like your driver knows when a card is connected/disconnected which is a great sign!



(please see attached screenshot/boot log with a card inserted)

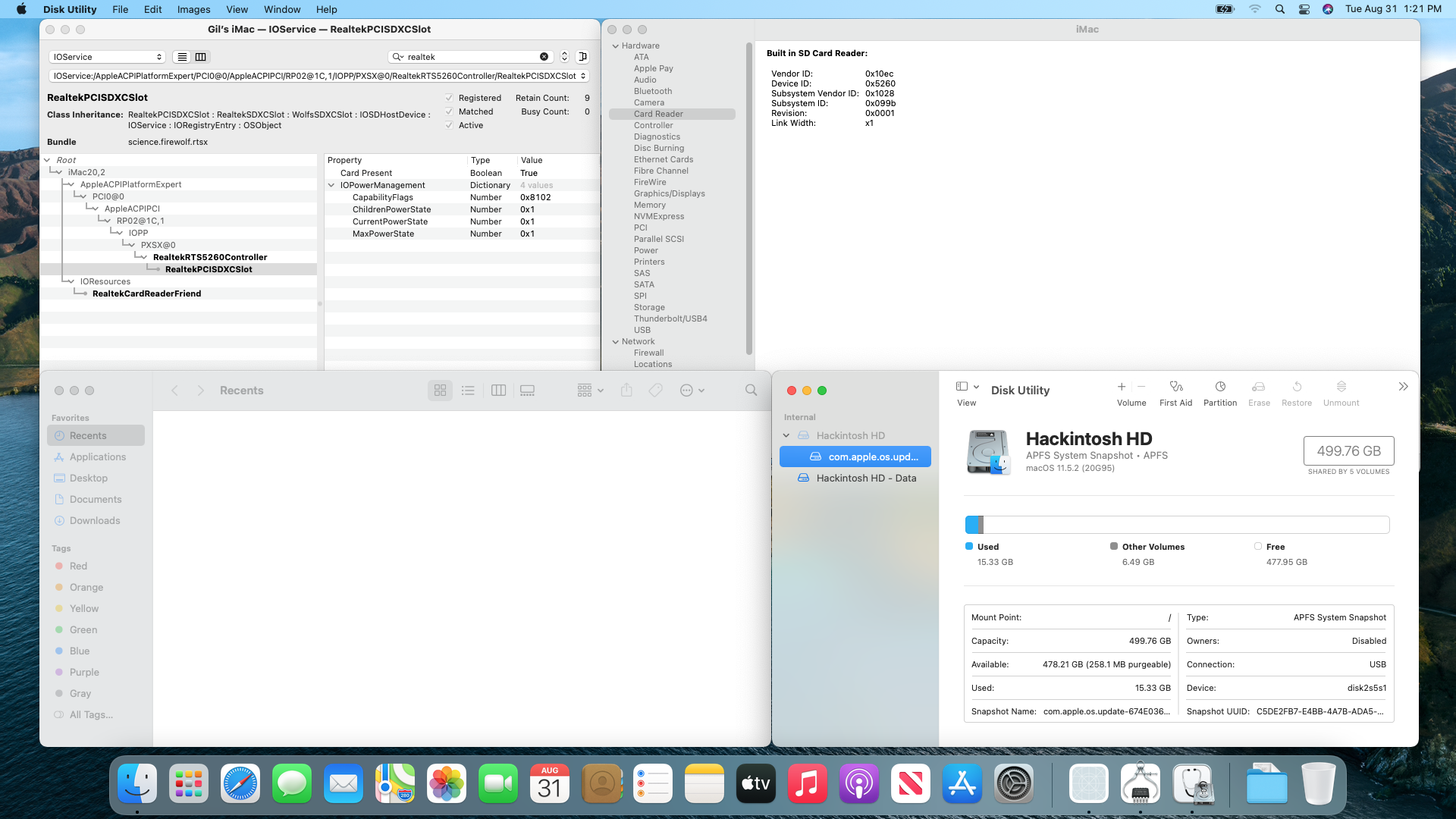

RTS5260 Nearly Working.png

Boot Log for RTS5260.txt

Link to comment
Share on other sites

On 8/28/2021 at 5:42 AM, Sherlocks said:

report

1. sleep with inserted sdcard

2. wakeup with inserted sdcard, screen is black, i can't see anything. i have to force reboot



@Sherlocks This is probably the sign of a kernel panic when your laptop wakes up.



On 8/29/2021 at 8:26 AM, whatnameisit said:

I'm almost always getting a kernel panic when putting the computer to sleep with the card inserted.



@whatnameisit So the kernel panic happened when your laptop went to sleep.



On 8/30/2021 at 3:32 AM, gnpaone said:

Yeah, you are right, the recent version creates this issue. It's fine with previous builds. I cleared my nvram and tested and it's exactly the same issue as you stated (previously I didn't clear, sorry)



@gnpaone I am assuming that you had the same issue when your laptop went to sleep.



I didn't observe this kernel panic before, so please try 0.9.7 Nightly Build 1 and see if the issue is resolved.



------------------------------------------------------------------------------------------------------------



On 8/30/2021 at 7:00 AM, SavageAUS said:

Any way to get mine working with this kext?



@SavageAUS Please follow the instructions, read the FAQs and attach kernel logs as requested.



15 hours ago, Fortitude said:

(please see attached screenshot/boot log with a card inserted)



@Fortitude Your kernel log is incomplete. See above and attach logs as requested.

Link to comment
Share on other sites

13 hours ago, Austere.J said:



@gnpaone I am assuming that you had the same issue when your laptop went to sleep.



I didn't observe this kernel panic before, so please try 0.9.7 Nightly Build 1 and see if the issue is resolved.



I tried the latest nightly build, same issue sir. I still get kernel panic upon wake, mac goes to sleep normally but it cannot wake, I think some process is stopping from waking, this happens only when sdcard is inserted during wake.



panic(cpu 0 caller 0xffffff80045c57d6): Kernel trap at 0xffffff800a28c9b4, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000000c8, CR3: 0x000000000afed000, CR4: 0x00000000003626e0
RAX: 0x0000000000000000, RBX: 0xffffff93571b7560, RCX: 0xffffff9356815fc8, RDX: 0xffffff800a270510
RSP: 0xffffffa0ab723d00, RBP: 0xffffffa0ab723d20, RSI: 0xffffffa0ab723d58, RDI: 0x0000000000000000
R8:  0x0000000000000000, R9:  0x0000000000000000, R10: 0x0000000000000000, R11: 0x0000000000000008
R12: 0xffffff93571b7560, R13: 0xffffff800a27bea0, R14: 0x0000000000000000, R15: 0xffffff9356815e80
RFL: 0x0000000000010286, RIP: 0xffffff800a28c9b4, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00000000000000c8, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffffa0ab723720 : 0xffffff800448e04d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffffa0ab723770 : 0xffffff80045d4e13 mach_kernel : _kdp_i386_trap + 0x143
0xffffffa0ab7237b0 : 0xffffff80045c540a mach_kernel : _kernel_trap + 0x55a
0xffffffa0ab723800 : 0xffffff8004432a2f mach_kernel : _return_from_trap + 0xff
0xffffffa0ab723820 : 0xffffff800448d86d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffa0ab723940 : 0xffffff800448db63 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffffa0ab7239b0 : 0xffffff8004c9dc0a mach_kernel : _panic + 0x54
0xffffffa0ab723a20 : 0xffffff80045c57d6 mach_kernel : _sync_iss_to_iks + 0x2c6
0xffffffa0ab723ba0 : 0xffffff80045c54bd mach_kernel : _kernel_trap + 0x60d
0xffffffa0ab723bf0 : 0xffffff8004432a2f mach_kernel : _return_from_trap + 0xff
0xffffffa0ab723c10 : 0xffffff800a28c9b4 science.firewolf.rtsx : __ZN14IOSDHostDriver20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x14
0xffffffa0ab723d20 : 0xffffff800a270715 science.firewolf.rtsx : __ZN14IOSDHostDevice20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x65
0xffffffa0ab723d80 : 0xffffff800a2741b3 science.firewolf.rtsx : __ZN27RealtekCardReaderController20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x53
0xffffffa0ab723db0 : 0xffffff800a27bf59 science.firewolf.rtsx : __ZN30RealtekUSBCardReaderController22fetchDeviceStatusGatedEP18IOTimerEventSource + 0xb9
0xffffffa0ab723de0 : 0xffffff8004bf47e5 mach_kernel : __ZN18IOTimerEventSource15timeoutSignaledEPvS0_ + 0xa5
0xffffffa0ab723e50 : 0xffffff8004bf46e6 mach_kernel : __ZN18IOTimerEventSource17timeoutAndReleaseEPvS0_ + 0xc6
0xffffffa0ab723e80 : 0xffffff80044d4605 mach_kernel : _thread_call_delayed_timer + 0x4a5
0xffffffa0ab723ef0 : 0xffffff80044d5574 mach_kernel : _thread_call_delayed_timer + 0x1414
0xffffffa0ab723fa0 : 0xffffff800443213e mach_kernel : _call_continuation + 0x2e
      Kernel Extensions in backtrace:
         science.firewolf.rtsx(0.9.7)[3E3E22A0-A604-3E59-9684-BB6FBC7B7E87]@0xffffff800a252000->0xffffff800a353fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[F7AA4BAF-35CF-3784-A50C-5FD9CDCBE488]@0xffffff8006f6c000->0xffffff8006f94fff
            dependency: com.apple.iokit.IOStorageFamily(2.1)[6CD2A6EC-9FFC-370D-8FEE-C8016E5C6BBA]@0xffffff800706f000->0xffffff8007080fff
            dependency: com.apple.iokit.IOUSBHostFamily(1.2)[3FDCC3CF-64A8-3794-A52C-5D8DE43A8265]@0xffffff800728a000->0xffffff8007318fff

Process name corresponding to current thread: kernel_task
Boot args: -wegnoegpu msgbuf=10485760 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G95

Kernel version:
Darwin Kernel Version 20.6.0: Wed Jun 23 00:26:31 PDT 2021; root:xnu-7195.141.2~5/RELEASE_X86_64
Kernel UUID: FECBF22B-FBBE-36DE-9664-F12A7DD41D3D
KernelCache slide: 0x0000000004200000
KernelCache base:  0xffffff8004400000
Kernel slide:      0x0000000004210000
Kernel text base:  0xffffff8004410000
__HIB  text base: 0xffffff8004300000
System model name: MacBookPro16,1
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 122626517647
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000001c8d1c2fe9
  Sleep   : 0x0000001c64e5018a 0x0000000771979b42 0x0000000000000000
  Wake    : 0x0000001c66f8a130 0x0000000102d04486 0x0000001c6560ce83



rtsx-f4eca02.log.zip

Edited by gnpaone
Link to comment
Share on other sites

12 hours ago, Austere.J said:
On 8/30/2021 at 12:26 AM, whatnameisit said:





@whatnameisit So the kernel panic happened when your laptop went to sleep.

It's actually on wake. It's my bad I didn't state it correctly.

I downloaded the nightly build and it still panics upon wake.

panic(cpu 0 caller 0xffffff8019bc57d6): Kernel trap at 0xffffff801db759b4, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000000c8, CR3: 0x0000000023c4b000, CR4: 0x00000000000226e0
RAX: 0x0000000000000000, RBX: 0xffffff936e0d52a0, RCX: 0xffffff936dd085e8, RDX: 0xffffff801db59510
RSP: 0xffffffb0adefbd00, RBP: 0xffffffb0adefbd20, RSI: 0xffffffb0adefbd58, RDI: 0x0000000000000000
R8:  0x0000000000000000, R9:  0x0000000000000000, R10: 0x0000000000000000, R11: 0x0000000000000008
R12: 0xffffff936e0d52a0, R13: 0xffffff801db64ea0, R14: 0x0000000000000000, R15: 0xffffff936dd084a0
RFL: 0x0000000000010286, RIP: 0xffffff801db759b4, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x00000000000000c8, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffffb0adefb720 : 0xffffff8019a8e04d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffffb0adefb770 : 0xffffff8019bd4e13 mach_kernel : _kdp_i386_trap + 0x143
0xffffffb0adefb7b0 : 0xffffff8019bc540a mach_kernel : _kernel_trap + 0x55a
0xffffffb0adefb800 : 0xffffff8019a32a2f mach_kernel : _return_from_trap + 0xff
0xffffffb0adefb820 : 0xffffff8019a8d86d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffb0adefb940 : 0xffffff8019a8db63 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffffb0adefb9b0 : 0xffffff801a29dc0a mach_kernel : _panic + 0x54
0xffffffb0adefba20 : 0xffffff8019bc57d6 mach_kernel : _sync_iss_to_iks + 0x2c6
0xffffffb0adefbba0 : 0xffffff8019bc54bd mach_kernel : _kernel_trap + 0x60d
0xffffffb0adefbbf0 : 0xffffff8019a32a2f mach_kernel : _return_from_trap + 0xff
0xffffffb0adefbc10 : 0xffffff801db759b4 science.firewolf.rtsx : __ZN14IOSDHostDriver20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x14
0xffffffb0adefbd20 : 0xffffff801db59715 science.firewolf.rtsx : __ZN14IOSDHostDevice20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x65
0xffffffb0adefbd80 : 0xffffff801db5d1b3 science.firewolf.rtsx : __ZN27RealtekCardReaderController20onSDCardRemovedGatedEPN8IOSDCard10CompletionE + 0x53
0xffffffb0adefbdb0 : 0xffffff801db64f59 science.firewolf.rtsx : __ZN30RealtekUSBCardReaderController22fetchDeviceStatusGatedEP18IOTimerEventSource + 0xb9
0xffffffb0adefbde0 : 0xffffff801a1f47e5 mach_kernel : __ZN18IOTimerEventSource15timeoutSignaledEPvS0_ + 0xa5
0xffffffb0adefbe50 : 0xffffff801a1f46e6 mach_kernel : __ZN18IOTimerEventSource17timeoutAndReleaseEPvS0_ + 0xc6
0xffffffb0adefbe80 : 0xffffff8019ad4605 mach_kernel : _thread_call_delayed_timer + 0x4a5
0xffffffb0adefbef0 : 0xffffff8019ad5574 mach_kernel : _thread_call_delayed_timer + 0x1414
0xffffffb0adefbfa0 : 0xffffff8019a3213e mach_kernel : _call_continuation + 0x2e
      Kernel Extensions in backtrace:
         science.firewolf.rtsx(0.9.7)[3E3E22A0-A604-3E59-9684-BB6FBC7B7E87]@0xffffff801db3b000->0xffffff801dc3cfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[F7AA4BAF-35CF-3784-A50C-5FD9CDCBE488]@0xffffff801c56c000->0xffffff801c594fff
            dependency: com.apple.iokit.IOStorageFamily(2.1)[6CD2A6EC-9FFC-370D-8FEE-C8016E5C6BBA]@0xffffff801c66f000->0xffffff801c680fff
            dependency: com.apple.iokit.IOUSBHostFamily(1.2)[3FDCC3CF-64A8-3794-A52C-5D8DE43A8265]@0xffffff801c88a000->0xffffff801c918fff

Process name corresponding to current thread: kernel_task
Boot args: radpg=15 msgbuf=10485760 debug=0x100 keepsyms=1 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G95

Kernel version:
Darwin Kernel Version 20.6.0: Wed Jun 23 00:26:31 PDT 2021; root:xnu-7195.141.2~5/RELEASE_X86_64
Kernel UUID: FECBF22B-FBBE-36DE-9664-F12A7DD41D3D
KernelCache slide: 0x0000000019800000
KernelCache base:  0xffffff8019a00000
Kernel slide:      0x0000000019810000
Kernel text base:  0xffffff8019a10000
__HIB  text base: 0xffffff8019900000
System model name: MacPro6,1 (Mac-F60DEB81FF30ACF6)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 87609392051
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000001465ed407b
  Sleep   : 0x000000142d83bd2b 0x0000000c21c5113f 0x0000000000000000
  Wake    : 0x000000142e34d662 0x000000001467b121 0x000000142db61516



Edited by whatnameisit
test and attach log
Link to comment
Share on other sites

Any way to get mine working with this kext?
I have both kexts RealtekCardReaderFriend.kext & RealtekCardReader.kext
I am trying with a Samsung 32 EVO SDHC & a generic SDHC 4Gb on my laptop (specs in sig) on Monterey.

So from reading maybe I need to roll back to an earlier kext?


Sent from my iPhone using Tapatalk
Link to comment
Share on other sites

Hi.  I have the RTL8411B PCI-e card reader and everything looks great in terms of the card reader showing up in IOreg and System Info but I cannot get any flash drives to actually mount.  In my log, I saw several references to "Error: Failed to issue the ACMD41."  Something is telling me that this is significant.  I have attached my log file and hope you have a suggestion.  I believe @Allan is having the same problem.  Here is what you said in response to his report:



Quote

Your card did not respond to the CMD8, which means that it is probably a v1.00/v1.01 SD card. (i.e. an old SDSC card.)

Your card was then timed out when the host driver issued an ACMD41 to request the card to switch to 1.8V.

In this case, I have not implemented any fallback mechanism yet.



Mine is a brand new 512 GB SD Card made by Nuilaks.



Thanks.



RTL8411B rtsx.log



P.S.  Maybe this will help?  https://www.microchip.com/forums/m572718.aspx

Edited by mnfesq
  • Like 1
Link to comment
Share on other sites

On 8/28/2021 at 8:42 PM, Sherlocks said:

report

1. sleep with inserted sdcard

2. wakeup with inserted sdcard, screen is black, i can't see anything. i have to force reboot



1. sleep without inserted sdcard

2. wakeup without inserted sdcard, screen is back. it's normal.



thanks

This issue has been solved in the latest version 0.9.7, you can download and try.



RealtekCardReader_0.9.7_f4eca02_RELEASE.zip

  • Like 1
Link to comment
Share on other sites

21 minutes ago, ic005k said:

This issue has been solved in the latest version 0.9.7, you can download and try.

No, it doesn't work, the issue exists still. I tried debug version of that same kext in last post and as you said to try release version I tried it and same again, no change. Keep the sdcard inserted while waking from sleep and try it, going to sleep is not the issue.

Link to comment
Share on other sites

1 hour ago, ic005k said:

Here is the file I use, you can try it, good luck.
(Previously, there was a black screen and death on my side after waking up)

No, not working, sorry, what card reader you have?

Link to comment
Share on other sites

41 minutes ago, gnpaone said:

what card reader you have?

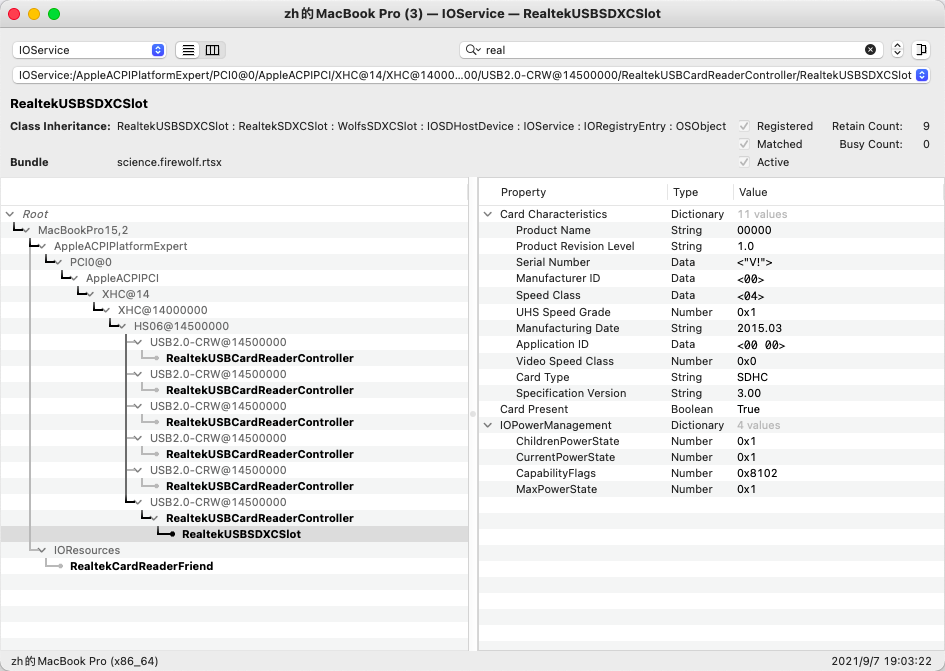

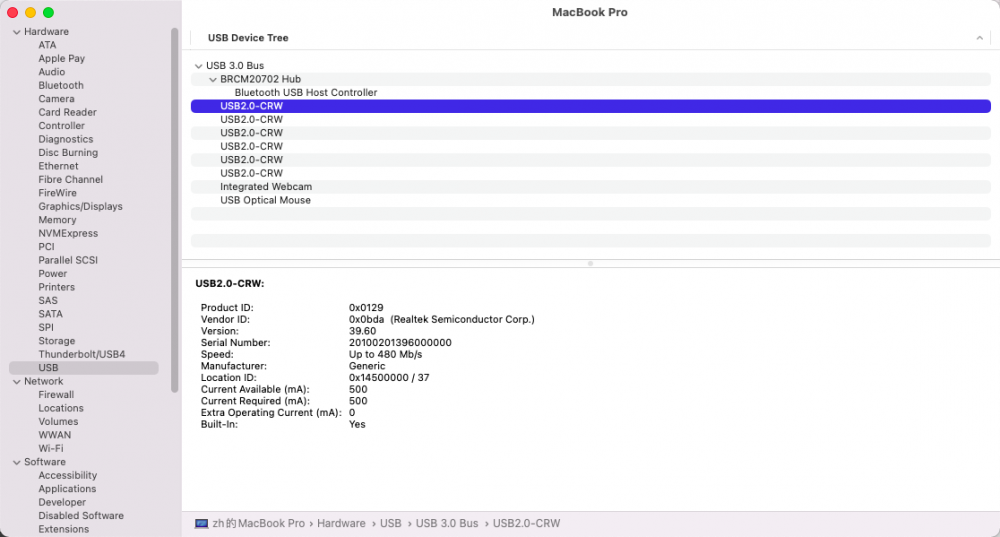

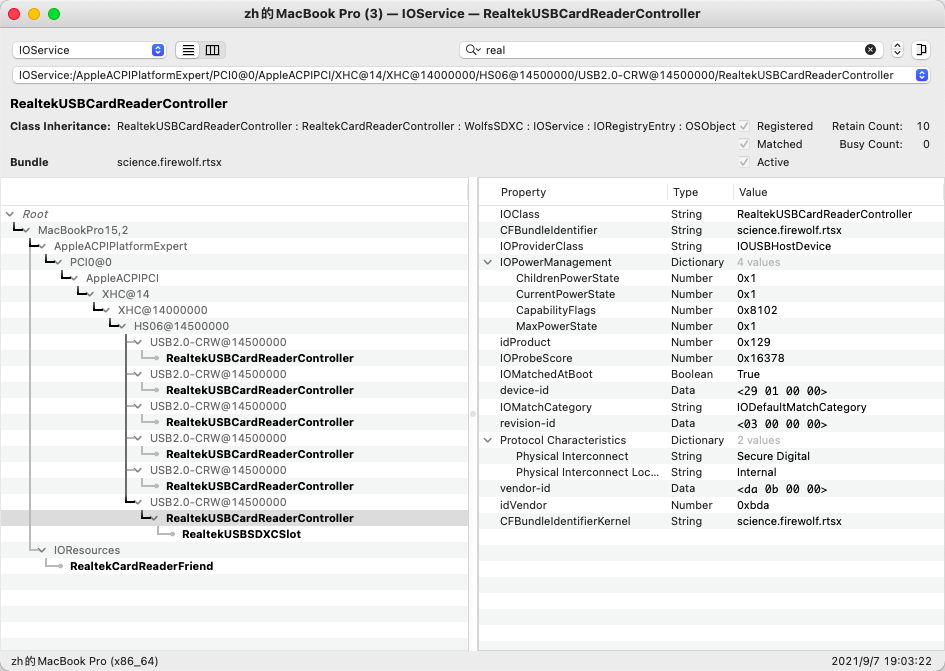

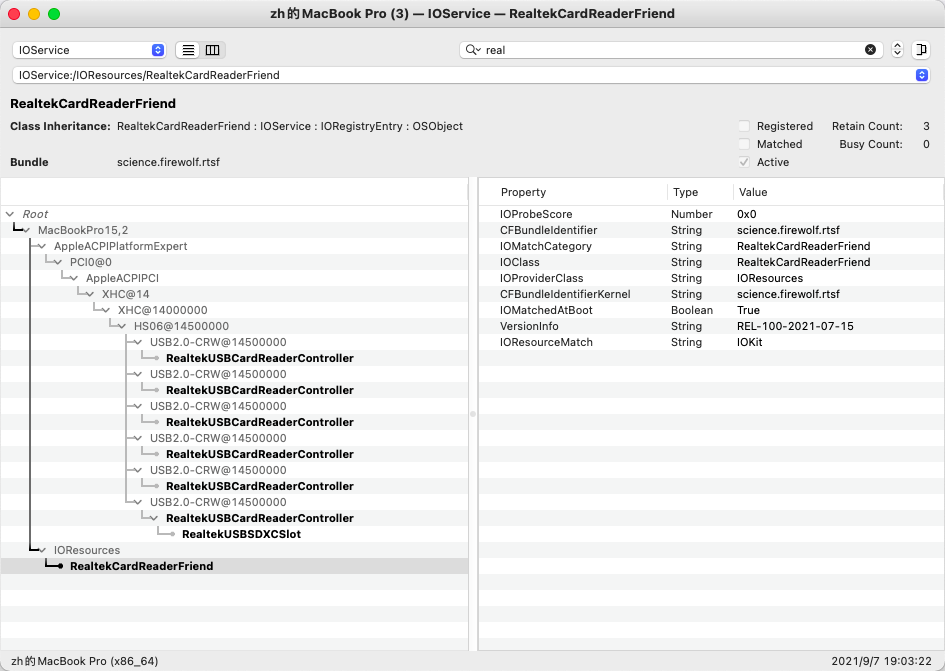

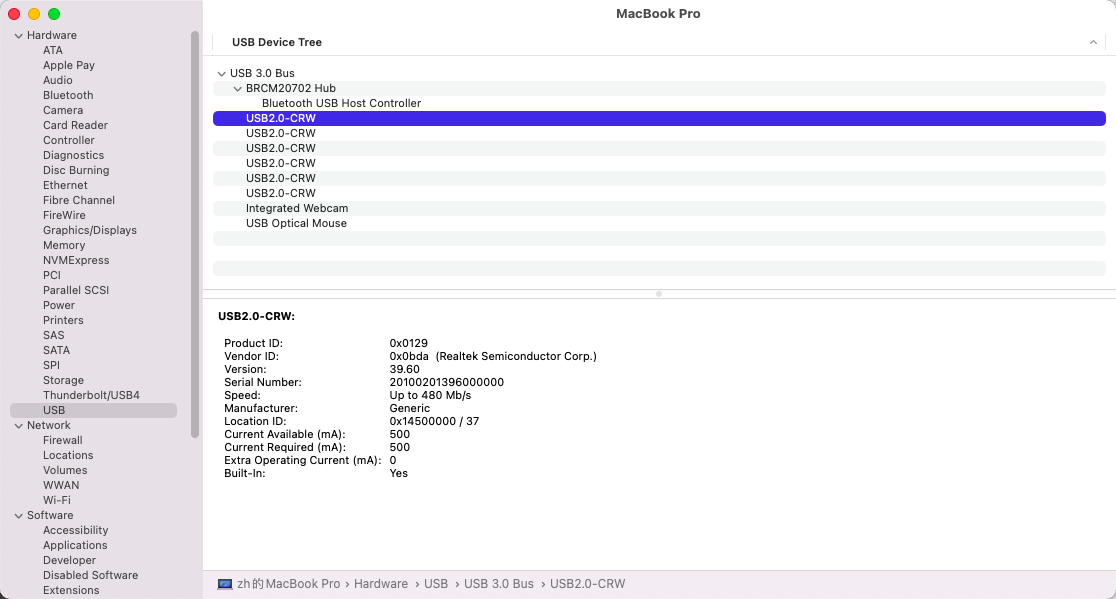

My machine is DELL 7472, please see the screenshot below for details. Everything works fine now, including the SD card still being loaded automatically after waking up from sleep with the SD card inserted.






Link to comment
Share on other sites

46 minutes ago, gnpaone said:

No, not working, sorry, what card reader you have?



also not working too.





1 minute ago, ic005k said:

My machine is DELL 7472, please see the screenshot below for details. Everything works fine now, including the SD card still being loaded automatically after waking up from sleep with the SD card inserted.








randomly success. almost get blackscreen after wakeup.

Link to comment
Share on other sites

1 hour ago, Sherlocks said:

also not working too.

After lots of experimenting with the settings, it's still not working. But I found one thing, when waking up it powers on everything like cpu fans ramp up, sdcard reader and usb gets power, the laptop detects the peripherals connected including sdcard, it tries to initialise sdcard, but I think some code is in a infinite loop after initialising/while initialising the card during wake up from sleep, maybe if there is a way to delay that process by milliseconds so that the process starts just after waking up instead of starting the process parallel @Austere.J. After lots of research apple says Failure code:: 0x00000000 0x0000001f occurs only in MacBook Pro 16 inch versions and it occurs due to various peripherals (when plugged in)(in this case it's card reader) not powering up properly in various cases and in response apple has asked users to disable power nap and apple has delayed starting of those kexts by milliseconds during wake to overcome that issue. It's clear from @ic005k EFI config that it is Macbook Pro 15 inch so working fine. One question, Users facing this issue using Macbook 16 inch?



On 8/30/2021 at 4:13 PM, gnpaone said:

Sleep Wake failure in EFI

Failure code:: 0x00000000 0x0000001f

Please IGNORE the below stackshot

================================================================
Date/Time:        2021-08-30 16:02:01.336 +0530
OS Version:       ??? ??? (Build ???)
Architecture:     x86_64
Report Version:   32

Data Source:      Stackshots
Shared Cache:     0C9EB0DE-F5CE-3AFC-8F08-0C6DB1E7FC44 slid base address 0x7fff20061000, slide 0x61000

Event:            Sleep Wake Failure
Duration:         0.00s
Steps:            1

Boot args:        -wegnoegpu msgbuf=10485760 chunklist-security-epoch=0 -chunklist-no-rev2-dev

Time Awake Since Boot: 21s



Process:          swd [363]
Architecture:     x86_64
Footprint:        380 KB
Time Since Fork:  0s
Num samples:      1 (1)

  Thread 0x94e    1 sample (1)    priority 4 (base 4)
  <thread QoS background (requested background), thread darwinbg, process darwinbg, IO tier 2>
  1  start + 1 (libdyld.dylib + 89917) [0x7fff2038af3d] 1
    1  ??? [0x109d20454] 1
      1  ??? [0x109d201e8] 1
        1  __stack_snapshot_with_config + 10 (libsystem_kernel.dylib + 146934) [0x7fff2035cdf6] 1
         *1  ??? [0xffffff80002331f6] 1
           *1  ??? [0xffffff800094001e] 1
             *1  ??? [0xffffff800084a211] 1
               *1  ??? [0xffffff800025651f] 1
                 *1  ??? [0xffffff800028d86d] (running) 1

  Binary Images:
        0x7fff20339000 -     0x7fff20368fff  libsystem_kernel.dylib (7195.141.2) <B51DEA59-1260-35C6-B7B6-AA6D8459ECEC>  /usr/lib/system/libsystem_kernel.dylib
        0x7fff20375000 -     0x7fff203b0fff  libdyld.dylib (852.2)               <11007DE4-ABE1-3079-BF1C-4D0EADA884DD>  /usr/lib/system/libdyld.dylib





1 hour ago, Sherlocks said:

randomly success. almost get blackscreen after wakeup.

It's the same black screen I face everytime.

  • Like 1
Link to comment
Share on other sites

×
×
  • Create New...
