Insanely HackBeast GA Z390 DESIGNARE - Thunderbolt - Full DSDT patches - Clover - OpenCore

194 posts in this topic

Recommended Posts

---TUTORIAL---

https://www.olarila.com/topic/5794-guide-install-macos-with-olarila-image-step-by-step-install-and-post-install-windows-or-mac/



--Original Post--

https://www.olarila.com/topic/6531-olarila-hackbeast-z390-designare-thunderbolt-full-dsdt-patches-clover-opencore/



--Bios/UEFI Settings--



*Update bios/uefi to F7+*

1- Go to M.I.T./Advanced Frequency Settings tab



Extreme Memory Profile (X.M.P.) - Profile 1



2- Go to BIOS tab



CSM Support - Disabled



3- Go to Peripherals/Thunderbolt(TM) Configuration tab



Security Level - No Security
Thunderbolt USB Support - Enabled
GPIO3 Force Pwr - Enabled



4- Go to Chipset tab



Internal Graphics - Enable



---CLOVER FOLDER---

https://olarila.com/files/Clover.Folder/EFI CLOVER Z390 DESIGNARE.zip

*Use this folder with FULL DSDT PATCHED



---OPENCORE FOLDER---

https://www.olarila.com/topic/6364-mojave-catalina-on-mobos-series-100200300-with-opencore-bootloader/

*Use this folder with FULL DSDT PATCHED





---Extract one Full dump for DSDT edits, post files---



RunMe.app







---HARDWARE---



--MOBO


GIGABYTE Z390 DESIGNARE
-Link
https://www.amazon.com/Z390-DESIGNARE-Gigabyte-Thunderbolt-Motherboard/dp/B07K8RJZRG/ref=sr_1_1?keywords=Z390+DESIGNARE&qid=1565492390&s=electronics&sr=1-1

--PROCESSOR


Intel Core i9-9900K
-Link
https://www.amazon.com/Intel-i9-9900K-Desktop-Processor-Unlocked/dp/B005404P9I/ref=sr_1_1_sspa?keywords=Intel+Core+i9-9900K&qid=1553358099&s=gateway&sr=8-1-spons&psc=1

--COOLER


CORSAIR H100i RGB PLATINUM AIO Liquid CPU Cooler
-Link
https://www.amazon.com/CORSAIR-H100i-PLATINUM-Liquid-Cooler/dp/B07JWB5BSN/ref=sr_1_4?keywords=WATER+COOLER+CPU&qid=1565492509&s=gateway&sr=8-4

--MEMORY


Corsair CMW32GX4M2C3200C16 Vengeance RGB PRO 32GB (2x16GB) DDR4 3200 (PC4-25600)
-Link
https://www.amazon.com/Corsair-CMW32GX4M2C3200C16-Vengeance-PC4-25600-Desktop/dp/B07GTG2T7L/ref=sr_1_15?keywords=memory+ddr4+32&qid=1553358238&s=gateway&sr=8-15

--GPU


MSI RX Vega 64 AIR Boost 8G OC
-Link
https://www.amazon.com/MSI-RX-64-AIR-8G/dp/B07DH7S1X1/ref=sr_1_2?keywords=vega+64+gigabyte&qid=1565492819&s=electronics&sr=1-2

--SSD


Samsung 970 EVO 1TB SSD (MZ-V7E1T0BW) NVMe M.2 V-NAND
-Link
https://www.amazon.com/Samsung-970-EVO-1TB-MZ-V7E1T0BW/dp/B07BN217QG/ref=sr_1_1?keywords=s+samsung+970+evo+1tb&qid=1565493002&s=electronics&sr=1-1

--POWER SUPPLY


EVGA Supernova 1000 P2 80+ Platinum, 1000W ECO Mode Fully Modular
-Link
https://www.amazon.com/EVGA-Supernova-Platinum-Crossfire-220-P2-1000-XR/dp/B00EKJQM5E/ref=sr_1_3?keywords=power+supply+1000w&qid=1565493196&s=gateway&sr=8-3

--WIRELESS


TP-Link Archer T9E
-Link
https://www.amazon.com/TP-Link-Archer-T9E-Beamforming-Technology/dp/B00TQEX7AQ/ref=sr_1_1?keywords=TP-Link+Archer+T9E&qid=1553358397&s=gateway&sr=8-1

--CASE


Thermaltake Core P5 Tempered Glass Black Edition ATX Open Frame Panoramic Viewing
-Link
https://www.amazon.com/Thermaltake-Tempered-Panoramic-Certified-CA-1E7-00M1WN-03/dp/B01N4IGVSC/ref=sr_1_2?keywords=Thermaltake+Core+P5&qid=1565493567&s=gateway&sr=8-2

--DSDT Patches--

-FIX ACPI ERRORS
-FIX OEM SSDTs to AVOID ERRORS AND WARNINGS
-REMOVE UNUSED SCOPES / DEVICES
-HIGH PRECISION EVENT TIMER
-SATA
-DMAC
-REMOVE PROBLEMATIC AND UNUSED DEVICES
-FIX K.P in REBOOT
-SLPB
-DARWIN / WINDOWS 2015
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-REAL TIME CLOCK
-ARTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-FWHD
-USBX
-PMCR
-PPMC
-XSPI
-CNVW
-GMM
-IMEI
-EC
-PNLF
-ARPT
-GFX0
-NVME
-DTGP
-ACQUIRE MUT0 0XFFFF
-MUTEX MUT0 0x00
-EXTERNAL REFERENCES
-UNKNOWNOBJ
-HDMI / HDAU
-FULL RENAMED DEVICES

---SCREENSHOTs---


-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Thanks to KGP for SSDT Thunderbolt

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!

We're all here to have fun and learn from each other!

Share this post


Link to post
Share on other sites
Advertisement

Hi @MaLd0n



The main difference between Z390 Designare and my board (Z390 Aorus Master) are: Thunderbolt3 (no in Master) and 2xRJ45 ports instead of 1.



So can I use EFI Clover or OpenCore Folder, SSDT for my config under Catalina.What about DSDT I found on Olarila topic for mac944?



Thanks in advance :)

Edited by Matgen84

Share this post


Link to post
Share on other sites
3 hours ago, Matgen84 said:

Hi @MaLd0n



The main difference between Z390 Designare and my board (Z390 Aorus Master) are: Thunderbolt3 (no in Master) and 2xRJ45 ports instead of 1.



So can I use EFI Clover or OpenCore Folder, SSDT for my config under Catalina.What about DSDT I found on Olarila topic for mac944?



Thanks in advance :)

u need remove tables in clover/acpi/patched and use ur files, ssdt or dsdt...



use it, reboot and extract one send_me

EFI.zip

Share this post


Link to post
Share on other sites
37 minutes ago, MaLd0n said:

u need remove tables in clover/acpi/patched and use ur files, ssdt or dsdt...



use it, reboot and extract one send_me

EFI.zip



Your EFI Folder boot from OpenCore. Is it the latest Release.



I need EFI OPENCORE Z390 Aorus Master and also EFI CLOVER Z390 Aorus Master, please.



EDIT: I use SMBIOS Imac19,1 on 11 Series Board.



Thanks in advance



Send_me in attachment

Send me iMac-de-matgen84.zip

Edited by Matgen84

Share this post


Link to post
Share on other sites
24 minutes ago, Matgen84 said:



Your EFI Folder boot from OpenCore. Is it the latest Release.



I need EFI OPENCORE Z390 Aorus Master and also EFI CLOVER Z390 Aorus Master, please.



EDIT: I use SMBIOS Imac19,1 on 11 Series Board.



Thanks in advance



Send_me in attachment

Send me iMac-de-matgen84.zip

Arquivo Comprimido.zip



with OpenCore u need Block OEM table and add edited OEM table, ACPI/BLOCK...

Share this post


Link to post
Share on other sites
5 minutes ago, MaLd0n said:

Arquivo Comprimido.zip



with OpenCore u need Block OEM table and add edited OEM table, ACPI/BLOCK...



Thanks a lot :)



What do you means: "Block OEM table and add edited OEM table, ACPI/BLOCK..." OpenCore is a mystery for me.

Share this post


Link to post
Share on other sites
11 hours ago, ddrdark said:

Have anyone tried the new 2019 LG Ultrafine 5k with this motherboard and got 5k native resolution?

i think whatevergreen solve it if u have problem

Share this post


Link to post
Share on other sites
On 8/14/2019 at 4:39 PM, MaLd0n said:

Arquivo Comprimido.zip



with OpenCore u need Block OEM table and add edited OEM table, ACPI/BLOCK...



Thanks a lot again :)



What do you means: "Block OEM table and add edited OEM table, ACPI/BLOCK..." OpenCore is a mystery for me.

Share this post


Link to post
Share on other sites
4 hours ago, Matgen84 said:



Thanks a lot again :)



What do you means: "Block OEM table and add edited OEM table, ACPI/BLOCK..." OpenCore is a mystery for me.

need drop oem ssdt and put oem edited ssdt

drop oem

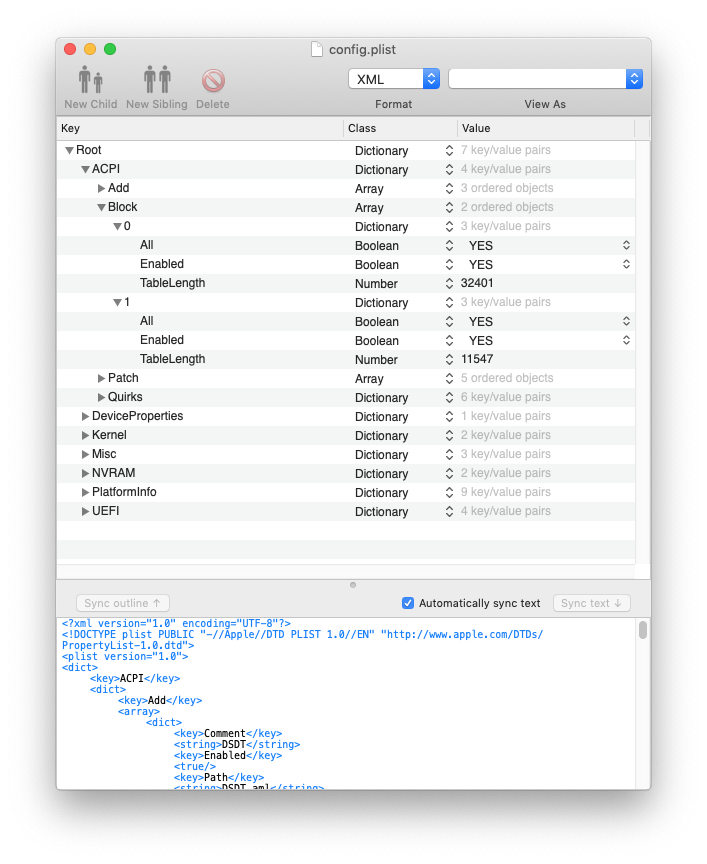

MaLd0n 2019-08-20 às 17.17.31.png



add edited oem

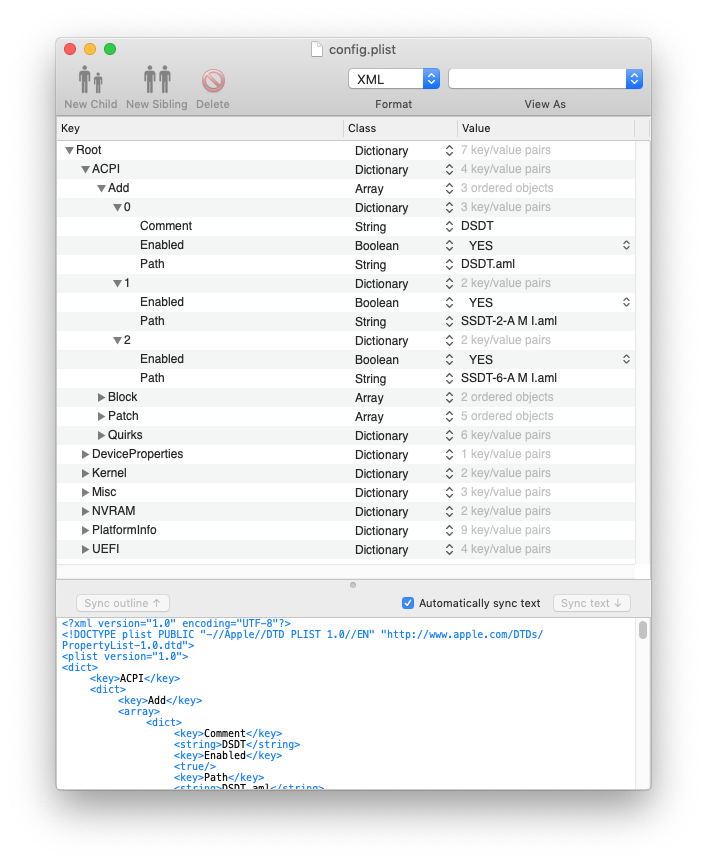

MaLd0n 2019-08-20 às 17.18.41.png

Share this post


Link to post
Share on other sites
49 minutes ago, Eceiah said:

Hey maldon,



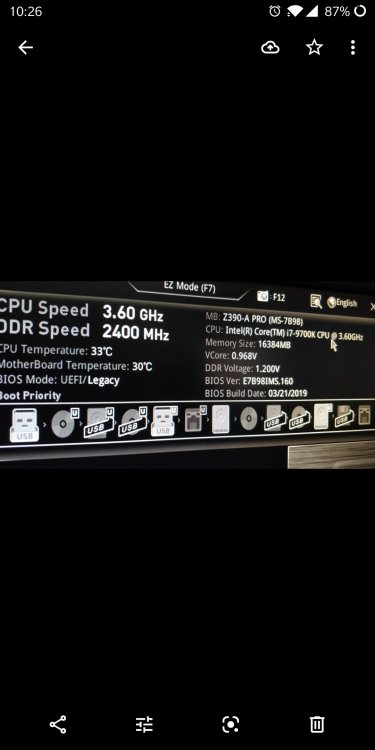

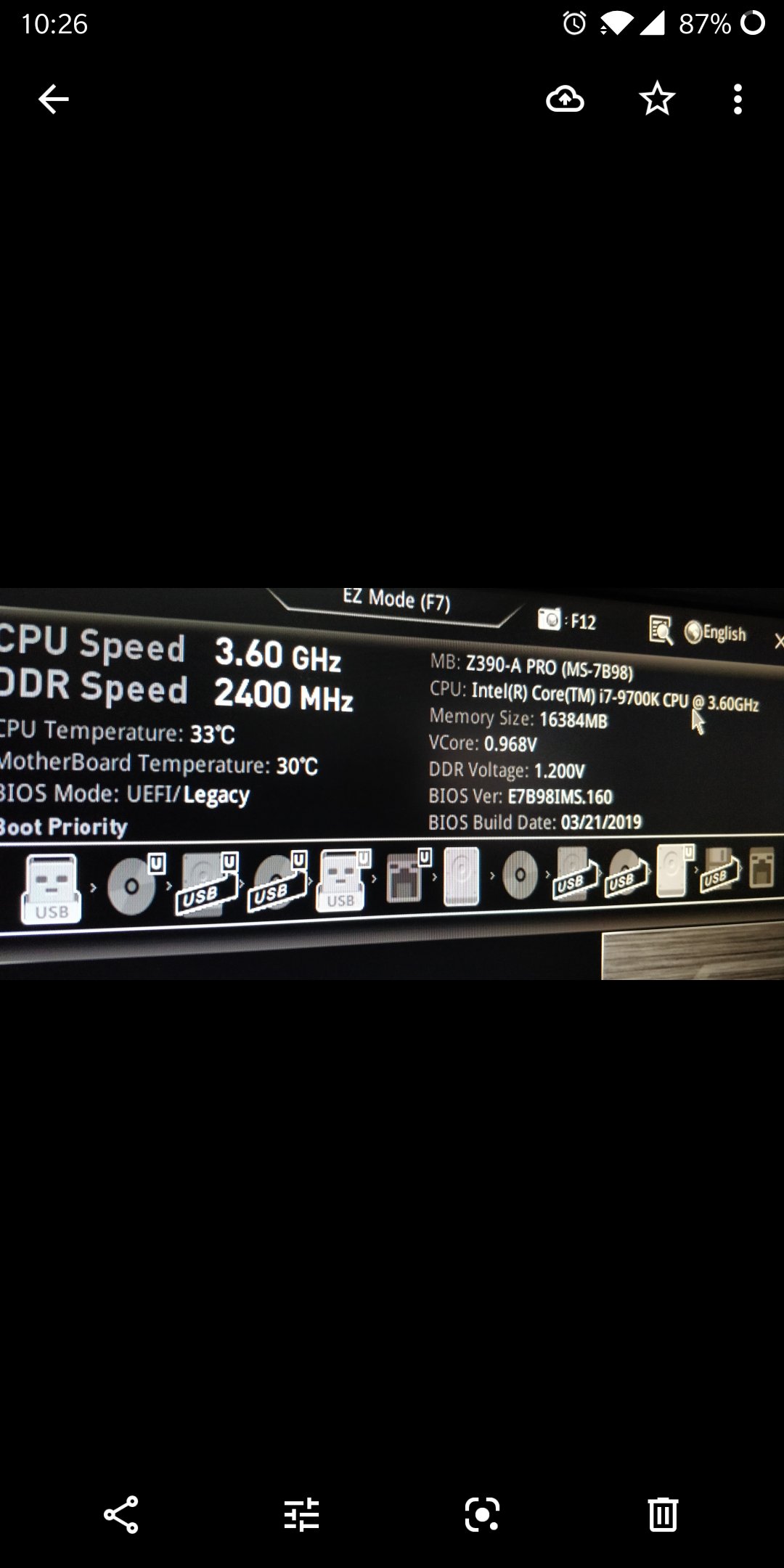

Im having issues installing on msi z390-a + i7-9700k



Kindly assist thanks!

the best is a full dsdt patched and correct efi folder for installation and post installation

Share this post


Link to post
Share on other sites

Thanks! How about set up for installing clover on usb? Any specific options i should check/uncheck?

Share this post


Link to post
Share on other sites

Thanks! How about set up for installing clover on usb? Any specific options i should check/uncheck?

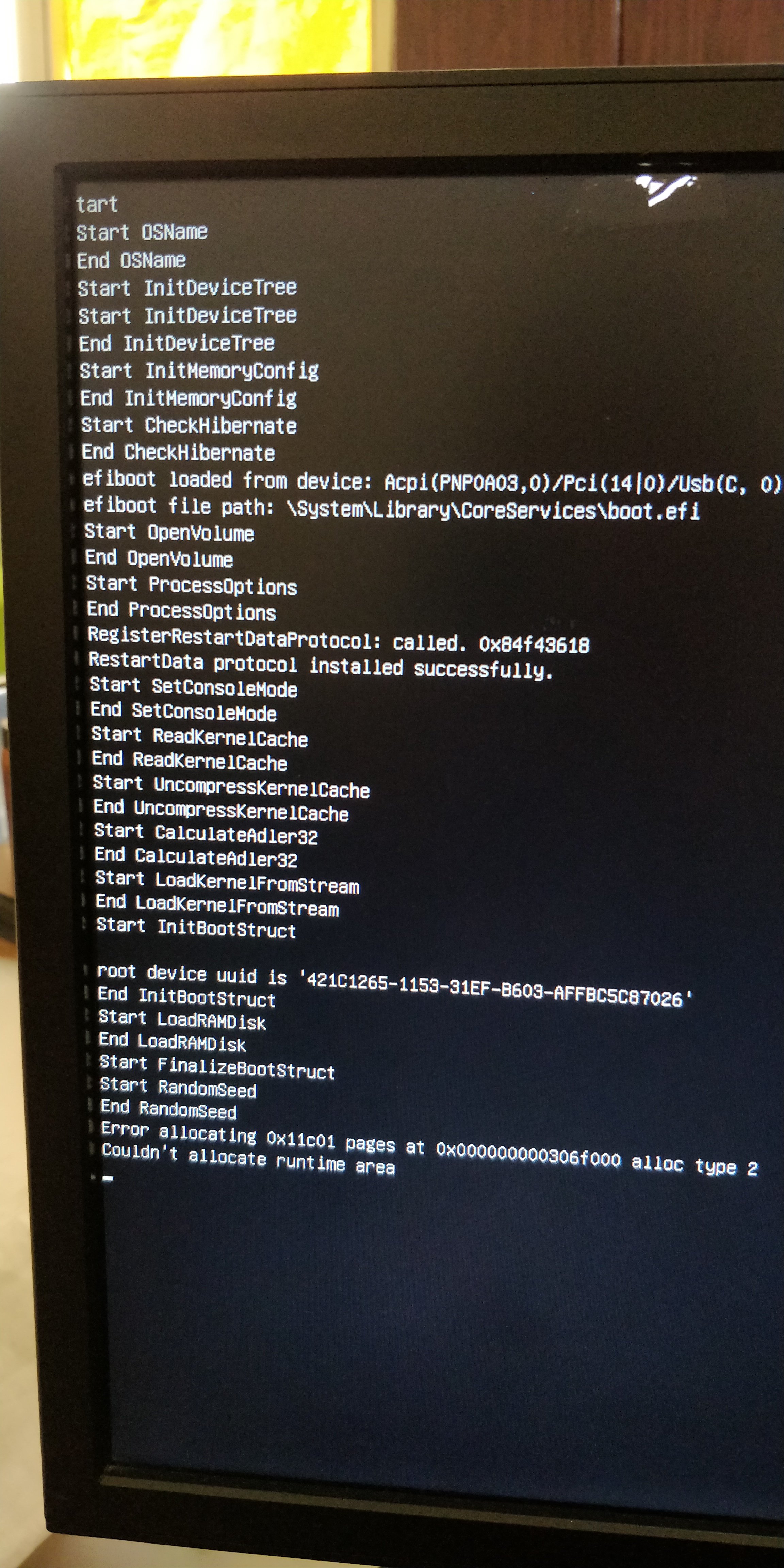

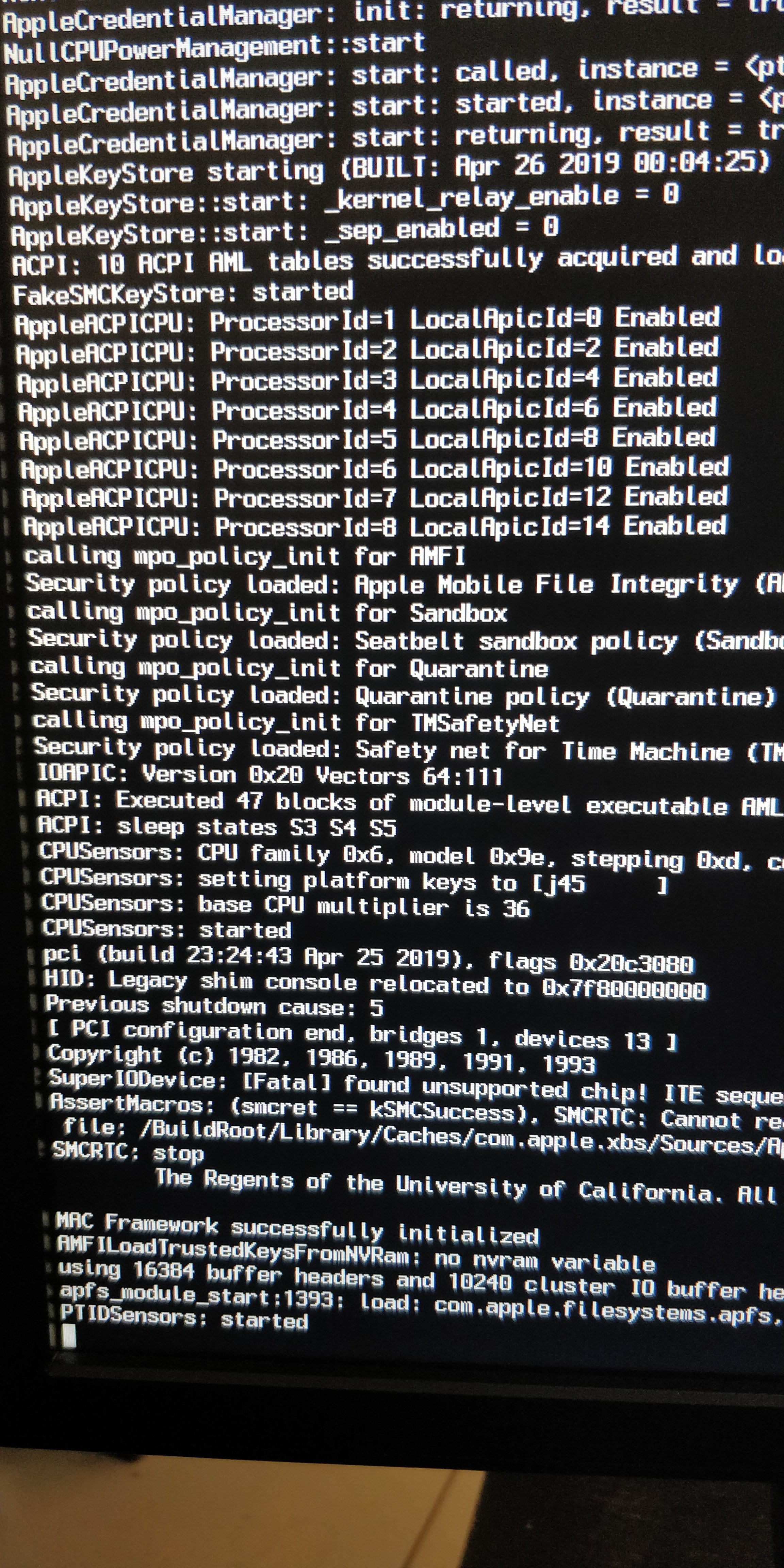

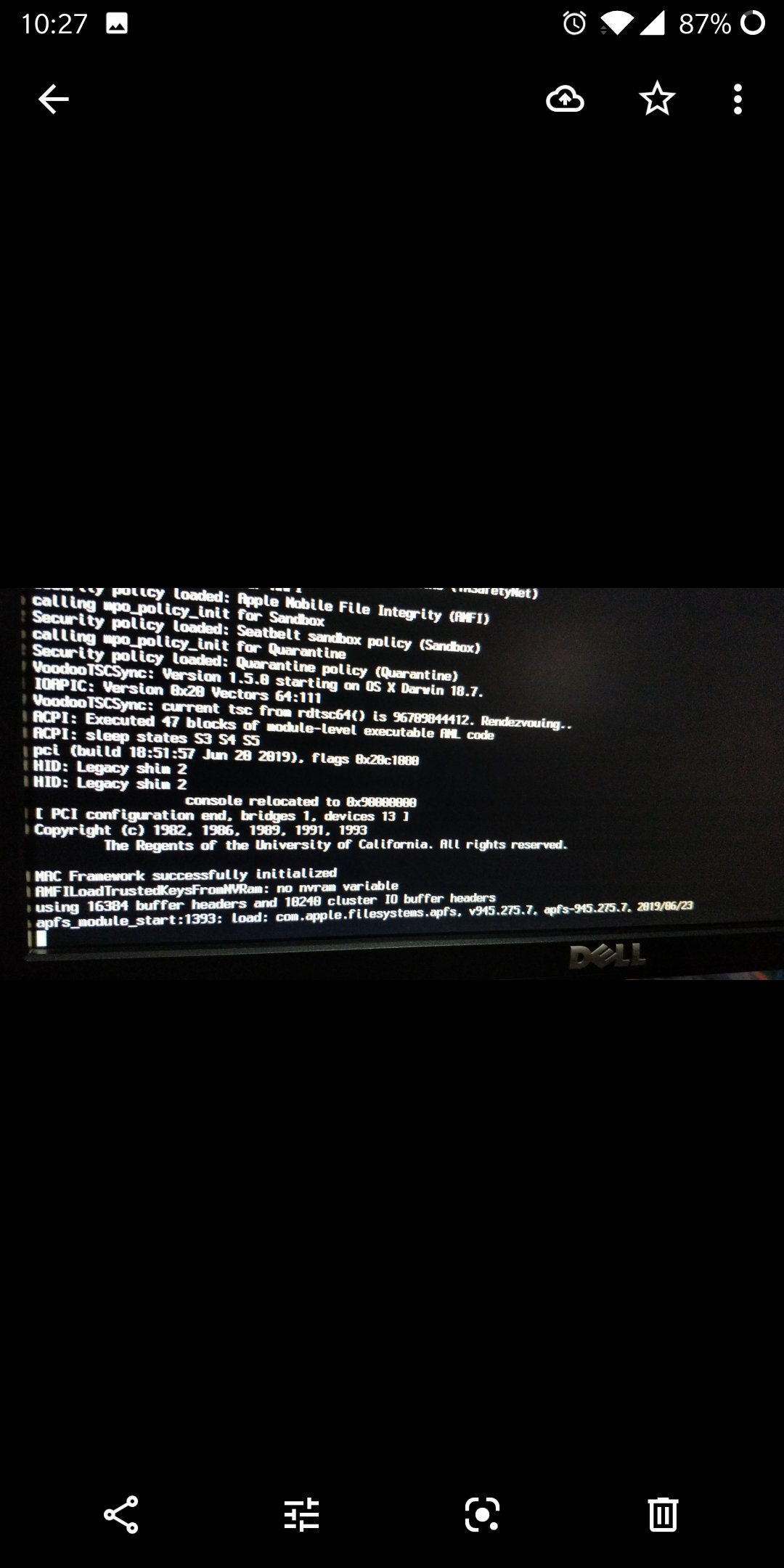

Replaced the efi with yours on my olarila installer but error.


Share this post


Link to post
Share on other sites

Hi MaLd0n and many thanks for your work on the Z390 Designare. I bought this same setup and was about to try your clover folder. Is it right that there is no patched DSDT inside, just some SSDTs? Did I miss something?



Again, thank you so much and best regards!



Josh

Share this post


Link to post
Share on other sites
3 hours ago, joshx said:

Hi MaLd0n and many thanks for your work on the Z390 Designare. I bought this same setup and was about to try your clover folder. Is it right that there is no patched DSDT inside, just some SSDTs? Did I miss something?



Again, thank you so much and best regards!



Josh

Use my efi folder, reboot and extract one send_me, ill patch for u

Share this post


Link to post
Share on other sites

Here it is. Thank you!

DSDT.aml



My Setup: iMac Pro 1,1 - Z390 Designare, Intel i9 9900KF, 32 GB Corsair LPX 3200, ASUS Strix Vega 64, Fenvi FV‑T919, Fractal Design R5

Edited by joshx

Share this post


Link to post
Share on other sites
3 hours ago, joshx said:

Here it is. Thank you!

DSDT.aml



My Setup: iMac Pro 1,1 - Z390 Designare, Intel i9 9900KF, 32 GB Corsair LPX 3200, ASUS Strix Vega 64, Fenvi FV‑T919, Fractal Design R5

post full dump

--Run_Me
RunMe.app
https://www.youtube.com/watch?v=k9wmIfGLe3A

Share this post


Link to post
Share on other sites
