Hello everyone! Thanks for info and tutorials! I have some problems with 10.13, so maybe someone knows solution :)



1. Ryzen 5 1600X. Results of Cinebench tests are 20% worse than the same in Windows 10. Is it possible to force CPU to work up to 100%?

2. VoodooHDA. Sound delay (as I can see I'm not the only one :D).

3. There is "IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0" and little freeze about 2 seconds before boot.





Used kexts:

FakeSMC.kext
NullCPUPowerManagement.kext
Lilu.kext
WhateverGreen.kext
No any fixes enabled in my config.plist.
  • Thanks 1
Link to comment
Share on other sites

Does anyone know how to get kernel messages from Verbose mode in log file? I was searching in "/var/log", "/Library/CloverEFI" and other locations but I cannot find it.



I just have a problem with USB CDC device. It works perfectly fine on original Mac but it doesn't work on hack. And I have no idea why it doesn't work. AppleUSBCDC and AppleUSBECM loads without errors. USB 3 port (GenericUSBXHCI) works with any other devices without any problem.

attachicon.gifUntitled.png attachicon.gifUntitled1.png

Remove GenericUSBXHCI use the xhci kext provided.

Link to comment
Share on other sites



Hello everyone! Thanks for info and tutorials! I have some problems with 10.13, so maybe someone knows solution :)



1. Ryzen 5 1600X. Results of Cinebench tests are 20% worse than the same in Windows 10. Is it possible to force CPU to work up to 100%?

2. VoodooHDA. Sound delay (as I can see I'm not the only one :D).

3. There is "IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0" and little freeze about 2 seconds before boot.





Used kexts:

FakeSMC.kext
NullCPUPowerManagement.kext
Lilu.kext
WhateverGreen.kext
No any fixes enabled in my config.plist.



-Add the busratio=xx boot flag in your config.plist



- Replace xx with your busratio i.e   [ CPU speed (Mhz) / Bus speed (Mhz) = xx ]

  to know your CPU speed and Bus speed , go to BIOS





  • Like 1
Link to comment
Share on other sites

-Add the busratio=xx boot flag in your config.plist



- Replace xx with your busratio i.e   [ CPU speed (Mhz) / Bus speed (Mhz) = xx ]

  to know your CPU speed and Bus speed , go to BIOS





Thank you! It solved two of the three problems :)

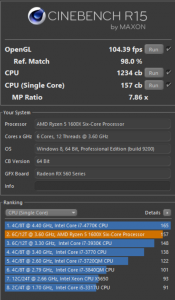

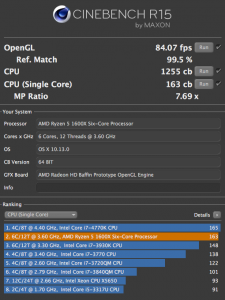

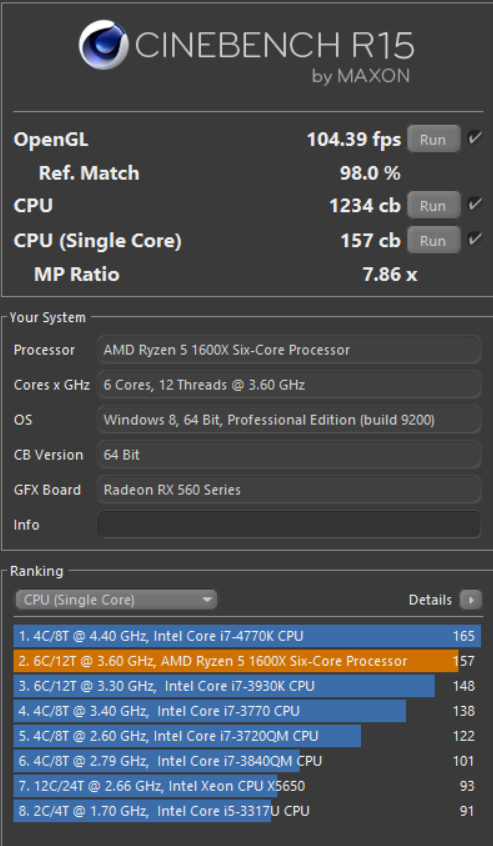

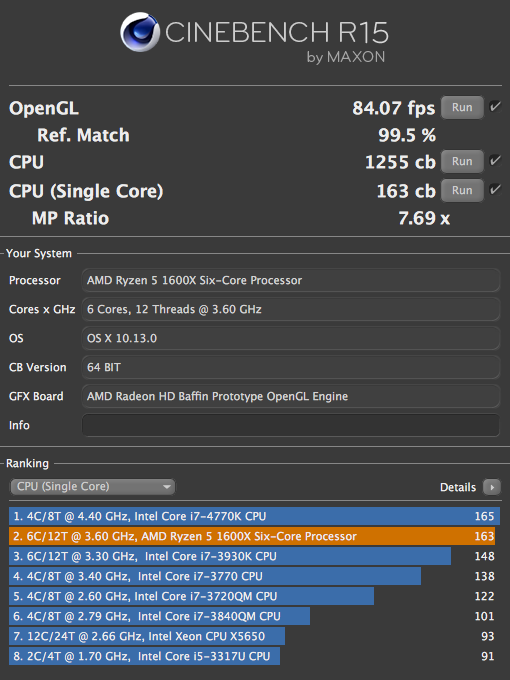

Here are screenshots for compare Cinebench tests in MacOS and Windows.



As you can see GPU isn't so good in MacOS.



Link to comment
Share on other sites

My USB 3 ports doesn't work without GenericUSBXHCI. Although they work in the installer without GenericUSBXHCI.

its because of the prelinkedkernel .

coz i build it  , while containing the usb kexts in my extensions folder

Thank you! It solved two of the three problems :)

Here are screenshots for compare Cinebench tests in MacOS and Windows.



As you can see GPU isn't so good in MacOS.

use the latest version of lilu and whatevergreen kexts

if you are following my video , then re-download the high sierra folder again

as i added the latest kexts recently .

  • Like 2
Link to comment
Share on other sites

its because of the prelinkedkernel .

coz i build it  , while containing the usb kexts in my extensions folder

use the latest version of lilu and whatevergreen kexts

if you are following my video , then re-download the high sierra folder again

as i added the latest kexts recently .

Thank you, I'll try it :)

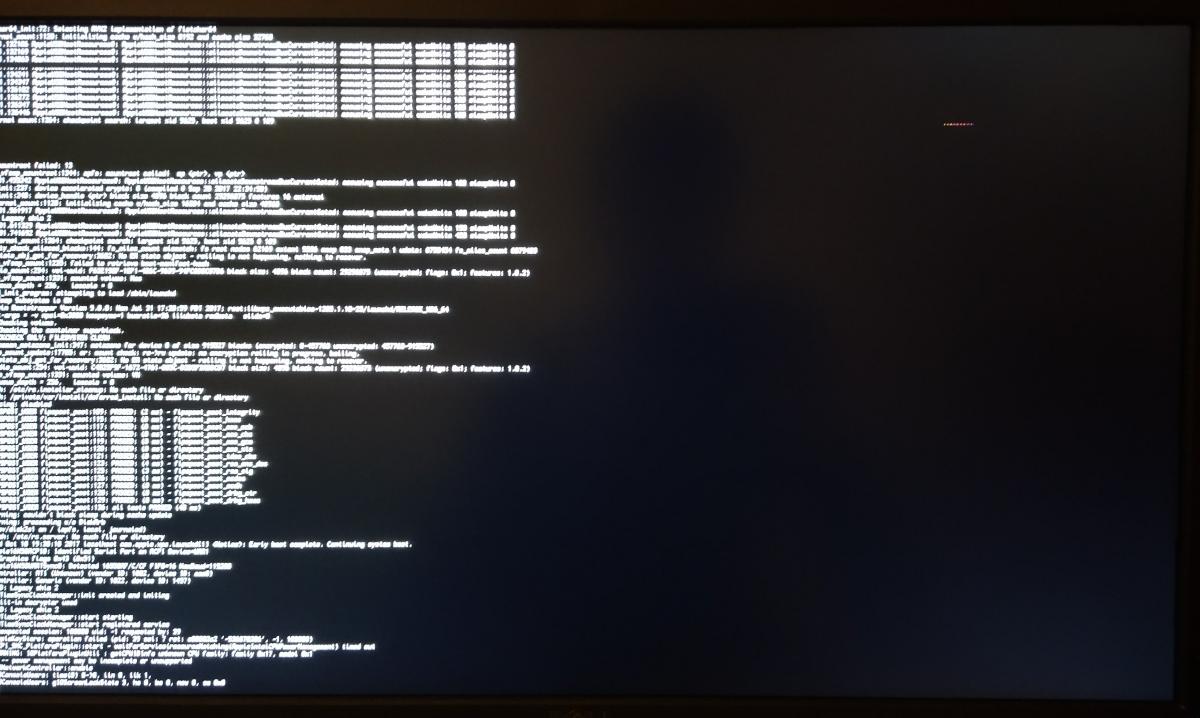

And this what I said about IOConsoleUsers: gIOScreenLockState...

There is wide black stripe with colored dots at right side. It happens every time before enter in system.



upd: I stuck on IOConsoleUsers: gIOScreenLockState... with latest lilu and whatevergreen kexts ))


Edited by edgar90
Link to comment
Share on other sites

Thank you, I'll try it :)



And this what I said about IOConsoleUsers: gIOScreenLockState...

There is wide black stripe with colored dots at right side. It happens every time before enter in system.

That is normal it is the graphics Handoff point, some get the multiple apples (usually with Intel IGFX), some a white flash, some just the progress bar. If it’s booting don’t worry too much about it.

  • Like 1
Link to comment
Share on other sites

That is normal it isn’t the graphics Handoff point, some get the multiple apples (usually with Intel IGFX), some a white flash, some just the progress bar. If it’s booting don’t worry too much about it.

Thank you! I just thought there is something wrong :)

Link to comment
Share on other sites

And one more question.

Is there any solution to switch sound automatically when headphones plug/unplug?

I'm using VoodooHDA.



Sorry if it's offtopic, I just can't find answer anywhere (only questions about it).

The answer is no.  Apple jack has hardware to switch signals, not only turn speakers off, also turn on spdif output if an optical cable is plugged in the headphone jack.

Get a real mac for that.

  • Like 1
Link to comment
Share on other sites

RYZEN USB Installer fix!    Please test and report.



I edited the USB installer scripts for Ryzen!    This edit allows for a smooth install on Ryzen with mostly native USB support 3.0 and 3.1 without any USB kexts added.   This is a clean install using only the Bronya Kenrel, System kext and Prelinked kernel.     Follow the video guide linked and use the pre install and post install folders for Ryzen as replacements.    There is also a Clover folder you can use after loading your installer with clover boot loader following the guide.   Just replace the clover folder generated with the one provided.



Use the post install terminal command:  Volumes/image\ Volume/kernel_kext_install_only



I removed the commands to remove "troublesome kext"s and trimmed it down to a basic complete install which is all that is needed for Ryzen systems.   I installed twice following the guide and avoided the USB fixes but still could not get USB working as I had previously with a cloned disk without any USB fixes or kexts.    After looking into the scripts I noticed the removal of several key system kexts that Ryzen has no issue with (other AMD CPUs may need them removed).



Here are the edited scripts and folders.

Ryzen High Sierra pre and post scripts edited.zip



This its the link to the guide.   Download the Guide page and follow it during the USB creation and install.   It may be wise to print it.    Follow it along normally but replace the preinstall and post install folders and clover  folder after the USB installer is completed.     Follow the guide during install and use the post install option kernel_kext_install-only.    I was able to use my USB 3.0 case prt for the entire 3 part install and it went smoothly without any hitches.



http://www.insanelymac.com/forum/topic/325514-amd-high-sierra-kernel-release-and-testing/page-18?do=findComment&comment=2514401

  • Like 4
Link to comment
Share on other sites

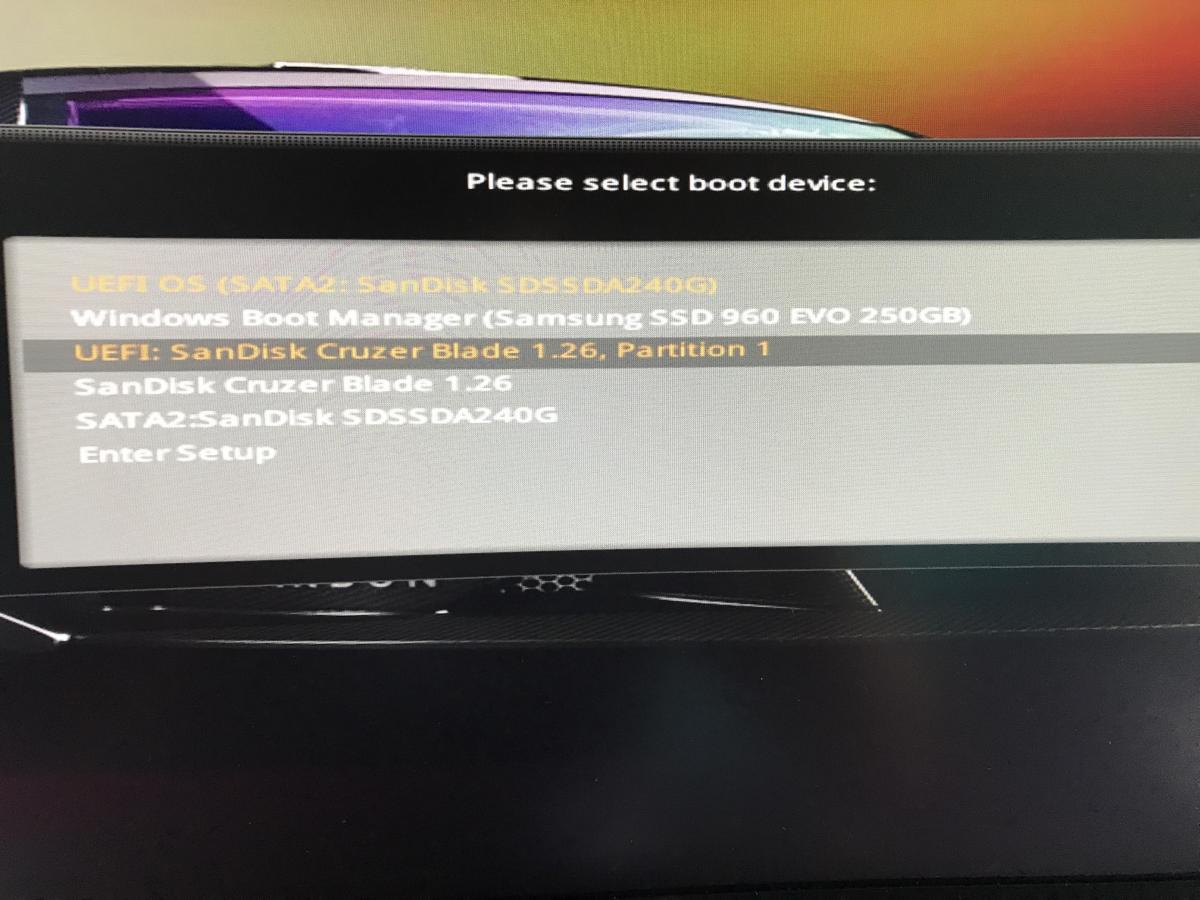

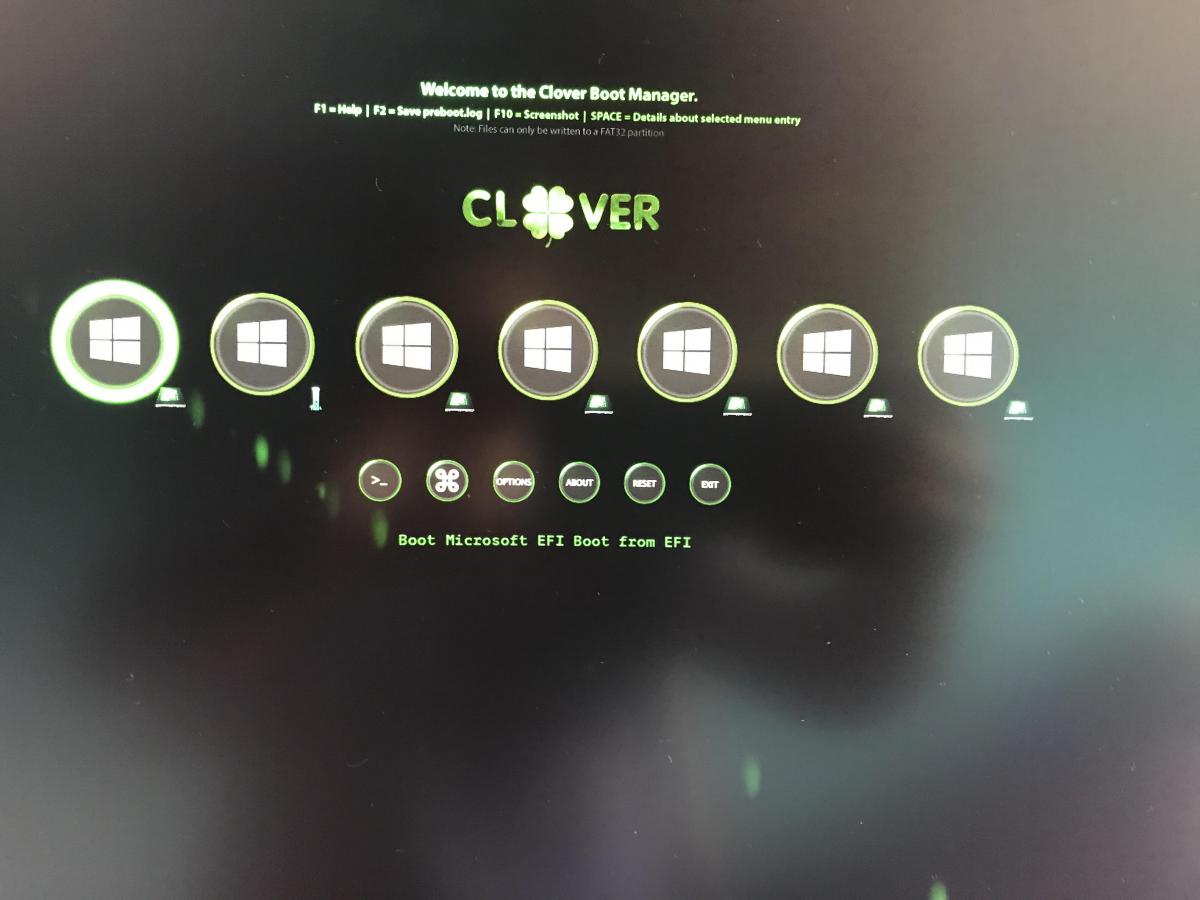

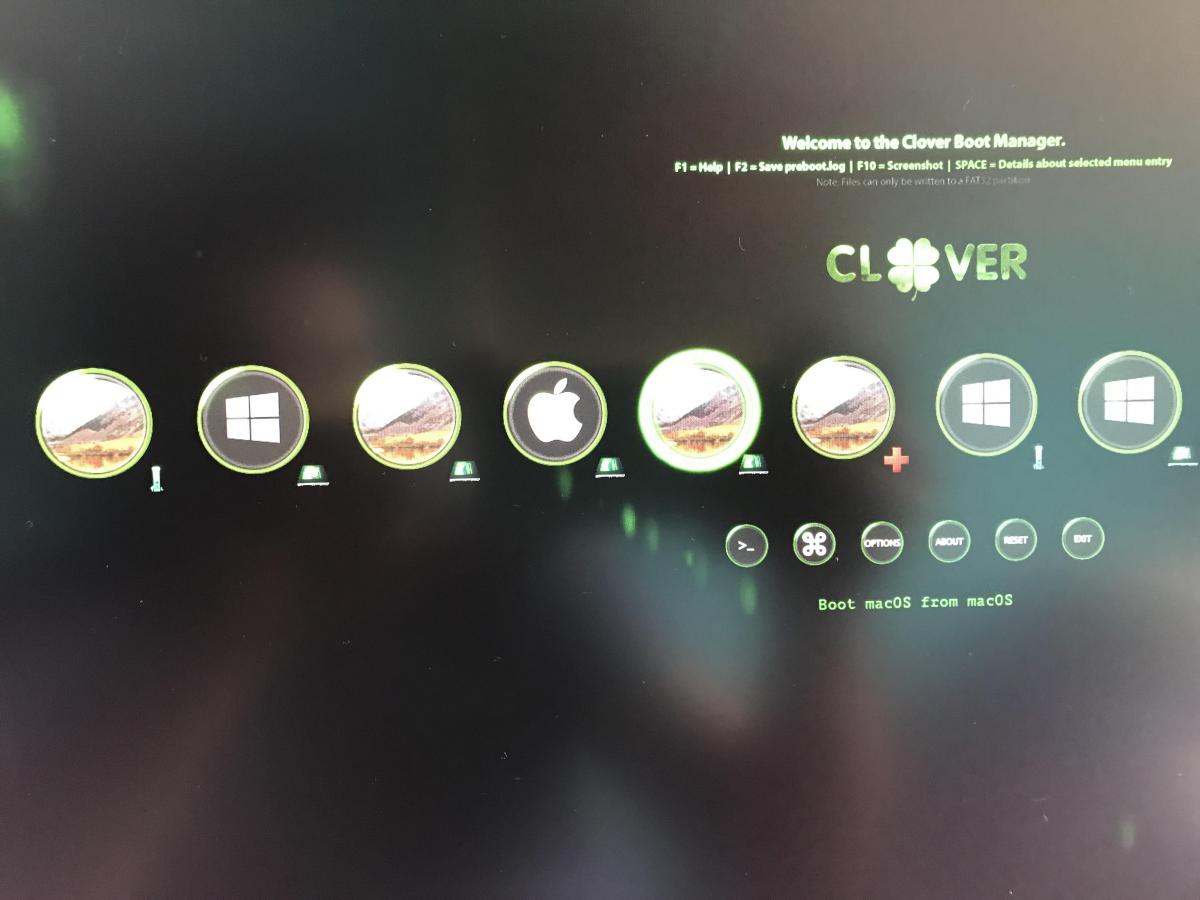

Does anyone know why Clover stops running(it show a white underscore and stuck) after adding "apfs.efi" to "drivers64UEFI"?

Clover debug log:

0:100  0:100  MemLog inited, TSC freq: 3901617310
0:100  0:000  CPU was calibrated without ACPI PM Timer: Intel ICH device was not found., use RTC
0:100  0:000
0:100  0:000  Now is 21.10.2017,  10:7:34 (GMT)
0:100  0:000  Starting Clover revision: 4243 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12.6 | XCODE: 9.0]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x12,0x2)\USB(0x5,0x0)\HD(1,GPT,2679468A-FD28-4461-8804-88671A6AAD94,0x28,0x64000) @B0BB2198
0:100  0:000  SelfDirPath = \EFI\BOOT
0:104  0:004  === [ Get Smbios ] ========================================
0:104  0:000  Type 16 Index = 0
0:104  0:000  Total Memory Slots Count = 4
0:104  0:000  Type 17 Index = 0
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK0 DIMM0
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 1
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK1 DIMM1
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 2
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK2 DIMM2
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 3
0:104  0:000  SmbiosTable.Type17->Speed = 1333MHz
0:104  0:000  SmbiosTable.Type17->Size = 8192MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK3 DIMM3
0:104  0:000  SmbiosTable.Type17->Vendor = Manufacturer3
0:104  0:000  SmbiosTable.Type17->SerialNumber = SerNum3
0:104  0:000  SmbiosTable.Type17->PartNumber = Array1_PartNumber3
0:104  0:000  Boot status=0
0:104  0:000  Running on: 'To be filled by O.E.M.' with board 'M5A99FX PRO R2.0'
0:104  0:000  === [ GetCPUProperties ] ==================================
0:104  0:000  CPU Vendor = 68747541 Model=600F12
0:104  0:000   The CPU supported SSE4.1
0:104  0:000  BrandString = AMD FX(tm)-8150 Eight-Core Processor
0:104  0:000  	Looking to disable C1E if is already enabled by the BIOS:
0:104  0:000  CurrentSpeed: 3600
0:104  0:000  maxratio 42
0:104  0:000  cpudid_zen 0
0:104  0:000  FSBFrequency = 85 MHz, DMI FSBFrequency = 200 MHz, Corrected FSBFrequency = 200 MHz
0:104  0:000  MaxDiv/MinDiv: 21.0/9
0:104  0:000  Turbo: 0/0/0/0
0:104  0:000  Features: 0x178BFBFF
0:104  0:000  Threads: 8
0:104  0:000  Cores: 8
0:104  0:000  FSB: 200 MHz
0:104  0:000  CPU: 3599 MHz
0:104  0:000  TSC: 3600 MHz
0:104  0:000  PIS: 200 MHz
0:104  0:000  ExternalClock: 50 MHz
0:104  0:000  === [ GetDevices ] ========================================
0:104  0:000  PCI (00|00:00.00) : 1002 5A14 class=060000
0:104  0:000  PCI (00|00:02.00) : 1002 5A16 class=060400
0:104  0:000  PCI (00|01:00.00) : 1002 6818 class=030000
0:104  0:000   - GFX: Model=AMD Radeon HD 7870 Series (ATI/AMD)
0:104  0:000  PCI (00|01:00.01) : 1002 AAB0 class=040300
0:104  0:000   - HDMI Audio:
0:104  0:000  PCI (00|00:04.00) : 1002 5A18 class=060400
0:104  0:000  PCI (00|00:0B.00) : 1002 5A1F class=060400
0:104  0:000  PCI (00|00:0D.00) : 1002 5A1E class=060400
0:104  0:000  PCI (00|00:11.00) : 1002 4391 class=010601
0:104  0:000  PCI (00|00:12.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:12.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:13.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:13.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:14.00) : 1002 4385 class=0C0500
0:104  0:000  PCI (00|00:14.02) : 1002 4383 class=040300
0:104  0:000  PCI (00|00:14.03) : 1002 439D class=060100
0:104  0:000  PCI (00|00:14.04) : 1002 4384 class=060401
0:104  0:000  PCI (00|00:14.05) : 1002 4399 class=0C0310
0:104  0:000  PCI (00|00:15.00) : 1002 43A0 class=060400
0:104  0:000  PCI (00|06:00.00) : 1B21 0612 class=010601
0:104  0:000  PCI (00|00:15.01) : 1002 43A1 class=060400
0:104  0:000  PCI (00|07:00.00) : 1B21 1042 class=0C0330
0:104  0:000  PCI (00|00:15.02) : 1002 43A2 class=060400
0:104  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:104  0:000  PCI (00|00:15.03) : 1002 43A3 class=060400
0:104  0:000  PCI (00|09:00.00) : 10EC 8168 class=020000
0:104  0:000   - LAN: 0 Vendor=Realtek
0:104  0:000  PCI (00|00:16.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:16.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:18.00) : 1022 1600 class=060000
0:104  0:000  PCI (00|00:18.01) : 1022 1601 class=060000
0:104  0:000  PCI (00|00:18.02) : 1022 1602 class=060000
0:104  0:000  PCI (00|00:18.03) : 1022 1603 class=060000
0:104  0:000  PCI (00|00:18.04) : 1022 1604 class=060000
0:104  0:000  PCI (00|00:18.05) : 1022 1605 class=060000
0:104  0:000  === [ GetDefaultSettings ] ================================
0:104  0:000  Clover load options size = 4 bytes
0:134  0:029  EFI\CLOVER\AMB.plist not loaded with name from LoadOptions: Not Found
0:150  0:015  EFI\CLOVER\config.plist loaded: Success
0:150  0:000  === [ GetListOfThemes ] ===================================
0:167  0:016  - [00]: BGM
0:218  0:050  - [01]: EMBEDDED
0:226  0:008  - [01]: RANDOM
0:234  0:008  === [ Found config plists ] ===============================
0:234  0:000  - config.plist
0:234  0:000  - config_o.plist
0:234  0:000  - config_n.plist
0:234  0:000  - config_oo.plist
0:234  0:000  === [ GetEarlyUserSettings ] ==============================
0:234  0:000  timeout set to -1
0:234  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
1:909  1:674  === [ LoadDrivers ] =======================================
2:868  0:959  Loading AppleImageCodec-64.efi  status=Success
2:947  0:078  Loading AppleKeyAggregator-64.efi  status=Success
3:028  0:081  Loading AppleUITheme-64.efi  status=Success
3:106  0:077  Loading DataHubDxe-64.efi  status=Success
3:190  0:084  Loading EmuVariableUefi-64.efi  status=Success
3:269  0:079  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
3:387  0:117  Loading FirmwareVolume-64.efi  status=Success
3:457  0:070  Loading FSInject-64.efi  status=Success
3:551  0:094  Loading OsxAptioFixDrv-64.efi  status=Success
3:623  0:071  Loading OsxFatBinaryDrv-64.efi  status=Success
3:712  0:089  Loading PartitionDxe-64.efi  status=Success
3:784  0:071   - driver needs connecting
3:806  0:021  Loading SMCHelper-64.efi  status=Success
3:910  0:104  Loading VBoxHfs-64.efi  status=Success
3:984  0:074   - driver needs connecting
4:014  0:029  Loading CsmVideoDxe-64.efi  status=Success
4:098  0:083   - driver needs connecting
4:119  0:021  Loading APFS.EFI  status=Success
4:315  0:195   - driver needs connecting
4:335  0:019  4 drivers needs connecting ...
4:355  0:019  PlatformDriverOverrideProtocol not found. Installing ... Success
4:398  0:043  Partition driver loaded:
4:456  0:058  APFS driver loaded


UPDATE:
I tried use Clover in legacy(non UEFI) mode and it works fine I being able to load apfs partition but I got "kextd stall 'AppleACPICPU'" error, any way to fix it?

Link to comment
Share on other sites

Hi all,



Final i got it working, but I have 2 problems. I appreciate if someone can help me out



1) - Boot Problem.



When I boot my computer, It dosen't show the option to boot from the Mac, only appears the windows boot. See image bellow










But when I boot using the USB installer, it show all the boot options including the MAC one











Is there a way to fix it to boot without using the installation USB pendrive ?





2) - Audio Problem



I used the kext VoodooHDA.kext with the kext utility, but the audio docent work :(





Hope someone can help me out with these 2 problems.



Thanks in advance




Link to comment
Share on other sites

Hi all,



Final i got it working, but I have 2 problems. I appreciate if someone can help me out



1) - Boot Problem.



When I boot my computer, It dosen't show the option to boot from the Mac, only appears the windows boot. See image bellow

Did you install clover to your hdd/sdd?

Link to comment
Share on other sites

Hi all,



Final i got it working, but I have 2 problems. I appreciate if someone can help me out



1) - Boot Problem.



When I boot my computer, It dosen't show the option to boot from the Mac, only appears the windows boot. See image bellow










But when I boot using the USB installer, it show all the boot options including the MAC one











Is there a way to fix it to boot without using the installation USB pendrive ?





2) - Audio Problem



I used the kext VoodooHDA.kext with the kext utility, but the audio docent work :(





Hope someone can help me out with these 2 problems.



Thanks in advance

if you formatted your macOS HDD to APFS then it needs apfs.efi  file in your HDD/EFI/CLOVER/driver64UEFI folder

or else your macOS drive wont show up in clover boot menu.

so boot to your macOS drive using USB then mount the USB EFI partition and  macOS HDD EFI partition using 'Clover Configurator app

then copy the apfs.efi file from  USB/EFI/CLOVER/driver64UEFI/apfs.efi   to   HDD/EFI/CLOVER/driver64UEFI/





Does anyone know why Clover stops running(it show a white underscore and stuck) after adding "apfs.efi" to "drivers64UEFI"?



Clover debug log:

0:100  0:100  MemLog inited, TSC freq: 3901617310
0:100  0:000  CPU was calibrated without ACPI PM Timer: Intel ICH device was not found., use RTC
0:100  0:000
0:100  0:000  Now is 21.10.2017,  10:7:34 (GMT)
0:100  0:000  Starting Clover revision: 4243 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12.6 | XCODE: 9.0]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x12,0x2)\USB(0x5,0x0)\HD(1,GPT,2679468A-FD28-4461-8804-88671A6AAD94,0x28,0x64000) @B0BB2198
0:100  0:000  SelfDirPath = \EFI\BOOT
0:104  0:004  === [ Get Smbios ] ========================================
0:104  0:000  Type 16 Index = 0
0:104  0:000  Total Memory Slots Count = 4
0:104  0:000  Type 17 Index = 0
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK0 DIMM0
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 1
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK1 DIMM1
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 2
0:104  0:000  Ignoring insane frequency value 0MHz
0:104  0:000  SmbiosTable.Type17->Speed = 0MHz
0:104  0:000  SmbiosTable.Type17->Size = 0MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK2 DIMM2
0:104  0:000  SmbiosTable.Type17->Vendor = <null string>
0:104  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:104  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:104  0:000  Type 17 Index = 3
0:104  0:000  SmbiosTable.Type17->Speed = 1333MHz
0:104  0:000  SmbiosTable.Type17->Size = 8192MB
0:104  0:000  SmbiosTable.Type17->Bank/Device = BANK3 DIMM3
0:104  0:000  SmbiosTable.Type17->Vendor = Manufacturer3
0:104  0:000  SmbiosTable.Type17->SerialNumber = SerNum3
0:104  0:000  SmbiosTable.Type17->PartNumber = Array1_PartNumber3
0:104  0:000  Boot status=0
0:104  0:000  Running on: 'To be filled by O.E.M.' with board 'M5A99FX PRO R2.0'
0:104  0:000  === [ GetCPUProperties ] ==================================
0:104  0:000  CPU Vendor = 68747541 Model=600F12
0:104  0:000   The CPU supported SSE4.1
0:104  0:000  BrandString = AMD FX(tm)-8150 Eight-Core Processor
0:104  0:000  	Looking to disable C1E if is already enabled by the BIOS:
0:104  0:000  CurrentSpeed: 3600
0:104  0:000  maxratio 42
0:104  0:000  cpudid_zen 0
0:104  0:000  FSBFrequency = 85 MHz, DMI FSBFrequency = 200 MHz, Corrected FSBFrequency = 200 MHz
0:104  0:000  MaxDiv/MinDiv: 21.0/9
0:104  0:000  Turbo: 0/0/0/0
0:104  0:000  Features: 0x178BFBFF
0:104  0:000  Threads: 8
0:104  0:000  Cores: 8
0:104  0:000  FSB: 200 MHz
0:104  0:000  CPU: 3599 MHz
0:104  0:000  TSC: 3600 MHz
0:104  0:000  PIS: 200 MHz
0:104  0:000  ExternalClock: 50 MHz
0:104  0:000  === [ GetDevices ] ========================================
0:104  0:000  PCI (00|00:00.00) : 1002 5A14 class=060000
0:104  0:000  PCI (00|00:02.00) : 1002 5A16 class=060400
0:104  0:000  PCI (00|01:00.00) : 1002 6818 class=030000
0:104  0:000   - GFX: Model=AMD Radeon HD 7870 Series (ATI/AMD)
0:104  0:000  PCI (00|01:00.01) : 1002 AAB0 class=040300
0:104  0:000   - HDMI Audio:
0:104  0:000  PCI (00|00:04.00) : 1002 5A18 class=060400
0:104  0:000  PCI (00|00:0B.00) : 1002 5A1F class=060400
0:104  0:000  PCI (00|00:0D.00) : 1002 5A1E class=060400
0:104  0:000  PCI (00|00:11.00) : 1002 4391 class=010601
0:104  0:000  PCI (00|00:12.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:12.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:13.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:13.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:14.00) : 1002 4385 class=0C0500
0:104  0:000  PCI (00|00:14.02) : 1002 4383 class=040300
0:104  0:000  PCI (00|00:14.03) : 1002 439D class=060100
0:104  0:000  PCI (00|00:14.04) : 1002 4384 class=060401
0:104  0:000  PCI (00|00:14.05) : 1002 4399 class=0C0310
0:104  0:000  PCI (00|00:15.00) : 1002 43A0 class=060400
0:104  0:000  PCI (00|06:00.00) : 1B21 0612 class=010601
0:104  0:000  PCI (00|00:15.01) : 1002 43A1 class=060400
0:104  0:000  PCI (00|07:00.00) : 1B21 1042 class=0C0330
0:104  0:000  PCI (00|00:15.02) : 1002 43A2 class=060400
0:104  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:104  0:000  PCI (00|00:15.03) : 1002 43A3 class=060400
0:104  0:000  PCI (00|09:00.00) : 10EC 8168 class=020000
0:104  0:000   - LAN: 0 Vendor=Realtek
0:104  0:000  PCI (00|00:16.00) : 1002 4397 class=0C0310
0:104  0:000  PCI (00|00:16.02) : 1002 4396 class=0C0320
0:104  0:000  PCI (00|00:18.00) : 1022 1600 class=060000
0:104  0:000  PCI (00|00:18.01) : 1022 1601 class=060000
0:104  0:000  PCI (00|00:18.02) : 1022 1602 class=060000
0:104  0:000  PCI (00|00:18.03) : 1022 1603 class=060000
0:104  0:000  PCI (00|00:18.04) : 1022 1604 class=060000
0:104  0:000  PCI (00|00:18.05) : 1022 1605 class=060000
0:104  0:000  === [ GetDefaultSettings ] ================================
0:104  0:000  Clover load options size = 4 bytes
0:134  0:029  EFI\CLOVER\AMB.plist not loaded with name from LoadOptions: Not Found
0:150  0:015  EFI\CLOVER\config.plist loaded: Success
0:150  0:000  === [ GetListOfThemes ] ===================================
0:167  0:016  - [00]: BGM
0:218  0:050  - [01]: EMBEDDED
0:226  0:008  - [01]: RANDOM
0:234  0:008  === [ Found config plists ] ===============================
0:234  0:000  - config.plist
0:234  0:000  - config_o.plist
0:234  0:000  - config_n.plist
0:234  0:000  - config_oo.plist
0:234  0:000  === [ GetEarlyUserSettings ] ==============================
0:234  0:000  timeout set to -1
0:234  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
1:909  1:674  === [ LoadDrivers ] =======================================
2:868  0:959  Loading AppleImageCodec-64.efi  status=Success
2:947  0:078  Loading AppleKeyAggregator-64.efi  status=Success
3:028  0:081  Loading AppleUITheme-64.efi  status=Success
3:106  0:077  Loading DataHubDxe-64.efi  status=Success
3:190  0:084  Loading EmuVariableUefi-64.efi  status=Success
3:269  0:079  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
3:387  0:117  Loading FirmwareVolume-64.efi  status=Success
3:457  0:070  Loading FSInject-64.efi  status=Success
3:551  0:094  Loading OsxAptioFixDrv-64.efi  status=Success
3:623  0:071  Loading OsxFatBinaryDrv-64.efi  status=Success
3:712  0:089  Loading PartitionDxe-64.efi  status=Success
3:784  0:071   - driver needs connecting
3:806  0:021  Loading SMCHelper-64.efi  status=Success
3:910  0:104  Loading VBoxHfs-64.efi  status=Success
3:984  0:074   - driver needs connecting
4:014  0:029  Loading CsmVideoDxe-64.efi  status=Success
4:098  0:083   - driver needs connecting
4:119  0:021  Loading APFS.EFI  status=Success
4:315  0:195   - driver needs connecting
4:335  0:019  4 drivers needs connecting ...
4:355  0:019  PlatformDriverOverrideProtocol not found. Installing ... Success
4:398  0:043  Partition driver loaded:
4:456  0:058  APFS driver loaded


UPDATE:

I tried use Clover in legacy(non UEFI) mode and it works fine I being able to load apfs partition but I got "kextd stall 'AppleACPICPU'" error, any way to fix it?

try by removing the following efi drivers as they are not needed

CsmVideoDxe-64.efi

- PartitionDxe-64.efi

- EmuVariableUefi-64.efi



also put the latest apfs.efi in driver64UEFI from BaseSystem.dmg/usr/standalone/i386/apfs.efi

Link to comment
Share on other sites

 Share

×
×
  • Create New...
