smoldersonline Posted June 3, 2017 Share Posted June 3, 2017 @ MaLd0n - I could not get sleep/wake to work properly with HD630. I decided to get an Nvidia GPU (GTX 1050 TI). I have got the card working OK, and sleep/wake seems to work fine when I wake with the power button. I hope you allow a couple more questions. - Do I need a new DSDT with Nvidia GPU? - With the Nvidia GPU, I lost the option for audio over DisplayPort. - When I run HWMonitor - I only get output for SSD’s. FakeSMC is still only in EFI. Should I move it? - Not a big deal, but is it possible to get wake with BT keyboard. - The DSDT file is a black box for me. Is there a way to check whether everything is working OK with my system? Thanks again! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 send me original dsdt and one ioreg, we try without remove _prw, apply hdmi(pascal work in DP) hwmoitor, need a sensors, but need check what sensors work good with pascal 1 Link to comment Share on other sites More sharing options...

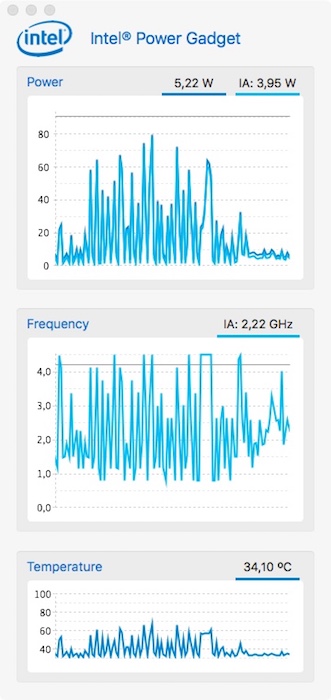

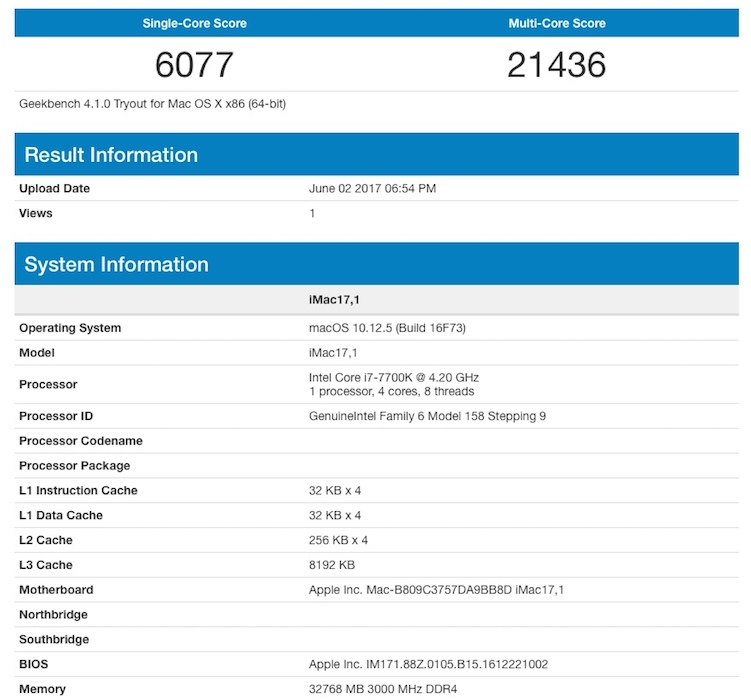

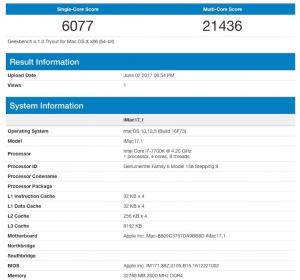

smoldersonline Posted June 3, 2017 Share Posted June 3, 2017 Thanks, I bought you a (PayPal) beer. I also made some edits in config.plist, also included in the archive. I guess CPU power & Geekbench look OK? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 ye, 7700k is amazin'! i'll back with files check, try Arquivo Comprimido.zip wake from keyboard and mouse is ok, BT need check config, i think. Work here! if u have a problem, extract oriinal dsdt in clover boot screen with F4 key 1 Link to comment Share on other sites More sharing options...
hangyodon Posted June 3, 2017 Share Posted June 3, 2017 try DSDT.aml.zip @Mald0n, I have tried DSDT file, sleep work as your mentioned, I need wake by Power button. Is there any further improvement to make it perfect? Wake by Power button also fine for me. As you mentioned on post #567 that pascal work in DP, I can't work fine with AppleHDA1220.kext. But if I use VoodooHDA.kext, audio HDMI can work. Should I change to VoodooHDA? Thanks a lot. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 try it HDMIAudio.kext.zip 1 Link to comment Share on other sites More sharing options...
hangyodon Posted June 3, 2017 Share Posted June 3, 2017 Tried but no hdmi audio 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 use VoodooHda 1 Link to comment Share on other sites More sharing options...
hangyodon Posted June 3, 2017 Share Posted June 3, 2017 Okay, if I really need hdmi audio, I will change to VoodooHda. Because AppleHDA sound better Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 try with both, voodo for hdmi and applealc to onboard ill check patch for pascal U can send me ioreg with HDMI work with VoodooHda? 1 Link to comment Share on other sites More sharing options...
hangyodon Posted June 3, 2017 Share Posted June 3, 2017 here is the file. I need unplug dp and use only hdmi hangyodn_IOReg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 Thx, bro! I'll check it! Link to comment Share on other sites More sharing options...
hangyodon Posted June 3, 2017 Share Posted June 3, 2017 you are welcome, thank you for the help. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 Link to comment Share on other sites More sharing options...
smoldersonline Posted June 3, 2017 Share Posted June 3, 2017 ye, 7700k is amazin'! i'll back with files check, try wake from keyboard and mouse is ok, BT need check config, i think. Work here! if u have a problem, extract oriinal dsdt in clover boot screen with F4 key Thank you. Unfortunately still no audio over DisplayPort with Nvidia (strange, it worked with HD630...) and I can only wake with power button (not with bluetooth). Not really big deals, but would be nice... origin.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 Thank you. Unfortunately still no audio over DisplayPort with Nvidia (strange, it worked with HD630...) and I can only wake with power button (not with bluetooth). Not really big deals, but would be nice... Ill check, back to home in a few hours. The gpu is pascal? 1 Link to comment Share on other sites More sharing options...
smoldersonline Posted June 3, 2017 Share Posted June 3, 2017 No hurry at all. Yep - GTX 1050 is Pascal architecture. 1 Link to comment Share on other sites More sharing options...
gilg2533 Posted June 3, 2017 Share Posted June 3, 2017 I would appreciate your help patching my DSDT files. I have a z270x gaming k5 with bios f7a. I am using a 6700k cpu. k5_dsdt_help.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 3, 2017 Author Share Posted June 3, 2017 I would appreciate your help patching my DSDT files. I have a z270x gaming k5 with bios f7a. I am using a 6700k cpu. CLOVER.zip No hurry at all. Yep - GTX 1050 is Pascal architecture. DSDT.smoldersonline.zip if dont work, need wait nvidia or use VoodooHda, with voodoohda, hdmi pascal work. 1 Link to comment Share on other sites More sharing options...
smoldersonline Posted June 4, 2017 Share Posted June 4, 2017 Nope - still no audio. Not a big deal, I have audio over USB to Cinema Display. Can you help me with HWMonitor for CPU (and maybe GPU and other sensors)? Now, I only have output for SSD's. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 4, 2017 Author Share Posted June 4, 2017 i use it, but i dont know about pascal and plug in video FakeSMC.SENSORS.zip the plug ins inside kext http://www.hwsensors.com/releases 1 Link to comment Share on other sites More sharing options...
shremi Posted June 4, 2017 Share Posted June 4, 2017 Hey man thanks for this thread it helped me a lot I was able to get to 12.5 but for the life of me I can't get audio to work ..... First of all I enable it but when I plug in the speakers or headphones it sounds like garbage .... Hdmi audio using the hd 620 now seems impossible so I just want a working system before tackling cdmi audio I am using an Asrock deskmini 110 with an i3 7100 baby CPU If you could help me with the edits on the Dsdt hopefully things can work fine again. Thanks Shremi Send me Marcos’s iMac.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 4, 2017 Author Share Posted June 4, 2017 Hey man thanks for this thread it helped me a lot I was able to get to 12.5 but for the life of me I can't get audio to work ..... First of all I enable it but when I plug in the speakers or headphones it sounds like garbage .... Hdmi audio using the hd 620 now seems impossible so I just want a working system before tackling cdmi audio I am using an Asrock deskmini 110 with an i3 7100 baby CPU If you could help me with the edits on the Dsdt hopefully things can work fine again. Thanks Shremi the audio coeec is alc283? i apply id 3 DSDT.shremi.zip 2 Link to comment Share on other sites More sharing options...
shremi Posted June 4, 2017 Share Posted June 4, 2017 the audio coeec is alc283? i apply id 3 DSDT.shremi.zip Thanks man you are amazing I'll give this a try I had to leave for a bit yeah that's alc 283.... Any kexts I need to keep or remove for the dsdt to work? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 4, 2017 Author Share Posted June 4, 2017 send me ur full clover folder 1 Link to comment Share on other sites More sharing options...
