I can not properly configure the system.

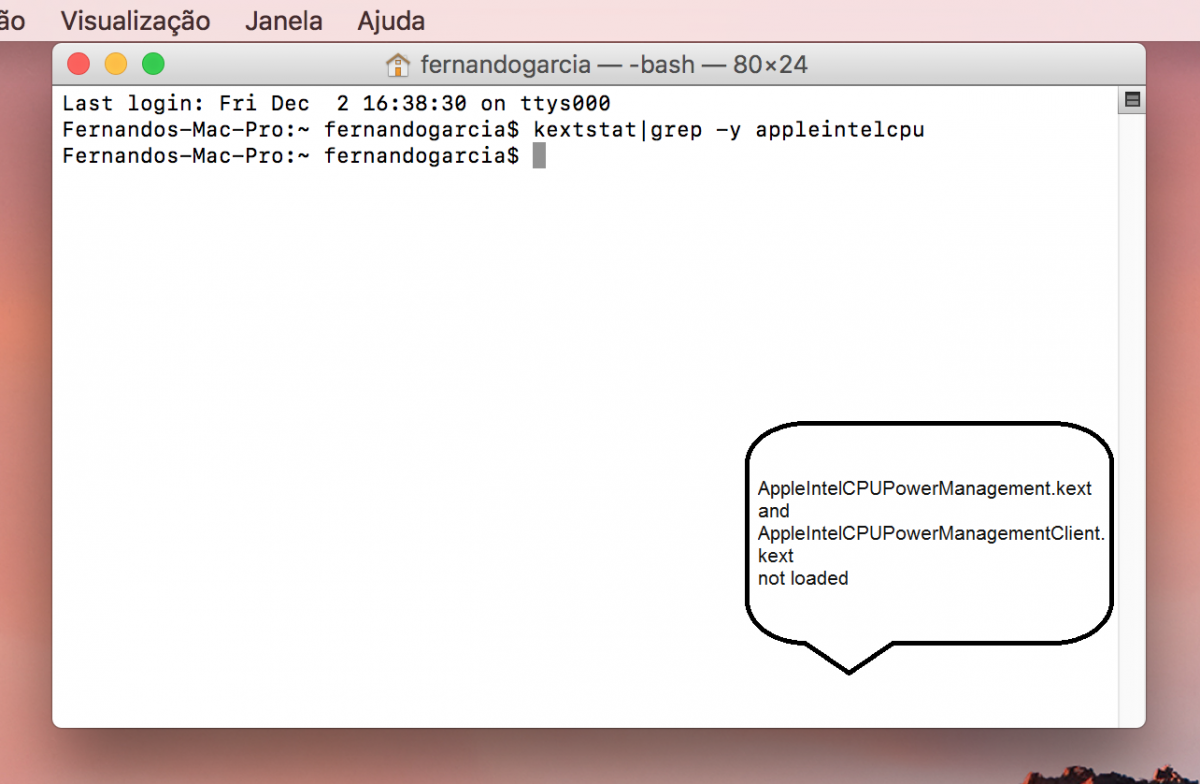

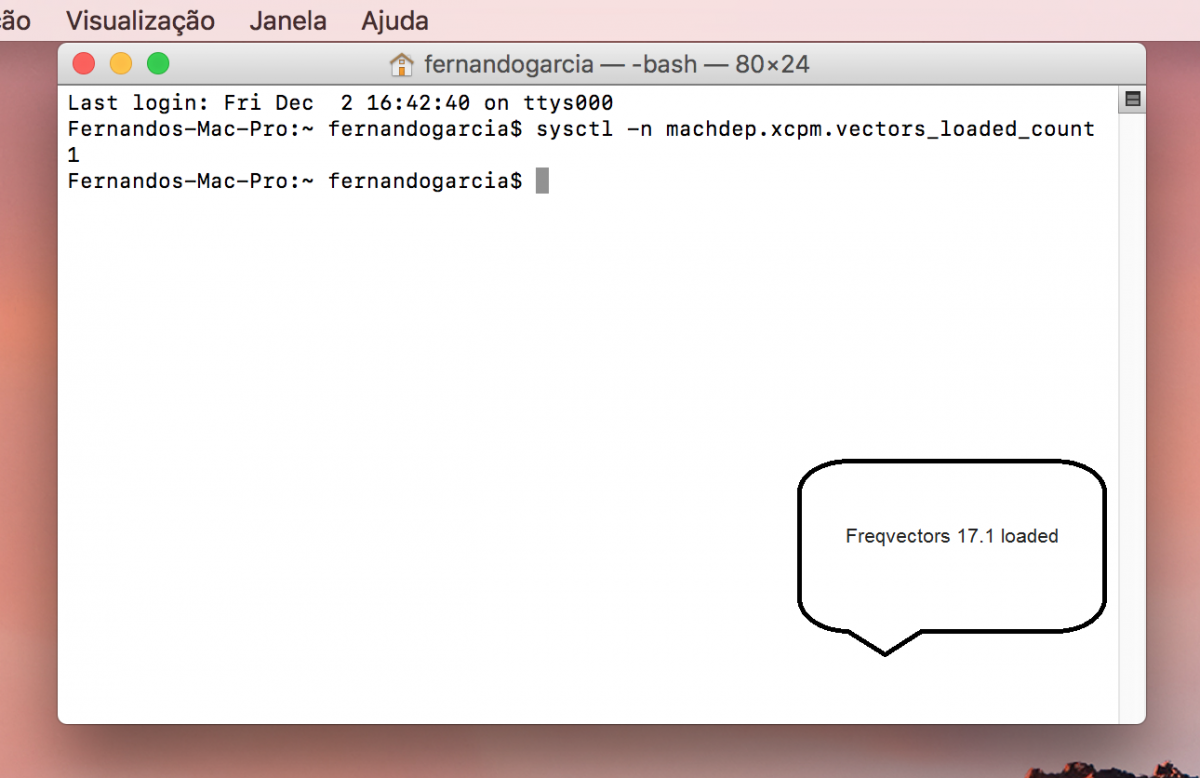

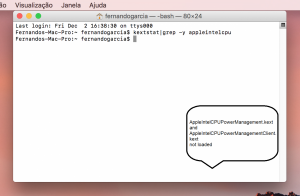

I removed the AppleIntelCPUPowerManagement to activate the xcpm
I do not know why but I do not see the verbose saved anywhere, I do not find kernel.log files, only with dmesg I can ...

This is the output from the command "sudo dmesg":

stResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
000001.808946 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
000001.809385 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
com.apple.AppleFSCompressionTypeDataless load succeeded
rooting via boot-uuid from /chosen: BD0CECDF-0986-39F5-BF14-2C6DE75E8269
vendor:device: 0x8086:0x15a0.
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
AppleIntelE1000e(Info): changing MTU from 0 to 1500
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR1B@1,1/IOPP/H000@0/IONVMeController/IONVMeBlockStorageDevice@1/IOBlockStorageDriver/Samsung SSD 950 PRO 256GB Media/IOGUIDPartitionScheme/Untitled 2@2
BSD root: disk0s2, major 1, minor 6
jnl: b(1, 6): replay_journal: from: 2186752 to: 6137856 (joffset 0x774000)
0, 0  AppleIntelI210::setLinkStatus - not active
AppleIntelE1000e(Info): AppleIntelE1000e:rx = 256, tx = 256
jnl: b(1, 6): journal replay done.
000001.893654 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
hfs: mounted macOS on device b(1, 6)
XCPM: registered
XCPM: registered
VM Swap Subsystem is ON
000002.098402 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
000002.173524 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
hfs: Removed 3 orphaned / unlinked files and 11 directories
000002.434589 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
000002.454756 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
000002.479539 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
000002.526430 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
USBMSC Identifier (non-unique): 0x00000000 0x8564 0x4000 0x21, 2
000002.614534 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
000002.639948 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
000002.663316 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
000002.688684 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
000002.714605 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
Waiting for DSMOS...
IOGraphics flags 0x43
Previous shutdown cause: 5
unexpected session: 100000 uid: -1 requested by: 35
AppleKeyStore: operation failed (pid: 35 sel: 7 ret: e00002c2 '-536870206', -1, 100000)
jnl: disk3s2: replay_journal: from: 231190528 to: 231407616 (joffset 0x3a3c000)
Report bytes: input:5 output:1 feature:5Collections : 12Buttons     : input:11 output:0 feature:22Values      : input:9 output:0 feature:70Element value capacity 4324Report count: 69Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:8 output:8 feature:16Report ID: 2 input:8 output:8 feature:16Report ID: 3 input:8 output:8 feature:16Report ID: 4 input:8 output:8 feature:16Report ID: 5 input:8 output:8 feature:16Report ID: 6 input:32 output:8 feature:32Report ID: 7 input:8 output:8 feature:24Report ID: 8 input:8 output:8 feature:24Report ID: 9 input:8 output:8 feature:24Report ID: 10 input:8 output:8 feature:16Report ID: 11 input:8 output:8 feature:16Report ID: 12 input:32 output:8 feature:32Report ID: 13 input:8 output:8 feature:16Report ID: 14 input:8 output:8 feature:16Report ID: 15 input:8 output:8 feature:16Report ID: 16 input:8 output:8 feature:16Report ID: 17 input:8 output:8 feature:16Report ID: 18 input:8 output:8 feature:16Report ID: 19 input:16 output:8 feature:16Report ID: 20 input:24 output:8 feature:24Report ID: 21 input:8 output:8 feature:24Report ID: 22 input:40 output:8 feature:40Report ID: 23 input:8 output:8 feature:24Report ID: 24 input:8 output:8 feature:16Report ID: 28 input:8 output:8 feature:32Report ID: 32 input:8 output:8 feature:24Report ID: 33 input:16 output:8 feature:16Report ID: 34 input:8 output:8 feature:16Report ID: 35 input:8 output:8 feature:24Report ID: 36 input:8 output:8 feature:24Report ID: 37 input:8 output:8 feature:24Report ID: 38 input:8 output:8 feature:24Report ID: 39 input:8 output:8 feature:24Report ID: 40 input:8 output:8 feature:40Report ID: 48 input:8 output:8 feature:16Report ID: 49 input:8 output:8 feature:24Report ID: 50 input:8 output:8 feature:24Report ID: 51 input:8 output:8 feature:24Report ID: 52 input:8 output:8 feature:24Report ID: 53 input:8 output:8 feature:16Report ID: 54 input:8 output:8 feature:16Report ID: 64 input:8 output:8 feature:16Report ID: 65 input:8 output:8 feature:24Report ID: 66 input:8 output:8 feature:24Report ID: 80 input:8 output:8 feature:16Report ID: 81 input:8 output:8 feature:16Report ID: 82 input:8 output:8 feature:24Report ID: 96 input:8 output:8 feature:24Report ID: 97 input:8 output:8 feature:16Report ID: 98 input:8 output:8 feature:40Report ID: 127 input:8 output:8 feature:16Report ID: 126 input:8 output:8 feature:16Report ID: 125 input:8 output:8 feature:16Report ID: 124 input:8 output:8 feature:16Report ID: 123 input:8 output:8 feature:24Report ID: 122 input:8 output:8 feature:40Report ID: 121 input:8 output:8 feature:16Report ID: 120 input:8 output:8 feature:16Report ID: 117 input:8 output:8 feature:24Report ID: 116 input:8 output:8 feature:40Report ID: 140 input:8 output:8 feature:16Report ID: 141 input:8 output:8 feature:16Report ID: 142 input:8 output:8 feature:16Report ID: 143 input:8 output:8 feature:16Report ID: 144 input:8 output:8 feature:16Report ID: 145 input:8 output:8 feature:24Report ID: 146 input:8 output:8 feature:24Report ID: 128 input:8 output:8 feature:16Report bytes: input:519 output:1 feature:519Collections : 2Buttons     : input:0 output:0 feature:0Values      : input:2 output:0 feature:9Element value capacity 59280NVDAStartup: Official
Report count: 10Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:8 output:8 feature:4136Report ID: 2 input:8 output:8 feature:312Report ID: 3 input:312 output:8 feature:312Report ID: 4 input:8 output:8 feature:4152Report ID: 5 input:4152 output:8 feature:4152Report ID: 7 input:8 output:8 feature:64Report ID: 8 input:8 output:8 feature:200Report ID: 9 input:8 output:8 feature:936Report ID: 6 input:8 output:8 feature:24000003.305840 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
NVDAGK100HAL loaded and registered
nvAccelerator::attach provider NVDAgl parent display
nvAccelerator::probe enter provider: NVDAgl [score 100]
nvAccelerator::probe parent: display
nvAccelerator::probe return success <ptr>
nvAccelerator::probe remove "unmatched" property
nvAccelerator::detach provider NVDAgl parent display
nvAccelerator::attach provider NVDAgl parent display
nvAccelerator: ENTER ::start with provider: NVDAgl
nvAccelerator::start switch to parent: display
Sound assertion in AppleHDAController at line 1423
*** AppleSMBusDevice::start failed to start - no address.
Report bytes: input:1 output:0 feature:0Collections : 2Buttons     : input:7 output:0 feature:0Values      : input:0 output:0 feature:0Element value capacity 192Report count: 1Report ID: 0 input:8 output:0 feature:0Report bytes: input:9 output:2 feature:1Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0Element value capacity 5844Report count: 2Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:72 output:16 feature:8Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:1 output:0 feature:0Element value capacity 6656Report count: 1Report ID: 0 input:64 output:8 feature:0HID: Legacy shim 2
HID: Legacy shim 2
DSMOS has arrived
[IOBluetoothFamily][start] -- completed
PMRD: prevent idle sleep list: IODisplayWrangler+ (1)
prevent idle sleep list: IODisplayWrangler+ (1)
HID: Legacy shim 2
**** [IOBluetoothHostControllerUSBTransport][start] -- completed -- result = TRUE -- 0x3000 ****
**** [BroadcomBluetoothHostControllerUSBTransport][start] -- Completed (matched on Device) -- 0x3000 ****
[IOBluetoothFamily][staticBluetoothTransportShowsUp] -- Received Bluetooth Controller register service notification -- 0x3000
[IOBluetoothHostController][start] -- completed
[IOBluetoothHostController::setConfigState] calling registerService
**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- calling IOBluetoothFamily's registerService() -- 0xd9c0 -- 0x5800 -- 0x3000 ****

**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- Connected to the transport successfully -- 0xd9c0 -- 0x5800 -- 0x3000 ****

Report bytes: input:4 output:1 feature:28Collections : 4Buttons     : input:2 output:0 feature:0Values      : input:2 output:0 feature:2Element value capacity 1176Report count: 5Report ID: 0 input:0 output:0 feature:0Report ID: 2 input:32 output:8 feature:8Report ID: 127 input:8 output:8 feature:32Report ID: 126 input:8 output:8 feature:224Report ID: 125 input:24 output:8 feature:8HID: Legacy shim 2
jnl: disk3s2: journal replay done.
AppleIntelMCEReporter: start()
hfs: mounted Server Dati on device disk3s2
handleInformationResponse kBluetoothL2CAPInformationTypeExtendedFeatures deviceAccountPaired, check fixed channel support

IOBluetoothDevice::setProperties() -- calling mHCIController->CallCreateDeviceReporter() -- this = 0xf240


 IOBluetoothHostController::CallCreateDeviceReporter -- calling enqueueAction() -- device = 0xf240


 IOBluetoothHostController::CreateDeviceReporterAction -- device = = 0xf240


 IOBluetoothHostController::CreateDeviceReporterAction -- calling CreateDeviceReporter() device = = 0xf240


 IOBluetoothHostController::CreateDeviceReporter -- device = = 0xf240

ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
  -- power management may be incomplete or unsupported
WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
  -- power management may be incomplete or unsupported
AppleLPC::notifyPlatformASPM - registering with plugin with ASPM Support false
[BNBMouseDevice::init][92] init is complete
USBMSC Identifier (non-unique): 0014785448B1BE7187428DB7 0x951 0x1666 0x100, 3
NTFS driver 3.13 [Flags: R/W].
NTFS volume name Riservato per il sistema, version 3.1.
[BNBMouseDevice::handleStart][92] returning 1
NTFS volume name , version 3.1.
NTFS-fs warning (device /dev/disk2s2, pid 279): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.
Report bytes: input:6 output:1 feature:65Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:2 output:0 feature:2Element value capacity 1816Report count: 4Report ID: 0 input:0 output:0 feature:0Report ID: 16 input:48 output:8 feature:8Report ID: 71 input:8 output:8 feature:16Report ID: 85 input:8 output:8 feature:520[HID] [MT] AppleMultitouchHIDEventDriver::start entered
HID: Legacy shim 2
NTFS volume name Riservato per il sistema, version 3.1.
NTFS volume name , version 3.1.
[HID] [MT] AppleMultitouchDevice::start entered
kPEDisableScreen 1
GFX0: Not usable
kPEDisableScreen 1
Sound assertion in AppleHDAEngine at line 9537
Sound assertion in AppleHDAEngine at line 9537
Sound assertion in AppleHDAEngine at line 6940
0, 0  AppleIntelI210::setLinkStatus - not active
en1 Link down
kPEDisableScreen 1
kPEDisableScreen 1
kPEDisableScreen 1
kPEDisableScreen 1
kPEEnableScreen 1
hfs: early journal init: volume on disk5s2 is read-only and journal is dirty.  Can not mount volume.
hfs_mountfs: hfs_early_journal_init failed, erroring out
hfs_mount: hfs_mountfs returned error=22 for device disk5s2
jnl: disk5s2: replay_journal: from: 3389952 to: 3513344 (joffset 0x75000)
jnl: disk5s2: journal replay done.
hfs: mounted Install macOS Sierra on device disk5s2
hfs: unmount initiated on Install macOS Sierra on device disk5s2
[[0x7000]  OpCode 0xFCF5 (Broadcom VSC -- BFC Read Remote BPCS Features) from: blued (88)  Synchronous  status: 0x00 (kIOReturnSuccess) state: 2 (BUSY) timeout: 4321] Bluetooth warning: An HCI Req timeout occurred -- missing completion event.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
AppleKeyStore: set handle 1 as special bag -501
AppleKeyStore: Sending lock change 0 for handle -501
AppleKeyStore::ipc_device_state_transition: Device UnLock call, lockstate=0, transientCnt=0
AppleKeyStore::ipc_device_state_transition: Device UnLocked, lockstate=0
hfs: mounted Install macOS Sierra on device disk5s2
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
Ethernet [AppleIntelI210]: Link up on en1, 1-Gigabit, Full-duplex, No flow-control, EEE enabled, Debug [0000,bc48,0de1,0200,c1e1,3800]
0, 0xc  AppleIntelI210::setLinkStatus - active
utun_ctl_connect: creating interface utun0
utun_start: ifnet_disable_output returned error 12
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: CalendarAgent(430) allow(0) mach-register com.apple.CalendarStore.lock.init
SandboxViolation: fontd(386) deny(1) file-issue-extension /Network/Library
SandboxViolation: AssetCacheLocato(436) deny(1) file-read-data /Users/gabriele/Library/Preferences/ByHost/.GlobalPreferences.FC80347B-6CD9-5D33-A687-88A4E7FC34FE.plist
SandboxViolation: AssetCacheLocato(436) deny(1) file-read-data /Users/gabriele/Library/Preferences/.GlobalPreferences.plist
SandboxViolation: AssetCacheLocato(436) deny(1) mach-lookup com.apple.metadata.mds.legacy
SandboxViolation: cloudd(442) deny(1) mach-lookup com.apple.coreservices.launchservicesd
SandboxViolation: fmfd(449) deny(1) mach-lookup com.apple.securityd.xpc
SandboxViolation: fmfd(449) deny(1) file-write-create /Users/gabriele/Library/Keychains/login.keychain-db.sb-7d003a67-LN9hfC
SandboxViolation: AssetCacheLocato(436) deny(1) mach-lookup com.apple.cookied
SandboxViolation: cloudphotosd(392) deny(1) mach-lookup com.apple.logind
SandboxViolation: fontd(386) deny(1) file-issue-extension /Network/Library
SandboxViolation: swcd(456) deny(1) ipc-posix-shm-read-data /tmp/com.apple.csseed.115
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(409) deny(1) mach-lookup com.apple.lsd.modifydb
loginwindow is not entitledloginwindow is not entitledUserEventAgent is not entitledUserEventAgent is not entitle

this is config.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v darkwake=0 npci=0x2000 nvda_drv=1 -xcpm</string>
		<key>Debug</key>
		<true/>
		<key>DefaultLoader</key>
		<string>boot.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>it:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1920x1200</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<false/>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>ZZZ</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				RInoweAIuZkB
				</data>
				<key>Replace</key>
				<data>
				kLgA/wAAuZkB
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM CORE SCOPE MSRS © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				vgIAAAAx0uhs/P//
				</data>
				<key>Replace</key>
				<data>
				vgIAAAAx0pCQkJCQ
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM PERFOMANCE FIX 1 (wrsmr fix to get CPU max) © okrasit</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				idjB4Ai5mQE=
				</data>
				<key>Replace</key>
				<data>
				uAD/AAC5mQE=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM SMT SCOPE MSRS  © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				vgsAAABd6QgAAAA=
				</data>
				<key>Replace</key>
				<data>
				vgsAAABdw5CQkJA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM SMT SCOPE MSRS  © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				vgsAAAAx0uhZ/P//
				</data>
				<key>Replace</key>
				<data>
				vgsAAAAx0pCQkJCQ
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM idle Replace All fix by Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ILniAAAADzA=
				</data>
				<key>Replace</key>
				<data>
				ILniAAAAkJA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM BOOTSTRAP Sierra © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g8PEg/si
				</data>
				<key>Replace</key>
				<data>
				g8PBg/si
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string> reboot fix 10.12db8 © Pike R. Alpha</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				VUiJ5UFXQVZBVUFUU1BBidZBifdIiftFhf8PhA==
				</data>
				<key>Replace</key>
				<data>
				w0iJ5UFXQVZBVUFUU1BBidZBifdIiftFhf8PhA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Haswell-E CPUID Patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g8Dp
				</data>
				<key>Replace</key>
				<data>
				g8Dm
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>XCPM PKG SCOPE MSR © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				vgcAAAAx0uiU/P//
				</data>
				<key>Replace</key>
				<data>
				vgcAAAAx0pCQkJCQ
				</data>
			</dict>
		</array>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily IONameMatch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				PHN0cmluZz5wY2kxNDRkLGE4MDQ8L3N0cmluZz4=
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				PHN0cmluZz5wY2kxNDRkLGE4MDI8L3N0cmluZz4=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#3</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AMeDpAAAAAAQAABIi0gISA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				AMeDpAAAAAACAABIi0gISA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#6_7</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				icGB4f8PAABIAdFIgfn/DwAAdzs=
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				icGB4f8BAABIAdFIgfn/AQAAdzs=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>5960X 10.12</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SIH7AAAAQA==
				</data>
				<key>Name</key>
				<string>IOPCIFamily</string>
				<key>Replace</key>
				<data>
				SIH7AAAAgA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#External</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SIXAdAeAiwgBAAAQ
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				kJCQkJCAiwgBAAAQ
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#16</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				weIIQQ+2wcHgDEQJ0EQJwA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				weIIQQ+2wcHgCUQJ0EQJwA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#14</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				iWTY+EmBxAAQAABJgccA8A==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				iWTY+EmBxAACAABJgccA8A==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.11-BT4LE-Handoff-Hotspot-lisai9093</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SIX/dEdIiwc=
				</data>
				<key>Name</key>
				<string>IOBluetoothFamily</string>
				<key>Replace</key>
				<data>
				Qb4PAAAA60Q=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#13</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				4b+AQBUGTYnWugAQAABFMQ==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				4b+AQBUGTYnWugACAABFMQ==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#1</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ibPoAgAAweAMBQAQAACJgw==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				ibPoAgAAweAJBQAQAACJgw==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#5</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				hv8PAABIwegMD7cPgeH/Dw==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				hv8PAABIwegJD7cPgeH/Dw==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - BCM94352Z</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				gflSqgAAdSk=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				gflSqgAAZpA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#12</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				yAAAAEkp17gAEAAATYskJA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				yAAAAEkp17gAAgAATYskJA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Change 15 Port Limit To 30 in XHCI Kext 10.11 (99-series)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g32EEA==
				</data>
				<key>MatchOS</key>
				<string>10.12</string>
				<key>Name</key>
				<string>AppleUSBXHCIPCI</string>
				<key>Replace</key>
				<data>
				g32EHw==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#11</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AABJiY4iAQAAugAQAABIKQ==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				AABJiY4iAQAAugACAABIKQ==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Change 15 Port Limit To 30 in XHCI Kext 10.12(99-series)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g710////EA==
				</data>
				<key>MatchOS</key>
				<string>10.12</string>
				<key>Name</key>
				<string>AppleUSBXHCIPCI</string>
				<key>Replace</key>
				<data>
				g710////HQ==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#2</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				D7aMiIIAAACD+QwPhTIBAA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				D7aMiIIAAACD+QkPhTIBAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#8</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SYHF/w8AAEnB7QxJiwQkSA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				SYHF/w8AAEnB7QlJiwQkSA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#17</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RYTJD5XAD7bAweAMRAnYRA==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				RYTJD5XAD7bAweAJRAnYRA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#4</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SYnGTYX2dGFBwecMSWP/vg==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				SYnGTYX2dGFBwecJSWP/vg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.11-BCM94352-5GHz-US-FCC-dv</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QYP8/3QsSA==
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				ZscGVVPrKw==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#9_10</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				BgIAAEyNuAAQAABMiflIgeEA8P//SYmGGgEAAEmJjiIB
				AABBvAAQAABJKfQ=
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				BgIAAEyNuAACAABMiflIgeEA8P//SYmGGgEAAEmJjiIB
				AABBvAACAABJKfQ=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>IONVMeFamily Pike R. Alpha Patch#15</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				Bf8PAABIwegMZvfB/w8PlQ==
				</data>
				<key>Name</key>
				<string>IONVMeFamily</string>
				<key>Replace</key>
				<data>
				Bf8PAABIwegJZvfB/w8PlQ==
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x67</string>
		<key>MLB</key>
		<string>C02032109R5DC771H</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>06/12/13</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MP61.88Z.0116.B04.1312061508</string>
		<key>Board-ID</key>
		<string>Mac-F60DEB81FF30ACF6</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>11</integer>
		<key>ChassisAssetTag</key>
		<string>Pro-Enclosure</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>06</string>
		<key>Family</key>
		<string>Mac Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>MacPro6,1</string>
		<key>SerialNumber</key>
		<string>C02KNVUMF693</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

where I'm wrong?



in the bios:

EIST - Disabled
Turbo - Enabled
manual overclock 4200MHz
DDR4-2400MHz
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

I can not properly configure the system.

I removed the AppleIntelCPUPowerManagement to activate the xcpm

where I'm wrong?



in the bios:

EIST - Disabled

Turbo - Enabled

manual overclock 4200MHz

DDR4-2400MHz



You shouldn't need to remove AppleIntelCPUPowerManagement in order to get proper stepping. Look at my config.plist in my posted EFI folder for the XCPM patches you'll need for your set up. Also, try switching your boot args to mine as well.



I'm also using Mac Pro 6,1 SMBIOS. You should do the same as well.



Also, make sure you're not getting any WARNINGS when generating the SSDT.



And, lastly, make sure you can get proper stepping with STOCK speeds before you decide to overclock.

Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted
Ok, I try immediately.



The strangest thing that happens is that the PC goes into kernel panic when I load the kext AppleIntelInfo and if I try to install Intel Power Gadget the program tells me that the CPU is not supported ... then there are all the read-write errors sandbox
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Ok, I try immediately.



The strangest thing that happens is that the PC goes into kernel panic when I load the kext AppleIntelInfo and if I try to install Intel Power Gadget the program tells me that the CPU is not supported ... then there are all the read-write errors sandbox

If you do not have xCode yet, you have to download it from the Appstore and install it. After that you'll have to compile AppleInfoIntelKext.sh to your OS via xCode. And it's only after you do that that you can run the kext without KP. That was the way it was with me too. To install Intel Power Gadget without stress, you need to do it through Pacifist.app
Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

AppleIntelInfo log:

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x251699bd266f (1235 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8072A17D00
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x520F45CC85
IA32_APERF.......................(0xE8)  : 0x54AD8E1F6F

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x20F600002100
------------------------------------------
 - Current Performance State Value...... : 0x2100 (3300 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88470000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 71
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222222222222424
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C03.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C04.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C05.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C06.......... : 22 (3400 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x2930466
------------------------------------------
 - Total Energy Consumed................ : 2636 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x25169BA92E30

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 31 33 ]
CPU C6-Cores [ 0 2 6 8 10 ]
CPU P-States [ (12) 31 33 34 ]
CPU C6-Cores [ 0 1 2 5 6 8 10 ]
CPU P-States [ (12) 24 31 33 34 ]
CPU C6-Cores [ 0 1 2 4 5 6 8 10 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 ]
CPU P-States [ 12 22 24 31 33 34 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 22 24 25 31 33 34 (36) ]
CPU P-States [ (12) 22 24 25 27 31 33 34 36 ]
CPU P-States [ 12 22 23 24 25 27 31 33 (34) 36 ]
CPU P-States [ (12) 22 23 24 25 27 29 31 33 34 36 ]
CPU P-States [ (12) 22 23 24 25 26 27 29 31 33 34 36 ]
CPU P-States [ 12 22 23 24 25 26 27 28 29 31 33 34 (36) ]
CPU P-States [ (12) 22 23 24 25 26 27 28 29 31 32 33 34 36 ]
CPU P-States [ (12) 21 22 23 24 25 26 27 28 29 31 32 33 34 36 ]
CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (36) ]
CPU P-States [ (12) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
CPU P-States [ (12) 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
CPU P-States [ 12 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) ]
CPU P-States [ (12) 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
CPU P-States [ (12) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
CPU P-States [ (12) 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

AppleIntelInfo log:

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222222222222424
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C03.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C04.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C05.......... : 22 (3400 MHz)
 - Maximum Ratio Limit for C06.......... : 22 (3400 MHz)

You'll want to set your AI Tuner Overclocker to Manual (so that you'll have "sync all cores," instead of some cores being @ 3.6 and @ 3.4), otherwise, it looks like you'll get proper stepping.



Next step would be to generate an overclocked SSDT and make sure it has the same amount of frequency steppings.

  • Like 1
Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

New AppleIntelInfo log:

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x3b0f781b9de7 (1967 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF80728B7900
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x19EA40386B
IA32_APERF.......................(0xE8)  : 0x5A169BEA37

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x29D000002E00
------------------------------------------
 - Current Performance State Value...... : 0x2E00 (4600 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88370000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 55
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x670A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 103
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x22222E2E2E2E2E2E
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2E (4600 MHz)
 - Maximum Ratio Limit for C02.......... : 2E (4600 MHz)
 - Maximum Ratio Limit for C03.......... : 2E (4600 MHz)
 - Maximum Ratio Limit for C04.......... : 2E (4600 MHz)
 - Maximum Ratio Limit for C05.......... : 2E (4600 MHz)
 - Maximum Ratio Limit for C06.......... : 2E (4600 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x29040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x1784FA
------------------------------------------
 - Total Energy Consumed................ : 94 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3B0F7B7A732A

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 46 (4600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 43 (46) ]
CPU C6-Cores [ 1 2 4 6 8 10 ]
CPU C6-Cores [ 0 1 2 3 4 6 8 10 ]
CPU P-States [ 43 44 (46) ]
CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 ]
CPU P-States [ 41 43 44 (46) ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 11 ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 40 41 43 44 (46) ]
CPU P-States [ (12) 40 41 43 44 45 46 ]
CPU P-States [ 12 37 40 41 43 44 45 (46) ]
CPU P-States [ (12) 37 38 40 41 43 44 45 46 ]
CPU P-States [ 12 30 37 38 40 41 43 44 45 (46) ]
CPU P-States [ (12) 30 36 37 38 40 41 43 44 45 46 ]
CPU P-States [ (12) 30 35 36 37 38 40 41 43 44 45 46 ]
CPU P-States [ (12) 30 35 36 37 38 40 41 42 43 44 45 46 ]
CPU P-States [ 12 30 35 36 37 38 39 40 41 42 43 44 45 (46) ]
CPU P-States [ 12 30 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]
CPU P-States [ (12) 30 32 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 28 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 26 28 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 26 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 24 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ 12 22 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]
CPU P-States [ (12) 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ 12 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]
CPU P-States [ (12) 20 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ 12 19 20 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]
CPU P-States [ (12) 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]




CINEBENCH CPU: 1318

CINEBENCH OPENGL: 128.46



DMESG Log:

ulock_initialize>thread_max=10240, ull_hash_buckets=4096
using 16384 buffer headers and 10240 cluster IO buffer headers
AppleCredentialManager::start called
AppleKeyStore::start(IOResources) <1>
AppleKeyStore starting (BUILT: Oct 13 2016 22:27:09)
FakeSMCKeyStore: started
Started cpu 2 (lapic id 00000002)
Started cpu 4 (lapic id 00000004)
Started cpu 6 (lapic id 00000006)
Started cpu 8 (lapic id 00000008)
Started cpu 10 (lapic id 0000000a)
Started cpu 1 (lapic id 00000001)
Started cpu 3 (lapic id 00000003)
Started cpu 5 (lapic id 00000005)
Started cpu 7 (lapic id 00000007)
Started cpu 9 (lapic id 00000009)
Started cpu 11 (lapic id 0000000b)
Current tsc from rdtsc64() is 64618261783878. Rendezvouing..
IOAPIC: Version 0x20 Vectors 64:87
IOAPIC: Version 0x20 Vectors 88:111
ACPI: sleep states S3 S4 S5
CPUSensors: CPU family 0x6, model 0x3f, stepping 0x2, cores 6, threads 12, TJmax 103
CPUSensors: setting platform keys to [j43     ]
CPUSensors: base CPU multiplier is 33
CPUSensors: started
pci (build 23:55:41 Oct 18 2016), flags 0xe0000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
RTC: Only single RAM bank (128 bytes)
RTC: Only single RAM bank (128 bytes)
FakeSMC v6.21-311-g2958f55.1723 Copyright 2015 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
HID: Legacy shim 2
FakeSMC: 14 preconfigured keys added
FakeSMC: 5 keys exported by Clover EFI
pci (build 23:55:41 Oct 18 2016), flags 0xe0000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
[ PCI configuration begin ]
kPEDisableScreen -1
SMC: successfully initialized
initialize_screen: b=F9000000, w=00000500, h=00000400, r=00001400, d=00000001
kPEEnableScreen 1
console relocated to 0xf9000000
[ PCI configuration end, bridges 17, devices 22 ]
ACPI: no ECDT
[AHCI][PML][00000000]+IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
[AHCI][PML][00000000]-IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
[AHCI][HBA][00000000]+AppleAHCIGlobals::AppleAHCIGlobals
[AHCI][HBA][00000000]-AppleAHCIGlobals
GeforceSensors: starting early shadow VBIOS...
AppleIntelI210::start - Built Oct 18 2016 23:57:50
SuperIODevice: found Nuvoton NCT6791D on port=0x2e address=0x290
NCT677xSensors: started
000001.648992 AppleUSBLegacyRoot@: AppleUSBLegacyRoot::init: enabling legacy matching
mcache: 12 CPU(s), 64 bytes CPU cache line size
mbinit: done [128 MB total pool size, (85/42) split]
bsd_autoconf: calling kminit
com.apple.AppleFSCompressionTypeZlib kmod start
com.apple.AppleFSCompressionTypeDataless kmod start
com.apple.AppleFSCompressionTypeZlib load succeeded
com.apple.AppleFSCompressionTypeDataless load succeeded
rooting via boot-uuid from /chosen: BD0CECDF-0986-39F5-BF14-2C6DE75E8269
vendor:device: 0x8086:0x15a0.
AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
AppleIntelE1000e(Info): changing MTU from 0 to 1500
0, 0  AppleIntelI210::setLinkStatus - not active
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR1B@1,1/IOPP/H000@0/IONVMeController/IONVMeBlockStorageDevice@1/IOBlockStorageDriver/Samsung SSD 950 PRO 256GB Media/IOGUIDPartitionScheme/Untitled 2@2
BSD root: disk2s2, major 1, minor 8
AppleIntelE1000e(Info): AppleIntelE1000e:rx = 256, tx = 256
hfs: mounted macOS on device b(1, 8)
XCPM: registered
XCPM: registered
VM Swap Subsystem is ON
hfs: Removed 0 orphaned / unlinked files and 2 directories
USBMSC Identifier (non-unique): 0x00000000 0x8564 0x4000 0x21, 2
Waiting for DSMOS...
AppleIntelMCEReporter: start()
IOGraphics flags 0x43
Report bytes: input:5 output:1 feature:5Collections : 12Buttons     : input:11 output:0 feature:22Values      : input:9 output:0 feature:70Element value capacity 4324Report count: 69Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:8 output:8 feature:16Report ID: 2 input:8 output:8 feature:16Report ID: 3 input:8 output:8 feature:16Report ID: 4 input:8 output:8 feature:16Report ID: 5 input:8 output:8 feature:16Report ID: 6 input:32 output:8 feature:32Report ID: 7 input:8 output:8 feature:24Report ID: 8 input:8 output:8 feature:24Report ID: 9 input:8 output:8 feature:24Report ID: 10 input:8 output:8 feature:16Report ID: 11 input:8 output:8 feature:16Report ID: 12 input:32 output:8 feature:32Report ID: 13 input:8 output:8 feature:16Report ID: 14 input:8 output:8 feature:16Report ID: 15 input:8 output:8 feature:16Report ID: 16 input:8 output:8 feature:16Report ID: 17 input:8 output:8 feature:16Report ID: 18 input:8 output:8 feature:16Report ID: 19 input:16 output:8 feature:16Report ID: 20 input:24 output:8 feature:24Report ID: 21 input:8 output:8 feature:24Report ID: 22 input:40 output:8 feature:40Report ID: 23 input:8 output:8 feature:24Report ID: 24 input:8 output:8 feature:16Report ID: 28 input:8 output:8 feature:32Report ID: 32 input:8 output:8 feature:24Report ID: 33 input:16 output:8 feature:16Report ID: 34 input:8 output:8 feature:16Report ID: 35 input:8 output:8 feature:24Report ID: 36 input:8 output:8 feature:24Report ID: 37 input:8 output:8 feature:24Report ID: 38 input:8 output:8 feature:24Report ID: 39 input:8 output:8 feature:24Report ID: 40 input:8 output:8 feature:40Report ID: 48 input:8 output:8 feature:16Report ID: 49 input:8 output:8 feature:24Report ID: 50 input:8 output:8 feature:24Report ID: 51 input:8 output:8 feature:24Report ID: 52 input:8 output:8 feature:24Report ID: 53 input:8 output:8 feature:16Report ID: 54 input:8 output:8 feature:16Report ID: 64 input:8 output:8 feature:16Report ID: 65 input:8 output:8 feature:24Report ID: 66 input:8 output:8 feature:24Report ID: 80 input:8 output:8 feature:16Report ID: 81 input:8 output:8 feature:16Report ID: 82 input:8 output:8 feature:24Report ID: 96 input:8 output:8 feature:24Report ID: 97 input:8 output:8 feature:16Report ID: 98 input:8 output:8 feature:40Report ID: 127 input:8 output:8 feature:16Report ID: 126 input:8 output:8 feature:16Report ID: 125 input:8 output:8 feature:16Report ID: 124 input:8 output:8 feature:16Report ID: 123 input:8 output:8 feature:24Report ID: 122 input:8 output:8 feature:40Report ID: 121 input:8 output:8 feature:16Report ID: 120 input:8 output:8 feature:16Report ID: 117 input:8 output:8 feature:24Report ID: 116 input:8 output:8 feature:40Report ID: 140 input:8 output:8 feature:16Report ID: 141 input:8 output:8 feature:16Report ID: 142 input:8 output:8 feature:16Report ID: 143 input:8 output:8 feature:16Report ID: 144 input:8 output:8 feature:16Report ID: 145 input:8 output:8 feature:24Report ID: 146 input:8 output:8 feature:24Report ID: 128 input:8 output:8 feature:16Previous shutdown cause: 5
Report bytes: input:519 output:1 feature:519Collections : 2Buttons     : input:0 output:0 feature:0Values      : input:2 output:0 feature:9Element value capacity 59280NVDAStartupWeb: Web
Report count: 10Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:8 output:8 feature:4136Report ID: 2 input:8 output:8 feature:312Report ID: 3 input:312 output:8 feature:312Report ID: 4 input:8 output:8 feature:4152Report ID: 5 input:4152 output:8 feature:4152Report ID: 7 input:8 output:8 feature:64Report ID: 8 input:8 output:8 feature:200Report ID: 9 input:8 output:8 feature:936Report ID: 6 input:8 output:8 feature:24unexpected session: 100000 uid: -1 requested by: 35
com_intel_driver_EnergyDriver[<ptr>]::start(<ptr>)
AppleKeyStore: operation failed (pid: 35 sel: 7 ret: e00002c2 '-536870206', -1, 100000)
Sound assertion in AppleHDAController at line 1423
DSMOS has arrived
[IOBluetoothFamily][start] -- completed
PMRD: prevent idle sleep list: IODisplayWrangler+ (1)
prevent idle sleep list: IODisplayWrangler+ (1)
*** AppleSMBusDevice::start failed to start - no address.
Report bytes: input:9 output:2 feature:1Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0Element value capacity 5844Report count: 2Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:72 output:16 feature:8HID: Legacy shim 2
Report bytes: input:4 output:1 feature:28Collections : 4Buttons     : input:2 output:0 feature:0Values      : input:2 output:0 feature:2Element value capacity 1176Report count: 5Report ID: 0 input:0 output:0 feature:0Report ID: 2 input:32 output:8 feature:8Report ID: 127 input:8 output:8 feature:32Report ID: 126 input:8 output:8 feature:224Report ID: 125 input:24 output:8 feature:8HID: Legacy shim 2
**** [IOBluetoothHostControllerUSBTransport][start] -- completed -- result = TRUE -- 0xd000 ****
**** [BroadcomBluetoothHostControllerUSBTransport][start] -- Completed (matched on Device) -- 0xd000 ****
[IOBluetoothFamily][staticBluetoothTransportShowsUp] -- Received Bluetooth Controller register service notification -- 0xd000
[IOBluetoothHostController][start] -- completed
[IOBluetoothHostController::setConfigState] calling registerService
**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- calling IOBluetoothFamily's registerService() -- 0x2ab0 -- 0xce00 -- 0xd000 ****

**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- Connected to the transport successfully -- 0x2ab0 -- 0xce00 -- 0xd000 ****

Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:1 output:0 feature:0Element value capacity 6656Report count: 1Report ID: 0 input:64 output:8 feature:0Report bytes: input:1 output:0 feature:0Collections : 2Buttons     : input:7 output:0 feature:0Values      : input:0 output:0 feature:0Element value capacity 192Report count: 1Report ID: 0 input:8 output:0 feature:0HID: Legacy shim 2
HID: Legacy shim 2
NVDAGK100HAL loaded and registered
nvAccelerator::attach provider NVDAgl parent display
nvAccelerator::probe enter provider: NVDAgl [score 130]
nvAccelerator::probe parent: display
nvAccelerator::probe return success <ptr>
nvAccelerator::probe remove "unmatched" property
nvAccelerator::detach provider NVDAgl parent display
nvAccelerator::attach provider NVDAgl parent display
nvAccelerator: ENTER ::start with provider: NVDAgl
nvAccelerator::start switch to parent: display
NVSPI::start starting!
hfs: mounted Server Dati on device disk1s2
handleInformationResponse kBluetoothL2CAPInformationTypeExtendedFeatures deviceAccountPaired, check fixed channel support

IOBluetoothDevice::setProperties() -- calling mHCIController->CallCreateDeviceReporter() -- this = 0xf900


 IOBluetoothHostController::CallCreateDeviceReporter -- calling enqueueAction() -- device = 0xf900


 IOBluetoothHostController::CreateDeviceReporterAction -- device = = 0xf900


 IOBluetoothHostController::CreateDeviceReporterAction -- calling CreateDeviceReporter() device = = 0xf900


 IOBluetoothHostController::CreateDeviceReporter -- device = = 0xf900

ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
  -- power management may be incomplete or unsupported
WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
  -- power management may be incomplete or unsupported
AppleLPC::notifyPlatformASPM - registering with plugin with ASPM Support false
[BNBMouseDevice::init][92] init is complete
USBMSC Identifier (non-unique): 0014785448B1BE7187428DB7 0x951 0x1666 0x100, 3
Sound assertion in AppleHDADriver at line 1122
Sound assertion in AppleHDADriver at line 1095
NTFS driver 3.13 [Flags: R/W].
NTFS volume name Riservato per il sistema, version 3.1.
[BNBMouseDevice::handleStart][92] returning 1
Report bytes: input:6 output:1 feature:65Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:2 output:0 feature:2Element value capacity 1816Report count: 4Report ID: 0 input:0 output:0 feature:0Report ID: 16 input:48 output:8 feature:8Report ID: 71 input:8 output:8 feature:16Report ID: 85 input:8 output:8 feature:520[HID] [MT] AppleMultitouchHIDEventDriver::start entered
HID: Legacy shim 2
NTFS volume name , version 3.1.
NTFS-fs warning (device /dev/disk3s2, pid 281): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.
NTFS volume name Riservato per il sistema, version 3.1.
NTFS volume name , version 3.1.
[HID] [MT] AppleMultitouchDevice::start entered
kPEDisableScreen 1
GFX0: Not usable
kPEDisableScreen 1
0, 0  AppleIntelI210::setLinkStatus - not active
en1 Link down
kPEDisableScreen 1
kPEDisableScreen 1
kPEDisableScreen 1
kPEDisableScreen 1
kPEEnableScreen 1
hfs: mounted Install macOS Sierra on device disk5s2
hfs: unmount initiated on Install macOS Sierra on device disk5s2
[[0xF000]  OpCode 0xFCF5 (Broadcom VSC -- BFC Read Remote BPCS Features) from: blued (89)  Synchronous  status: 0x00 (kIOReturnSuccess) state: 2 (BUSY) timeout: 4321] Bluetooth warning: An HCI Req timeout occurred -- missing completion event.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
AppleKeyStore: set handle 1 as special bag -501
AppleKeyStore: Sending lock change 0 for handle -501
AppleKeyStore::ipc_device_state_transition: Device UnLock call, lockstate=0, transientCnt=0
AppleKeyStore::ipc_device_state_transition: Device UnLocked, lockstate=0
hfs: mounted Install macOS Sierra on device disk5s2
utun_ctl_connect: creating interface utun0
utun_start: ifnet_disable_output returned error 12
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
SandboxViolation: CalendarAgent(427) allow(0) mach-register com.apple.CalendarStore.lock.init
SandboxViolation: fontd(389) deny(1) file-issue-extension /Network/Library
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: cloudd(447) deny(1) mach-lookup com.apple.coreservices.launchservicesd
Ethernet [AppleIntelI210]: Link up on en1, 1-Gigabit, Full-duplex, No flow-control, EEE enabled, Debug [0000,bc08,0de1,0200,c1e1,3800]
0, 0xc  AppleIntelI210::setLinkStatus - active
SandboxViolation: AssetCacheLocato(455) deny(1) file-read-data /Users/gabriele/Library/Preferences/ByHost/.GlobalPreferences.FC80347B-6CD9-5D33-A687-88A4E7FC34FE.plist
SandboxViolation: AssetCacheLocato(455) deny(1) file-read-data /Users/gabriele/Library/Preferences/.GlobalPreferences.plist
SandboxViolation: AssetCacheLocato(455) deny(1) mach-lookup com.apple.metadata.mds.legacy
SandboxViolation: cloudphotosd(387) deny(1) mach-lookup com.apple.logind
SandboxViolation: fmfd(462) deny(1) mach-lookup com.apple.securityd.xpc
SandboxViolation: fmfd(462) deny(1) file-write-create /Users/gabriele/Library/Keychains/login.keychain-db.sb-1285868c-XNGWDw
SandboxViolation: fontd(389) deny(1) file-issue-extension /Network/Library
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(418) deny(1) mach-lookup com.apple.lsd.modifydb
loginwindow is not entitledloginwindow is not entitledUserEventAgent is not entitledUserEventAgent is not entitle
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 46 (4600 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ 43 (46) ]

CPU C6-Cores [ 1 2 4 6 8 10 ]

CPU C6-Cores [ 0 1 2 3 4 6 8 10 ]

CPU P-States [ 43 44 (46) ]

CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 ]

CPU P-States [ 41 43 44 (46) ]

CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 11 ]

CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ 40 41 43 44 (46) ]

CPU P-States [ (12) 40 41 43 44 45 46 ]

CPU P-States [ 12 37 40 41 43 44 45 (46) ]

CPU P-States [ (12) 37 38 40 41 43 44 45 46 ]

CPU P-States [ 12 30 37 38 40 41 43 44 45 (46) ]

CPU P-States [ (12) 30 36 37 38 40 41 43 44 45 46 ]

CPU P-States [ (12) 30 35 36 37 38 40 41 43 44 45 46 ]

CPU P-States [ (12) 30 35 36 37 38 40 41 42 43 44 45 46 ]

CPU P-States [ 12 30 35 36 37 38 39 40 41 42 43 44 45 (46) ]

CPU P-States [ 12 30 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]

CPU P-States [ (12) 30 32 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 28 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 26 28 30 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 26 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 24 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ 12 22 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]

CPU P-States [ (12) 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ 12 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]

CPU P-States [ (12) 20 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ 12 19 20 21 22 23 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ]

CPU P-States [ (12) 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 ]

Looks about right. How's the stability? Any issues down-clocking/up-clocking and what's your average CPU temps (idle vs load)?

  • Like 1
Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

Looks about right. How's the stability? Any issues down-clocking/up-clocking and what's your average CPU temps (idle vs load)?



seem to work properly, even sleep, idle temp: 45°C - load temp: 75°C max 80°C.

I'm looking at the kernel log, and there seems to be some problem with the acpi



Kernel log extract:

2016-11-30 18:21:22.335649+0100 0x0        Default     0x0                  0      kernel: PMAP: PCID enabled
2016-11-30 18:21:22.335651+0100 0x0        Default     0x0                  0      kernel: PMAP: Supervisor Mode Execute Protection enabled
2016-11-30 18:21:22.337596+0100 0x0        Default     0x0                  0      kernel: Darwin Kernel Version 16.0.0: Mon Aug 29 17:56:20 PDT 2016; root:xnu-3789.1.32~3/RELEASE_X86_64
2016-11-30 18:21:22.475214+0100 0x0        Default     0x0                  0      kernel: vm_page_bootstrap: 8091946 free pages and 263894 wired pages
2016-11-30 18:21:22.522959+0100 0x0        Default     0x0                  0      kernel: kext submap [0xffffff7f80a00000 - 0xffffff7ff7a00000], kernel text [0xffffff8000200000 - 0xffffff8000a00000]
2016-11-30 18:21:22.522963+0100 0x0        Default     0x0                  0      kernel: zone leak detection enabled
2016-11-30 18:21:22.522997+0100 0x0        Default     0x0                  0      kernel: "vm_compressor_mode" is 4
2016-11-30 18:21:22.523033+0100 0x0        Default     0x0                  0      kernel: multiq scheduler config: deep-drain 0, ceiling 47, depth limit 4, band limit 127, sanity check 0
2016-11-30 18:21:22.523036+0100 0x0        Default     0x0                  0      kernel: standard timeslicing quantum is 10000 us
2016-11-30 18:21:22.523037+0100 0x0        Default     0x0                  0      kernel: standard background quantum is 2500 us
2016-11-30 18:21:22.523061+0100 0x0        Default     0x0                  0      kernel: WQ[wql_init]: init linktable with max:262144 elements (8388608 bytes)
2016-11-30 18:21:22.523069+0100 0x0        Default     0x0                  0      kernel: WQ[wqp_init]: init prepost table with max:262144 elements (8388608 bytes)
2016-11-30 18:21:22.523088+0100 0x0        Default     0x0                  0      kernel: mig_table_max_displ = 1
2016-11-30 18:21:22.543772+0100 0x0        Default     0x0                  0      kernel: TSC Deadline Timer supported and enabled
2016-11-30 18:21:22.543910+0100 0x65       Default     0x0                  0      kernel: kdp_core zlib memory 0x7000
2016-11-30 18:21:23.085984+0100 0x65       Default     0x0                  0      kernel: "name" not a kext
2016-11-30 18:21:23.086637+0100 0x65       Default     0x0                  0      kernel: "FailedCLUT" not a kext
2016-11-30 18:21:23.089537+0100 0x65       Default     0x0                  0      kernel: "FailedImage" not a kext
2016-11-30 18:21:23.182870+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.182871+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.183034+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) RSDP 0x00000000DB516000 000024 (v02 ALASKA)
2016-11-30 18:21:23.183035+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) RSDP 0x00000000DB516000 000024 (v02 ALASKA)
2016-11-30 18:21:23.184186+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.184186+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.184236+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.184237+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.184399+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) XSDT 0x00000000DB515000 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.184399+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) XSDT 0x00000000DB515000 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.186492+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.186493+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.186569+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.186569+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.186732+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACP 0x00000000DB514000 0000F4 (v04 Apple  A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.186733+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACP 0x00000000DB514000 0000F4 (v04 Apple  A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.188741+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.188741+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.202256+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.202257+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.202419+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) DSDT 0x00000000C5741000 0352EE (v02 Apple  A M I    01072009 INTL 20160422)
2016-11-30 18:21:23.202420+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) DSDT 0x00000000C5741000 0352EE (v02 Apple  A M I    01072009 INTL 20160422)
2016-11-30 18:21:23.204430+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.204430+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.204476+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.204477+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.204639+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACS 0x00000000DD762F80 000040
2016-11-30 18:21:23.204639+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACS 0x00000000DD762F80 000040
2016-11-30 18:21:23.205443+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.205443+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.205506+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.205506+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.205670+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) APIC 0x00000000DB54C620 000100 (v03 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.205671+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) APIC 0x00000000DB54C620 000100 (v03 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.207680+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.207680+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.207732+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.207732+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.207894+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FPDT 0x00000000DB54C720 000044 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.207894+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FPDT 0x00000000DB54C720 000044 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.209905+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.209905+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.209961+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.209962+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.210124+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FIDT 0x00000000DB54C768 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.210125+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FIDT 0x00000000DB54C768 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-11-30 18:21:23.212137+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.212137+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.212188+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.212189+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.212352+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MCFG 0x00000000DB54C808 00003C (v01 ALASKA A M I    01072009 MSFT 00000097)
2016-11-30 18:21:23.212352+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MCFG 0x00000000DB54C808 00003C (v01 ALASKA A M I    01072009 MSFT 00000097)
2016-11-30 18:21:23.214362+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.214362+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.214421+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.214422+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.214584+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ASF! 0x00000000DB562B48 0000A0 (v20 INTEL   HCG     00000001 TFSM 000F4240)
2016-11-30 18:21:23.214585+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ASF! 0x00000000DB562B48 0000A0 (v20 INTEL   HCG     00000001 TFSM 000F4240)
2016-11-30 18:21:23.216593+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.216594+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.216694+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.216695+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.216857+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB512000 00036D (v01 SataRe SataTabl 00001000 INTL 20120913)
2016-11-30 18:21:23.216858+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB512000 00036D (v01 SataRe SataTabl 00001000 INTL 20120913)
2016-11-30 18:21:23.218949+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.218949+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.219001+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.219002+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.219164+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) UEFI 0x00000000DB54CC10 000042 (v01 ALASKA A M I    01072009      00000000)
2016-11-30 18:21:23.219165+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) UEFI 0x00000000DB54CC10 000042 (v01 ALASKA A M I    01072009      00000000)
2016-11-30 18:21:23.221175+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.221175+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.221225+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.221226+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.221387+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) HPET 0x00000000DB54CC58 000038 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.221388+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) HPET 0x00000000DB54CC58 000038 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.223399+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.223399+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.223456+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.223456+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.223619+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MSCT 0x00000000DB54CC90 000090 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.223619+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MSCT 0x00000000DB54CC90 000090 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.225628+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.225629+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.225679+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.225679+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.225842+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SLIT 0x00000000DB54CD20 00002D (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.225843+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SLIT 0x00000000DB54CD20 00002D (v01 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.227851+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.227852+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.228170+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.228170+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.228332+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SRAT 0x00000000DB54CD50 001158 (v03 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.228333+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SRAT 0x00000000DB54CD50 001158 (v03 ALASKA A M I    00000001 INTL 20091013)
2016-11-30 18:21:23.230341+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.230342+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.230392+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.230393+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.230556+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) WDDT 0x00000000DB54DEA8 000040 (v01 ALASKA A M I    00000000 INTL 20091013)
2016-11-30 18:21:23.230556+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) WDDT 0x00000000DB54DEA8 000040 (v01 ALASKA A M I    00000000 INTL 20091013)
2016-11-30 18:21:23.232567+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.232567+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.237913+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.237913+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.238075+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000C572B000 014C5D (v02 ALASKA PmMgt    00000001 INTL 20120913)
2016-11-30 18:21:23.238075+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000C572B000 014C5D (v02 ALASKA PmMgt    00000001 INTL 20120913)
2016-11-30 18:21:23.240086+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.240086+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.240294+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.240294+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.240457+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB511000 000A39 (v01 APPLE  CpuPm    00015600 INTL 20140926)
2016-11-30 18:21:23.240458+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB511000 000A39 (v01 APPLE  CpuPm    00015600 INTL 20140926)
2016-11-30 18:21:23.242467+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.242467+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.274197+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI Error:
2016-11-30 18:21:23.274198+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI Error:
2016-11-30 18:21:23.274520+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) [\_SB_.CP00]
2016-11-30 18:21:23.274521+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) [\_SB_.CP00]
2016-11-30 18:21:23.274843+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  Namespace lookup failure, AE_NOT_FOUND
2016-11-30 18:21:23.274844+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  Namespace lookup failure, AE_NOT_FOUND
2016-11-30 18:21:23.275890+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  (20140828/dswload-125)
2016-11-30 18:21:23.275890+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  (20140828/dswload-125)
2016-11-30 18:21:23.276542+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI Exception: AE_NOT_FOUND,
2016-11-30 18:21:23.276542+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI Exception: AE_NOT_FOUND,
2016-11-30 18:21:23.277346+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) During name lookup/catalog
2016-11-30 18:21:23.277346+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) During name lookup/catalog
2016-11-30 18:21:23.278043+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  (20140828/psobject-131)
2016-11-30 18:21:23.278044+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)  (20140828/psobject-131)
2016-11-30 18:21:23.278724+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.278724+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-11-30 18:21:23.278887+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) All ACPI Tables successfully acquired
2016-11-30 18:21:23.278887+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) All ACPI Tables successfully acquired
2016-11-30 18:21:23.279878+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.279878+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-11-30 18:21:23.305257+0100 0x72       Default     0x0                  0      kernel: calling mpo_policy_init for AppleALC
2016-11-30 18:21:23.306901+0100 0x72       Default     0x0                  0      kernel: Security policy loaded: AppleALC Kernel Extension (AppleALC)
2016-11-30 18:21:23.306920+0100 0x72       Default     0x0                  0      kernel: AppleFDEKeyStore::probe(IOResources)
2016-11-30 18:21:23.306936+0100 0x72       Default     0x0                  0      kernel: AppleKeyStore::probe(IOResources)
2016-11-30 18:21:23.306947+0100 0x72       Default     0x0                  0      kernel: AppleFDEKeyStore::start(IOResources) <1>
2016-11-30 18:21:23.306949+0100 0x72       Default     0x0                  0      kernel: IOGetBootKeyStoreData: data at address 0 size 0
2016-11-30 18:21:23.307352+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=0 LocalApicId=0 Enabled
2016-11-30 18:21:23.308703+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled
2016-11-30 18:21:23.310074+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(1) 0xffffff83af8bd000 desc_table: 0xffffff83aed25000 ldt: 0xffffff83af8c8000 int_stack: 0xffffff83af4fd000-0xffffff83af501000
2016-11-30 18:21:23.310079+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=4 LocalApicId=4 Enabled
2016-11-30 18:21:23.311443+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(2) 0xffffff83af8d8000 desc_table: 0xffffff83aed3d000 ldt: 0xffffff83af8e3000 int_stack: 0xffffff83af57a000-0xffffff83af57e000
2016-11-30 18:21:23.311447+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=6 LocalApicId=6 Enabled
2016-11-30 18:21:23.312811+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(3) 0xffffff83af8f3000 desc_table: 0xffffff83aed45000 ldt: 0xffffff83af8fe000 int_stack: 0xffffff83af57e000-0xffffff83af582000
2016-11-30 18:21:23.312814+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=8 LocalApicId=8 Enabled
2016-11-30 18:21:23.314264+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(4) 0xffffff83af90e000 desc_table: 0xffffff83aed55000 ldt: 0xffffff83af91d000 int_stack: 0xffffff83af919000-0xffffff83af91d000
2016-11-30 18:21:23.314268+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=10 LocalApicId=10 Enabled
2016-11-30 18:21:23.315683+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(5) 0xffffff83af92d000 desc_table: 0xffffff83aedac000 ldt: 0xffffff83af93c000 int_stack: 0xffffff83af938000-0xffffff83af93c000
2016-11-30 18:21:23.315688+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=1 LocalApicId=1 Enabled
2016-11-30 18:21:23.317054+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(6) 0xffffff83af94c000 desc_table: 0xffffff83aedb5000 ldt: 0xffffff83af95b000 int_stack: 0xffffff83af957000-0xffffff83af95b000
2016-11-30 18:21:23.317057+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=3 LocalApicId=3 Enabled
2016-11-30 18:21:23.318420+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(7) 0xffffff83af96b000 desc_table: 0xffffff83aedc5000 ldt: 0xffffff83af97a000 int_stack: 0xffffff83af976000-0xffffff83af97a000
2016-11-30 18:21:23.318423+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=5 LocalApicId=5 Enabled
2016-11-30 18:21:23.319785+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(8) 0xffffff83af98a000 desc_table: 0xffffff83aedcd000 ldt: 0xffffff83af999000 int_stack: 0xffffff83af995000-0xffffff83af999000
2016-11-30 18:21:23.319787+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=7 LocalApicId=7 Enabled
2016-11-30 18:21:23.321152+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(9) 0xffffff83af9a9000 desc_table: 0xffffff83aeddd000 ldt: 0xffffff83af9b8000 int_stack: 0xffffff83af9b4000-0xffffff83af9b8000
2016-11-30 18:21:23.321155+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=9 LocalApicId=9 Enabled
2016-11-30 18:21:23.322519+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(10) 0xffffff83af9c8000 desc_table: 0xffffff83aede5000 ldt: 0xffffff83af9d7000 int_stack: 0xffffff83af9d3000-0xffffff83af9d7000
2016-11-30 18:21:23.322522+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=11 LocalApicId=11 Enabled
2016-11-30 18:21:23.323943+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(11) 0xffffff83af9e7000 desc_table: 0xffffff83aedf5000 ldt: 0xffffff83af9f6000 int_stack: 0xffffff83af9f2000-0xffffff83af9f6000
2016-11-30 18:21:23.325158+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for TMSafetyNet
2016-11-30 18:21:23.326937+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Safety net for Time Machine (TMSafetyNet)
2016-11-30 18:21:23.327951+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for AMFI
2016-11-30 18:21:23.329541+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Apple Mobile File Integrity (AMFI)
2016-11-30 18:21:23.330598+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for Sandbox
2016-11-30 18:21:23.332178+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Seatbelt sandbox policy (Sandbox)
2016-11-30 18:21:23.333298+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for Quarantine
2016-11-30 18:21:23.339941+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Quarantine policy (Quarantine)
2016-11-30 18:21:23.365057+0100 0x65       Default     0x0                  0      kernel: MAC Framework successfully initialized
2016-11-30 18:21:23.365064+0100 0x65       Default     0x0                  0      kernel: ulock_initialize>thread_max=10240, ull_hash_buckets=4096
2016-11-30 18:21:23.373643+0100 0x65       Default     0x0                  0      kernel: using 16384 buffer headers and 10240 cluster IO buffer headers
2016-11-30 18:21:23.380332+0100 0x72       Default     0x0                  0      kernel: (AppleCredentialManager) AppleCredentialManager::start called
2016-11-30 18:21:23.386427+0100 0x72       Default     0x0                  0      kernel: AppleKeyStore::start(IOResources) <1>
2016-11-30 18:21:23.386429+0100 0x72       Default     0x0                  0      kernel: (AppleKeyStore) AppleKeyStore starting (BUILT: Aug 29 2016 18:16:26)
2016-11-30 18:21:23.393113+0100 0x72       Default     0x0                  0      kernel: (kernel) FakeSMCKeyStore: started
2016-11-30 18:21:23.398920+0100 0x72       Default     0x0                  0      kernel: (kernel) AppleALC: init @ version 1.0.17
2016-11-30 18:21:23.405730+0100 0x77       Default     0x0                  0      kernel: Started cpu 2 (lapic id 00000002)
2016-11-30 18:21:23.406714+0100 0x78       Default     0x0                  0      kernel: Started cpu 4 (lapic id 00000004)
2016-11-30 18:21:23.407718+0100 0x79       Default     0x0                  0      kernel: Started cpu 6 (lapic id 00000006)
2016-11-30 18:21:23.408726+0100 0x7a       Default     0x0                  0      kernel: Started cpu 8 (lapic id 00000008)
2016-11-30 18:21:23.409744+0100 0x7b       Default     0x0                  0      kernel: Started cpu 10 (lapic id 0000000a)
2016-11-30 18:21:23.456002+0100 0x7c       Default     0x0                  0      kernel: Started cpu 1 (lapic id 00000001)
2016-11-30 18:21:23.457006+0100 0x7d       Default     0x0                  0      kernel: Started cpu 3 (lapic id 00000003)
2016-11-30 18:21:23.458016+0100 0x7e       Default     0x0                  0      kernel: Started cpu 5 (lapic id 00000005)
2016-11-30 18:21:23.459003+0100 0x7f       Default     0x0                  0      kernel: Started cpu 7 (lapic id 00000007)
2016-11-30 18:21:23.459989+0100 0x80       Default     0x0                  0      kernel: Started cpu 9 (lapic id 00000009)
2016-11-30 18:21:23.460980+0100 0x81       Default     0x0                  0      kernel: Started cpu 11 (lapic id 0000000b)
2016-11-30 18:21:23.467953+0100 0x11c      Default     0x0                  0      kernel: (kernel) Current tsc from rdtsc64() is 348358081993. Rendezvouing..
2016-11-30 18:21:23.468070+0100 0x82       Default     0x0                  0      kernel: (AppleAPIC) IOAPIC: Version 0x20 Vectors 64:87
2016-11-30 18:21:23.468077+0100 0x83       Default     0x0                  0      kernel: (AppleAPIC) IOAPIC: Version 0x20 Vectors 88:111
2016-11-30 18:21:23.472460+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI: sleep states S3 S4 S5
2016-11-30 18:21:23.496083+0100 0x16a      Default     0x0                  0      kernel: (AppleRTC) RTC: Only single RAM bank (128 bytes)
2016-11-30 18:21:23.496083+0100 0x16a      Default     0x0                  0      kernel: (AppleRTC) RTC: Only single RAM bank (128 bytes)
2016-11-30 18:21:23.496271+0100 0x167      Default     0x0                  0      kernel: (IOPCIFamily) pci (build 18:06:47 Aug 29 2016), flags 0xe0000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
2016-11-30 18:21:23.496308+0100 0x167      Default     0x0                  0      kernel: (IOPCIFamily) pci (build 18:06:47 Aug 29 2016), flags 0xe0000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
2016-11-30 18:21:23.496538+0100 0x167      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration begin ]
2016-11-30 18:21:23.496659+0100 0x174      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:23.496766+0100 0x167      Default     0x0                  0      kernel: kPEDisableScreen -1
2016-11-30 18:21:23.496809+0100 0x172      Default     0x0                  0      kernel: (AppleACPIEC) ACPI: no ECDT
2016-11-30 18:21:23.496843+0100 0x179      Default     0x0                  0      kernel: (kernel) FakeSMC v6.21.1412 Copyright 2015 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
2016-11-30 18:21:23.497199+0100 0x179      Default     0x0                  0      kernel: (kernel) FakeSMC: 13 preconfigured keys added
2016-11-30 18:21:23.497256+0100 0x179      Default     0x0                  0      kernel: (kernel) FakeSMC: 5 keys exported by Clover EFI
2016-11-30 18:21:23.497712+0100 0x179      Default     0x0                  0      kernel: (kernel) SMC: successfully initialized
2016-11-30 18:21:23.500601+0100 0x167      Default     0x0                  0      kernel: initialize_screen: b=F9000000, w=00000500, h=00000400, r=00001400, d=00000001
2016-11-30 18:21:23.500670+0100 0x167      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-11-30 18:21:23.500671+0100 0x167      Default     0x0                  0      kernel: (IOPCIFamily) console relocated to 0xf9000000
2016-11-30 18:21:23.506503+0100 0x167      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration end, bridges 17, devices 22 ]
2016-11-30 18:21:23.524141+0100 0x190      Default     0x0                  0      kernel: (IOAHCIFamily) [AHCI][PML][00000000]+IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
2016-11-30 18:21:23.524145+0100 0x190      Default     0x0                  0      kernel: (IOAHCIFamily) [AHCI][PML][00000000]-IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
2016-11-30 18:21:23.528117+0100 0x190      Default     0x0                  0      kernel: (AppleAHCIPort) [AHCI][HBA][00000000]+AppleAHCIGlobals::AppleAHCIGlobals
2016-11-30 18:21:23.528120+0100 0x190      Default     0x0                  0      kernel: (AppleAHCIPort) [AHCI][HBA][00000000]-AppleAHCIGlobals
2016-11-30 18:21:23.546393+0100 0x1c8      Default     0x0                  0      kernel: (AppleIntelI210Ethernet) AppleIntelI210::start - Built Aug 29 2016 18:14:29
2016-11-30 18:21:24.000327+0100 0x1ee      Default     0x0                  0      kernel: (IOUSBFamily) 000001.664711 AppleUSBLegacyRoot@: AppleUSBLegacyRoot::init: enabling legacy matching
2016-11-30 18:21:24.001197+0100 0x65       Default     0x0                  0      kernel: mcache: 12 CPU(s), 64 bytes CPU cache line size
2016-11-30 18:21:24.001629+0100 0x65       Default     0x0                  0      kernel: mbinit: done [128 MB total pool size, (85/42) split]
2016-11-30 18:21:24.001980+0100 0x65       Default     0x0                  0      kernel: bsd_autoconf: calling kminit
2016-11-30 18:21:24.028165+0100 0x1ff      Default     0x0                  0      kernel: (AppleFSCompressionTypeZlib) com.apple.AppleFSCompressionTypeZlib kmod start
2016-11-30 18:21:24.034631+0100 0x1ff      Default     0x0                  0      kernel: (AppleFSCompressionTypeDataless) com.apple.AppleFSCompressionTypeDataless kmod start
2016-11-30 18:21:24.041071+0100 0x1ff      Default     0x0                  0      kernel: (AppleFSCompressionTypeZlib) com.apple.AppleFSCompressionTypeZlib load succeeded
2016-11-30 18:21:24.047484+0100 0x1ff      Default     0x0                  0      kernel: (AppleFSCompressionTypeDataless) com.apple.AppleFSCompressionTypeDataless load succeeded
2016-11-30 18:21:24.047551+0100 0x65       Default     0x0                  0      kernel: rooting via boot-uuid from /chosen: 9B3594CE-93C5-3105-B78E-CB656C37C864
2016-11-30 18:21:24.047709+0100 0x194      Default     0x0                  0      kernel: (kernel) vendor:device: 0x8086:0x15a0.
2016-11-30 18:21:24.047797+0100 0x194      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
2016-11-30 18:21:24.047990+0100 0x194      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): changing MTU from 0 to 1500
2016-11-30 18:21:24.070688+0100 0x1c8      Default     0x0                  0      kernel: (AppleIntelI210Ethernet) 0x0, 0x0  AppleIntelI210::setLinkStatus - not active
2016-11-30 18:21:24.074483+0100 0x65       Default     0x0                  0      kernel: Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
2016-11-30 18:21:24.085188+0100 0x65       Default     0x0                  0      kernel: Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR1B@1,1/IOPP/H000@0/IONVMeController/IONVMeBlockStorageDevice@1/IOBlockStorageDriver/Samsung SSD 950 PRO 256GB Media/IOGUIDPartitionScheme/Untitled 2@2
2016-11-30 18:21:24.090940+0100 0x65       Default     0x0                  0      kernel: BSD root: disk0s2
2016-11-30 18:21:24.090941+0100 0x65       Default     0x0                  0      kernel: , major 1, minor 7
2016-11-30 18:21:24.122448+0100 0x194      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): AppleIntelE1000e:rx = 256, tx = 256
2016-11-30 18:21:24.132666+0100 0x65       Default     0x0                  0      kernel: (HFS) jnl: b(1, 7): replay_journal: from: 19390976 to: 369664 (joffset 0x774000)
2016-11-30 18:21:24.270342+0100 0x65       Default     0x0                  0      kernel: (HFS) jnl: b(1, 7): journal replay done.
2016-11-30 18:21:24.391576+0100 0x65       Default     0x0                  0      kernel: (HFS) hfs: mounted macOS on device b(1, 7)
2016-11-30 18:21:24.398786+0100 0x65       Default     0x0                  0      kernel: XCPM: registered
2016-11-30 18:21:24.398786+0100 0x65       Default     0x0                  0      kernel: XCPM: registered
2016-11-30 18:21:24.410386+0100 0x65       Default     0x0                  0      kernel: VM Swap Subsystem is ON
2016-11-30 18:21:24.539565+0100 0x2b2      Default     0x0                  0      kernel: (HFS) hfs: Removed 0 orphaned / unlinked files and 7 directories
2016-11-30 18:21:25.128324+0100 0x334      Default     0x0                  0      kernel: Waiting for DSMOS...
2016-11-30 18:21:25.138441+0100 0x35f      Default     0x0                  0      kernel: (IOUSBFamily) USBMSC Identifier (non-unique): 0014785448B1BE7187428DB7 0x951 0x1666 0x100, 2
2016-11-30 18:21:25.178290+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:9 output:2 feature:1
2016-11-30 18:21:25.178292+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-11-30 18:21:25.178293+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:1 feature:0
2016-11-30 18:21:25.178294+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:0 output:0 feature:0
2016-11-30 18:21:25.178502+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 5844
2016-11-30 18:21:25.178527+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 2
2016-11-30 18:21:25.178528+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-11-30 18:21:25.178529+0100 0x42a      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:72 output:16 feature:8
2016-11-30 18:21:25.181251+0100 0x42f      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:25.240428+0100 0x48b      Default     0x0                  0      kernel: (AppleIntelMCEReporter) AppleIntelMCEReporter:
2016-11-30 18:21:25.240430+0100 0x48b      Default     0x0                  0      kernel: (AppleIntelMCEReporter) start()
2016-11-30 18:21:25.248951+0100 0x489      Default     0x0                  0      kernel: (IOGraphicsFamily) IOGraphics flags 0x43
2016-11-30 18:21:25.258720+0100 0x492      Default     0x0                  0      kernel: (AppleSMC) Previous shutdown cause: 5
2016-11-30 18:21:25.263140+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:5 output:1 feature:5
2016-11-30 18:21:25.263140+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 12
2016-11-30 18:21:25.263141+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:11 output:0 feature:22
2016-11-30 18:21:25.263142+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:9 output:0 feature:70
2016-11-30 18:21:25.263276+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 4324
2016-11-30 18:21:25.263296+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 69
2016-11-30 18:21:25.263297+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-11-30 18:21:25.263298+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:8 output:8 feature:16
2016-11-30 18:21:25.263298+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:8 output:8 feature:16
2016-11-30 18:21:25.263299+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 3 input:8 output:8 feature:16
2016-11-30 18:21:25.263300+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 4 input:8 output:8 feature:16
2016-11-30 18:21:25.263301+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 5 input:8 output:8 feature:16
2016-11-30 18:21:25.263301+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 6 input:32 output:8 feature:32
2016-11-30 18:21:25.263302+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 7 input:8 output:8 feature:24
2016-11-30 18:21:25.263303+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 8 input:8 output:8 feature:24
2016-11-30 18:21:25.263303+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 9 input:8 output:8 feature:24
2016-11-30 18:21:25.263304+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 10 input:8 output:8 feature:16
2016-11-30 18:21:25.263305+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 11 input:8 output:8 feature:16
2016-11-30 18:21:25.263305+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 12 input:32 output:8 feature:32
2016-11-30 18:21:25.263306+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 13 input:8 output:8 feature:16
2016-11-30 18:21:25.263307+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 14 input:8 output:8 feature:16
2016-11-30 18:21:25.263308+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 15 input:8 output:8 feature:16
2016-11-30 18:21:25.263308+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 16 input:8 output:8 feature:16
2016-11-30 18:21:25.263309+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 17 input:8 output:8 feature:16
2016-11-30 18:21:25.263310+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 18 input:8 output:8 feature:16
2016-11-30 18:21:25.263310+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 19 input:16 output:8 feature:16
2016-11-30 18:21:25.263311+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 20 input:24 output:8 feature:24
2016-11-30 18:21:25.263312+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 21 input:8 output:8 feature:24
2016-11-30 18:21:25.263312+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 22 input:40 output:8 feature:40
2016-11-30 18:21:25.263313+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 23 input:8 output:8 feature:24
2016-11-30 18:21:25.263314+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 24 input:8 output:8 feature:16
2016-11-30 18:21:25.263314+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 28 input:8 output:8 feature:32
2016-11-30 18:21:25.263315+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 32 input:8 output:8 feature:24
2016-11-30 18:21:25.263316+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 33 input:16 output:8 feature:16
2016-11-30 18:21:25.263316+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 34 input:8 output:8 feature:16
2016-11-30 18:21:25.263317+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 35 input:8 output:8 feature:24
2016-11-30 18:21:25.263318+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 36 input:8 output:8 feature:24
2016-11-30 18:21:25.263318+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 37 input:8 output:8 feature:24
2016-11-30 18:21:25.263319+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 38 input:8 output:8 feature:24
2016-11-30 18:21:25.263320+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 39 input:8 output:8 feature:24
2016-11-30 18:21:25.263320+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 40 input:8 output:8 feature:40
2016-11-30 18:21:25.263321+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 48 input:8 output:8 feature:16
2016-11-30 18:21:25.263322+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 49 input:8 output:8 feature:24
2016-11-30 18:21:25.263322+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 50 input:8 output:8 feature:24
2016-11-30 18:21:25.263323+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 51 input:8 output:8 feature:24
2016-11-30 18:21:25.263324+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 52 input:8 output:8 feature:24
2016-11-30 18:21:25.263324+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 53 input:8 output:8 feature:16
2016-11-30 18:21:25.263325+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 54 input:8 output:8 feature:16
2016-11-30 18:21:25.263326+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 64 input:8 output:8 feature:16
2016-11-30 18:21:25.263326+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 65 input:8 output:8 feature:24
2016-11-30 18:21:25.263327+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 66 input:8 output:8 feature:24
2016-11-30 18:21:25.263331+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 80 input:8 output:8 feature:16
2016-11-30 18:21:25.263333+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 81 input:8 output:8 feature:16
2016-11-30 18:21:25.263333+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 82 input:8 output:8 feature:24
2016-11-30 18:21:25.263335+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 96 input:8 output:8 feature:24
2016-11-30 18:21:25.263336+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 97 input:8 output:8 feature:16
2016-11-30 18:21:25.263336+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 98 input:8 output:8 feature:40
2016-11-30 18:21:25.263337+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 127 input:8 output:8 feature:16
2016-11-30 18:21:25.263338+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 126 input:8 output:8 feature:16
2016-11-30 18:21:25.263339+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 125 input:8 output:8 feature:16
2016-11-30 18:21:25.263339+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 124 input:8 output:8 feature:16
2016-11-30 18:21:25.263340+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 123 input:8 output:8 feature:24
2016-11-30 18:21:25.263341+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 122 input:8 output:8 feature:40
2016-11-30 18:21:25.263342+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 121 input:8 output:8 feature:16
2016-11-30 18:21:25.263343+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 120 input:8 output:8 feature:16
2016-11-30 18:21:25.263344+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 117 input:8 output:8 feature:24
2016-11-30 18:21:25.263345+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 116 input:8 output:8 feature:40
2016-11-30 18:21:25.263345+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 140 input:8 output:8 feature:16
2016-11-30 18:21:25.263346+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 141 input:8 output:8 feature:16
2016-11-30 18:21:25.263348+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 142 input:8 output:8 feature:16
2016-11-30 18:21:25.263348+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 143 input:8 output:8 feature:16
2016-11-30 18:21:25.263349+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 144 input:8 output:8 feature:16
2016-11-30 18:21:25.263350+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 145 input:8 output:8 feature:24
2016-11-30 18:21:25.263351+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 146 input:8 output:8 feature:24
2016-11-30 18:21:25.263352+0100 0x495      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 128 input:8 output:8 feature:16
2016-11-30 18:21:25.264262+0100 0x488      Default     0x0                  0      kernel: (NVDAStartup) NVDAStartup: Official
2016-11-30 18:21:25.264508+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:519 output:1 feature:519
2016-11-30 18:21:25.264509+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-11-30 18:21:25.264510+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:0 output:0 feature:0
2016-11-30 18:21:25.264511+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:2 output:0 feature:9
2016-11-30 18:21:25.265404+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 59280
2016-11-30 18:21:25.265801+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 10
2016-11-30 18:21:25.265803+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-11-30 18:21:25.265809+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:8 output:8 feature:4136
2016-11-30 18:21:25.265811+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:8 output:8 feature:312
2016-11-30 18:21:25.265812+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 3 input:312 output:8 feature:312
2016-11-30 18:21:25.265814+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 4 input:8 output:8 feature:4152
2016-11-30 18:21:25.265815+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 5 input:4152 output:8 feature:4152
2016-11-30 18:21:25.265816+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 7 input:8 output:8 feature:64
2016-11-30 18:21:25.265817+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 8 input:8 output:8 feature:200
2016-11-30 18:21:25.265818+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 9 input:8 output:8 feature:936
2016-11-30 18:21:25.265819+0100 0x496      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 6 input:8 output:8 feature:24
2016-11-30 18:21:25.267253+0100 0x48c      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothFamily][start] -- completed
2016-11-30 18:21:25.267702+0100 0x73       Default     0x0                  0      kernel: PMRD: prevent idle sleep list: IODisplayWrangler+ (1)
2016-11-30 18:21:25.267703+0100 0x73       Default     0x0                  0      kernel: prevent idle sleep list: IODisplayWrangler+ (1)
2016-11-30 18:21:25.270657+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::attach provider NVDAgl parent display
2016-11-30 18:21:25.270665+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::probe enter provider: NVDAgl [score 100]
2016-11-30 18:21:25.270667+0100 0x386      Default     0x0                  0      kernel: (AppleKeyStore) unexpected session: 100000 uid: -1 requested by: 35
2016-11-30 18:21:25.270667+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::probe parent: display
2016-11-30 18:21:25.270668+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::probe return success 0xffffff8055afe000
2016-11-30 18:21:25.270669+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::probe remove "unmatched" property
2016-11-30 18:21:25.270671+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::detach provider NVDAgl parent display
2016-11-30 18:21:25.270677+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::attach provider NVDAgl parent display
2016-11-30 18:21:25.270680+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator: ENTER ::start with provider: NVDAgl
2016-11-30 18:21:25.270681+0100 0x4bc      Default     0x0                  0      kernel: (GeForce) nvAccelerator::start switch to parent: display
2016-11-30 18:21:25.271490+0100 0x4bb      Default     0x0                  0      kernel: (NVDAGK100Hal) NVDAGK100HAL loaded and registered
2016-11-30 18:21:25.272929+0100 0x386      Default     0x0                  0      kernel: (AppleKeyStore) AppleKeyStore: operation failed (pid: 35 sel: 7 ret: e00002c2 '-536870206')
2016-11-30 18:21:25.280955+0100 0x49f      Default     0x0                  0      kernel: (HFS) jnl: disk2s2: replay_journal: from: 21450752 to: 22691840 (joffset 0x3a3c000)
2016-11-30 18:21:25.281893+0100 0x4b0      Default     0x0                  0      kernel: (AppleHDAController) Sound assertion in AppleHDAController at line 1423
2016-11-30 18:21:25.282572+0100 0x4ae      Default     0x0                  0      kernel: (AppleSMBusController) *** AppleSMBusDevice::start failed to start - no address.
2016-11-30 18:21:25.289288+0100 0x4de      Default     0x0                  0      kernel: (IOBluetoothHostControllerUSBTransport) **** [IOBluetoothHostControllerUSBTransport][start] -- completed -- result = TRUE -- 0x6000 ****
2016-11-30 18:21:25.289652+0100 0x4de      Default     0x0                  0      kernel: (BroadcomBluetoothHostControllerUSBTransport) **** [BroadcomBluetoothHostControllerUSBTransport][start] -- Completed (matched on Device) -- 0x6000 ****
2016-11-30 18:21:25.289673+0100 0x4e3      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothFamily][staticBluetoothTransportShowsUp] -- Received Bluetooth Controller register service notification -- 0x6000
2016-11-30 18:21:25.289859+0100 0x4e4      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothHostController][start] -- completed
2016-11-30 18:21:25.293413+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:4 output:1 feature:28
2016-11-30 18:21:25.293414+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 4
2016-11-30 18:21:25.293415+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:0 feature:0
2016-11-30 18:21:25.293416+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:2 output:0 feature:2
2016-11-30 18:21:25.293440+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 1176
2016-11-30 18:21:25.293462+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 5
2016-11-30 18:21:25.293463+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-11-30 18:21:25.293463+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:32 output:8 feature:8
2016-11-30 18:21:25.293464+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 127 input:8 output:8 feature:32
2016-11-30 18:21:25.293465+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 126 input:8 output:8 feature:224
2016-11-30 18:21:25.293466+0100 0x4dd      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 125 input:24 output:8 feature:8
2016-11-30 18:21:25.296005+0100 0x4eb      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:25.306138+0100 0x49f      Default     0x0                  0      kernel: (HFS) jnl: disk2s2: examining extra transactions starting @ 22691840 / 0x15a4000
2016-11-30 18:21:25.313166+0100 0x49f      Default     0x0                  0      kernel: (HFS) jnl: disk2s2: Extra txn replay stopped @ 22884352 / 0x15d3000
2016-11-30 18:21:25.331678+0100 0x4e4      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothHostController::setConfigState] calling registerService
2016-11-30 18:21:25.331724+0100 0x4e4      Default     0x0                  0      kernel: (IOBluetoothFamily) **** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- calling IOBluetoothFamily's registerService() -- 0x3330 -- 0x6800 -- 0x6000 ****
2016-11-30 18:21:25.331729+0100 0x4e4      Default     0x0                  0      kernel: (IOBluetoothFamily) **** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- Connected to the transport successfully -- 0x3330 -- 0x6800 -- 0x6000 ****
2016-11-30 18:21:25.351251+0100 0x4f1      Default     0x0                  0      kernel: DSMOS has arrived
2016-11-30 18:21:25.466708+0100 0x320      Default     0x0                  0      kernel: (ntfs) NTFS driver 3.13 [Flags: R/W].
2016-11-30 18:21:25.500264+0100 0x459      Default     0x0                  0      kernel: (ntfs) NTFS volume name Riservato per il sistema, version 3.1.
2016-11-30 18:21:25.531954+0100 0x565      Default     0x0                  0      kernel: (ntfs) NTFS volume name , version 3.1.
2016-11-30 18:21:25.558113+0100 0x588      Default     0x0                  0      kernel: NTFS-fs warning (device /dev/disk1s2, pid 191): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.
2016-11-30 18:21:25.558115+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:1 output:0 feature:0
2016-11-30 18:21:25.558115+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-11-30 18:21:25.558116+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:7 output:0 feature:0
2016-11-30 18:21:25.558117+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:0 output:0 feature:0
2016-11-30 18:21:25.558125+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 192
2016-11-30 18:21:25.558133+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 1
2016-11-30 18:21:25.558133+0100 0x588      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:8 output:0 feature:0
2016-11-30 18:21:25.559754+0100 0x58d      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:25.560910+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:8 output:1 feature:0
2016-11-30 18:21:25.560911+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-11-30 18:21:25.560912+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:1 feature:0
2016-11-30 18:21:25.560916+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:1 output:0 feature:0
2016-11-30 18:21:25.561026+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 6656
2016-11-30 18:21:25.561043+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 1
2016-11-30 18:21:25.561044+0100 0x587      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:64 output:8 feature:0
2016-11-30 18:21:25.563713+0100 0x598      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:25.581274+0100 0x47a      Default     0x0                  0      kernel: (ntfs) NTFS volume name Riservato per il sistema, version 3.1.
2016-11-30 18:21:25.628705+0100 0x5a6      Default     0x0                  0      kernel: (ntfs) NTFS volume name , version 3.1.
2016-11-30 18:21:25.711014+0100 0x49f      Default     0x0                  0      kernel: (HFS) jnl: disk2s2: journal replay done.
2016-11-30 18:21:25.954821+0100 0x63b      Default     0x0                  0      kernel: (IOBluetoothFamily) handleInformationResponse kBluetoothL2CAPInformationTypeExtendedFeatures deviceAccountPaired, check fixed channel support
2016-11-30 18:21:25.962886+0100 0x351      Default     0x0                  0      kernel: (IOBluetoothFamily)
2016-11-30 18:21:25.962888+0100 0x351      Default     0x0                  0      kernel: (IOBluetoothFamily)
2016-11-30 18:21:25.962895+0100 0x659      Default     0x0                  0      kernel: (IOBluetoothFamily)
2016-11-30 18:21:25.962897+0100 0x659      Default     0x0                  0      kernel: (IOBluetoothFamily)
2016-11-30 18:21:25.962897+0100 0x659      Default     0x0                  0      kernel: (IOBluetoothFamily)
2016-11-30 18:21:26.562512+0100 0x49f      Default     0x0                  0      kernel: (HFS) hfs: mounted Server Dati on device disk2s2
2016-11-30 18:21:27.950208+0100 0x2e4      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): e1000e NIC Link is Up 1000 Mbps Full Duplex, Flow Control: None
2016-11-30 18:21:28.646565+0100 0x7bc      Default     0x0                  0      kernel: (HFS) hfs: mounted Recovery HD on device disk0s3
2016-11-30 18:21:30.667208+0100 0x320      Default     0x0                  0      kernel: (IOPlatformPluginFamily) ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
2016-11-30 18:21:30.667211+0100 0x320      Default     0x0                  0      kernel: (IOPlatformPluginFamily) ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out
2016-11-30 18:21:30.676204+0100 0x320      Default     0x0                  0      kernel: (IOPlatformPluginFamily) WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
2016-11-30 18:21:30.676205+0100 0x320      Default     0x0                  0      kernel: (IOPlatformPluginFamily) WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3f
2016-11-30 18:21:30.693848+0100 0x7d7      Default     0x0                  0      kernel: (AppleLPC) AppleLPC::notifyPlatformASPM - registering with plugin with ASPM Support false
2016-11-30 18:21:30.705174+0100 0x644      Default     0x0                  0      kernel: (AppleBluetoothMultitouch) [BNBMouseDevice::init][92] init is complete
2016-11-30 18:21:30.712397+0100 0x30c      Default     0x0                  0      kernel: (IOBluetoothHIDDriver) ****[IOBluetoothHIDDriver][setPowerStateWL] -- Wake -- return 0 seconds -- powerStateOrdinal = 1 ****
2016-11-30 18:21:30.755334+0100 0x7e5      Default     0x0                  0      kernel: (HFS) hfs: unmount initiated on Recovery HD on device disk0s3
2016-11-30 18:21:30.859972+0100 0x644      Default     0x0                  0      kernel: (AppleBluetoothMultitouch) [BNBMouseDevice::handleStart][92] returning 1
2016-11-30 18:21:30.867152+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:6 output:1 feature:65
2016-11-30 18:21:30.867153+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 3
2016-11-30 18:21:30.867153+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:1 output:0 feature:0
2016-11-30 18:21:30.867154+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:2 output:0 feature:2
2016-11-30 18:21:30.867182+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 1816
2016-11-30 18:21:30.867192+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 4
2016-11-30 18:21:30.867193+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-11-30 18:21:30.867194+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 16 input:48 output:8 feature:8
2016-11-30 18:21:30.867195+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 71 input:8 output:8 feature:16
2016-11-30 18:21:30.867195+0100 0x644      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 85 input:8 output:8 feature:520
2016-11-30 18:21:30.869066+0100 0x80f      Default     0x0                  0      kernel: (AppleMultitouchDriver) [HID] [MT] AppleMultitouchHIDEventDriver::start entered
2016-11-30 18:21:30.876626+0100 0x80f      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-11-30 18:21:30.923366+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:30.923379+0100 0x53c      Default     0x0                  0      kernel: (IONDRVSupport) GFX0: Not usable
2016-11-30 18:21:30.923565+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:31.099950+0100 0x82e      Default     0x0                  0      kernel: (AppleMultitouchDriver) [HID] [MT] AppleMultitouchDevice::start entered
2016-11-30 18:21:31.868281+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:31.872093+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:31.874664+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:31.921549+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:31.949195+0100 0x53c      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-11-30 18:21:31.975798+0100 0x53c      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-11-30 18:21:32.047753+0100 0x53c      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-11-30 18:21:32.218699+0100 0x356      Default     0x0                  93     loginwindow: (CoreFoundation)     token = 1000003
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Just a note, I checked to see whether or not my Vectors were loaded and it turns out they weren't! Apparently 17,1 isn't supported for my CPU...

sysctl -n machdep.xcpm.vectors_loaded_count

0

Loaded in 14,2 vectors, and...

sysctl machdep.xcpm

machdep.xcpm.io_filtered_reads: 0
machdep.xcpm.io_control_disengages: 1
machdep.xcpm.io_control_engages: 0
machdep.xcpm.io_thermal_level: 0
machdep.xcpm.gpu_thermal_level: 0
machdep.xcpm.cpu_thermal_level: 0
machdep.xcpm.deep_idle_total_stats: n/a
machdep.xcpm.deep_idle_last_stats: n/a
machdep.xcpm.deep_idle_count: 0
machdep.xcpm.qos_txfr: 1
machdep.xcpm.deep_idle_log: 0
machdep.xcpm.forced_idle_period: 30000000
machdep.xcpm.forced_idle_ratio: 100
machdep.xcpm.mbd_relaxations: 0
machdep.xcpm.mbd_applications: 1
machdep.xcpm.mbd_mode: 1
machdep.xcpm.maxintdelay: 0
machdep.xcpm.maxbusdelay: 71680
machdep.xcpm.ratio_changes_total: 27774
machdep.xcpm.ratio_change_ratelimit_ns: 500000
************************************ machdep.xcpm.vectors_loaded_count: 1 *************************************
machdep.xcpm.tuib_ns: 0
machdep.xcpm.bootpst: 37
machdep.xcpm.bootplim: 0
machdep.xcpm.power_source: 0
machdep.xcpm.tuib_enabled: 0
machdep.xcpm.tuib_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_plimit_max_100mhz_ratio: 37
machdep.xcpm.soft_plimit_min_100mhz_ratio: 8
machdep.xcpm.soft_plimit_max_100mhz_ratio: 37
machdep.xcpm.hard_plimit_min_100mhz_ratio: 8
machdep.xcpm.hard_plimit_max_100mhz_ratio: 37
machdep.xcpm.mode: 1

Much better!

sysctl -n machdep.xcpm.vectors_loaded_count

1
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

I followed another guide and injected 17,1 vectors and didn't do my DD and check for errors... *smack on hand*



Anywho, I updated my EFI folder on post 690 to reflect the new changes.





Also, wanted to note some weird stuff about sleep:

- It seems like after putting my computer to sleep, my system won't tear-down properly during a restart. Upon restart, it looks like it just reloads the last known state (similar to if you were to check the checkbox to reload open windows during a reboot).

- Only solution I've found to fix the issue is to do a shutdown, then power on my computer again.



Will test some more throughout the week...

Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

For now, the texts are finished. My system is stable, Sleep and everything else works perfectly. It does not have any KPs, reboots or freezes. The sound works after waking up and GB4 is the same before and after Sleep. And very important for me, the idle already goes down more often, the temperatures are always low and the energy consumption as well. In short, it looks good to me. I just followed the suggestions taken from another topic and I leave here some things that seem useful. If someone with the same hardware, want to test my EFI and or plist and patchs I then put it here. Of course the proper functioning of this depends on the Bios Settings that each one uses.



AppleIntelCPUPowerManagement.kext and AppleIntelCPUPowerManagementClient.kext

kextstat|grep -y appleintelcpu. If output is blank you are good, if not you need to remove them from S/L/E. In my case it was not necessary to delete anything.



One thing to mention is that I also changed QPI settings to 100 in clover Plist. In the blogs from Piker (SSDT Script Generator and Vector Script Creator, which i both used for PM) he states that the output the bios is generating (400000000) for my specific cpu (I7 5820K) is wrong and should be (100000000). Check your output in terminal by: sysctl hw | grep frequency. Piker has a nice calculating method for using values with your own processor. just search his blogs.

sysctl hw | grep frequency



Also you might need com.apple.driver.X86PlatformPlugin and com.apple.driver.X86PlatformShim loaded.

Check in terminal: kextstat|grep -y x86plat. If it generates a line (or more) of output your fine.



You can download the latest ssdtPRGen.sh beta by entering the following command in a terminal window:



curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh



If you have a well-known, single cpu like I7 5820K, you just need add -x 1 for xcpm and nothing else.

sudo ./ssdtPRGen.sh -x 1



After that I added the freqvectors 17.1 and it seems that everything is fine, with some addition of speedsteps and states.



  • Like 1
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Looks like my CPU bus speed was incorrect (40000000), fixed it by setting QPI to 10.

Sorry folks... I updated my EFI folder on post 690 to reflect the new changes (again... should be the last time!).

As far sleep goes, by injecting the correct frequency vectors as well as setting the CPU type to 0x0a02, it appears... for now... to have fixed the reboot tear-down issues.

  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Looks like my CPU Sensor is no longer reporting correct wattage... AHHHH!:

When I changed the Ai Overclock Tuner to manual, it happened the same to me in the Power Gadjet.

I have to test the Total CPU Package app...

  • Like 1
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

When I changed the Ai Overclock Tuner to manual, it happened the same to me in the Power Gadjet.

I have to test the Total CPU Package app...



That fixed it! To be sure I was still getting proper CPU management, I ran AppleIntelInfo... and it appears that all cores are still synced with all the steppings. I think I was getting unsync'd cores due to an improper SSDT (with the injected 17,1 vectors). Will update my post 690 to reflect new info:

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 30 37 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 30 34 37 ]
CPU P-States [ (12) 27 30 34 37 ]
CPU P-States [ (12) 27 30 34 35 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 27 30 31 34 35 (37) ]
CPU P-States [ (12) 24 27 30 31 34 35 37 ]
CPU P-States [ (12) 24 27 30 31 32 34 35 37 ]
CPU P-States [ (12) 24 27 30 31 32 34 35 36 37 ]
CPU P-States [ 12 14 24 27 30 31 32 34 35 36 (37) ]
CPU P-States [ 12 14 24 26 27 30 31 32 34 35 36 (37) ]
CPU P-States [ 12 14 19 24 26 27 30 31 32 34 35 36 (37) ]
CPU P-States [ (12) 14 19 21 24 26 27 30 31 32 34 35 36 37 ]
CPU P-States [ (12) 14 19 21 24 26 27 29 30 31 32 34 35 36 37 ]
CPU P-States [ (12) 14 18 19 21 24 26 27 29 30 31 32 34 35 36 37 ]
CPU P-States [ 12 14 18 19 21 24 26 27 28 29 30 31 32 34 35 36 (37) ]
CPU P-States [ (12) 14 18 19 21 24 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ 12 14 18 19 20 21 24 26 27 28 29 30 31 32 33 34 35 36 (37) ]
CPU P-States [ (12) 14 18 19 20 21 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ (12) 14 17 18 19 20 21 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ (12) 14 16 17 18 19 20 21 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 21 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]
CPU P-States [ 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 (37) ]


Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

Tried updating my main rig to 10.12.1... and I don't recommend it. Too unstable and WIFI didn't work. Best to stick to 10.12 for now.

My rig with 10.12.1 works is stable and wifi and bluetooth work great....maybe you should check your kext patches!

  • Like 1
Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

it is not a problem of hwsensors or Intel power gadget...or better it is a combination of bios cpu tweaking parameters and the way this programs read them if cpu parameters are not in auto or sync all cpu, also related to cpu advanced parameters of c states.

I confirm this probability, because I happened to have the right information

  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

If you want..try to read from this link

https://pikeralpha.wordpress.com/2016/09/14/appleintelinfo-kext-v1-7/#comments



correct value is 100

but in my experiments/tests seems that this is only a cosmetic thing..



otherwise we have many destroyed motherboards and cpus here! :-)

Thanks fabiosun,

Apparently it read a wrong post and I was also misled. I have already corrected what I had written in my post. But in fact having QPI 0, 10 or 100, does not appear to change anything in the behavior of the system. It's like you said, it should be just cosmetic thing :)

Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

First of all, a big thank you to everyone who has contributed to this.

There are too many to list all the names, but all of you know who they are!

With stability worthy of a real Mac Pro :yes:

Now it's time to have a lot of hope and wait for Nvidia's Pascal support and if it ever comes up, buy a 1070 or 1080...

If someone with the same hardware and still with problems wants to test my EFI...







EFI.rar

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
