[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

AsusFreak · November 17, 2016

Infact my question was not related with his problems but was my curiosity...and i don't know why i'm loosing time to answer to that comment you wrote that as usual is not helpful to his problem!

I don't know what your problem is and don't really care... Why you are "losing time" responding is your issue not mine... My reply to him was very helpful, that fricking board doesn't work well with OSX, primarily because of their screwed up bios. Please save your nonsense and silly post for TM...

thenightflyer · November 17, 2016

I don't know what your problem is and don't really care... Why you are "losing time" responding is your issue not mine... My reply to him was very helpful, that fricking board doesn't work well with OSX, primarily because of their screwed up bios. Please save your nonsense and silly post for TM...

Maybe, and i underline "maybe" your help was related only to the board so i think your comment about my question to him was silly and nonsense (as you write!) So please stop to comment what i write. If you don't agree my "silly" posts (sometimes your comments are like a fart in a closed lift!) don't reply, ignore them! And that's all.

AsusFreak · November 17, 2016

No worries, that's all fine. But just for fun and being curious, why do you enable Cpu Halt Enabler?

SammlerG · November 17, 2016

I have not seen a 100% running EVGA X99 board with mac OS.

There is a problem with the bios

mfc88 · November 18, 2016

Just wanted to update:

What works:
- WIFI (2.4ghz/5ghz)
- All USB 2.0, 3.0, 3.1 Ports
- USB DAC Sound (m9xx DAC)
- Realtek 1150 sound (over HDMI)
- CPU PM/Stepping
- Bluetooth -- hardly somewhat... the bluetooth device on the Asus X99 Pro USB 3.1 motherboard is meh, so connection is constantly lost.
- 100% stable using OsxAptioFix2Drv-free2000.efi

What doesn't work:
- Sleep (unfortunately, I get instant wake followed by a kernel panic)

Fergarth · November 18, 2016

Just wanted to update:

What works:

- WIFI (2.4ghz/5ghz)

- All USB 2.0, 3.0, 3.1 Ports

- USB DAC Sound (m9xx DAC)

- Realtek 1150 sound (over HDMI)

- CPU PM/Stepping

- Bluetooth -- hardly somewhat... the bluetooth device on the Asus X99 Pro USB 3.1 motherboard is meh, so connection is constantly lost.

- 100% stable using OsxAptioFix2Drv-free2000.efi

What doesn't work:

- Sleep (unfortunately, I get instant wake followed by a kernel panic)

I also had this problem, but from the moment I added voodooTSCsynk to EFI, sleep/wake started working fine.

I've never used this drive, my board always worked well with OsxAptioFixDrv...

Fergarth · November 18, 2016

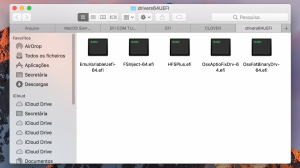

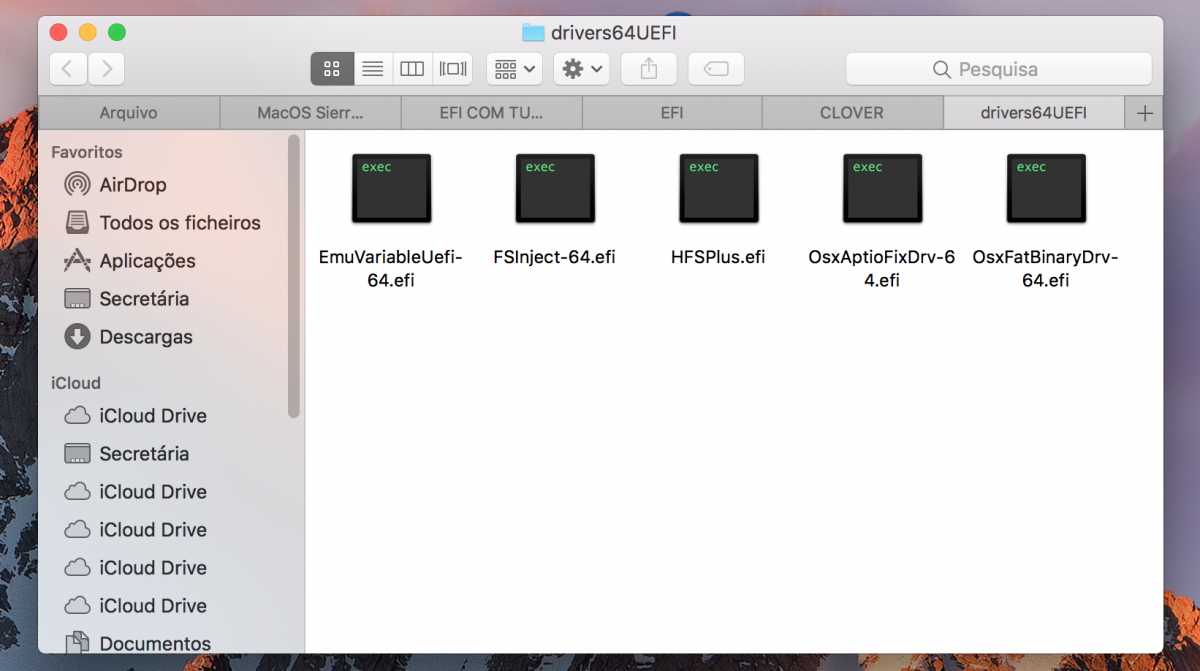

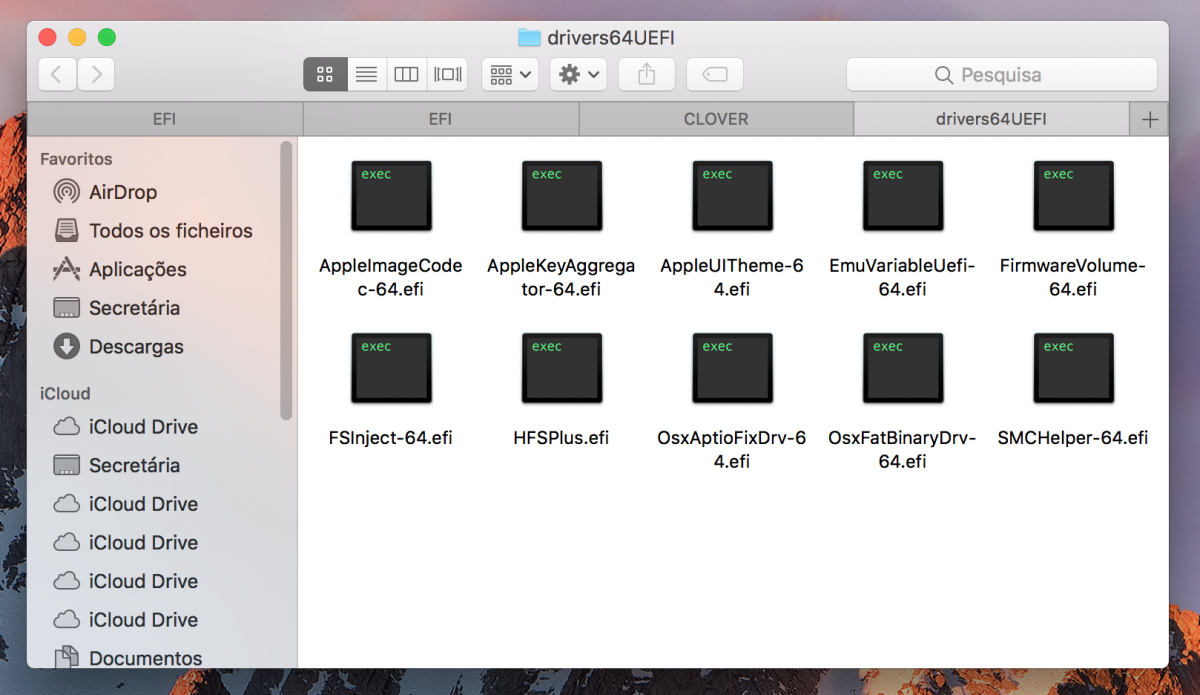

Very funny! The last Clover r3923, without i having asked, deleted all the drivers32 folder, and added a dose of new drivers64 and I do not even know what they are for.
But that's it, everything is still stable.
By the way, can anyone tell me what the additional drivers are for?

Thanks

thenightflyer · November 19, 2016

Very funny! The last Clover r3923, without i having asked, deleted all the drivers32 folder, and added a dose of new drivers64 and I do not even know what they are for.

But that's it, everything is still stable.

By the way, can anyone tell me what the additional drivers are for?

Thanks

There is no need to keep *32 folders and files inside....as there is no need you keep those new files in driver64 folder.

Fljagd · November 19, 2016

Very funny! The last Clover r3923, without i having asked, deleted all the drivers32 folder, and added a dose of new drivers64 and I do not even know what they are for.

But that's it, everything is still stable.

By the way, can anyone tell me what the additional drivers are for?

Thanks

Hi,

Look here http://www.insanelymac.com/forum/topic/317290-filevault-2/page-1

Fergarth · November 19, 2016

That's it, I've never used or needed these drivers before and I do not think I'm going to use them now. The truth is that with or without them, the system works just as well, but I prefer the EFI folder as thinner as possible

Thanks

mfc88 · November 19, 2016

That's it, I've never used or needed these drivers before and I do not think I'm going to use them now. The truth is that with or without them, the system works just as well, but I prefer the EFI folder as thinner as possible

Thanks

Just out of curiosity, are you currently running Sierra 10.12 or Sierra 10.12.1?

===============================================================================================================

Since my other test bench is stable (Samsung SSD 830), I've cloned it over to my Samsung NVMe 950 drive. So far getting good results, but only time will tell if it's 100% stable:

NMVe Target:

1,500MB/s Seq. Write

2,500MB/s Seq. Read

Fergarth · November 19, 2016

Just out of curiosity, are you currently running Sierra 10.12 or Sierra 10.12.1?

Currently the Sierra 12.1 but I've tried all the Sierra, including the betas. I just went back to 12.1 because of the nvidia web drivers.

NeXtor · November 24, 2016

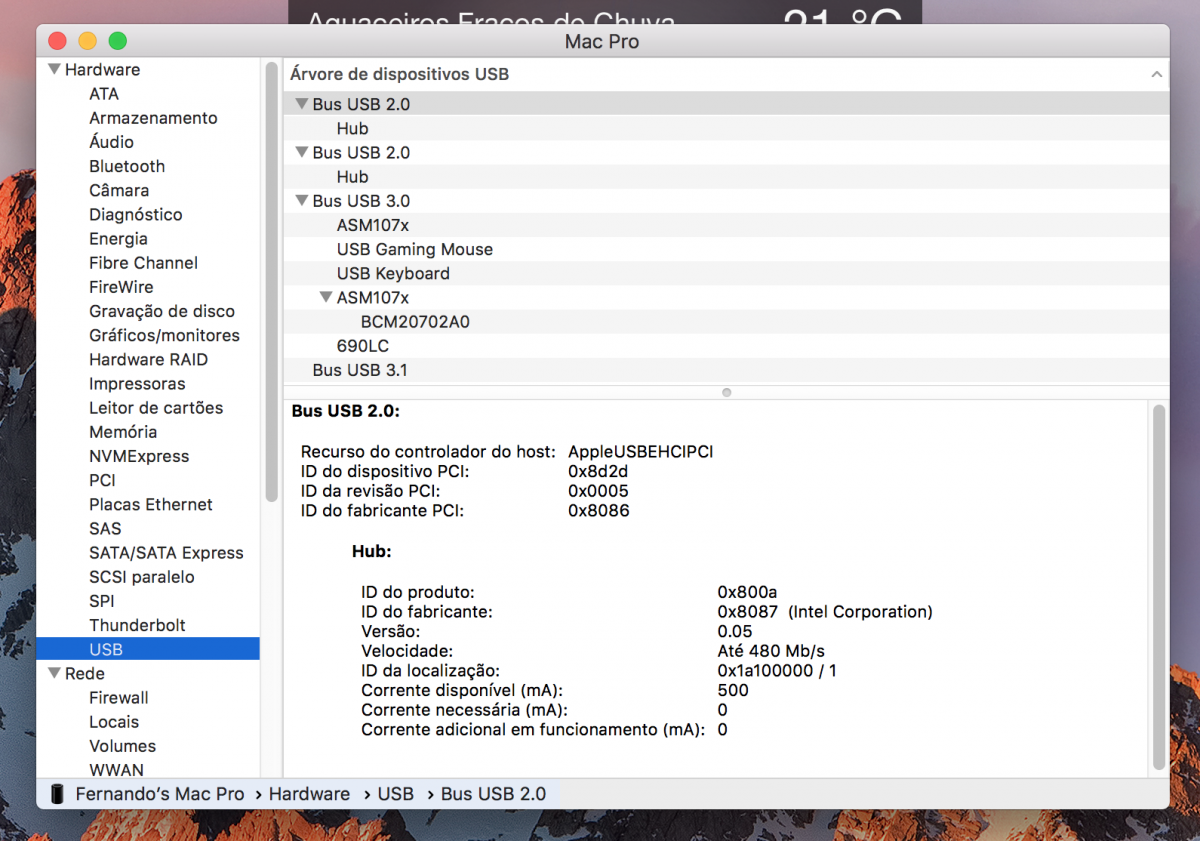

I patched the bios but now the bluetooth does not work if I do not install the kext BrcmBluetoothInjector.kext.

The USB 2.0 and USB 3.0 ports are not fully recognized.

in the PCI section I do not find any data.

The system does not store the kernel.log because it can not write access to /private/...

if I try to load AppleIntelInfo.kext the system crashes

what should I do?

EFI Folder: EFI.zip

IOReg: Mac Pro di Gabriele.zip
