Try this #678 Posted Today, 12:30 AM

:)

i missed this :D



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ (12) 41 42 ]

CPU C6-Cores [ 0 2 4 7 9 11 ]

CPU P-States [ (12) 38 41 42 ]

CPU C6-Cores [ 0 2 4 6 7 9 10 11 ]

CPU C6-Cores [ 0 2 4 6 7 8 9 10 11 ]

CPU P-States [ 12 32 38 41 (42) ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ (12) 32 37 38 41 42 ]

CPU P-States [ 12 32 35 37 38 41 (42) ]

CPU P-States [ (12) 32 33 35 37 38 41 42 ]

CPU P-States [ (12) 32 33 35 36 37 38 41 42 ]

CPU P-States [ 12 32 33 35 36 37 38 39 41 (42) ]

CPU P-States [ (12) 31 32 33 35 36 37 38 39 41 42 ]

CPU P-States [ (12) 31 32 33 34 35 36 37 38 39 41 42 ]

CPU P-States [ 12 30 31 32 33 34 35 36 37 38 39 41 (42) ]

CPU P-States [ (12) 29 30 31 32 33 34 35 36 37 38 39 41 42 ]

CPU P-States [ 12 29 30 31 32 33 34 35 36 37 38 39 40 41 (42) ]

CPU P-States [ (12) 27 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ]

CPU P-States [ (12) 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ]

CPU P-States [ (12) 24 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ]

CPU P-States [ (12) 24 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ]



CPU P-States [ (12) 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ]



quiescent frequency rarely is reset to 1.2, how to fix it?

and you idle watts = 13, my idle watts = 26-28, what could be the problem?

Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

i missed this :D



quiescent frequency rarely is reset to 1.2, how to fix it?

and you idle watts = 13, my iddle watts = 26-28, what could be the problem?

The frequency problem rarely goes to the minimum, I think it is common to most of us. I think it also depends on the hardware, cpu, board, settings on Bios and especially on the patches used, etc.

I do not use overclocking, I do not need to. My system works in stock speed because I prefer low temperatures and low consumption ...

Link to comment
Share on other sites
BAN SPEEDRUNNER
BAN SPEEDRUNNER
Posted
Posted

The frequency problem rarely goes to the minimum, I think it is common to most of us. I think it also depends on the hardware, cpu, board, settings on Bios and especially on the patches used, etc.

I do not use overclocking, I do not need to. My system works in stock speed because I prefer low temperatures and low consumption ...

as I understand it, the problem is generated ssdt, because the parameters of the turbo 3600, with standard frequencies do not have a problem

it is likely there a limit(20) on the amount of p-states

this amount is not enough for high frequencies

(my processor does not need a large voltage for stable operation(4.2, 1.13v, LinX 0.6.9 stable), so I do not care Stock/OC, is a small heat generation and consumption)

  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Hi everyone,

When I generated ssdt for my cpu, I did not add freqvectors and yet it seems to be fine. But can anyone tell me if I have any benefit in doing so and what kind of freqvector is most appropriate for my 5820K processor?

Thanks

Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Hi everyone,

When I generated ssdt for my cpu, I did not add freqvectors and yet it seems to be fine. But can anyone tell me if I have any benefit in doing so and what kind of freqvector is most appropriate for my 5820K processor?

Thanks

When you generate a SSDT using ssdtPRGen, you may get a warning stating that "Frequency vectors don't exist for this [board id]. you will need to use FrequencyVectors.sh"



Otherwise, if you don't get that warning, then you don't need to inject any.

  • Like 1
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Here's my EFI folder for any random lurkers/registered users who share the same setup as me and who want a 100% functional set up for their Asus PRO 3.1 USB board running 10.12!



***If you run anything higher than 10.12, the patches inside the "Kernel and Ktext Patches" config.plist may not work.





What this EFI folder currently has:

-  Should automatically boot into your default volume after a 3-second countdown when at the Clover screen; if not, edit the config.plist with Clover Configurator-> under Boot tab -> under Default Boot Volume, type the name of your harddrive with OS installed, save and restart

-  Generated SSDT (speed step/power management) for a Mac Pro 6,1 SMBIOS with injected 14,2 frequency vectors for an i7 5930K

-  Included CPU, GPU, APCI and LPC sensors for the HWsensor/Intel Power Gadget apps

-  IntelMausiEthernet for internet (for WIFI, you'll want the WIFI.rar download/instructions provided here)

-  OsxAptioFix2Drv-free2000.efi for stability (wasn't able to track down the random reboots I was getting with OsxAptioFixDrv.efi)

- Supports:

  • Bluetooth devices (100% functional!)
  • NMVe devices (should recognize any M.2 NVMe SSD and set it as an internal drive)
  • Audio over HDMI/DP
  • USB 2.0, 3.0 and 3.1 ports all functional
  • Sleep
Other Setup:

- 3402 Patched BIOS (may not be needed with OsxAptioFix2Drv-free2000.efi) -- use at your own risk -- if you decide to use these BIOS via Asus Flashback, rename the file to the following before placing it on a USB stick: X99PU31.CAP



My BIOS Setup:

- Under Advanced:

/USB Configuration:

  • Intel XHCI Mode - Smart Auto
  • EHCI Legacy Support - Enable
  • XHCI Hand-off - Enable
  • EHCI Hand-off - Disabled
- In Ai Tweaker:
  • AI Overclock Tuner - Auto (just make sure your CPU is set to: Sync All Cores, otherwise, you may different turbo boosts for each core)
  • Internal CPU Power Management (EIST) - Disable
-In Boot

/ Secure Boot:

  • Os Type - Other OS
/ CSM:
  • UEFI and legacy support (the rest of the options are set to: Legacy only)
Special note: If you're using a Corsair H100i GTX AIO cooler (or similar Corsair AIO cooler) that connects to an internal USB device, it will prevent your system from sleeping! I recommend you either unplug the USB cable portion or switch to a different cooler!



As always, huge, huge thanks to those who helped out and got me this far!

EFI_ASUS-PRO-USB3.1_10.12_FIX2DRV-FREE.zip

  • Like 2
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Maan, thank you very much

i delete AppleIntelCpuPowerManagement.kext (and plugin) in my Library/Extensions

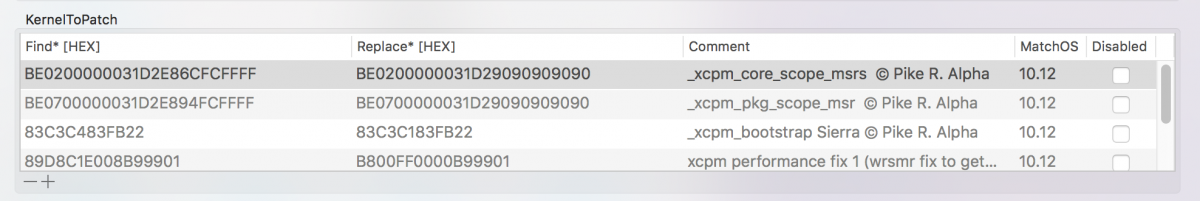

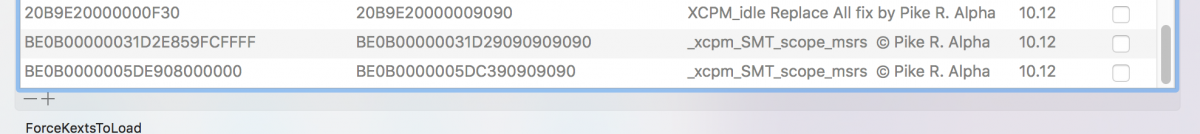

i copy 8 xcpm patches from your config.plist, and xpcm fully and perfectly working on my EVGA x99 Micro board



CPU = 4.7, Cache = 3.6




Hi Hubilay,

I was curious about this! ("i delete AppleIntelCpuPowerManagement.kext (and plugin) in my Library/Extensions")

You have a processor just like mine, but you're overclocking right?

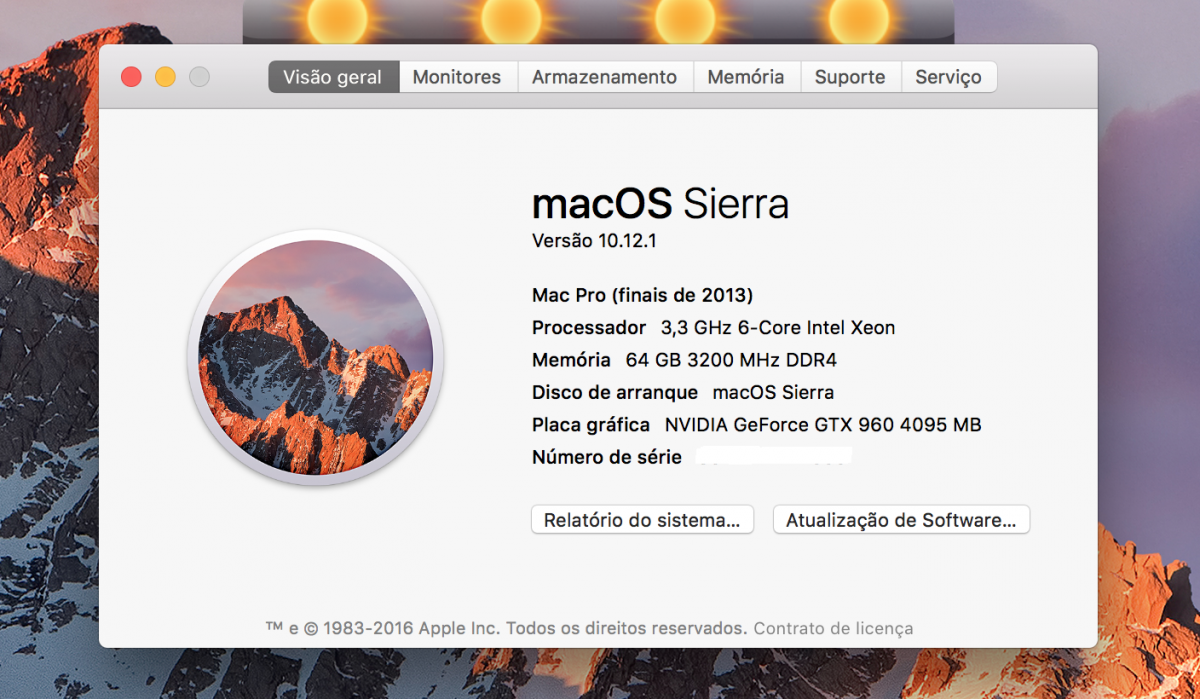

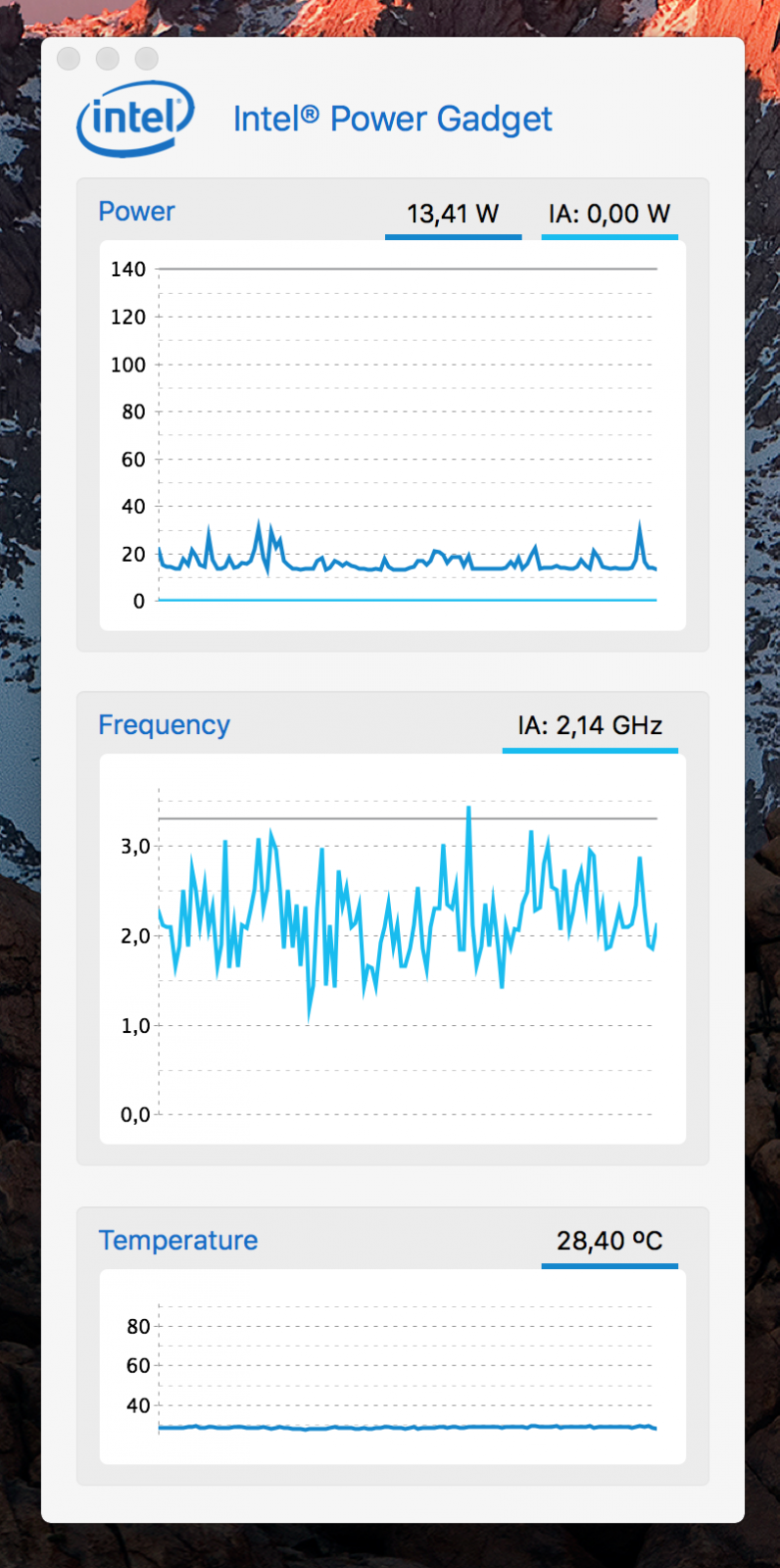

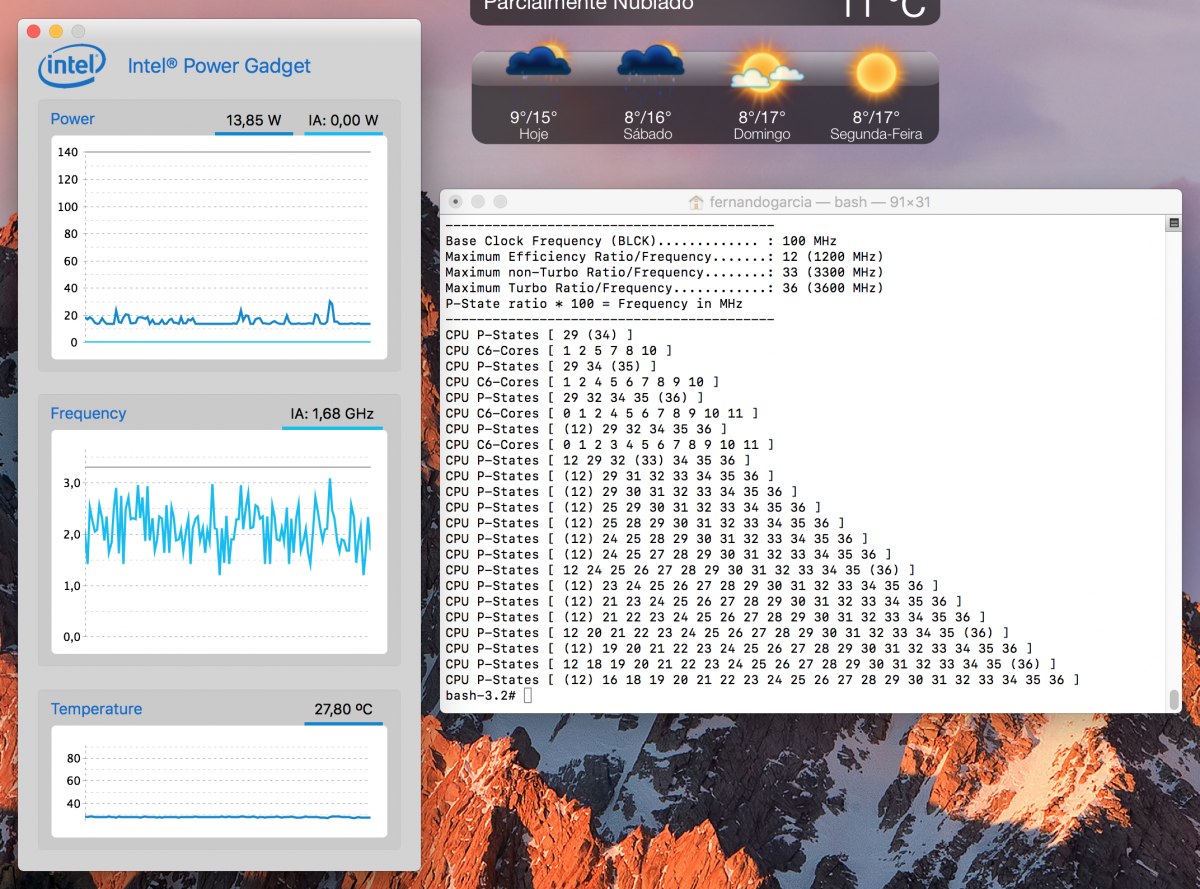

Can you put a print of the Intel Power Gadjet and the result of AppleIntelinfo, please?

​Thanks

Link to comment
Share on other sites
BAN SPEEDRUNNER
BAN SPEEDRUNNER
Posted
Posted

Hi Hubilay,

I was curious about this! ("i delete AppleIntelCpuPowerManagement.kext (and plugin) in my Library/Extensions")

You have a processor just like mine, but you're overclocking right?

Can you put a print of the Intel Power Gadjet and the result of AppleIntelinfo, please?

​Thanks

Hi

1)I deleted AICPUPM because it is loaded with X86PlatformPlugin and hinder its work. Also, if I delete AICPUPM on a clean system without ssdt and kernel xcpm patches - power management will work(without AICPUPM, x86PlatformPlugin...), but without the turbo boost.

2)Yes, though now I sit on the 3600 standard frequencies

3)

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x2839e9791f7 (83 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8043199400
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x20A235BCC0
IA32_APERF.......................(0xE8)  : 0x21B4B3497A

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x215C00002400
------------------------------------------
 - Current Performance State Value...... : 0x2400 (3600 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883E0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 62
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5E0A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 94
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x29040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF8001BFFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x1B41EDDF
------------------------------------------
 - Total Energy Consumed................ : 27911 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1780460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x283A55B06EF

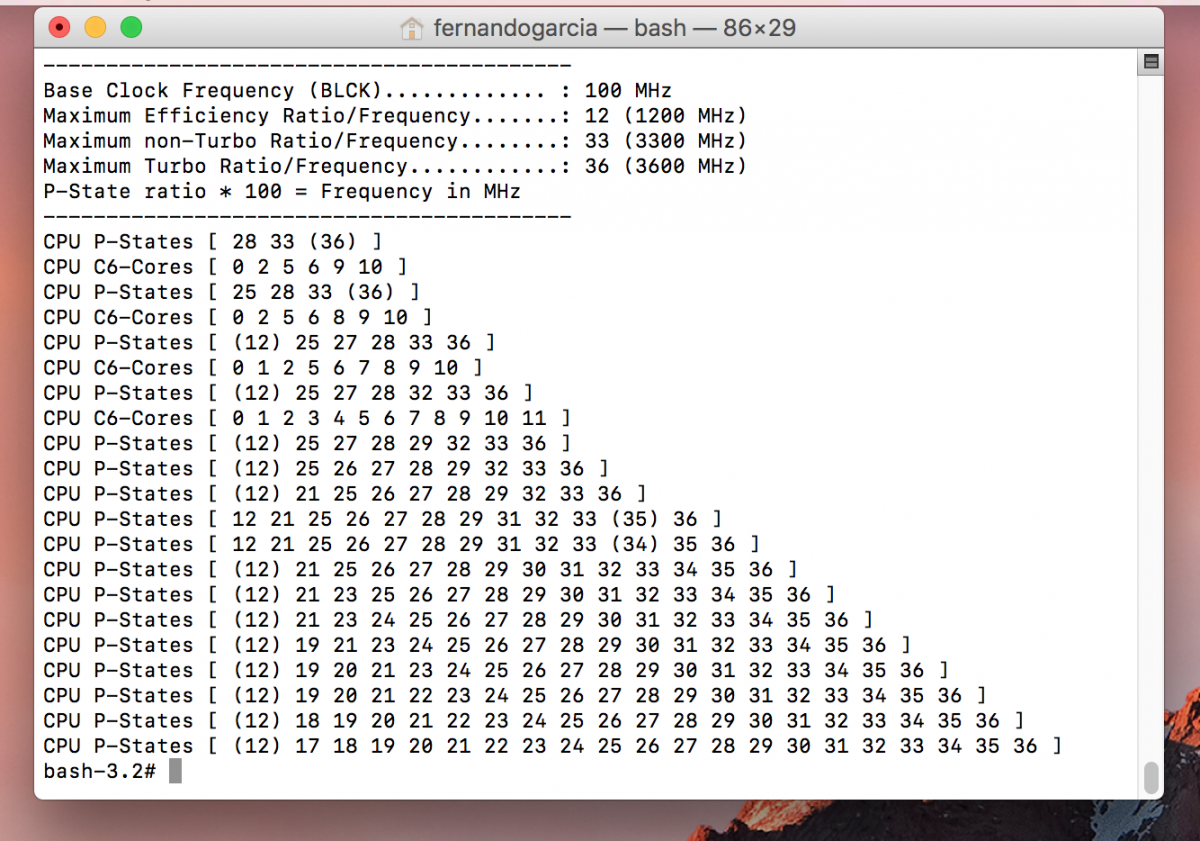

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 31 (36) ]
CPU C6-Cores [ 0 3 4 7 8 10 ]
CPU P-States [ 31 34 (36) ]
CPU C6-Cores [ 0 2 3 4 6 7 8 10 ]
CPU P-States [ (12) 31 34 36 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 8 10 ]
CPU P-States [ (12) 30 31 34 36 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 ]
CPU P-States [ 12 29 30 31 34 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 29 30 31 33 34 36 ]
CPU P-States [ (12) 28 29 30 31 33 34 36 ]
CPU P-States [ 12 24 28 29 30 31 33 34 (36) ]
CPU P-States [ 12 19 24 28 29 30 31 33 34 (36) ]
CPU P-States [ (12) 19 20 24 28 29 30 31 33 34 36 ]
CPU P-States [ 12 18 19 20 24 28 29 30 31 33 34 (36) ]
CPU P-States [ (12) 18 19 20 24 25 28 29 30 31 33 34 36 ]
CPU P-States [ 12 18 19 20 24 25 26 28 29 30 31 33 34 (36) ]
CPU P-States [ (12) 18 19 20 24 25 26 27 28 29 30 31 33 34 36 ]
CPU P-States [ 12 18 19 20 24 25 26 27 28 29 30 31 32 33 34 (36) ]
CPU P-States [ 12 18 19 20 24 25 26 27 28 29 30 31 32 33 34 35 (36) ]

I see that there are several xcpm patches...

Which patches should I use for 5820k?

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>AppleRTC</key>
<false/>
<key>AsusAICPUPM</key>
<false/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KernelHaswellE</key>
<false/>
<key>KernelLapic</key>
<false/>
<key>KernelPm</key>
<false/>
<key>KernelToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>Haswell-E CPUID Patch</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>g8Dp</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>g8Dm</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM SMT SCOPE MSRS  © Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>vgsAAAAx0uhZ/P//</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>vgsAAAAx0pCQkJCQ</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM CORE SCOPE MSRS © Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>vgIAAAAx0uhs/P//</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>vgIAAAAx0pCQkJCQ</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM PKG SCOPE MSR  © Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>vgcAAAAx0uiU/P//</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>vgcAAAAx0pCQkJCQ</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM PERFOMANCE FIX 1 (wrsmr fix to get CPU max) © okrasit</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>idjB4Ai5mQE=</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>uAD/AAC5mQE=</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM idle Replace All fix by Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>ILniAAAADzA=</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>ILniAAAAkJA=</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM BOOTSTRAP Sierra © Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>g8PEg/si</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>g8PBg/si</data>
</dict>
<dict>
<key>Comment</key>
<string>XCPM SMT SCOPE MSRS  © Pike R. Alpha</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>vgsAAABd6QgAAAA=</data>
<key>MatchOS</key>
<string>10.12</string>
<key>Replace</key>
<data>vgsAAABdw5CQkJA=</data>
</dict>
</array>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>Change 15 Port Limit To 30 in XHCI Kext 10.12(99-series)</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>g710////EA==</data>
<key>Name</key>
<string>AppleUSBXHCIPCI</string>
<key>Replace</key>
<data>g710////Fg==</data>
</dict>
<dict>
<key>Comment</key>
<string>X99 Patch</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>SIH7AAAAQA==</data>
<key>Name</key>
<string>IOPCIFamily</string>
<key>Replace</key>
<data>SIH7AAAAgA==</data>
</dict>
</array>
</dict>
</plist>

  • Like 1
Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

mfc88, please throw your kextstat and boot log (sudo dmesg )

AirPort: Link Down on en2. Reason 8 (Disassociated because station leaving).
Got incomplete channel sequence length 0, should be 16
IOPPF: XCPM mode
IOPPF: XCPM mode
[AGPM Controller] build gpuDict by GPU GFX0.
[AGPM Controller] unknownPlatform
no Heuristic ID!
AGPM::start - publish fMinPowerState = 0 fMaxPowerState = 3
Got incomplete channel sequence length 0, should be 16
en2: channel changed to 1
en2::IO80211Interface::postMessage bssid changed
bpfAttach len 94 dlt 163
BrcmPatchRAM: Loaded compressed embedded firmware for key "BCM20702A1_001.002.014.1443.1469_v5565".
BrcmPatchRAM: Decompressed firmware (29711 bytes --> 70105 bytes).
BrcmPatchRAM: Firmware is valid IntelHex firmware.
BrcmPatchRAM2: [0b05:17cf]: USB [40E2309945C9 v274] "BCM20702A0" by "Broadcom Corp"
BrcmPatchRAM2: [0b05:17cf]: Firmware upgrade not needed.
BrcmPatchRAM2: [0b05:17cf]: Found existing IOKit personality "com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport".
BrcmPatchRAM2: Processing time 1.0 seconds.
**** [IOBluetoothHostControllerUSBTransport][start] -- completed -- result = TRUE -- 0x3800 ****
**** [BroadcomBluetoothHostControllerUSBTransport][start] -- Completed (matched on Device) -- 0x3800 ****
[IOBluetoothFamily][staticBluetoothTransportShowsUp] -- Received Bluetooth Controller register service notification -- 0x3800
[IOBluetoothHostController][start] -- completed
BrcmPatchRAM2: Version 2.2.7 starting on OS X Darwin 16.0.
BrcmPatchRAM2: uploadFirmware could not open the device!
BrcmPatchRAM2: [0b05:17cf]: Found existing IOKit personality "com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport".
BrcmPatchRAM2: Processing time 0.6 seconds.
*** AppleSMBusDevice::start failed to start - no address.
[IOBluetoothHostController::setConfigState] calling registerService
**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- calling IOBluetoothFamily's registerService() -- 0xb090 -- 0x5c00 -- 0x3800 ****

**** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- Connected to the transport successfully -- 0xb090 -- 0x5c00 -- 0x3800 ****

bpfAttach len 30 dlt 105
bpfAttach len 52 dlt 127
bpfAttach len 38 dlt 192
IO80211Interface::updateReport _peerManager is missing
AirPort_Brcm4360::getSSIDData(): Get failure: APPLE80211_IOC_SSID: 6
kPEDisableScreen 1
AirPort_Brcm4360_P2PInterface::init name <p2p0> role 1
IO80211VirtualInterface::init _controller is 0xf10db422c449e271, provider is 0xf10db41fca0ae571
configureInterests - nElements <= 0!Failed to configure interests
IO80211Controller::addSubscriptionForThisReporterFetchedOnTimer() Failed to addSubscription for group Interface p2p0 subgroup Data Packets driver 0xf10db422c449e271 - data underrun
IO80211InterfaceMonitor::configureSubscriptions() failed to add subscription
AirPort_Brcm4360_P2PInterface::init <p2p> role 1
AirPort_Brcm4360_P2PInterface::init name <awdl0> role 4
AirPort_Brcm4360_P2PInterface::awdlAttachToBpf name <awdl0> role 4 successful attach to bpf type 147
IO80211VirtualInterface::init _controller is 0xf10db422c449e271, provider is 0xf10db41fca0ae571
 Creating all peerManager reporters
AirPort_Brcm4360_P2PInterface::init <awdl> role 4
awdl0: promiscuous mode enable succeeded
AirPort: Link Up on awdl0
awdl0: promiscuous mode disable succeeded
awdl0: promiscuous mode enable succeeded
AirPort: Link Down on awdl0. Reason 1 (Unspecified).
ARPT: 3.456915: AirPort_Brcm43xx::syncPowerState: WWEN[disabled]
ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: Argument #4 type mismatch - Found [Buffer], ACPI requires [Package]Argument #4 type mismatch - Found [Buffer], ACPI requires [Package] (20140828/nsarguments-a9)
 (20140828/nsarguments-a9)
ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: Argument #4 type mismatch - Found [Buffer], ACPI requires [Package]Argument #4 type mismatch - Found [Buffer], ACPI requires [Package] (20140828/nsarguments-a9)
 (20140828/nsarguments-a9)
ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: Argument #4 type mismatch - Found [Buffer], ACPI requires [Package]Argument #4 type mismatch - Found [Buffer], ACPI requires [Package] (20140828/nsarguments-a9)
 (20140828/nsarguments-a9)
ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: ACPI Warning: \134_SB_.PCI0.BR3A.GFX0._DSM: Argument #4 type mismatch - Found [Buffer], ACPI requires [Package]Argument #4 type mismatch - Found [Buffer], ACPI requires [Package] (20140828/nsarguments-a9)
 (20140828/nsarguments-a9)
kPEDisableScreen 1
kPEDisableScreen 1
kPEEnableScreen 1
hfs: mounted Storage OS X on device disk3s2
Sound assertion in AppleHDAEngine at line 9537
Sound assertion in AppleHDAEngine at line 9537
Sound assertion in AppleHDAEngine at line 605
Ethernet [IntelMausi]: Link up on en0, 1-Gigabit, Full-duplex, Rx/Tx flow-control
AppleKeyStore: set handle 1 as special bag -501
AppleKeyStore: Sending lock change 0 for handle -501
AppleKeyStore::ipc_device_state_transition: Device UnLock call, lockstate=0, transientCnt=0
AppleKeyStore::ipc_device_state_transition: Device UnLocked, lockstate=0
SandboxViolation: coreaudiod(246) deny(1) file-read-metadata /Library/Audio
SandboxViolation: coreaudiod(246) deny(1) file-read-metadata /Library/Audio
utun_ctl_connect: creating interface utun0
utun_start: ifnet_disable_output returned error 12
SandboxViolation: cloudd(348) deny(1) mach-lookup com.apple.coreservices.launchservicesd
Report bytes: input:8 output:7 feature:1Collections : 4Buttons     : input:2 output:1 feature:0Values      : input:4 output:0 feature:0Element value capacity 928Report count: 3Report ID: 0 input:0 output:0 feature:0Report ID: 2 input:64 output:8 feature:8Report ID: 16 input:56 output:56 feature:8Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0Element value capacity 6584Report count: 1Report ID: 0 input:64 output:8 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0Report count: 1Report ID: 0 input:72 output:0 feature:0Element value capacity 6584Report count: 1Report ID: 0 input:64 output:8 feature:0Report bytes: input:8 output:7 feature:1Collections : 6Buttons     : input:7 output:3 feature:0Values      : input:0 output:0 feature:0Element value capacity 22320Report count: 6Report ID: 0 input:0 output:0 feature:0Report ID: 1 input:64 output:16 feature:8Report ID: 14 input:8 output:16 feature:8Report ID: 3 input:40 output:8 feature:8Report ID: 4 input:16 output:8 feature:8Report ID: 16 input:56 output:56 feature:8Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0Element value capacity 6584Report count: 1Report ID: 0 input:64 output:8 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Report bytes: input:9 output:0 feature:0Collections : 3Buttons     : input:1 output:0 feature:0Values      : input:4 output:0 feature:0Element value capacity 320Element value capacity 320Report count: 1Report ID: 0 input:72 output:0 feature:0Report count: 1Report ID: 0 input:72 output:0 feature:0Report bytes: input:8 output:1 feature:0Collections : 2Buttons     : input:2 output:1 feature:0Values      : input:0 output:0 feature:0HID: Legacy shim 2
Element value capacity 6584Report count: 1Report ID: 0 input:64 output:8 feature:0HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
HID: Legacy shim 2
IOHIDInterface unsuccessfully requested close of clients: 0xe00002c7SandboxViolation: revisiond(92) deny(1) mach-lookup com.apple.metadata.mds.legacy
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: suggestd(342) deny(1) mach-lookup com.apple.metadata.mds
SandboxViolation: suggestd(342) deny(1) mach-lookup com.apple.coreduetd.people
SandboxViolation: AssetCacheLocato(388) deny(1) file-read-data /Users/m6d/Library/Preferences/.GlobalPreferences.plist
SandboxViolation: AssetCacheLocato(388) deny(1) file-read-data /Users/m6d/Library/Preferences/ByHost/.GlobalPreferences.590981D1-D384-5D65-ACED-C642564B7ED7.plist
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: storeassetd(368) deny(1) mach-lookup com.apple.lsd.modifydb
SandboxViolation: PAH_Extension(390) allow(0) mach-register com_apple_palette_pressandhold_connection
SandboxViolation: AssetCacheLocato(388) deny(1) mach-lookup com.apple.metadata.mds.legacy
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
IOReturn IOAccelSurface2::surface_unlock_options(enum eLockType, uint32_t): surface is not locked.
SandboxViolation: AssetCacheLocato(388) deny(1) mach-lookup com.apple.cookied
SandboxViolation: cloudphotosd(268) deny(1) mach-lookup com.apple.logind
HID Activity Tickle (type:0 sender:100000840)HID Activity Tickle (type:0 sender:100000840)SandboxViolation: softwareupdate_n(407) deny(1) file-read-metadata /Users/m6d
HID Activity Tickle (type:0 sender:100000840)HID Activity Tickle (type:0 sender:100000840)AppleKeyStore::ipc_device_state_transition: Device Lock call: lockstate=0, locknow=0
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore: operation failed (pid: 247 sel: 26 ret: e00002e2 '-536870174')
AppleKeyStore::ipc_change_lock_state: telling kernel handle -501 is locked.
AppleKeyStore: Sending lock change 1 for handle -501
AppleKeyStore::ipc_device_state_transition: Device Locked, lockstate=1
UserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledUserEventAgent is not entitledAppleKeyStore: Sending lock change 0 for handle -501
AppleKeyStore::ipc_device_state_transition: Device UnLock call, lockstate=0, transientCnt=0
AppleKeyStore::ipc_device_state_transition: Device UnLocked, lockstate=0
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

@Hubilay, @NeXtor

I did not deleted the AICPUPM or any other kext. I just deactivated EIST on Bios, without overclocking and generated a SSDT for PM without injecting any freqvectors.
I just use only seven XCPM patches, as the prints show.

Everything works on my system with stability and low temperatures, which is what I want :P






  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

After some digging, it appears that I finally figured out what is preventing me from sleeping:

pid 97(hidd): [0x0000000a0009814f] 00:02:08 UserIsActive named: "com.apple.iohideventsystem.queue.tickle"
Kernel Assertions: 0x4=USB

0x4=USB mod=12/31/69, 4:00 PM description=com.apple.usb.externaldevice.14b00000 owner=H100iGTX Cooler
Does anyone know to remove port 0x4????



Instead of an H100iGTX Cooler, you should have opted for a Kraken X61 that does not cause these stresses ...

Now seriously friend, I can not answer your question, but there must be people around here who know :)

Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Instead of an H100iGTX Cooler, you should have opted for a Kraken X61 that does not cause these stresses ...

Now seriously friend, I can not answer your question, but there must be people around here who know :)

Figured it out... I just had to unplug the USB cable it uses to monitor speed fans via Corsair Link.



Removed the cable... and now I have a 100% functional sleeping system!



I've updated the post above to reflect this new information.





Questions:

1.) Does your Kraken have a USB cable?

   a.) If so, are you connecting it to the motherboard?

  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Figured it out... I just had to unplug the USB cable it uses to monitor speed fans via Corsair Link.



Removed the cable... and now I have a 100% functional sleeping system!



I've updated the post above to reflect this new information.





Questions:

1.) Does your Kraken have a USB cable?

   a.) If so, are you connecting it to the motherboard?

I was joking, but the Kraken X61 works the same way, with a USB connection to the board and it never caused me problems...

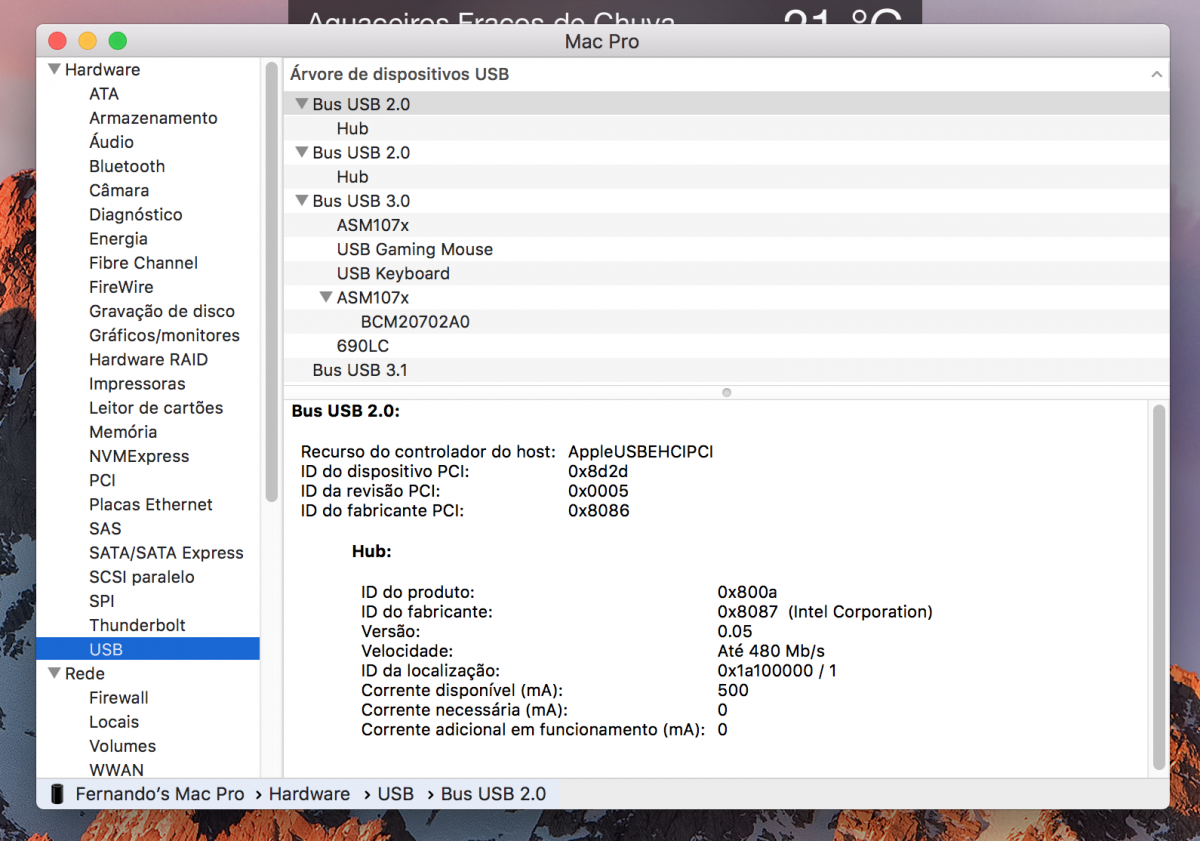

​See the print, in my USB tree 690LC

But I'm glad to hear that you've been able to solve this!


  • Like 1
Link to comment
Share on other sites
BAN SPEEDRUNNER
BAN SPEEDRUNNER
Posted
Posted

@Hubilay, @NeXtor

I did not deleted the AICPUPM or any other kext. I just deactivated EIST on Bios, without overclocking and generated a SSDT for PM without injecting any freqvectors.

I just use only seven XCPM patches, as the prints show.

Everything works on my system with stability and low temperatures, which is what I want :P

Yep, this works

but still 28 watts minimum consumption (EIST ON/OFF)

It turns out that for only needed seven xcpm patches, and removing AppleIntelCpuPowerManagement.kext if it is running.

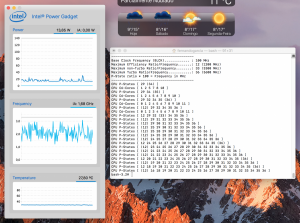

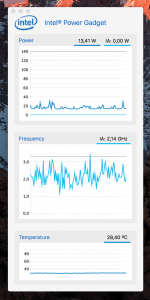

X86Platform not loaded :)

(@4.5, cache 3.3)




Geekbench @4.8 Cores, 3.5 Cache


  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Tried updating my main rig to 10.12.1... and I don't recommend it. Too unstable and WIFI didn't work. Best to stick to 10.12 for now.

I have 12.1 running stable as 12.0

For wifi read and apply this. Its the same process

http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-25?do=findComment&comment=2312721

Use the kext inside WIFI.rar, install it, reboot and apply the 5Ghz patch. Always you update OS, you need to do this.


Link to comment
Share on other sites
mfc88
mfc88
Posted
Posted

Tried doing that, but it refused to recognize the wifi hardware. I was also getting weird reboot hangs that would corrupt the S/L/E folder and make the OS unbootable.

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
