One of my 980TI smoked up with a flash and a big bang last weekend. One of the mosfet under the VRM heatsink explode.



So cross your fingers for Pascal support in the future. I got a new 980TI, find a cheap one in marketplace, but Maxwell cards are more and more sold out.

Its very sad.

last year smoked my GTX480.

Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

These are the files that I have developed. I still have some problems.



SSDT files in EFI: patched.zip

KEXT files in EFI: kexts.zip

Config.plist: config.plist.zip

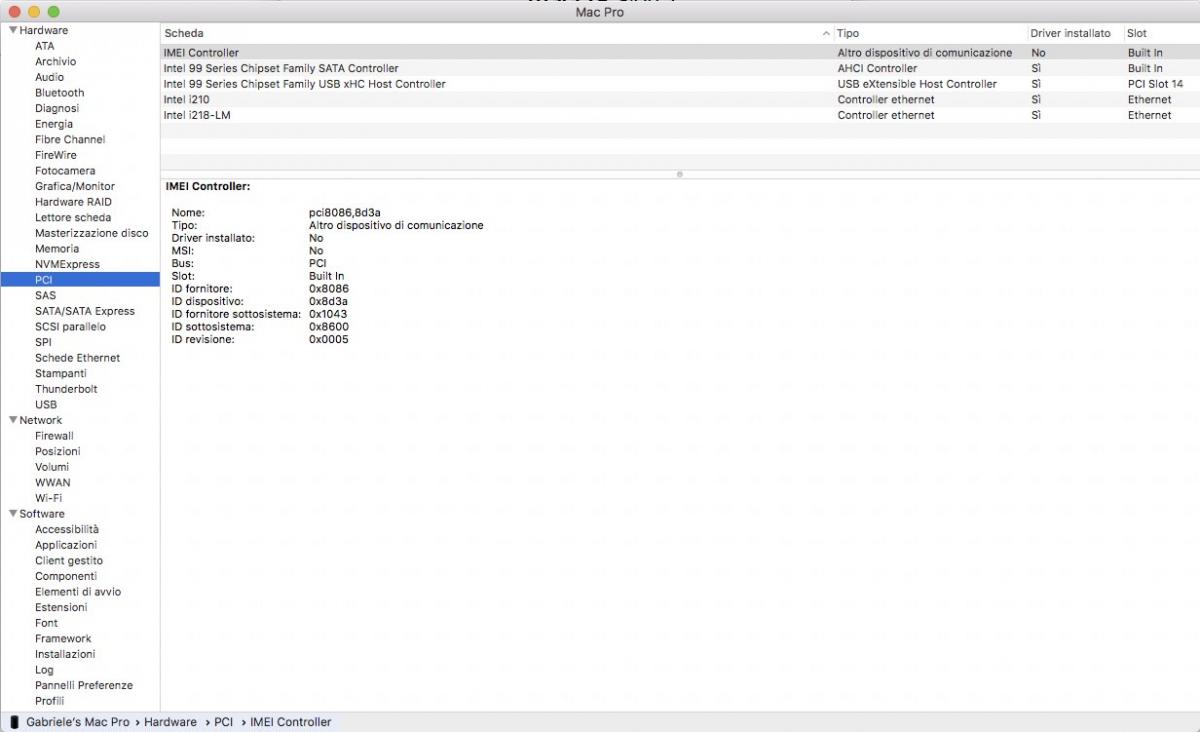

This is what I see in pci cards: post-31099-0-02798500-1481379832_thumb.jpg

As you can see the video card is not there, as well as other devices


dspci: Using PCI.IDs 2013.08.16
00:00.0 Host bridge [0600]: Intel Corporation Haswell-E DMI2 [8086:2f00] (rev 02)
00:01.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f02] (rev 02)
00:01.1 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f03] (rev 02)
00:02.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f04] (rev 02)
00:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02)
00:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02)
00:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02)
00:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02)
00:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02)
00:11.0 (null) [ff00]: Intel Corporation Wellsburg SPSR [8086:8d7c] (rev 05) (subsys 1043:8600)
00:11.4 SATA controller [0106]: Intel Corporation Wellsburg sSATA Controller [AHCI mode] [8086:8d62] (rev 05) (subsys 1043:8600)
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05) (subsys 1043:8600)
00:16.0 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #1 [8086:8d3a] (rev 05) (subsys 1043:8600)
00:19.0 Ethernet controller [0200]: Intel Corporation Ethernet Connection (2) I218-LM [8086:15a0] (rev 05) (subsys 1043:862a)
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05) (subsys 1043:8637)
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d47] (rev 05) (subsys 1043:8600)
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05) (subsys 1043:8600)
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05) (subsys 1043:8600)
02:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd (null) [144d:a802] (rev 01) (subsys 144d:a801)
07:00.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
03:00.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
0c:00.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
10:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02) (subsys 1043:85e2)
08:08.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
08:10.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
04:08.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
04:10.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
0d:01.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
0d:05.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
05:00.0 VGA compatible controller [0300]: NVIDIA Corporation (null) [10de:100a] (rev a1) (subsys 1458:0010)
05:00.1 Audio device [0403]: NVIDIA Corporation GK110 HDMI Audio [10de:0e1a] (rev a1) (subsys 1458:362c)
0f:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02) (subsys 1043:858e)
0e:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03) (subsys 1043:8557)

With the SSDT-ALZA.aml loaded the PC will not start.

the SSDT-EVSS.aml doesn't work, I don't know how to patch this device as well as others.
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Hi Fergarth..

Are you a step back now? :P:) :)

#221

Not anymore! And I no longer needed to patch AppleGraphicsControl.kext... before update to Beta 6, i rename my graphics card to GFX1 and no more patches/repatches and black screens! I'm starting to like the Maciasl and Ioreg



  • Like 1
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted



These are the files that I have developed. I still have some problems.



SSDT files in EFI: attachicon.gifpatched.zip

KEXT files in EFI: attachicon.gifkexts.zip

Config.plist: attachicon.gifconfig.plist.zip



This is what I see in pci cards: attachicon.gifpci.jpg

As you can see the video card is not there, as well as other devices


dspci: Using PCI.IDs 2013.08.16
00:00.0 Host bridge [0600]: Intel Corporation Haswell-E DMI2 [8086:2f00] (rev 02)
00:01.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f02] (rev 02)
00:01.1 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f03] (rev 02)
00:02.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f04] (rev 02)
00:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02)
00:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02)
00:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02)
00:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02)
00:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02)
00:11.0 (null) [ff00]: Intel Corporation Wellsburg SPSR [8086:8d7c] (rev 05) (subsys 1043:8600)
00:11.4 SATA controller [0106]: Intel Corporation Wellsburg sSATA Controller [AHCI mode] [8086:8d62] (rev 05) (subsys 1043:8600)
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05) (subsys 1043:8600)
00:16.0 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #1 [8086:8d3a] (rev 05) (subsys 1043:8600)
00:19.0 Ethernet controller [0200]: Intel Corporation Ethernet Connection (2) I218-LM [8086:15a0] (rev 05) (subsys 1043:862a)
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05) (subsys 1043:8637)
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d47] (rev 05) (subsys 1043:8600)
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05) (subsys 1043:8600)
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05) (subsys 1043:8600)
02:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd (null) [144d:a802] (rev 01) (subsys 144d:a801)
07:00.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
03:00.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
0c:00.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
10:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02) (subsys 1043:85e2)
08:08.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
08:10.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
04:08.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
04:10.0 PCI bridge [0604]: PLX Technology, Inc. (null) [10b5:8747] (rev ca)
0d:01.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
0d:05.0 PCI bridge [0604]: ASMedia Technology Inc. (null) [1b21:1184]
05:00.0 VGA compatible controller [0300]: NVIDIA Corporation (null) [10de:100a] (rev a1) (subsys 1458:0010)
05:00.1 Audio device [0403]: NVIDIA Corporation GK110 HDMI Audio [10de:0e1a] (rev a1) (subsys 1458:362c)
0f:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02) (subsys 1043:858e)
0e:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03) (subsys 1043:8557)

With the SSDT-ALZA.aml loaded the PC will not start.

the SSDT-EVSS.aml doesn't work, I don't know how to patch this device as well as others.



#Remove all SSDT try first HDEF if work then try others...

  • Like 1
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

remove injact 1 in your config layout ID

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted



With AppleALC version 1.0.18 the system has booted, the audio works.

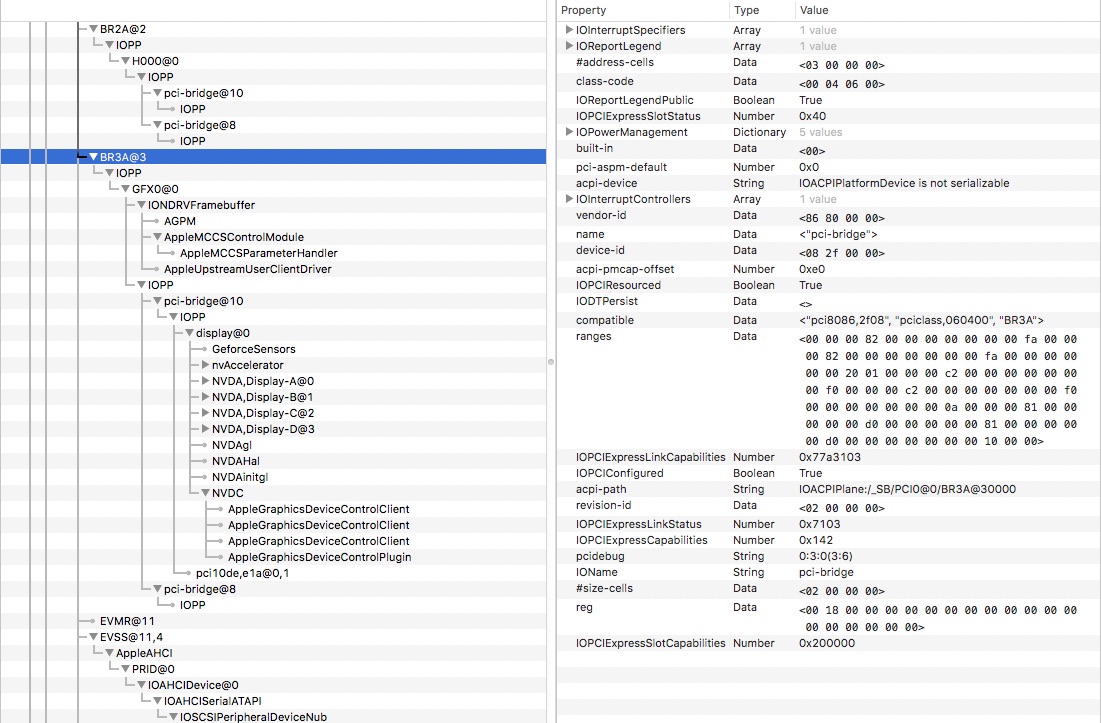

But PCI Cards is empty. Only if I change BR3A.GFX0 / _ADR from Zero to 0x00050000 it recognizes the cards except the video card...



Remove All SSDT

Try this

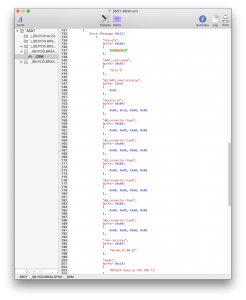

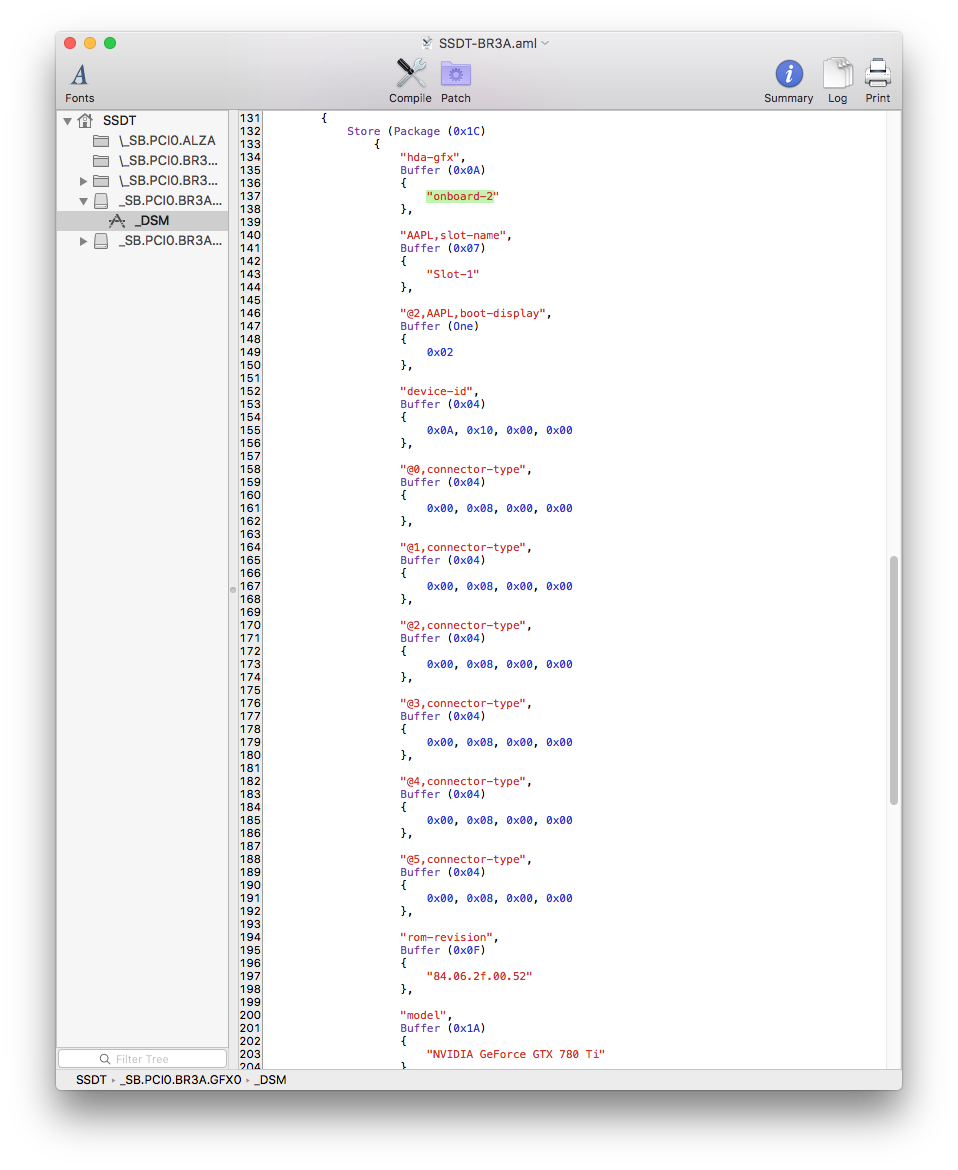

SSDT-BR3A.aml.zip

  • Like 1
Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

Remove All SSDT

Try this



PCI Cards empty.

2016-12-11 22:59:04.427234+0100 0x0        Default     0x0                  0      kernel: PMAP: PCID enabled
2016-12-11 22:59:04.427236+0100 0x0        Default     0x0                  0      kernel: PMAP: Supervisor Mode Execute Protection enabled
2016-12-11 22:59:04.429180+0100 0x0        Default     0x0                  0      kernel: Darwin Kernel Version 16.1.0: Thu Oct 13 21:26:57 PDT 2016; root:xnu-3789.21.3~60/RELEASE_X86_64
2016-12-11 22:59:04.567216+0100 0x0        Default     0x0                  0      kernel: vm_page_bootstrap: 8114913 free pages and 240927 wired pages
2016-12-11 22:59:04.617148+0100 0x0        Default     0x0                  0      kernel: kext submap [0xffffff7f80a00000 - 0xffffff7ffd000000], kernel text [0xffffff8000200000 - 0xffffff8000a00000]
2016-12-11 22:59:04.617152+0100 0x0        Default     0x0                  0      kernel: zone leak detection enabled
2016-12-11 22:59:04.617177+0100 0x0        Default     0x0                  0      kernel: "vm_compressor_mode" is 4
2016-12-11 22:59:04.617218+0100 0x0        Default     0x0                  0      kernel: multiq scheduler config: deep-drain 0, ceiling 47, depth limit 4, band limit 127, sanity check 0
2016-12-11 22:59:04.617221+0100 0x0        Default     0x0                  0      kernel: standard timeslicing quantum is 10000 us
2016-12-11 22:59:04.617222+0100 0x0        Default     0x0                  0      kernel: standard background quantum is 2500 us
2016-12-11 22:59:04.617246+0100 0x0        Default     0x0                  0      kernel: WQ[wql_init]: init linktable with max:262144 elements (8388608 bytes)
2016-12-11 22:59:04.617253+0100 0x0        Default     0x0                  0      kernel: WQ[wqp_init]: init prepost table with max:262144 elements (8388608 bytes)
2016-12-11 22:59:04.617271+0100 0x0        Default     0x0                  0      kernel: mig_table_max_displ = 1
2016-12-11 22:59:04.626285+0100 0x0        Default     0x0                  0      kernel: TSC Deadline Timer supported and enabled
2016-12-11 22:59:04.626421+0100 0x65       Default     0x0                  0      kernel: kdp_core zlib memory 0x7000
2016-12-11 22:59:05.160557+0100 0x65       Default     0x0                  0      kernel: "name" not a kext
2016-12-11 22:59:05.161210+0100 0x65       Default     0x0                  0      kernel: "FailedCLUT" not a kext
2016-12-11 22:59:05.165440+0100 0x65       Default     0x0                  0      kernel: "FailedImage" not a kext
2016-12-11 22:59:05.254637+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.254638+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.254800+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) RSDP 0x00000000DB4E2000 000024 (v02 ALASKA)
2016-12-11 22:59:05.254801+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) RSDP 0x00000000DB4E2000 000024 (v02 ALASKA)
2016-12-11 22:59:05.255954+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.255954+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.256005+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.256005+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.256168+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) XSDT 0x00000000DB4E1000 000094 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.256169+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) XSDT 0x00000000DB4E1000 000094 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.258178+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.258178+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.258254+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.258254+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.258416+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACP 0x00000000DB4E0000 0000F4 (v04 Apple  A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.258417+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACP 0x00000000DB4E0000 0000F4 (v04 Apple  A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.260511+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.260511+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.273718+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.273719+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.273882+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) DSDT 0x00000000C567A000 0344C5 (v02 Apple  A M I    01072009 INTL 20140926)
2016-12-11 22:59:05.273883+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) DSDT 0x00000000C567A000 0344C5 (v02 Apple  A M I    01072009 INTL 20140926)
2016-12-11 22:59:05.275972+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.275973+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.276019+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.276019+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.276182+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACS 0x00000000DD72EF80 000040
2016-12-11 22:59:05.276182+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FACS 0x00000000DD72EF80 000040
2016-12-11 22:59:05.276986+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.276987+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.277049+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.277050+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.277211+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) APIC 0x00000000DB518620 000100 (v03 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.277212+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) APIC 0x00000000DB518620 000100 (v03 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.279221+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.279221+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.279273+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.279273+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.279436+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FPDT 0x00000000DB518720 000044 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.279437+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FPDT 0x00000000DB518720 000044 (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.281446+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.281446+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.281503+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.281503+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.281665+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FIDT 0x00000000DB518768 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.281665+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) FIDT 0x00000000DB518768 00009C (v01 ALASKA A M I    01072009 AMI  00010013)
2016-12-11 22:59:05.283675+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.283676+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.283727+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.283727+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.283889+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MCFG 0x00000000DB518808 00003C (v01 ALASKA A M I    01072009 MSFT 00000097)
2016-12-11 22:59:05.283889+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MCFG 0x00000000DB518808 00003C (v01 ALASKA A M I    01072009 MSFT 00000097)
2016-12-11 22:59:05.285898+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.285898+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.285957+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.285957+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.286120+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ASF! 0x00000000DB52EB48 0000A0 (v20 INTEL   HCG     00000001 TFSM 000F4240)
2016-12-11 22:59:05.286120+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ASF! 0x00000000DB52EB48 0000A0 (v20 INTEL   HCG     00000001 TFSM 000F4240)
2016-12-11 22:59:05.288129+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.288129+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.288181+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.288181+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.288344+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) UEFI 0x00000000DB518C10 000042 (v01 ALASKA A M I    01072009      00000000)
2016-12-11 22:59:05.288345+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) UEFI 0x00000000DB518C10 000042 (v01 ALASKA A M I    01072009      00000000)
2016-12-11 22:59:05.290352+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.290352+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.290402+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.290402+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.290565+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) HPET 0x00000000DB518C58 000038 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.290566+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) HPET 0x00000000DB518C58 000038 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.292657+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.292658+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.292715+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.292716+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.292877+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MSCT 0x00000000DB518C90 000090 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.292878+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) MSCT 0x00000000DB518C90 000090 (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.294888+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.294888+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.294938+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.294939+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.295100+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SLIT 0x00000000DB518D20 00002D (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.295100+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SLIT 0x00000000DB518D20 00002D (v01 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.297110+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.297110+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.297429+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.297430+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.297592+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SRAT 0x00000000DB518D50 001158 (v03 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.297592+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SRAT 0x00000000DB518D50 001158 (v03 ALASKA A M I    00000001 INTL 20091013)
2016-12-11 22:59:05.299601+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.299601+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.299652+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.299652+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.299815+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) WDDT 0x00000000DB519EA8 000040 (v01 ALASKA A M I    00000000 INTL 20091013)
2016-12-11 22:59:05.299816+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) WDDT 0x00000000DB519EA8 000040 (v01 ALASKA A M I    00000000 INTL 20091013)
2016-12-11 22:59:05.301823+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.301823+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.301944+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.301944+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.302106+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB4DF000 0004BA (v01 mano   ami99hdm 00003000 INTL 20160422)
2016-12-11 22:59:05.302107+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB4DF000 0004BA (v01 mano   ami99hdm 00003000 INTL 20160422)
2016-12-11 22:59:05.304115+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.304116+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.304356+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.304356+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.304519+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB4DE000 000C4E (v01 APPLE  CpuPm    00021200 INTL 20161117)
2016-12-11 22:59:05.304520+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) SSDT 0x00000000DB4DE000 000C4E (v01 APPLE  CpuPm    00021200 INTL 20161117)
2016-12-11 22:59:05.306528+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.306528+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.329121+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.329122+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.329282+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) All ACPI Tables successfully acquired
2016-12-11 22:59:05.329283+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) All ACPI Tables successfully acquired
2016-12-11 22:59:05.330274+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.330274+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.344288+0100 0x72       Default     0x0                  0      kernel: calling mpo_policy_init for AppleALC
2016-12-11 22:59:05.345931+0100 0x72       Default     0x0                  0      kernel: Security policy loaded: AppleALC Kernel Extension (AppleALC)
2016-12-11 22:59:05.357193+0100 0x72       Default     0x0                  0      kernel: AppleFDEKeyStore::probe(IOResources)
2016-12-11 22:59:05.357210+0100 0x72       Default     0x0                  0      kernel: AppleKeyStore::probe(IOResources)
2016-12-11 22:59:05.357223+0100 0x72       Default     0x0                  0      kernel: AppleFDEKeyStore::start(IOResources) <1>
2016-12-11 22:59:05.357226+0100 0x72       Default     0x0                  0      kernel: IOGetBootKeyStoreData: data at address 0 size 0
2016-12-11 22:59:05.365299+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=0 LocalApicId=0 Enabled
2016-12-11 22:59:05.366651+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled
2016-12-11 22:59:05.368021+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(1) 0xffffff83a9f80000 desc_table: 0xffffff83a940d000 ldt: 0xffffff83a9f8b000 int_stack: 0xffffff83a9ba6000-0xffffff83a9baa000
2016-12-11 22:59:05.368027+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=4 LocalApicId=4 Enabled
2016-12-11 22:59:05.369391+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(2) 0xffffff83a9f9b000 desc_table: 0xffffff83a9425000 ldt: 0xffffff83a9fa6000 int_stack: 0xffffff83a9c35000-0xffffff83a9c39000
2016-12-11 22:59:05.369395+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=6 LocalApicId=6 Enabled
2016-12-11 22:59:05.370759+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(3) 0xffffff83a9fb6000 desc_table: 0xffffff83a942d000 ldt: 0xffffff83a9fc1000 int_stack: 0xffffff83a9f49000-0xffffff83a9f4d000
2016-12-11 22:59:05.370762+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=8 LocalApicId=8 Enabled
2016-12-11 22:59:05.372217+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(4) 0xffffff83a9fd1000 desc_table: 0xffffff83a943d000 ldt: 0xffffff83a9fe0000 int_stack: 0xffffff83a9fdc000-0xffffff83a9fe0000
2016-12-11 22:59:05.372222+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=10 LocalApicId=10 Enabled
2016-12-11 22:59:05.373639+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(5) 0xffffff83a9ff0000 desc_table: 0xffffff83a9485000 ldt: 0xffffff83a9fff000 int_stack: 0xffffff83a9ffb000-0xffffff83a9fff000
2016-12-11 22:59:05.373642+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=1 LocalApicId=1 Enabled
2016-12-11 22:59:05.375013+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(6) 0xffffff83aa00f000 desc_table: 0xffffff83a948d000 ldt: 0xffffff83aa01e000 int_stack: 0xffffff83aa01a000-0xffffff83aa01e000
2016-12-11 22:59:05.375016+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=3 LocalApicId=3 Enabled
2016-12-11 22:59:05.376381+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(7) 0xffffff83aa02e000 desc_table: 0xffffff83a949d000 ldt: 0xffffff83aa03d000 int_stack: 0xffffff83aa039000-0xffffff83aa03d000
2016-12-11 22:59:05.376384+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=5 LocalApicId=5 Enabled
2016-12-11 22:59:05.377749+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(8) 0xffffff83aa04d000 desc_table: 0xffffff83a94a5000 ldt: 0xffffff83aa05c000 int_stack: 0xffffff83aa058000-0xffffff83aa05c000
2016-12-11 22:59:05.377752+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=7 LocalApicId=7 Enabled
2016-12-11 22:59:05.379115+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(9) 0xffffff83aa06c000 desc_table: 0xffffff83a94b5000 ldt: 0xffffff83aa07b000 int_stack: 0xffffff83aa077000-0xffffff83aa07b000
2016-12-11 22:59:05.379117+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=9 LocalApicId=9 Enabled
2016-12-11 22:59:05.380479+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(10) 0xffffff83aa08b000 desc_table: 0xffffff83a94bd000 ldt: 0xffffff83aa09a000 int_stack: 0xffffff83aa096000-0xffffff83aa09a000
2016-12-11 22:59:05.380484+0100 0x76       Default     0x0                  0      kernel: (AppleACPIPlatform) AppleACPICPU: ProcessorId=11 LocalApicId=11 Enabled
2016-12-11 22:59:05.381904+0100 0x76       Default     0x0                  0      kernel: cpu_data_alloc(11) 0xffffff83aa0aa000 desc_table: 0xffffff83a94cd000 ldt: 0xffffff83aa0b9000 int_stack: 0xffffff83aa0b5000-0xffffff83aa0b9000
2016-12-11 22:59:05.383140+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for TMSafetyNet
2016-12-11 22:59:05.384918+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Safety net for Time Machine (TMSafetyNet)
2016-12-11 22:59:05.385939+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for AMFI
2016-12-11 22:59:05.387529+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Apple Mobile File Integrity (AMFI)
2016-12-11 22:59:05.388587+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for Sandbox
2016-12-11 22:59:05.390169+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Seatbelt sandbox policy (Sandbox)
2016-12-11 22:59:05.391288+0100 0x65       Default     0x0                  0      kernel: calling mpo_policy_init for Quarantine
2016-12-11 22:59:05.392772+0100 0x65       Default     0x0                  0      kernel: Security policy loaded: Quarantine policy (Quarantine)
2016-12-11 22:59:05.401852+0100 0x65       Default     0x0                  0      kernel: MAC Framework successfully initialized
2016-12-11 22:59:05.401860+0100 0x65       Default     0x0                  0      kernel: ulock_initialize>thread_max=10240, ull_hash_buckets=4096
2016-12-11 22:59:05.410329+0100 0x65       Default     0x0                  0      kernel: using 16384 buffer headers and 10240 cluster IO buffer headers
2016-12-11 22:59:05.419599+0100 0x72       Default     0x0                  0      kernel: (AppleCredentialManager) AppleCredentialManager::start called
2016-12-11 22:59:05.425611+0100 0x72       Default     0x0                  0      kernel: AppleKeyStore::start(IOResources) <1>
2016-12-11 22:59:05.425613+0100 0x72       Default     0x0                  0      kernel: (AppleKeyStore) AppleKeyStore starting (BUILT: Oct 13 2016 22:27:09)
2016-12-11 22:59:05.431987+0100 0x72       Default     0x0                  0      kernel: (kernel) AppleALC: init @ version 1.0.18
2016-12-11 22:59:05.437681+0100 0x72       Default     0x0                  0      kernel: (kernel) FakeSMCKeyStore: started
2016-12-11 22:59:05.444017+0100 0x77       Default     0x0                  0      kernel: Started cpu 2 (lapic id 00000002)
2016-12-11 22:59:05.445000+0100 0x78       Default     0x0                  0      kernel: Started cpu 4 (lapic id 00000004)
2016-12-11 22:59:05.446009+0100 0x79       Default     0x0                  0      kernel: Started cpu 6 (lapic id 00000006)
2016-12-11 22:59:05.447025+0100 0x7a       Default     0x0                  0      kernel: Started cpu 8 (lapic id 00000008)
2016-12-11 22:59:05.448038+0100 0x7b       Default     0x0                  0      kernel: Started cpu 10 (lapic id 0000000a)
2016-12-11 22:59:05.449053+0100 0x7c       Default     0x0                  0      kernel: Started cpu 1 (lapic id 00000001)
2016-12-11 22:59:05.450056+0100 0x7d       Default     0x0                  0      kernel: Started cpu 3 (lapic id 00000003)
2016-12-11 22:59:05.451056+0100 0x7e       Default     0x0                  0      kernel: Started cpu 5 (lapic id 00000005)
2016-12-11 22:59:05.452153+0100 0x7f       Default     0x0                  0      kernel: Started cpu 7 (lapic id 00000007)
2016-12-11 22:59:05.453154+0100 0x80       Default     0x0                  0      kernel: Started cpu 9 (lapic id 00000009)
2016-12-11 22:59:05.454151+0100 0x81       Default     0x0                  0      kernel: Started cpu 11 (lapic id 0000000b)
2016-12-11 22:59:05.461060+0100 0x117      Default     0x0                  0      kernel: (kernel) Current tsc from rdtsc64() is 147268879541789. Rendezvouing..
2016-12-11 22:59:05.461183+0100 0x83       Default     0x0                  0      kernel: (AppleAPIC) IOAPIC: Version 0x20 Vectors 88:111
2016-12-11 22:59:05.461193+0100 0x82       Default     0x0                  0      kernel: (AppleAPIC) IOAPIC: Version 0x20 Vectors 64:87
2016-12-11 22:59:05.464023+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.464024+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI:
2016-12-11 22:59:05.464025+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) Executed 2 blocks of module-level executable AML code
2016-12-11 22:59:05.464026+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) Executed 2 blocks of module-level executable AML code
2016-12-11 22:59:05.464027+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.464027+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform)
2016-12-11 22:59:05.475374+0100 0x70       Default     0x0                  0      kernel: (AppleACPIPlatform) ACPI: sleep states S3 S4 S5
2016-12-11 22:59:05.478847+0100 0x76       Default     0x0                  0      kernel: (kernel) CPUSensors: CPU family 0x6, model 0x3f, stepping 0x2, cores 6, threads 12, TJmax 103
2016-12-11 22:59:05.479061+0100 0x76       Default     0x0                  0      kernel: (kernel) CPUSensors: setting platform keys to [j43     ]
2016-12-11 22:59:05.479509+0100 0x76       Default     0x0                  0      kernel: (kernel) CPUSensors: base CPU multiplier is 33
2016-12-11 22:59:05.479946+0100 0x76       Default     0x0                  0      kernel: (kernel) CPUSensors: started
2016-12-11 22:59:05.496080+0100 0x16d      Default     0x0                  0      kernel: (AppleRTC) RTC: Only single RAM bank (128 bytes)
2016-12-11 22:59:05.496081+0100 0x16d      Default     0x0                  0      kernel: (AppleRTC) RTC: Only single RAM bank (128 bytes)
2016-12-11 22:59:05.496625+0100 0x17c      Default     0x0                  0      kernel: (kernel) FakeSMC v6.20.1410 Copyright 2015 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
2016-12-11 22:59:05.496655+0100 0x177      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-12-11 22:59:05.497558+0100 0x17c      Default     0x0                  0      kernel: (kernel) FakeSMC: 13 preconfigured keys added
2016-12-11 22:59:05.497681+0100 0x17c      Default     0x0                  0      kernel: (kernel) FakeSMC: 5 keys exported by Clover EFI
2016-12-11 22:59:05.498048+0100 0x17c      Default     0x0                  0      kernel: (kernel) SMC: successfully initialized
2016-12-11 22:59:05.508173+0100 0x175      Default     0x0                  0      kernel: (AppleACPIEC) ACPI: no ECDT
2016-12-11 22:59:06.000240+0100 0x189      Default     0x0                  0      kernel: (IOUSBFamily) 000001.573037 AppleUSBLegacyRoot@: AppleUSBLegacyRoot::init: enabling legacy matching
2016-12-11 22:59:06.001107+0100 0x65       Default     0x0                  0      kernel: mcache: 12 CPU(s), 64 bytes CPU cache line size
2016-12-11 22:59:06.001538+0100 0x65       Default     0x0                  0      kernel: waitForSystemMapper
2016-12-11 22:59:06.495208+0100 0x168      Default     0x0                  0      kernel: (IOPCIFamily) pci (build 23:55:41 Oct 18 2016), flags 0xe1000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
2016-12-11 22:59:06.502944+0100 0x168      Default     0x0                  0      kernel: (IOPCIFamily) pci (build 23:55:41 Oct 18 2016), flags 0xe1000, pfm64 (44 cpu) 0xfff80000000, 0x80000000
2016-12-11 22:59:06.502990+0100 0x168      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration begin ]
2016-12-11 22:59:06.503424+0100 0x65       Default     0x0                  0      kernel: mbinit: done [128 MB total pool size, (85/42) split]
2016-12-11 22:59:06.503745+0100 0x65       Default     0x0                  0      kernel: bsd_autoconf: calling kminit
2016-12-11 22:59:06.516007+0100 0x168      Default     0x0                  0      kernel: kPEDisableScreen -1
2016-12-11 22:59:06.517697+0100 0x168      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-12-11 22:59:06.517698+0100 0x168      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration end, bridges 1, devices 56 ]
2016-12-11 22:59:06.524730+0100 0x16a      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration begin ]
2016-12-11 22:59:06.530926+0100 0x16a      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:06.532939+0100 0x19b      Default     0x0                  0      kernel: (AppleFSCompressionTypeZlib) com.apple.AppleFSCompressionTypeZlib kmod start
2016-12-11 22:59:06.544097+0100 0x19b      Default     0x0                  0      kernel: (AppleFSCompressionTypeDataless) com.apple.AppleFSCompressionTypeDataless kmod start
2016-12-11 22:59:06.551636+0100 0x19b      Default     0x0                  0      kernel: (AppleFSCompressionTypeZlib) com.apple.AppleFSCompressionTypeZlib load succeeded
2016-12-11 22:59:06.551777+0100 0x19b      Default     0x0                  0      kernel: (AppleFSCompressionTypeDataless) com.apple.AppleFSCompressionTypeDataless load succeeded
2016-12-11 22:59:06.554205+0100 0x65       Default     0x0                  0      kernel: rooting via boot-uuid from /chosen: 7CC48845-D2E3-3A35-A9C5-AF9F0B1AD034
2016-12-11 22:59:06.554678+0100 0x65       Default     0x0                  0      kernel: Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
2016-12-11 22:59:06.587160+0100 0x16a      Default     0x0                  0      kernel: initialize_screen: b=F9000000, w=00000500, h=00000400, r=00001400, d=00000001
2016-12-11 22:59:06.587208+0100 0x16a      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-12-11 22:59:06.587209+0100 0x16a      Default     0x0                  0      kernel: (IOPCIFamily) console relocated to 0xf9000000
2016-12-11 22:59:06.593656+0100 0x16a      Default     0x0                  0      kernel: (IOPCIFamily) [ PCI configuration end, bridges 18, devices 76 ]
2016-12-11 22:59:06.608783+0100 0x1e7      Default     0x0                  0      kernel: (IOAHCIFamily) [AHCI][PML][00000000]+IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
2016-12-11 22:59:06.608785+0100 0x1e7      Default     0x0                  0      kernel: (IOAHCIFamily) [AHCI][PML][00000000]-IOAHCIPortMultiplierGlobals::IOAHCIPortMultiplierGlobals
2016-12-11 22:59:06.614739+0100 0x1e7      Default     0x0                  0      kernel: (AppleAHCIPort) [AHCI][HBA][00000000]+AppleAHCIGlobals::AppleAHCIGlobals
2016-12-11 22:59:06.614741+0100 0x1e7      Default     0x0                  0      kernel: (AppleAHCIPort) [AHCI][HBA][00000000]-AppleAHCIGlobals
2016-12-11 22:59:06.628264+0100 0x1eb      Default     0x0                  0      kernel: (kernel) vendor:device: 0x8086:0x15a0.
2016-12-11 22:59:06.634722+0100 0x1eb      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
2016-12-11 22:59:06.643210+0100 0x1eb      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): changing MTU from 0 to 1500
2016-12-11 22:59:06.647308+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.220104 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.660450+0100 0x231      Default     0x0                  0      kernel: (kernel) GeforceSensors: starting early shadow VBIOS...
2016-12-11 22:59:06.660721+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.233518 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.661106+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.233903 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.661406+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.234196 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.661409+0100 0x23a      Default     0x0                  0      kernel: (AppleIntelI210Ethernet) AppleIntelI210::start - Built Oct 18 2016 23:57:50
2016-12-11 22:59:06.661598+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.234396 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.661628+0100 0x65       Default     0x0                  0      kernel: Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR1B@1,1/IOPP/H000@0/IONVMeController/IONVMeBlockStorageDevice@1/IOBlockStorageDriver/Samsung SSD 950 PRO 256GB Media/IOGUIDPartitionScheme/Untitled 2@2
2016-12-11 22:59:06.668276+0100 0x65       Default     0x0                  0      kernel: BSD root: disk0s2
2016-12-11 22:59:06.668277+0100 0x65       Default     0x0                  0      kernel: , major 1, minor 1
2016-12-11 22:59:06.668356+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.241154 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 0 sleepUnits 0
2016-12-11 22:59:06.668551+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.241349 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.668764+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.241562 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.668963+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.241761 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.669160+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.241959 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.669377+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.242175 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.669594+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.242392 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.669809+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.242608 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.670035+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.242833 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.670252+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.243050 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.670664+0100 0x231      Default     0x0                  0      kernel: (kernel) GeForceSensors (pci5): trying to shadow VBIOS...
2016-12-11 22:59:06.684900+0100 0x23a      Default     0x0                  0      kernel: (AppleIntelI210Ethernet) 0x0, 0x0  AppleIntelI210::setLinkStatus - not active
2016-12-11 22:59:06.689178+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.261976 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.689386+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.262184 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.689603+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.262401 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.689821+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.262619 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.690041+0100 0x114      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.262839 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:06.691852+0100 0x1f2      Default     0x0                  0      kernel: (kernel) SuperIODevice: found Nuvoton NCT6791D on port=0x2e address=0x290
2016-12-11 22:59:06.692373+0100 0x296      Default     0x0                  0      kernel: (kernel) NCT677xSensors: started
2016-12-11 22:59:06.725407+0100 0x1eb      Default     0x0                  0      kernel: (kernel) AppleIntelE1000e(Info): AppleIntelE1000e:rx = 256, tx = 256
2016-12-11 22:59:06.786108+0100 0x231      Default     0x0                  0      kernel: (kernel) GeForceSensors (pci5): VBIOS successfully read from PROM
2016-12-11 22:59:06.786168+0100 0x231      Default     0x0                  0      kernel: (kernel) GeForceSensors (pci5): chipset: GK110B (NVF1) bios: 80.80.30.00
2016-12-11 22:59:06.786402+0100 0x231      Default     0x0                  0      kernel: (kernel) GeForceSensors (pci5): started
2016-12-11 22:59:06.806830+0100 0x65       Default     0x0                  0      kernel: (HFS) hfs: mounted macOS on device b(1, 1)
2016-12-11 22:59:06.807253+0100 0x65       Default     0x0                  0      kernel: XCPM: registered
2016-12-11 22:59:06.807253+0100 0x65       Default     0x0                  0      kernel: XCPM: registered
2016-12-11 22:59:06.818918+0100 0x65       Default     0x0                  0      kernel: VM Swap Subsystem is ON
2016-12-11 22:59:06.909636+0100 0x2bf      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.482432 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:06.989599+0100 0x2ca      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.562396 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:06.995796+0100 0x2c9      Default     0x0                  0      kernel: (IOUSBFamily) USBMSC Identifier (non-unique): 0x00000000 0x8564 0x4000 0x21, 2
2016-12-11 22:59:07.073525+0100 0x2cf      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.646322 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 100 sleepUnits 0
2016-12-11 22:59:07.179726+0100 0x2e0      Default     0x0                  0      kernel: (HFS) hfs: Removed 0 orphaned / unlinked files and 1 directories
2016-12-11 22:59:07.182960+0100 0x2e5      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.755757 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:07.221555+0100 0x2e6      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.794345 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:07.256137+0100 0x2f3      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.828934 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:07.361611+0100 0x308      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.934407 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 224 sleepUnits 0
2016-12-11 22:59:07.376039+0100 0x2c9      Default     0x0                  0      kernel: (IOUSBFamily) USBMSC Identifier (non-unique): 4C531001470411102145 0x781 0x5590 0x100, 2
2016-12-11 22:59:07.400403+0100 0x309      Default     0x0                  0      kernel: (IOUSBHostFamily) 000002.973200 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 150 sleepUnits 0
2016-12-11 22:59:07.451067+0100 0x312      Default     0x0                  0      kernel: (IOUSBHostFamily) 000003.023863 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:07.470473+0100 0x311      Default     0x0                  0      kernel: (IOUSBHostFamily) 000003.043270 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:07.498671+0100 0x311      Default     0x0                  0      kernel: (IOUSBHostFamily) 000003.071468 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:07.523639+0100 0x311      Default     0x0                  0      kernel: (IOUSBHostFamily) 000003.096436 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:07.952905+0100 0x3ae      Default     0x0                  0      kernel: Waiting for DSMOS...
2016-12-11 22:59:08.063422+0100 0x403      Default     0x0                  0      kernel: (AppleKeyStore) unexpected session: 100000 uid: -1 requested by: 35
2016-12-11 22:59:08.066891+0100 0x546      Default     0x0                  0      kernel: (AppleIntelMCEReporter) AppleIntelMCEReporter:
2016-12-11 22:59:08.066893+0100 0x546      Default     0x0                  0      kernel: (AppleIntelMCEReporter) start()
2016-12-11 22:59:08.073762+0100 0x544      Default     0x0                  0      kernel: (IOGraphicsFamily) IOGraphics flags 0x43
2016-12-11 22:59:08.075192+0100 0x403      Default     0x0                  0      kernel: (AppleKeyStore) AppleKeyStore: operation failed (pid: 35 sel: 7 ret: e00002c2 '-536870206', -1, 100000)
2016-12-11 22:59:08.078988+0100 0x54c      Default     0x0                  0      kernel: (AppleSMC) Previous shutdown cause: 5
2016-12-11 22:59:08.126323+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:5 output:1 feature:5
2016-12-11 22:59:08.126325+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 12
2016-12-11 22:59:08.126326+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:11 output:0 feature:22
2016-12-11 22:59:08.126327+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:9 output:0 feature:70
2016-12-11 22:59:08.126414+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 4324
2016-12-11 22:59:08.126434+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 69
2016-12-11 22:59:08.126435+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-12-11 22:59:08.126436+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:8 output:8 feature:16
2016-12-11 22:59:08.126437+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:8 output:8 feature:16
2016-12-11 22:59:08.126438+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 3 input:8 output:8 feature:16
2016-12-11 22:59:08.126438+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 4 input:8 output:8 feature:16
2016-12-11 22:59:08.126439+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 5 input:8 output:8 feature:16
2016-12-11 22:59:08.126440+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 6 input:32 output:8 feature:32
2016-12-11 22:59:08.126441+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 7 input:8 output:8 feature:24
2016-12-11 22:59:08.126441+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 8 input:8 output:8 feature:24
2016-12-11 22:59:08.126442+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 9 input:8 output:8 feature:24
2016-12-11 22:59:08.126443+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 10 input:8 output:8 feature:16
2016-12-11 22:59:08.126443+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 11 input:8 output:8 feature:16
2016-12-11 22:59:08.126444+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 12 input:32 output:8 feature:32
2016-12-11 22:59:08.126445+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 13 input:8 output:8 feature:16
2016-12-11 22:59:08.126446+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 14 input:8 output:8 feature:16
2016-12-11 22:59:08.126446+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 15 input:8 output:8 feature:16
2016-12-11 22:59:08.126447+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 16 input:8 output:8 feature:16
2016-12-11 22:59:08.126448+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 17 input:8 output:8 feature:16
2016-12-11 22:59:08.126449+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 18 input:8 output:8 feature:16
2016-12-11 22:59:08.126450+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 19 input:16 output:8 feature:16
2016-12-11 22:59:08.126451+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 20 input:24 output:8 feature:24
2016-12-11 22:59:08.126452+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 21 input:8 output:8 feature:24
2016-12-11 22:59:08.126453+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 22 input:40 output:8 feature:40
2016-12-11 22:59:08.126454+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 23 input:8 output:8 feature:24
2016-12-11 22:59:08.126455+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 24 input:8 output:8 feature:16
2016-12-11 22:59:08.126456+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 28 input:8 output:8 feature:32
2016-12-11 22:59:08.126457+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 32 input:8 output:8 feature:24
2016-12-11 22:59:08.126458+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 33 input:16 output:8 feature:16
2016-12-11 22:59:08.126459+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 34 input:8 output:8 feature:16
2016-12-11 22:59:08.126460+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 35 input:8 output:8 feature:24
2016-12-11 22:59:08.126461+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 36 input:8 output:8 feature:24
2016-12-11 22:59:08.126462+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 37 input:8 output:8 feature:24
2016-12-11 22:59:08.126463+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 38 input:8 output:8 feature:24
2016-12-11 22:59:08.126464+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 39 input:8 output:8 feature:24
2016-12-11 22:59:08.126465+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 40 input:8 output:8 feature:40
2016-12-11 22:59:08.126466+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 48 input:8 output:8 feature:16
2016-12-11 22:59:08.126468+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 49 input:8 output:8 feature:24
2016-12-11 22:59:08.126611+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 50 input:8 output:8 feature:24
2016-12-11 22:59:08.126613+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 51 input:8 output:8 feature:24
2016-12-11 22:59:08.126614+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 52 input:8 output:8 feature:24
2016-12-11 22:59:08.126615+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 53 input:8 output:8 feature:16
2016-12-11 22:59:08.126616+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 54 input:8 output:8 feature:16
2016-12-11 22:59:08.126617+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 64 input:8 output:8 feature:16
2016-12-11 22:59:08.126617+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 65 input:8 output:8 feature:24
2016-12-11 22:59:08.126618+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 66 input:8 output:8 feature:24
2016-12-11 22:59:08.126620+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 80 input:8 output:8 feature:16
2016-12-11 22:59:08.126621+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 81 input:8 output:8 feature:16
2016-12-11 22:59:08.126621+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 82 input:8 output:8 feature:24
2016-12-11 22:59:08.126622+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 96 input:8 output:8 feature:24
2016-12-11 22:59:08.126623+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 97 input:8 output:8 feature:16
2016-12-11 22:59:08.126623+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 98 input:8 output:8 feature:40
2016-12-11 22:59:08.126624+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 127 input:8 output:8 feature:16
2016-12-11 22:59:08.126628+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 126 input:8 output:8 feature:16
2016-12-11 22:59:08.126630+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 125 input:8 output:8 feature:16
2016-12-11 22:59:08.126630+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 124 input:8 output:8 feature:16
2016-12-11 22:59:08.126631+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 123 input:8 output:8 feature:24
2016-12-11 22:59:08.126632+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 122 input:8 output:8 feature:40
2016-12-11 22:59:08.126633+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 121 input:8 output:8 feature:16
2016-12-11 22:59:08.126633+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 120 input:8 output:8 feature:16
2016-12-11 22:59:08.126634+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 117 input:8 output:8 feature:24
2016-12-11 22:59:08.126635+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 116 input:8 output:8 feature:40
2016-12-11 22:59:08.126635+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 140 input:8 output:8 feature:16
2016-12-11 22:59:08.126636+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 141 input:8 output:8 feature:16
2016-12-11 22:59:08.126637+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 142 input:8 output:8 feature:16
2016-12-11 22:59:08.126637+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 143 input:8 output:8 feature:16
2016-12-11 22:59:08.126638+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 144 input:8 output:8 feature:16
2016-12-11 22:59:08.126639+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 145 input:8 output:8 feature:24
2016-12-11 22:59:08.126639+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 146 input:8 output:8 feature:24
2016-12-11 22:59:08.126640+0100 0x54d      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 128 input:8 output:8 feature:16
2016-12-11 22:59:08.127692+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:519 output:1 feature:519
2016-12-11 22:59:08.127693+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-12-11 22:59:08.127694+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:0 output:0 feature:0
2016-12-11 22:59:08.127694+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:2 output:0 feature:9
2016-12-11 22:59:08.128387+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 59280
2016-12-11 22:59:08.128551+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 10
2016-12-11 22:59:08.128552+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-12-11 22:59:08.128554+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:8 output:8 feature:4136
2016-12-11 22:59:08.128555+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:8 output:8 feature:312
2016-12-11 22:59:08.128557+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 3 input:312 output:8 feature:312
2016-12-11 22:59:08.128558+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 4 input:8 output:8 feature:4152
2016-12-11 22:59:08.128559+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 5 input:4152 output:8 feature:4152
2016-12-11 22:59:08.128560+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 7 input:8 output:8 feature:64
2016-12-11 22:59:08.128561+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 8 input:8 output:8 feature:200
2016-12-11 22:59:08.128562+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 9 input:8 output:8 feature:936
2016-12-11 22:59:08.128563+0100 0x54e      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 6 input:8 output:8 feature:24
2016-12-11 22:59:08.131508+0100 0x542      Default     0x0                  0      kernel: (NVDAStartupWeb) NVDAStartupWeb: Web
2016-12-11 22:59:08.133132+0100 0x547      Default     0x0                  0      kernel: (EnergyDriver) com_intel_driver_EnergyDriver[0xffffff804fc86900]::start(0xffffff804d3b6400)
2016-12-11 22:59:08.133668+0100 0x561      Default     0x0                  0      kernel: (IOUSBHostFamily) 000003.706463 AppleUSBHostResources@: AppleUSBHostResources::allocateDownstreamBusCurrentGated: assuming successful wakeUnits 500 sleepUnits 0
2016-12-11 22:59:08.141603+0100 0x57b      Default     0x0                  0      kernel: (AppleHDAController) Sound assertion in AppleHDAController at line 1423
2016-12-11 22:59:08.142193+0100 0x547      Default     0x0                  0      kernel: DSMOS has arrived
2016-12-11 22:59:08.142240+0100 0x547      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothFamily][start] -- completed
2016-12-11 22:59:08.142404+0100 0x73       Default     0x0                  0      kernel: PMRD: prevent idle sleep list: IODisplayWrangler+ (1)
2016-12-11 22:59:08.142405+0100 0x73       Default     0x0                  0      kernel: prevent idle sleep list: IODisplayWrangler+ (1)
2016-12-11 22:59:08.151614+0100 0x5a5      Default     0x0                  0      kernel: (AppleLPC) AppleLPC::notifyPlatformASPM  ASPM callback registered
2016-12-11 22:59:08.152081+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:8 output:1 feature:0
2016-12-11 22:59:08.152082+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-12-11 22:59:08.152083+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:1 feature:0
2016-12-11 22:59:08.152084+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:1 output:0 feature:0
2016-12-11 22:59:08.152307+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 6656
2016-12-11 22:59:08.152333+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 1
2016-12-11 22:59:08.152334+0100 0x5a3      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:64 output:8 feature:0
2016-12-11 22:59:08.153833+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:1 output:0 feature:0
2016-12-11 22:59:08.153834+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-12-11 22:59:08.153835+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:7 output:0 feature:0
2016-12-11 22:59:08.153835+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:0 output:0 feature:0
2016-12-11 22:59:08.153844+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 192
2016-12-11 22:59:08.153857+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 1
2016-12-11 22:59:08.153858+0100 0x5a4      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:8 output:0 feature:0
2016-12-11 22:59:08.214006+0100 0x5ab      Default     0x0                  0      kernel: (NVDAGK100HalWeb) NVDAGK100HAL loaded and registered
2016-12-11 22:59:08.215053+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::attach provider NVDAgl parent display
2016-12-11 22:59:08.215060+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::probe enter provider: NVDAgl [score 130]
2016-12-11 22:59:08.215062+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::probe parent: display
2016-12-11 22:59:08.215063+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::probe return success 0xffffff804df04000
2016-12-11 22:59:08.215064+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::probe remove "unmatched" property
2016-12-11 22:59:08.215066+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::detach provider NVDAgl parent display
2016-12-11 22:59:08.215071+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::attach provider NVDAgl parent display
2016-12-11 22:59:08.215074+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator: ENTER ::start with provider: NVDAgl
2016-12-11 22:59:08.215075+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) nvAccelerator::start switch to parent: display
2016-12-11 22:59:08.215110+0100 0x5ac      Default     0x0                  0      kernel: (GeForceWeb) NVSPI::start starting!
2016-12-11 22:59:08.216682+0100 0x5a5      Default     0x0                  0      kernel: (IOPlatformPluginFamily) IOPPF: XCPM mode
2016-12-11 22:59:08.216683+0100 0x5a5      Default     0x0                  0      kernel: (IOPlatformPluginFamily) IOPPF: XCPM mode
2016-12-11 22:59:08.216793+0100 0x5cf      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) [AGPM Controller] build gpuDict by GPU GFX0.
2016-12-11 22:59:08.216794+0100 0x5cf      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) [AGPM Controller] unknownPlatform
2016-12-11 22:59:08.216804+0100 0x5cf      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) no Heuristic ID!
2016-12-11 22:59:08.216849+0100 0x5cf      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) AGPM::start - publish fMinPowerState = 0 fMaxPowerState = 3
2016-12-11 22:59:08.216980+0100 0x542      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) [AGPM Controller] build gpuDict by GPU display.
2016-12-11 22:59:08.216981+0100 0x542      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) [AGPM Controller] unknownPlatform
2016-12-11 22:59:08.216988+0100 0x542      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) no Heuristic ID!
2016-12-11 22:59:08.217024+0100 0x542      Default     0x0                  0      kernel: (AppleGraphicsPowerManagement) AGPM::start - publish fMinPowerState = 0 fMaxPowerState = 3
2016-12-11 22:59:08.217160+0100 0x5d1      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-12-11 22:59:08.219417+0100 0x5d0      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-12-11 22:59:08.224735+0100 0x542      Default     0x0                  0      kernel: (IOPlatformPluginFamily) X86PlatformPlugin::cgRegisterCallbackHandler - gpu internal PLimit notification already registered
2016-12-11 22:59:08.224742+0100 0x542      Default     0x0                  0      kernel: (IOPlatformPluginFamily) X86PlatformPlugin::cgRegisterCallbackHandler - gpu internal PLimit notification already registered
2016-12-11 22:59:08.277629+0100 0x5a5      Default     0x0                  0      kernel: xcpm: unsupported version
2016-12-11 22:59:08.277636+0100 0x5a5      Default     0x0                  0      kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper
2016-12-11 22:59:08.277637+0100 0x5a5      Default     0x0                  0      kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper
2016-12-11 22:59:08.677479+0100 0x39a      Default     0x0                  0      kernel: (ntfs) NTFS driver 3.13 [Flags: R/W].
2016-12-11 22:59:08.697832+0100 0x4ee      Default     0x0                  0      kernel: (ntfs) NTFS volume name Riservato per il sistema, version 3.1.
2016-12-11 22:59:08.716331+0100 0x64d      Default     0x0                  0      kernel: (ntfs) NTFS volume name , version 3.1.
2016-12-11 22:59:08.776832+0100 0x525      Default     0x0                  0      kernel: NTFS-fs warning (device /dev/disk2s2, pid 205): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.
2016-12-11 22:59:08.776836+0100 0x525      Default     0x0                  0      kernel: (ntfs) NTFS volume name Riservato per il sistema, version 3.1.
2016-12-11 22:59:08.824637+0100 0x660      Default     0x0                  0      kernel: (ntfs) NTFS volume name , version 3.1.
2016-12-11 22:59:09.000011+0100 0x543      Default     0x0                  0      kernel: (HFS) hfs: mounted Server Dati on device disk3s2
2016-12-11 22:59:09.005720+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.005733+0100 0x5c2      Default     0x0                  0      kernel: (IONDRVSupport) GFX0: Not usable
2016-12-11 22:59:09.005987+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.846511+0100 0x6c1      Default     0x0                  0      kernel: (IOBluetoothHostControllerUSBTransport) **** [IOBluetoothHostControllerUSBTransport][start] -- completed -- result = TRUE -- 0x9800 ****
2016-12-11 22:59:09.846520+0100 0x6c1      Default     0x0                  0      kernel: (BroadcomBluetoothHostControllerUSBTransport) **** [BroadcomBluetoothHostControllerUSBTransport][start] -- Completed (matched on Device) -- 0x9800 ****
2016-12-11 22:59:09.846548+0100 0x6c4      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothFamily][staticBluetoothTransportShowsUp] -- Received Bluetooth Controller register service notification -- 0x9800
2016-12-11 22:59:09.846720+0100 0x6c5      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothHostController][start] -- completed
2016-12-11 22:59:09.853884+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:9 output:2 feature:1
2016-12-11 22:59:09.853884+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 2
2016-12-11 22:59:09.853885+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:1 feature:0
2016-12-11 22:59:09.853886+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:0 output:0 feature:0
2016-12-11 22:59:09.853989+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 5844
2016-12-11 22:59:09.854005+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 2
2016-12-11 22:59:09.854005+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-12-11 22:59:09.854006+0100 0x6c8      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 1 input:72 output:16 feature:8
2016-12-11 22:59:09.856848+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report bytes: input:4 output:1 feature:28
2016-12-11 22:59:09.856849+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Collections : 4
2016-12-11 22:59:09.856850+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Buttons     : input:2 output:0 feature:0
2016-12-11 22:59:09.856850+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Values      : input:2 output:0 feature:2
2016-12-11 22:59:09.856865+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Element value capacity 1176
2016-12-11 22:59:09.856874+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report count: 5
2016-12-11 22:59:09.856874+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 0 input:0 output:0 feature:0
2016-12-11 22:59:09.856875+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 2 input:32 output:8 feature:8
2016-12-11 22:59:11.580577+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 127 input:8 output:8 feature:32
2016-12-11 22:59:11.580579+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 126 input:8 output:8 feature:224
2016-12-11 22:59:11.580579+0100 0x6c9      Debug       0x0                  0      kernel: (IOHIDFamily) Report ID: 125 input:24 output:8 feature:8
2016-12-11 22:59:09.859362+0100 0x6cb      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-12-11 22:59:09.859874+0100 0x6cd      Default     0x0                  0      kernel: (IOHIDFamily) HID: Legacy shim 2
2016-12-11 22:59:09.876322+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.880884+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.883411+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.886384+0100 0x6c5      Default     0x0                  0      kernel: (IOBluetoothFamily) [IOBluetoothHostController::setConfigState] calling registerService
2016-12-11 22:59:09.886421+0100 0x6c5      Default     0x0                  0      kernel: (IOBluetoothFamily) **** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- calling IOBluetoothFamily's registerService() -- 0xa5d0 -- 0x8a00 -- 0x9800 ****
2016-12-11 22:59:09.886427+0100 0x6c5      Default     0x0                  0      kernel: (IOBluetoothFamily) **** [IOBluetoothFamily][ProcessBluetoothTransportShowsUpActionWL] -- Connected to the transport successfully -- 0xa5d0 -- 0x8a00 -- 0x9800 ****
2016-12-11 22:59:09.921139+0100 0x5c2      Default     0x0                  0      kernel: kPEDisableScreen 1
2016-12-11 22:59:09.971604+0100 0x5c2      Default     0x0                  0      kernel: kPEEnableScreen 1
2016-12-11 22:59:10.318632+0100 0x3c5      Default     0x0                  97     loginwindow: (CoreFoundation)     token = 1000003
  • Like 1
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

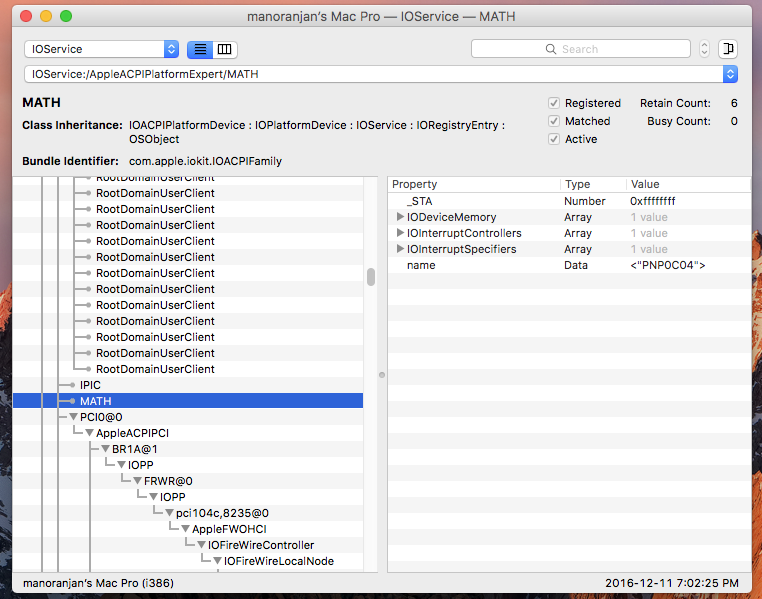

#Patch MATH

#patch over your DSDT



# Maintained by:N.Mano
#MATH
into device label FPU set_label begin MATH end;
into_all all code_regex FPU replaceall_matched begin MATH end;
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

nmano this patch acts on what?

Its like original apple.


  • Like 2
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

Regarding compilation of AppleIntelInfo.kext

Why not use a precompiled version?

I would rather not install X-Code on my system.



Thanks, Mike

I tried the first time with a kext already compiled and it did not work on my system. I only managed it to work, when it was compiled by me with Xcode :yes:

Link to comment
Share on other sites
NeXtor
NeXtor
Posted
Posted

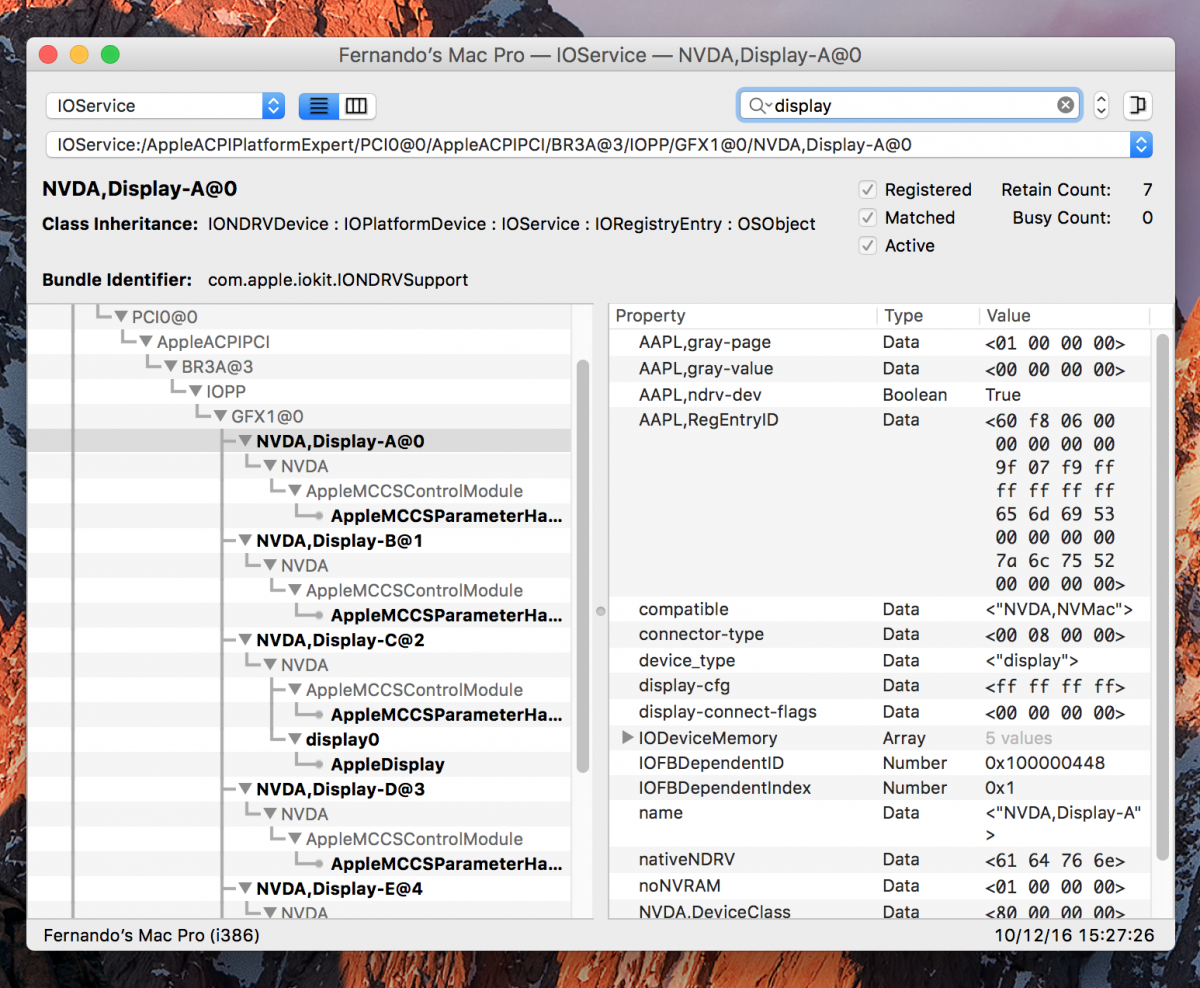

I'm trying everything but the video card will not be recognized properly.



I changed the SSDT / Device to GFX0 or GFX1 but nothing.



I also restored the "AppleGraphicsControl.kext" previously patched with AGDPFix and I added the Brumbaer's GDP Patch in config.plist



IOREG:


Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted



I'm trying everything but the video card will not be recognized properly.



I changed the SSDT / Device to GFX0 or GFX1 but nothing.



I also restored the "AppleGraphicsControl.kext" previously patched with AGDPFix and I added the Brumbaer's GDP Patch in config.plist



IOREG:






Original (extracted with Clover F4): attachicon.gifDSDT-ORIG.aml.zip

Patched with "x99_comfile and sleep + MATH": attachicon.gifDSDT.aml.zip

SSDT: attachicon.gifSSDT.aml.zip

SSDT-BR3A: attachicon.gifSSDT-BR3A.aml.zip

Try this DSDT and SSDT

Archive.zip

  • Like 1
Link to comment
Share on other sites
Fergarth
Fergarth
Posted
Posted

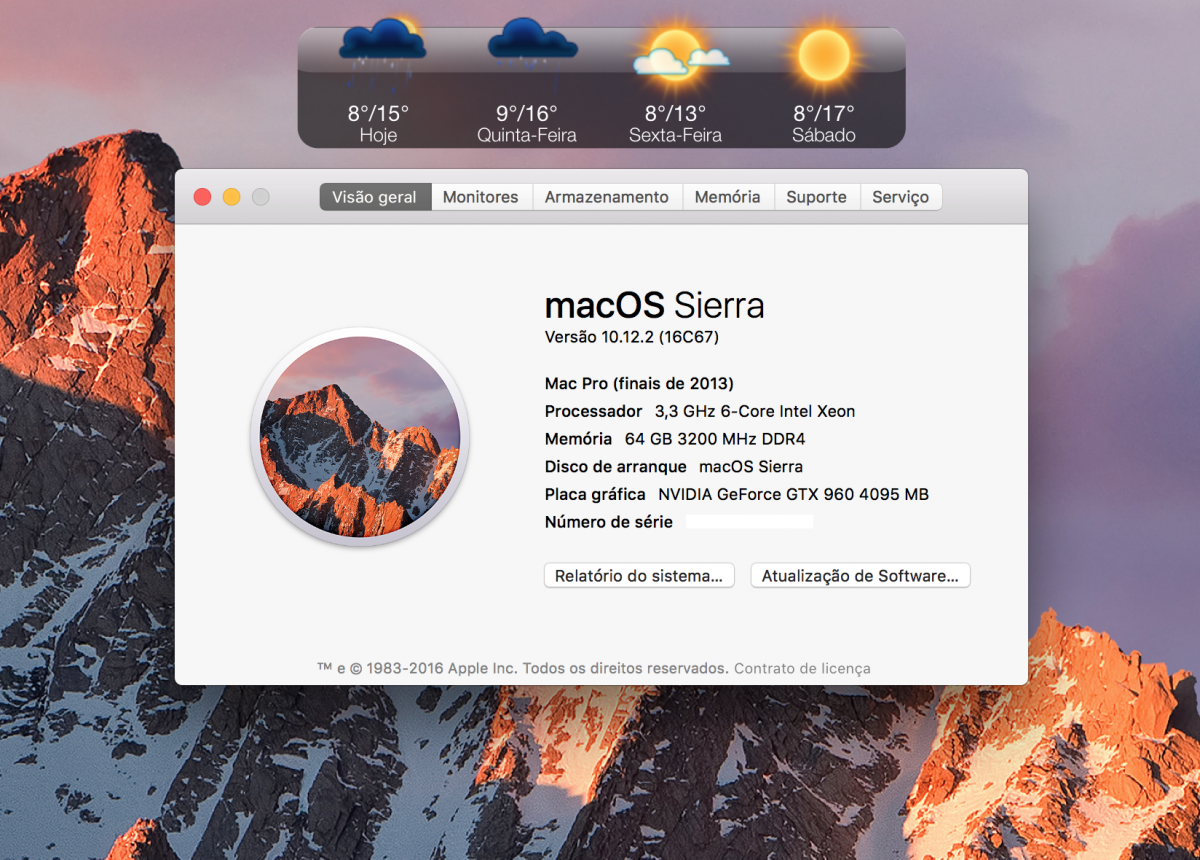

Update to 10.12.02 Final without any problem, failure or stress. After changing the GFX0 to GFX1, no patch was needed. Finished the black screen. I just did the Nvidia Web Driver update. For the updates to come out perfect, with everything working, I only need to solve the wifi problem with IO80211Family.kext but I'm already working on it and I think I have the solution.

Thanks PMheart :yes:


  • Like 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
