[AMD] OS X El Capitan (10.11) Kernel Testing & Release (for help use the Help Topic)

Mr. Xtreme · December 13, 2015

Still USB issues. I tried disabling USB 2.0, USBLegacyOff=Yes, I have CSR active and kernel.plist any ideas (I'll copy my kernel and chameleon.plist's the machine is my main amd rig in my sig).

Edited December 13, 2015 by XtremeHacker

Bronya · December 13, 2015

gils83, why no answer on my question ?

lpukraine · December 13, 2015

yes is big problem

use Enock 2795 , problem with chameleon

I already used Use Enoch 2795)

Shaneee · December 13, 2015

Still USB issues. I tried disabling USB 2.0, USBBusLegacyOff=Yes, I have CSR active and kernel.plist any ideas (I'll copy my kernel and chameleon.plist's the machine is my main amd rig in my sig).

Its just USBLegacyOff=Yes no Bus in there.

More about USB issues here, http://www.insanelymac.com/forum/topic/309765-amd-os-x-el-capitan-1011-kernel-testing-release-for-help-use-the-help-topic/?p=2196920

lpukraine · December 13, 2015

@lpukraine

EVOReboot.kext anywhere ?

I don't use this kext. I know about problem with it.

Micky1979 · December 13, 2015

Yes

not good ?

No :hysterical:

you have in org.chameleon.Boot.plist the following keys:

<key>KernelBooter_kexts</key>

<key>KernelPm</key>

<key>KernelLapicError</key>

<key>KernelLapicVersion</key>

<key>KernelHasswell</key>

<key>KernelcpuFamily</key>

<key>KernelSSE3</key>

but they need to stay only in /Extra/kernel.plist!

Also I'm sure you don't need KernelPm :lol:

Mr. Xtreme · December 13, 2015

Its just USBLegacyOff=Yes no Bus in there.

More about USB issues here, http://www.insanelymac.com/forum/topic/309765-amd-os-x-el-capitan-1011-kernel-testing-release-for-help-use-the-help-topic/?p=2196920

Oops I only did USBLegacyOff=Yes though.

My yos partition actually seems broken, guess I have more work than planned.

I'll copy my chameleon plist.

Edited December 13, 2015 by XtremeHacker

Micky1979 · December 13, 2015

For USB problem see at:http://www.insanelymac.com/forum/topic/306777-guide-usb-fix-el-capitan-1011/

was a problem for all...

Shaneee · December 13, 2015

@Shanee, my kernel don't works ? )

Tried it quickly. Boots well and no applications crash. Some errors in console but same as other Kernels.

lpukraine · December 13, 2015

Yeah))

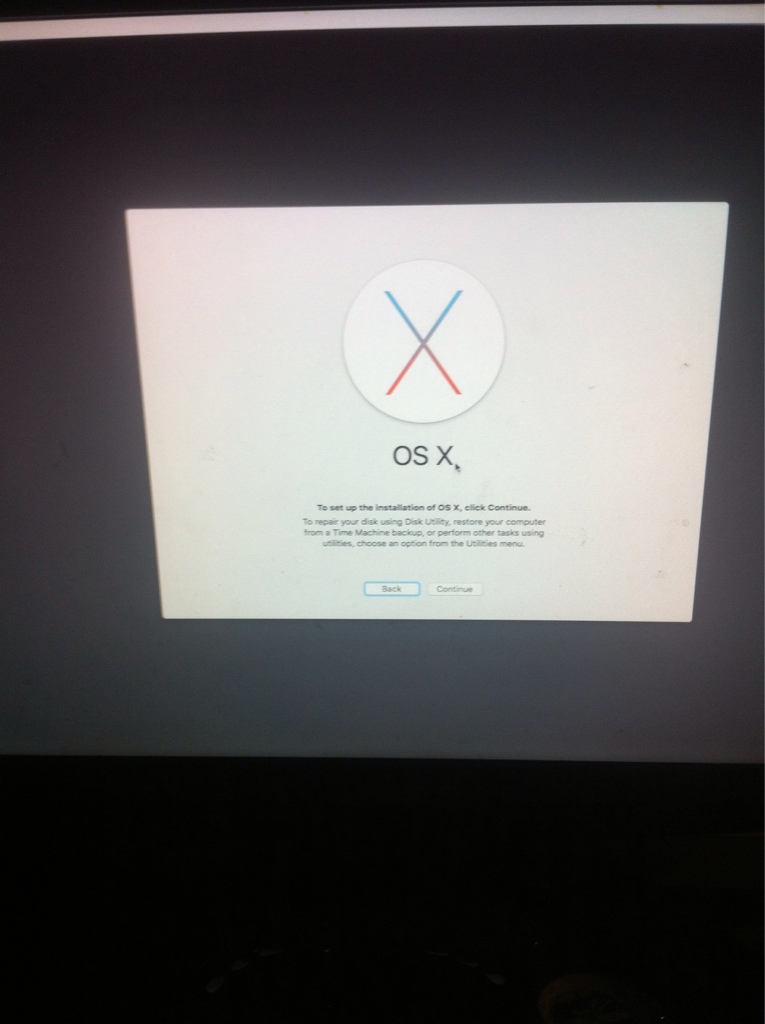

Atleast I reached an installer screen with Bronya's kernel)

Now i can go to sleep) tomorrow will prepare volume and will install. Thanks for kernel and your help.

polyzargone · December 14, 2015

There's an alternative for those who have USB issues that doesn't requires to use Yosemite. RehabMan has made a kext that injects all ports so there's (theoretically) no problem anymore. At least for booting the installer.

Make sure you read the whole README carefully.

NB : I didn't tried it so I can't guaranty anything… just sharing .

fantomas · December 14, 2015

gils83, why no answer on my question ?

'cause he's celebrating Christmas and New Year in advance

jsl · December 14, 2015

My kernel created 10 december .

Try kernel .)

kernel_rc1.zip

Thanks for such a great AMD kernel which works for both Athlon 64 x2 6000+ CPU in Asus M4A78 Plus MB and Phenom x4 9850 in Asus M3A MB with 10.11.2.

Meowthra · December 14, 2015

Sorry already booted but it was made. Something like created mkext for 3xx (can't remember how many) extensions x86_64 in Extra/Extensions

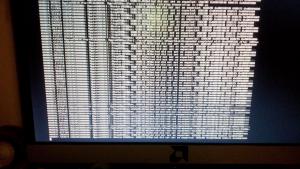

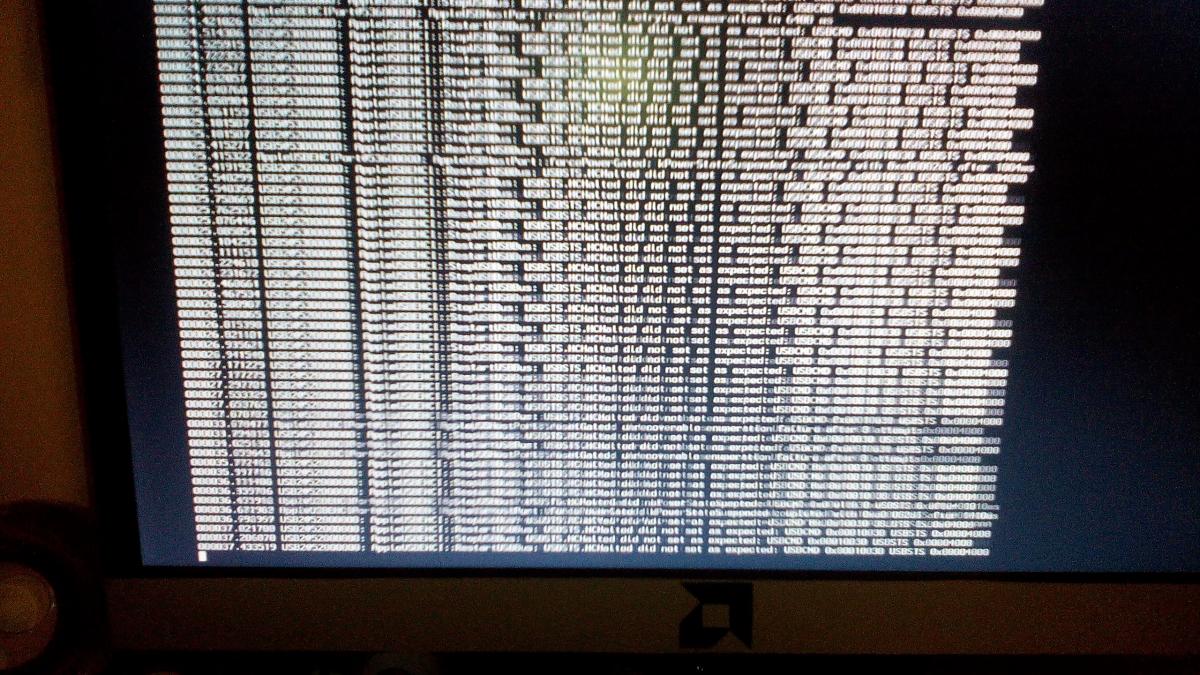

Rebooting got me this,


Edit: http://pastebin.com/98p2fCmC

Edit: My boot File,

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>CsrActiveConfig</key>
	<string>103</string>
	<key>Kernel Flags</key>
	<string>-v npci=0x3000</string>
	<key>GraphicsEnabler</key>
	<string>Yes</string>
	<key>USBLegacyOff</key>
	<string>Yes</string>
</dict>
</plist>

And kernel.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>KernelBooter_kexts</key>
	<string>Yes</string>
</dict>
</plist>

My boot File: /Extra/org.chameleon.Boot.plist

AMD K10

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>CsrActiveConfig</key>
    <string>103</string>
    <key>KernelBooter_kexts</key>
    <string>Yes</string>
    <key>GraphicsEnabler</key>
    <string>Yes</string>
    <key>Kernel</key>
    <string>/kernel</string>
    <key>Kernel Flags</key>
    <string>-v -f npci=0x2000 rootless=0</string>
    <key>USBLegacyOff</key>
    <string>Yes</string>
</dict>
</plist>

jsl · December 14, 2015

Thanks guys, I corrected my boot plist file and now i see that my graphis card loaded) just one letter was written incorrectly and problem.

But now i have opcode error. ImageUploadedByTapatalk1450049444.800717.jpg

Will try another kernels)

If you got invalid kernel opcode (64-bit) due to vm_page_set_colors

you can fix it by add "colors=32" to boot-argument.

I have solved kernel79_AMD boot issue by this.

Shaneee · December 14, 2015

My boot File: /Extra/org.chameleon.Boot.plist

AMD K10

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>CsrActiveConfig</key>
    <string>103</string>
    <key>KernelBooter_kexts</key>
    <string>Yes</string>
    <key>GraphicsEnabler</key>
    <string>Yes</string>
    <key>Kernel</key>
    <string>/kernel</string>
    <key>Kernel Flags</key>
    <string>-v -f npci=0x2000 rootless=0</string>
    <key>USBLegacyOff</key>
    <string>Yes</string>
</dict>
</plist>

rootless=0 is not needed anymore, you can remove it. Also KernelBooter_kexts should be in a separate kernel.plist file within Extra

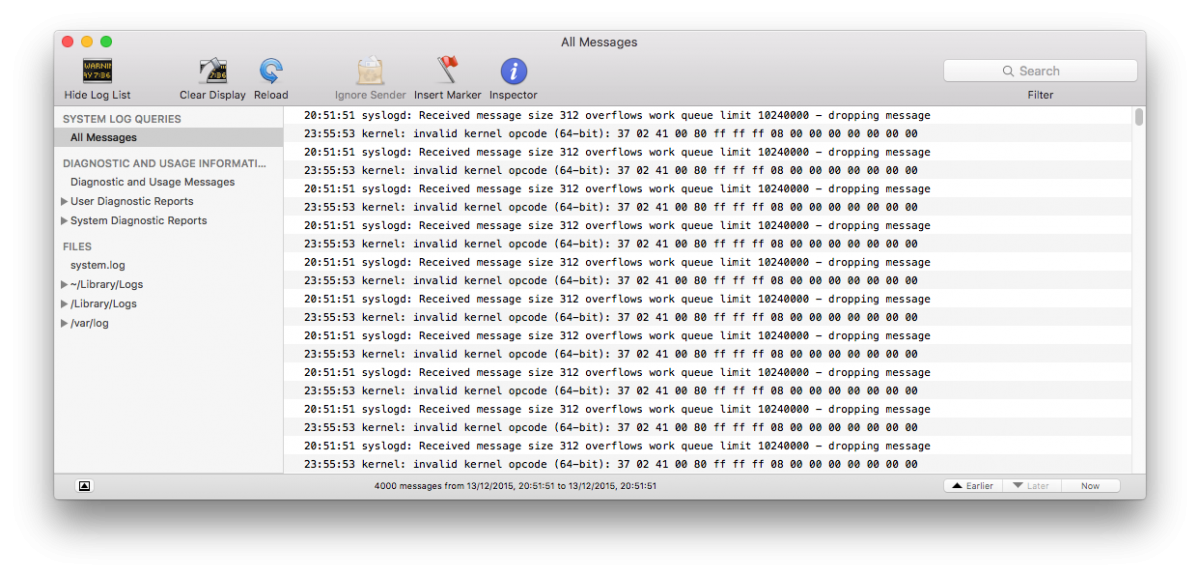

Edit: @Micky1979 Here is an opemu error from your kernel. Not sure whats causing the syslogd error.

y2k4u · December 14, 2015

My first attempt at getting a kernel to work on both FX & older AMD CPUs. This kernel should greatly reduce or eliminate tons of kernel related error messages on booting.

Please test especially those with FX CPUs.

10110R3.zip

Bronya · December 14, 2015

y2k4u, yours kernel don't works in parallels desktop, divide error .

Magomedov_05_RUS · December 14, 2015

My first attempt at getting a kernel to work on both FX & older AMD CPUs. This kernel should greatly reduce or eliminate tons of kernel related error messages on booting.

Please test especially those with FX CPUs.

10110R3.zip

Not work on fx 6300 + ga-78lmt-s2

boyriot · December 14, 2015

Hi, I got an error here. it keeps showing like this continuously

org.chameleon.Boot.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>CsrActiveConfig</key>
	<string>3</string>
	<key>Instant Menu</key>
	<string>Yes</string>
	<key>Kernel</key>
	<string>kernel</string>
	<key>Kernel Flags</key>
	<string>-v darkwake=0 dart=0 npci=0x2000 npci=0x3000 PCIRootUID=1</string>
	<key>Legacy Logo</key>
	<string>No</string>
	<key>ShowInfo</key>
	<string>Yes</string>
	<key>UseKernelCache</key>
	<string>Yes</string>
</dict>
</plist>

Mr. Xtreme · December 14, 2015

Hi, I got an error here. it keeps showing like this continuously

org.chameleon.Boot.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>CsrActiveConfig</key>
	<string>3</string>
	<key>Instant Menu</key>
	<string>Yes</string>
	<key>Kernel</key>
	<string>kernel</string>
	<key>Kernel Flags</key>
	<string>-v darkwake=0 dart=0 npci=0x2000 npci=0x3000 PCIRootUID=1</string>
	<key>Legacy Logo</key>
	<string>No</string>
	<key>ShowInfo</key>
	<string>Yes</string>
	<key>UseKernelCache</key>
	<string>Yes</string>
</dict>
</plist>

Same here, It's a USB issue in El Catian some intel hackintosh's are having that problem (including mine) try this

Op15L · December 14, 2015

I have created USB disk with downloaded "el capitain" downloaded:

sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction

Installed clover 2.3 3330 on USB.

Copied kext fakeSMC andNullCPUPowerManagement on EFI/Clover/Kexts.

Where I put the kernel file?

lpukraine · December 14, 2015

I have created USB disk with downloaded "el capitain" downloaded:
sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction
Installed clover 2.3 3330 on USB.
Copied kext fakeSMC andNullCPUPowerManagement on EFI/Clover/Kexts.

Where I put the kernel file?

System/Library/Kernels

Mr. Xtreme · December 14, 2015

You need to use the manual disk utility method (It's for Yosemite but it also works for El Capitan) and once that is done make a folder named "Kernels" (Without the quotes) in /System/Library and put you kernel in the "Kernels" folder you just made.

Edited December 14, 2015 by XtremeHacker

Op15L · December 14, 2015

System/Library/Kernels

yes, when the system is installed ok. But when a I create USB drive for installation?
