the op says andy updated slices kext   :chef:

It might, but I asked the people involved, because I'm not sure it will be as you allude, I read at least the first post  ;)

In any case I edited my previous post.



Micky

Link to comment
Share on other sites

Hi all :)



@AnV, @Slice, this version of VoodooHDA is include/derived from the one developed by Zenith432?

I would like to add it to Pandora, but I want to be sure to give all the credits....

Thanks in advance



EDIT

Sorry I rephrase the question: What are the people who must have credits for VoodooHDA.kext?

Thanks in advance



Micky

Version 2.8.x is created with a help of Zenith432.

Update to 2.8.4 by me. 2.8.5 by Andy. 2.8.6 by me again.

  • Like 3
Link to comment
Share on other sites



Thank you,  I will write this.

Micky



I can also remember that version 0.2.2 was created by Fassl.

Updated up to 2.5 with AutumnRain and me.

And some users provided some fixes during this work. They are mentioned in sources and on projectosx.

  • Like 1
Link to comment
Share on other sites


It's ok as above?




I can also remember that version 0.2.2 was created by Fassl.

Updated up to 2.5 with AutumnRain and me.

And some users provided some fixes during this work. They are mentioned in sources and on projectosx.

  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...



Edit 19 juilly 2014 new packages  V286 Availlabale

Thanks to Slice .



Thanks you very mutch AnV ! working Great ;)  testing  on Z87X-UD5H  :D  I have create  cool Installer

 For VoodooHDA Tribute With the binaries   :thumbsup_anim:



EDIT new package with  AnV change log  ;)







Thanks a bunch for this you saved me a ton of time after hours of searching for a working fix  :).

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
@SLICE

Please add the following chipset to the voodoohda the community needs.


9 Series Chipset Family HD Audio Controller

#define HDA_INTEL_WPT1 HDA_MODEL_CONSTRUCT(INTEL, 0x8ca0)


C610/X99 series chipset HD Audio Controller

#define HDA_INTEL_WELLSBURG1 HDA_MODEL_CONSTRUCT(INTEL, 0x8d20)
#define HDA_INTEL_WELLSBURG2 HDA_MODEL_CONSTRUCT(INTEL, 0x8d21)



Here the Diff. I fixed some mistake with the lynx point and I added the new chipsets.


voodoohda.zip



EDIT: Slice already merged it. Thanks

Link to comment
Share on other sites

  • 2 weeks later...



Yes, for example such a way.

				<dict>
					<key>Codec</key>
					<integer>2</integer>
					<key>Enable</key>
					<string>0</string>
					<key>Node</key>
					<integer>19</integer>
				</dict>

Tried this to remove unnecessary HDMI and SPDIF entries, but all my audio disappeared...



Where should i put this in info.plist? I'm using the latest version 2.8.7

Link to comment
Share on other sites

Tried this to remove unnecessary HDMI and SPDIF entries, but all my audio disappeared...



Where should i put this in info.plist? I'm using the latest version 2.8.7

Into NodesToPatch

If you place it in a wrong place then

a) nothing happen

B) the kext will not loaded because of corrupted info.plist



But what is the reason to remove extra entries? They decorate System Profiler, no more.

  • Like 1
Link to comment
Share on other sites

Hi Slice



can you help me to get headphone working on codec ALC668? I attach the codec dump from linux, the current problem is when plugging the headphone there is a pitch noise that cannot be removed playing with mixer.



This behavior was also on Linux and fixed muting the mic on the headphone jack (it's a combo jack that support headphone a mic, but Voodoo seems to not recognize the mic on the headphone port)



Hope we can get a solution.. :)


this is the getdump from yosemite





codec_dump.txt

dump_whp.txt

Link to comment
Share on other sites

Hi Slice



can you help me to get headphone working on codec ALC668? I attach the codec dump from linux, the current problem is when plugging the headphone there is a pitch noise that cannot be removed playing with mixer.



This behavior was also on Linux and fixed muting the mic on the headphone jack (it's a combo jack that support headphone a mic, but Voodoo seems to not recognize the mic on the headphone port)



Hope we can get a solution.. :)

this is the getdump from yosemite

Disable node 11 as it may causes noise. It is very usual trick for Realtek codecs.

I see no differencies between voodoo dump and linux dump.

Link to comment
Share on other sites

hi Slice..



how i can re-enable node 11 to see if it fixes the noise?

I've understood your response



thanks

            <key>NodesToPatch</key>
            <array>
            <dict>
                <key>Codec</key>
                <integer>0</integer>
                <key>Node</key>
                <integer>11</integer>
                <key>Enable</key>
                <integer>0</integer>
            </dict>
Link to comment
Share on other sites

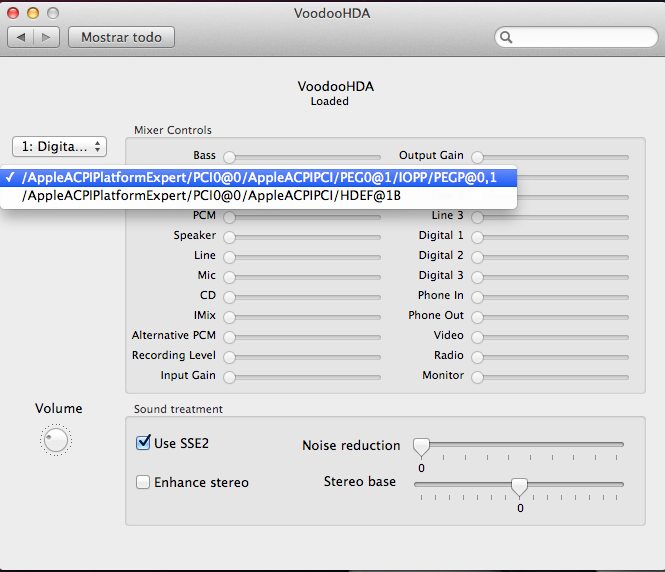

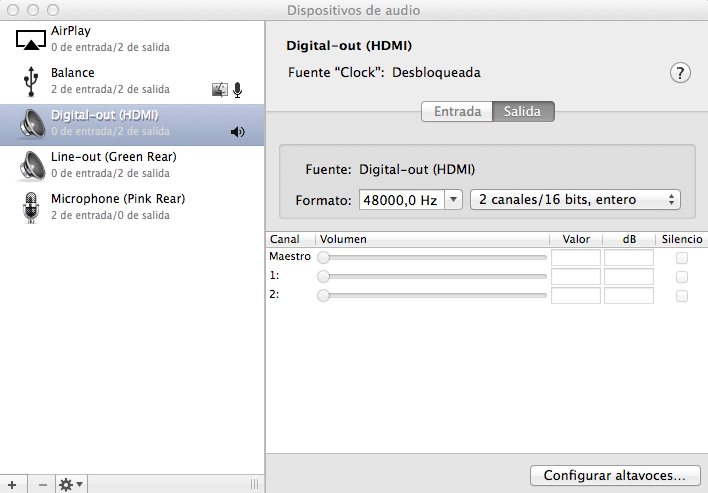

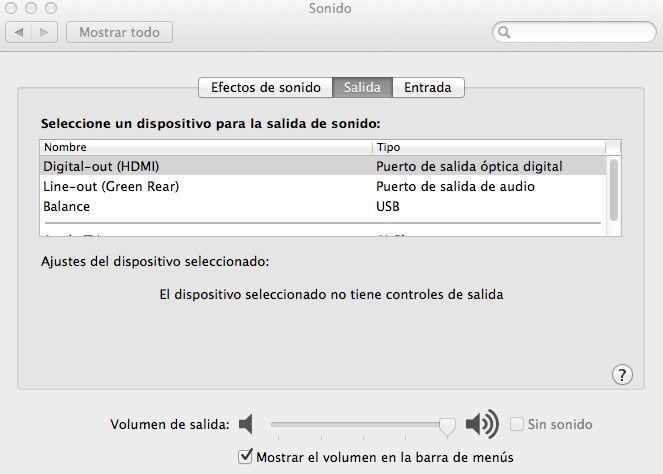

How come i can only get 32000 or 48000  hz output out of SPDIF(Atapi) using VoodooHDA ? I tried VoodooHDA 2.8.4 and 2.8.6 using  Yosemite  and the SPDIF optical output works great  at 32000 and 48000hz but nothing at the other sample rates. I want to use 44100hz as the sample rate for my music . VoodooHDA is great and thanks for your help.

Link to comment
Share on other sites

            <key>NodesToPatch</key>
            <array>
            <dict>
                <key>Codec</key>
                <integer>0</integer>
                <key>Node</key>
                <integer>11</integer>
                <key>Enable</key>
                <integer>0</integer>
            </dict>

this doesn't fix the issue.. remove also sound from internal speaker and headphone still have noise :(



how can i do? hope you can help me



thanks!

Link to comment
Share on other sites

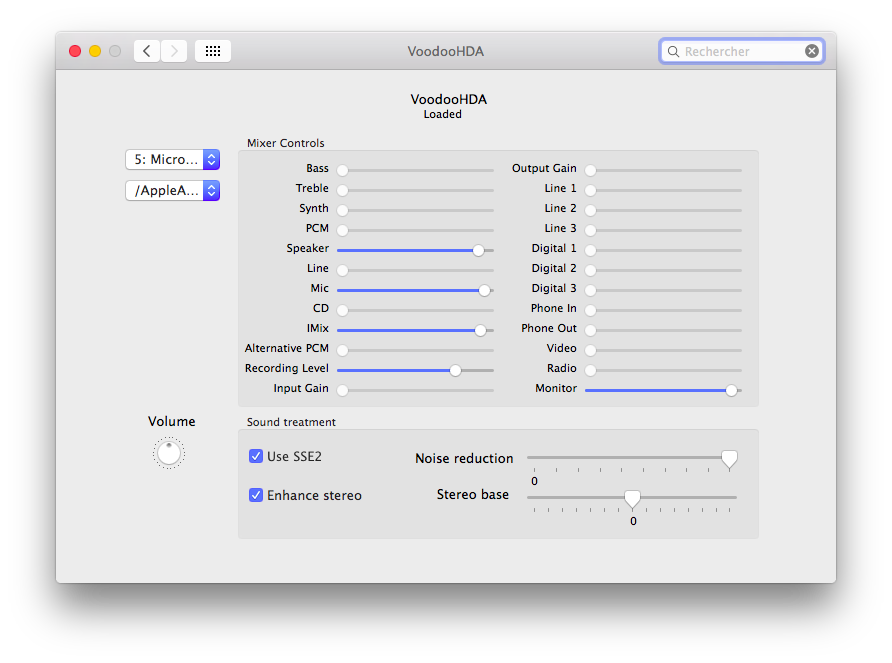

I also have static but only untill i reduce input gain from vodoop pref pane to 0, after that, everything works perfect.



My only problem is that setting won't save after reboot, any ideea why? I installed 2.8.6 + 2.8.7 kext after that.

Link to comment
Share on other sites

  • 3 weeks later...
  • 2 months later...
Hi guys,

First off all thanks again for this topic !

I installed some weeks ago VoodooHDA 2.8.7 which is a big change compared to the old VoodooHDA that I used before!
Thank you again for the good work!

My first purpose of installing 2.8.7 version was to get the internal mic. I managed to activated by adding this nid :

         <key>NodesToPatch</key>
         <array>
            <dict>
               <key>Codec</key>
               <integer>0</integer>
               <key>Config</key>
               <string>0x99a30950</string>
               <key>Node</key>
               <integer>25</integer>
            </dict>
         </array>
The internal mic is now recognized, but I'm facing two problems not included in those listed in the first post:

The first is that, when using skype for example with the internal mic, there is a constant background noise heard by the person with whom I speak.
When using other communication software (Telephone by Alexey Kuznetsov), the person with whom I speak can't even understand me due to the very bad quality of the sound received when I use internal mic.

The second one, related the first one may be, is that I don't have all the setting in the prefpane for the internal mic, like the input Gain and PCM for example (please see the image).


So as I said before, may be the two problems are connected. So may be the fact that being able to activate all the required settings will allows me to get a correct sound from my internal mic.

Could you please guide me on how to do that ? (may be by activating other nodes ?)

Here are the specifics of my sound card:

ALC663 info
Codec: Realtek ALC663
Address: 0
Vendor Id: 0x10ec0663
Subsystem Id: 0x104315a7
Revision Id: 0x100002

and this is what I get with getdump:

Found a device of class VoodooHDADevice: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/HDAC@1B/VoodooHDADevice


Probing codec #0...
 HDA Codec #0: Realtek ALC663
 HDA Codec ID: 0x10ec0663
       Vendor: 0x10ec
       Device: 0x0663
     Revision: 0x00
     Stepping: 0x01
PCI Subvendor: 0x14c31043
   startNode=1 endNode=2
   Found audio FG nid=1 startNode=2 endNode=36 total=34

Processing audio FG cad=0 nid=1...
Powering up...
Parsing audio FG...
GPIO: 0x40000002 NumGPIO=2 NumGPO=0 NumGPI=0 GPIWake=0 GPIUnsol=1
 nid 17 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 18 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 19 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 20 0x99130110 as  1 seq  0 Speaker       Fixed ATAPI   Special Internal Unknown misc 0 NoPresenceDetect
 nid 21 0x0121401f as  1 seq 15 Headphones    Jack  1/8     Rear    External Green   misc 0
 nid 22 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 23 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 24 0x01a19840 as  4 seq  0 Microphone    Jack  1/8     Rear    External Pink    misc 4
 nid 25 0x99a3094f as  4 seq 15 Microphone    Fixed ATAPI   Special Internal Unknown misc 4 NoPresenceDetect
 nid 26 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
 nid 27 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect
Patching widget caps nid=29 0x00400400 -> 0x00700400
 nid 30 0x99430130 as  3 seq  0 SPDIF-out     Fixed ATAPI   Special Internal Unknown misc 0 NoPresenceDetect
 nid 33 0x01211020 as  2 seq  0 Headphones    Jack  1/8     Rear    External Black   misc 0
Parsing vendor patch...
Nodes patching. Codec = 0
NumNodes = 1
VHDevice NID= 2 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 3 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 4 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 5 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 6 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 7 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 8 Config=00000000 (audio input   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=35
VHDevice NID= 9 Config=00000000 (audio input   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=34
VHDevice NID=10 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=11 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=24 1=25 2=26 3=27 4=29 5=20 6=21 7=22
VHDevice NID=12 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=2 1=11
VHDevice NID=13 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=3 1=11
VHDevice NID=14 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=4 1=11
VHDevice NID=15 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=2 1=11
VHDevice NID=16 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=17 Config=411111f0 (pin: Speaker () Cap=00000010 Ctrl=00000040 -- Conns: 0=16
VHDevice NID=18 Config=411111f0 (pin: Speaker () Cap=00000020 Ctrl=00000000 -- Conns:
VHDevice NID=19 Config=411111f0 (pin: Speaker () Cap=00000020 Ctrl=00000000 -- Conns:
VHDevice NID=20 Config=99130110 (pin: Speaker () Cap=0001003c Ctrl=00000020 -- Conns: 0=12 1=13
VHDevice NID=21 Config=0121401f (pin: Headphone) Cap=0001003c Ctrl=00000020 -- Conns: 0=12 1=13
VHDevice NID=22 Config=411111f0 (pin: Speaker () Cap=00000034 Ctrl=00000020 -- Conns: 0=14
VHDevice NID=23 Config=411111f0 (pin: Speaker () Cap=00000010 Ctrl=00000000 -- Conns: 0=15
VHDevice NID=24 Config=01a19840 (pin: Microphon) Cap=00001734 Ctrl=00000020 -- Conns: 0=14
VHDevice NID=25 Config=99a30950 (pin: Microphon) Cap=0000173c Ctrl=00000020 -- Conns: 0=12 1=13 2=14
VHDevice NID=26 Config=411111f0 (pin: Speaker () Cap=00001734 Ctrl=00000020 -- Conns: 0=13
VHDevice NID=27 Config=411111f0 (pin: Speaker () Cap=0000173c Ctrl=00000020 -- Conns: 0=12 1=13 2=14
VHDevice NID=28 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=29 Config=00000000 (beep widget   ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=30 Config=99430130 (pin: SPDIF-out) Cap=00000014 Ctrl=00000040 -- Conns: 0=6
VHDevice NID=31 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=32 Config=00000000 (vendor widget ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=33 Config=01211020 (pin: Headphone) Cap=0000001c Ctrl=00000000 -- Conns: 0=12 1=13 2=14
VHDevice NID=34 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=24 1=25 2=26 3=27 4=29 5=20 6=21 7=22 8=11 9=18
VHDevice NID=35 Config=00000000 (audio mixer   ) Cap=00000000 Ctrl=00000000 -- Conns: 0=24 1=25 2=26 3=27 4=29 5=20 6=21 7=22 8=11 9=19
Disabling nonaudio...
Disabling useless...
 Disabling nid 11 connection 2 due to disabled child widget.
 Disabling nid 11 connection 3 due to disabled child widget.
 Disabling nid 11 connection 7 due to disabled child widget.
 Disabling nid 15 due to all it's consumers disabled.
 Disabling nid 34 connection 2 due to disabled child widget.
 Disabling nid 34 connection 3 due to disabled child widget.
 Disabling nid 34 connection 7 due to disabled child widget.
 Disabling nid 34 connection 9 due to disabled child widget.
 Disabling nid 35 connection 2 due to disabled child widget.
 Disabling nid 35 connection 3 due to disabled child widget.
 Disabling nid 35 connection 7 due to disabled child widget.
 Disabling nid 35 connection 9 due to disabled child widget.
Patched pins configuration:
 nid 17 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 18 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 19 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 20 0x99130110 as  1 seq  0 Speaker       Fixed ATAPI   Special Internal Unknown misc 0 NoPresenceDetect
 nid 21 0x0121401f as  1 seq 15 Headphones    Jack  1/8     Rear    External Green   misc 0
 nid 22 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 23 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 24 0x01a19840 as  4 seq  0 Microphone    Jack  1/8     Rear    External Pink    misc 4
 nid 25 0x99a30950 as  5 seq  0 Microphone    Fixed ATAPI   Special Internal Unknown misc 4 NoPresenceDetect
 nid 26 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 27 0x411111f0 as 15 seq  0 Speaker       None  1/8     Rear    External Black   misc 0 NoPresenceDetect [DISABLED]
 nid 30 0x99430130 as  3 seq  0 SPDIF-out     Fixed ATAPI   Special Internal Unknown misc 0 NoPresenceDetect
 nid 33 0x01211020 as  2 seq  0 Headphones    Jack  1/8     Rear    External Black   misc 0
Parsing pin associations...
5 associations found:
Association 0 (1) out:
 Pin nid=20 seq=0
 Pin nid=21 seq=15
   Redir type=0 jack=15 def=0
Association 1 (2) out:
 Pin nid=33 seq=0
   Redir type=-1 jack=0 def=0
Association 2 (3) out:
 Pin nid=30 seq=0
   Redir type=-1 jack=-1 def=0
Association 3 (4) in:
 Pin nid=24 seq=0
   Redir type=-1 jack=0 def=0
Association 4 (5) in:
 Pin nid=25 seq=0
   Redir type=-1 jack=-1 def=0
Building AFG tree...
Tracing association 0 (1)
 Tracing pin 20 with min nid 0
    nid 2 returned 2
   nid 12 returned 2
    nid 3 returned 3
   nid 13 returned 3
  nid 20 returned 2
 Pin 20 traced to DAC 2
 Tracing pin 21 with min nid 0 and hpredir 0
    nid 2 returned 2
   nid 12 returned 2
  nid 21 returned 2
 Pin 21 traced to DAC 2 and hpredir 0
Association 0 (1) trace succeeded
Tracing association 1 (2)
 Tracing pin 33 with min nid 0
   nid 12 busy by association 0
    nid 3 returned 3
     nid 20 busy by association 0
     nid 21 busy by association 0
   nid 13 returned 3
    nid 4 returned 4
     nid 20 busy by association 0
     nid 21 busy by association 0
   nid 14 returned 4
  nid 33 returned 3
 Pin 33 traced to DAC 3
Association 1 (2) trace succeeded
Tracing association 2 (3)
 Tracing pin 30 with min nid 0
   nid 6 returned 6
  nid 30 returned 6
 Pin 30 traced to DAC 6
Association 2 (3) trace succeeded
Tracing association 3 (4)
 Tracing pin 24 to ADC 8
  tracing via nid 24
   tracing via nid 11
    tracing via nid 12
    nid 12 busy by association 0
    tracing via nid 13
    nid 13 busy by association 1
    tracing via nid 14
     tracing via nid 24
     nid 24 returned 0
     tracing via nid 25
     nid 25 returned 0
     tracing via nid 33
     nid 33 busy by association 1
    nid 14 returned 0
    tracing via nid 34
     tracing via nid 9
     nid 9 returned 0
    nid 34 returned 0
    tracing via nid 35
     tracing via nid 8
     nid 8 returned 1
    nid 35 returned 1
   nid 11 returned 1
   tracing via nid 34
    tracing via nid 9
    nid 9 returned 0
   nid 34 returned 0
   tracing via nid 35
    tracing via nid 8
    nid 8 returned 1
   nid 35 returned 1
  nid 24 returned 1
 Pin 24 traced to ADC 8
Association 3 (4) trace succeeded
Tracing association 4 (5)
 Tracing pin 25 to ADC 9
  tracing via nid 25
   tracing via nid 11
   nid 11 busy by association 3
   tracing via nid 34
    tracing via nid 9
    nid 9 returned 1
   nid 34 returned 1
   tracing via nid 35
   nid 35 busy by association 3
  nid 25 returned 1
 Pin 25 traced to ADC 9
Association 4 (5) trace succeeded
Tracing input monitor
 Tracing nid 11 to out
  tracing via nid 11
   tracing via nid 12
   nid 12 found output association 0
   tracing via nid 13
   nid 13 found output association 1
   tracing via nid 14
    tracing via nid 24
    nid 24 busy by input association 3
    tracing via nid 25
    nid 25 busy by input association 4
    tracing via nid 33
    nid 33 found output association 1
   nid 14 returned 1
   tracing via nid 34
   nid 34 busy by input association 4
   tracing via nid 35
   nid 35 busy by input association 3
  nid 11 returned 1
 nid 11 is input monitor
 Tracing nid 34 to out
  tracing via nid 34
   tracing via nid 9
   nid 9 busy by input association 4
  nid 34 returned 0
 Tracing nid 35 to out
  tracing via nid 35
   tracing via nid 8
   nid 8 busy by input association 3
  nid 35 returned 0
Tracing other input monitors
 Tracing nid 24 to out
  tracing via nid 24
   tracing via nid 11
   nid 11 busy by input association 3
   tracing via nid 34
   nid 34 busy by input association 4
   tracing via nid 35
   nid 35 busy by input association 3
  nid 24 returned 0
 Tracing nid 25 to out
  tracing via nid 25
   tracing via nid 11
   nid 11 busy by input association 3
   tracing via nid 34
   nid 34 busy by input association 4
   tracing via nid 35
   nid 35 busy by input association 3
  nid 25 returned 0
Tracing beeper
 Tracing nid 29 to out
  tracing via nid 29
   tracing via nid 11
   nid 11 busy by input association 3
   tracing via nid 34
   nid 34 busy by input association 4
   tracing via nid 35
   nid 35 busy by input association 3
  nid 29 returned 0
Disabling unassociated widgets...
Disabling nonselected inputs...
Disabling useless...
 Disabling nid 14 connection 0 due to disabled child widget.
 Disabling nid 14 due to all it's consumers disabled.
Disabling crossassociated connections...
 Disabling connection input mixer nid 34 conn 8 to monitor 11.
 Disabling connection input mixer nid 35 conn 8 to monitor 11.
Disabling useless...
Binding associations to channels...
Assigning names to signal sources...
Parsing Ctls...
Ctl overflow!
Assigning mixers to the tree...
Preparing pin controls...
AFG commit...
Creating PCM devices...
pcmAttach: HDA Realtek ALC663 PCM #0 Analog at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
            DAC: 2

Record:

     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
            ADC: 8

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

    nid=20 [pin: Speaker (ATAPI)]
      |
      + <- nid=12 [audio mixer] bindSeq=00008001
             |
             + <- nid=2 [audio output] [src: pcm] bindSeq=00008001

             + <- nid=11 [audio mixer] bindSeq=00000001
                    |
                    + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

                    + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

                    + <- nid=29 [beep widget]

    nid=21 [pin: Headphones (Green Rear)]
      |
      + <- nid=12 [audio mixer] bindSeq=00008001
             |
             + <- nid=2 [audio output] [src: pcm] bindSeq=00008001

             + <- nid=11 [audio mixer] bindSeq=00000001
                    |
                    + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

                    + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

                    + <- nid=29 [beep widget]

Record:

    nid=8 [audio input]
      |
      + <- nid=35 [audio mixer] [src: mix] bindSeq=00000001

             |
             + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

             + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

             + <- nid=29 [beep widget]

Input Mix:

    nid=34 [audio mixer]
      |
      + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

      + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

      + <- nid=29 [beep widget]

    nid=35 [audio mixer]
      |
      + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

      + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

      + <- nid=29 [beep widget]

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

Master Volume (OSS: vol)
   |
   +- control  1 (nid   2 out):    dir - out oss: vol, pcm -64/+0dB (65 steps)
   +- control 10 (nid  12 in   0): dir - out oss: vol, pcm mute
   +- control 11 (nid  12 in   1): dir - out oss: vol, igain mute
   +- control 14 (nid  20 out):    dir - out oss: vol mute
   +- control 15 (nid  21 out):    dir - out oss: vol mute

PCM Volume (OSS: pcm)
   |
   +- control  1 (nid   2 out):    dir - out oss: vol, pcm -64/+0dB (65 steps)
   +- control 10 (nid  12 in   0): dir - out oss: vol, pcm mute

Microphone Volume (OSS: mic)
   |
   +- control 17 (nid  24 in   0): dir - in oss: mic +0/+30dB (4 steps)
   +- control 27 (nid  35 in   0): dir - in oss: mic, rec mute

Microphone2 Volume (OSS: monitor)
   |
   +- control 28 (nid  35 in   1): dir - in oss: rec, monitor mute

Speaker/Beep Volume (OSS: speaker)
   |
   +- control  7 (nid  11 in   4): dir - in oss: speaker, igain -34/+12dB (32 steps) + mute
   +- control 29 (nid  35 in   4): dir - in oss: speaker, rec mute

Recording Level (OSS: rec)
   |
   +- control  3 (nid   8 in   0): dir - in oss: mix, rec -16/+30dB (32 steps) + mute
   +- control 27 (nid  35 in   0): dir - in oss: mic, rec mute
   +- control 28 (nid  35 in   1): dir - in oss: rec, monitor mute
   +- control 29 (nid  35 in   4): dir - in oss: speaker, rec mute

Input Mix Level (OSS: mix)
   |
   +- control  3 (nid   8 in   0): dir - in oss: mix, rec -16/+30dB (32 steps) + mute

Input Monitoring Level (OSS: igain)
   |
   +- control  5 (nid  11 in   0): dir - in oss: igain -34/+12dB (32 steps) + mute
   +- control  6 (nid  11 in   1): dir - in oss: igain -34/+12dB (32 steps) + mute
   +- control  7 (nid  11 in   4): dir - in oss: speaker, igain -34/+12dB (32 steps) + mute
   +- control 11 (nid  12 in   1): dir - out oss: vol, igain mute

OSS mixer initialization...
Registering PCM channels...
pcmAttach: HDA Realtek ALC663 PCM #1 Analog at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
            DAC: 3

Record:

     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
            ADC: 9

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

    nid=33 [pin: Headphones (Black Rear)]
      |
      + <- nid=13 [audio mixer] bindSeq=00000001
             |
             + <- nid=3 [audio output] [src: pcm] bindSeq=00000001

             + <- nid=11 [audio mixer] bindSeq=00000001
                    |
                    + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

                    + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

                    + <- nid=29 [beep widget]

Record:

    nid=9 [audio input]
      |
      + <- nid=34 [audio mixer] [src: mix] bindSeq=00000001

             |
             + <- nid=24 [pin: Microphone (Pink Rear)] [src: mic] bindSeq=00000001

             + <- nid=25 [pin: Microphone (ATAPI)] [src: monitor] bindSeq=00000001

             + <- nid=29 [beep widget]

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

Master Volume (OSS: vol)
   |
   +- control  2 (nid   3 out):    dir - out oss: vol, pcm -64/+0dB (65 steps)
   +- control 12 (nid  13 in   0): dir - out oss: vol, pcm mute
   +- control 13 (nid  13 in   1): dir - out oss: vol, igain mute
   +- control 20 (nid  33 out):    dir - out oss: vol mute

PCM Volume (OSS: pcm)
   |
   +- control  2 (nid   3 out):    dir - out oss: vol, pcm -64/+0dB (65 steps)
   +- control 12 (nid  13 in   0): dir - out oss: vol, pcm mute

Microphone Volume (OSS: mic)
   |
   +- control 21 (nid  34 in   0): dir - in oss: mic, rec mute

Microphone2 Volume (OSS: monitor)
   |
   +- control 19 (nid  25 in   0): dir - in oss: monitor +0/+30dB (4 steps)
   +- control 22 (nid  34 in   1): dir - in oss: rec, monitor mute

Speaker/Beep Volume (OSS: speaker)
   |
   +- control 23 (nid  34 in   4): dir - in oss: speaker, rec mute

Recording Level (OSS: rec)
   |
   +- control  4 (nid   9 in   0): dir - in oss: mix, rec -16/+30dB (32 steps) + mute
   +- control 21 (nid  34 in   0): dir - in oss: mic, rec mute
   +- control 22 (nid  34 in   1): dir - in oss: rec, monitor mute
   +- control 23 (nid  34 in   4): dir - in oss: speaker, rec mute

Input Mix Level (OSS: mix)
   |
   +- control  4 (nid   9 in   0): dir - in oss: mix, rec -16/+30dB (32 steps) + mute

Input Monitoring Level (OSS: igain)
   |
   +- control 13 (nid  13 in   1): dir - out oss: vol, igain mute

OSS mixer initialization...
Registering PCM channels...
pcmAttach: HDA Realtek ALC663 PCM #2 Digital at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

     Stream cap: 0x00000005
                 AC3 PCM
        PCM cap: 0x000e05e0
                 16 20 24 bits, 44 48 88 96 192 KHz
            DAC: 6

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

    nid=30 [pin: SPDIF-out (ATAPI)]
      |
      + <- nid=6 [audio output] [src: pcm] bindSeq=00000001


+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

OSS mixer initialization...
Registering PCM channels...
FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref
HP switch init...

+-------------------+
| DUMPING HDA NODES |
+-------------------+

Default Parameter
-----------------
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
         IN amp: 0x00000000
        OUT amp: 0x00000000

            nid: 2
           Name: audio output
     Widget cap: 0x0000041d
                 PWR STEREO
    Association: 0 (0x00008001)
            OSS: pcm (pcm)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
     Output amp: 0x00034040
                 mute=0 step=64 size=3 offset=64
     Output val: [0x2E 0x2E]

            nid: 3
           Name: audio output
     Widget cap: 0x0000041d
                 PWR STEREO
    Association: 1 (0x00000001)
            OSS: pcm (pcm)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
     Output amp: 0x00034040
                 mute=0 step=64 size=3 offset=64
     Output val: [0x2E 0x2E]

            nid: 4 [DISABLED]
           Name: audio output
     Widget cap: 0x0000041d
                 PWR STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
     Output amp: 0x00034040
                 mute=0 step=64 size=3 offset=64
     Output val: [0x40 0x40]

            nid: 5 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00000

            nid: 6
           Name: audio output
     Widget cap: 0x00000611
                 PWR DIGITAL STEREO
    Association: 2 (0x00000001)
            OSS: pcm (pcm)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e05e0
                 16 20 24 bits, 44 48 88 96 192 KHz

            nid: 7 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00000

            nid: 8
           Name: audio input
     Widget cap: 0x0010051b
                 PWR STEREO
    Association: 3 (0x00000001)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
      Input amp: 0x80051f0b
                 mute=1 step=31 size=5 offset=11
      Input val: [0x80 0x80]
    connections: 1 enabled 1
          |
          + <- nid=35 [audio mixer]

            nid: 9
           Name: audio input
     Widget cap: 0x0010051b
                 PWR STEREO
    Association: 4 (0x00000001)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e0560
                 16 20 24 bits, 44 48 96 192 KHz
      Input amp: 0x80051f0b
                 mute=1 step=31 size=5 offset=11
      Input val: [0x80 0x80]
    connections: 1 enabled 1
          |
          + <- nid=34 [audio mixer]

            nid: 10 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00000

            nid: 11
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: 3 (0x00000001)
            OSS:  (igain)
      Input amp: 0x80051f17
                 mute=1 step=31 size=5 offset=23
      Input val: [0x03 0x03] [0x03 0x03] [0x97 0x97] [0x97 0x97] [0x03 0x03] [0x17 0x17] [0x17 0x17] [0x97 0x97]
    connections: 8 enabled 3
          |
          + <- nid=24 [pin: Microphone (Pink Rear)]
          + <- nid=25 [pin: Microphone (ATAPI)]
          + [DISABLED] <- nid=26 [pin: Speaker (None)] [DISABLED]
          + [DISABLED] <- nid=27 [pin: Speaker (None)] [DISABLED]
          + <- nid=29 [beep widget]
          + [DISABLED] <- nid=20 [pin: Speaker (ATAPI)]
          + [DISABLED] <- nid=21 [pin: Headphones (Green Rear)]
          + [DISABLED] <- nid=22 [pin: Speaker (None)] [DISABLED]

            nid: 12
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: 0 (0x00008001)
            OSS:  (igain)
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x00 0x00]
    connections: 2 enabled 2
          |
          + <- nid=2 [audio output]
          + <- nid=11 [audio mixer]

            nid: 13
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: 1 (0x00000001)
            OSS:  (igain)
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x00 0x00]
    connections: 2 enabled 2
          |
          + <- nid=3 [audio output]
          + <- nid=11 [audio mixer]

            nid: 14 [DISABLED]
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: -2 (0x00000000)
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x80 0x80]
    connections: 2 enabled 1
          |
          + [DISABLED] <- nid=4 [audio output] [DISABLED]
          + <- nid=11 [audio mixer]

            nid: 15 [DISABLED]
           Name: audio mixer
     Widget cap: 0x0020010a
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x80 0x80]
    connections: 2 enabled 2
          |
          + <- nid=2 [audio output]
          + <- nid=11 [audio mixer]

            nid: 16 [DISABLED]
           Name: audio output
     Widget cap: 0x00000611
                 PWR DIGITAL STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000e05e0
                 16 20 24 bits, 44 48 88 96 192 KHz

            nid: 17 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x00400700
                 PWR DIGITAL
        Pin cap: 0x00000010
                 OUT
     Pin config: 0x411111f0
    Pin control: 0x00000000
    connections: 1 enabled 1
          |
          + <- nid=16 [audio output] [DISABLED]

            nid: 18 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x00400401
                 PWR STEREO
        Pin cap: 0x00000020
                 IN
     Pin config: 0x411111f0
    Pin control: 0x00000000

            nid: 19 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x00400401
                 PWR STEREO
        Pin cap: 0x00000020
                 IN
     Pin config: 0x411111f0
    Pin control: 0x00000000

            nid: 20
           Name: pin: Speaker (ATAPI)
     Widget cap: 0x0040058d
                 PWR UNSOL STEREO
    Association: 0 (0x00000001)
        Pin cap: 0x0001003c
                 PDC HP OUT IN EAPD
     Pin config: 0x99130110
    Pin control: 0x00000040 OUT
           EAPD: 0x00000002
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x00 0x00]
    connections: 2 enabled 1
          |
          + <- nid=12 [audio mixer] (selected)
          + [DISABLED] <- nid=13 [audio mixer]

            nid: 21
           Name: pin: Headphones (Green Rear)
     Widget cap: 0x0040058d
                 PWR UNSOL STEREO
    Association: 0 (0x00008000)
        Pin cap: 0x0001003c
                 PDC HP OUT IN EAPD
     Pin config: 0x0121401f
    Pin control: 0x000000c0 HP OUT
           EAPD: 0x00000002
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x00 0x00]
    connections: 2 enabled 1
          |
          + <- nid=12 [audio mixer] (selected)
          + [DISABLED] <- nid=13 [audio mixer]

            nid: 22 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x0040058d
                 PWR UNSOL STEREO
        Pin cap: 0x00000034
                 PDC OUT IN
     Pin config: 0x411111f0
    Pin control: 0x00000000
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x80 0x80]
    connections: 1 enabled 1
          |
          + <- nid=14 [audio mixer] [DISABLED]

            nid: 23 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x0040050c
                 PWR
        Pin cap: 0x00000010
                 OUT
     Pin config: 0x411111f0
    Pin control: 0x00000000
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x80 0x80]
    connections: 1 enabled 1
          |
          + <- nid=15 [audio mixer] [DISABLED]

            nid: 24
           Name: pin: Microphone (Pink Rear)
     Widget cap: 0x0040058f
                 PWR UNSOL STEREO
    Association: 3 (0x00000001)
            OSS: mic (mic)
        Pin cap: 0x00001734
                 PDC OUT IN VREF[ 50 80 GROUND HIZ ]
     Pin config: 0x01a19840
    Pin control: 0x00000024 IN VREFs
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x00 0x00]
      Input amp: 0x00270300
                 mute=0 step=3 size=39 offset=0
      Input val: [0x00 0x00]
    connections: 1 enabled 0
          |
          + [DISABLED] <- nid=14 [audio mixer] [DISABLED]

            nid: 25
           Name: pin: Microphone (ATAPI)
     Widget cap: 0x0040058f
                 PWR UNSOL STEREO
    Association: 4 (0x00000001)
            OSS: monitor (monitor)
        Pin cap: 0x0000173c
                 PDC HP OUT IN VREF[ 50 80 GROUND HIZ ]
     Pin config: 0x99a30950
    Pin control: 0x00000024 IN VREFs
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x00 0x00]
      Input amp: 0x00270300
                 mute=0 step=3 size=39 offset=0
      Input val: [0x02 0x02] [0x00 0x00] [0x00 0x00]
    connections: 3 enabled 0
          |
          + [DISABLED] <- nid=12 [audio mixer] (selected)
          + [DISABLED] <- nid=13 [audio mixer]
          + [DISABLED] <- nid=14 [audio mixer] [DISABLED]

            nid: 26 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x0040058f
                 PWR UNSOL STEREO
        Pin cap: 0x00001734
                 PDC OUT IN VREF[ 50 80 GROUND HIZ ]
     Pin config: 0x411111f0
    Pin control: 0x00000000
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x80 0x80]
      Input amp: 0x00270300
                 mute=0 step=3 size=39 offset=0
      Input val: [0x00 0x00]
    connections: 1 enabled 1
          |
          + <- nid=13 [audio mixer]

            nid: 27 [DISABLED]
           Name: pin: Speaker (None)
     Widget cap: 0x0040058f
                 PWR UNSOL STEREO
        Pin cap: 0x0000173c
                 PDC HP OUT IN VREF[ 50 80 GROUND HIZ ]
     Pin config: 0x411111f0
    Pin control: 0x00000000
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x80 0x80]
      Input amp: 0x00270300
                 mute=0 step=3 size=39 offset=0
      Input val: [0x00 0x00] [0x00 0x00] [0x00 0x00]
    connections: 3 enabled 3
          |
          + <- nid=12 [audio mixer] (selected)
          + <- nid=13 [audio mixer]
          + <- nid=14 [audio mixer] [DISABLED]

            nid: 28 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00000

            nid: 29
           Name: beep widget
     Widget cap: 0x00700400
                 PWR
    Association: -2 (0x00000000)
            OSS: speaker (speaker)

            nid: 30
           Name: pin: SPDIF-out (ATAPI)
     Widget cap: 0x00400780
                 PWR DIGITAL UNSOL
    Association: 2 (0x00000001)
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x99430130
    Pin control: 0x00000040 OUT
    connections: 1 enabled 1
          |
          + <- nid=6 [audio output]

            nid: 31 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00000

            nid: 32 [DISABLED]
           Name: vendor widget
     Widget cap: 0x00f00040
                 PROC

            nid: 33
           Name: pin: Headphones (Black Rear)
     Widget cap: 0x0040058d
                 PWR UNSOL STEREO
    Association: 1 (0x00000001)
        Pin cap: 0x0000001c
                 PDC HP OUT
     Pin config: 0x01211020
    Pin control: 0x000000c0 HP OUT
     Output amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
     Output val: [0x00 0x00]
    connections: 3 enabled 1
          |
          + [DISABLED] <- nid=12 [audio mixer]
          + <- nid=13 [audio mixer] (selected)
          + [DISABLED] <- nid=14 [audio mixer] [DISABLED]

            nid: 34
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: 4 (0x00000001)
            OSS: mix (mix)
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80]
    connections: 10 enabled 3
          |
          + <- nid=24 [pin: Microphone (Pink Rear)]
          + <- nid=25 [pin: Microphone (ATAPI)]
          + [DISABLED] <- nid=26 [pin: Speaker (None)] [DISABLED]
          + [DISABLED] <- nid=27 [pin: Speaker (None)] [DISABLED]
          + <- nid=29 [beep widget]
          + [DISABLED] <- nid=20 [pin: Speaker (ATAPI)]
          + [DISABLED] <- nid=21 [pin: Headphones (Green Rear)]
          + [DISABLED] <- nid=22 [pin: Speaker (None)] [DISABLED]
          + [DISABLED] <- nid=11 [audio mixer]
          + [DISABLED] <- nid=18 [pin: Speaker (None)] [DISABLED]

            nid: 35
           Name: audio mixer
     Widget cap: 0x0020010b
                 STEREO
    Association: 3 (0x00000001)
            OSS: mix (mix)
      Input amp: 0x80000000
                 mute=1 step=0 size=0 offset=0
      Input val: [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80]
    connections: 10 enabled 3
          |
          + <- nid=24 [pin: Microphone (Pink Rear)]
          + <- nid=25 [pin: Microphone (ATAPI)]
          + [DISABLED] <- nid=26 [pin: Speaker (None)] [DISABLED]
          + [DISABLED] <- nid=27 [pin: Speaker (None)] [DISABLED]
          + <- nid=29 [beep widget]
          + [DISABLED] <- nid=20 [pin: Speaker (ATAPI)]
          + [DISABLED] <- nid=21 [pin: Headphones (Green Rear)]
          + [DISABLED] <- nid=22 [pin: Speaker (None)] [DISABLED]
          + [DISABLED] <- nid=11 [audio mixer]
          + [DISABLED] <- nid=19 [pin: Speaker (None)] [DISABLED]


Probing codec #1...
 HDA Codec #1: Lucent/Agere Systems (Unknown)
 HDA Codec ID: 0x11c11040
       Vendor: 0x11c1
       Device: 0x1040
     Revision: 0x02
     Stepping: 0x00
PCI Subvendor: 0x14c31043
   startNode=1 endNode=2
   Found modem FG nid=1 startNode=2 endNode=127 total=125

Processing modem FG cad=1 nid=1...
Powering down...

Probing codec #2...
 HDA Codec #2: NVidia MCP78 HDMI
 HDA Codec ID: 0x10de0006
       Vendor: 0x10de
       Device: 0x0006
     Revision: 0x00
     Stepping: 0x00
PCI Subvendor: 0x14c31043
   startNode=1 endNode=2
   Found audio FG nid=1 startNode=4 endNode=14 total=10

Processing audio FG cad=2 nid=1...
Powering up...
Parsing audio FG...
GPIO: 0x00000000 NumGPIO=0 NumGPO=0 NumGPI=0 GPIWake=0 GPIUnsol=0
 nid  5 0x18560110 as  1 seq  0 Digital-out   Jack  Digital Special Internal Unknown misc 0 NoPresenceDetect
 nid  7 0x58560121 as  2 seq  1 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect
 nid  9 0x58560122 as  2 seq  2 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect
 nid 11 0x58560123 as  2 seq  3 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect
 nid 13 0x58560124 as  2 seq  4 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect
Parsing vendor patch...
Nodes patching. Codec = 2
NumNodes = 1
VHDevice NID= 4 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 5 Config=18560110 (pin: Digital-o) Cap=00000014 Ctrl=00000000 -- Conns: 0=4
VHDevice NID= 6 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 7 Config=58560121 (pin: Digital-o) Cap=00000014 Ctrl=00000000 -- Conns: 0=6
VHDevice NID= 8 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID= 9 Config=58560122 (pin: Digital-o) Cap=00000014 Ctrl=00000000 -- Conns: 0=8
VHDevice NID=10 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=11 Config=58560123 (pin: Digital-o) Cap=00000014 Ctrl=00000000 -- Conns: 0=10
VHDevice NID=12 Config=00000000 (audio output  ) Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=13 Config=58560124 (pin: Digital-o) Cap=00000014 Ctrl=00000000 -- Conns: 0=12
Disabling nonaudio...
Disabling useless...
Patched pins configuration:
 nid  5 0x18560110 as  1 seq  0 Digital-out   Jack  Digital Special Internal Unknown misc 0 NoPresenceDetect
 nid  7 0x58560121 as  2 seq  1 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect [DISABLED]
 nid  9 0x58560122 as  2 seq  2 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect [DISABLED]
 nid 11 0x58560123 as  2 seq  3 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect [DISABLED]
 nid 13 0x58560124 as  2 seq  4 Digital-out   None  Digital Special Internal Unknown misc 0 NoPresenceDetect [DISABLED]
Parsing pin associations...
1 associations found:
Association 0 (1) out:
 Pin nid=5 seq=0
   Redir type=-1 jack=-1 def=0
Building AFG tree...
Tracing association 0 (1)
 Tracing pin 5 with min nid 0
   nid 4 returned 4
  nid 5 returned 4
 Pin 5 traced to DAC 4
Association 0 (1) trace succeeded
Tracing input monitor
Tracing other input monitors
Tracing beeper
Disabling unassociated widgets...
Disabling nonselected inputs...
Disabling useless...
Disabling crossassociated connections...
Disabling useless...
Binding associations to channels...
Assigning names to signal sources...
Parsing Ctls...
Assigning mixers to the tree...
Preparing pin controls...
AFG commit...
Creating PCM devices...
pcmAttach: HDA NVidia MCP78 HDMI PCM #0 Digital at cad 2 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

     Stream cap: 0x00000005
                 AC3 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz
            DAC: 4

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

    nid=5 [pin: Digital-out (HDMI)]
      |
      + <- nid=4 [audio output] [src: pcm] bindSeq=00000001


+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

OSS mixer initialization...
Registering PCM channels...
FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref
HP switch init...

+-------------------+
| DUMPING HDA NODES |
+-------------------+

Default Parameter
-----------------
         IN amp: 0x00000000
        OUT amp: 0x00000000

            nid: 4
           Name: audio output
     Widget cap: 0x00000211
                 DIGITAL STEREO
    Association: 0 (0x00000001)
            OSS: pcm (pcm)
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz

            nid: 5
           Name: pin: Digital-out (HDMI)
     Widget cap: 0x00400381
                 DIGITAL UNSOL STEREO
    Association: 0 (0x00000001)
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x18560110
    Pin control: 0x00000040 OUT
    connections: 1 enabled 1
          |
          + <- nid=4 [audio output]

            nid: 6 [DISABLED]
           Name: audio output
     Widget cap: 0x00000211
                 DIGITAL STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz

            nid: 7 [DISABLED]
           Name: pin: Digital-out (HDMI)
     Widget cap: 0x00400381
                 DIGITAL UNSOL STEREO
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x58560121
    Pin control: 0x00000000
    connections: 1 enabled 1
          |
          + <- nid=6 [audio output] [DISABLED]

            nid: 8 [DISABLED]
           Name: audio output
     Widget cap: 0x00000211
                 DIGITAL STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz

            nid: 9 [DISABLED]
           Name: pin: Digital-out (HDMI)
     Widget cap: 0x00400381
                 DIGITAL UNSOL STEREO
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x58560122
    Pin control: 0x00000000
    connections: 1 enabled 1
          |
          + <- nid=8 [audio output] [DISABLED]

            nid: 10 [DISABLED]
           Name: audio output
     Widget cap: 0x00000211
                 DIGITAL STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz

            nid: 11 [DISABLED]
           Name: pin: Digital-out (HDMI)
     Widget cap: 0x00400381
                 DIGITAL UNSOL STEREO
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x58560123
    Pin control: 0x00000000
    connections: 1 enabled 1
          |
          + <- nid=10 [audio output] [DISABLED]

            nid: 12 [DISABLED]
           Name: audio output
     Widget cap: 0x00000211
                 DIGITAL STEREO
     Stream cap: 0x00000001
                 PCM
        PCM cap: 0x000f00c0
                 8 16 20 24 bits, 48 88 KHz

            nid: 13 [DISABLED]
           Name: pin: Digital-out (HDMI)
     Widget cap: 0x00400381
                 DIGITAL UNSOL STEREO
        Pin cap: 0x00000014
                 PDC OUT
     Pin config: 0x58560124
    Pin control: 0x00000000
    connections: 1 enabled 1
          |
          + <- nid=12 [audio output] [DISABLED]

Please find also my VoodooHDA plist attached :


Great thanks in advance for any help on these two points   :)
Thank you all for your time !



Wonderful forum !!



Link to comment
Share on other sites



Hi guys,

First off all thanks again for this topic !

I installed some weeks ago VoodooHDA 2.8.7 which is a big change compared to the old VoodooHDA that I used before!
Thank you again for the good work!

My first purpose of installing 2.8.7 version was to get the internal mic. I managed to activated by adding this nid :

         <key>NodesToPatch</key>
         <array>
            <dict>
               <key>Codec</key>
               <integer>0</integer>
               <key>Config</key>
               <string>0x99a30950</string>
               <key>Node</key>
               <integer>25</integer>
            </dict>
         </array>
The internal mic is now recognized, but I'm facing two problems not included in those listed in the first post:




Digit 3 in not microphone? it must be 7

0x99a30950

Link to comment
Share on other sites

  • Slice unpinned this topic
  • Slice locked this topic
Guest
This topic is now closed to further replies.
 Share

×
×
  • Create New...
