Aigors Posted January 19, 2016 Share Posted January 19, 2016 Hi friend, as you know can i use Nvidia 980Ti with ozmosis and Yosemite? did it correctly recognized? Link to comment Share on other sites More sharing options...
davidm71 Posted January 19, 2016 Share Posted January 19, 2016 Anyone know if Refind is compatible with Oz? I was up all night trying to boot other Os's without luck. Seems like only Capitan and OS X will load up. Ubuntu, shell, Memtest all give me black screen. Maybe it's not compatible. Thanks. Link to comment Share on other sites More sharing options...
blackosx Posted January 19, 2016 Share Posted January 19, 2016 and here is a new one and Darwin Dumper aswell. kindly find the attachments. Whoa! A 331.7MB html file! Looks like the video bios disassembler has come in to trouble with your video ROM. 001a: ATOM_LEAKID_VOLTAGE asLeakVol [0] : 001a: UCHAR ucLeakageId = 0x00 (0) 001b: UCHAR ucReserved = 0x00 (0) 001c: USHORT usVoltage = 0x03b6 (950) 001e: ATOM_LEAKID_VOLTAGE asLeakVol [1] : 001e: UCHAR ucLeakageId = 0x00 (0) 001f: UCHAR ucReserved = 0x00 (0) 0020: USHORT usVoltage = 0x0d48 (3400) 0022: ATOM_LEAKID_VOLTAGE asLeakVol [2] : 0022: UCHAR ucLeakageId = 0x00 (0) 0023: UCHAR ucReserved = 0x00 (0) 0024: USHORT usVoltage = 0x0094 (148) … … Here’s a fixed HTML file from your dump if you're interested. DarwinDump_Fixed.htm.zip I'll have to add a check for this to prevent it happening again. Sorry for OT. Anyone know if Refind is compatible with Oz? I was up all night trying to boot other Os's without luck. Seems like only Capitan and OS X will load up. Ubuntu, shell, Memtest all give me black screen. Maybe it's not compatible. Thanks. STLVNUB posted he's used it at the start of this thread. http://www.insanelymac.com/forum/topic/291655-ozmosis/?p=1943767 when i add the HermitCsmVideo i must in bios select CSM=Enabled? Some times ago i enabled CSM in my Bios with the Result: Black Screen on all Ports Can this happen again? Ah.. good question and I'm not sure. Here, I cannot disable CSM on my old ASUS mobo, and even if I could I haven't a GOP VBIOS for my ATI 5770 so AFAIK I need CSMVideo. You can either test it yourself or wait and see if someone else can chip in and give a clear answer. Link to comment Share on other sites More sharing options...
bs0d Posted January 19, 2016 Share Posted January 19, 2016 Anyone know if Refind is compatible with Oz? I was up all night trying to boot other Os's without luck. Seems like only Capitan and OS X will load up. Ubuntu, shell, Memtest all give me black screen. Maybe it's not compatible. Thanks. why would you use Refind ? pointless excercise imho. 2 Link to comment Share on other sites More sharing options...
davidm71 Posted January 19, 2016 Share Posted January 19, 2016 why would you use Refind ? pointless excercise imho. Because I could never get the Hermit Shell icon on the boot menu working, and that refind has icons preset for memtest, windows and apple recovery, restart and shutdown icons, recognizes my ubuntu installs, has an icon for efi shell, and i find it a little more customizable. I mean dont get me wrong the Oz xmas boot menu is nice and have no complaints with using it. Thanks. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 19, 2016 Share Posted January 19, 2016 Because I could never get the Hermit Shell icon on the boot menu working... Use motherboard built-in boot manager for shell then... I doubt someone will care enough to make refind work, especial b/c is not necessary. I remember I told you that icon form Oz theme is for built-in firmware EDK1 shell and that is HermitShell you can find in AOS X-MASS release, if you try to use it for something else it will not work... 1 Link to comment Share on other sites More sharing options...
davidm71 Posted January 19, 2016 Share Posted January 19, 2016 I guess I'll use bcfg to create a direct link to hermit shell because despite including that module in my bios and getting a boot menu item created for hermit shell by oz I can't get it to run. Not a biggy. Thanks. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 19, 2016 Share Posted January 19, 2016 I guess I'll use bcfg to create a direct link to hermit shell because despite including that module in my bios and getting a boot menu item created for hermit shell by oz I can't get it to run. Not a biggy. Thanks. Explain "can't get it to run" Post darwindumper. Someone may figure out if is a bug if users provide detailed information. Link to comment Share on other sites More sharing options...
davidm71 Posted January 20, 2016 Share Posted January 20, 2016 Explain "can't get it to run" Post darwindumper. Someone may figure out if is a bug if users provide detailed information. I mean if I click the EDK2 Shell icon nothing happens. About the darwin dump we went over that last month and there was an issue with repeat GUIDs due to a bug in Kext2FFS which was fixed. So now each module has a unique Guid but there are a couple mods I made in my rom bios you would probably point a finger at though I don't believe they are at fault. I'll investigate this further. Thanks for taking the time to respond to my post. I'll let you know. I guess a good idea would be to delete the Hermit Shell module and reinsert it. Maybe its corrupt. I can extract the module and compare it in a hex editor to a fresh copy. Speaking of which anyone have a recent efi Shell program to share? Thanks. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 20, 2016 Share Posted January 20, 2016 Yes I remember the "soup" you had in BIOS that is why I asked for new DarwinDumper dumps... Investigate and when you are done let me know if you got it working or not. The latest shell is the HermitShell from X-MASS release. Link to comment Share on other sites More sharing options...
mhaeuser Posted January 20, 2016 Share Posted January 20, 2016 Is HermitShell in ROM or on HDD anyway? I don't think Oz scans the HDD for stuff... Link to comment Share on other sites More sharing options...
davidm71 Posted January 21, 2016 Share Posted January 21, 2016 Yes I remember the "soup" you had in BIOS that is why I asked for new DarwinDumper dumps... Investigate and when you are done let me know if you got it working or not. The latest shell is the HermitShell from X-MASS release. Still working on that Darwin Dump. My hermit shell is a match for your xmas release. Will remove unnecessary modules and get back to you. Coincidentally I discovered that the last Oz release I had (thanks to dual bios I could tell) the last Oz release I could load hermit shell. Anyhow no longer a mess of a gumbo soup. Edit: Just attached fresh copy of bios rom and darwin dump.. Edit Edit: Had to disable sip to run darwin dump unencumbered. Please re-download. Is HermitShell in ROM or on HDD anyway? I don't think Oz scans the HDD for stuff... Its in my rom. Just can't get it to load on demand. Was studying the QUO release and they have btfrs and extfs modules. Are they necessary? Also does the order of module insertion matter? For example a few of their filesystem modules are listed early on starting as the 7th module and hermit shell is also inserted in the upper third of the rom module list unlike in my rom all the oz files are inserted at the bottom of the 2nd volume in my rom. Thanks OZ-01-20-16-Z87.rom.zip DarwinDumper_2.9.9.2_Ozmosis_1.03.167X-MASS_Cap_david.zip Link to comment Share on other sites More sharing options...
Johnl Posted January 21, 2016 Share Posted January 21, 2016 The best way to arrange your proper and totally funcional ssdt/C&P states at all is to follow posted LINK. It´s for all newer osx. I solved my C&P states and now i have fully funcional 21 P-states from 0,8GHz-3,1GHz (switched off turbo in BIOS). Thanks for the link. Link to comment Share on other sites More sharing options...

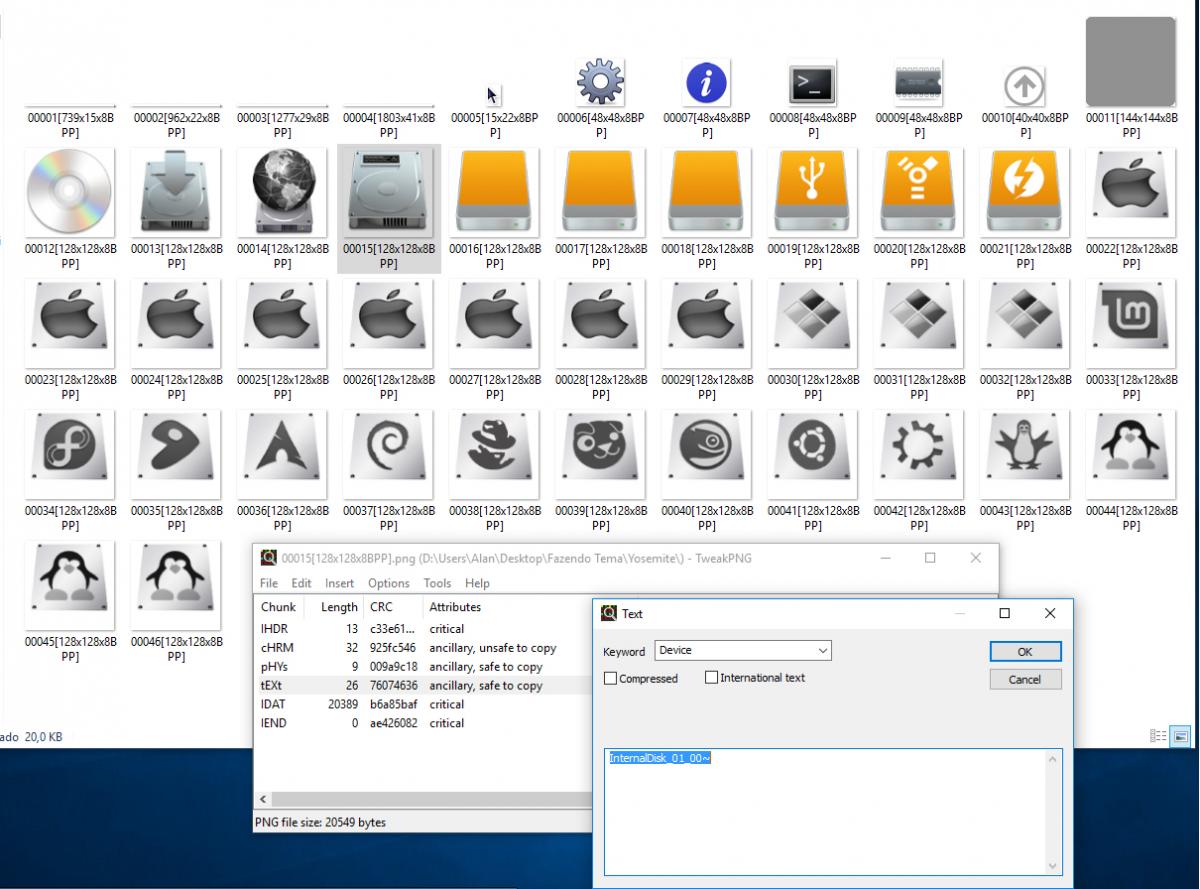

alanlcarlos Posted January 21, 2016 Share Posted January 21, 2016 My Ozmosis Theme There are some pictures, that I hope they understand as the theme was created. Tutorial Ozmois Theme.7z 1 Link to comment Share on other sites More sharing options...
NSCXP2005 Posted January 21, 2016 Share Posted January 21, 2016 Hi all, I know this might be a strange question to ask but, Does anybody know if Ozmosis will work on an Intel NUC5i7RYH? Thanks for your time. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 22, 2016 Share Posted January 22, 2016 ..Was studying the QUO release and they have btfrs and extfs modules. Are they necessary? ... 04:656 00:010 Validated Boot0003 "Linux 3.19.0-15-generic" 04:656 00:000 PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x1,0xFFFF,0x0)/HD(4,GPT,4D002536-5598-4BDC-A93B-B14661123998,0xECBA000,0x2E90000)/\boot\vmlinuz-3.19.0-15-generic (0x8E) Did you installed Linux or somebody else did it for you? 18:306 00:000 Injecting IntelMausiEthernet.kext "Driver-2AF3000" 0x1EAAA bytes 18:306 00:000 Injecting AppleHDADisabler.kext "Driver-2B12000" 0x7A4C bytes 18:306 00:000 Injecting VoodooHDA.kext "Driver-2B1A000" 0x320B1 bytes 18:306 00:000 Injecting FakePCIID.kext "Driver-2B4D000" 0xD04D bytes 18:306 00:000 Injecting FakePCIID_XHCIMux.kext "Driver-2B5B000" 0xC4D9 bytes 18:308 00:001 Injecting FakeSMC "Driver-2B68000" (0xA81EF000) 118644 bytes 18:309 00:000 Injecting CPUSensors "Driver-2B85000" (0xA820C000) 46688 bytes 18:310 00:001 Injecting Super I/O Family "Driver-2B91000" (0xA8218000) 94460 bytes 18:312 00:002 Injecting GPUSensors "Driver-2BA9000" (0xA8230000) 137976 bytes 18:316 00:003 Injecting VoodooHDA "Driver-2BCB000" (0xA8252000) 207748 bytes 18:316 00:000 Injecting FakePCIID.Rev-1.2.3 "Driver-2BFE000" (0xA8285000) 53335 bytes 18:316 00:000 Injecting FakePCIID_Intel_GbX.Rev-1.2.3 "Driver-2C0C000" (0xA8293000) 1912 bytes 18:316 00:000 Injecting FakePCIID_XHCIMux.Rev-1.2.3 "Driver-2C0D000" (0xA8294000) 50405 bytes Thought you fixed the "soup"? Why are you loading from ESP the same kexts you added in firmware? I mean if I click the EDK2 Shell icon nothing happens. But if you start HermitShell(Built-In EDK Shell) from F12 menu works? Link to comment Share on other sites More sharing options...
davidm71 Posted January 22, 2016 Share Posted January 22, 2016 Did you installed Linux or somebody else did it for you? No one but me. I installed Ubuntu. 18:306 00:000 Injecting IntelMausiEthernet.kext "Driver-2AF3000" 0x1EAAA bytes18:306 00:000 Injecting AppleHDADisabler.kext "Driver-2B12000" 0x7A4C bytes18:306 00:000 Injecting VoodooHDA.kext "Driver-2B1A000" 0x320B1 bytes18:306 00:000 Injecting FakePCIID.kext "Driver-2B4D000" 0xD04D bytes18:306 00:000 Injecting FakePCIID_XHCIMux.kext "Driver-2B5B000" 0xC4D9 bytes18:308 00:001 Injecting FakeSMC "Driver-2B68000" (0xA81EF000) 118644 bytes18:309 00:000 Injecting CPUSensors "Driver-2B85000" (0xA820C000) 46688 bytes18:310 00:001 Injecting Super I/O Family "Driver-2B91000" (0xA8218000) 94460 bytes18:312 00:002 Injecting GPUSensors "Driver-2BA9000" (0xA8230000) 137976 bytes18:316 00:003 Injecting VoodooHDA "Driver-2BCB000" (0xA8252000) 207748 bytes18:316 00:000 Injecting FakePCIID.Rev-1.2.3 "Driver-2BFE000" (0xA8285000) 53335 bytes18:316 00:000 Injecting FakePCIID_Intel_GbX.Rev-1.2.3 "Driver-2C0C000" (0xA8293000) 1912 bytes18:316 00:000 Injecting FakePCIID_XHCIMux.Rev-1.2.3 "Driver-2C0D000" (0xA8294000) 50405 bytesThought you fixed the "soup"? The soup is a lot lighter. Low fat.. Why are you loading from ESP the same kexts you added in firmware? I must have forgotten to remove them. But if you start HermitShell(Built-In EDK Shell) from F12 menu works? No HermitShell does not load even from F12. It use to work on the last release of OZ but stopped working on xmas release. I used Ozmtool to transfer the new modules over. I suspect maybe either the acpi configuration, dsdt, or defaults file is to blame. Thank you. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 22, 2016 Share Posted January 22, 2016 No one but me. I installed Ubuntu. Then how you ask if btrfs/extfs is needed? Or you installed Linux on FAT32? Link to comment Share on other sites More sharing options...
davidm71 Posted January 22, 2016 Share Posted January 22, 2016 Then how you ask if btrfs/extfs is needed? Or you installed Linux on FAT32? Stupid question. I installed Ubuntu on Ext2 or 4 partitions I created following a guide on the Refind site last year. As it turns out if I create a manual bcfg boot entry to Ubuntu it will load. Just cant get Oz to scan for Ubuntu. Last version of Oz could do it though. thanks Link to comment Share on other sites More sharing options...
THe KiNG Posted January 22, 2016 Share Posted January 22, 2016 Last version of Oz could do it though.thanksIs in release notes, guess nobody read them. Link to comment Share on other sites More sharing options...
dijitalxyz Posted January 22, 2016 Share Posted January 22, 2016 I need help again H81M-E-ASUS-M52AD BIOS 0604 http://dlcdnet.asus.com/pub/ASUS/Desktop/M52AD/H81M-E-ASUS-M52AD-0604CAP.rar I can't inject osmosis in BIOS Link to comment Share on other sites More sharing options...
Tusskan Posted January 22, 2016 Share Posted January 22, 2016 what modules should i delete to obtain extra space in the MB's rom? if i removed some legacy ones is my BIos going to beep?(i mean something like Csr ones) Link to comment Share on other sites More sharing options...
THe KiNG Posted January 23, 2016 Share Posted January 23, 2016 what modules should i delete to obtain extra space in the MB's rom? if i removed some legacy ones is my BIos going to beep?(i mean something like Csr ones) If you bother to read what I said/look on example I uploaded, you will find the answer, all you need is to spend few minutes and compare files like I did: There is no "Csr" in your BIOS, if you look on released AOS BIOS you will find more that you can delete compared with stock Gigabyte BIOS... Link to comment Share on other sites More sharing options...

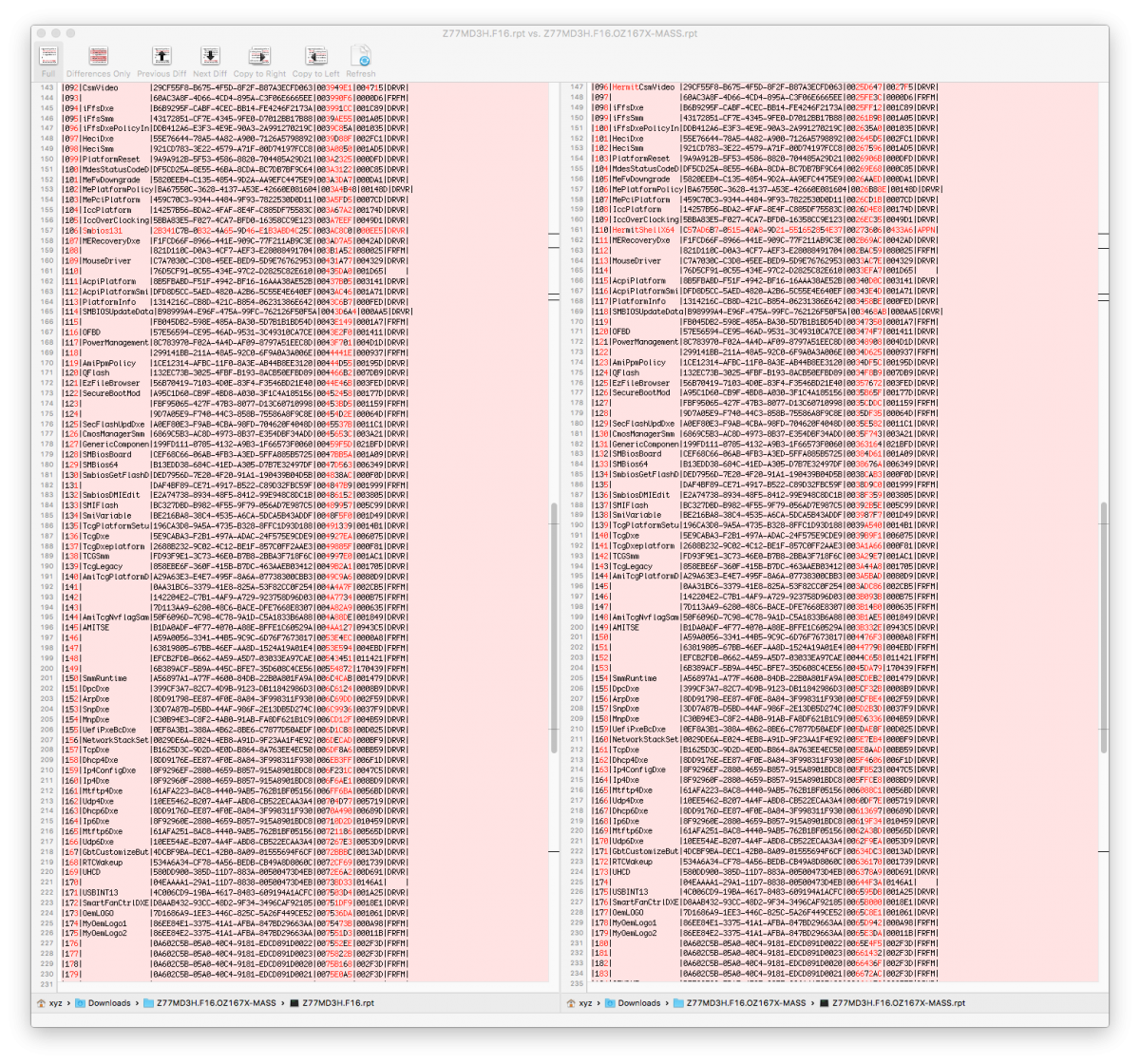

Tusskan Posted January 24, 2016 Share Posted January 24, 2016 If you bother to read what I said/look on example I uploaded, you will find the answer, all you need is to spend few minutes and compare files like I did: Compare.png There is no "Csr" in your BIOS, if you look on released AOS BIOS you will find more that you can delete compared with stock Gigabyte BIOS... How do i compare Z87 BIOS to Z77 one? they will definitely have conflicts. Link to comment Share on other sites More sharing options...
THe KiNG Posted January 24, 2016 Share Posted January 24, 2016 There is no "Csr" in your BIOS, if you look on released AOS BIOS you will find more that you can delete compared with stock Gigabyte BIOS... How do i compare Z87 BIOS to Z77 one? they will definitely have conflicts. Where do I said to compare with Z87? I said to compare original AOS(Gigabyte) BIOS with Hermit released one, that way you can easy see what was removed/replaced. And anyway there isn't much diff b/w Z77/Z87 firmware, only on APTIO V there are, but again you need to look/seek for answers to know that... Link to comment Share on other sites More sharing options...
