Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 I'm currently using the i7-4770k on an Asus Maximus VI Gene motherboard. WiFi 802.11ac and Bluetooth 4.0 is native through a custom PCI Express card. Combined with a stock Nvidia GTX 780. Airplay Mirroring even works with the MacPro5,1 SMBIOS, as I managed to have the HD4600 active as well. Link to comment Share on other sites More sharing options...
Bruxo Posted January 3, 2014 Share Posted January 3, 2014 Fab1Man you are a genius! Frankiee you have the key to my answers! Mac-F60DEB81FF30ACF6.plist show that SSDT be obsolete! Nothing confirmed yet, but States be introduced by Apple this plist: <key>ringFreqTables</key> <array> <array> <dict> <key>gtFreq</key> <integer>700</integer> <key>ringFreq</key> <integer>1100</integer> </dict> <dict> <key>gtFreq</key> <integer>750</integer> <key>ringFreq</key> <integer>1100</integer> </dict> <dict> <key>gtFreq</key> <integer>800</integer> <key>ringFreq</key> <integer>1200</integer> </dict> <dict> <key>gtFreq</key> <integer>850</integer> <key>ringFreq</key> <integer>1300</integer> </dict> <dict> <key>gtFreq</key> <integer>900</integer> <key>ringFreq</key> <integer>1600</integer> </dict> <dict> <key>gtFreq</key> <integer>950</integer> <key>ringFreq</key> <integer>1700</integer> </dict> <dict> <key>gtFreq</key> <integer>1000</integer> <key>ringFreq</key> <integer>1800</integer> </dict> <dict> <key>gtFreq</key> <integer>1050</integer> <key>ringFreq</key> <integer>1900</integer> </dict> <dict> <key>gtFreq</key> <integer>1100</integer> <key>ringFreq</key> <integer>2000</integer> </dict> <dict> <key>gtFreq</key> <integer>1150</integer> <key>ringFreq</key> <integer>2100</integer> </dict> <dict> <key>gtFreq</key> <integer>1200</integer> <key>ringFreq</key> <integer>2200</integer> </dict> <dict> <key>gtFreq</key> <integer>1250</integer> <key>ringFreq</key> <integer>2300</integer> </dict> <dict> <key>gtFreq</key> <integer>1300</integer> <key>ringFreq</key> <integer>2300</integer> </dict> Here we see 13 States processing; If this is true then we can introduce our own States of SSDT. I will do tests and soon return to more realistic conclusions!!!!! 1 Link to comment Share on other sites More sharing options...
Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 It's not my idea, but it's very badly documented and with some nifty Google searching, I found it out. For anyone that doesn't know... First you go to you X86PlatformPlugin.kext's Resource folder: cd /System/Library/Extensions/IOPlatformPluginFamily.kext/Contents/PlugIns/X86PlatformPlugin.kext/Contents/Resources/ Then find out what the Board-ID is from the Mac you want to use SpeedStep from, in my case iMac14,2. I then make a copy of the .plist changing the name to the MacPro5,1 Board-ID: sudo cp Mac-27ADBB7B4CEE8E61.plist Mac-F221BEC8.plist It should then load the appropriate Power Management states of the iMac14,2 and apply them on the MacPro5,1 SMBIOS. My Ivy Bridge build worked this way, this does generate P states, but not the right ones I have the feeling. You can see it does load AGPMEnabler, but I only get P states 8, 35 and 39. Or maybe it just doesn't generate enough? Link to comment Share on other sites More sharing options...
Bruxo Posted January 3, 2014 Share Posted January 3, 2014 It's not my idea, but it's very badly documented and with some nifty Google searching, I found it out. For anyone that doesn't know... First you go to you X86PlatformPlugin.kext's Resource folder: cd /System/Library/Extensions/IOPlatformPluginFamily.kext/Contents/PlugIns/X86PlatformPlugin.kext/Contents/Resources/ Then find out what the Board-ID is from the Mac you want to use SpeedStep from, in my case iMac14,2. I then make a copy of the .plist changing the name to the MacPro5,1 Board-ID: sudo cp Mac-27ADBB7B4CEE8E61.plist Mac-F221BEC8.plist It should then load the appropriate Power Management states of the iMac14,2 and apply them on the MacPro5,1 SMBIOS. My Ivy Bridge build worked this way, this does generate P states, but not the right ones I have the feeling. You can see it does load AGPMEnabler, but I only get P states 8, 35 and 39. Or maybe it just doesn't generate enough? You have prepared for SSDT CStates correct? Link to comment Share on other sites More sharing options...
Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 I generated it with ssdtPRGen, I'll attach it together with my DSDT and IOReg. Archive.zip Link to comment Share on other sites More sharing options...
Pike R. Alpha Posted January 3, 2014 Share Posted January 3, 2014 I'm currently using the i7-4770k on an Asus Maximus VI Gene motherboard. WiFi 802.11ac and Bluetooth 4.0 is native through a custom PCI Express card. Combined with a stock Nvidia GTX 780. Airplay Mirroring even works with the MacPro5,1 SMBIOS, as I managed to have the HD4600 active as well. You only need to copy the FrequencyVector data from Mac-2BD1B31983FE1663.plist (MacBookPro11,3) into your Mac-F60DEB81FF30ACF6.plist and then it will support your Haswell processor. @Bruxo: Sorry to disappoint you, but ringFreqTables are used since I don't know how long ago; one example is the MacBookAir4,1 Link to comment Share on other sites More sharing options...
Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 I don't have both .plist as I'm still on 10.9.1. Nevertheless, I used the iMac14,2's FrequencyVector data, but that doesn't seem to work, does is have to be MacBookPro11,3? Link to comment Share on other sites More sharing options...
Simonej Posted January 3, 2014 Share Posted January 3, 2014 You only need to copy the FrequencyVector data from Mac-2BD1B31983FE1663.plist (MacBookPro11,3) into your Mac-F60DEB81FF30ACF6.plist and then it will support your Haswell processor. For us that we have MacPro5,1 SMBIOS can we create Mac-F221BEC8.plist with F.Vector? It help us with Haswell or must change SMBIOS in MacPro6,1? Link to comment Share on other sites More sharing options...
Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 For us that we have MacPro5,1 SMBIOS can we create Mac-F221BEC8.plist with F.Vector? It help us with Haswell or must change SMBIOS in MacPro6,1? I already did that with the iMac14,2-Board-ID.plist, which has FrequencyVector data (that iMac also has an i7 Haswell configuration), but PM doesn't work for me. Link to comment Share on other sites More sharing options...
apianti Posted January 3, 2014 Share Posted January 3, 2014 Why do you say that? First. The new Mac Pro comes with Ivy Bridge Xeon's and isn't even available with a single Haswell processor, and secondly. Apple uses FrequencyVectors for models that come with a Haswell processor, to support a new feature in Mavericks. One of them being: In OS X Mavericks, Timer Coalescing groups low-level operations together, creating tiny periods of idle time that allow your CPU to enter a low-power state more often. With its activity reduced up to 72 percent, the CPU uses less energy, giving your battery a break, too. This happens so fast you won’t notice a thing. And your Mac still gets just as much done just as quickly. Note: This feature is currently not supported by the new Mac Pro. Oh, you're right, I just didn't say what I meant. But weirdly timer coalescing actually makes it so your cpu enters and exits the low power state less frequently, because it's super costly and timers are allowed to be less precise, so unsure why it says that. It will just stay in the low power state longer.... You only need to copy the FrequencyVector data from Mac-2BD1B31983FE1663.plist (MacBookPro11,3) into your Mac-F60DEB81FF30ACF6.plist and then it will support your Haswell processor. @Bruxo: Sorry to disappoint you, but ringFreqTables are used since I don't know how long ago; one example is the MacBookAir4,1 This is what I meant. To copy the macbookpro smbios information into what he's using, unless he was going to use the macbookpro smbios. Not getting enough sleep........................ Link to comment Share on other sites More sharing options...
frankiee Posted January 3, 2014 Share Posted January 3, 2014 OK, so unfortunately, I didn't manage to get much further. So I have installed 10.9.2 with 6,1 SMBIOS, but still without CPU PM (stuck at x34 multiplier). Next I generated a custom SSDT using the ssdtPRGen.sh script, but that did not seem to change much. Sleep behaves at the moment just like with my main config, ie does not enter full sleep state anymore and is not able to wake up either from this state. GK110 GPU PM is also not working 100% yet, but this is still the issue between OpenCL and the NVIDIA driver, so let's hope they release some new webdrivers soon. USB also still the same. But I think in regard to CPU PM it is still me, missing something with the CPU config, so any help still greatly appreciated! I don't see any device ids because I think in linux you need to also specify -n or -nn. It must be a device id issue as linux is using the generic ehci pci driver... OK, so I produced another file, using "sudo lspci -vv -nn > output.txt" (still in Ubuntu) here it is - if you need a somewhat better output, let me know: 00:00.0 Host bridge [0600]: Intel Corporation Xeon E5 v2/Core i7 DMI2 [8086:0e00] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Interrupt: pin A routed to IRQ 0 Capabilities: [90] Express (v2) Root Port (Slot-), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 2.5GT/s, Width x4, ASPM L1, Latency L0 <512ns, L1 <16us ClockPM- Surprise+ LLActRep+ BwNot+ LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BCD, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [e0] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [100 v1] Vendor Specific Information: ID=0002 Rev=0 Len=00c <?> Capabilities: [144 v1] Vendor Specific Information: ID=0004 Rev=1 Len=03c <?> Capabilities: [1d0 v1] Vendor Specific Information: ID=0003 Rev=1 Len=00a <?> Capabilities: [280 v1] Vendor Specific Information: ID=0005 Rev=3 Len=018 <?> 00:01.0 PCI bridge [0604]: Intel Corporation Xeon E5 v2/Core i7 PCI Express Root Port 1a [8086:0e02] (rev 04) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=02, subordinate=02, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [60] MSI: Enable- Count=1/2 Maskable+ 64bit- Address: 00000000 Data: 0000 Masking: 00000000 Pending: 00000000 Capabilities: [90] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM unknown, Latency L0 unlimited, L1 <16us ClockPM- Surprise+ LLActRep+ BwNot+ LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x0, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #1, PowerLimit 25.000W; Interlock- NoCompl- SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Off, PwrInd Off, Power+ Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BCD, TimeoutDis+ ARIFwd+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [e0] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [100 v1] Vendor Specific Information: ID=0002 Rev=0 Len=00c <?> Capabilities: [110 v1] Access Control Services ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans- ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans- Capabilities: [148 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn- Capabilities: [1d0 v1] Vendor Specific Information: ID=0003 Rev=1 Len=00a <?> Capabilities: [250 v1] #19 Capabilities: [280 v1] Vendor Specific Information: ID=0005 Rev=3 Len=018 <?> Kernel driver in use: pcieport 00:02.0 PCI bridge [0604]: Intel Corporation Xeon E5 v2/Core i7 PCI Express Root Port 2a [8086:0e04] (rev 04) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=01, subordinate=01, sec-latency=0 I/O behind bridge: 0000e000-0000efff Memory behind bridge: fa000000-fb0fffff Prefetchable memory behind bridge: 00000000f0000000-00000000f9ffffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [60] MSI: Enable- Count=1/2 Maskable+ 64bit- Address: 00000000 Data: 0000 Masking: 00000000 Pending: 00000000 Capabilities: [90] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 256 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM unknown, Latency L0 unlimited, L1 <16us ClockPM- Surprise+ LLActRep+ BwNot+ LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #4, PowerLimit 75.000W; Interlock- NoCompl- SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Off, PwrInd Off, Power+ Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BCD, TimeoutDis+ ARIFwd+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+, EqualizationPhase1+ EqualizationPhase2+, EqualizationPhase3+, LinkEqualizationRequest- Capabilities: [e0] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [100 v1] Vendor Specific Information: ID=0002 Rev=0 Len=00c <?> Capabilities: [110 v1] Access Control Services ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans- ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans- Capabilities: [148 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn- Capabilities: [1d0 v1] Vendor Specific Information: ID=0003 Rev=1 Len=00a <?> Capabilities: [250 v1] #19 Capabilities: [280 v1] Vendor Specific Information: ID=0005 Rev=3 Len=018 <?> Kernel driver in use: pcieport 00:03.0 PCI bridge [0604]: Intel Corporation Xeon E5 v2/Core i7 PCI Express Root Port 3a [8086:0e08] (rev 04) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [60] MSI: Enable- Count=1/2 Maskable+ 64bit- Address: 00000000 Data: 0000 Masking: 00000000 Pending: 00000000 Capabilities: [90] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM unknown, Latency L0 unlimited, L1 <16us ClockPM- Surprise+ LLActRep+ BwNot+ LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x0, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #3, PowerLimit 75.000W; Interlock- NoCompl- SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Off, PwrInd Off, Power+ Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BCD, TimeoutDis+ ARIFwd+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [e0] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [100 v1] Vendor Specific Information: ID=0002 Rev=0 Len=00c <?> Capabilities: [110 v1] Access Control Services ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans- ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans- Capabilities: [148 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn- Capabilities: [1d0 v1] Vendor Specific Information: ID=0003 Rev=1 Len=00a <?> Capabilities: [250 v1] #19 Capabilities: [280 v1] Vendor Specific Information: ID=0005 Rev=3 Len=018 <?> Kernel driver in use: pcieport 00:05.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 VTd/Memory Map/Misc [8086:0e28] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v2) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- 00:05.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 IIO RAS [8086:0e2a] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v2) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- 00:05.4 PIC [0800]: Intel Corporation Xeon E5 v2/Core i7 IOAPIC [8086:0e2c] (rev 04) (prog-if 20 [IO(X)-APIC]) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Region 0: Memory at fb62a000 (32-bit, non-prefetchable) [size=4K] Capabilities: [44] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Capabilities: [e0] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- 00:11.0 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Virtual Root Port [8086:1d3e] (rev 06) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #17, Speed 2.5GT/s, Width x1, ASPM L0s L1, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [88] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [90] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn- Capabilities: [138 v1] Access Control Services ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+ ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans- Kernel driver in use: pcieport 00:16.0 Communication controller [0780]: Intel Corporation C600/X79 series chipset MEI Controller #1 [8086:1d3a] (rev 05) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 98 Region 0: Memory at fb629000 (64-bit, non-prefetchable) [size=16] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable- 64bit+ Address: 00000000fee00000 Data: 40c4 Kernel driver in use: mei_me 00:19.0 Ethernet controller [0200]: Intel Corporation 82579V Gigabit Network Connection [8086:1503] (rev 06) Subsystem: ASUSTeK Computer Inc. P8P67 Deluxe Motherboard [1043:849c] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 96 Region 0: Memory at fb600000 (32-bit, non-prefetchable) [size=128K] Region 1: Memory at fb628000 (32-bit, non-prefetchable) [size=4K] Region 2: I/O ports at f040 [size=32] Capabilities: [c8] Power Management version 2 Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=1 PME- Capabilities: [d0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Address: 00000000fee06000 Data: 40d5 Capabilities: [e0] PCI Advanced Features AFCap: TP+ FLR+ AFCtrl: FLR- AFStatus: TP- Kernel driver in use: e1000e 00:1a.0 USB controller [0c03]: Intel Corporation C600/X79 series chipset USB2 Enhanced Host Controller #2 [8086:1d2d] (rev 06) (prog-if 20 [EHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at fb627000 (32-bit, non-prefetchable) [size=1K] Capabilities: [50] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [58] Debug port: BAR=1 offset=00a0 Capabilities: [98] PCI Advanced Features AFCap: TP+ FLR+ AFCtrl: FLR- AFStatus: TP- Kernel driver in use: ehci-pci 00:1b.0 Audio device [0403]: Intel Corporation C600/X79 series chipset High Definition Audio Controller [8086:1d20] (rev 06) Subsystem: ASUSTeK Computer Inc. Device [1043:84f8] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 99 Region 0: Memory at fb620000 (64-bit, non-prefetchable) [size=16K] Capabilities: [50] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [60] MSI: Enable+ Count=1/1 Maskable- 64bit+ Address: 00000000fee00000 Data: 40e4 Capabilities: [70] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset+ DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- VC1: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=2 ArbSelect=Fixed TC/VC=44 Status: NegoPending- InProgress- Capabilities: [130 v1] Root Complex Link Desc: PortNumber=0f ComponentID=00 EltType=Config Link0: Desc: TargetPort=00 TargetComponent=00 AssocRCRB- LinkType=MemMapped LinkValid+ Addr: 00000000fed1c000 Kernel driver in use: snd_hda_intel 00:1c.0 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Root Port 1 [8086:1d10] (rev b6) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=05, subordinate=06, sec-latency=0 Memory behind bridge: fb500000-fb5fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM- Surprise- LLActRep+ BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #0, PowerLimit 10.000W; Interlock- NoCompl+ SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BC, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [90] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [a0] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Kernel driver in use: pcieport 00:1c.1 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Root Port 2 [8086:1d12] (rev b6) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=07, subordinate=07, sec-latency=0 Memory behind bridge: fb400000-fb4fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #2, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM- Surprise- LLActRep+ BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #1, PowerLimit 10.000W; Interlock- NoCompl+ SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BC, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [90] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [a0] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Kernel driver in use: pcieport 00:1c.2 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Root Port 3 [8086:1d14] (rev b6) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=08, subordinate=08, sec-latency=0 Memory behind bridge: fb300000-fb3fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #3, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM- Surprise- LLActRep+ BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #2, PowerLimit 10.000W; Interlock- NoCompl+ SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BC, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [90] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [a0] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Kernel driver in use: pcieport 00:1c.3 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Root Port 4 [8086:1d16] (rev b6) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=09, subordinate=09, sec-latency=0 Memory behind bridge: fb200000-fb2fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #4, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM- Surprise- LLActRep+ BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #3, PowerLimit 10.000W; Interlock- NoCompl+ SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BC, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [90] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [a0] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Kernel driver in use: pcieport 00:1c.4 PCI bridge [0604]: Intel Corporation C600/X79 series chipset PCI Express Root Port 5 [8086:1d18] (rev b6) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=0a, subordinate=0a, sec-latency=0 Memory behind bridge: fb100000-fb1fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #5, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM- Surprise- LLActRep+ BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt- SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise- Slot #4, PowerLimit 10.000W; Interlock- NoCompl+ SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg- Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock- SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock- Changed: MRL- PresDet- LinkState- RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible- RootCap: CRSVisible- RootSta: PME ReqID 0000, PMEStatus- PMEPending- DevCap2: Completion Timeout: Range BC, TimeoutDis+ ARIFwd- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit- Address: 00000000 Data: 0000 Capabilities: [90] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Capabilities: [a0] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Kernel driver in use: pcieport 00:1d.0 USB controller [0c03]: Intel Corporation C600/X79 series chipset USB2 Enhanced Host Controller #1 [8086:1d26] (rev 06) (prog-if 20 [EHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 23 Region 0: Memory at fb626000 (32-bit, non-prefetchable) [size=1K] Capabilities: [50] Power Management version 2 Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0+,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [58] Debug port: BAR=1 offset=00a0 Capabilities: [98] PCI Advanced Features AFCap: TP+ FLR+ AFCtrl: FLR- AFStatus: TP- Kernel driver in use: ehci-pci 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev a6) (prog-if 01 [Subtractive decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Bus: primary=00, secondary=0b, subordinate=0b, sec-latency=32 Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [50] Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] 00:1f.0 ISA bridge [0601]: Intel Corporation C600/X79 series chipset LPC Controller [8086:1d41] (rev 06) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Capabilities: [e0] Vendor Specific Information: Len=0c <?> Kernel driver in use: lpc_ich 00:1f.2 SATA controller [0106]: Intel Corporation C600/X79 series chipset 6-Port SATA AHCI Controller [8086:1d02] (rev 06) (prog-if 01 [AHCI 1.0]) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 97 Region 0: I/O ports at f090 [size=8] Region 1: I/O ports at f080 [size=4] Region 2: I/O ports at f070 [size=8] Region 3: I/O ports at f060 [size=4] Region 4: I/O ports at f020 [size=32] Region 5: Memory at fb625000 (32-bit, non-prefetchable) [size=2K] Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit- Address: fee06000 Data: 40a5 Capabilities: [70] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [a8] SATA HBA v1.0 BAR4 Offset=00000004 Capabilities: [b0] PCI Advanced Features AFCap: TP+ FLR+ AFCtrl: FLR- AFStatus: TP- Kernel driver in use: ahci 00:1f.3 SMBus [0c05]: Intel Corporation C600/X79 series chipset SMBus Host Controller [8086:1d22] (rev 06) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O+ Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Interrupt: pin C routed to IRQ 255 Region 0: Memory at fb624000 (64-bit, non-prefetchable) [disabled] [size=256] Region 4: I/O ports at f000 [size=32] 01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GK110 [GeForce GTX Titan] [10de:1005] (rev a1) (prog-if 00 [VGA controller]) Subsystem: NVIDIA Corporation GeForce GTX Titan [10de:1035] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 32 Region 0: Memory at fa000000 (32-bit, non-prefetchable) [size=16M] Region 1: Memory at f0000000 (64-bit, prefetchable) [size=128M] Region 3: Memory at f8000000 (64-bit, prefetchable) [size=32M] Region 5: I/O ports at e000 [size=128] Expansion ROM at fb000000 [disabled] [size=512K] Capabilities: [60] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [78] Express (v2) Endpoint, MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s unlimited, L1 <64us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM+ Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range AB, TimeoutDis+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+, EqualizationPhase1+ EqualizationPhase2+, EqualizationPhase3+, LinkEqualizationRequest- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- Capabilities: [128 v1] Power Budgeting <?> Capabilities: [420 v2] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+ AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn- Capabilities: [600 v1] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?> Capabilities: [900 v1] #19 Kernel driver in use: nouveau 01:00.1 Audio device [0403]: NVIDIA Corporation GK110 HDMI Audio [10de:0e1a] (rev a1) Subsystem: NVIDIA Corporation Device [10de:1035] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 36 Region 0: Memory at fb080000 (32-bit, non-prefetchable) [size=16K] Capabilities: [60] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [78] Express (v2) Endpoint, MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s unlimited, L1 <64us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM L0s L1, Latency L0 <512ns, L1 <4us ClockPM+ Surprise- LLActRep- BwNot- LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range AB, TimeoutDis+ DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Kernel driver in use: snd_hda_intel 05:00.0 PCI bridge [0604]: Texas Instruments XIO2000(A)/XIO2200A PCI Express-to-PCI Bridge [104c:8231] (rev 03) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=05, secondary=06, subordinate=06, sec-latency=32 Memory behind bridge: fb500000-fb5fffff Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: [50] Power Management version 2 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Bridge: PM- B3+ Capabilities: [60] MSI: Enable- Count=1/16 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [80] Subsystem: Device [5678:1234] Capabilities: [90] Express (v1) PCI/PCI-X Bridge, MSI 00 DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ BrConfRtry- MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr- UncorrErr+ FatalErr- UnsuppReq- AuxPwr+ TransPend- LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr- AERCap: First Error Pointer: 00, GenCap+ CGenEn- ChkCap+ ChkEn- 06:00.0 FireWire (IEEE 1394) [0c00]: Texas Instruments XIO2200A IEEE-1394a-2000 Controller (PHY/Link) [104c:8235] (rev 01) (prog-if 10 [OHCI]) Subsystem: Texas Instruments Device [104c:2200] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 32 (500ns min, 1000ns max), Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 16 Region 0: Memory at fb504000 (32-bit, non-prefetchable) [size=2K] Region 1: Memory at fb500000 (32-bit, non-prefetchable) [size=16K] Capabilities: [44] Power Management version 2 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold-) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME+ Kernel driver in use: firewire_ohci 07:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller [1b21:1042] (prog-if 30 [XHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:8488] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 17 Region 0: Memory at fb400000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [68] MSI-X: Enable+ Count=8 Masked- Vector table: BAR=0 offset=00002000 PBA: BAR=0 offset=00002080 Capabilities: [78] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0-,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [80] Express (v2) Legacy Endpoint, MSI 00 DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <2us ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 unlimited, L1 unlimited ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- Kernel driver in use: xhci_hcd 08:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller [1b21:1042] (prog-if 30 [XHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:8488] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 18 Region 0: Memory at fb300000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [68] MSI-X: Enable+ Count=8 Masked- Vector table: BAR=0 offset=00002000 PBA: BAR=0 offset=00002080 Capabilities: [78] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0-,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [80] Express (v2) Legacy Endpoint, MSI 00 DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <2us ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 unlimited, L1 unlimited ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- Kernel driver in use: xhci_hcd 09:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller [1b21:1042] (prog-if 30 [XHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:8488] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 19 Region 0: Memory at fb200000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [68] MSI-X: Enable+ Count=8 Masked- Vector table: BAR=0 offset=00002000 PBA: BAR=0 offset=00002080 Capabilities: [78] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0-,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [80] Express (v2) Legacy Endpoint, MSI 00 DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <2us ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 unlimited, L1 unlimited ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- Kernel driver in use: xhci_hcd 0a:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller [1b21:1042] (prog-if 30 [XHCI]) Subsystem: ASUSTeK Computer Inc. Device [1043:8488] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 16 Region 0: Memory at fb100000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [68] MSI-X: Enable+ Count=8 Masked- Vector table: BAR=0 offset=00002000 PBA: BAR=0 offset=00002080 Capabilities: [78] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0-,D1-,D2-,D3hot+,D3cold+) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [80] Express (v2) Legacy Endpoint, MSI 00 DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <2us ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ MaxPayload 128 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 unlimited, L1 unlimited ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Not Supported, TimeoutDis- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [100 v1] Virtual Channel Caps: LPEVC=0 RefClk=100ns PATEntryBits=1 Arb: Fixed- WRR32- WRR64- WRR128- Ctrl: ArbSelect=Fixed Status: InProgress- VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans- Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256- Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01 Status: NegoPending- InProgress- Kernel driver in use: xhci_hcd ff:08.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 QPI Link 0 [8086:0e80] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:09.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 QPI Link 1 [8086:0e90] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0a.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Power Control Unit 0 [8086:0ec0] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0a.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Power Control Unit 1 [8086:0ec1] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0a.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Power Control Unit 2 [8086:0ec2] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0a.3 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Power Control Unit 3 [8086:0ec3] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0b.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 UBOX Registers [8086:0e1e] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0b.3 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 UBOX Registers [8086:0e1f] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee0] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee2] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee4] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0d.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee1] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0d.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee3] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0d.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Unicast Registers [8086:0ee5] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0e.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Home Agent 0 [8086:0ea0] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0e.1 Performance counters [1101]: Intel Corporation Xeon E5 v2/Core i7 Home Agent 0 [8086:0e30] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Kernel driver in use: ivt_uncore ff:0f.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 Target Address/Thermal Registers [8086:0ea8] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:0f.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 RAS Registers [8086:0e71] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:0f.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder Registers [8086:0eaa] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:0f.3 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder Registers [8086:0eab] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:0f.4 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder Registers [8086:0eac] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:0f.5 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 0 Channel Target Address Decoder Registers [8086:0ead] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:10.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 Thermal Control 0 [8086:0eb0] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Kernel driver in use: ivt_uncore ff:10.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 Thermal Control 1 [8086:0eb1] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Kernel driver in use: ivt_uncore ff:10.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 ERROR Registers 0 [8086:0eb2] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:10.3 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 ERROR Registers 1 [8086:0eb3] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:10.4 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 Thermal Control 2 [8086:0eb4] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Kernel driver in use: ivt_uncore ff:10.5 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 Thermal Control 3 [8086:0eb5] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- Kernel driver in use: ivt_uncore ff:10.6 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 ERROR Registers 2 [8086:0eb6] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:10.7 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Integrated Memory Controller 1 Channel 0-3 ERROR Registers 3 [8086:0eb7] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: [40] Express (v1) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- RBE- FLReset- DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend- LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us ClockPM- Surprise- LLActRep- BwNot- LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk- ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt- ff:13.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 R2PCIe [8086:0e1d] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.1 Performance counters [1101]: Intel Corporation Xeon E5 v2/Core i7 R2PCIe [8086:0e34] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Kernel driver in use: ivt_uncore ff:13.4 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 QPI Ring Registers [8086:0e81] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.5 Performance counters [1101]: Intel Corporation Xeon E5 v2/Core i7 QPI Ring Performance Ring Monitoring [8086:0e36] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Kernel driver in use: ivt_uncore ff:16.0 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 System Address Decoder [8086:0ec8] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:16.1 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Broadcast Registers [8086:0ec9] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:16.2 System peripheral [0880]: Intel Corporation Xeon E5 v2/Core i7 Broadcast Registers [8086:0eca] (rev 04) Subsystem: ASUSTeK Computer Inc. Device [1043:84ef] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Change Devices/FakeID/XHCI to hex device id you want to fake, then make sure you enable ACPI/DSDT/Fixes/FixUSB_1000=true. Also it is always a good idea to use a patched dsdt even though it may be difficult to patch, since you probably need many other fixes and why you have sleep issue. This issue is most definitely caused by improper dsdt for os x, it's happened to many people. I think that just fixing ehci will probably fix it though. But what ID should I enter then? Anyone? About cpu, what does your boot.log look like, can you post it? Yeah sure, here it is: (using the custom SSDT described above, but no other patches at this time): 0:100 0:100 MemLog inited, TSC freq: 3401956800 0:100 0:000 0:100 0:000 Now is 3.1.2014, 15:50:51 (GMT+2047) 0:100 0:000 Starting Clover rev 2403 on American Megatrends EFI 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(1,GPT,CE7FB786-A179-45A7-9EE6-C353FB77CDFD,0x28,0x64000) @D98FA898 0:100 0:000 SelfDirPath = \EFI\BOOT 0:101 0:000 Total Memory Slots Count = 8 0:101 0:000 Type 17 Index = 0 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 1 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 2 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 3 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 4 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 5 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 6 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Type 17 Index = 7 0:101 0:000 SmbiosTable.Type17->Speed = 1333 0:101 0:000 SmbiosTable.Type17->Size = 8192 0:101 0:000 Boot status=0 0:101 0:000 Clover revision: 2403 running on System Product Name 0:101 0:000 ... with board RAMPAGE IV EXTREME 0:101 0:000 Clover load options size = 4 bytes 0:104 0:003 PlistPath: EFI\CLOVER\AMB.plist 0:104 0:000 Oem AMB.plist not found at path: EFI\CLOVER\AMB.plist 0:104 0:000 Error loading AMB.plist! Status=Not Found 0:104 0:000 EFI\CLOVER\AMB.plist not loaded with name from LoadOptions: Not Found 0:104 0:000 PlistPath: EFI\CLOVER\config.plist 0:120 0:016 Using OEM config.plist at path: EFI\CLOVER\config.plist 0:121 0:000 EFI\CLOVER\config.plist loaded: Success 0:124 0:002 Found theme applestyle 0:127 0:003 Found theme BGM 0:135 0:007 Found theme BLUEMAC 0:140 0:004 Found theme BOOTCAMP 0:143 0:003 Loading early settings 0:143 0:000 timeout set to 5 0:143 0:000 Default theme: applestyle 0:143 0:000 Hiding entries with string Windows 0:143 0:000 Hiding entries with string \EFI\BOOT\BOOTX64.EFI 0:143 0:000 Secure Boot: Disabled 0:143 0:000 LoadDrivers() start 0:145 0:002 Loading EmuVariableUefi-64.efi 0:150 0:004 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success 0:151 0:001 Loading FSInject-64.efi 0:155 0:003 Loading OsxAptioFixDrv-64.efi 0:159 0:004 Loading OsxFatBinaryDrv-64.efi 0:171 0:011 Loading VBoxHfs-64.efi 0:174 0:003 - driver needs connecting 0:174 0:000 1 drivers needs connecting ... 0:174 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 0:174 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:652 0:477 LoadDrivers() end 0:652 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done 0:661 0:009 SetMaxResolution: found best mode 11: 1920x1200 - already set 0:661 0:000 Console modes reported: 3, available modes: 0:661 0:000 Mode 0: 80x25 (current mode) 0:661 0:000 Mode 1: 80x50 0:661 0:000 Mode 2: 100x31 0:661 0:000 SetScreenResolution: 1920x1200 - already set 0:661 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(1,GPT,CE7FB786-A179-45A7-9EE6-C353FB77CDFD,0x28,0x64000) 0:661 0:000 new SelfHandle=D98FA898 0:662 0:000 CPU Vendor = 756E6547 Model=306E4 0:662 0:000 The CPU supported turbo 0:662 0:000 BrandString = Intel(R) Core(TM) i7-4930K CPU @ 3.40GHz 0:662 0:000 FSBFrequency=100MHz 0:662 0:000 Corrected FSBFrequency=100MHz 0:662 0:000 Vendor/Model/Stepping: 0x756E6547/0x3E/0x4 0:662 0:000 Family/ExtFamily: 0x6/0x0 0:662 0:000 MaxDiv/MinDiv: 34.0/12 0:662 0:000 Turbo: 37/37/37/39 0:662 0:000 Features: 0xBFEBFBFF 0:662 0:000 Threads: 12 0:662 0:000 Cores: 6 0:662 0:000 FSB: 100 MHz 0:662 0:000 CPU: 3400 MHz 0:662 0:000 TSC: 3400 MHz 0:662 0:000 PIS: 400 MHz 0:662 0:000 PCI (00|00:00.00) : 8086 0E00 class=060000 0:662 0:000 PCI (00|00:02.00) : 8086 0E04 class=060400 0:662 0:000 PCI (00|01:00.00) : 10DE 1005 class=030000 0:662 0:000 Found NVidia model=Unknown 0:662 0:000 PCI (00|01:00.01) : 10DE 0E1A class=040300 0:662 0:000 PCI (00|00:01.00) : 8086 0E02 class=060400 0:662 0:000 PCI (00|00:03.00) : 8086 0E08 class=060400 0:662 0:000 PCI (00|00:05.00) : 8086 0E28 class=088000 0:662 0:000 PCI (00|00:05.02) : 8086 0E2A class=088000 0:662 0:000 PCI (00|00:05.04) : 8086 0E2C class=080020 0:662 0:000 PCI (00|00:11.00) : 8086 1D3E class=060400 0:662 0:000 PCI (00|00:16.00) : 8086 1D3A class=078000 0:662 0:000 PCI (00|00:19.00) : 8086 1503 class=020000 0:662 0:000 PCI (00|00:1A.00) : 8086 1D2D class=0C0320 0:662 0:000 PCI (00|00:1B.00) : 8086 1D20 class=040300 0:662 0:000 PCI (00|00:1C.00) : 8086 1D10 class=060400 0:662 0:000 PCI (00|05:00.00) : 104C 8231 class=060400 0:662 0:000 PCI (00|06:00.00) : 104C 8235 class=0C0010 0:662 0:000 PCI (00|00:1C.01) : 8086 1D12 class=060400 0:662 0:000 PCI (00|07:00.00) : 1B21 1042 class=0C0330 0:662 0:000 PCI (00|00:1C.02) : 8086 1D14 class=060400 0:662 0:000 PCI (00|08:00.00) : 1B21 1042 class=0C0330 0:662 0:000 PCI (00|00:1C.03) : 8086 1D16 class=060400 0:662 0:000 PCI (00|09:00.00) : 1B21 1042 class=0C0330 0:662 0:000 PCI (00|00:1C.04) : 8086 1D18 class=060400 0:662 0:000 PCI (00|0A:00.00) : 1B21 1042 class=0C0330 0:662 0:000 PCI (00|00:1D.00) : 8086 1D26 class=0C0320 0:662 0:000 PCI (00|00:1E.00) : 8086 244E class=060401 0:663 0:000 PCI (00|00:1F.00) : 8086 1D41 class=060100 0:663 0:000 PCI (00|00:1F.02) : 8086 1D02 class=010601 0:663 0:000 PCI (00|00:1F.03) : 8086 1D22 class=0C0500 0:663 0:000 ScanSPD() start 0:663 0:000 SMBus CmdReg: 0x1 0:663 0:000 Scanning SMBus [8086:1D22], mmio: 0xFB624004, ioport: 0xF000, hostc: 0x1 0:807 0:144 ScanSPD() end 0:807 0:000 Get Acpi Tables List from RSDT: 0:807 0:000 Found table: FACP A M I len=132 0:807 0:000 Found table: APIC A M I len=256 0:807 0:000 Found table: FPDT A M I len=68 0:807 0:000 Found table: MCFG OEMMCFG. len=60 0:807 0:000 Found table: HPET A M I len=56 0:807 0:000 Found table: BGRT A M I len=56 0:807 0:000 Found table: SSDT CpuPm len=839976 0:807 0:000 Calibrated TSC frequency =3401956800 =3401MHz 0:807 0:000 PlistPath: EFI\CLOVER\smbios.plist 0:807 0:000 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist 0:807 0:000 Error loading smbios.plist! Status=Not Found 0:807 0:000 Loading main settings 0:807 0:000 Dropping 1 tables 0:807 0:000 Drop table 0 signature="DMAR" (52414D44) 0:807 0:000 set table: 52414D44, 0 to drop: 0:807 0:000 Config set MinMultiplier=8 0:807 0:000 Config set ChassisType=0x6 0:807 0:000 KextsToPatch: 1 requested 0:807 0:000 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8 0:807 0:000 PlistPath: EFI\CLOVER\smbios.plist 0:807 0:000 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist 0:807 0:000 Error loading smbios.plist! Status=Not Found 0:807 0:000 smbios.plist not found, not overriding config.plist 0:807 0:000 found 25 volumes with blockIO 0:807 0:000 0. Volume: 0:807 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0) 0:810 0:002 Result of bootcode detection: bootable <null string> (<null string>) 0:810 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:810 0:000 1. Volume: 0:810 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,40B36E53-15B6-4E22-92B3-93B76757564D,0x28,0x64000) 0:810 0:000 Result of bootcode detection: bootable Windows (vista,win) 0:817 0:006 Volume 'EFI', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 40B36E53-15B6-4E22-92B3-93B76757564D 0:817 0:000 2. Volume: 0:817 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8876591C-9731-4769-AEF7-1E71C3E0640A,0x64028,0x517DA030) 0:818 0:000 Result of bootcode detection: bootable <null string> (<null string>) 0:818 0:000 Volume 'OS X', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 8876591C-9731-4769-AEF7-1E71C3E0640A 0:818 0:000 3. Volume: 0:818 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,645FDE7E-D508-4EC1-9C68-7DB2F092CACC,0x5183E058,0x135F20) 0:819 0:000 Volume 'Recovery HD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 645FDE7E-D508-4EC1-9C68-7DB2F092CACC 0:819 0:000 4. Volume: 0:819 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,F37FB723-603A-4A46-BDF8-E071AB3BC0AB,0x51974000,0x40000) 0:819 0:000 Volume 'Legacy HD4', LegacyOS '', LegacyIcon(s) 'legacy', GUID = F37FB723-603A-4A46-BDF8-E071AB3BC0AB 0:819 0:000 5. Volume: 0:819 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,5E02AC33-98E7-43B5-A586-C2B214D81C77,0x519B4000,0x22CA3800) 0:820 0:000 Result of bootcode detection: bootable Windows (vista,win) 0:820 0:000 Volume 'Legacy HD5', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 5E02AC33-98E7-43B5-A586-C2B214D81C77 0:820 0:000 6. Volume: 0:820 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(6,GPT,F8B4474F-11A1-4F26-8525-44C45E7FF5BE,0x74657800,0xAF000) 0:821 0:000 Result of bootcode detection: bootable Windows (vista,win) 0:821 0:000 Volume 'Legacy HD6', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = F8B4474F-11A1-4F26-8525-44C45E7FF5BE 0:821 0:000 7. Volume: 0:821 0:000 PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0) 0:821 0:000 USB volume 0:821 0:000 USB volume 0:821 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:821 0:000 8. Volume: 0:821 0:000 PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x4,0x0) 0:822 0:001 USB volume 0:822 0:000 USB volume 0:822 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:822 0:000 9. Volume: 0:822 0:000 PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x2,0x78FBFE) 0:824 0:001 Result of bootcode detection: bootable <null string> (<null string>) 0:824 0:000 USB volume 0:824 0:000 USB volume 1:142 0:317 Volume 'UNTITLED', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid> 1:142 0:000 10. Volume: 1:142 0:000 PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1) 1:142 0:000 USB volume 1:142 0:000 USB volume 1:142 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:142 0:000 11. Volume: 1:142 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0) 1:143 0:000 Result of bootcode detection: bootable <null string> (<null string>) 1:143 0:000 USB volume 1:143 0:000 USB volume 1:143 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:143 0:000 12. Volume: 1:143 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(1,GPT,CE7FB786-A179-45A7-9EE6-C353FB77CDFD,0x28,0x64000) 1:144 0:000 Result of bootcode detection: bootable Clover (clover) 1:144 0:000 USB volume 1:144 0:000 USB volume 1:302 0:158 Volume 'EFI', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = CE7FB786-A179-45A7-9EE6-C353FB77CDFD 1:302 0:000 This is SelfVolume !! 1:302 0:000 13. Volume: 1:302 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(2,GPT,E0558335-24B8-469B-A8E2-636EDC3B32F6,0x64028,0x3A1EC0C0) 1:303 0:000 USB volume 1:303 0:000 USB volume 1:303 0:000 Volume 'OS X TEST', LegacyOS '', LegacyIcon(s) '<null string>', GUID = E0558335-24B8-469B-A8E2-636EDC3B32F6 1:303 0:000 14. Volume: 1:303 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(3,GPT,00C97E23-8737-474B-8C4B-132A78128CD8,0x3A2500E8,0x135F20) 1:304 0:000 USB volume 1:304 0:000 USB volume 1:304 0:000 Volume 'Recovery HD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 00C97E23-8737-474B-8C4B-132A78128CD8 1:304 0:000 15. Volume: 1:304 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0) 1:305 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:305 0:000 16. Volume: 1:305 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 1:305 0:000 found optical drive 1:305 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:305 0:000 17. Volume: 1:305 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0) 1:305 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:305 0:000 18. Volume: 1:305 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0) 1:306 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 1:306 0:000 19. Volume: 1:306 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,39131A41-C057-4DC5-8D6D-BCF5BBFB1769,0x28,0x64000) 1:306 0:000 Result of bootcode detection: bootable <null string> (<null string>) 1:314 0:007 Volume 'EFI', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 39131A41-C057-4DC5-8D6D-BCF5BBFB1769 1:314 0:000 20. Volume: 1:314 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,B00DB2E1-FCF5-4F5E-AFEB-E9ADB54AA020,0x64028,0x74662D60) 1:314 0:000 Volume 'Daten', LegacyOS '', LegacyIcon(s) '<null string>', GUID = B00DB2E1-FCF5-4F5E-AFEB-E9ADB54AA020 1:314 0:000 21. Volume: 1:314 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,ED01F70A-100A-4705-B8C3-B9EFEDDE09D5,0x28,0x64000) 1:315 0:000 Result of bootcode detection: bootable <null string> (<null string>) 1:324 0:008 Volume 'EFI', LegacyOS '', LegacyIcon(s) '<null string>', GUID = ED01F70A-100A-4705-B8C3-B9EFEDDE09D5 1:324 0:000 22. Volume: 1:324 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,DB6E1ED7-167A-4397-957B-4E547D138717,0x64028,0x15D466360) 1:324 0:000 Volume 'Backup', LegacyOS '', LegacyIcon(s) '<null string>', GUID = DB6E1ED7-167A-4397-957B-4E547D138717 1:324 0:000 23. Volume: 1:324 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,2EEE6F84-6640-47A3-9454-F3B74DE0D192,0x28,0x64000) 1:325 0:000 Result of bootcode detection: bootable <null string> (<null string>) 1:342 0:017 Volume 'EFI', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 2EEE6F84-6640-47A3-9454-F3B74DE0D192 1:342 0:000 24. Volume: 1:342 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,253EA693-82EC-4A1F-8464-9A6B58DB001A,0x64028,0x15D466360) 1:343 0:000 Volume 'Extra', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 253EA693-82EC-4A1F-8464-9A6B58DB001A 1:343 0:000 Searching volumes for latest nvram.plist ... 1:343 0:000 1. Volume 'EFI', GUID = 40B36E53-15B6-4E22-92B3-93B76757564D - no nvram.plist - skipping! 1:343 0:000 2. Volume 'OS X', GUID = 8876591C-9731-4769-AEF7-1E71C3E0640A Modified = 2014-1-3 15:50:20 (3667045820000 ms) - newer - will use this one 1:348 0:005 3. Volume 'Recovery HD', GUID = 645FDE7E-D508-4EC1-9C68-7DB2F092CACC - no nvram.plist - skipping! 1:349 0:000 9. Volume 'UNTITLED', GUID = <null guid> - not GPT - no nvram.plist - skipping! 1:349 0:000 12. Volume 'EFI', GUID = CE7FB786-A179-45A7-9EE6-C353FB77CDFD - no nvram.plist - skipping! 1:349 0:000 13. Volume 'OS X TEST', GUID = E0558335-24B8-469B-A8E2-636EDC3B32F6 Modified = 2014-1-3 15:29:40 (3667044580000 ms) - older - skipping! 1:370 0:021 14. Volume 'Recovery HD', GUID = 00C97E23-8737-474B-8C4B-132A78128CD8 - no nvram.plist - skipping! 1:371 0:001 19. Volume 'EFI', GUID = 39131A41-C057-4DC5-8D6D-BCF5BBFB1769 - no nvram.plist - skipping! 1:371 0:000 20. Volume 'Daten', GUID = B00DB2E1-FCF5-4F5E-AFEB-E9ADB54AA020 - no nvram.plist - skipping! 1:375 0:003 21. Volume 'EFI', GUID = ED01F70A-100A-4705-B8C3-B9EFEDDE09D5 - no nvram.plist - skipping! 1:375 0:000 22. Volume 'Backup', GUID = DB6E1ED7-167A-4397-957B-4E547D138717 - no nvram.plist - skipping! 1:423 0:047 23. Volume 'EFI', GUID = 2EEE6F84-6640-47A3-9454-F3B74DE0D192 - no nvram.plist - skipping! 1:423 0:000 24. Volume 'Extra', GUID = 253EA693-82EC-4A1F-8464-9A6B58DB001A - no nvram.plist - skipping! 1:446 0:022 Loading nvram.plist from Vol 'OS X' - loaded, size=1549 1:446 0:000 PutNvramPlistToRtVars ... 1:446 0:000 Adding Key: BackgroundClear: Data: Size = 4: Success 1:446 0:000 Adding Key: Clover.KeepBackupLimit: Data: Size = 1: Success 1:446 0:000 Adding Key: Clover.LogEveryBoot: Data: Size = 2: Success 1:446 0:000 Adding Key: Clover.LogLineCount: Data: Size = 4: Success 1:446 0:000 Adding Key: Clover.MountEFI: Data: Size = 2: Success 1:446 0:000 Adding Key: Clover.Theme: Data: Size = 7: Success 1:446 0:000 Skipping EmuVariableUefiPresent 1:446 0:000 Adding Key: LocationServicesEnabled: Data: Size = 1: Success 1:446 0:000 Skipping OsxAptioFixDrv-RelocBase 1:446 0:000 Adding Key: SystemAudioVolume: Data: Size = 1: Success 1:446 0:000 Adding Key: bluetoothActiveControllerInfo: Data: Size = 16: Success 1:446 0:000 Adding Key: efi-boot-device: Data: Size = 216: Success 1:446 0:000 Adding Key: efi-boot-device-data: Data: Size = 74: Success 1:446 0:000 Adding Key: fmm-computer-name: Data: Size = 8: Success 1:446 0:000 Adding Key: prev-lang:kbd: Data: Size = 4: Success 1:446 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none': Success 1:446 0:000 Adding Key: test: Data: Size = 4: Success 1:446 0:000 Invalidating BuiltinIcons... 1:446 0:000 default theme newyear is absent, using embedded 1:446 0:000 Font 0 prepared WxH=7x12 CharWidth=7 1:447 0:000 Custom entries start 1:447 0:000 Custom entries finish 1:447 0:000 Scanning loaders... 1:447 0:000 0: 'Whole Disc Boot' no file system 1:447 0:000 1: 'EFI' 1:447 0:000 Text <internal_ntfs> rendered 1:447 0:000 found PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,40B36E53-15B6-4E22-92B3-93B76757564D,0x28,0x64000)\EFI\Microsoft\Boot\bootmgfw.efi 1:448 0:000 Text <internal> rendered 1:448 0:000 found PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,40B36E53-15B6-4E22-92B3-93B76757564D,0x28,0x64000)\EFI\BOOT\BOOTX64.efi 1:448 0:000 2: 'OS X' 1:460 0:011 Text <internal_hfs> rendered 1:460 0:000 found PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8876591C-9731-4769-AEF7-1E71C3E0640A,0x64028,0x517DA030)\System\Library\CoreServices\boot.efi 1:506 0:046 3: 'Recovery HD' 1:508 0:001 Text <recovery> rendered 1:508 0:000 found PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,645FDE7E-D508-4EC1-9C68-7DB2F092CACC,0x5183E058,0x135F20)\com.apple.recovery.boot\boot.efi 1:509 0:001 4: 'Legacy HD4' no file system 1:509 0:000 5: 'Legacy HD5' no file system 1:509 0:000 6: 'Legacy HD6' no file system 1:509 0:000 7: 'Whole Disc Boot' no file system 1:509 0:000 8: 'Whole Disc Boot' no file system 1:509 0:000 9: 'UNTITLED' 1:509 0:000 10: 'Whole Disc Boot' no file system 1:509 0:000 11: 'Whole Disc Boot' no file system 1:509 0:000 12: 'EFI' 2:937 1:427 skipped because path `PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(1,GPT,CE7FB786-A179-45A7-9EE6-C353FB77CDFD,0x28,0x64000)\EFI\BOOT\BOOTX64.efi` is self path! 2:937 0:000 13: 'OS X TEST' 3:045 0:108 Text <external> rendered 3:045 0:000 found PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(2,GPT,E0558335-24B8-469B-A8E2-636EDC3B32F6,0x64028,0x3A1EC0C0)\System\Library\CoreServices\boot.efi 3:049 0:004 14: 'Recovery HD' 3:081 0:031 found PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x4,0x0)\HD(3,GPT,00C97E23-8737-474B-8C4B-132A78128CD8,0x3A2500E8,0x135F20)\com.apple.recovery.boot\boot.efi 3:082 0:001 15: 'Whole Disc Boot' no file system 3:082 0:000 16: 'Whole Disc Boot' no file system 3:082 0:000 17: 'Whole Disc Boot' no file system 3:082 0:000 18: 'Whole Disc Boot' no file system 3:082 0:000 19: 'EFI' 3:083 0:000 20: 'Daten' 3:085 0:002 21: 'EFI' 3:086 0:000 22: 'Backup' 3:089 0:002 23: 'EFI' 3:089 0:000 24: 'Extra' 3:091 0:002 Custom legacy start 3:091 0:000 Custom legacy end 3:091 0:000 Custom tool start 3:091 0:000 Custom tool end 3:091 0:000 Text <options> rendered 3:091 0:000 Text <about> rendered 3:091 0:000 Text <reset> rendered 3:091 0:000 Text <shutdown> rendered 3:091 0:000 FindDefaultEntry ... 3:091 0:000 EmuVariable InstallEmulation: EFI_ALREADY_STARTED 3:091 0:000 FindStartupDiskVolume ... 3:091 0:000 GetEfiBootDeviceFromNvram: 3:091 0:000 efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8876591C-9731-4769-AEF7-1E71C3E0640A,0x64028,0x517DA030) 3:091 0:000 Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8876591C-9731-4769-AEF7-1E71C3E0640A,0x64028,0x517DA030)' 3:091 0:000 LoaderPath: '<null string>' 3:091 0:000 Guid = 8876591C-9731-4769-AEF7-1E71C3E0640A 3:091 0:000 FindStartupDiskVolume searching ... 3:091 0:000 volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,8876591C-9731-4769-AEF7-1E71C3E0640A,0x64028,0x517DA030) 3:091 0:000 searching for that partition 3:091 0:000 found entry 2. 'Boot Mac OS X from OS X', Volume 'OS X' 3:091 0:000 Boot redirected to Entry 2. 'Boot Mac OS X from OS X' 3:091 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 3:092 0:000 DefaultIndex=2 and MainMenu.EntryCount=10 3:106 0:014 GUI ready 7:744 4:637 StartLoader() start 7:744 0:000 Finally: Bus=100057kHz CPU=3401MHz 7:744 0:000 Loading boot.efi 7:891 0:147 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done 7:901 0:010 no airport for table 9 7:903 0:001 Trusting SMBIOS... 7:903 0:000 Detected alternating SMBIOS channel banks 7:903 0:000 Channels: 4 7:903 0:000 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 0 => 0 0: 7:903 0:000 BANK0 DIMM0 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 8192 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 1 => 1 2: 7:903 0:000 BANK1 DIMM0 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 16384 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 2 => 2 4: 7:903 0:000 BANK2 DIMM0 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 24576 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 3 => 3 6: 7:903 0:000 BANK3 DIMM0 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 32768 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 4 => 4 1: 7:903 0:000 BANK0 DIMM1 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 40960 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 5 => 5 3: 7:903 0:000 BANK1 DIMM1 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 49152 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 6 => 6 5: 7:903 0:000 BANK2 DIMM1 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 57344 7:903 0:000 partNum=F3-17000C11-8GBZL 7:903 0:000 SMBIOS Type 17 Index = 7 => 7 7: 7:903 0:000 BANK3 DIMM1 1333MHz 8192MB 7:903 0:000 mTotalSystemMemory = 65536 7:903 0:000 NumberOfMemoryDevices = 8 7:903 0:000 Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000 7:903 0:000 Type20[1]->End = 0xFFFFFF, Type17[1] = 0x6000 7:903 0:000 Type20[2]->End = 0x17FFFFF, Type17[2] = 0xC000 7:903 0:000 Type20[3]->End = 0x1FFFFFF, Type17[3] = 0x14000 7:903 0:000 Type20[4]->End = 0x27FFFFF, Type17[4] = 0x1E000 7:903 0:000 Type20[5]->End = 0x2FFFFFF, Type17[5] = 0x2A000 7:903 0:000 Type20[6]->End = 0x37FFFFF, Type17[6] = 0x38000 7:903 0:000 RSDT 0xDC357028 7:903 0:000 FADT from RSDT: 0xDC3570E0 7:903 0:000 XSDT 0xDC357070 7:903 0:000 FADT from XSDT: 0xDC3611F0 7:903 0:000 Xsdt reallocation done 7:903 0:000 old FADT length=10C 7:918 0:014 DSDT len = 0xA088 new len = 0xB499 7:918 0:000 Apply DsdtFixMask=0x00000000 old way 7:918 0:000 ========= Auto patch DSDT Starting ======== 7:918 0:000 VideoCard devID=0x100510DE 7:918 0:000 DisplayADR1[0] = 0x20000, DisplayADR2[0] = 0x0 7:918 0:000 Display 0 is notPCIE 7:940 0:021 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE 7:995 0:054 USBADR[1] = 0x1C0001 and PCIe = 0x0 7:995 0:000 USBADR[2] = 0x1C0002 and PCIe = 0x0 7:995 0:000 USBADR[3] = 0x1C0003 and PCIe = 0x0 7:995 0:000 USBADR[4] = 0x1C0004 and PCIe = 0x0 7:995 0:000 USBADR[5] = 0x1D0000 and PCIe = 0xFFFE 7:995 0:000 Found ACPI CPU: C000 And C001 And C002 And C003 And C004 And C005 And C006 And C007 And C008 And C009 And C00A And C00B And C00C And C00D And C00E And C00F And C010 And C011 And C012 And C013 And C014 And C015 And C016 And C017 And C018 And C019 And C01A And C01B And C01C And C01D And C100 And C101 7:995 0:000 Found PCIROOTUID = 0 7:995 0:000 ========= Auto patch DSDT Finished ======== 7:995 0:000 Patch table: SSDT CpuPm 7:995 0:000 SSDT len = 0xCD128 7:998 0:002 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 7:998 0:000 Xsdt has tables count=7 7:998 0:000 corrected XSDT length=92 7:998 0:000 Inserting SSDT.aml from EFI\CLOVER\ACPI\patched ... Success 8:015 0:016 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12 8:015 0:000 EdidDiscovered size=128 8:015 0:000 00 | 00 FF FF FF FF FF FF 00 15 C3 90 20 01 01 01 01 8:015 0:000 16 | 2A 13 01 04 B5 34 21 78 E2 1E C5 AE 4F 34 B1 26 8:015 0:000 32 | 0E 50 54 A1 08 00 A9 40 81 80 81 40 B3 00 01 01 8:015 0:000 48 | 01 01 01 01 01 01 28 3C 80 A0 70 B0 23 40 30 20 8:015 0:000 64 | 36 00 07 44 21 00 00 1A 00 00 00 FF 00 32 36 32 8:015 0:000 80 | 34 36 31 30 39 0A 20 20 20 20 00 00 00 FD 00 3B 8:015 0:000 96 | 3D 1A 4E 11 00 0A 20 20 20 20 20 20 00 00 00 FC 8:015 0:000 112 | 00 43 47 32 34 33 57 0A 20 20 20 20 20 20 00 F6 8:015 0:000 NVidia GFX injection not set 8:015 0:000 LAN Controller [8086:1503] :: PciRoot(0x0)\Pci(0x19,0x0) 8:015 0:000 stringlength = 220 8:015 0:000 CurrentMode: Width=1920 Height=1200 8:015 0:000 FSInjection:, skipping kext injection (not requested) 8:023 0:008 OnSimpleFileSystem occured 8:023 0:000 - done! 8:024 0:000 SetStartupDiskVolume ... Volume: 'OS X TEST', LoaderPath: '<null string>' 8:024 0:000 DevPath: OS X TEST 8:024 0:000 GUID = E0558335-24B8-469B-A8E2-636EDC3B32F6 8:024 0:000 efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>E0558335-24B8-469B-A8E2-636EDC3B32F6</string></dict></dict></dict></array> 8:024 0:000 Closing log Hope this helps! Edit: just saw I still had some USB settings active in clover. Just deleted them and reuploaded the boot.log Also did a dump using Darwin Dumper, so if you need any data from that let me know. Link to comment Share on other sites More sharing options...
Fab1Man Posted January 3, 2014 Share Posted January 3, 2014 We're in the same boat frankiee, but I don't even have sleep working. GPU same thing, no PM at all, it runs idle 55 degrees :S. Link to comment Share on other sites More sharing options...
frankiee Posted January 3, 2014 Share Posted January 3, 2014 We're in the same boat frankiee, but I don't even have sleep working. GPU same thing, no PM at all, it runs idle 55 degrees :S. I also do not have sleep working correctly. Seems that I have a total of 4 issues right now: 1) No CPU PM - should work now with 10.9.2 but still no PStates at least. Maybe still some missing settings? 2) No sleep in clover - might be related to 1), so I'd like to solve Issue 1) first to see if that is actually the case 3) only partially working GPU PM - does work with me until you invoke OpenCL. Then the GPU clock is stuck at 836MHz. But I think this cannot be solved by us, seems a bug with OpenCL and the NVIDIA drivers. 4) the problem with USB2 ports - here it seems to be at least more clear now what is causing this. Hope there is solution even without DSDT patching, so I am curious what Apianti has to say. Edit: now tried with clover r2435 - no apparent differences. Link to comment Share on other sites More sharing options...
Fab1Man Posted January 4, 2014 Share Posted January 4, 2014 If I lookup AGPM in the Console, it says UnknownPlatform. So it doesn't recognize my GPU with the MacPro5,1 SMBIOS. The AppleGraphicsPowerManagement.kext holds the same P-state information just like X86PlatformPlugin. It even already has the MacPro6,1 PM states: <key>Mac-F60DEB81FF30ACF6</key> <dict> <key>GFX1</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>16</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> <key>GFX2</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>17</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> </dict> I copied the iMac14,2 part to MacPro5,1. With my Kepler Nvidia (GTX 780), and copying the entries of iMac14,2 to MacPro5,1, should enable PM for the GPU. But it doesn't... It's an OpenCL bug, still present in 10.9.2: http://www.insanelymac.com/forum/topic/292663-graphics-no-gpu-power-management/page-6 We simply can't do anything about it but go back to ML, until Apple has a fix. Link to comment Share on other sites More sharing options...
Bruxo Posted January 4, 2014 Share Posted January 4, 2014 If I lookup AGPM in the Console, it says UnknownPlatform. So it doesn't recognize my GPU with the MacPro5,1 SMBIOS. The AppleGraphicsPowerManagement.kext holds the same P-state information just like X86PlatformPlugin. It even already has the MacPro6,1 PM states: <key>Mac-F60DEB81FF30ACF6</key> <dict> <key>GFX1</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>16</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> <key>GFX2</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>17</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> </dict> I copied the iMac14,2 part to MacPro5,1. With my Kepler Nvidia (GTX 780), and copying the entries of iMac14,2 to MacPro5,1, should enable PM for the GPU. But it doesn't... It's an OpenCL bug, still present in 10.9.2: http://www.insanelymac.com/forum/topic/292663-graphics-no-gpu-power-management/page-6 We simply can't do anything about it but go back to ML, until Apple has a fix. Let me get well! Do you want to PM on GPU via AGPM? Nothing connected to control anergy CPU then? Link to comment Share on other sites More sharing options...
apianti Posted January 4, 2014 Share Posted January 4, 2014 If I lookup AGPM in the Console, it says UnknownPlatform. So it doesn't recognize my GPU with the MacPro5,1 SMBIOS. The AppleGraphicsPowerManagement.kext holds the same P-state information just like X86PlatformPlugin. It even already has the MacPro6,1 PM states: <key>Mac-F60DEB81FF30ACF6</key> <dict> <key>GFX1</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>16</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> <key>GFX2</key> <dict> <key>AGDCEnabled</key> <integer>1</integer> <key>Heuristic</key> <dict> <key>ID</key> <integer>-1</integer> </dict> <key>control-id</key> <integer>17</integer> <key>max-power-state</key> <integer>15</integer> <key>min-power-state</key> <integer>0</integer> </dict> </dict> I copied the iMac14,2 part to MacPro5,1. With my Kepler Nvidia (GTX 780), and copying the entries of iMac14,2 to MacPro5,1, should enable PM for the GPU. But it doesn't... It's an OpenCL bug, still present in 10.9.2: http://www.insanelymac.com/forum/topic/292663-graphics-no-gpu-power-management/page-6 We simply can't do anything about it but go back to ML, until Apple has a fix. Did you add your device id to the kext or use fake id? I doubt your device id matches the device id for a card that comes in mac. I also do not have sleep working correctly. Seems that I have a total of 4 issues right now: 1) No CPU PM - should work now with 10.9.2 but still no PStates at least. Maybe still some missing settings? 2) No sleep in clover - might be related to 1), so I'd like to solve Issue 1) first to see if that is actually the case 3) only partially working GPU PM - does work with me until you invoke OpenCL. Then the GPU clock is stuck at 836MHz. But I think this cannot be solved by us, seems a bug with OpenCL and the NVIDIA drivers. 4) the problem with USB2 ports - here it seems to be at least more clear now what is causing this. Hope there is solution even without DSDT patching, so I am curious what Apianti has to say. Edit: now tried with clover r2435 - no apparent differences. 1) You need to drop your power management ssdt. Use either ACPI/DropTables with SSDT and CpuPm or ACPI/SSDT/DropOem=true. 0:807 0:000 Dropping 1 tables 0:807 0:000 Drop table 0 signature="DMAR" (52414D44) 0:807 0:000 set table: 52414D44, 0 to drop: Clover appears to have no problem detecting you cpu: 0:662 0:000 CPU Vendor = 756E6547 Model=306E4 0:662 0:000 The CPU supported turbo 0:662 0:000 BrandString = Intel(R) Core(TM) i7-4930K CPU @ 3.40GHz 0:662 0:000 FSBFrequency=100MHz 0:662 0:000 Corrected FSBFrequency=100MHz 0:662 0:000 Vendor/Model/Stepping: 0x756E6547/0x3E/0x4 0:662 0:000 Family/ExtFamily: 0x6/0x0 0:662 0:000 MaxDiv/MinDiv: 34.0/12 0:662 0:000 Turbo: 37/37/37/39 0:662 0:000 Features: 0xBFEBFBFF 0:662 0:000 Threads: 12 0:662 0:000 Cores: 6 0:662 0:000 FSB: 100 MHz 0:662 0:000 CPU: 3400 MHz 0:662 0:000 TSC: 3400 MHz 0:662 0:000 PIS: 400 MHz The problem must be that it's injecting wrong value for cpu type or that it's entirely unsupported by os x, although i bet it's probably first and needs to have xeon cpu type injected. 2) Yeah this is least important issue, once other issues are fixed then we'll come back to this if needed, but hopefully it will be gone, or your dsdt needs to be patched somehow. 3) I see that your card is not recognized by clover, so I wonder if os x is getting correct information about it.... 0:662 0:000 PCI (00|01:00.00) : 10DE 1005 class=030000 0:662 0:000 Found NVidia model=Unknown 0:662 0:000 PCI (00|01:00.01) : 10DE 0E1A class=040300 8:015 0:000 NVidia GFX injection not set However the opencl issue among other kext issues is well known for nvidia cards................. 4) Your device ids appear to be the same, so I'm not exactly sure what's going on here, it's probably pretty likely it's dsdt or third party kext conflict or something similar, I can't recall but you said that the ports work in clover gui but not is os x, right? 00:1d.0 USB controller [0c03]: Intel Corporation C600/X79 series chipset USB2 Enhanced Host Controller #1 [8086:1d26] (rev 06) (prog-if 20 [EHCI]) 00:1a.0 USB controller [0c03]: Intel Corporation C600/X79 series chipset USB2 Enhanced Host Controller #2 [8086:1d2d] (rev 06) (prog-if 20 [EHCI]) You can always try the six, seven, or eight series device ids. I believe that they are 1a, 1c, and 1e, instead of 1d. There is many pci device id databases that you can look. Link to comment Share on other sites More sharing options...
rfic Posted January 4, 2014 Share Posted January 4, 2014 iCloudFixChameleon's system-id can be found by booting with Chameleon and then checking IOReg IODeviceTree:/efi/platform or just from Terminal:> ioreg -l -p IODeviceTree | grep \"system-idHope it's not too complicated.Also be sure your Ethernet card is set to built-in. I'm new to hackintoshi & clover If I only installed clover, but not chameleon, how I can get this customer uuid? Thanks Link to comment Share on other sites More sharing options...
Fab1Man Posted January 4, 2014 Share Posted January 4, 2014 I got the exact same problems as him, but my GPU is recognized, although as a GTX 780 Ti (it is a normal GTX 780), but it shows the correct Device ID (1004), as well in in Clover as in OS X. ------------------------------- DATE: 2014-01-04 TIME: 12:16:16 ------------------------------- 0:100 0:100 MemLog inited, TSC freq: 3499991480 0:100 0:000 0:100 0:000 Now is 4.1.2014, 11:15:0 (GMT+2047) 0:100 0:000 Starting Clover rev 2428 on American Megatrends EFI 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000) @C5F97B18 0:100 0:000 SelfDirPath = \EFI\BOOT 0:100 0:000 Total Memory Slots Count = 4 0:100 0:000 Type 17 Index = 0 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0 0:100 0:000 SmbiosTable.Type17->Size = 0 0:100 0:000 Type 17 Index = 1 0:100 0:000 SmbiosTable.Type17->Speed = 1600 0:100 0:000 SmbiosTable.Type17->Size = 8192 0:100 0:000 Type 17 Index = 2 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0 0:100 0:000 SmbiosTable.Type17->Size = 0 0:100 0:000 Type 17 Index = 3 0:100 0:000 SmbiosTable.Type17->Speed = 1600 0:100 0:000 SmbiosTable.Type17->Size = 8192 0:100 0:000 Boot status=0 0:100 0:000 Clover revision: 2428 running on All Series 0:100 0:000 ... with board MAXIMUS VI GENE 0:100 0:000 Clover load options size = 0 bytes 0:104 0:004 PlistPath: EFI\CLOVER\config.plist 0:105 0:001 Using OEM config.plist at path: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\config.plist 0:106 0:000 EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\config.plist loaded: Success 0:108 0:002 Found theme METAL 0:113 0:004 Found theme MLCAMP 0:118 0:005 Found theme LoginToApplestyle 0:123 0:005 Loading early settings 0:123 0:000 timeout set to 5 0:123 0:000 Default theme: mlcamp 0:123 0:000 Hiding entries with string HD(1,GPT,031A7308-A953-448D-AC13-DF16C772C478) 0:123 0:000 Hiding entries with string HD(2,GPT,D35FB078-F5FB-43C3-A6EE-856EF6C96C07) 0:123 0:000 Secure Boot: Disabled 0:123 0:000 LoadDrivers() start 0:125 0:002 Loading EmuVariableUefi-64.efi 0:127 0:001 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success 0:128 0:001 Loading FSInject-64.efi 0:128 0:000 Loading OsxAptioFixDrv-64.efi 0:129 0:001 Loading OsxFatBinaryDrv-64.efi 0:130 0:000 Loading HFSPlus.efi 0:132 0:001 - driver needs connecting 0:132 0:000 1 drivers needs connecting ... 0:132 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 0:132 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:321 0:188 LoadDrivers() end 0:321 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done 0:327 0:006 SetMaxResolution: found best mode 0: 2560x1440 - already set 0:327 0:000 Console modes reported: 4, available modes: 0:327 0:000 Mode 0: 80x25 (current mode) 0:327 0:000 Mode 1: 80x50 0:327 0:000 Mode 2: 100x31 0:327 0:000 Mode 3: 320x75 0:327 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000) 0:327 0:000 new SelfHandle=C5F97B18 0:327 0:000 CPU Vendor = 756E6547 Model=306C3 0:327 0:000 The CPU supported turbo 0:327 0:000 BrandString = Intel(R) Core(TM) i7-4770K CPU @ 3.50GHz 0:327 0:000 non-usable FLEX_RATIO = F0000 0:327 0:000 corrected FLEX_RATIO = E0000 0:327 0:000 FSBFrequency=100MHz 0:327 0:000 Corrected FSBFrequency=100MHz 0:327 0:000 Vendor/Model/Stepping: 0x756E6547/0x3C/0x3 0:327 0:000 Family/ExtFamily: 0x6/0x0 0:327 0:000 MaxDiv/MinDiv: 35.0/8 0:327 0:000 Turbo: 39/39/39/39 0:327 0:000 Features: 0xBFEBFBFF 0:327 0:000 Threads: 8 0:327 0:000 Cores: 4 0:327 0:000 FSB: 100 MHz 0:327 0:000 CPU: 3509 MHz 0:327 0:000 TSC: 3509 MHz 0:327 0:000 PIS: 400 MHz 0:327 0:000 PCI (00|00:00.00) : 8086 0C00 class=060000 0:327 0:000 PCI (00|00:01.00) : 8086 0C01 class=060400 0:328 0:000 PCI (00|01:00.00) : 10DE 1004 class=030000 0:328 0:000 Found NVidia model=GTX 780 TI 0:328 0:000 PCI (00|01:00.01) : 10DE 0E1A class=040300 0:328 0:000 PCI (00|00:02.00) : 8086 0412 class=030000 0:328 0:000 Found GFX model=Intel HD Graphics 4600 0:328 0:000 PCI (00|00:03.00) : 8086 0C0C class=040300 0:328 0:000 PCI (00|00:14.00) : 8086 8C31 class=0C0330 0:328 0:000 PCI (00|00:16.00) : 8086 8C3A class=078000 0:328 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF 0:328 0:000 PCI (00|00:19.00) : 8086 153B class=020000 0:328 0:000 PCI (00|00:1A.00) : 8086 8C2D class=0C0320 0:328 0:000 PCI (00|00:1B.00) : 8086 8C20 class=040300 0:328 0:000 PCI (00|00:1C.00) : 8086 8C10 class=060400 0:328 0:000 PCI (00|00:1C.03) : 8086 8C16 class=060400 0:328 0:000 PCI (00|03:00.00) : 1B21 0612 class=010601 0:328 0:000 PCI (00|00:1C.04) : 8086 8C18 class=060400 0:328 0:000 PCI (00|04:00.00) : 14E4 43A0 class=028000 0:328 0:000 PCI (00|00:1D.00) : 8086 8C26 class=0C0320 0:328 0:000 PCI (00|00:1F.00) : 8086 8C44 class=060100 0:328 0:000 PCI (00|00:1F.02) : 8086 8C02 class=010601 0:328 0:000 PCI (00|00:1F.03) : 8086 8C22 class=0C0500 0:328 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF 0:328 0:000 ScanSPD() start 0:328 0:000 SMBus CmdReg: 0x3 0:328 0:000 Scanning SMBus [8086:8C22], mmio: 0xF7C39004, ioport: 0xF040, hostc: 0x1 0:348 0:020 SPD[1]: Type 11 @0x51 0:357 0:008 Using XMP Profile1 instead of standard frequency 1333MHz 0:357 0:000 DDR speed 1600MHz 0:357 0:000 Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLT8G3D1608ET3LX0. SerialNo=0A09000408070105 0:377 0:020 SPD[3]: Type 11 @0x53 0:386 0:008 Using XMP Profile1 instead of standard frequency 1333MHz 0:386 0:000 DDR speed 1600MHz 0:386 0:000 Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLT8G3D1608ET3LX0. SerialNo=0A09000408060A03 0:506 0:120 ScanSPD() end 0:506 0:000 Get Acpi Tables List from RSDT: 0:506 0:000 Found table: FACP A M I len=132 0:506 0:000 Found table: APIC A M I len=146 0:506 0:000 Found table: FPDT A M I len=68 0:506 0:000 Found table: SSDT Cpu0Ist len=1337 0:506 0:000 Found table: SSDT CpuPm len=2776 0:506 0:000 Found table: MCFG A M I len=60 0:506 0:000 Found table: HPET A M I len=56 0:506 0:000 Found table: SSDT SataTabl len=877 0:506 0:000 Found table: SSDT SaSsdt len=12958 0:506 0:000 Found table: BGRT A M I len=56 0:506 0:000 Calibrated TSC frequency =3499991480 =3499MHz 0:506 0:000 PlistPath: EFI\CLOVER\smbios.plist 0:506 0:000 Oem smbios.plist not found at path: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\smbios.plist 0:506 0:000 Error loading smbios.plist! Status=Not Found 0:506 0:000 Loading main settings 0:506 0:000 KextsToPatch: 2 requested 0:506 0:000 KextToPatch 0: IOAHCIBlockStorage Kext bin patch, data len: 10 0:506 0:000 KextToPatch 1: AppleTyMCEDriver Kext bin patch, data len: 24 0:506 0:000 PlistPath: EFI\CLOVER\smbios.plist 0:506 0:000 Oem smbios.plist not found at path: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\smbios.plist 0:506 0:000 Error loading smbios.plist! Status=Not Found 0:506 0:000 smbios.plist not found, not overriding config.plist 0:506 0:000 found 9 volumes with blockIO 0:506 0:000 0. Volume: 0:506 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0) 0:506 0:000 found optical drive 0:506 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:506 0:000 1. Volume: 0:506 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0) 0:507 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:507 0:000 2. Volume: 0:507 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 0:507 0:000 Result of bootcode detection: bootable <null string> (<null string>) 0:507 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid> 0:507 0:000 3. Volume: 0:508 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000) 0:508 0:000 Result of bootcode detection: bootable <null string> (<null string>) 0:514 0:005 Volume 'EFI', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 0F3582E4-D5F4-42BA-8FA7-013996A0475C 0:514 0:000 This is SelfVolume !! 0:514 0:000 4. Volume: 0:514 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0) 0:514 0:000 Volume 'Macintosh SSD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5 0:514 0:000 5. Volume: 0:514 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,DAE6FD8B-3D41-4529-B1FE-006E50933417,0x244C80D8,0x135F28) 0:515 0:000 Volume 'Recovery HD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = DAE6FD8B-3D41-4529-B1FE-006E50933417 0:515 0:000 6. Volume: 0:515 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(4,GPT,896874EF-2639-4D21-9624-BC84A00130CD,0x245FE000,0x173E3000) 0:515 0:000 Result of bootcode detection: bootable <null string> (<null string>) 0:578 0:062 Volume 'WINDOWS', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 896874EF-2639-4D21-9624-BC84A00130CD 0:578 0:000 7. Volume: 0:578 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,031A7308-A953-448D-AC13-DF16C772C478,0x22,0x40000) 0:579 0:000 Volume 'Legacy HD1', LegacyOS '', LegacyIcon(s) 'legacy', GUID = 031A7308-A953-448D-AC13-DF16C772C478 0:579 0:000 8. Volume: 0:579 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,2D256788-7DCD-4A90-8F8B-0CE316FDE105,0x40800,0x15D4C9800) 0:586 0:007 Result of bootcode detection: bootable Windows (vista,win) 0:586 0:000 Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 2D256788-7DCD-4A90-8F8B-0CE316FDE105 0:586 0:000 Searching volumes for latest nvram.plist ... 0:586 0:000 3. Volume 'EFI', GUID = 0F3582E4-D5F4-42BA-8FA7-013996A0475C - no nvram.plist - skipping! 0:586 0:000 4. Volume 'Macintosh SSD', GUID = 9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5 Modified = 2014-1-4 11:14:49 (3667115689000 ms) - newer - will use this one 0:587 0:001 5. Volume 'Recovery HD', GUID = DAE6FD8B-3D41-4529-B1FE-006E50933417 - no nvram.plist - skipping! 0:587 0:000 6. Volume 'WINDOWS', GUID = 896874EF-2639-4D21-9624-BC84A00130CD - no nvram.plist - skipping! 0:587 0:000 Loading nvram.plist from Vol 'Macintosh SSD' - loaded, size=2177 0:588 0:000 PutNvramPlistToRtVars ... 0:588 0:000 Adding Key: BackgroundClear: Data: Size = 4: Success 0:588 0:000 Adding Key: Clover.LogEveryBoot: Data: Size = 3: Success 0:588 0:000 Adding Key: Clover.LogLineCount: Data: Size = 4: Success 0:588 0:000 Adding Key: Clover.MountEFI: Data: Size = 2: Success 0:588 0:000 Skipping EmuVariableUefiPresent 0:588 0:000 Adding Key: LocationServicesEnabled: Data: Size = 1: Success 0:588 0:000 Skipping OsxAptioFixDrv-RelocBase 0:588 0:000 Adding Key: SystemAudioVolume: Data: Size = 1: Success 0:588 0:000 Adding Key: bluetoothActiveControllerInfo: Data: Size = 16: Success 0:588 0:000 Adding Key: efi-boot-device: Data: Size = 216: Success 0:588 0:000 Adding Key: efi-boot-device-data: Data: Size = 74: Success 0:588 0:000 Adding Key: fmm-computer-name: Data: Size = 15: Success 0:588 0:000 Adding Key: fmm-mobileme-token-FMM: Data: Size = 514: Success 0:588 0:000 Adding Key: platform-uuid: Data: Size = 16: Success 0:588 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none': Success 0:588 0:000 Invalidating BuiltinIcons... 0:588 0:000 special theme newyear not found, skipping 0:589 0:001 Using theme 'mlcamp' (EFI\CLOVER\themes\mlcamp) 0:598 0:009 font mpr.png loaded from themedir 0:598 0:000 Font loaded: ImageWidth=176 ImageHeight=288 0:598 0:000 Font 2 prepared WxH=11x18 CharWidth=10 0:598 0:000 Choosing theme mlcamp 0:599 0:000 Custom entries start 0:599 0:000 Custom entry 0 skipped because it is disabled. 0:599 0:000 Custom entry 1 skipped because it is hidden. 0:599 0:000 Custom entry 2 "\System\Library\CoreServices\boot.efi" "" (1) 0x0 matching "9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5" ... 0:599 0:000 Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000)) ... skipped 0:599 0:000 Checking volume "Macintosh SSD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0)) ... match! 0:622 0:023 found PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0)\System\Library\CoreServices\boot.efi 0:622 0:000 Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,DAE6FD8B-3D41-4529-B1FE-006E50933417,0x244C80D8,0x135F28)) ... skipped 0:622 0:000 Checking volume "WINDOWS" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(4,GPT,896874EF-2639-4D21-9624-BC84A00130CD,0x245FE000,0x173E3000)) ... skipped 0:622 0:000 Custom entry 3 "\EFI\Microsoft\Boot\bootmgfw-orig.efi" "" (7) 0x0 matching "896874EF-2639-4D21-9624-BC84A00130CD" ... 0:622 0:000 Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000)) ... skipped 0:622 0:000 Checking volume "Macintosh SSD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0)) ... skipped 0:622 0:000 Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,DAE6FD8B-3D41-4529-B1FE-006E50933417,0x244C80D8,0x135F28)) ... skipped 0:622 0:000 Checking volume "WINDOWS" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(4,GPT,896874EF-2639-4D21-9624-BC84A00130CD,0x245FE000,0x173E3000)) ... skipped because path does not exist 0:622 0:000 Custom entries finish 0:622 0:000 Scanning loaders... 0:622 0:000 0: 'Whole Disc Boot' no file system 0:622 0:000 1: 'Whole Disc Boot' no file system 0:622 0:000 2: 'Whole Disc Boot' no file system 0:622 0:000 3: 'EFI' 0:623 0:000 skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000)\EFI\BOOT\BOOTX64.efi` is self path! 0:623 0:000 4: 'Macintosh SSD' 0:623 0:000 skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0)\System\Library\CoreServices\boot.efi` already exists for another entry! 0:624 0:000 5: 'Recovery HD' 0:624 0:000 volume did not match for path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,DAE6FD8B-3D41-4529-B1FE-006E50933417,0x244C80D8,0x135F28)\com.apple.recovery.boot\boot.efi` and custom entry 0 0:625 0:000 skipped path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,DAE6FD8B-3D41-4529-B1FE-006E50933417,0x244C80D8,0x135F28)\com.apple.recovery.boot\boot.efi` because it is a volume and type match for custom entry 1! 0:625 0:000 6: 'WINDOWS' 0:625 0:000 7: 'Legacy HD1' no file system 0:625 0:000 8: 'Legacy HD2' no file system 0:625 0:000 Custom legacy start 0:625 0:000 Custom legacy end 0:625 0:000 Custom tool start 0:625 0:000 Custom tool end 0:628 0:002 found tool \EFI\CLOVER\tools\Shell64U.efi 0:628 0:000 Checking EFI partition Volume 3 for Clover 0:628 0:000 Found Clover 0:628 0:000 Icon 2 (icons\func_clover.png) not found 0:628 0:000 Theme path EFI\CLOVER\themes\mlcamp, ThemeDir=C5F81C98 0:628 0:000 Text <clover> rendered 0:628 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:628 0:000 FindBootOptionForFile: C5F97B18, \EFI\CLOVER\CLOVERX64.EFI 0:628 0:000 BootOrder: 1: Boot0001 0:628 0:000 Searching for: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000)\EFI\CLOVER\CLOVERX64.EFI (Len: 130) 0:628 0:000 and for: HD(1,GPT,0F3582E4-D5F4-42BA-8FA7-013996A0475C,0x28,0x64000)\EFI\CLOVER\CLOVERX64.EFI (Len: 102) 0:628 0:000 FindBootOptionForFile: Not found. 0:634 0:005 FindDefaultEntry ... 0:634 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done 0:641 0:007 FindStartupDiskVolume ... 0:641 0:000 GetEfiBootDeviceFromNvram: 0:641 0:000 efi-boot-device-data: PciRoot(0x0)\Pci(0x1C,0x3)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0) 0:641 0:000 Volume: 'PciRoot(0x0)\Pci(0x1C,0x3)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0)' 0:641 0:000 LoaderPath: '<null string>' 0:641 0:000 Guid = 9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5 0:641 0:000 FindStartupDiskVolume searching ... 0:641 0:000 volume: partition = PciRoot(0x0)\Pci(0x1C,0x3)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5,0x64028,0x244640B0) 0:641 0:000 searching for that partition 0:641 0:000 not found 0:641 0:000 searching again, but comparing Media dev path nodes 0:641 0:000 found entry 0. 'Mac', Volume 'Macintosh SSD' 0:641 0:000 Boot redirected to Entry 0. 'Mac' 0:641 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:641 0:000 DefaultIndex=0 and MainMenu.EntryCount=7 1:304 0:662 Found Mouse device: 1:305 0:001 GUI ready 2:048 0:742 StartLoader() start 2:048 0:000 Finally: Bus=99999kHz CPU=3499MHz 2:048 0:000 Loading boot.efi 2:056 0:008 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done 2:063 0:007 insert table 9 for Airport 2:064 0:000 Trusting SMBIOS... 2:064 0:000 Channels: 2 2:064 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23 2:064 0:000 SMBIOS Type 17 Index = 0 => 0 0: 2:064 0:000 DIMM1 EMPTY 2:064 0:000 SMBIOS Type 17 Index = 1 => 2 2: 2:064 0:000 DIMM2 EMPTY 2:064 0:000 partNum=BLT8G3D1608ET3LX0. 2:064 0:000 SMBIOS Type 17 Index = 2 => 1 1: 2:064 0:000 DIMM3 1600MHz 8192MB 2:064 0:000 mTotalSystemMemory = 8192 2:064 0:000 partNum=BLT8G3D1608ET3LX0. 2:064 0:000 SMBIOS Type 17 Index = 3 => 3 3: 2:064 0:000 DIMM4 1600MHz 8192MB 2:064 0:000 mTotalSystemMemory = 16384 2:064 0:000 NumberOfMemoryDevices = 4 2:064 0:000 Type20[0]->End = 0x7FFFFF, Type17[2] = 0x2000 2:064 0:000 Type20[1]->End = 0xFFFFFF, Type17[3] = 0x6000 2:064 0:000 Table 131 is present, CPUType=31 2:064 0:000 Change to: 705 2:064 0:000 RSDT 0xC8781028 2:064 0:000 FADT from RSDT: 0xC8781100 2:064 0:000 XSDT 0xC8781080 2:064 0:000 FADT from XSDT: 0xC878D950 2:064 0:000 Xsdt reallocation done 2:064 0:000 old FADT length=10C 2:065 0:001 DSDT found in Clover volume OEM folder: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\ACPI\patched\DSDT.aml 2:067 0:001 page is allocated, write DSDT into 2:067 0:000 Apply DsdtFixMask=0x00000000 old way 2:067 0:000 ========= Auto patch DSDT Starting ======== 2:067 0:000 VideoCard devID=0x100410DE 2:067 0:000 DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0 2:067 0:000 Display 0 is notPCIE 2:176 0:108 VideoCard devID=0x4128086 2:176 0:000 DisplayADR1[1] = 0x20000, DisplayADR2[1] = 0xFFFE 2:176 0:000 Display 1 is notPCIE 2:283 0:107 USBADR[0] = 0x140000 and PCIe = 0xFFFE 2:283 0:000 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE 2:390 0:107 Found Airport BCM at 0x1C0004, 0x0 2:390 0:000 USBADR[2] = 0x1D0000 and PCIe = 0xFFFE 2:390 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7 2:390 0:000 Found PCIROOTUID = 0 2:390 0:000 ========= Auto patch DSDT Finished ======== 2:390 0:000 Drop tables from Xsdt, SIGN=SSDT TableID= Length=0 2:390 0:000 Xsdt has tables count=10 2:390 0:000 Table: SSDT Cpu0Ist 1337 dropped 2:390 0:000 Table: SSDT CpuPm 2776 dropped 2:390 0:000 Table: SSDT SataTabl 877 dropped 2:390 0:000 Table: SSDT SaSsdt 12958 dropped 2:390 0:000 corrected XSDT length=84 2:390 0:000 Inserting SSDT.aml from EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\ACPI\patched ... Success 2:392 0:001 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8 2:392 0:000 Maximum control=23 2:392 0:000 Turbo control=27 2:392 0:000 P-States: min 0x7, max 0x27 2:392 0:000 SSDT with CPU P-States generated successfully 2:392 0:000 SSDT with CPU C-States generated successfully 2:392 0:000 EdidDiscovered size=256 2:392 0:000 00 | 00 FF FF FF FF FF FF 00 06 10 26 92 FC 03 09 17 2:392 0:000 16 | 09 17 01 04 B5 3C 22 78 22 6F B1 A7 55 4C 9E 25 2:392 0:000 32 | 0C 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 2:392 0:000 48 | 01 01 01 01 01 01 56 5E 00 A0 A0 A0 29 50 30 20 2:392 0:000 64 | 35 00 55 50 21 00 00 1A 1A 1D 00 80 51 D0 1C 20 2:392 0:000 80 | 40 80 35 00 55 50 21 00 00 1C 00 00 00 FF 00 57 2:392 0:000 96 | 38 33 30 39 30 57 30 36 4A 4C 0A 20 00 00 00 FC 2:392 0:000 112 | 00 4C 45 44 20 43 69 6E 65 6D 61 0A 20 20 01 9F 2:392 0:000 128 | 02 03 0C C1 23 09 07 07 83 01 00 00 56 5E 00 A0 2:392 0:000 144 | A0 A0 29 50 30 20 35 00 55 50 21 00 00 1A 1A 1D 2:392 0:000 160 | 00 80 51 D0 1C 20 40 80 35 00 55 50 21 00 00 1C 2:392 0:000 176 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2:392 0:000 192 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2:392 0:000 208 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2:392 0:000 224 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2:392 0:000 240 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 13 2:392 0:000 NVidia GFX injection not set 2:392 0:000 Intel Intel HD Graphics 4600 [8086:0412] :: PciRoot(0x0)\Pci(0x2,0x0) 2:392 0:000 Intel GFX revision =0x6 2:392 0:000 HDA Controller [8086:0C0C] :: PciRoot(0x0)\Pci(0x3,0x0) => codec not detected 2:499 0:107 LAN Controller [8086:153B] :: PciRoot(0x0)\Pci(0x19,0x0) 2:499 0:000 HDA Controller [8086:8C20] :: PciRoot(0x0)\Pci(0x1B,0x0) => codec not detected 2:607 0:107 stringlength = 1446 2:607 0:000 CurrentMode: Width=2560 Height=1440 2:607 0:000 FSInjection:, injecting kexts from: 'EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9'OnSimpleFileSystem occured 2:608 0:001 - done! 2:608 0:000 Injecting kexts for arch=x86_64 from EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9 2:609 0:001 Extra kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext 2:615 0:006 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\ACPISensors.kext 2:619 0:003 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\AppleIntelE1000e.kext 2:627 0:007 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext 2:629 0:002 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\FakeSMCKeyStore.kext 2:634 0:004 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext 2:638 0:004 Extra PlugIn kext: EFI\CLOVER\OEM\MAXIMUS VI GENE\UEFI\kexts\10.9\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext 2:651 0:012 count: 7 2:651 0:000 mm_extra_size: 308 2:651 0:000 extra_size: 897024 2:651 0:000 offset: 901084 2:651 0:000 SetStartupDiskVolume ... Volume: 'Macintosh SSD', LoaderPath: '<null string>' 2:651 0:000 DevPath: Macintosh SSD 2:651 0:000 GUID = 9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5 2:651 0:000 efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5</string></dict></dict></dict></array> 2:651 0:000 Closing log I boot with this config.plist: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Name</key> <string>DSDT.aml</string> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <true/> </dict> </dict> <key>Boot</key> <dict> <key>Arguments</key> <string></string> <key>Timeout</key> <integer>5</integer> <key>XMPDetection</key> <true/> <key>Log</key> <false/> </dict> <key>Devices</key> <dict> <key>USB</key> <dict> <key>Inject</key> <false/> <key>FixOwnership</key> <false/> <key>AddClockID</key> <false/> </dict> </dict> <key>GUI</key> <dict> <key>Scan</key> <dict> <key>Tool</key> <true/> <key>Entries</key> <true/> <key>Legacy</key> <false/> </dict> <key>Hide</key> <array> <string>HD(1,GPT,031A7308-A953-448D-AC13-DF16C772C478)</string> <string>HD(2,GPT,D35FB078-F5FB-43C3-A6EE-856EF6C96C07)</string> </array> <key>Custom</key> <dict> <key>Entries</key> <array> <dict> <key>Volume</key> <string>0F3582E4-D5F4-42BA-8FA7-013996A0475C</string> <key>Path</key> <string>\EFI\BOOT\BOOTX64.efi</string> <key>Disabled</key> <true/> <key>Hidden</key> <true/> </dict> <dict> <key>Volume</key> <string>DAE6FD8B-3D41-4529-B1FE-006E50933417</string> <key>Hidden</key> <true/> <key>Disabled</key> <false/> <key>FullTitle</key> <string>Recovery</string> <key>Type</key> <string>OSXRecovery</string> </dict> <dict> <key>Volume</key> <string>9748EF3F-6433-45BA-80F7-F6D9FDA3EFE5</string> <key>FullTitle</key> <string>Mac</string> <key>Type</key> <string>OSX</string> </dict> <dict> <key>Volume</key> <string>896874EF-2639-4D21-9624-BC84A00130CD</string> <key>Path</key> <string>\EFI\Microsoft\Boot\bootmgfw-orig.efi</string> <key>FullTitle</key> <string>Windows 8</string> <key>Type</key> <string>Windows</string> <key>InjectKexts</key> <false/> <key>AddArguments</key> <string></string> </dict> </array> </dict> <key>Theme</key> <string>mlcamp</string> <key>Mouse</key> <dict> <key>Enabled</key> <true/> <key>Speed</key> <integer>2</integer> <key>DoubleClick</key> <integer>500</integer> <key>Mirror</key> <false/> </dict> </dict> <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>Intel</key> <true/> </dict> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <false/> <key>AsusAICPUPM</key> <false/> <key>Debug</key> <false/> <key>KernelCpu</key> <false/> <key>KextsToPatch</key> <array> <dict> <key>Name</key> <string>IOAHCIBlockStorage</string> <key>Find</key> <data>QVBQTEUgU1NEAA==</data> <key>Replace</key> <data>AAAAAAAAAAAAAA==</data> </dict> <dict> <key>Name</key> <string>AppleTyMCEDriver</string> <key>Find</key> <data>cgoATWFjUHJvNCwxAE1hY1BybzUsMQBY</data> <key>Replace</key> <data>cgoAAAAAAAAAAAAAAAAAAAAAAAAAAABY</data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>LogLineCount</key> <integer>3000</integer> <key>MountEFI</key> <false/> </dict> <key>SMBIOS</key> <dict> <key>ProductName</key> <string>MacPro5,1</string> <key>SerialNumber</key> <string>SERIALHIDDEN</string> <key>SmUUID</key> <string>SMUUIDHIDDEN</string> </dict> <key>SystemParameters</key> <dict> <key>CustomUUID</key> <string>CUSTOMUUIDHIDDEN</string> <key>InjectSystemID</key> <false/> <key>InjectKexts</key> <true/> </dict> </dict> </plist> That combined with SSDT and DSDT gives me no CPU PM and no GPU PM on my Asus Maximus VI Gene with i7-4770k and no sleep either. Link to comment Share on other sites More sharing options...

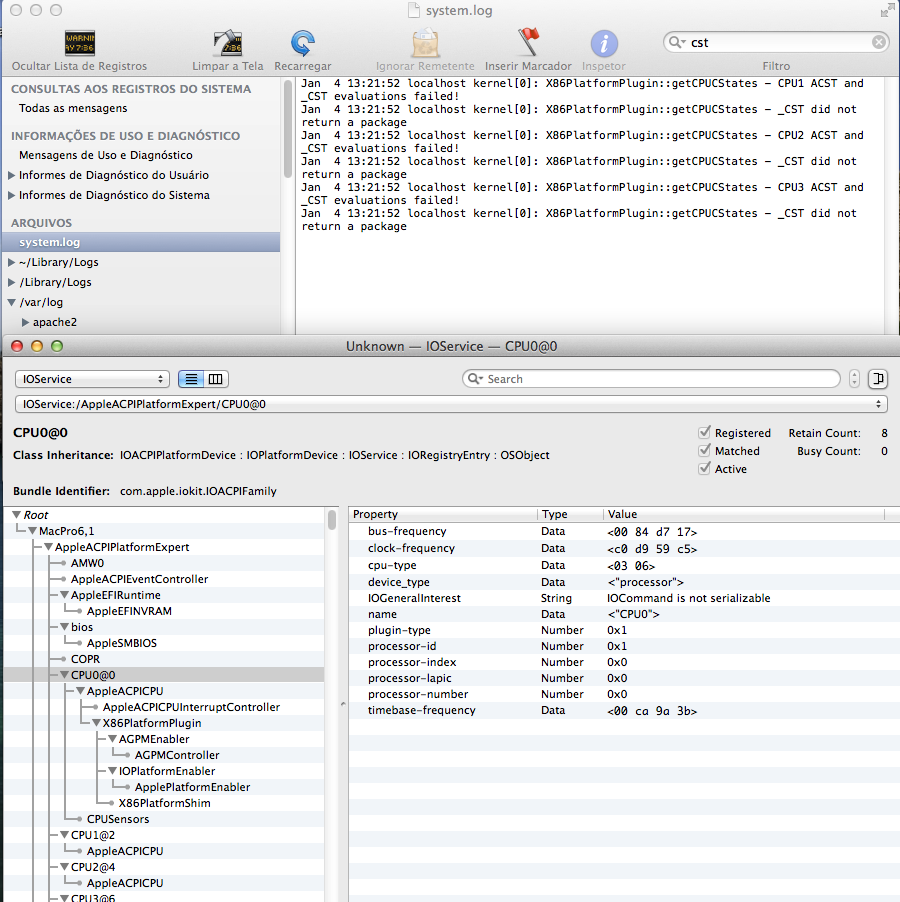

Bruxo Posted January 4, 2014 Share Posted January 4, 2014 I have bridger Sand i5 2500k and not Ivy Bridger! But I'm activating X86PlatformPlugin and all its derivatives to MacPro6 1 CPU 1600MHZ lay down and not get out of it; Console shows such errors! Link to comment Share on other sites More sharing options...
apianti Posted January 4, 2014 Share Posted January 4, 2014 I got the exact same problems as him, but my GPU is recognized, although as a GTX 780 Ti (it is a normal GTX 780), but it shows the correct Device ID (1004), as well in in Clover as in OS X. I boot with this config.plist: That combined with SSDT and DSDT gives me no CPU PM and no GPU PM on my Asus Maximus VI Gene with i7-4770k and no sleep either. don't drop all ssdts, only CpuPm and Cpu0Ist. have you tried graphics injector for nvidia? you're using vanilla nvidia driver kexts right? also why disable the usb fixes? pene will be able to help you better with nvidia issues, as i've only ever owned one and i hated it.... i just stick with ati/amd. I have bridger Sand i5 2500k and not Ivy Bridger! But I'm activating X86PlatformPlugin and all its derivatives to MacPro6 1 CPU 1600MHZ lay down and not get out of it; Console shows such errors! okay..... but why? totally unnecessary just use imac or other macpro..... Link to comment Share on other sites More sharing options...
Fab1Man Posted January 4, 2014 Share Posted January 4, 2014 I use my own DSDT. Is there any particular reason you recommend it? Link to comment Share on other sites More sharing options...
apianti Posted January 4, 2014 Share Posted January 4, 2014 What do you mean, for injector? Just to try..... You may have wrongly patched dsdt, it is big issue if you have a lot of non working stuff.... But you probably don't have sleep because you're dropping some ssdts that you shouldn't please check out http://clover-wiki.zetam.org/Configuration/ACPI#DropTables EDIT: Also don't generate p and c states and inject your own custom patched ssdt. This is conflict and known to cause sleep and speedstep issues. Link to comment Share on other sites More sharing options...
one9092002 Posted January 4, 2014 Share Posted January 4, 2014 I need help configuring clover for EVGA SR-2 ? Link to comment Share on other sites More sharing options...
Fab1Man Posted January 4, 2014 Share Posted January 4, 2014 What do you mean, for injector? Just to try..... You may have wrongly patched dsdt, it is big issue if you have a lot of non working stuff.... But you probably don't have sleep because you're dropping some ssdts that you shouldn't please check out http://clover-wiki.zetam.org/Configuration/ACPI#DropTables EDIT: Also don't generate p and c states and inject your own custom patched ssdt. This is conflict and known to cause sleep and speedstep issues. Yes I meant USB. Normally I thought you'd use ownership if USB doesn't work after sleep. When sleep worked, USB worked too so. Link to comment Share on other sites More sharing options...
Bruxo Posted January 4, 2014 Share Posted January 4, 2014 okay..... but why? totally unnecessary just use imac or other macpro..... The issue is that many are using the SMBIOS MacPro5, 1 and I show that the Ivy CPU and Haswell MacPro6 be the correct 1 for better ACPI! X86Plat ... be correct! Link to comment Share on other sites More sharing options...
