[Guide] macOS Sierra 10.12 - Dell Optiplex 780 (760) (755) (790) (990)

* * * * * 6 votes Dell Optiplex 780 760 macOS 10.12 Sierra 755 790 990

  • Please log in to reply
1355 replies to this topic

#1
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

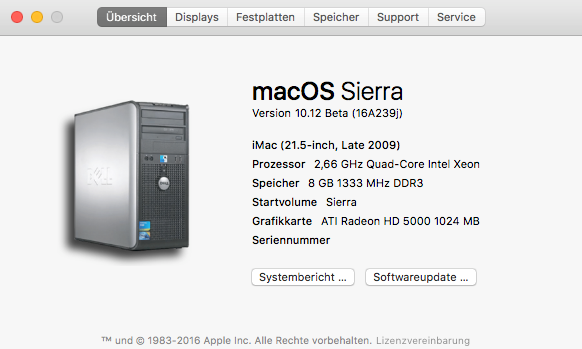

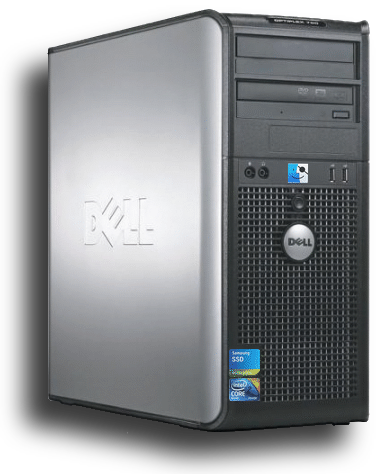

Attached File  dell_optiplex_780.png   192.97KB   654 downloads Attached File  dell_sierra.png   87.16KB   616 downloads Attached File  dell_sierra_gm.png   73.48KB   137 downloads Attached File  beta1_10_12_6.png   72.54KB   53 downloads



Note: Sierra supports only CPUs with SSE4 support, example: my Q9400 or my Q8200 working with Sierra. Core2Duo E7200 / Core2Quad Q8200 or higher works as well. See CPU-X.app for your CPU !!! SMBIOS MacPro3,1 is no longer supported with Sierra. Change to iMac10,1 and generate Serial, MLB and board serial number! HD5450 works with Sierra without problems, GT610 not more works with Sierra!!!


1. Download Install 10.12 Developer Preview.app (GM: macOS Sierra.app)

2. CreateInstall USB flash drive (8GB) with terminal (If problems with USB, then create internal Install HDD):
sudo /Applications/Install\ 10.12\ Developer\ Preview.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ 10.12\ Developer\ Preview.app --nointeraction
or with final or later
sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ macOS\ Sierra.app --nointeraction

3. Install Clover 3985 or later for Sierra-Support to your Install medium (Legacy-Method):

Bootloader / Install boot0af in the MBR
CloverEFI / Clover-EFI 64Bit SATA
Drivers64UEFI / EmuVariableUefi-64
Drivers64UEFI / OsxAptioFixDrv-64
Drivers64UEFI / PartitionDxe-64

4. Copy your config.plist and DSDT from your Capitan HDD or SSD or new users from here

DSDT.aml insert to EFI/Clover/ACPI/patched/
config.plist insert to EFI/Clover/

Example Optiplex780/760:
Attached File  DSDT.aml.zip   9.7KB   582 downloads (optimized for Core2Duo, configured for HD5450 and Audio LayoutID 11 (0B) for AppleALC. Additionally Framebuffer in the Clover is "Shrike" for the HD 5450)
Attached File  my_Optiplex_DSDT.aml.zip   10.05KB   746 downloads (my DSDT, optimized for Core2Quad, configured for HD5450 and Audio LayoutID 11 (0B) for AppleALC. Additionally Framebuffer in the Clover is "Shrike" for the HD 5450)
Attached File  my_Optiplex_config.plist.zip   2.09KB   1024 downloads (Create serial number, board serial number, MLB, ROM)
Generic 760/780:
Attached File  Generic_DSDT.aml.zip   9.78KB   598 downloads (Not Patched for HD5450 Video, for other graphics cards. Audio is LayoutID 11 (0B) for AppleALC)
Attached File  config.plist_for_other_graphics_cards.zip   1.85KB   448 downloads (Not Patched for HD5450 Video, for other graphics cards. Create serial number, board serial number, MLB, ROM)

Example Optiplex755:
Attached File  DSDT.aml_755.zip   9.79KB   155 downloads (configured for HD5450 and Audio LayoutID 28 (1C) for Trial-AppleALC see below. Additionally Framebuffer in the Clover is "Shrike" for the HD 5450)
Attached File  config.plist_755.zip   2.21KB   244 downloads (Create serial number, board serial number, MLB, ROM)
Attached File  DSDT.aml_755_for_other_graphics_cards.zip   9.7KB   203 downloads

Example Optiplex790:
Attached File  790.zip   14.27KB   384 downloads (Patched DSDT (PEG0) for HD5450, config: Create serial number, board serial number, MLB, ROM)
Attached File  DSDT.aml_790_LayoutID15.zip   12.25KB   232 downloads (for Sound with AppleALC - LayoutID 15 (0F))
Attached File  DSDT.aml_790_LayoutID28.zip   12.22KB   142 downloads (for on-the-fly-Sound with Clover, LayoutID 28 (1C))

Example Optiplex990:
Attached File  DSDT_and_config_for_Optiplex990.zip   14.33KB   319 downloads (Patched DSDT (PEG0) for HD5450, Sound with AppleALC - LayoutID 15 (0F), config: Create serial number, board serial number, MLB, ROM)

5. Create folders 10.12 in EFI/Clover/kexts/

6. Copy your kexts of your Capitan HDD or SSD to EFI/Clover/kexts/10.12/

Example760/780: these are my kexts for 10.12: Attached File  10.12.zip   310.26KB   1279 downloads

7. Now Sierra install on your HDD or SSD (Partitions with Guid scheme)

after installation:

8. Terminal (for unsigned apps):
sudo spctl --master-disable
9. Install Clover on your HDD or SSD (Legacy-Method):

Bootloader / Install boot0af in the MBR
CloverEFI / Clover-EFI 64Bit SATA
Drivers64UEFI / EmuVariableUefi-64
Drivers64UEFI / OsxAptioFixDrv-64
Drivers64UEFI / PartitionDxe-64
Install RC Scripts In Target Volume
optional:
Install Clover in the ESP
Theme, free choice

Install Clover Preference Pane


10. Copy your config.plist, DSDT and folder 10.12 to your Sierra HDD or SSD



after installation sound:

Please ask if you have problems with the AppleALC method! It is not hard to get it right.

optional Audio Optiplex780/760:

since version 1.0.13.Release (and later) now with appleALC with LayoutID 11 (0B)
:poke:  new Codec LayoutID 13 (0D) for 780/760  (autodetect)


DSDT/HDEF:
 "layout-id",
                            Buffer (0x04)
                            {
                                0x0D, 0x00, 0x00, 0x00
                            },
or older method

Attached File  on_the_fly_Paket_Dell_Optiplex_780_(760)_10.12_Sierra_276_26.zip   1.83MB   274 downloads LayoutID 1 (01)

optional Audio Optiplex755:

Attached File  trial_AppleALC.kext_Optiplex755.zip   615.92KB   156 downloads LayoutID 28 (1C) please report

(If no one tries and reports, then nothing comes in the next release of the AppleALC. So far no users for experiments, a pity.)

optional Audio Optiplex790 and 990:

since version 1.0.19.Release (and later) now with appleALC with LayoutID 15 (0F)
:poke:  new Codec LayoutID 16 (10) for 790/990  (autodetect)


DSDT/HDEF:
                            "layout-id",
                            Buffer (0x04)
                            {
                                0x10, 0x00, 0x00, 0x00
                            },
or older method

Attached File  on_the_fly_Audio_Optiplex790_10.12_Sierra_276_26.zip   1.95MB   190 downloads LayoutID 28 (1C)


Night Shift Patch:

macOS10.13:

Tested graphics cards with Sierra:
My XFX on HD5450: with DSDT patch and frame buffer "Shrike" works great with HDMI audio and Sleep in the Optiplex780
@morpheousman´s HD5450: http://www.insanelym...18#entry2369870
My HD6570: works OOB including HDMI audio
My Nvidia GT610: works OOB only up to 10.11.6, with Sierra no support
My EVGA Nvidia GT210: works with Inject Nvidia with Sierra, but no HDMI audio possible
other User with GT710
Zotac GeForce GT 1030 2Gig OOB Web Drivers only (@chris1111) http://www.insanelym...44#entry2478188

If you have other graphics cards for Optiplex or for other computers working with Sierra, then please report!

Tested WLAN:

PCIe: TP-Link TL-WDN4800 N900 WLAN Dual Band up to 450Mbit/s to 2.4GHz or 5GHz, works OOB as Airport
PCI: TP-Link TL-WN851ND 300Mbit/s, works as Airport, thanks Maggo Attached File  AtherosWiFiInjector.kext.zip   4.02KB   122 downloads
USB: TP-Link TL-WN725N Nano WLAN USB Adapter 150Mbit/s, not as AirPort

Developer Beta program:
[How-To] macOS Sierra Developer Beta program without special registration, if anyone is interested!

Attached File  here.gif   23.87KB   56 downloads
Attached File  com.apple.seeding.plist.zip   1.15KB   89 downloads

Copies the com.apple.seeding.plist file to / Library / Preferences / (not S/L/P)

and open Terminal:
sudo softwareupdate --set-catalog https://swscan.apple.com/content/catalogs/others/index-10.12seed-10.12-10.11-10.10-10.9-mountainlion-lion-snowleopard-leopard.merged-1.sucatalog.gz

see AppStore/Updates


Attention! With DP Beta1 10.12.4 a new Clover version is required. At least 3985!



Credits/Sources:
InsanelyMac
root86
Slice for the Clover Bootloader
pepto, polyzargone, morpheousman, Chris1111, owbp and all others for all Optiplex 780 (760) Guides!

have fun,  :wub:  Optiplex


#2
pippox0

pippox0

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 575 posts
  • Gender:Male
Thanks for your guide !


Sent from iPhone/iPad

#3
Theoprofil

Theoprofil

    InsanelyMac Protégé

  • Members
  • PipPip
  • 81 posts
  • Gender:Male
  • Location:Greece
  • Interests:Coding, Android, Cracking, Hacking, Mac, Hi-Fi, PS4

Thanks! Great! But no sound on the fly with clover. Can you attach config.plist ?


Thanks! Great!

Attached Files



#4
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

here is on the fly Package: http://www.insanelym...1012-sierrazip/

(AppleHDA+realtekALC+patch)



Install this AppleHDA and rebuild Cache (SIP 0x67)

copy realtekALC to Clovers kexts 10.12

and this for config.plist:

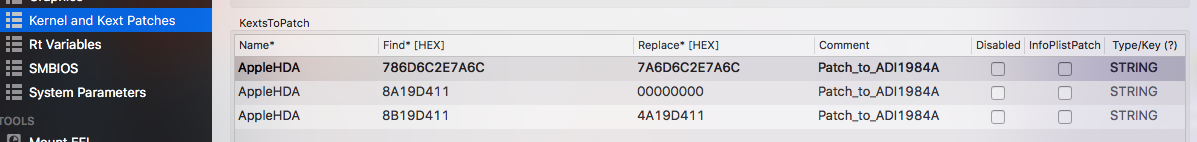

Attached File  patch.png   92.13KB   544 downloads



Here new value at Sierra:

8319D411 to 00000000 was at Capitan
now at Sierra 8A19D411 to 00000000



CloverConfigurator 4.27 works with Sierra (4.28/4.29 not)



#5
Theoprofil

Theoprofil

    InsanelyMac Protégé

  • Members
  • PipPip
  • 81 posts
  • Gender:Male
  • Location:Greece
  • Interests:Coding, Android, Cracking, Hacking, Mac, Hi-Fi, PS4

here is on the fly Package: http://www.insanelym...1012-sierrazip/

(AppleHDA+realtekALC+patch)





CloverConfigurator 4.27 works with Sierra (4.28/4.29 not)

Oh thank you MacPeet very serious info about configurator!!!! frankly it took me 3 efforts to install sierra. Because i tried with the clover 3556 . After a lot of disappointment read carefully that there is a "special edition" clover for sierra.



#6
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

yes, clover 3556 is no Kext Inject.

3561 works with Sierra and Kext Inject.


#7
maverikdj

maverikdj

    InsanelyMac Protégé

  • Members
  • Pip
  • 37 posts
  • Gender:Male
  • Location:Aversa

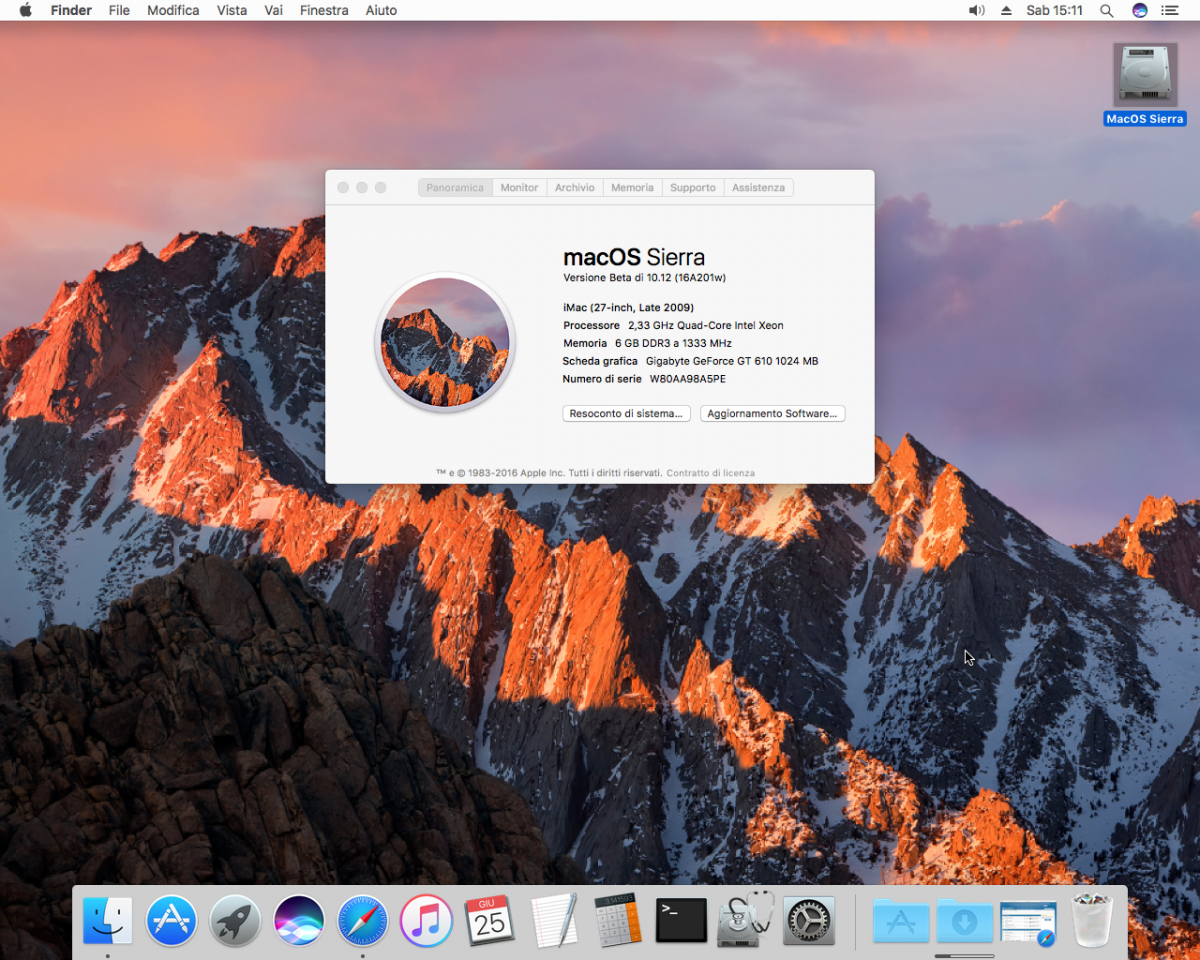

Nothing solution for GT-610? I have installed with nv_disable=1 in config.plist and work, but without acceleration.

Attached Files



#8
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

GT610 is not working with Sierra.



#9
maverikdj

maverikdj

    InsanelyMac Protégé

  • Members
  • Pip
  • 37 posts
  • Gender:Male
  • Location:Aversa



GT610 is not working with Sierra.

my GT610 also does not work with Sierra, we hope to DP2



I removed all nvidia and geforce kext and replaced with nvidia and geforce kext from El Capitan 10.11.5 and system boot without nv_disable=1 and i have all resolution for mine 1680x1050, only problem now is acceleration



#10
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

without kexts no acceleration! That's not how it works.

Let's wait for DP2.


#11
owbp

owbp

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts
  • Gender:Male
  • Location:Belgrade, Serbia
It will be fixed soon.
As long as cMP 5,1 is officially supported, Kepler cards has to be too.


Sent from my iPhone using Tapatalk

#12
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

I hope so with DP2.

But it is very funny, all cards work even older cards, only the GT610 not.


Edit:
Until now, problems with Sierra DP2 and the Optiplex 780, is not working. ("timeout kextd AppleACPICPU"-Error and black Screen)
Problems also with Clover Version 3577 and 3585.
Only 3561 works with DP1 on the Optiplex 780.

Edit2:
With Clover 3589 now complete installation and DP2 works.  :thumbsup_anim:

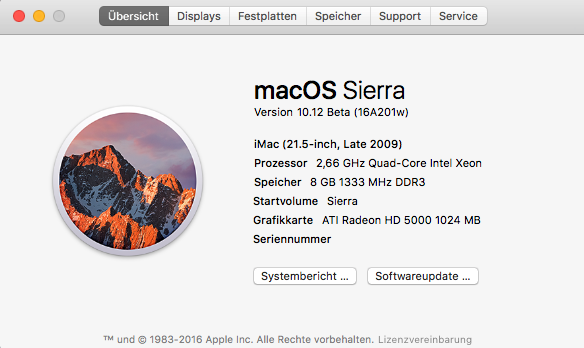

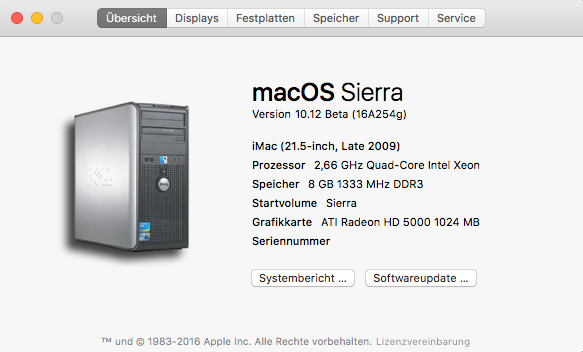

Attached File  dell_sierra_dp2.png   75.55KB   87 downloads

Edit3:
also with the DP2, the GT610 is not working  :construction:


#13
Deanor30

Deanor30

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts



I hope so with DP2.

But it is very funny, all cards work even older cards, only the GT610 not.


Edit:
Until now, problems with Sierra DP2 and the Optiplex 780, is not working. ("timeout kextd AppleACPICPU"-Error and black Screen)
Problems also with Clover Version 3577 and 3585.
Only 3561 works with DP1 on the Optiplex 780.

Edit2:
With Clover 3589 now complete installation and DP2 works.  :thumbsup_anim:



Hi Macpeet,

    Any success yet with the Sierra public beta?



#14
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

Public Beta is probably the DP2

with Clover 3589 or later and instructions Post # 1 it should work


#15
Deanor30

Deanor30

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts

Has anyone got the latest public beta working with the gt610. I have used the nvidia kexts from elcap 10.5 and I have full resolution but like maverikdj I have no graphics accelleration.



#16
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

DP3 works without problems:



Attached File  dell_sierra_dp3.png   75.37KB   62 downloads





@Deanor30

no way for the GT610, will not work with DP1, DP2, DP3 and rollback not working. Webdriver not working.

GT610 is probably out.



#17
Deanor30

Deanor30

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts

DP3 works without problems:








@Deanor30

no way for the GT610, will not work with DP1, DP2, DP3 and rollback not working. Webdriver not working.

GT610 is probably out.

Macpeet, have you tested the latest release with the gt610 card? I have tried dp2 but not 3 yet.



#18
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

<offtopic>

I tested DP1, DP2 and DP3 on my Esprimo p3510 with CPU: Q8200 and GT610 1GB, SMBIOS iMac10,1 ---> not works GT610. Only nv_disable=1 without graphics acceleration.

</offtopic>



#19
MacPeet

MacPeet

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 592 posts
  • Gender:Male
  • Location:Germany root86.com

{

Text deleted, no longer important.

}



Update macOS Sierra DP4 (16A270f) works without problems (my Clover is 3650)
Update macOS Sierra DP5 (16A286a) works (my Clover is 3650)

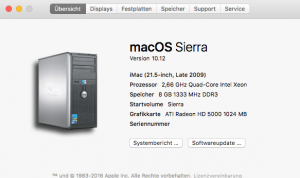

Attached File  dell_sierra_dp5.png   74.16KB   30 downloads

Update macOS Sierra DP7 (16A304a) works (my Clover is 3650)


#20
mickeyd453

mickeyd453

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 101 posts

I am trying Sierra for the first time but on an Optiplex 980 - so similar but not identical. I am having issues with USB which in 10.11 i fixed with USBInjectAll.kext to get my USB ports working - Did you have any such problems with your Optiplex regarding USB ??







Also tagged with one or more of these keywords: Dell Optiplex, 780, 760, macOS, 10.12, Sierra, 755, 790, 990


2 user(s) are reading this topic

0 members, 2 guests, 0 anonymous users

© 2017 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
