tsotelo2 Posted August 18, 2008 Share Posted August 18, 2008 It's Dual Display working on 8800gt 512? Tnaks in advance. Link to comment Share on other sites More sharing options...
Rik75 Posted August 24, 2008 Share Posted August 24, 2008 Works for me with EFIStudio by selecting my GeForce 8800GT 512Mo but i'm not QE and Software CI. What's my problem ? Edit : Just try ur manual tutorial and all is ok! The string given by EFIStudio was wrong. Just try yours and worked. Link to comment Share on other sites More sharing options...
cdrz Posted August 26, 2008 Share Posted August 26, 2008 BFG 8800GT (512MB) I've been struggling with this card for some time but can't seem to get it working. I see that others have had success so I'm hoping that I can get a little bit of assistance. Unfortunately a few of the nvinstaller packages that I've tried not only fail in that they result in a kernel panic, but many times leave the system in an un-bootable state. Fortunately I have a full backup so it's easy enough to get back up and running. Oddly enough I was able to get a friends EVGA 8800 up and running and no time. Thanks all I appreciate the help! Scott Link to comment Share on other sites More sharing options...

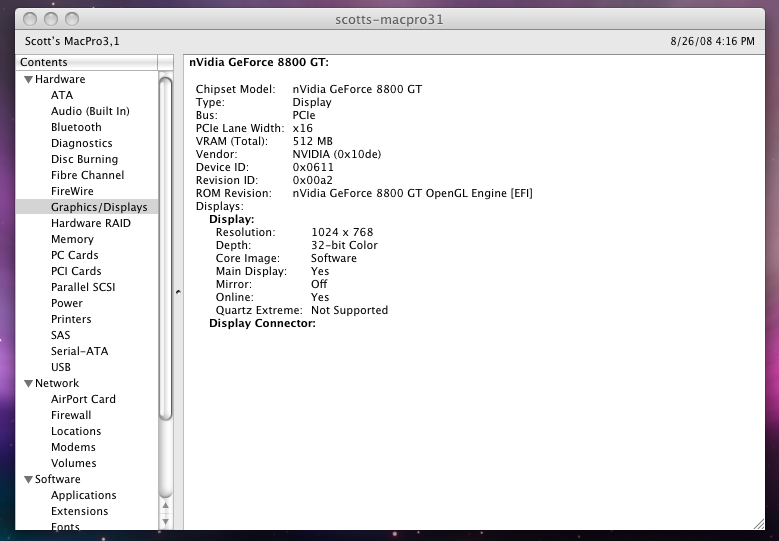

cdrz Posted August 26, 2008 Share Posted August 26, 2008 BFG 8800GT (512MB) I've been struggling with this card for some time but can't seem to get it working. I see that others have had success so I'm hoping that I can get a little bit of assistance. Unfortunately a few of the nvinstaller packages that I've tried not only fail in that they result in a kernel panic, but many times leave the system in an un-bootable state. Fortunately I have a full backup so it's easy enough to get back up and running. Oddly enough I was able to get a friends EVGA 8800 up and running and no time. Thanks all I appreciate the help! Scott EFI Studio seems to have filled in some of the details but I still can't change my resolution and there is no hardware acceleration support. Link to comment Share on other sites More sharing options...
cdrz Posted August 28, 2008 Share Posted August 28, 2008 Anyone? Link to comment Share on other sites More sharing options...
tormentor Posted September 11, 2008 Share Posted September 11, 2008 The tutorial worked perfectly for me, many thanks !!! Link to comment Share on other sites More sharing options...
sup3r1or Posted September 11, 2008 Share Posted September 11, 2008 This is quite simillar to Aqua-Mac 9800GTX tutorial right? Is this method the same? Link to comment Share on other sites More sharing options...
cdrz Posted September 15, 2008 Share Posted September 15, 2008 I finally got this working. Unfortunately EFI Studio didn't do the trick, nor did any of the patchers. Thanks again Agrafuese for taking the time to create this tutorial. -cdrz Link to comment Share on other sites More sharing options...
Barcode Posted September 21, 2008 Share Posted September 21, 2008 Your guide worked perfectly for me! I have a Gigabyte 8800GT with a Gigabyte GA-EP35-DS4 running Leopard 10.5.5, so lack of QE was disappointing. But 20 minutes with your guide and all is well. As a matter of interest, the vesrsion of NVinject in Kalyway 10.5.2 supports QE, but it wouldn't work with my setup. Anyway, many thanks. Link to comment Share on other sites More sharing options...
Zero_ Posted September 29, 2008 Share Posted September 29, 2008 I can't seem to edit the stuff in the single user mode it keeps saying read only mode any ideas Link to comment Share on other sites More sharing options...
Zero_ Posted October 2, 2008 Share Posted October 2, 2008 dam... Ive tried this,Natit and NVinject nothing seems to work... Link to comment Share on other sites More sharing options...
MaaseyRacer Posted October 3, 2008 Share Posted October 3, 2008 Anyone else have a glitchy display when they first boot? Half of the time my icons show up. Then I have to navigate to where the dock should be and an icon on my dock with display. Then I have to open an item on my dock to start getting bits of the screen back. Any fix for this. Also system profiler is giving me this message: Display Connector: Status: No display connected Everything else seems to work. Running an 8800GT on a GA-EP45-DS3R with an E8500. PS I used EFI Studio for the install. Link to comment Share on other sites More sharing options...
BayStCowboy Posted October 4, 2008 Share Posted October 4, 2008 Thank you so much!!! For the last few days I've been smacking my head against the wall trying to get my system working properly. I had a very stable 10.5.2 system and recently I upgraded to 10.5.5 but in doing so I lost sound and QE/CI. Sound I was able to recovery quickly and I’ve been busting my brain trying to recover the full use of my EVGA 8800GT 512. I tried a few different methods and nothing seemed to work. Finally I came across this thread and it saved me from throwing my computer out the window. Again, Thank you. Link to comment Share on other sites More sharing options...
adrian mak Posted November 3, 2008 Share Posted November 3, 2008 My motherboard is Asus P5K-E Wifi AP I installed retail leopard dvd with the boot132 generic CD sucessfully. leopard can bootup smoothly. Next I installed Chameleon for hard disk with success!!!!! leopard still able to bootup Then I follow this guide to add GFX-EFI Strings for my 8800GT 512 display card During bootup ,the system loading a while and it will go in standby/sleep mode automatically ( The LCD monitor led turned in amber color Any thing wrong with my steps ? or some missing steps I was missed ? Link to comment Share on other sites More sharing options...

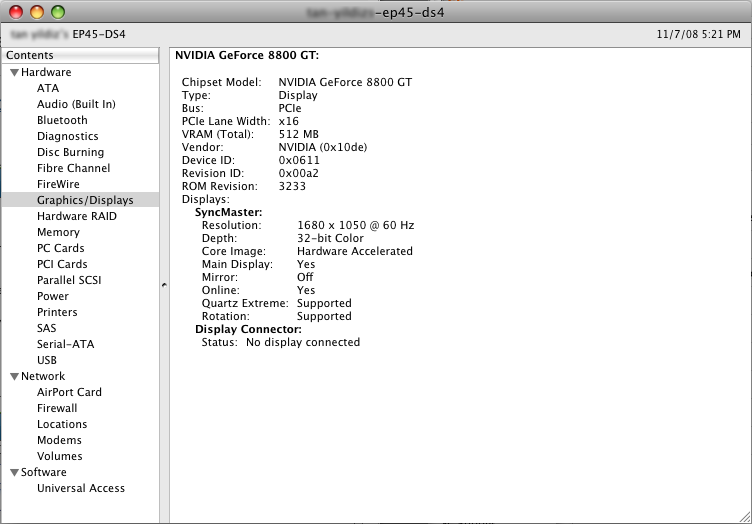

tanyildiz Posted November 7, 2008 Share Posted November 7, 2008 thank you so much for your hard works! i did what you wrote in the tutorial. but i couldn't any result. when it goes to desktop, it shows nothing but black screen. and i tried to put the files back to original places. but again black screen. i used the kalway 10.5.2 DVD to boot and went to Disk Utility. after repair permissions, everything starts to work like you said. there may be another people, who were experienced this case. it could be fine to add 'repairing permissions' part into your tutorial. thank you again! Link to comment Share on other sites More sharing options...
Terc Posted November 25, 2008 Share Posted November 25, 2008 Is there any harm in adding efi strings for hardware that is not on your system? If possible, then we could create one master com.apple.boot.plist for all known working hardware... Link to comment Share on other sites More sharing options...
LeoC Posted December 3, 2008 Share Posted December 3, 2008 Hi there! I'm considering buying an eVGA 8800 GT but I really need dual display feature. Is it possible to connect two 1920x1200 displays to this card? I'd really appreciate some nice answers ^^ Thank you for this tutorial. Hopefully I get my system running in a few weeks! Link to comment Share on other sites More sharing options...
cobraf Posted December 3, 2008 Share Posted December 3, 2008 Is there any harm in adding efi strings for hardware that is not on your system? If possible, then we could create one master com.apple.boot.plist for all known working hardware... As far as i know when experimenting with gfx strings and other EFI strings. Regarding the Video the system will not boot with a wrong string, and will just throw a kernel panic. Also there are alot of video cards out there i dont think its doable even if it is possible to make the system boot with a bloated com.boot file. Link to comment Share on other sites More sharing options...
Booim Posted December 6, 2008 Share Posted December 6, 2008 Great tutorial! I've been using hacintosh (Leo4All v2 - Leopard 10.5.2) for several months with only some minor glitches. But now thanks to this tutorial, everything gets a lot better. When using Maya Unlimited 2009, I can now load all the textures in the viewport extremely fast and it doesn't crash! Every graphic intensive applications run smoother and faster. My box: Intel DP35DPM (onboard LAN + sound & firewire works) Intel Core2Quad 9450 @2.66 Ghz 4 Gb PC-8500 DDR2 Corsair Dominator Nvidia 8800GT 512 Mb 250 Gb + 300 Gb SATA II 7.200 rpm Apps: - Maya Unlimited 2009 - Adobe Creative Suite 4 (Master Collection) - Nuke 5.0v2 - MS Office 2008 Link to comment Share on other sites More sharing options...
ModdTaco Posted December 20, 2008 Share Posted December 20, 2008 Thank you very much! Works great. Dell Dimension 5150 XFX 512mb 8800GT Now I can finally get out of that horrible default resolution. Link to comment Share on other sites More sharing options...
YourClone Posted December 24, 2008 Share Posted December 24, 2008 I followed the instructions carefully. It seems to have made some progress, now instead of shutting the monitor off it flashes blue then hangs on a black screen. Any options? EDIT: Safe Boot continues to "work", so I can still access anything. Link to comment Share on other sites More sharing options...
HaTaX Posted January 17, 2009 Share Posted January 17, 2009 I had iATKOS v4.1 installed on my desktop and used the iATKOS v5 disc to goto 10.5.5 and then upgrade to 10.5.6. When I was going through making sure things were working well, I noticed Quartz Extreme was disabled. Off I went on google and forum searches looking for what works in 10.5.5+ with my 8800GT, I figured there couldn't be too much magic as it was a pretty common card, and I had gotten it working with no trouble on an obsecure Quadro 300M chip. Tried nvkush, injectors, EDID methods, editing my own kexts for EFI support.... None of the how to's out there would get QE enabled on my card. BUT! The help in this thread worked PERFECTLY! I noticed a difference in the "in.plist" XML files listed here and offered in other threads and sites, the cyclonefr.plist had quite a few more entries and was formatted differently then the other files provided. Those extra lines made the difference as I followed the same procedure using other in.plists and they plain did not work. Thank you again for the time put into this! For the record this is an iATKOS v5 install with the vanilla kernel, nvkush was selected at install only because it worked perfectly on the laptop with the Quadro. Intel P35 system with an E8400 CPU. Link to comment Share on other sites More sharing options...
dparada78 Posted January 27, 2009 Share Posted January 27, 2009 Well this is an old thread, but old threads never die. I got my evga 8800gt 512 card to work full QE/CI on my msi p7n diamond! I am running 10.5.5, also works in 10.5.6 Here is my graphics string. I had to edit nvdaresman, nvdanv50hal, and geforce. kexts info.plists with 0x061110de. thanks for this guide... <string>7905000001000000010000006d0500001a00000002010c00d041030a000000000101060000030 01060000000101060000000101060000007fff040024000000400030002c00630061006e002d0068 06f0074002d0070006c00750067000000040000001c0000006400650076006900630065005f00740 79007000650000000f0000004e5644412c506172656e7422000000400031002c0064006500760069 0630065005f00740079007000650000000b000000646973706c617922000000400030002c0064006 00730070006c00610079002d006300660067000000080000000301000020000000400031002c0063 06f006d00700061007400690062006c00650000000e0000004e5644412c4e564d616314000000400 30002c006e0061006d0065000000120000004e5644412c446973706c61792d412e00000040003000 c004100410050004c002c0062006f006f0074002d0064006900730070006c0061007900000004000 0014000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d421e 0000072006f006d002d007200650076006900730069006f006e00000008000000333233332000000 400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d 163200000004e005600440041002c0046006500610074007500720065007300000008000000ff024 05100000004e00560043004100500000001800000005000000000003000c0000000000000b000000 0300000004100410050004c002c0045004d0043002d0044006900730070006c00610079002d004c0 69007300740000004400000003000000000000000000000000000000061000001b92000000000000 0000000061000001c920000000000000000000006100000219200000000000000000000260000004 00410050004c00300030002c0043006f0068006500720065006e0063007900000008000000020000 01c000000400030002c00660062006f0066006600730065007400000008000000000006003600000 4100410050004c002c006100750078002d0070006f007700650072002d0063006f006e006e006500 30074006500640000000800000001000000220000005600520041004d002c0074006f00740061006 00730069007a00650000000800000000000020320000004100410050004c002c006200610063006b 06c0069006700680074002d0063006f006e00740072006f006c00000008000000000000004200000 4100410050004c00300030002c0062006c00610063006b00730063007200650065006e002d007000 200650066006500720065006e006300650073000000080000000000000822000000400031002c006 006900730070006c00610079002d00630066006700000008000000ffff0001420000004100410050 04c00300031002c0062006c00610063006b00730063007200650065006e002d00700072006500660 6500720065006e006300650073000000080000000000000822000000400030002c00640065007600 900630065005f00740079007000650000000b000000646973706c6179100000006d006f006400650 6c0000001a0000004e5649444941204765466f726365203838303020475414000000400030002c00 e0056004d0054000000640000000b037f2022f0cf268007b0042008b007d0070000d304b304b9040 0080da2d090000000100000001000000000000000000000000000000000000000000000000000000 0ffff00000000000040b3d509010000000000000000080000000000001e000000730075006200730 79007300740065006d002d00690064000000080000004f05000024000000400031002c0063006100 e002d0068006f0074002d0070006c0075006700000004000000</string> Link to comment Share on other sites More sharing options...
dang251 Posted February 9, 2009 Share Posted February 9, 2009 I just upgraded to 10.5.6 running an EVGA 8800GT 512. I tried the EFI string method, but QE/CI still don't work. It worked in 10.5.5 but after the upgrade, it doesn't work. Would you mind sharing your modified kext? I wonder if that is it? Thanks. diggidy Well this is an old thread, but old threads never die. I got my evga 8800gt 512 card to work full QE/CI on my msi p7n diamond! I am running 10.5.5, also works in 10.5.6 Here is my graphics string. I had to edit nvdaresman, nvdanv50hal, and geforce. kexts info.plists with 0x061110de. thanks for this guide... <string>7905000001000000010000006d0500001a00000002010c00d041030a000000000101060000030 01060000000101060000000101060000007fff040024000000400030002c00630061006e002d0068 06f0074002d0070006c00750067000000040000001c0000006400650076006900630065005f00740 79007000650000000f0000004e5644412c506172656e7422000000400031002c0064006500760069 0630065005f00740079007000650000000b000000646973706c617922000000400030002c0064006 00730070006c00610079002d006300660067000000080000000301000020000000400031002c0063 06f006d00700061007400690062006c00650000000e0000004e5644412c4e564d616314000000400 30002c006e0061006d0065000000120000004e5644412c446973706c61792d412e00000040003000 c004100410050004c002c0062006f006f0074002d0064006900730070006c0061007900000004000 0014000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d421e 0000072006f006d002d007200650076006900730069006f006e00000008000000333233332000000 400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d 163200000004e005600440041002c0046006500610074007500720065007300000008000000ff024 05100000004e00560043004100500000001800000005000000000003000c0000000000000b000000 0300000004100410050004c002c0045004d0043002d0044006900730070006c00610079002d004c0 69007300740000004400000003000000000000000000000000000000061000001b92000000000000 0000000061000001c920000000000000000000006100000219200000000000000000000260000004 00410050004c00300030002c0043006f0068006500720065006e0063007900000008000000020000 01c000000400030002c00660062006f0066006600730065007400000008000000000006003600000 4100410050004c002c006100750078002d0070006f007700650072002d0063006f006e006e006500 30074006500640000000800000001000000220000005600520041004d002c0074006f00740061006 00730069007a00650000000800000000000020320000004100410050004c002c006200610063006b 06c0069006700680074002d0063006f006e00740072006f006c00000008000000000000004200000 4100410050004c00300030002c0062006c00610063006b00730063007200650065006e002d007000 200650066006500720065006e006300650073000000080000000000000822000000400031002c006 006900730070006c00610079002d00630066006700000008000000ffff0001420000004100410050 04c00300031002c0062006c00610063006b00730063007200650065006e002d00700072006500660 6500720065006e006300650073000000080000000000000822000000400030002c00640065007600 900630065005f00740079007000650000000b000000646973706c6179100000006d006f006400650 6c0000001a0000004e5649444941204765466f726365203838303020475414000000400030002c00 e0056004d0054000000640000000b037f2022f0cf268007b0042008b007d0070000d304b304b9040 0080da2d090000000100000001000000000000000000000000000000000000000000000000000000 0ffff00000000000040b3d509010000000000000000080000000000001e000000730075006200730 79007300740065006d002d00690064000000080000004f05000024000000400031002c0063006100 e002d0068006f0074002d0070006c0075006700000004000000</string> Link to comment Share on other sites More sharing options...
mrbonkers Posted February 20, 2009 Share Posted February 20, 2009 hey, can you send me your plist used to create the hex? Link to comment Share on other sites More sharing options...
