Users with GMA 950 / X3100 Real Macs needed here

enb14

By enb14,
in Intel

 Share
686 posts in this topic

Recommended Posts

raboliot
raboliot
Posted
Posted
For some of the people using a DESKTOP GMA950:



I have a set of kexts, you can safely install using Kexthelper or by hand,

it's the vanilla kexts for the GMA950 desktop on 10.5.3 and the AppleIntegratedFramebuffer from 10.4.8.

This combination has always given me full QE/CI support with working resolution change.



Hello,



Do you think it will works with an asus P5GC-MX ?

Does the command line is to replace and chmod to root:wheel ?



Best regards,

Link to comment
Share on other sites
Espionage724
Espionage724
Posted
Posted

Mac OS X Leopard 10.5.4

Intel 950 GMA with 10.5.2 Framebuffer kext

Highest Resolution: 1280x800

~~~~~~~~~~~~~~~~~~~~~~~~~~

System Profiler Information

~~~~~~~~~~~~~~~~~~~~~~~~~~

Vendor: Intel (0x8086)

Device ID: 0x27a2

Revision ID: 0x0003

Core Image: Hardware Accelerated

Quartz Extreme: Supported

QuartzGL: Supported

~~~~~~~~~~~~~~~~~~~~~~~~~~

I can change resolutions fine. I have random mouse artifacts usually when doing something with text (like renaming a file or editing text in photoshop). Recently I even had a big graphics glitch whenever I opened up the root of my HDD (buttons were all corrupted, text garbled, everything unreadable).



I'm looking for a fix to get rid of the mouse artifacts, and I'm looking to know what Nati and AGPGart is and if they can do anything to my graphics card.

Link to comment
Share on other sites
drmore
drmore
Posted
Posted

^^^^ Yep me too.



I had it working when I had Kal 10.5.2 installed a few months back but i cant remember what i did to get it running.



Oh well guess ill have to re-read this thread till somthing jogs my memory.



Its a toshiba laptop with 945 chipset with the 950 graphics chip. (In case anyone knows off the top of their head)

Link to comment
Share on other sites
yho004
yho004
Posted
Posted

hi.. i installed leo4all on my acer aspire 4715z, i did not have any problems with installation. It rebooted and played the welcome movie then the welcome screen appeared, so i answered it up to the window that has the "do you already own a mac" screen..i chose do not transfer then after i click continue it went back playing again the welcome movie. it does that over and over, so i downloaded kaly and again i installed with no problem, but same outcome. is there something wrong with my laptop? help please...i've been trying to figure this out for more than two weeks now. TIA

Link to comment
Share on other sites
Usher
Usher
Posted
Posted

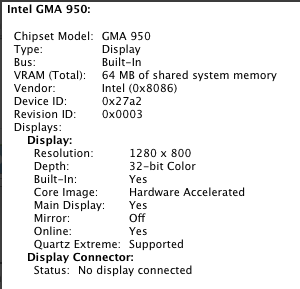

Mac OS X Leopard 10.5.4

Intel 950 GMA with 10.5.2 Framebuffer kext

Highest Resolution: 1280x800

~~~~~~~~~~~~~~~~~~~~~~~~~~

System Profiler Information

~~~~~~~~~~~~~~~~~~~~~~~~~~

Vendor: Intel (0x8086)

Device ID: 0x27a2

Revision ID: 0x0003

Core Image: Hardware Accelerated

Quartz Extreme: Supported

QuartzGL: Supported

~~~~~~~~~~~~~~~~~~~~~~~~~~

I can change resolutions fine. I have random mouse artifacts usually when doing something with text (like renaming a file or editing text in photoshop). Recently I even had a big graphics glitch whenever I opened up the root of my HDD (buttons were all corrupted, text garbled, everything unreadable).



I'm looking for a fix to get rid of the mouse artifacts, and I'm looking to know what Nati and AGPGart is and if they can do anything to my graphics card.



can you share your kext file? or whatever that make a full display graphics because Quartz Extreme is not supported on my PC.



any help is appreciated.



Thanks!

Link to comment
Share on other sites
Xenn0X
Xenn0X
Posted
Posted

i have a hp 6710b laptop and the x3100 in it was automaticly detected after installing kalyway 10.5.2

did not install any kexts. just worked natively. updated then with 10.5.3 kalycombo and then 10.5.4 via updater.

all still works fine.

Link to comment
Share on other sites
matemago
matemago
Posted
Posted

can you please post your extensions? i'm having same problems as everyone here, i have an ASUS P5LD2 VM SE motherboard, and has a GMA950 chipset with id 2772... i have 10.5.4 and i have a lot of artifacts specially using Adobe Flash CS3 and Office2008.



i need to be able to change to 1440x900 and 1360*768 since thats my 19" lcd monitor and my lcd tv resolutions.



refresh rates... does it matters using lcd ?

Link to comment
Share on other sites
matemago
matemago
Posted
Posted

i tried charles extensions, artifacts are almost gone, but now i cannot see video in frontrow, neither movies, dvds or trailers...



weird...



if i play them in quicktime its ok, but not through frontrow, anyone knows why?





ok, it was because i lost quartz, i reinstalled 10.5.3 gma950 extensions and now its back, but i have artifacts again, jajajaja.



so, which framebuffer i have to use?

Link to comment
Share on other sites
oilime
oilime
Posted
Posted

Hi, sorry for my poor english...



I had only the 1024x768 resolution.



I have installed charles extensions, but I lost QE.

Than I have extract with Pacifist the GMA950 kext from the Kalyway update 10.5.3.



With KextHelper I have reinstalled and all works fine.



I don't have artifacts at this moment.

And the change of the resolution works fine.



I use a 42" LG @ 1920x1080 60MHz.



My hardware is the signature



Thanks CHARLES!

Link to comment
Share on other sites
ivovnenko
ivovnenko
Posted
Posted

I have Vaio VGN-C240E, w/Intel 945 Integrated video,



Installed Kalyway 10.5.2/w gma950, worked on external monitor, and internal(if external was connected while boot, then disconnected). Both displays appeared in mac system info. Was able to set 1280x1024x32 on external (syncmaster tft) and 1280x800x32 on internal lcd. Unstable behavior.



Then after installing 10.5.3 combo update + 10.5.4 apple update - worked only on external, and it was the only display detected by macos.



No additional drivers installed.

Then added magic string to Boot.plist

<key>device-properties</key>
<string>6d0000000100000001000000610000000200000002010c00d041030a00000000010106000002
7fff0400100000006d006f00640065006c0000000b000000474d4120393530200000004100410050
04c002c00480061007300500061006e0065006c0000000800000001000000</string>

(no line breaks), tnx to amuroray (of Netkas forum)

Had this situation (lcd+external, lcd, external)



http://forum.insanelymac.com/index.php?act...st&id=23285



and Natit.kext ( http://forum.insanelymac.com/index.php?s=&...st&p=501584 )

Didn't delete any kexts (including framebuffer etc)



Now have only internal lcd fully accelerated working but w/ 1280x768x32.

Have blank space at the botton (1280x32).



If connect external display, have this again

http://forum.insanelymac.com/index.php?act...st&id=23285



Any chance to make it fully working?

Link to comment
Share on other sites
BrokenMonkey
BrokenMonkey
Posted
Posted

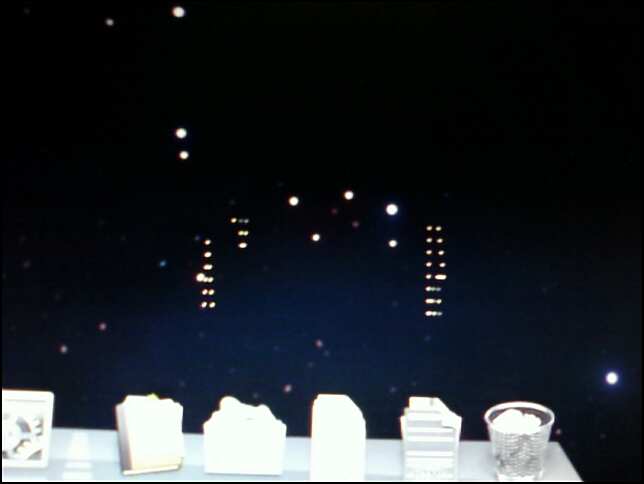

I have kalyway 10.5.2 updated to 10.5.4 on an HP dv9500t with an Intel X3100. I installed the Intel X3100 drivers from the Kalyway install disk and it works at full resolution (1680x1050) but QE/CI is not enabled and the cursor is garbled, it is split into two pieces about 1" apart horizontally and separated into short horizontal lines spaced about 1/16' vertically (I will attach a screenshot soon). I am not worried about the cursor as it still functions and I have gotten used to it but I would really like to get QE/CI working and paulicat's first X3100 natit.kext did not work. Can anyone help me get it working?




Here is the infro from the System Profiler:



Intel GMA X3100:



Chipset Model: GMA X3100

Type: Display

Bus: Built-In

VRAM (Total): 144 MB

Vendor: Intel (0x8086)

Device ID: 0x2a02

Revision ID: 0x000c

Displays:

Display:

Resolution: 1680 x 1050

Depth: 32-bit Color

Built-In: Yes

Core Image: Software

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported

Display Connector:

Status: No display connected



EDIT: Added picture and system info.



Update: I managed to fix both problems in one fell swoop, I reinstalled the Leopard Graphics Update using Pacifist, deleted all the GMA950 .kext and .bundle files as well as AppleIntelIntegratedFramebuffer.kext (or whatever its called), then used the Natit.kext from mitro (not sure if that actually mattered but it works so I'm not complaining).



If anybody has this problem now you can fix it!

Link to comment
Share on other sites
ruzzz
ruzzz
Posted
Posted
For some of the people using a DESKTOP GMA950:



I have a set of kexts, you can safely install using Kexthelper or by hand,

it's the vanilla kexts for the GMA950 desktop on 10.5.3 and the AppleIntegratedFramebuffer from 10.4.8.

This combination has always given me full QE/CI support with working resolution change.



Some artifacts are still shown, but who cares, when all the other solutions don't work.. ;-)



Hope this helps the few of you out there.. It's been tested on a DELL GX620.

Please let me know if you find any problems.



Edit: Make sure you are not loading the Natit.kext when trying this solution, as this was giving me problems. The assumption here is you are running 10.5.3 with support for GMA950 from Kalyway update 10.5.3/ no resolution change possible.



@Yang Yang Yang: This should be a possible solution to your problem, as I'm assuming you're a desktop user.. (0x2772 should be right..) Let me know whether it worked?

Thank you. This solved my problem! Motherboard Asrock Conroe-1333 D667. Video:



Intel GMA 950:
  Chipset Model:	GMA 950
  Type:	Display
  Bus:	Built-In
  VRAM (Total):	64 MB of shared system memory
  Vendor:	Intel (0x8086)
  Device ID:	0x2772
  Revision ID:	0x0002
  Displays:
Display Connector:
  Status:	No display connected
775FT:
  Resolution:	1024 x 768 @ 85 Hz
  Depth:	32-bit Color
  Core Image:	Hardware Accelerated
  Main Display:	Yes
  Mirror:	Off
  Online:	Yes
  Quartz Extreme:	Supported

Link to comment
Share on other sites
Molimu
Molimu
Posted
Posted

Hi, I have an Zepto 3215W Laptop with Intel GMA X3100. I downloaded the Natit.kext and Installed it with that kexthelper. It said "Prey and reboot" but after the reboot I still cant change resolution. It's only 1024x768 but I need 1280x800.



I dont understand much about that framebuffer thing. Please could someone step by step tell me what to do? I have Leo4AllV2

Link to comment
Share on other sites
Guest
This topic is now closed to further replies.
