Users with GMA 950 / X3100 Real Macs needed here

[DVNO]

paulicat you are a legend!! X3100 working fine on my laptop now, cheers.

[mafioso12]

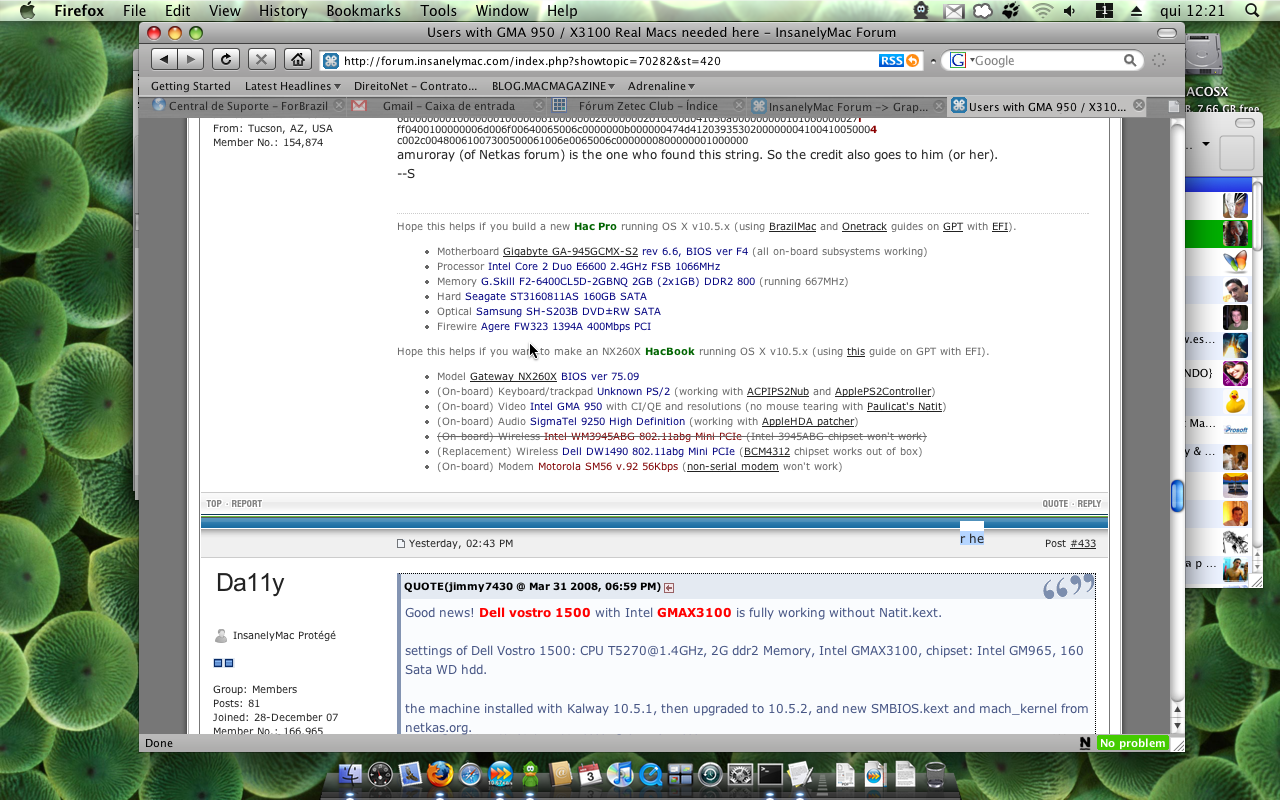

Hello. Anybody can help me? I descibed my problem above. Everything's working fine on my laptop. I can change resolution and my display's working in native resolution, but after bootloader (this white screen with an apple in the middle) my screen looks like on this photo above.



Please help me! I don't know what to do. What's the problem. Anybody had this problem before me?

[jimmy7430]

read my post 4 levels above yours!



Hello. Anybody can help me? I descibed my problem above. Everything's working fine on my laptop. I can change resolution and my display's working in native resolution, but after bootloader (this white screen with an apple in the middle) my screen looks like on this photo above.



Please help me! I don't know what to do. What's the problem. Anybody had this problem before me?

[mafioso12]

I did your instructions I have hardware acceleration now but I still have this issue ;(



I removed all AppleIntelGMA950* files and AppleIntelIntegratedFrameBuffer.kext and it worked two times. Now I have Core Image: Software again and screen like on the photo.



EDIT:

I did it. I used external display and everything works great. Thank you jimmy7430.

[Proud Bajan]

any gma950 users who solved the widescreen solution, can you please post the solution step by step please, i really wanna quit using vista, if macs were sold in my country i would not have this problem





i am on a hp530, 945 chipset with gma950 graphics

core duo

[jayman30]

Hi,



I'm running a default install of Leo4All v2 10.5.2 on a GMA X3100 Core2Duo Gateway laptop. Using Graphic Update 10.5.2 Kexts from a Macbook and Natit.kext.



I can adjust my resolution, but QE is listed as "not supported" in the Profiler.



What can I do to enable QE?



Thanks,



Jay

[Stravaganza]

Add these lines to your boot.plist file



<key>device-properties</key>

<string>6d0000000100000001000000610000000200000002010c00d041030a000000000101060000027

ff0400100000006d006f00640065006c0000000b000000474d412039353020000000410041005000

c002c00480061007300500061006e0065006c0000000800000001000000</string>



EDIT: (by macgirl)

But make the string in one line, or it wont work

<string>6d0000...1000000</string>

It should read

6d0000000100000001000000610000000200000002010c00d041030a000000000101060000027f

ff0400100000006d006f00640065006c0000000b000000474d4120393530200000004100410050004

c002c00480061007300500061006e0065006c0000000800000001000000

amuroray (of Netkas forum) is the one who found this string. So the credit also goes to him (or her).

--S

[Da11y]

Good news! Dell vostro 1500 with Intel GMAX3100 is fully working without Natit.kext.



settings of Dell Vostro 1500: CPU T5270@1.4GHz, 2G ddr2 Memory, Intel GMAX3100, chipset: Intel GM965, 160 Sata WD hdd.



the machine installed with Kalway 10.5.1, then upgraded to 10.5.2, and new SMBIOS.kext and mach_kernel from netkas.org.



I recently did the graphic updates, and I compared the new /System/Library/Extensions/ with the old one, I found the following has been modified or changed:

/System/Library/Extensions/ATI*
/System/Library/Extensions/AppleIntelGMA*
/System/Library/Extensions/AppleIntelIntegratedFrameBuffer.kext



so make sure to back them up before and after you did the update.



I did tons of experiments of all the combination for different kext. finally, GMAX3100 work only for AppleIntelGMAX3100*, I have to remove all AppleIntelGMA965* and AppleIntelIntegratedFrameBuffer. You don't need to worry about ATI* since we only have a GMAX3100 here. Natit.kext is not needed here anymore.



Here comes the important trick of how I make it work:

you need an external display to hook up with the laptop during booting. and press Fn + F8 to put the display on the external display. when the login screen appears, it will automatically redirect to the internal LCD display! and the external display won't be needed anymore.



I had the full functionality of the GMAX3100, QE/Ci, can change different resolution, except the refresh Freq(I guess it may related to the LCD issue).

The tube external display is preferred, if one doesn't work, try others in several times. When I use an external LCD to trick GMAX3100 to work, I got the marbled/garbled screen like mafioso12's one, so be paitent and give more trying.



Good luck to everyone!



Would this work for GMA950 on a Vaio.

My problem is that I can't seem to get rid of mouse tearing and if I install the leopard graphics update my internal screen stops working.



Natit doesn't seem to be working for me either

[jimmy7430]

Would this work for GMA950 on a Vaio.

My problem is that I can't seem to get rid of mouse tearing and if I install the leopard graphics update my internal screen stops working.



Natit doesn't seem to be working for me either



GMA950 and X3100 are similar, but I can't assure the method will work.

My suggestion will be to make sure remove the AppleIntelIntegratedFrameBuffer.kext, and backup everything, give more trying.

if screen doesn't show, press power + "r" + "enter" to reboot, and use "-s" entering single user mode to make corresponding changes of your .kext.



Good luck.

[macgirl]

GMA950 works better with 10.5.1 kexts.

[Max1980]

does mirroring work on yours X3100?

[Proud Bajan]

can someone please post the gma950 kext and bundles and the appleframebuffer from the kalyway dvd for me please? it seems as though that one is working but i am on iatkos originally, my kalyway dvd wont boot, keep giving me an ebios error.



please upload the files if you can.

[Smuxbr]

Hi guys, my Acer Aspire 3690 works fine with driver GMA950 and using KALYWAY 10.5.1 + efi_guid but in my screen shows funny images or some pictures or some words different on screen original as I show in screenshot:





When i was used the JaS 10.4.11 I dont had problems with it.



Can anyone knows how why causes this?



Thanks and sorry for my bad english

[Proud Bajan]

Hi guys, my Acer Aspire 3690 works fine with driver GMA950 and using KALYWAY 10.5.1 + efi_guid but in my screen shows funny images or some pictures or some words different on screen original as I show in screenshot:





When i was used the JaS 10.4.11 I dont had problems with it.



Can anyone knows how why causes this?



Thanks and sorry for my bad english





Sir, can you please upload or email me the gma950 kext and the framebuffer from your installation please, i tried everything and nothing worked, i am running iATKOS 10.5.1 r2, i cant boot the kalyway dvd cuz its giving me "ebios error" all the time.



thanks in advance





about your fix, i heard the apple graphics update fixes that problem

[SticMAC™]

My Hp dv6716ez has an x3100 and works just fine with the Graphics update that came with Leo4All v2!



How do I see if it uses an "inject.kext" somewhere?





SticMAN

[Max1980]

Well doesn't work completely...mirror is not working....

[KahNv2]

Hmm. I also installed the Leo4Allv2 but my version does not have the X3100 kext. Where did you get those from?

[SticMAC™]

if you do the Apple Graphics update again it should load it!





SticMAN





Hmm. I also installed the Leo4Allv2 but my version does not have the X3100 kext. Where did you get those from?

[MacAtPC]

Guys I need some users to give me their ioregdum from a real mac with GMA950 and 3100 the goal is to enable resolution change and to remove the arctifacts at all like current titan/natit for this time for GMA950 /3100, if you want to help us just do this on a real macs and post your txt file here



ioreg -l -w0 > ioreg.txt





Please specify if you have a GMA950 or a 3100 by the way do this using 10.5.0.



Hi, I have a real mac with 3100 and Leopard 10.5.2.



I post the file you need

ioreg.txt

[nns]

Hi, I am new to this forum..



I have installed Kalyway 10.5.1 on my PC



Config: Intel D945GNT mobo (GMA 950) Pentium D Processor Samsung 940 BW monitor (1440*900@75Hz)



I first had problems like mouse tearing and all..

So I replaced the Appleintelintegratedframebuffer.kext with its latest version.. All problems solved..

But now I can't change my screen resolution... I just have one resolution 1024*768 available...

tried SwitchResX but since I have just 1 resolution available I cannot redirect or change it...



Display Information with latest Appleintelintegratedframebuffer.kext:



Intel GMA 950:



Chipset Model: GMA 950

Type: Display

Bus: Built-In

VRAM (Total): 64 MB of shared system memory

Vendor: Intel (0x8086)

Device ID: 0x2772

Revision ID: 0x0002

Displays:

Display:

Resolution: 1024 x 768

Depth: 32-bit Color

Core Image: Hardware Accelerated

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported









With older Appleintelintegratedframebuffer.kext (present in Kalyway):





Intel GMA 950:



Chipset Model: GMA 950

Type: Display

Bus: Built-In

VRAM (Total): 64 MB of shared system memory

Vendor: Intel (0x8086)

Device ID: 0x2772

Revision ID: 0x0002

Displays:

Display Connector:

Status: No display connected

SyncMaster:

Resolution: 1440 x 900 @ 75 Hz

Depth: 32-bit Color

Core Image: Hardware Accelerated

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported







Please Help!!!!



I have tried using Natit.kext

[mrbonkers]

have u tried "Graphics Mode"="1440x900x32@75" at the boot loader?

[nns]

yup tried dat too... also tried adding that line to boot.plist...

[Cide]

Would the X3100 kexts work on my X3500? I have everything else working with Leo4all V2 but I can't change resolution and no CI/QE.

[gustago]

im not sure about x3100, the files i uploaded are strictly for the gma950 bearing device id 0x27ae which is found in some laptops like the hp530 for example.



i edited the gma950 kext, the natit and framebuffer in HEX mode, this solved the problem, see the above link for a screenshot



D you know if this would work in a 1330m with Intel Integrated Graphics Media Accelerator 3000? TIA.Gus

[huynh lam]

plz help me ! my graphic card GMA3000 desktop(asus p5b-vm) !!! (1024x768) refesh rate: n/a. How to install driver to change refesh rate !?? (leopard kalyway 10.5.1)
