Intel Wireless driver

[Airfly]

jalavoui or someone please help





I installed the driver rebooted.. would go past the loading thing.. then loaded in -s took a picture of the screen like you asked (included) also booted in shift and got the log files.



then deleted like it says in the faq the stuff in the Extensions folder..



but i still can't boot now



also i took a screen shot of what ubuntu says about my 3945. .since you where saying something about wrong device id's ?



here are all the files i have



thanks,

David

Sorry , don't know how to help you. but the message in photo show your iwiw3945 have a "Alive received.", I think your 3945 is getting work...

[Ramz]

Hi



thans for next version of iwi3945



I use iwi3945 rev 380 on OS X 10.4.9 with 8.9.1 kernel - no kernel panic, no card or interface in "System Profiler", but system boots up much longer.



and my logs:

dmesg.txt

ioreg.txt

system.txt

[osxonmylaptop]

Since 0x42228086 is included in the <string>, everything it's fine because the <string> is a list of possible matches, as in IOPCIMatch.

If you wanted to though, you could remove 0x42278086 and there would be no change in operation.



Thanks,

I think I have lost all hope.



ok, here is the readout from the getlogs.command

does this look normal? maybe this is why i dont get the dmesg readout.



Last login: Wed Apr 25 17:11:13 on ttyp1

Welcome to Darwin!

tprins228:~ TwistedFury$ /Users/TwistedFury/Desktop/getlogs.command; exit



Creating log files in folder /



/Users/TwistedFury/Desktop/getlogs.command: line 9: cd: /System/Library/Extensions/iwi2100.kext: No such file or directory

/Users/TwistedFury/Desktop/getlogs.command: line 12: cd: /System/Library/Extensions/iwi2200.kext: No such file or directory

Unable to obtain kernel buffer: Operation not permitted

usage: sudo dmesg

logout

[Process completed]



Hi,

Something similar happens to me if I double click the .command file. So I copied it into my home directory (the default start up path for Terminal) then just open the Terminal and go into "su", enter your root password, then "./getlogs.command".

That worked for my.

Good luck.

[Nebzar]

iwi3945 rev 380. Here are my logs:



dmesg.txt

ioreg.txt

system.log.txt



In dmesg I see these lines:



iwi3945: Tx timeout = 0
iwi3945: Rx timeout = 0
...
iwi3945: Error sending POWER_TABLE_CMD: time out after 0ms.
iwi3945: Error sending BT_CONFIG: time out after 0ms.
iwi3945: Error sending RXON: time out after 0ms.
...
iwi3945: Error sending ADD_STA: time out after 0ms.
...
iwi3945: Error sending RATE_SCALE: time out after 0ms.



Maybe this timeout = 0 is the culprit?



Regards,

Neb

[Dainix]

Hi



thans for next version of iwi3945



I use iwi3945 rev 380 on OS X 10.4.9 with 8.9.1 kernel - no kernel panic, no card or interface in "System Profiler", but system boots up much longer.

That's because the driver is continuously using up resources. My Core 2 Duo had an entire core get eaten up by that driver. I usually have a hard connection to the Internet anyways, so I uninstalled the driver, just to cut my CPU a little slack.

[tprins228]

ok, thanx osx, that worked for me.

here are my new .txt's

iwi3495 rev 380

dmesg.txt

ioreg.txt

system.txt

[ttorok]

iwi2100 rev 374



since i'm not shure i just keep on trying



thank you all

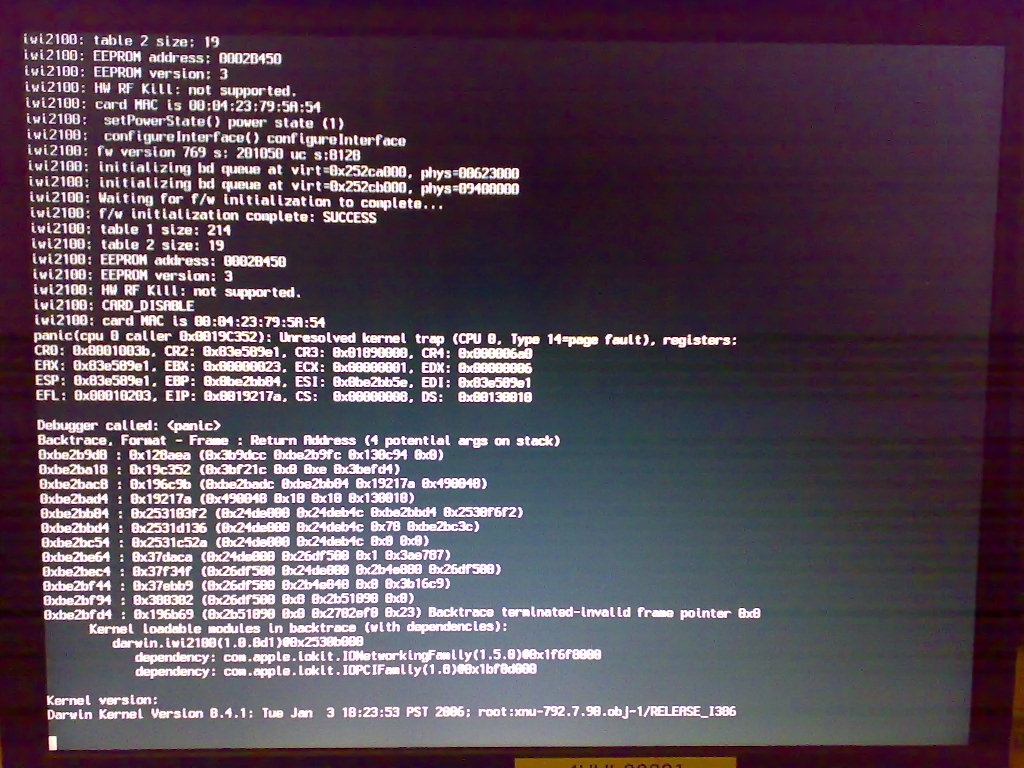

panic... picture attached:

[anomaly]

Good job on the driver, its working for me. I have a Toshiba Satalite M65-S9092, and am using the iwi2200 (rev.380) driver. Installed the package, rebooted, opened network from sys prefs and "PCI Ethernet Slot pci8086, 4220" was detected. I then opened the network selector, searched for available networks, then jumped on one.



Any ideas where/how I can edit the name "PCI Ethernet Slot pci8086, 4220" to something else? It's obviously not a big deal, just wondering. Thanks again.

[LordNite]

HI,

ANY NEW ABOUT IWI3945 rev 381 ?



maybe the developer can use any instruction of iwi3945_v11 (over internet) to make the iwi3945 driver as AIRPORT DEVICE...

[eLMafUDd]

The driver will never be an airport device.

[Thomas202]

LordNight Kingdom Tm!!!! Read the post`s on the forum, the 3945 driver is in developmant and it its not working yet. Jalavoui is doing the best he can witouth the 3945 card, he is programing in the "blind" and is doing a hell of a jobb! The driver is never going to be based on the airport devise since this is a closed system. When the driver is ready like the 2200 driver there wil be an network utillity app to contoll the driver. For now this app is in comand line bout people are working on GUI.



STOP BUGGING THE FORUM!!

[jalavoui]

Hi Jalavoui,

Can you take a look at this? I found this in device properties under XP:



the only entry on your ioreg is:



pci8086,27a0



so try it in info.plist



anyone with logs like this should also try it



iwidarwin script for creating log files to help debuging iwi's driver

i'll put it in iwidarwin soon



http://code.google.com/p/iwidarwin/



iwi2100 rev 381

panic fixing - maybe



iwi3945 rev 382

more testing





i just looked at the new acer core 2 duo

it seems that i might manage to install a 3945 card in my old travelmate 4100

i'll try - if i break the computer i'll ask you guys for a new one :pirate2:

anyone who's willing to send me a 3945 card mail me to jalavoui@gmail.com

the card must fit in this:

http://www.acer.co.th/product/travelmate/4100/index.htm

i think the problem will be the 2 leds (wireless and bluettoth) - the 3945 might not fit in this

getlogs.command.zip

[tprins228]

jalavoui, i had a similar output with the 8086, 27a0, and i put it in the Info.plist and took out the others and nothing was recognized.

[jalavoui]

jalavoui, i had a similar output with the 8086, 27a0, and i put it in the Info.plist and took out the others and nothing was recognized.



you and others with this problem need to check ioreg for the right vendor/id (see it from windows, linux)



maybe there's some compatible device with 8086,4222



i an see in your logs that the driver is doing nothing



can someone check this?

[tprins228]

i had checked this and i had the same as osxonmylaptop, where would i look in my ioreg?

[osxonmylaptop]

the only entry on your ioreg is:



pci8086,27a0



so try it in info.plist



anyone with logs like this should also try it



Sorry but i don't know what should go in info.plist



where do i put pci8086,27a0? I mean the syntax...



here?

<string>0x42228086 0x42278086</string>



thanks

[tprins228]

ok, i got an idea, i found 2 other pci8086 strings in my ioreg. one is

8086,27da and the other is 8086,27d8, along with the 8086,27a0.

If i put all three of these in the info.plist, do you think that would work?

those two are the only other 8086's in my ioreg.

[LordNite]

To I uninstall the old iwi3945 is just remove iwi3945.kext and Extensions.* ?????????????



I do this, and install the iwi3945.dmg that is in google project now, and rebooted, but not happen...

[tprins228]

to remove the old one open terminal and first type this:



sudo rm -r /System/Library/Extensions/iwi3945.kext

enter password



now, the iwi3945 kext is removed, run the attached program and reboot.

the program is a simple chown, chmod utilitiy to repair disk permissions and delete

the cache files.

Repair___Set_Permissions_1.0.zip

[prussiap]

i uploaded my screen shots and stuff in a previous post..b ut i have no idea how to read my vendor id and such



dGV

[tprins228]

ok nvm, i tried to add the other 8086's, nothing was recognized. when i have the 0x42228086 in there, its shown as the PCI, so ill just stick with that. osxonmylaptop, are you not getting yours recognized?

[osxonmylaptop]

ok nvm, i tried to add the other 8086's, nothing was recognized. when i have the 0x42228086 in there, its shown as the PCI, so ill just stick with that. osxonmylaptop, are you not getting yours recognized?



I don't know what to add in the Info.plist, I guess is in this line:



<string>0x42228086 0x42278086</string>



Should I put something like this?



<string>0x42228086 0x42278086 pci8086 27a0</string>



Im just waiting to try

[JustJoe]

tprins228 and everyone else thinking of adding all the 8086,xxxx to their Info.plist:



In short,



27a0 is Mobile Intel® 945GM/PM/GMS/940GML and Intel® 945GT Express Processor to DRAM Controller

27da is 82801G (ICH7 Family) SMBus Controller

27d8 is 82801G (ICH7 Family) High Definition Audio



So I wouldn't add any of those to any iwi info.plist unless you just want to confuse the iwi driver



You can see the whole list at DriverAgent.com (very slow to load)



Curiously though, I did not see the 2100 listed.

[osxonmylaptop]

tprins228 and everyone else thinking of adding all the 8086,xxxx to their Info.plist:



In short,



27a0 is Mobile Intel® 945GM/PM/GMS/940GML and Intel® 945GT Express Processor to DRAM Controller

27da is 82801G (ICH7 Family) SMBus Controller

27d8 is 82801G (ICH7 Family) High Definition Audio



So I wouldn't add any of those to any iwi info.plist unless you just want to confuse the iwi driver



You can see the whole list at DriverAgent.com (very slow to load)



Curiously though, I did not see the 2100 listed.



Thanks for your precise explanation, I lost my hope again

[tprins228]

ok osx, for you, i guess the smartest thing to do would be to wait until the next rev comes out and then test that one. judging by your readout, you have the 8086,4222 card, and if its coming up under network in system utilities as a PCI Ethernet device, then as far as i can tell, everything is normal.
