OpenCore General Discussion

[Matgen84]

10 minutes ago, Download-Fritz said:

@Matgen84 To be honest, I'm clueless how this can happen - did you accidentially commit to the AUDK subrepo? Please upload the output of

git log > log.txt

from within the AUDK directory.

The issue should be gone if you clone fresh from the OC repo.





@Download-Fritz Done log.txt attached. Tell me what do you think. Please



You're right, the issue should be gone if I clone fresh from the OC repo. But I wonder why this issue is happened.

log.txt

Edited October 12, 2020 by Matgen84

[mhaeuser]

@Matgen84 Sorry: https://github.com/acidanthera/bugtracker/issues/1217

[Stefanalmare]

HP Probook 4540s + OC + BS beta9 + RealtekRTL8111.kext 2.4.0d4 = all f...ed up

On Clover, same.

I'm back to RealtekRTL8111.kext 2.3.0.

Edited October 13, 2020 by Stefanalmare

[hardcorehenry]

19 hours ago, Stefanalmare said:

HP Probook 4540s + OC + BS beta9 + RealtekRTL8111.kext 2.4.0d4 = all f...ed up

On Clover, same.

I'm back to RealtekRTL8111.kext 2.3.0.



Try newer version, set medium manually, test different speeds and its a bit off-topic.

[joot]

Anyone done Opencore on a Dell XPS 15 9560 ?  And get it to work?  I've been trying for two weeks with no results.

[Matgen84]

20 minutes ago, joot said:

Anyone done Opencore on a Dell XPS 15 9560 ?  And get it to work?  I've been trying for two weeks with no results.

Have a look to Dortinia Guide for Laptop Kabylake. This github repository for 9570 (coffee lake) can be used as a working base: Dell XPS 9570

[oldman20]

hi, what about Big Sur with AR9285? I cant make it work! its worked on Catalina 10.15.6, but in Big Sur, i cant enable wifi?! any patches need?

[pico joe]

6 minutes ago, oldman20 said:

hi, what about Big Sur with AR9285? I cant make it work! its worked on Catalina 10.15.6, but in Big Sur, i cant enable wifi?! any patches need?

 for AR9285 add value under IONameMatch pci168c,2b

[AlvinGenius]

Hello

I've  AIO PC - Dell inspiron 2350

and I've installed Catalina 10.15.17 using OPENCORE 0.6.2 debug version



and everything is going good with drivers

• Audio: ALC668 - Working ( working alc Layout id: 20 )
• iGPU: HD4600 - Working
• Ethernet: RTL 8111 - Working
• Bluetooth: Working
• Wireless: Not working
• Touch screen: Not working



So I'm trying to enable Boot-chime with AudioDxe as explained here



So, after following this tuts and after the first restart of the pc

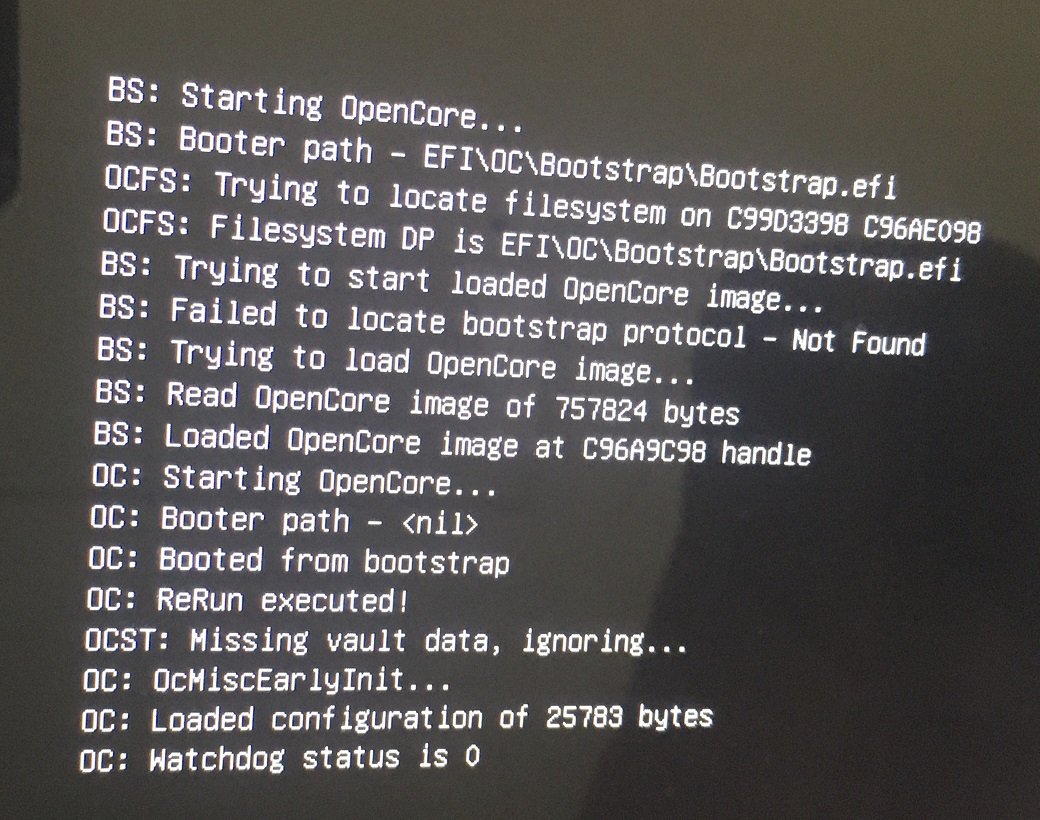

it hangs for about 1:45 minute on this screen

PS : if I removed AudioDxe driver this screen ^ loads in less than a second then boot to os



Then it loads normally to the OS



But No Boot Chime Sound



After checking opencore debug file I found this part



106:823 00:001 OCAU: System volume is 68 (calculated from 48) - Success
106:824 00:001 OCAU: Matching PciRoot(0x0)/Pci(0x1B,0x0)/VenMsg(A9003FEB-D806-41DB-A491-5405FEEF46C3,00000000)...
106:825 00:001 OCAU: 1/1 PciRoot(0x0)/Pci(0x3,0x0)/VenMsg(A9003FEB-D806-41DB-A491-5405FEEF46C3,00000000) (0 outputs) - Success
106:826 00:001 OCAU: Cannot find specified audio device - Not Found
106:827 00:001 OC: Audio connection failed - Not Found



So I've no clue what to do next !!!

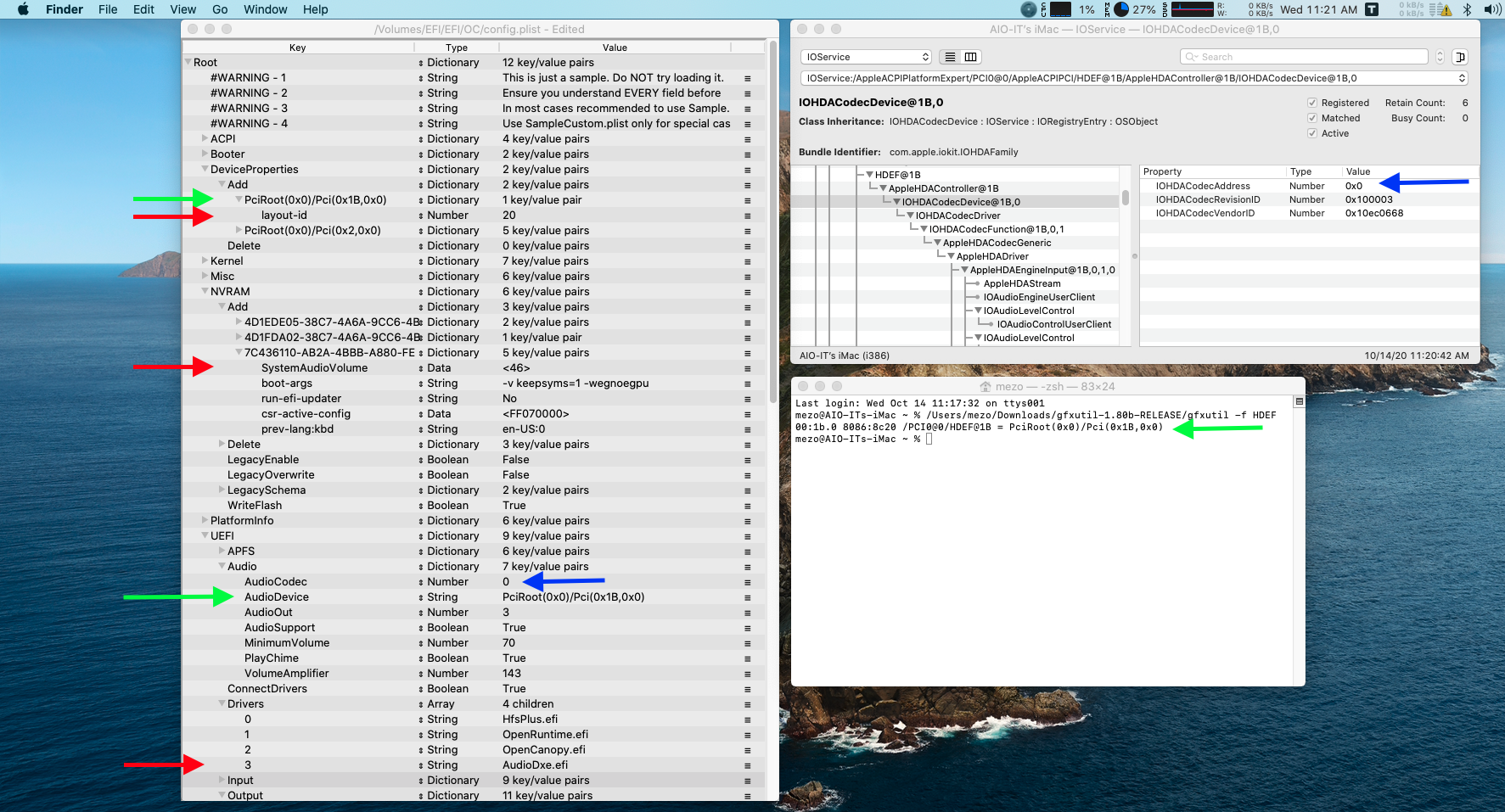

I'm attaching a Screenshot from config.plist and IORegistryExplorer and gfxutility side by side showing why I'm choosing this edits





PS: I've tried AudioOut 0,1,2,3 - same results



And also I'm attaching config.plist file and opencore-2020-10-14-090509.txt debug file



So... what I miss here !!!!?



Thanks,

[AlvinGenius]

2 hours ago, eSaF said:

@AlvinGenius I have looked at your config.plist and made a few suggestion with this pic, take a look and hope it helps.

  Reveal hidden contents



Hello @eSaf

Thanks for your reply

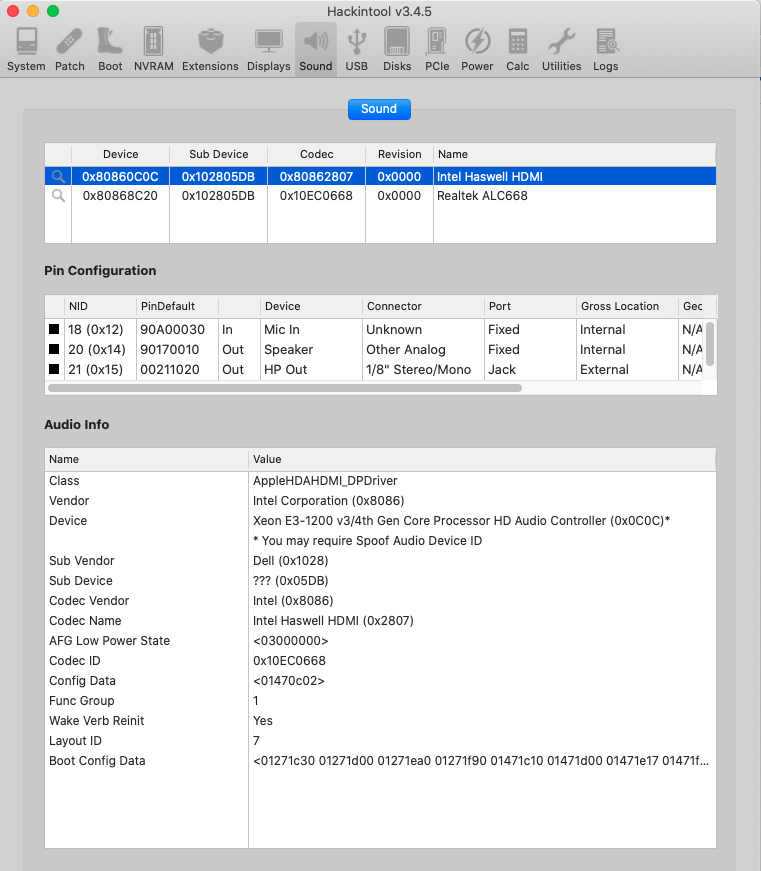

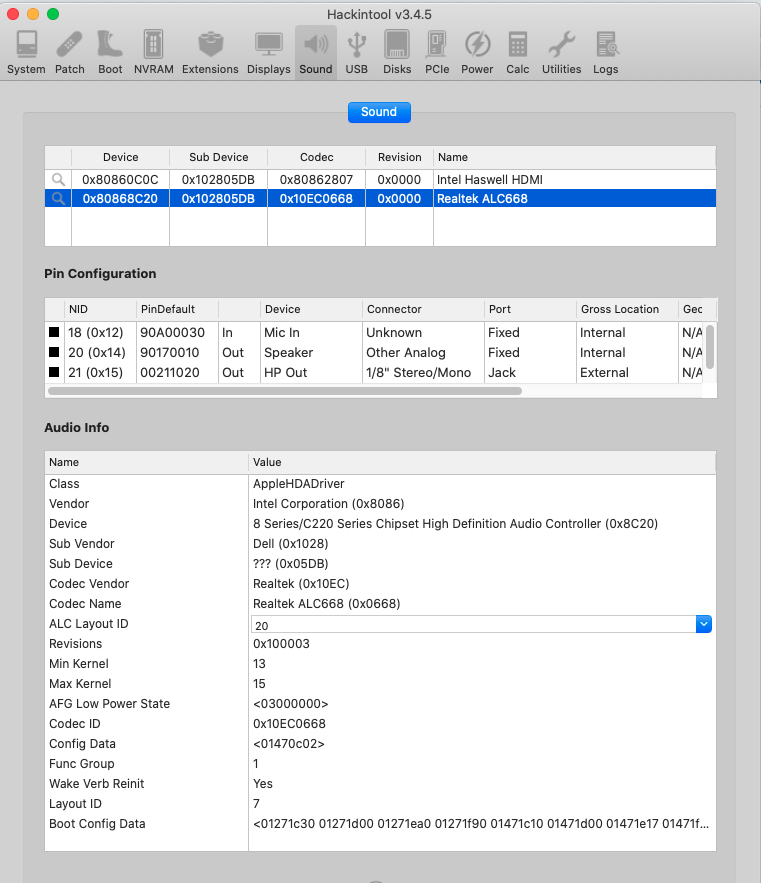

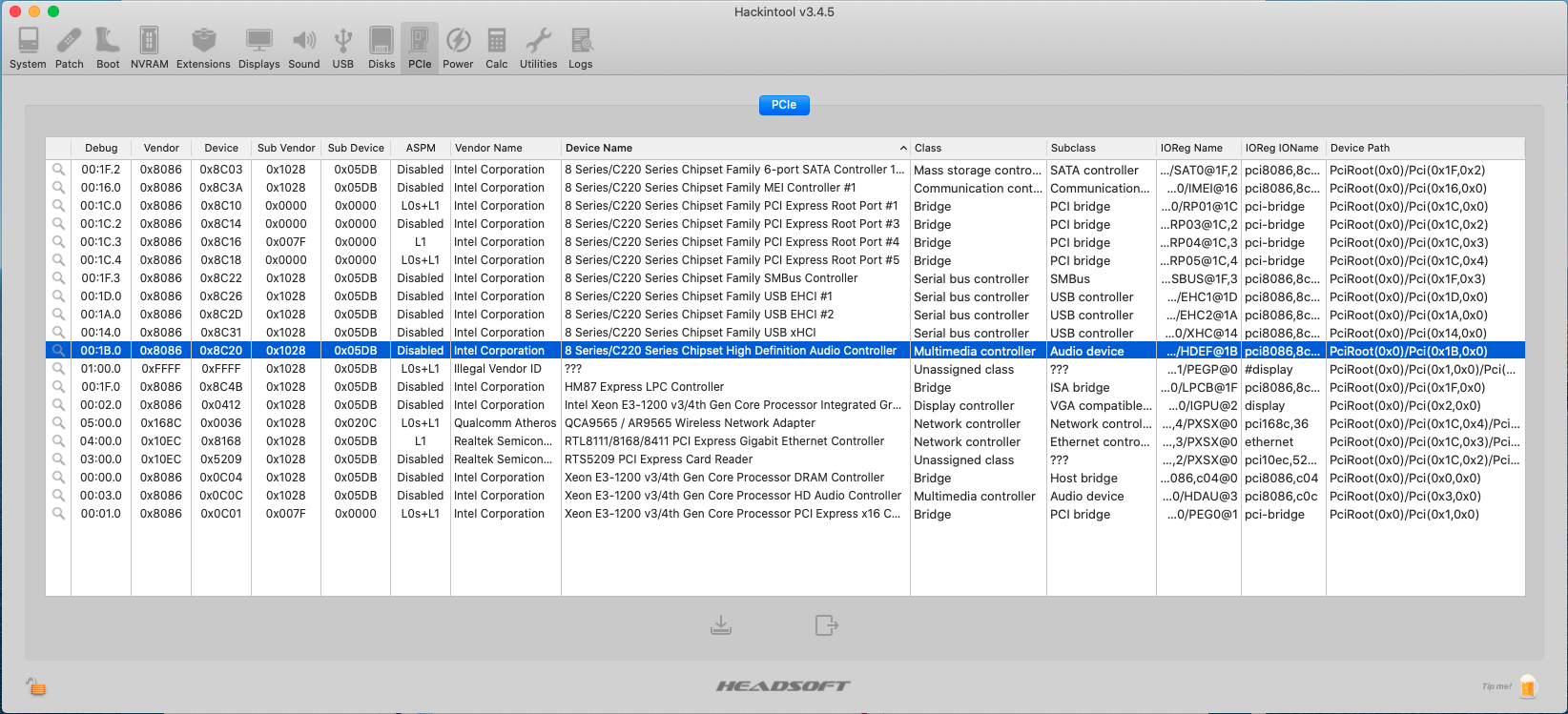

and I'm attaching SS from Hackintool. and regarding ur suggestions, DONE



Please check them and let me know where's the issue!



Thanks

[AlvinGenius]

2 hours ago, eSaF said:

@AlvinGenius - That is strange, your PCIe entry is correct as shown in your pic, but having another look at your config.plist I noticed a possible error as shown in this pic. Change the value I indicated to 0 (zero) save the change, reboot and clean the NVRAM and hopefully should be fixed along with my earlier recommendations. Let me know how it goes. Good luck.



PS Turn your volume down before you restart incase you blow your speakers.



Hello @eSaF

Thanks again for your reply



But I've said that already in my thread, I've tried 0,1,2 and 3 with no luck



I might have an clue what's wrong here !!



in config.plist I'm only using HD4600 iGPU, and this PC have a dGPU: AMD Radeon HD 8690A



So i've used the the other multimedia controller HDAE Device path that I found in Hackintool and put it in

config.plist> UFEI > Audio > AudioDevice

and added it too in DeviceProperties section using Open Configurator!! and I made a restart



and still stuck at this watchdog debug screen for 1 min and no Boot sound, and when I checked the opencore debug txt file I didn't found the "Audio connection failed - not found " error



so maybe the boot chime audio should go through dGPU that's why I stuck in watchdog  debug and no sound !

Edited October 14, 2020 by AlvinGenius

[ghost8282]

On 10/3/2020 at 1:36 PM, ghost8282 said:

If this the expected behavior, "Disabled" should be less secure than "Default", but booting from the snapshot (SecureBootModel=Disabled) isn't more secure than booting from /? Shouldn't be the opposite (Disabled/Default) or am I missing something?

This was "fixed" by apple in beta 10

Now booting with SecureBootModel=Default returns kernel panic, "not possible to boot from the live fs in a release build".

Pity, it was good to be able to switch from snapshot to live fs with a config change only; I hope in the opencore magic to be able to do it again

Edited October 15, 2020 by ghost8282

[AlvinGenius]

4 hours ago, eSaF said:

@AlvinGenius - In that case I am out of ideas to effect a fix. The only thing I can suggest is try to source another member with the same platform and ask for help. Use Google there must be some successful builds on AIO PC - Dell inspiron 2350 out there I'm sure. Good luck.



@eSaF Thanks for your reply



So, no way to enable only audio from AMD Radeon HD 8690A.?



Even while using this screen as HDMI In from another PC, the audio isn't working in the other PC windows and it's AMD audio ...!!

[ghost8282]

Anybody having issues accessing recovery in big sur beta 10?

My case is that with prev-lang:kbd=aXQtSVQ6MjIz (italian lang+italian keyboard) trying to access recovery, after the apple logo and the progress bar I have a grey screen (the top menu "Language Chooser" rapidly flashes and then disappears).

If I empty the prev-lang:kbd in config.plist the language chooser menu appears correctly, if I choose "Italiano" again grey screen; choosing "English" works.

Also the italian keyboard layout choosen from the top right menu after the language selector seems to have issues, some keys are not mapped correctly.



It seems an apple bug.

[maxb2000]

Why sometimes is required to disable SecureBootModel in order to update macOS Big Sur betas?

[ghost8282]

5 minutes ago, maxb2000 said:

Why sometimes is required to disable SecureBootModel in order to update macOS Big Sur betas?

Because it boots from the snapshot, and it is not sometimes, but always (I think from beta 7-8).

Edited October 16, 2020 by ghost8282

[Planet X]

1 hour ago, ghost8282 said:

Because it boots from the snapshot, and it is not sometimes, but always (I think from beta 7-8).

Will that change again with the final release?

[ghost8282]

22 minutes ago, Planet X said:

Will that change again with the final release?

who knows?

[ghost8282]

@Andrey1970 @Download-Fritz

I found some issue in building edk2 on macos with xcode/clang.

I prefer to build myself OVMF_CODE.fd and OVMF_VARS.fd for my vm and just recently I found some strange behavior with my files.

Relevant bug I opened is here:
https://bugzilla.tianocore.org/show_bug.cgi?id=3006



To summarize xcode/clang (tested on catalina and big sur) has some issue with the RELEASE version (tested 202005 and 202008): my fd files are somehow "corrupted" when clang optimize the build in the RELEASE version.

DEBUG version and linux built versions (both RELEASE and DEBUG) have no issues.



Since in opencore Configuration.pdf there are instructions about how to build edk2 (3.3 Contribution) the RELEASE built version with XCODE5 may have some issue?

Not sure if and how to commit this?Is it relevant for opencore?

Edited October 16, 2020 by ghost8282

[mhaeuser]

@ghost8282 We recently had an issue where XCODE5 builds did not include HII sections where declared but CLANG38 builds of the same codebase did. I don't think that is the issue, just saying: Yes, there may be differences between toolchains. Honestly, I'm a bit tired of EDK II by now.



For debugging this issue, I can only think of two things.

1) You can try tightening optimisation step-by-step (i.e. O1, O2, ...) and once it breaks, try to find the offending module and bin-diff

2) You can try to find the offending code section by e.g. serial logs and compare the disassembly to the code for inadequate optimisations



EDK II has a lot of illegal casts and alignment issues, I could very well see some SSE-based optimisation or whatever breaking things.

Edited October 16, 2020 by Download-Fritz

[vit9696]

I do not believe SSE is enabled when targeting EFI in Xcode. It is quite a bit complicated to discover it in such a complex piece OVMF is.



Basically you have a firmware that is built by a package, which is built from a number of drivers. These drivers consist of libraries. Libraries are built once for the whole package and are then linked into the firmware. So even though you can adjust the compilation flags of the drivers and the libraries separately, one library will always affect all the drivers, and 80% of driver code come from the libraries.



The only "working" solution I can think of is building the drivers separately (i.e. their DEBUG versions that are known to work) and then replace their counterparts via binary blobs. Here is an example inf loading the HFS+ driver: https://github.com/acidanthera/OpenCorePkg/blob/master/Legacy/BinDrivers/HfsPlus.inf. You just put the driver relative to this inf file and then include it in the firmware: https://github.com/acidanthera/OpenCorePkg/blob/0.6.2/OpenDuetPkg.fdf#L119.



By generating such .inf files with a script you should be able to quickly build the overrides for the whole OVMF DXE volume and put them here one by one: https://github.com/acidanthera/audk/blob/cbccf995920a28071f5403b847f29ebf8b732fa9/OvmfPkg/OvmfPkgX64.fdf#L202. Once you figure out which driver or which set of drivers is at fault (try starting with a simple binary search: try that replacing all the DXE drivers with DEBUG overrides makes the RELEASE version work, then try replacing a half of them, and so on), you should be able to compare the two more precisely. Here we could be of some help I guess.

[xKaoSx]

Hi everbody.

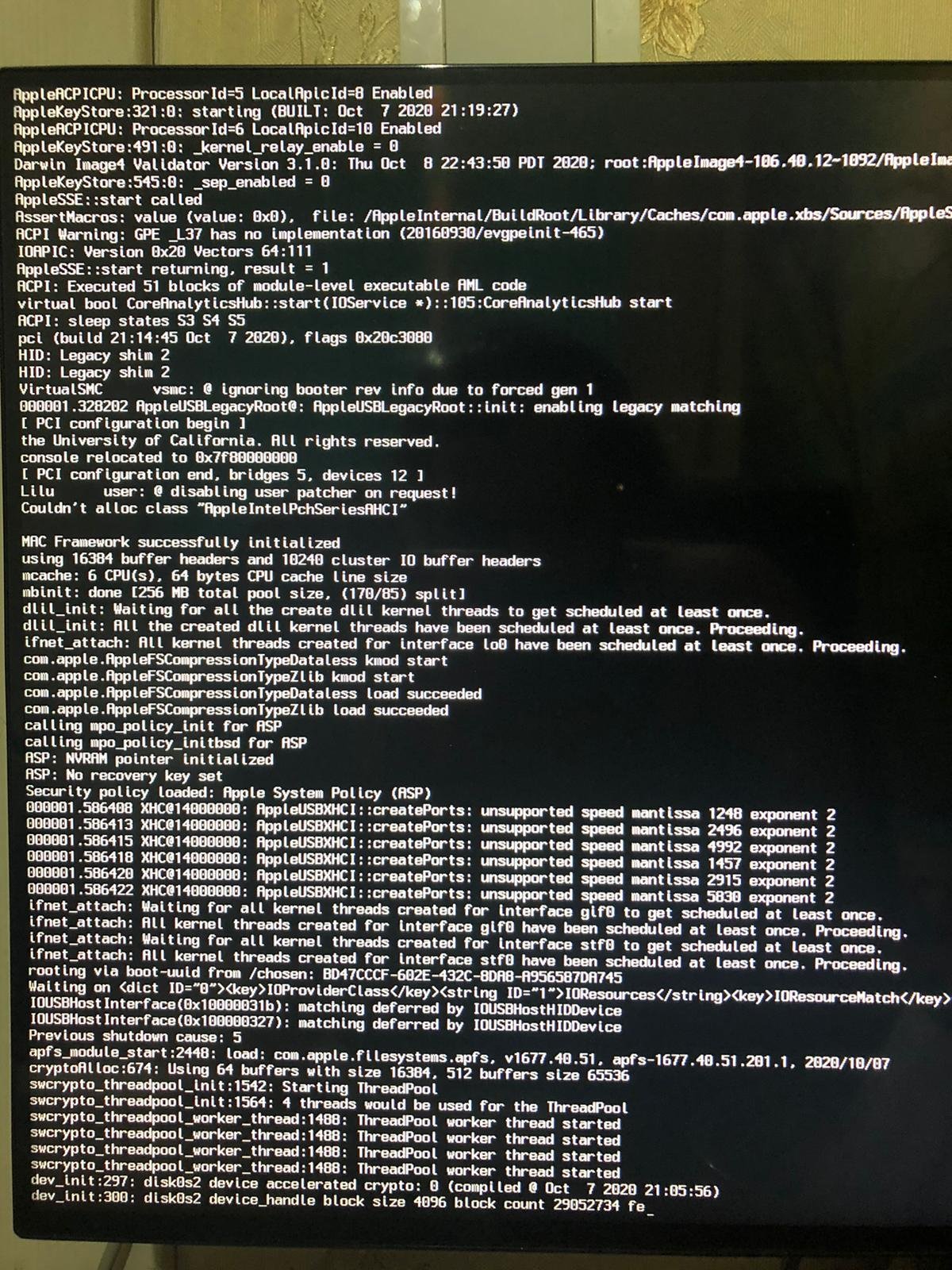

I am install macos big sur beta 1-9 not problem but beta update 10 finish and not open macos.



System:

Asus TUF H310 Plus Gaming

İntel i5-9400F

Rx 570VR

16 GB DDR4 Ram



I am try OC 0.6.2 bu not effect and update my EFI



EFI

OC 0.6.3

WEG 1.4.4

VirtualSMC 1.1.8

İntelMausi 1.0.5

Lilu 1.4.9

AppleALC 1.5.4

USBInjectALL 0.7.5



Boot args : -v debug=0x100 keepsyms=1 dart=0 vsmcgen=1



Edited October 16, 2020 by xKaoSx

[En0r1m]

Hello guys,
installed Linux Manjaro on a partition
and in my EFI Folder with OC 0.6.2 I have a Manjaro folder with grubx64.efi, and in the OC boot menu what is shown to me is an EFI icon and by booting it I can access Manjaro, but some way that does not appear the EFI partition, but the Linux Manjaro? I hope it was clear here.

[Mike Ranger]

Hi... with the latest Developer Beta 10, after the the reboot during installation I get the following KP:



panic(cpu 0 caller 0xffffff80192bd8ea): "Rooting from the live fs of a sealed volume is not allowed on a RELEASE build\n"@/AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-1677.40.51.201.1/kext/apfs_vfsops.c:2011
Backtrace (CPU 0), Frame : Return Address
0xffffffa08fc6ae20 : 0xffffff80162b666d mach_kernel : _handle_debugger_trap + 0x3dd
0xffffffa08fc6ae70 : 0xffffff80163f8f93 mach_kernel : _kdp_i386_trap + 0x143
0xffffffa08fc6aeb0 : 0xffffff80163e95ca mach_kernel : _kernel_trap + 0x55a
0xffffffa08fc6af00 : 0xffffff801a00e924 as.vit9696.VirtualSMC : __ZN18VirtualSMCProvider10kernelTrapI22x86_saved_state_1010_tEEvPT_Pm + 0x454
0xffffffa08fc6af80 : 0xffffff801625ba2f mach_kernel : _return_from_trap + 0xff
0xffffffa08fc6afa0 : 0xffffff80162b5f0d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffffa08fc6b0c0 : 0xffffff80162b61f8 mach_kernel : _panic_trap_to_debugger + 0x268
0xffffffa08fc6b130 : 0xffffff8016ab792a mach_kernel : _panic + 0x54
0xffffffa08fc6b1a0 : 0xffffff80192bd8ea com.apple.filesystems.apfs : _apfs_vfsop_mount + 0x339b
0xffffffa08fc6b990 : 0xffffff80192c6d70 com.apple.filesystems.apfs : _apfs_vfsop_mountroot + 0x3d
0xffffffa08fc6b9c0 : 0xffffff801653cb20 mach_kernel : _vfs_mountroot + 0x140
0xffffffa08fc6bb40 : 0xffffff80167f9883 mach_kernel : _set_rootvnode + 0x3c53
0xffffffa08fc6be70 : 0xffffff80162e3e83 mach_kernel : _max_valid_stack_address + 0xdf3
0xffffffa08fc6bfa0 : 0xffffff801625b13e mach_kernel : _call_continuation + 0x2e
      Kernel Extensions in backtrace:
         as.vit9696.VirtualSMC(1.1.8)[7BBAC837-0013-398A-BBEE-6BF8DD81C31B]@0xffffff8019fff000->0xffffff801a025fff
            dependency: as.vit9696.Lilu(1.4.9)[AC8A0C7F-6FCC-3F6A-9A82-96789EEDE7B5]@0xffffff8019f79000->0xffffff8019ffcfff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[F42E4E8D-BBE9-37B7-A3A4-9D9641BBB848]@0xffffff80186aa000->0xffffff80186abfff
         com.apple.filesystems.apfs(1677.40.51)[82FE49D0-2A08-3128-B5A7-D0D3BF99D28D]@0xffffff8019243000->0xffffff80193a6fff
            dependency: com.apple.driver.AppleEFINVRAM(2.1)[AB65643D-1BE4-35C1-B566-2898844DADE0]@0xffffff8017634000->0xffffff801763dfff
            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[7A75BFCC-F40A-3991-8D3D-BA843F37A7F8]@0xffffff8017647000->0xffffff801764cfff
            dependency: com.apple.iokit.CoreAnalyticsFamily(1)[B69C1AF1-494E-3321-B1FE-1EC42C6F2A5E]@0xffffff8017a82000->0xffffff8017a88fff
            dependency: com.apple.iokit.IOStorageFamily(2.1)[63B7DD4D-C3CC-311C-9FD7-30032779F1F8]@0xffffff8018d0f000->0xffffff8018d20fff
            dependency: com.apple.kec.corecrypto(1.0)[B1A179FD-27C2-3F5B-A97B-267774ECA9DF]@0xffffff80193d4000->0xffffff8019460fff
            dependency: com.apple.security.AppleImage4(3.0.0)[9F4F723F-52EE-3B0F-AB02-9755CCEB7DF7]@0xffffff80176a9000->0xffffff80176b8fff

Process name corresponding to current thread: kernel_task
Boot args: keepsyms=1 debug=0x100 npci=0x2000 -v agdpmod=pikera -bsdmgroot chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
Not yet set

Kernel version:
Darwin Kernel Version 20.1.0: Wed Oct  7 21:17:40 PDT 2020; root:xnu-7195.40.137.201.1~1/RELEASE_X86_64
Kernel UUID: D5AE727A-F8F2-31EE-B874-4E907B0C5115
KernelCache slide: 0x0000000016000000
KernelCache base:  0xffffff8016200000
Kernel slide:      0x0000000016010000
Kernel text base:  0xffffff8016210000
__HIB  text base: 0xffffff8016100000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file unavailable, panic occurred prior to initialization
Hibernation exit count: 0

System uptime in nanoseconds: 9406301602
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00000002346808ff
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x000017a143d7e380 0x0000000000000000

Not really sure what is going on. Beta 9 was working fine.

Regards, Mike

[Mike Ranger]

@eSaF: many thanks, that worked out perfectly.

Best, Mike
