Still having boot issues. Any suggestions? I had a very stable OC Catalina with all the most recent patches running prior to the attempted upgrade to Big Sur.

[STLVNUB]

3 hours ago, 149113 said:

Still having boot issues. Any suggestions? I had a very stable OC Catalina with all the most recent patches running prior to the attempted upgrade to Big Sur.

using OC6.0 here try it BS and Catalina

bifgsur_efi.zip

[Avery B]

4 hours ago, 149113 said:

Still having boot issues. Any suggestions? I had a very stable OC Catalina with all the most recent patches running prior to the attempted upgrade to Big Sur.

Update OC to 0.6.3 - it's a bug with Apple secure boot.

[PG7]

On 11/20/2020 at 5:40 PM, mathew2019 said:

I can confirm that macOS 11.1 beta is loading with 6800XT graphics card but no acceleration...7Mb display





tesa with a FakeID of this "0x73001002 0x730F1002" in BigSur Beta 11.1
these IDs are already in the AMD9000Controlleur.kext of Beta 11.1
also has id 0x73101002 0x73121002 0x73181002 0x73191002 0x731A1002 0x731B1002 0x731F1002 0x73401002 0x73411002 0x73471002 0x73471002 0x734711002 0x73601002
in AMDRadeonX6000Framebuffer.kext which means that working FakeID should normally take

[149113]

Finally got things up and running. Here is what I found & just in case this helps someone else out. As mentioned I had been running dual boot Opencore/Win 10 with 0.6.0 for a while with no issues at all. It was so stable that I have never had a single issue since converting from Clover to OC last winter. From my BIOS I had 3 entries in the boot section:



1. Opencore
2. Windows Boot Manager
3. Other UEFI OS



I had been running fine on the Opencore selection until this upgrade to Big Sur. I ended up moving the Other UEFI OS to the top, keeping Windows Boot Manager second and eliminating the Opencore boot option entirely. Once I did that things started working. I don't know if Opencore got corrupted in any way but those were the ONLY changes I made to get things going. I have a Gigabyte Aorus Elite with the most recent firmware. Don't know if that is a known issue with that board?



The only remaining issue I have now is cracking audio that cuts out often. I have the alcid=1 entry in the boot arguments section. Should I change that to something else? That seemed to work fine for Catalina

Edited November 24, 2020 by 149113

[Max.1974]

12 hours ago, 149113 said:

Finally got things up and running. Here is what I found & just in case this helps someone else out. As mentioned I had been running dual boot Opencore/Win 10 with 0.6.0 for a while with no issues at all. It was so stable that I have never had a single issue since converting from Clover to OC last winter. From my BIOS I had 3 entries in the boot section:



1. Opencore
2. Windows Boot Manager
3. Other UEFI OS



I had been running fine on the Opencore selection until this upgrade to Big Sur. I ended up moving the Other UEFI OS to the top, keeping Windows Boot Manager second and eliminating the Opencore boot option entirely. Once I did that things started working. I don't know if Opencore got corrupted in any way but those were the ONLY changes I made to get things going. I have a Gigabyte Aorus Elite with the most recent firmware. Don't know if that is a known issue with that board?



The only remaining issue I have now is cracking audio that cuts out often. I have the alcid=1 entry in the boot arguments section. Should I change that to something else? That seemed to work fine for Catalina



@149113 thanks for information, are you can explain in details or show your config.plist? Its because i have 2 OC EFI, one is for desktop and boot up Windows 7 normally without issue. But another, for my Lenovo, just up with Clover, i have no idea why, because both plist are the same, just different on drivers and kexts...

Edited November 24, 2020 by Max.1974

[geticus]

Hi all.
Crazy question, do you think it's possible to run Maverick in a Kaby Lake rig using FakeCPUID?

Thanks

[Sniki]

Question regarding Ivy Bridge DRM.



What is the best solution / combo for Ivy Bridge on Big Sur to have working DRM content / AppleTV. (SMBIOS & shikigva )

Seems tricky right now both for IGPU and DGPU desktops.

[MacNB]

10 hours ago, Sniki said:

Question regarding Ivy Bridge DRM.



What is the best solution / combo for Ivy Bridge on Big Sur to have working DRM content / AppleTV. (SMBIOS & shikigva )

Seems tricky right now both for IGPU and DGPU desktops.



Your question is not related to OpenCore so it is really off topic here.



However, here is my observation. I have an Ivy Bridge rig with RX580 but I do not use it for watching Netflix, prime, etc BUT I do use it to encode/decode H.263 & HEVC.

The only combo/solution I have is to get macOS to use the RX580 for encode/decode of those codecs by setting the Model ID iMacPro1,1 AND disable the IGPU in BIOS.

If the IGPU is enabled, the CPU is used for HEVC decode/encode and the IGPU is used for H.264 decode.



To continue this convo, I suggested you move it to the Graphics forum.

[149113]

21 hours ago, Max.1974 said:



@149113 thanks for information, are you can explain in details or show your config.plist? Its because i have 2 OC EFI, one is for desktop and boot up Windows 7 normally without issue. But another, for my Lenovo, just up with Clover, i have no idea why, because both plist are the same, just different on drivers and kexts...

Attaching my config.plist. I did not need to add any Windows 10 entries to my config file. Opencore just finds the EFI information on my Windows 10 instance and it appears as an additional icon in the Opencore menu. I think it helps to have Windows installed on a second NVMe drive

config.plist

[Max.1974]

On 11/25/2020 at 10:12 AM, 149113 said:

Attaching my config.plist. I did not need to add any Windows 10 entries to my config file. Opencore just finds the EFI information on my Windows 10 instance and it appears as an additional icon in the Opencore menu. I think it helps to have Windows installed on a second NVMe drive

config.plist

Thanks my friend, im will try your plist...!!!



Edit:



Hi all, im spend few days (and nights) try put BS with Opencore EFI together with Windows in Dual boot at the same drive for my Laptop. Almost impossible with compiled DSDT.

Im not advanced user, but if some good soul could explain why DSDT cause crash with Windows boot, im will appreciate that. Im try everything that Bless Entries or UUID etc, without success. With SSDT from Olarila, boot fine on Windows, and BS, but problems with BT not working good.



If is possible, someone understand, like developers, a part or section on DSDT that cause this issue, and if will be possible use OpenCore to make bootable in Dual Boot.

Clover was nice, im using with Catalina, but my knowledge not reach on this level to make boot on Big Sur, and i have perfect EFI from OC (and I like him now more Thant Clover) to install and run High Sierra, Catalina, and Big Sur, but not work on Windows.

Thanks guys, always your effort.

Edited November 26, 2020 by Max.1974

[HenryV]

What is IO80211Family.kext not loading issue with open core 0.6.3/0.6.4 and Big Sur 11.0.1?



Booting Big Sur 20B29 with OC securebootmodel disabled and IO80211Family.kext not loading as confirmed by kextstat | grep IO80211Family.kext.



Then I find this:



Set SecureBootModel to Default to make sure IO80211Family loads properly.



Workaround for Users with Prelinked Kernel without ImmutableKernel

    Force IO80211Family to load. 「Supports OpenCore and Clover(not tested)」 (Read the Kernel - Force section in OpenCore's manual for more info)
    Load AirportItlwm from Terminal (Continuity features may not work)
    Extract IO80211Family from the system, insert AirportItlwm as a Plugin, and load the bundle with a bootloader.
    Or disable SIP and install AirportItlwm into /Library/Extensions (Take your own risk)

    The latter two methods are not recommended, hence details are not provided.



So set SecureBootModel to Default and no boot with security warning.



Then I find this:



https://dortania.github.io/OpenCore-Post-Install/universal/security/applesecureboot.html#special-notes-with-securebootmodel



Troubleshooting



Due to an annoying bug on Apple's end, certain systems may be missing the secure boot files themselves on the drive.



Because of this, you may get issues such as:

OCB: LoadImage failed - Security Violation



To resolve, run the following in macOS:

# First, find your Preboot volume
diskutil list

# From the below list, we can see our Preboot volume is disk5s2
/dev/disk5 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +255.7 GB   disk5
                                 Physical Store disk4s2
   1:                APFS Volume ⁨Big Sur HD - Data⁩       122.5 GB   disk5s1
   2:                APFS Volume ⁨Preboot⁩                 309.4 MB   disk5s2
   3:                APFS Volume ⁨Recovery⁩                887.8 MB   disk5s3
   4:                APFS Volume ⁨VM⁩                      1.1 MB     disk5s4
   5:                APFS Volume ⁨Big Sur HD⁩              16.2 GB    disk5s5
   6:              APFS Snapshot ⁨com.apple.os.update-...⁩ 16.2 GB    disk5s5s
# Now mount the Preboot volume
diskutil mount disk5s2

# CD into your Preboot volume
# Note the actual volume is under /System/Volumes/Preboot in macOS
# however in Recovery it's simply under /Volumes/Preboot
cd /System/Volumes/Preboot

# Grab your UUID
ls
 46923F6E-968E-46E9-AC6D-9E6141DF52FD
 CD844C38-1A25-48D5-9388-5D62AA46CFB8

# If multiple show up(ie. you dual boot multiple versions of macOS), you will
# need to determine which UUID is correct.
# Easiest way to determine is printing the value of .disk_label.contentDetails
# of each volume.
cat ./46923F6E-968E-46E9-AC6D-9E6141DF52FD/System/Library/CoreServices/.disk_label.contentDetails
 Big Sur HD%



cat ./CD844C38-1A25-48D5-9388-5D62AA46CFB8/System/Library/CoreServices/.disk_label.contentDetails
 Catalina HD%



# Next lets copy over the secure boot files, recovery will need different commands

# Example commands for inside macOS
# Replace CD844C38-1A25-48D5-9388-5D62AA46CFB8 with your UUID value
cd ~
sudo cp -a /usr/standalone/i386/. /System/Volumes/Preboot/CD844C38-1A25-48D5-9388-5D62AA46CFB8/System/Library/CoreServices

# Example commands for Recovery
# Replace Macintosh\ HD and CD844C38-1A25-48D5-9388-5D62AA46CFB8 with
# your System Volume's name and Preboot's UUID
cp -a /Volumes/Macintosh\ HD/usr/standalone/i386/. /Volumes/Preboot/CD844C38-1A25-48D5-9388-5D62AA46CFB8/System/Library/CoreServices



Now you can enable SecureBootModel and reboot without issue! And since we're not editing the system volume itself we don't need to worry about disabling SIP or breaking macOS snapshots.



So after copying the boot keys per above directions and SecureBootModel re-enabled still get the security warning.   OCB: LoadImage failed - Security Violation



Is there a resolution to this?



itlwm/AirportItlwm/Heliport.app worked fine in beta with SecureBootModel disabled but with 20B29 11.0.1 SecureBootModel has to be enabled to load IO80211Family.kext?



Is this an issue with open core?



Update 091220: Itlwm/AirportItlwm/Heliport issues resolved with firmware update.



Edited December 9, 2020 by HenryV
resolved

[AntarcticP]

Hi

I have a working version of Big Sur installed on a fresh SSD, AMD Fx system (990fxa-UD5, fx8350 processor, AMD580x graphics).

Booting from my OpenCore USB stick works perfectly. I copied the content of my USB to the SSD EFI partition. So I would expect this would work, like it always did in the past with all previous MacOS versions. Not this time. When I select the Big Sur in the boot picker, I get an immediate kernel panic.

I included the OpenCore log for the 'Working USB' and the 'Not working SSD' EFI. Again, it's an exact copy, so I do not get why this does not boot.

Has anyone seen this before?

Thanks!

Opencore logs.zip

[H4cktosh]

hi

i have installed latest big sur on my laptop (Specs are on my Signature) and provisly installed High Sierra and used for years



but yesterday when i boot to macos HS for first time after BS installation,  the Big Sur Boot volume is Disappeared from opencore boot menu. i have try to reinstall Big sur one more time. but when i boot to high sierra big sur boot entry is disappear

Edited November 29, 2020 by H4cktosh

[TheBloke]

Hi all

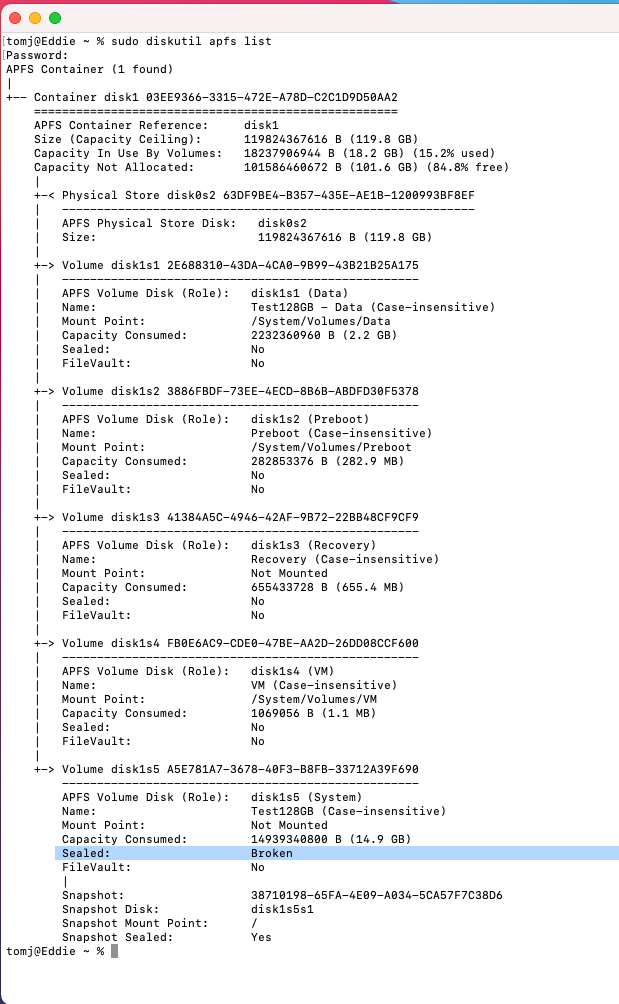

Is it normal when installing Big Sur - or updating to Big Sur - for the filesytem seal to be broken?  Like this:



The above screenshot is taken from a brand new Big Sur 11.0.1 install, to a blank drive.  But the same also happens if I update an existing Catalina install to Big Sur.



I have working NVRAM. I am using OpenCore 0.6.3. I have SecureBootModel = j160 (for MacPro 7,1 SMBIOS). I installed with SIP fully disabled (csr-active-config = 00000000).  I have not modified the system filesystem, and this happens on a brand new fresh install.



Is this expected, or is something wrong?



Do I need to set ApECID for Full Security in order to avoid the seal being broken?



I'm quite confused about this, as I am not sure what is the normal/expected result.  Thanks in advance for any info.

Edited November 29, 2020 by TheBloke

[TheBloke]

Thanks @eSaF - yes now I'm thinking maybe every Hackintosh has a broken seal.  At the least, everyone I've asked has the same thing.

[TheBloke]

Yeah I saw that.  I don't entirely understand the difference between the snapshot being sealed but the filesystem itself not being.  Does it imply that the filesystem seal was broken after the snapshot was taken?  Would that suggest that rolling back to the snapshot would re-seal the main FS?

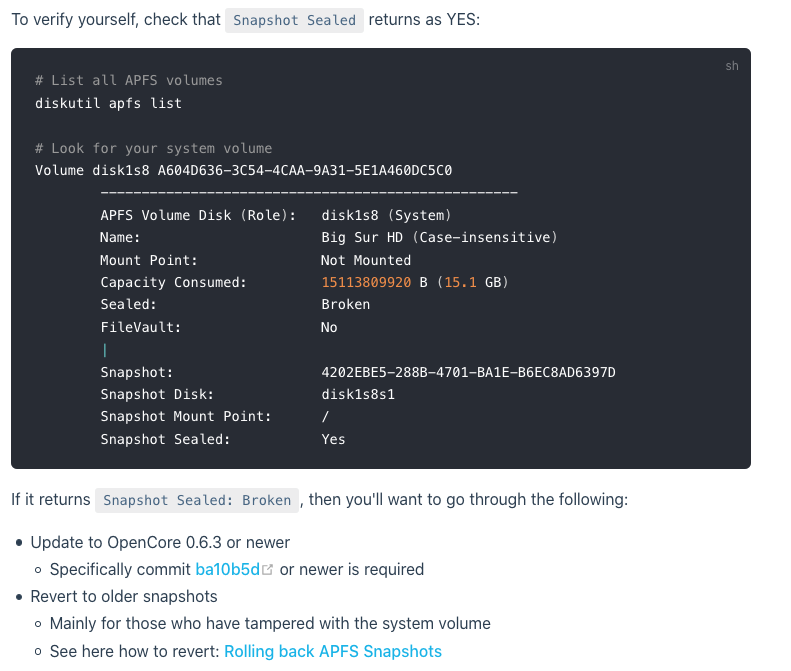

Though actually I just re-read the Dortania guide and realised I had mis-read it before.  The Dortania guide says to look for the snapshot being sealed, not the main FS



So on that basis, our systems do check out OK.



I'd still like to understand why exactly the main FS shows "Sealed: Broken" and whether that has any implications or not.  But I do see now that actually I'm not seeing anything unexpected.

[ameenjuz]

anyone know exactly

how to install kexts in /L/E  and rebuild kernel colloction in Big Sur 11.0.1 released version

i do this following procedure but do not work and corruppted my boot system

sudo cp -R *kexts /Library/Extensions

sudo touch /Library/Extensions && sudo kmutil install --volume-root / --update-all

sudo /usr/sbin/kcditto

anyone guide me about rebuilding kernel colloction using terminal

[HenryV]

Manually install kexts to System/Library/Extensions.

Change the paths for /Libary/Extensions



You need to enter recovery mode, open terminal, type at prompt  csrutil status

hit enter

verify response is "disabled"

if not run at prompt: csrutil disable



type at prompt csrutil authenticated-root status

hit enter

verify response is "disabled"

if not run at prompt: csrutil authenticated-root disable



reboot into recovery mode if required



open terminal, at prompt run: mount

hit enter

verify volumes, disk numbers, slices.

confirm with: diskutil list



at prompt type:

diskutil mountDisk diskXsY  where X is the Big Sur disk number and Y is the Big Sur slice.

hit enter

,

at prompt type:

mount -uw /Volumes/your Big Sur volume name

hit enter



at prompt type: mount

hit enter

Your Big Sur volume should no longer indicate read-only



at prompt:  cp -r where/ever/your/kext/is/whatever.kext /Volumes/your Big Sur volume name/System/Library/Extensions

hit enter

for each kext:



at prompt: chown -R 0:0 /Volumes/your Big Sur volume name/System/Library/Extensions/target.kext && chmod -R 755  /Volumes/your Big Sur volume name/System/Library/Extensions/target.kext

hit enter



then type at prompt:  touch /Volumes/your Big Sur volume name/System/Library/Extensions/whatever.kext(s)

hit enter



then type at prompt: kmutil install --volume-root /Volumes/your Big Sur volume name  --update-all --force

hit enter, wait for finish



then type at prompt: /Volumes/your Big Sur volume name/usr/sbin/kcditto

hit enter, wait for finish



then type at prompt:

bless --folder /Volumes/your Big Sur volume name/System/Library/CoreServices --bootefi --create-snapshot

hit enter, wait for finish



reboot

Edited November 30, 2020 by HenryV
remvised to insert SIP disable check

[HenryV]

itwlm/Heliport/AirportItlwm



Problem:



Fresh reinstall.



Clover 5127 and Open Core 0.6.4 booting Big Sur both load kexts with subsequent failure to detect networks on 20B29 11.0.1.



Big Sur beta loaded itlwm/Heliport and detected networks without issues.



Clover 5122 booting Catalina, all works well with itlwm and Heliport.



What gives?  Is this a Bug Sur issue or bootloader issue or both?



Doing something wrong?



Only thing have seen is different is that IONetworkingFamily version number from the AirportItlwm dependency info.plist  and the installed system IONetworkingFamily version number.



Anyone have a clue?







Update 091220: Itlwm/AirportItlwm/Heliport issues resolved with firmware update.



Edited December 9, 2020 by HenryV
resolved

[Modmike]

I'm running OpenCore 5.7 on Catalina. My board is an Asus Z390 with a 1560 wifi card. Everything has been working well for 8 months until I updated to 6.3 and lost wifi.



Any tips?

[Tecnicaso Rico]

2 hours ago, Modmike said:

I'm running OpenCore 5.7 on Catalina. My board is an Asus Z390 with a 1560 wifi card. Everything has been working well for 8 months until I updated to 6.3 and lost wifi.



Any tips?

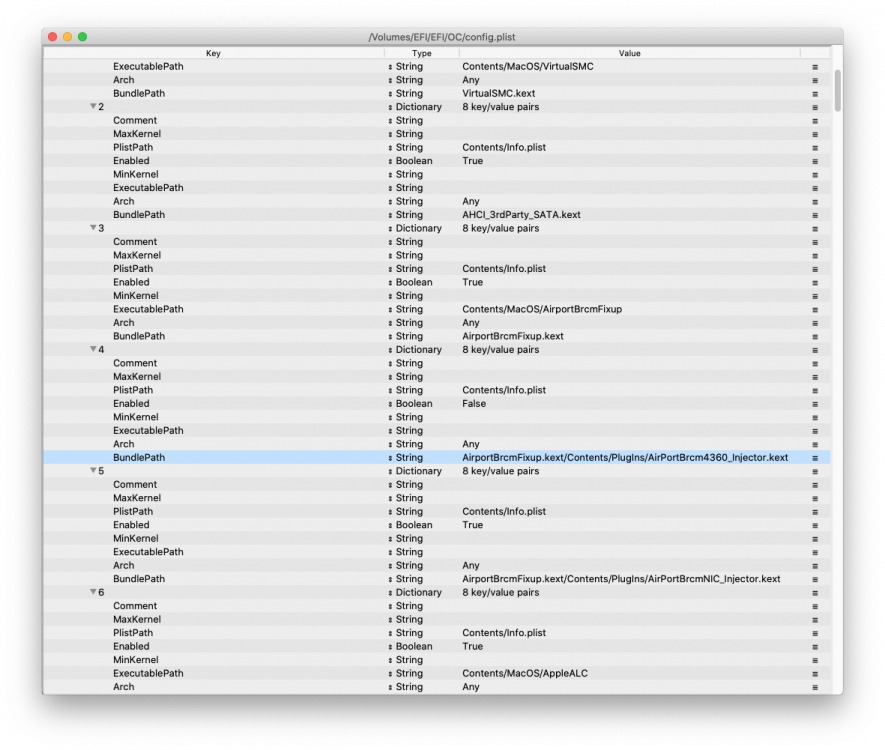

There are two injectors inside AirportBcrmFixup.kext. Check if AirPortBcrm4360_Injector,kext is set to False.

[Max.1974]

Try this config on OpencoreConfigurator: uncheck that kext partial on Kernel section.



If you need see this video too: "How to make wifi broadcom work in MacOS Big Sur Beta 2 on Hackintosh OpenCore"



Works fine for me... Lenovo and GA Z270 i7







[HenryV]

1Revenger1 can not receive messages.

Thank you for your reply.  Can you tell me how best to resolve this:

https://www.insanelymac.com/forum/topic/338516-opencore-discussion/?page=262

itlwm/Heliport/AirportItlwm

Problem:

Fresh reinstall.

Clover 5127 and Open Core 0.6.4 booting Big Sur both load kexts with subsequent failure to detect networks on 20B29 11.0.1.

Big Sur beta loaded itlwm/Heliport and detected networks without issues.

Clover 5122 booting Catalina, all works well with itlwm and Heliport.

What gives?  Is this a Bug Sur issue or bootloader issue or both?

Doing something wrong?

Only thing have seen is different is that IONetworkingFamily version number from the AirportItlwm dependency info.plist  and the installed system IONetworkingFamily version number.

Anyone have a clue?

wifi log:

Mon Nov 30 20:55:35.713 Usb Host Notification NOT activated
Mon Nov 30 20:55:35.750 <airport[193]> _bsdDriver_init: registration for monitoring bssSteeringRequest event
Mon Nov 30 20:55:35.750
Mon Nov 30 20:55:35.750 <airport[193]> psCallback: set powersave(7) failed, 5 (Input/output error)
Mon Nov 30 20:55:35.793 <kernel> Not adding subscription due to missing boot-arg wlan.iorsubscriptions
Mon Nov 30 20:55:35.906 <kernel> Not adding subscription due to missing boot-arg wlan.iorsubscriptions
Mon Nov 30 20:55:35.917 <kernel>  Creating all peerManager reporters
Mon Nov 30 20:55:36.102 <airport[193]> _initLocaleManager: Started locale manager
Mon Nov 30 20:55:36.102 <airport[193]> _initInterface: Failed to query current SSID (Input/output error)
Mon Nov 30 20:55:36.167 <airport[193]> airportdProcessDLILEvent: <en1> event=9, flags=0xFFFF8863, lastPowerPref=off
Mon Nov 30 20:55:36.167 <airport[193]> airportdProcessDLILEvent: en1 attached (up)
Mon Nov 30 20:55:36.235 <airport[193]> _bsdDriver_init: registration for monitoring bssSteeringRequest event
Mon Nov 30 20:55:36.235
Mon Nov 30 20:55:36.236 <airport[193]> psCallback: set powersave(7) failed, 5 (Input/output error)
Mon Nov 30 20:55:36.236 <airport[193]> psCallback: set powersave(7) failed, 5 (Input/output error)
Mon Nov 30 20:55:36.253 <airport[193]> _bsdDriver_init: registration for monitoring bssSteeringRequest event
Mon Nov 30 20:55:36.253
Mon Nov 30 20:55:36.253 <airport[193]> psCallback: set powersave(7) failed, 5 (Input/output error)
Mon Nov 30 20:55:36.253 <airport[193]> psCallback: set powersave(7) failed, 5 (Input/output error)
Mon Nov 30 20:56:39.598 <airport[193]> ERROR: ControlCenter (474) is not entitled for com.apple.wifi.events, but allowing anyways for event type 2
Mon Nov 30 20:56:53.092 <airport[193]> Could not set property APPLE80211_REGKEY_AWDL_MAC_ADDRESS_IN_USE to 0
Mon Nov 30 20:56:53.122 <airport[193]> Could not set property APPLE80211_REGKEY_AWDL_MAC_ADDRESS_IN_USE to 0
Mon Nov 30 20:57:12.220 <kernel> en1: setting diversity to: -1
Mon Nov 30 20:57:12.220 <kernel> en1: Error configuring antenna diversity (index = -1).
Mon Nov 30 20:57:12.220 <kernel> en1: setting tx antenna: -1
Mon Nov 30 20:57:12.220 <kernel> en1: Error configuring transmit antenna (index = -1).
Mon Nov 30 20:57:12.247 <kernel> Setting BTCoex Profile: band:8
Mon Nov 30 20:57:12.247 <kernel> Profile[0]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:12.247 <kernel> Profile[1]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:12.247 <kernel> Profile[2]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:12.250 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:13.471 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:19.683 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:22.680 <kernel> IO80211VirtualInterface::handleSIOCSIFFLAGS : Source handleIoctlGated calling peerManager->disable
Mon Nov 30 20:57:24.370 <kernel> en1: setting diversity to: -1
Mon Nov 30 20:57:24.370 <kernel> en1: Error configuring antenna diversity (index = -1).
Mon Nov 30 20:57:24.370 <kernel> en1: setting tx antenna: -1
Mon Nov 30 20:57:24.370 <kernel> en1: Error configuring transmit antenna (index = -1).
Mon Nov 30 20:57:24.376 <kernel> Setting BTCoex Profile: band:8
Mon Nov 30 20:57:24.378 <kernel> Profile[0]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.378 <kernel> Profile[1]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.378 <kernel> Profile[2]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.399 <kernel> Setting BTCoex Profile: band:8
Mon Nov 30 20:57:24.399 <kernel> Profile[0]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.399 <kernel> Profile[1]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.399 <kernel> Profile[2]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.400 <kernel> Setting BTCoex Profile: band:8
Mon Nov 30 20:57:24.400 <kernel> Profile[0]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.400 <kernel> Profile[1]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.400 <kernel> Profile[2]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.404 <kernel> Setting BTCoex Profile: band:8
Mon Nov 30 20:57:24.404 <kernel> Profile[0]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.404 <kernel> Profile[1]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.404 <kernel> Profile[2]: mode:0; desense:0; desense_level:0; chain_power_offset:<kernel> 0,<kernel> 0,<kernel> 0,<kernel> 0,<kernel>
Mon Nov 30 20:57:24.865 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:26.074 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:27.079 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:28.085 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:29.091 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:30.099 <airport[193]> systemWokenByWiFi: System Wake Reason not found
Mon Nov 30 20:57:32.406 <kernel> IO80211VirtualInterface::handleSIOCSIFFLAGS : Source handleIoctlGated calling peerManager->disable
Mon Nov 30 21:32:38.766 Usb Host Notification NOT activated



Edited December 2, 2020 by HenryV
Code tag/typo

[AlfredoM]

No Schema



how can I make the error messages "No Schema" .... always visible?
These (there are probably about 6 messages) go away within 1 second and then the boot menu comes up, so that I can't read where the individual errors for "No Schema" are.

Is there an option when booting with Open Core 0.6.3?
Thanks for tips.
