Matgen84 Posted April 19, 2020 Share Posted April 19, 2020 1 hour ago, ammoune78 said: The best you can do is here, to fix and turn off CFG Lock manually with UEFITool etc method. Then no need: AppleCpuPmCfgLock: Yes AppleXcpmCfgLoc: Yes I like this reply I turns off CFG-Lock manually my Gigabyte Aorus Master BIOS. The @ammoune78 error remains on my Z390 config. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718205 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 3 minutes ago, Matgen84 said: I turns off CFG-Lock manually my Gigabyte Aorus Master BIOS. The @ammoune78 error remains on my Z390 config. Disable AppleCpuPmCfgLock and AppleXcpmCfgLock from the config, then reboot and enter the offset value shown in your UEFI.rom from the Modified GRUB Shell, as shown in that guide. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718206 Share on other sites More sharing options...
rottenpants Posted April 19, 2020 Share Posted April 19, 2020 For people trying to turn off their CFG Lock with modGRUBShell.efi and are getting these errors (specially on laptops): error: can't set variable using efi (error: 0x000000000000008) or error: can't set variable using efi (error: 0x000000000000001a) Your are pretty much screwed.... must use those 2 quirks Would love to hear from the devs on how this affects cpu power management or if something else is being worked on to get around this @Download-Fritz @Andrey1970 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718207 Share on other sites More sharing options...

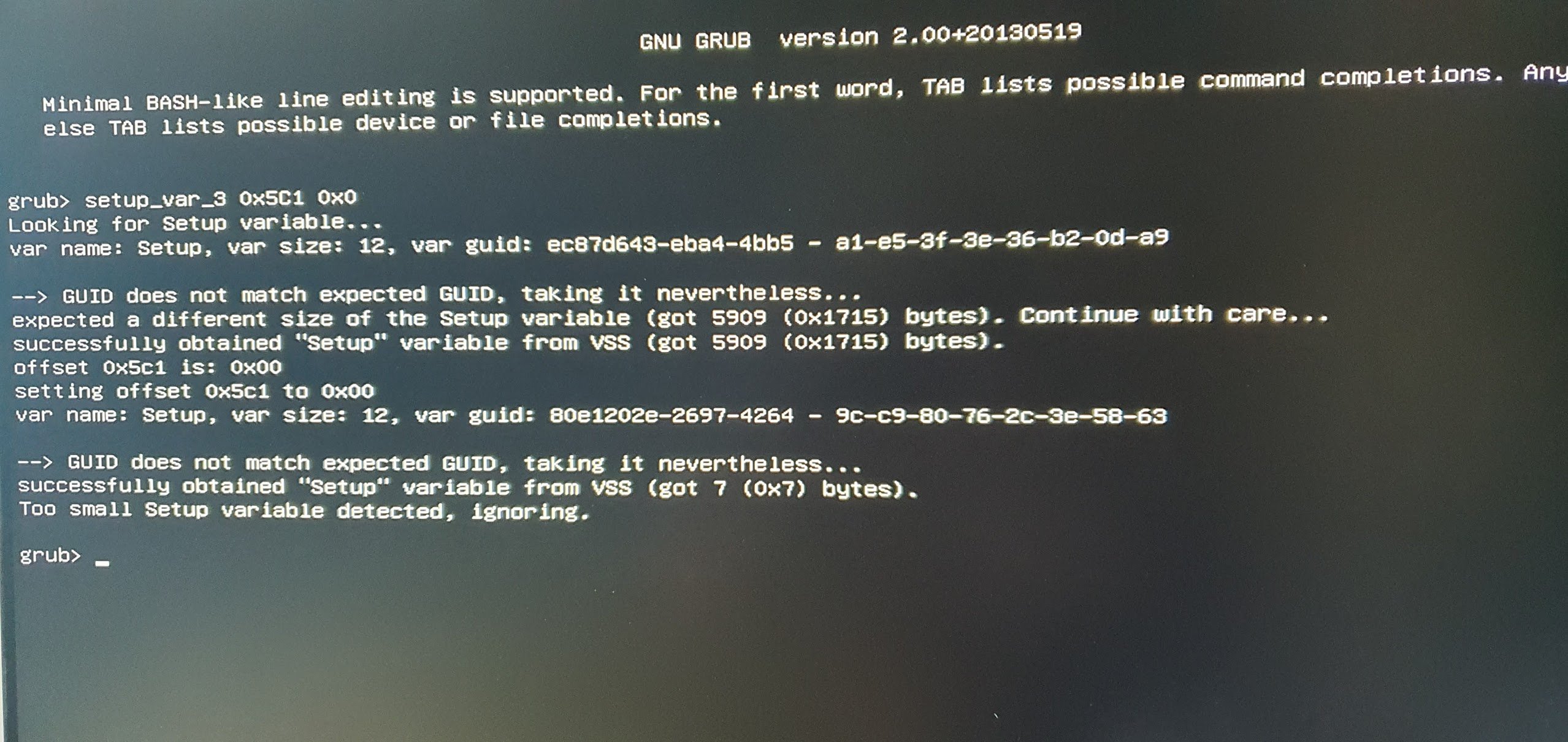

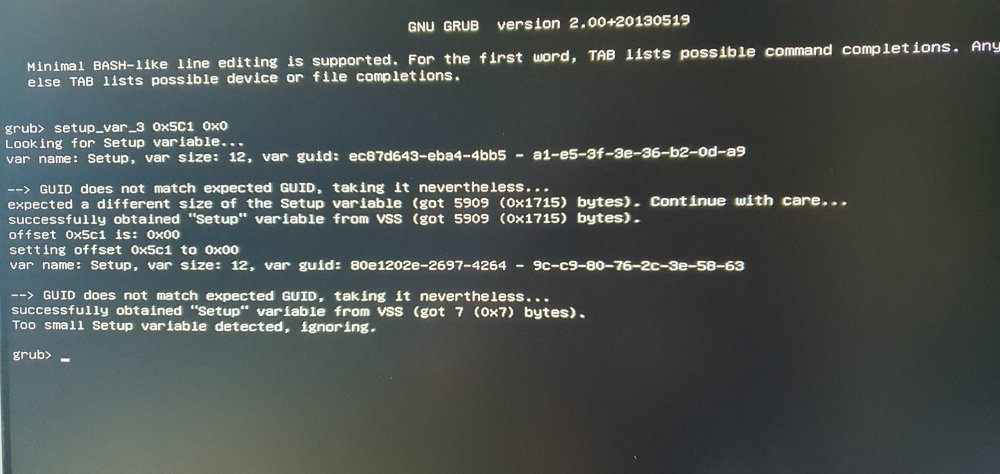

Matgen84 Posted April 19, 2020 Share Posted April 19, 2020 15 minutes ago, ammoune78 said: Disable AppleCpuPmCfgLock and AppleXcpmCfgLock from the config, then reboot and enter the offset value shown in your UEFI.rom from the Modified GRUB Shell, as shown in that guide. It's exactly what I do, without success: Unlock CFG is Ok (verified) but the message is always there. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718210 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 38 minutes ago, Matgen84 said: It's exactly what I do, without success: Unlock CFG is Ok (verified) but the message is always there. What message? 42 minutes ago, Matgen84 said: It's exactly what I do, without success: Unlock CFG is Ok (verified) but the message is always there. Take a screenshot of your bios opened by UEFITool, and searched for the CFG Lock word, need to know if you have one result from the search or 5 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718212 Share on other sites More sharing options...

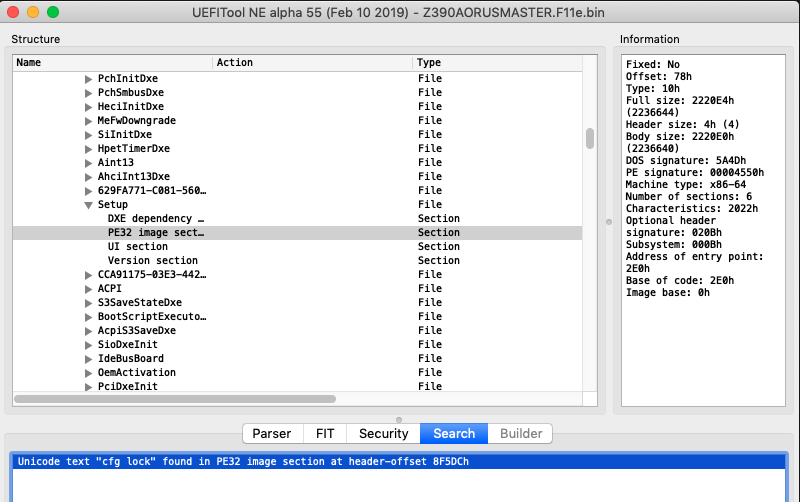

Matgen84 Posted April 19, 2020 Share Posted April 19, 2020 41 minutes ago, ammoune78 said: What message? Take a screenshot of your bios opened by UEFITool, and searched for the CFG Lock word, need to know if you have one result from the search or 5 What message ----> same as your screenshot in your post (sorry for my bad English) UEFiTool show only one line for PE32 section. Screenshot and setup.txt attached setup.txt Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718220 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 Give me a min please 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718221 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 12 minutes ago, Matgen84 said: What message ----> same as your screenshot in your post (sorry for my bad English) UEFiTool show only one line for PE32 section. Screenshot and setup.txt attached setup.txt setup_var 0x5c1 0x00 is the current one that you need to do. Also before to do that, you need to check with VerifyMsrE2.efi if your MoBo allow disabling CFG Lock or not, before doing that steps. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718224 Share on other sites More sharing options...

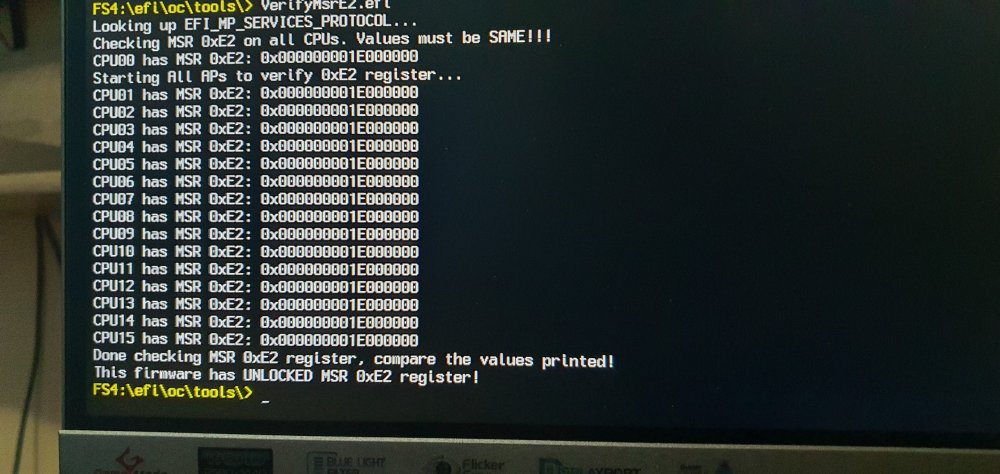

Matgen84 Posted April 19, 2020 Share Posted April 19, 2020 1 minute ago, ammoune78 said: setup_var 0x5c1 0x00 is the current one that you need to do. Also before to do that, you need to check with VerifyMsrE2.efi if your MoBo allow disabling CFG Lock or not, before doing that steps. Thanks. As I says before CFG is unlock in my BIOS mobo (Gigabyte Z390 Aorus Master). I verify and double check via Hackintool Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718225 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 3 minutes ago, Matgen84 said: Thanks. As I says before CFG is unlock in my BIOS mobo (Gigabyte Z390 Aorus Master). I verify and double check via Hackintool But the picture there is not meaning only CFG Lock, it maybe have something else, if you already have the CFG Unlocked. This is from what i've read from @Download-Fritz. You can see my first picture like this one a week ago, he replied to me with another thing that i've to check. 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718228 Share on other sites More sharing options...
ziggenpuss Posted April 19, 2020 Share Posted April 19, 2020 2 minutes ago, ammoune78 said: But the picture there is not meaning only CFG Lock, it maybe have something else, if you already have the CFG Unlocked. This is from what i've read from @Download-Fritz. You can see my first picture like this one a week ago, he replied to me with another thing that i've to check. Hi, Sorry to jump in on this but I'm having a similar problem (I think??).. OC 0.5.7 OS 10.15.4 Suddenly started playing up so: - cleaned everything and created new EFI latest But now trying to boot and I'm in a loop where I keep having to reset the BIOS F9b Any help appreciated as been on this for 2 days and it's just got progressively worse IMG_3452.HEIC Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718230 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 16 minutes ago, ziggenpuss said: Hi, Sorry to jump in on this but I'm having a similar problem (I think??).. OC 0.5.7 OS 10.15.4 Suddenly started playing up so: - cleaned everything and created new EFI latest But now trying to boot and I'm in a loop where I keep having to reset the BIOS F9b Any help appreciated as been on this for 2 days and it's just got progressively worse IMG_3452.HEIC I think you have some unuseful patches for your machine try first to remove the unusual, boot with minimal. Check if your mobo has unlocked CFG or not: Quote If you got Offset xxxxx is 0x00, then it's already unlocked, if you've got 0x01 then you need to check: Quote Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718232 Share on other sites More sharing options...
ziggenpuss Posted April 19, 2020 Share Posted April 19, 2020 Yes I unlocked CFG as it's not available in my BIOS Gigabyte Z390. And I've been running with the newer setting of Boolean of NO on both CFGLock in the .plist Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718236 Share on other sites More sharing options...
davidm71 Posted April 19, 2020 Share Posted April 19, 2020 20 hours ago, el_charlie said: Guys, I need some assistance. I managed to make OC 0.5.8 work on my legacy P55 motherboard and works amazing! The only thing missing is to tweak the SMBIOS further to report my correct RAM speed to macOS (it shows 8GB of SDRAM). Where did you find Version 5.8? Thanks Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718249 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 55 minutes ago, ziggenpuss said: Yes I unlocked CFG as it's not available in my BIOS Gigabyte Z390. And I've been running with the newer setting of Boolean of NO on both CFGLock in the .plist You maybe need to revert back to a previous version of opencore, the newer then the more errors shown maybe, this is valid for me also. I updated to the newer, now i have another error, were the previous version get passed all the errors, and just stuck at gIOLockScreen Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718252 Share on other sites More sharing options...
ammoune78 Posted April 19, 2020 Share Posted April 19, 2020 The CFG Lock is now Unlocked, booting with the: AppleCpuPmCfgLock: No AppleXcpmCfgLoc: No and the setup_var_3 0xxxx 0x00 is showing 0x00, get it unlocket. Booting fine, just have to see if i'm doing a mistake in the config, need some work on it, and figure out what the problem. Also in the documentation, they say, need to re-check many times to know what we are doing. It's true, so many lines to check, then maybe, by mistake, we will forget something, it just need a patience! 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718271 Share on other sites More sharing options...
el_charlie Posted April 19, 2020 Share Posted April 19, 2020 1 hour ago, davidm71 said: Where did you find Version 5.8? Thanks Use OCBuilder app to compile the latest commited version of OpenCore. Right now it's 0.5.8 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718287 Share on other sites More sharing options...
flashgear Posted April 19, 2020 Share Posted April 19, 2020 11 hours ago, flashgear said: Now I have a blank screen after I select "macOS - External" in the loader screen. Goes blank as soon I select it, where as my previous post above I could see the error text. Using an RX Vega 64, any ideas?? Anyone? Been at this for 3 hours now and can't get a display past choose macOS in the loader Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718297 Share on other sites More sharing options...

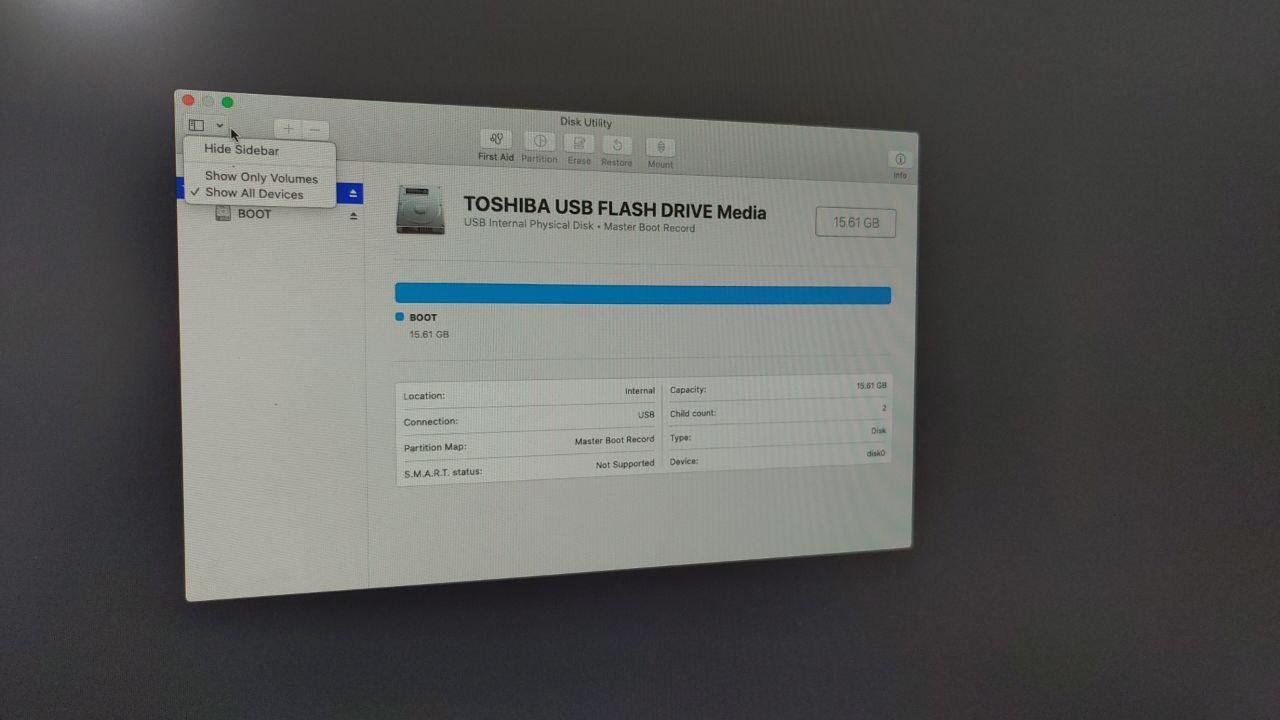

EC0 Posted April 19, 2020 Share Posted April 19, 2020 (edited) Hello Everyone .. why when I try install system and chose disk utility just detect external hard drive and internal hard drive not detected any of them i have SSD + SSD NVME +HHD Edited April 19, 2020 by EC0 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718303 Share on other sites More sharing options...
flashgear Posted April 19, 2020 Share Posted April 19, 2020 3 minutes ago, eSaF said: Apart from using an RX Vega 64, what is the rest of your specs, it would help others to help you if they knew what board, cpu etc etc. I put it in my prev posts but don't mind again i7 7700, Gigabyte H110M-S2H/16GB DDR4 Corsair 2400 Vegence/RX Vega 64/RM850w Corsair PSU Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718308 Share on other sites More sharing options...

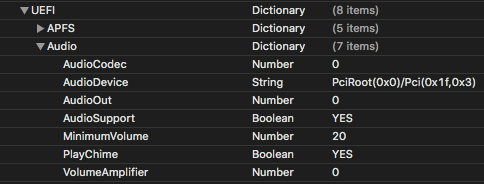

alkemix Posted April 19, 2020 Share Posted April 19, 2020 (edited) I can't hear the sounds in the pre-boot (in the OC boot menu), and yet I think I have set everything correctly: opencore 0.5.8 nightly official Please, Can You help me ? Edited April 19, 2020 by alkemix Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718313 Share on other sites More sharing options...
SavageAUS Posted April 19, 2020 Share Posted April 19, 2020 (edited) 1 hour ago, alkemix said: I can't hear the sounds in the pre-boot (in the OC boot menu), and yet I think I have set everything correctly: opencore 0.5.8 nightly official Please, Can You help me ? Have you confirmed the correct address of your AudioDevice and codec? Edited April 19, 2020 by SavageAUS Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718316 Share on other sites More sharing options...
alkemix Posted April 19, 2020 Share Posted April 19, 2020 (edited) 5 minutes ago, SavageAUS said: Have you confirmed the correct address of your AusdoDevice and codec? Audiodevice is correct ( gfxutil -f HDEF ), audiocodec and audio out are indispensable, How do I know what the values are ? Edited April 19, 2020 by alkemix Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718318 Share on other sites More sharing options...
davidm71 Posted April 20, 2020 Share Posted April 20, 2020 (edited) 6 hours ago, el_charlie said: Use OCBuilder app to compile the latest commited version of OpenCore. Right now it's 0.5.8 Xcode complains that I don't have a developer certificate installed so won't compile... Showing Recent Issues No signing certificate "Mac Development" found: No "Mac Development" signing certificate matching team ID "5DG8PLV54H" with a private key was found. Edited April 20, 2020 by davidm71 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718333 Share on other sites More sharing options...
Andrey1970 Posted April 20, 2020 Share Posted April 20, 2020 (edited) 35 minutes ago, davidm71 said: Xcode complains that I don't have a developer certificate installed so won't compile... Showing Recent Issues No signing certificate "Mac Development" found: No "Mac Development" signing certificate matching team ID "5DG8PLV54H" with a private key was found. Simply download OpenCore source code from master and launch macbuild.toolhttps://github.com/acidanthera/OpenCorePkg/archive/master.zip Edited April 20, 2020 by Andrey1970 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/164/#findComment-2718334 Share on other sites More sharing options...
