OpenCore General Discussion

[Mork vom Ork]

@davidm71

if you use OC 0.5.8 nightly build, you should have to add the following eintries in your config.plist under UEFI:



<key>APFS</key>
		<dict>
			<key>EnableJumpstart</key>
			<true/>
			<key>HideVerbose</key>
			<true/>
			<key>JumpstartHotPlug</key>
			<false/>
			<key>MinDate</key>
			<integer>0</integer>
			<key>MinVersion</key>
			<integer>0</integer>
		</dict>

than it should work for you. If you are still on OC 0.5.7 you need APFS driver to get APFS volumes recogniced

[davidm71]

Ok thank you. Will try to enable the plist entries and see what happens. Thanks.

[davidm71]

Ok thank you. Will try to enable the plist entries and see what happens. Thanks.

[EC0]

On 4/20/2020 at 2:11 PM, Matgen84 said:



You're several problem with your folder structure:

• remove boot and bootlex.log, keep EFI folder
• put Resources folder in OC directory

On your screenshot, your USB Toshiba is formatted MBR, why? macOS recognize your key as Internal drive? Try to recreate USB Installer from createinstallmedia method with GPT/macOS journalized pen drive for example.

Problem Slove thank you there are issue with my MB and M.2 970 Evo

[bayard]

Hi,

Somebody manage to boot on a HP4540s?

I only sees EFIs folders in picker. I know my usb flash drive with opencore on it works, for instance on HP 1012 X2.

hp 1012 x2 g1 debug opencore.txt

hp4540s debug opencore.txt

Edited April 21, 2020 by bayard

[markl18]

hi to @Andrey1970 ya vklushay svoi plist file pomogi sdelat ego chtobi touch nachal rabotat  how do you make different resolutions come up in in display under system preferences

config.plist

Edited April 21, 2020 by markl18

[ameenjuz]

9 hours ago, telepati said:

Will not work if ScanPolicy set to 0. Also, this feature does not work as show/hide like in Clover. Only shows, does not hide back again.

Exactely right

Any idea for solution

[MacNB]

10 hours ago, telepati said:

Will not work if ScanPolicy set to 0. Also, this feature does not work as show/hide like in Clover. Only shows, does not hide back again.



Not quite true.

Two different problems.

1. ScanPolicy=0 works for without any problems. I set default using System Preferences->Startup disk

2. OpenCanopy is NOT finished yet so Show/Hide is probably not finished either. As you were reminded here a few times and it is mentioned in the Configuration.pdf: "WARNING: OpenCanopy is currently considered experimental and is not recommended for everyday use. Refer to acidanthera/bugtracker#759 for more details regarding the current limitations."

[telepati]

1 hour ago, anmool said:

Exactely right

Any idea for solution

There is no solution to this. Cause this feature not added for this behavior.

1 hour ago, MacNB said:



Not quite true.

Two different problems.

1. ScanPolicy=0 works for without any problems. I set default using System Preferences->Startup disk

2. OpenCanopy is NOT finished yet so Show/Hide is probably not finished either. As you were reminded here a few times and it is mentioned in the Configuration.pdf: "WARNING: OpenCanopy is currently considered experimental and is not recommended for everyday use. Refer to acidanthera/bugtracker#759 for more details regarding the current limitations."

First of all, we are not talking about ScanPolicy. We are mention about HideAuxialiary feature and this is not part of the OpenCanopy. Yes, it is working with OpenCanopy but not specially created for OpenCanopy.

Edited April 21, 2020 by telepati

[Andrey1970]

13 hours ago, nijhawank said:

Yes, I confirm. I am now able to select the APFS volume for installation with the OpenCore debug package you provided and smbios MacBookPro13,1; earlier it did not allow me to select the APFS volume.

I did not however continued with the installation as I had already upgraded my installation with the workaround (using smbios MacBookPro14,1).



Many thanks for your help.

Fixed in DataBase.

[mhaeuser]

7 hours ago, davidm71 said:

Hi[...] and disparaged by one of the developers for not knowing.

I don't know whether that was a generic "the", but for the case it was not, Pavo has nothing to do with OC and is not an OC developer.

[Pavo]

But I keep up-to-date with current changes being made to the "master" branch of OC. You don't have to be part of the "click" or a "OC developer" to know what commits are being made.

9 days ago:

https://github.com/acidanthera/OpenCorePkg/commit/09aba22d36993053c116fee1704ebe2cb39bc921

https://github.com/acidanthera/OpenCorePkg/commit/2dfe69110b26a833f941f08d94626e2fcfce2348

Edited April 21, 2020 by Pavo

[MacNB]

2 hours ago, telepati said:

There is no solution to this. Cause this feature not added for this behavior.

First of all, we are not talking about ScanPolicy. We are mention about HideAuxialiary feature and this is not part of the OpenCanopy. Yes, it is working with OpenCanopy but not specially created for OpenCanopy.

Sorry but you really need to read your own posts.

You first wrote "Will not work if ScanPolicy set to 0." So first of all your ARE talking about ScanPolicy and what you quoted was incorrect.



Regarding OpenCanopy, do NOT change the subject to HideAuxiialiary which was NEVER mentioned by me or by @anmool. He asked about ExternalGUI and Space button to hide/unhide partitions and that's why I mentioned OpenCanopy.



Then, to say "there is no solution this" is not correct. I mentioned the solution. Do not say it is not a solution without verifying.



You did not read his posts correctly (which was not even directed to you but to one of the Devs), but you jumped in and gave wrong advice.



Please read people's post first and if English is not your first language then read it again to make sure you understand correctly and if you don't understand, then don't make a comment - certainly do not to give advice you do not know for sure.

[brx7]

Hello im using a lenovo m720 thinkcentre B360 i5 8400 system

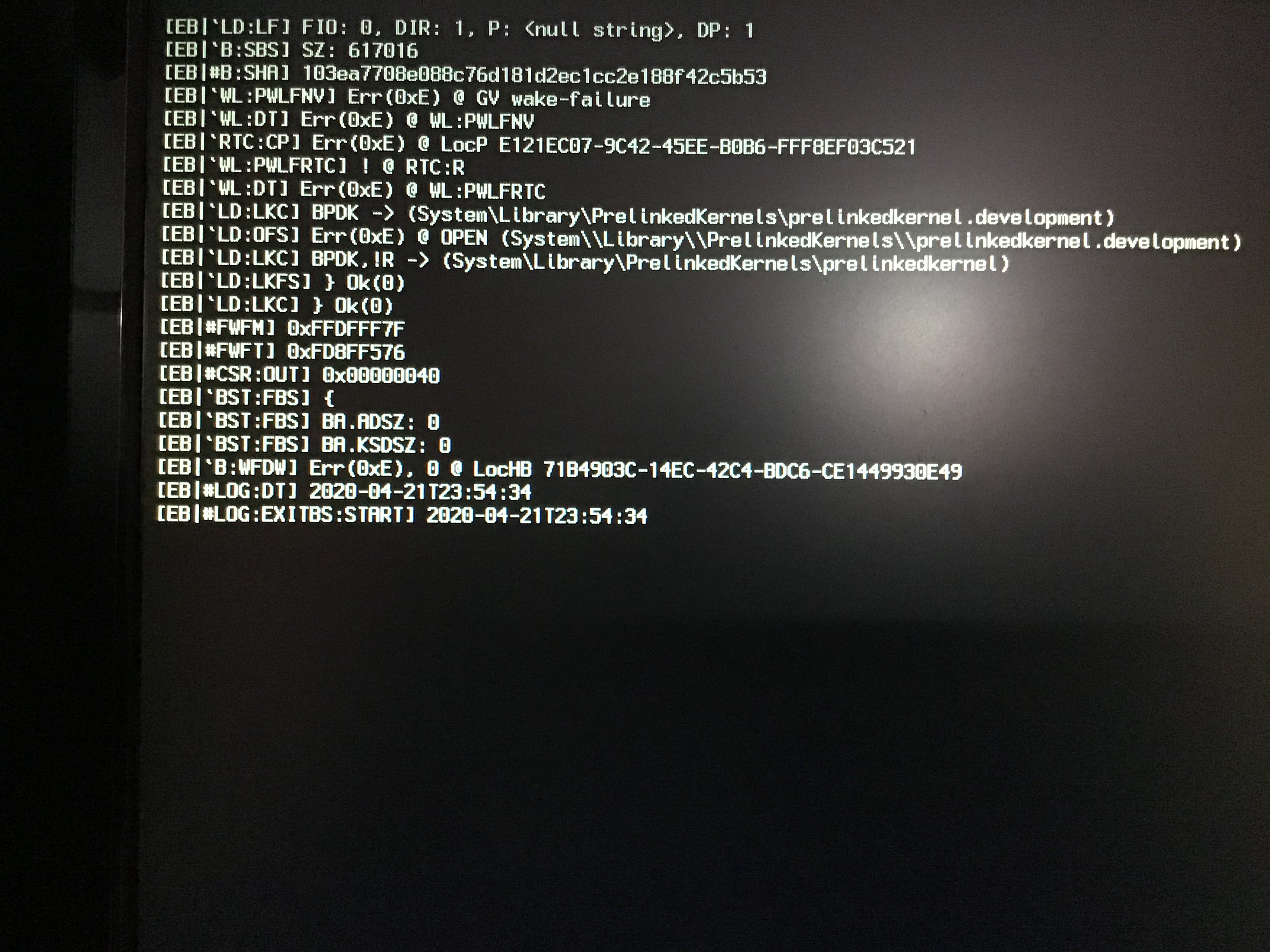

i get this message when i run mac installer from oc, i checked my config.plist but dunno what i missed.

dsd was dumped and sddtime made some aml files, i pulled off awac from a other site

[MacNB]

4 hours ago, anmool said:

Exactely right

Any idea for solution



Try setting the default boot drive from System Preferences using Startup Disk.

[davidm71]

2 hours ago, Download-Fritz said:

I don't know whether that was a generic "the", but for the case it was not, Pavo has nothing to do with OC and is not an OC developer.

I do apologize. I apparently spoke in error. Will correct the comment. Have the highest respect for the developer community. I am finding Opencore a wonderful product and thank you for your hard work.

[brx7]

8 minutes ago, brx7 said:

my config

config.plist

Edited April 21, 2020 by brx7

[telepati]

1 hour ago, MacNB said:

Sorry but you really need to read your own posts.

You first wrote "Will not work if ScanPolicy set to 0." So first of all your ARE talking about ScanPolicy and what you quoted was incorrect.



Regarding OpenCanopy, do NOT change the subject to HideAuxiialiary which was NEVER mentioned by me or by @anmool. He asked about ExternalGUI and Space button to hide/unhide partitions and that's why I mentioned OpenCanopy.



Then, to say "there is no solution this" is not correct. I mentioned the solution. Do not say it is not a solution without verifying.



You did not read his posts correctly (which was not even directed to you but to one of the Devs), but you jumped in and gave wrong advice.



Please read people's post first and if English is not your first language then read it again to make sure you understand correctly and if you don't understand, then don't make a comment - certainly do not to give advice you do not know for sure.

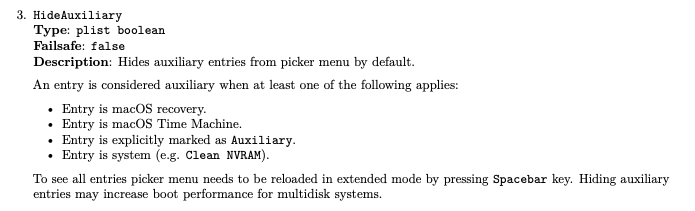

I dont want to argue with you but you have no idea what you're talking about. He is talking about HideAuxiliary feature here;



So he confirmed my answer here; Why

If ScanPolicy is set to 0, the HideAuxiliary feature will lose its function. And he thought this feature works like Clover. But it is not so. This feature performs only the function of showing, not hiding. And there is no solution for this.



And you must read the guide first before writing;





And this is not related with the OpenCanopy.



Extra note for you;

There is no other feature that you can use Spacebar in OpenCore.



Now you have learned what @anmool is talking about and why I gave him that answer.

Edited April 22, 2020 by telepati

[ameenjuz]

1 hour ago, MacNB said:



Try setting the default boot drive from System Preferences using Startup Disk.



29 minutes ago, telepati said:

I dont want to argue with you but you have no idea what you're talking about. He is talking about HideAuxiliary feature here;



So he confirmed my answer here;



And you must read the guide first before writing;





And this is not related with the OpenCanopy.



Extra note for you;

There is no other feature that you can use Spacebar in OpenCore.



Now you have learned what @anmool is talking about and why I gave him that answer.



please don't argue with each other

first of all i have two issue

First i talking about AllowSetDefault=true clt+enter is not selecting default partition with External GUI using OcBinaryData Resources  i know guys that is working with PickerMode to Builtin  just issue with External GUI i hope that both of you will be understand

Second i talking about HideAuxiliary=true this also not working with External GUI using spacebar



i tried the default boot drive from System Preferences

but i m facing issue nvram tool was unable to set a preference

sorry for my weak english because english is not my native langauge

[telepati]

1 hour ago, anmool said:





please don't argue with each other

first of all i have two issue

First i talking about AllowSetDefault=true clt+enter is not selecting default partition with External GUI using OcBinaryData Resources  i know guys that is working with PickerMode to Builtin  just issue with External GUI i hope that both of you will be understand

Second i talking about HideAuxiliary=true this also not working with External GUI using spacebar



i tried the default boot drive from System Preferences

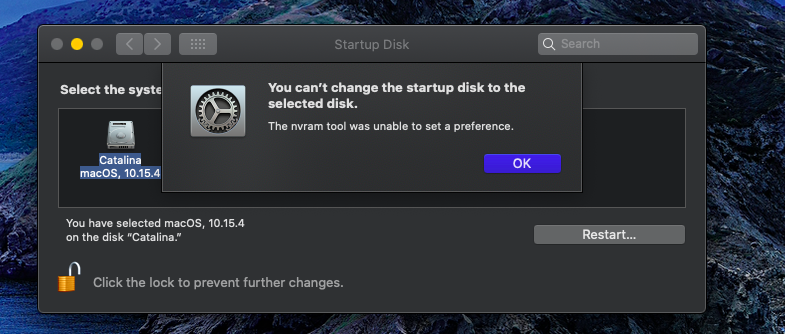

but i m facing issue nvram tool was unable to set a preference

sorry for my weak english because english is not my native langauge

No, HideAuxiliuary working on External GUI which I am using without any problem. But if you set ScanPolicy 0 it will not work as I said to you before. I am using my Hackintosh like real mac behavior. If I want to reach my drive while booting I am just hold down the Opt key. And I am seeing my External GUI and my default drive. Then pressing the Spacebar shows my hidden drivers and tools, and my default driver is still selected. But when you set ScanPolicy to 0, you will see all your hidden drivers, but HideAuxiliray will be disabled automatically even if you set YES. Because there are no drivers to show. All of them are already visible.



I also had asked the developer this hide back option a long time ago. And the answer I got was that they didn't think of anything like this.



For the picture try CleanNVRAM.

Edited April 22, 2020 by telepati

[Simonej]

@anmool RequestBootVarRouting and WriteFlash are enabled?

[mhaeuser]

8 hours ago, Pavo said:

But I keep up-to-date with current changes being made to the "master" branch of OC. You don't have to be part of the "click" or a "OC developer" to know what commits are being made.

But you should be an OC dev to be called an OC dev in a public post, especially if it's a personal negative reception. We had the case before that we were called "derogatory facists", and the first name when dropped (later magically corrected) upon request who they meant was someone we never even spoke to at all. I don't want to hear such nonsense in public, end of topic.

[ameenjuz]

3 hours ago, telepati said:

No, HideAuxiliuary working on External GUI which I am using without any problem. But if you set ScanPolicy 0 it will not work as I said to you before. I am using my Hackintosh like real mac behavior. If I want to reach my drive while booting I am just hold down the Opt key. And I am seeing my External GUI and my default drive. Then pressing the Spacebar shows my hidden drivers and tools, and my default driver is still selected. But when you set ScanPolicy to 0, you will see all your hidden drivers, but HideAuxiliray will be disabled automatically even if you set YES. Because there are no drivers to show. All of them are already visible.



I also had asked the developer this hide back option a long time ago. And the answer I got was that they didn't think of anything like this.



For the picture try CleanNVRAM.

i tried many time scanpolicy set to 70189315 no luck same behavoir

writetoflash=true is working startup disk from system preference and selected default drive worked but startup boot sound didn't work with writetoflash=true

[telepati]

2 hours ago, anmool said:

i tried many time scanpolicy set to 70189315 no luck same behavoir

writetoflash=true is working startup disk from system preference and selected default drive worked but startup boot sound didn't work with writetoflash=true

Use default ScanPolicy this is best;

			<key>ScanPolicy</key>
			<integer>983299</integer>



[ameenjuz]

1 minute ago, telepati said:

Use default ScanPolicy this is best;

			<key>ScanPolicy</key>
			<integer>983299</integer>





i already used this decimal number 983299 no luck

i think you are using original apple keyboard that is why  you have working
