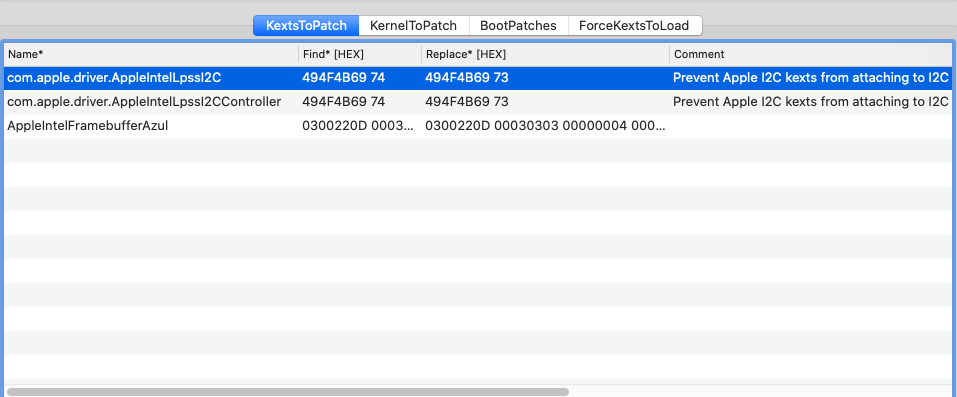

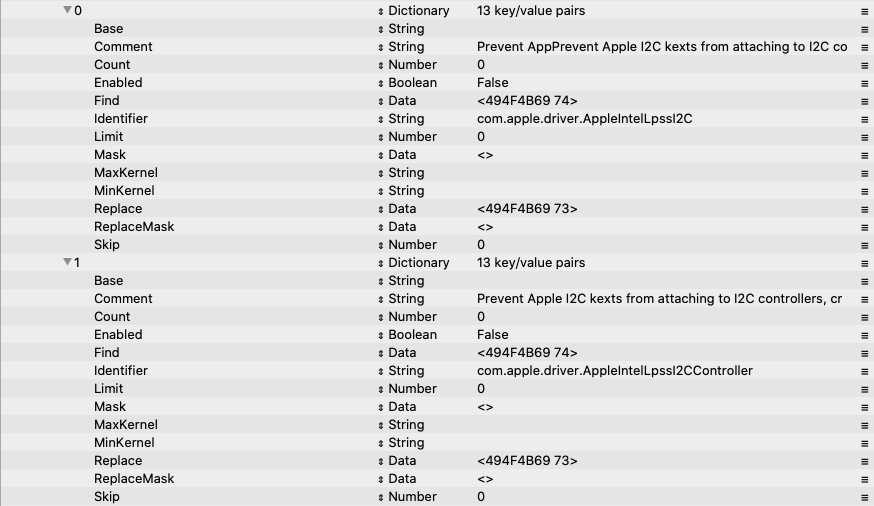

MatiWaldi Posted April 9, 2020 Share Posted April 9, 2020 1 hour ago, hardcorehenry said: config.plist Copied patches to my config, no effect. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716475 Share on other sites More sharing options...
telepati Posted April 9, 2020 Share Posted April 9, 2020 (edited) 3 hours ago, telepati said: is there a bug on v0.5.7 or something wrong on my setup? Combo Update does not continue after clicking restart. Apple logo and loading bar coming after in a second, logo and loading bar disappear, the screen turns black and never restarts. (wait 20min 2 times) I am making force restarts from the Case and I am choosing "macOS installer" from the Picker and update continue. I don't get it why this happening. Any idea would be nice. Thank you. @Tiem and @crusher I found the problem. The problem is disabling "EnableWriteUnprotector" does not work for me. vit9696 is mentioning here "Disabling EnableWriteUnprotector may not work for some", I am one of them. BTW, I'm not sure if vit9696 says this for boot because when I disable it, I can boot but I can't update. Edited April 9, 2020 by telepati Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716480 Share on other sites More sharing options...
MatiWaldi Posted April 9, 2020 Share Posted April 9, 2020 44 minutes ago, hardcorehenry said: Open MaciASL.app search XSTA and XCRS and check if they're in correct place(GPI0 and TDP1) and correct skip value(if not). In TPD1 is still _STA. Trying to find correct skip value Meantime, those 2 lines are from OC log: 08:160 07:724 OC: Prelink injection VoodooI2C.kext () - Invalid Parameter 08:243 00:082 OC: Prelink injection VoodooI2CHID.kext () - Invalid Parameter In Clover I had 2 KextToPatch for I2C, i put them also to OC, is that made in good way? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716484 Share on other sites More sharing options...
MatiWaldi Posted April 9, 2020 Share Posted April 9, 2020 14 minutes ago, hardcorehenry said: You don't have to TDP1 _STA is disabled(you didn't mention about _STA in TDP1) enable it in config reboot and check the same way. yep, i dont have it, true, my mistake, but even if I've done counting for that and it is in the right place, touchpad still not working properly are those KextToPatch are done correctly? I know I have them disabled, but with enabled is still the same so maybe this is problem, and OC in log gives "Invalid Parameter"? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716487 Share on other sites More sharing options...

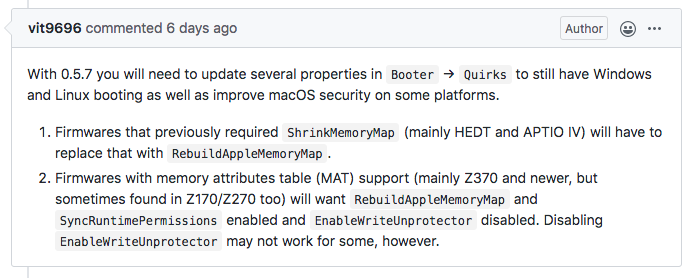

rottenpants Posted April 10, 2020 Share Posted April 10, 2020 3 hours ago, telepati said: @Tiem and @crusher I found the problem. The problem is disabling "EnableWriteUnprotector" does not work for me. vit9696 is mentioning here "Disabling EnableWriteUnprotector may not work for some", I am one of them. BTW, I'm not sure if vit9696 says this for boot because when I disable it, I can boot but I can't update. Yep same problem here. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716508 Share on other sites More sharing options...
Tiem Posted April 10, 2020 Share Posted April 10, 2020 7 hours ago, telepati said: @Tiem and @crusher I found the problem. The problem is disabling "EnableWriteUnprotector" does not work for me. vit9696 is mentioning here "Disabling EnableWriteUnprotector may not work for some", I am one of them. BTW, I'm not sure if vit9696 says this for boot because when I disable it, I can boot but I can't update. So you begin the update. It goes to the Apple logo and a progress bar. Then it reboots. From there OC will add an entry to NVRAM and you can launch from macOS install. It’ll then load a white screen and install the update that way. what part fails for you? When I get a chance I’ll look to what I have that quirk set to. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716530 Share on other sites More sharing options...
telepati Posted April 10, 2020 Share Posted April 10, 2020 @Tiem First part when I click to restart button on combo update pkg. Apple logo and loading bar coming after in a second, logo and loading bar disappear, the screen turns black and never restarts. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716614 Share on other sites More sharing options...
Allubz Posted April 10, 2020 Share Posted April 10, 2020 (edited) Dear OpenCore developers, I much respect your alternative to Clover, and I have enjoyed so far running Zen 2 so smoothly compared to Clover. As you know there are a set of TRX40 users out there who would really like the support to boot past the seeming memory issue. I have no real knowledge on the matter, but it seems like the Linux kernel patch (https://lore.kernel.org/patchwork/patch/1156999/) did its work for a similar issue for the Linux kernel, and a workaround before was to use the "mce=off" parameter. Honestly, I don't know if this is the problem we are facing when booting macOS with OpenCore, and also I don't have the knowledge to troubleshoot on a level deemed useful to OC developers, I think, at least not without proper guidance. My question then is whether it makes sense that the above patch is used to fix the same problem that we are facing when trying to pass memory allocation, which never works on TRX40 at the moment, and whether this patch is somehow applicable in OpenCore. I also don't know whether this will be the only issue we are facing, so if my request to adopt said patch in OpenCore is simply not applicable, then feel free to say so and I/we will wait until a guru dev manages to find the time and effort to get this fix going. The reason I believe it is important for the Hackintosh community is that Skylake-X supplies are drying up and Cascade Lake-X was basically a paperlaunch, so we are stuck with a maximum of 18 hotheaded cores on Intel, and 16 very decent but just-not-enough on AMD. It would be amazing to run 32C/64T or somehow even 64C/64T (or 128T when macOS allows), so we can beat out that MacPro7,1. All the best! Edited April 10, 2020 by Allubz 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716633 Share on other sites More sharing options...
vit9696 Posted April 10, 2020 Share Posted April 10, 2020 @Allubz, the issue with TRX40 is with AMD kernel patches (at least that is what I have in my memories about our investigation). For this reason no change in OpenCore is believed to be needed. You need to consult to AMD patches' developers for this. Also, while unrelated, I do not think macOS kernel works well enough with a large amount of threads. 3 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716641 Share on other sites More sharing options...
polkaholga Posted April 10, 2020 Share Posted April 10, 2020 (edited) On 8/6/2019 at 4:33 PM, Andres ZeroCross said: No problem,, I shouldn't use custom entry because i have use separated disk for each Operating System. Every disk have own EFI/Boot/Bootx64.efi. So actually i don't need use those features. I just want to change entry name instead default ones, i just need to use ._contentDetails files to edit entry name. Thanks again Is this still valid with version 0.5.7 ? I can't change any of the entrie names.... I'm using UTF-8 formatted text files, is that correct ? Edited April 10, 2020 by polkaholga Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716642 Share on other sites More sharing options...
DocXavier Posted April 10, 2020 Share Posted April 10, 2020 On 8/31/2019 at 5:21 PM, FredWst said: Hi, Just a little trick to enable TRIM for SATA SSD under Mojave last build and Catalina Beta 7. Add at NVRAM in dict 7C436110-AB2A-4BBB-A880-FE41995C9F82 EnableTRIM data <01000000> Fred Thanks for this tip¡¡¡ it works fine¡¡¡ Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716649 Share on other sites More sharing options...
Killuminati91 Posted April 10, 2020 Share Posted April 10, 2020 Will these values from the 10.15.5 beta help us Ice Lake users somehow? iGPU injection? Quote 0x8A70 0x8A71 0x8A51 => i7-1060G7 & i5-1030G7 0x8A5C => i5-1030G4 & i3-1000G4 0x8A5D 0x8A52 => i7-1065G7 & i5-1035G7 0x8A53 0x8A5A => i5-1035G4 0x8A5B Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716652 Share on other sites More sharing options...
mhaeuser Posted April 10, 2020 Share Posted April 10, 2020 @polkaholga There must not be an underscore Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716654 Share on other sites More sharing options...

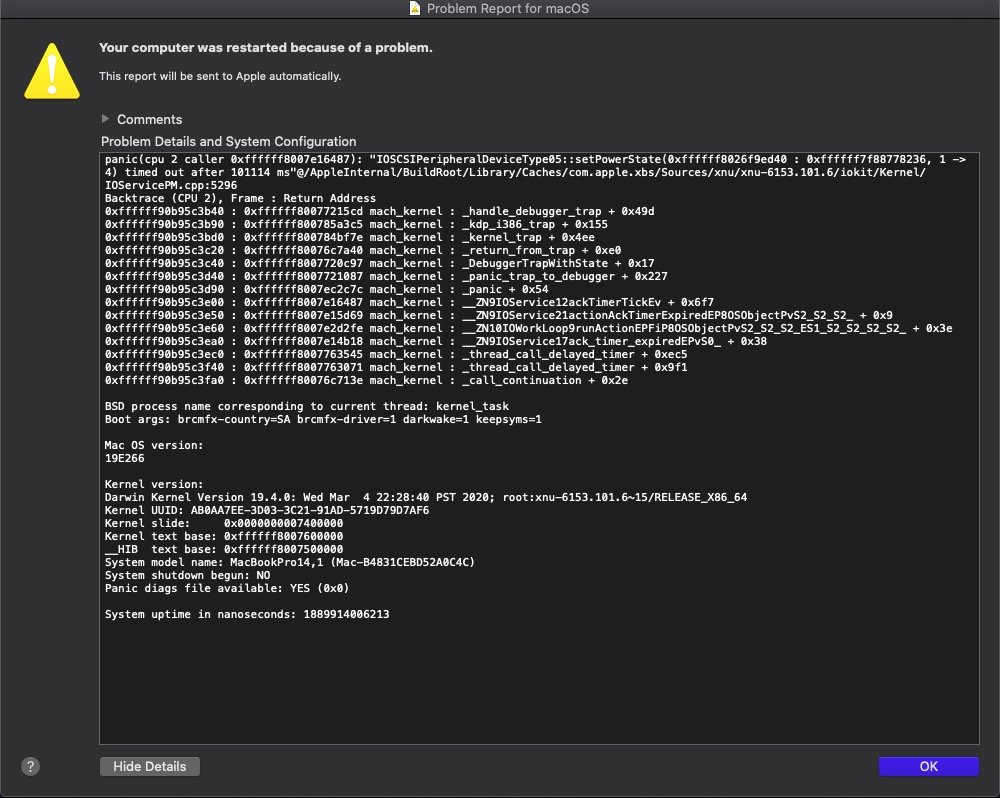

ameenjuz Posted April 10, 2020 Share Posted April 10, 2020 (edited) Once again do nott work PowerTimeoutKernelPanic=true in 10.15.4 build (19E287 supplemental update 2 hours ago, Download-Fritz said: @polkaholga There must not be an underscore Once again do nott work PowerTimeoutKernelPanic=true in 10.15.4 build (19E287 supplemental update Edited April 10, 2020 by anmool attached Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716702 Share on other sites More sharing options...
asstastic Posted April 11, 2020 Share Posted April 11, 2020 @telepati for functioning updates you'll want to have working NVRAM. To do that, you'll need to have "EnableWriteUnprotector" set to enabled. As you have a modern Intel motherboard, you may need to compile SSDT-PMC.aml, add it to the OC ACPI folder and add the file to your config.plist to get NVRAM working. 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716731 Share on other sites More sharing options...
Hector van der Aa Posted April 11, 2020 Share Posted April 11, 2020 sorry but my other discord account got banned for no reason Please join the new troubleshooting channel https://discord.gg/BbSundZ And the new news channel https://discord.gg/44wQwuZ Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716737 Share on other sites More sharing options...
Hector van der Aa Posted April 11, 2020 Share Posted April 11, 2020 hey guys i currently am running a r9 280x in my top pcie slot (gen3 x16 speed) and I have my 2060 super which originally was in the pc is just lying around. i have a second pcie slot (gen2 x8 speed) which would do just fine to run the r9 280x in and have the 2060 super in the top slot I have heard it is possible to disable the top slot in opencore but am unable to do it some help would be very appreciated thx Hector Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716739 Share on other sites More sharing options...
carlo_67 Posted April 11, 2020 Share Posted April 11, 2020 10 minutes ago, carlo_67 said: OT @vit9696 @Allubz I think MacPro7,1 has already been beaten and Opencore works better than Clover, all threads work https://www.macos86.it/topic/2509-guide-trx40-osx-bare-metal-proxmox-setup/?tab=comments#comment-66124 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716770 Share on other sites More sharing options...
polkaholga Posted April 11, 2020 Share Posted April 11, 2020 12 hours ago, Download-Fritz said: @polkaholga There must not be an underscore Thanks for the hint, my bad... But still no joy. Config pdf says that at PickerAttributes custom entry disk labels can be set, and at ConsoleAttributes colours can be changed. In my case I can change colours at PickerAttributes... I can change nothing at ConsoleAttributes.... Changelog says PickerAttributes has been renamed to ConsoleAttributes... I'm confused Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716771 Share on other sites More sharing options...
Guest Posted April 11, 2020 Share Posted April 11, 2020 (edited) @Allubz 64 cores (32c/32t) is the limit in kernel for all Osx system by now. 3970x is working perfectly with proxmox ve with opencore i have also a faster boot tested in my rig (see my signature) Edited April 11, 2020 by Guest Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716772 Share on other sites More sharing options...
telepati Posted April 11, 2020 Share Posted April 11, 2020 8 hours ago, asstastic said: @telepati for functioning updates you'll want to have working NVRAM. To do that, you'll need to have "EnableWriteUnprotector" set to enabled. As you have a modern Intel motherboard, you may need to compile SSDT-PMC.aml, add it to the OC ACPI folder and add the file to your config.plist to get NVRAM working. They are already set. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716791 Share on other sites More sharing options...
ekwipt Posted April 11, 2020 Share Posted April 11, 2020 Could someone please look at my EFI, i can’t even get ton installation TIA EFI copy.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716836 Share on other sites More sharing options...
Hector van der Aa Posted April 11, 2020 Share Posted April 11, 2020 calling all opencore hackintoshers sorry but my other discord account got banned for no reason Please join the new troubleshooting channel https://discord.gg/BbSundZ And the new news channel https://discord.gg/44wQwuZ Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716844 Share on other sites More sharing options...
polkaholga Posted April 11, 2020 Share Posted April 11, 2020 1 hour ago, ekwipt said: Could someone please look at my EFI, i can’t even get ton installation TIA EFI copy.zip Is your SSDT-EC correct for you board ? SSDT-AWAC or proper RTC patch applied ? First things I would look for... https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/AcpiSamples/SSDT-AWAC.dsl https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/AcpiSamples/SSDT-EC-USBX.dsl Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716856 Share on other sites More sharing options...

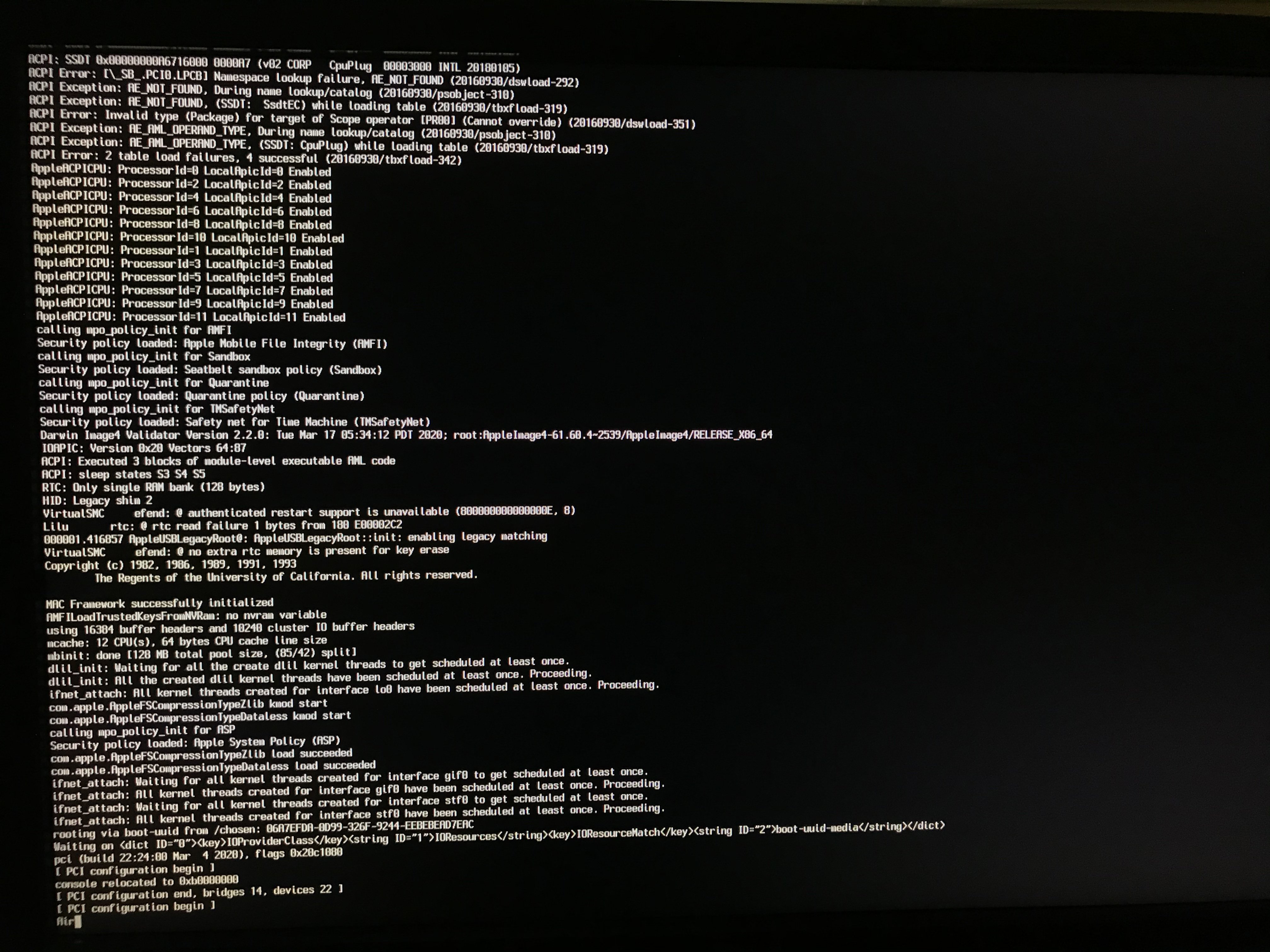

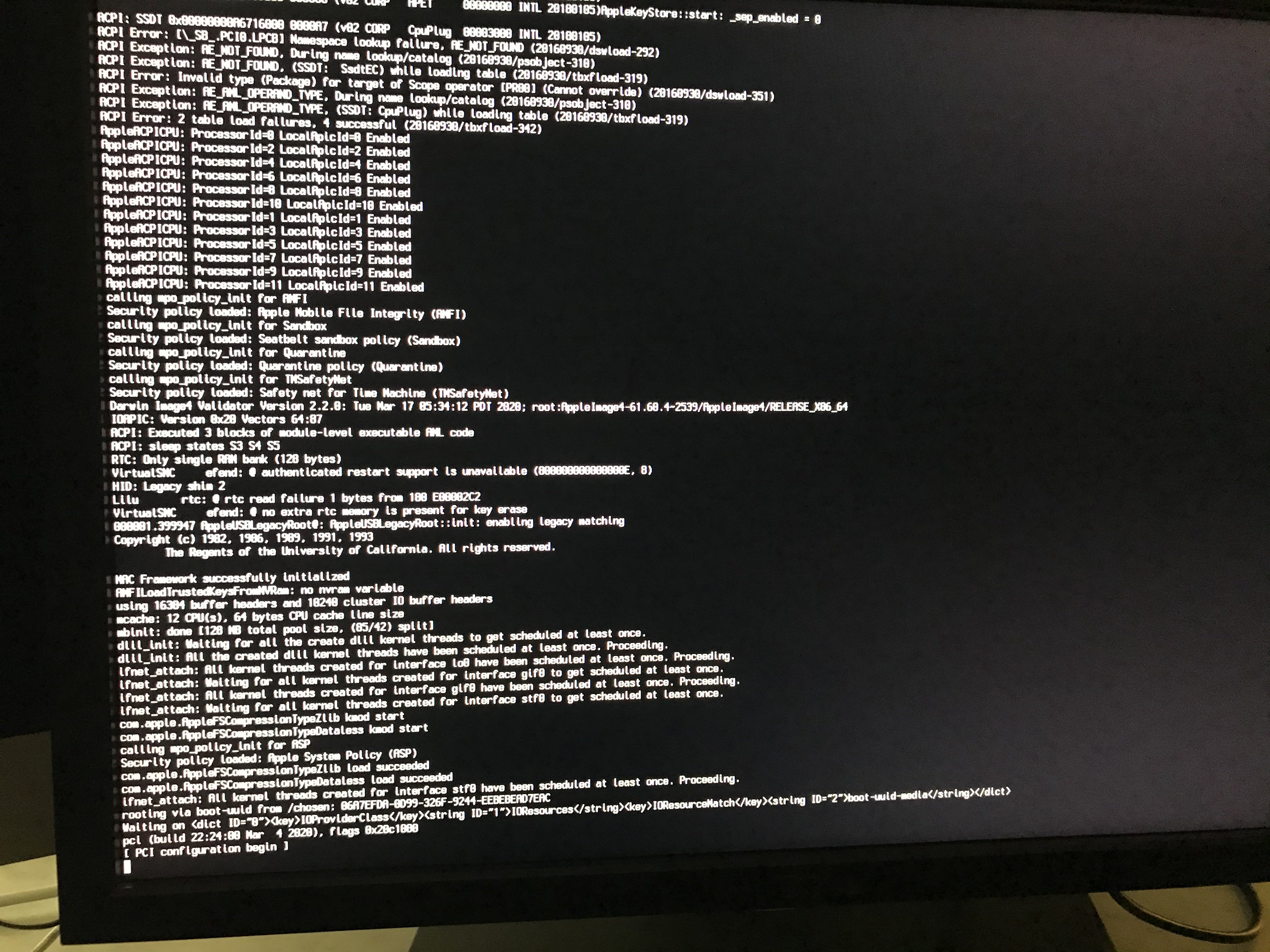

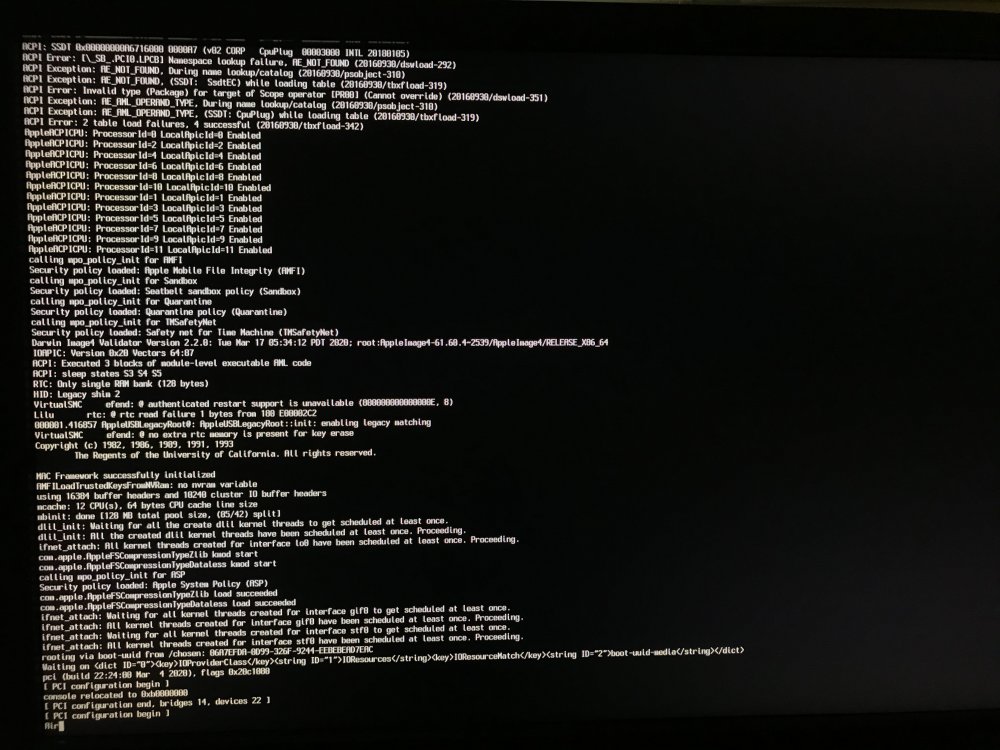

konrad11901 Posted April 11, 2020 Share Posted April 11, 2020 (edited) Hi everyone, I'm trying to boot Catalina with OpenCore 0.5.7 on my Dell Inspiron 7373 (i7-8550u) - unfortunately, the boot process is stuck after choosing the partition (getting pretty similar output as posted by IDON-NO). Does anyone have any idea how to solve that issue? Attached my EFI folder and OpenCore log. (MSR-related quirks are disabled, because I've turned off the CFG lock by modifying the relevant UEFI variable. I've also tried to boot with those quirks enabled, but it didn't help.) EFI.zip opencore-2020-04-11-234135.txt EDIT: Solved that by enabling DevirutaliseMmio and SetupVirtualMap, but now getting instant KP. I've created a new thread. Edited April 12, 2020 by konrad11901 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/157/#findComment-2716937 Share on other sites More sharing options...
