enlaid Posted January 13, 2020 Share Posted January 13, 2020 Is it possible to run native NVRAM on Z390 with OC 0.5.4? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704105 Share on other sites More sharing options...
Sniki Posted January 13, 2020 Share Posted January 13, 2020 @Andrey1970 Correct me if im wrong but is FwRuntimeServices.efi supposed to be removed from sample.plist like VirtualSmc.efi ? It doesn't seem to be included in any of the supposed packages and description said it was moved to OpenCore which is fine but the sample.plist confused me so I just wanted to know if it should be removed from sample.plist or is the efi needed and forgot to include it ? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704112 Share on other sites More sharing options...
justin Posted January 13, 2020 Share Posted January 13, 2020 9 minutes ago, Sniki said: @Andrey1970 Correct me if im wrong but is FwRuntimeServices.efi supposed to be removed from sample.plist like VirtualSmc.efi ? It doesn't seem to be included in any of the supposed packages and description said it was moved to OpenCore which is fine but the sample.plist confused me so I just wanted to know if it should be removed from sample.plist or is the efi needed and forgot to include it ? it is included in OpenCore-0.5.4-RELEASE.zip/EFI/OC/Drivers/FwRuntimeServices.efi, check check again. 40 minutes ago, enlaid said: Is it possible to run native NVRAM on Z390 with OC 0.5.4? No. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704113 Share on other sites More sharing options...
justin Posted January 13, 2020 Share Posted January 13, 2020 1 hour ago, canyondust said: GB5 scores went from an average of 1080sc/4650mc to 1250sc/4950mc. The only difference has been upgrading from OC 0.5.3 to OC 0.5.4 and all related support files and kexts. Possible that I had something incorrectly configured in the old version that got corrected in the new version? potentially, but all I did was add the new config parameters to my old config.plist, as well as the aforementioned switch from manual platform info to automatic platform info. illusion, geek bench can't fully utilize CPU during benchmark. Cinebench is more accurate 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704118 Share on other sites More sharing options...
texem Posted January 13, 2020 Share Posted January 13, 2020 25 minutes ago, justin said: 1 hour ago, enlaid said: Is it possible to run native NVRAM on Z390 with OC 0.5.4? No. aha .. really ? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704119 Share on other sites More sharing options...
hoffsta Posted January 13, 2020 Share Posted January 13, 2020 Is is possible to get good performance from OC when booting from a on-board Marvell 88SE9172 SATA Controller on Z77X-UD5H board? When boot drive is connected to this controller, loading to the OC picker menu takes 20+ minutes. Using Intel 7 series port takes seconds. Clover doesn't have this problem so it seems it must be related to some differences in .efi drivers. I currently have only ApfsDriverLoader, FWRuntimeServices, & HFSPlus drivers on OC 0.5.4. Do I need other drivers? 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704120 Share on other sites More sharing options...
insanefrancis Posted January 14, 2020 Share Posted January 14, 2020 Planning to update to OpenCore 0.5.4 from 0.5.3. I've checked the docs and there are a couple of new entries in the config.plist. Is it mandatory to add these entries to my existing config.plist? They are set to False so I think it doesn't matter but still better to be safe. Also, do I have to compile and use the SSDT***.dsl included in the release package or they're just the same. I cannot seem to find any info that those were changed/updated as well. Thanks. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704209 Share on other sites More sharing options...
justin Posted January 14, 2020 Share Posted January 14, 2020 1 hour ago, insanefrancis said: Also, do I have to compile and use the SSDT***.dsl included in the release package or they're just the same. I cannot seem to find any info that those were changed/updated as well. you have to compile dsl to aml in order to use them, MaciASL can do the job. You'd better add those items to your config.plist in order to keep update with it. 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704220 Share on other sites More sharing options...

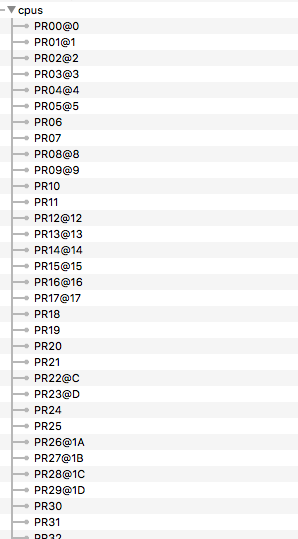

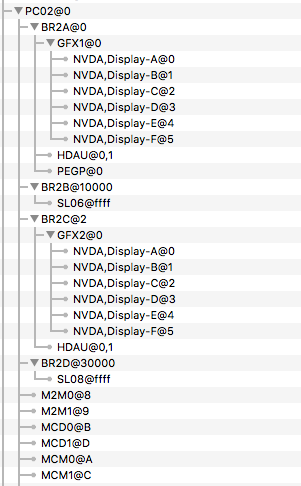

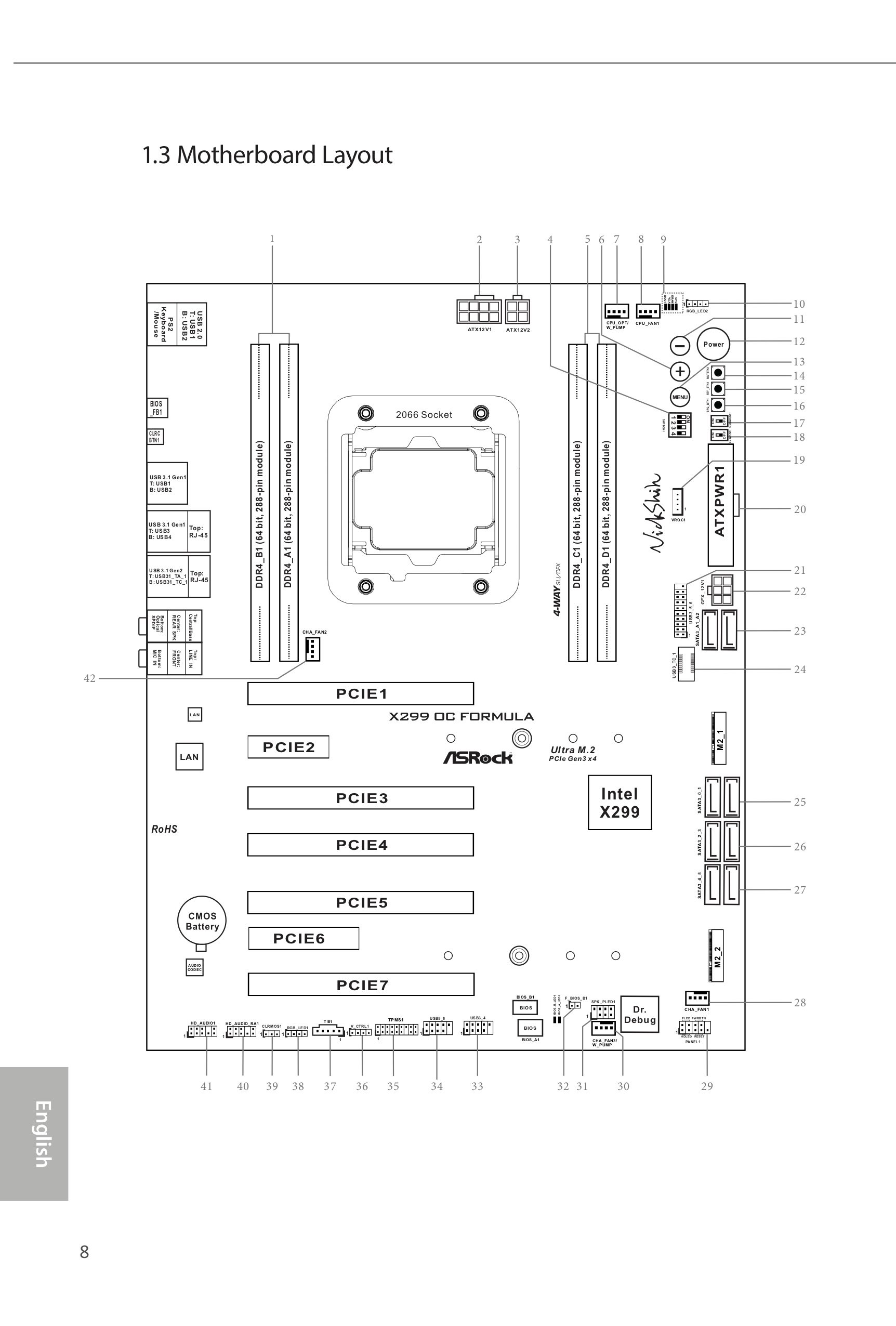

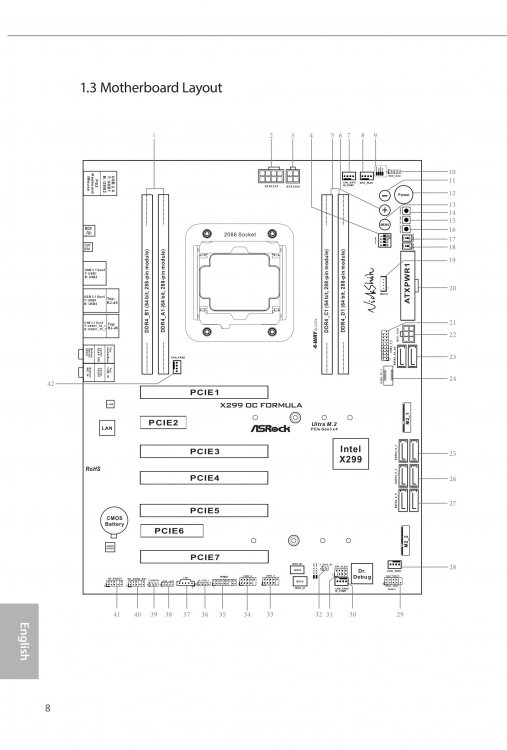

cbutters Posted January 15, 2020 Share Posted January 15, 2020 (edited) Hello All!Getting into OC and feeling a little intimidated. I've always struggled with modifying DSDT or SSDT protocol. Everywhere I look I still am having a hard time figuring out "what is what" in my ACPI tables. I'm using a different motherboard than a lot of the motherboards here (ASrock X299 OC Formula).I saw that KGP had a basic guide on How to create or modify a simple System SSDT.aml by means of DSDT and IOREG ACPI information. However, his website is down (permanently it looks like). I was able to find a version of it using web archives and thought I'd post it here. It was helpful for me to understand it a little better.So here is my setupI am a motion graphics artist and use the GPUs for 3D rendering. MacOS>Windows hahaClover BootloaderHigh Sierra 17G10021 Newest as of 1/10/20ASrock X299 OC FormulaIntel 9900X64GB Corsair RGB Vengence ProGTX 1080ti in PCIe SLOT-1GTX 1080ti in PCIe SLOT-3GTX 1080ti in PCIe SLOT-5Fenvi T919 in PCIe SLOT-7 Samsung EVO 970 500GB NVME in SLOT M2_1MACIASL is only showing 5 PCIe slots I think (screenshot attached)CPUs are mapped weird it think (screenshot attached)2 of the GRFX cards are thinking they are connected to the same PCIe slot maybe (screenshot attached)I'm looking for help in the right direction. I know I can do the work, it just hasn't clicked in my head yet. If anyone is wanting to take a crack at it, I can provide a RAW DSDT.aml or anything else you might need. Thank you and I love this community.Also, I have a CUDA issue that causes random reboots on my machine. Only CUDA, the web drivers are fine. The only way to stop it temporarily is to unload CUDA (per a script) when working day to day and then loading CUDA when I need to use it. Once it's loaded, my computer is unstable and will crash sometimes. Hoping OpenCore might help with everything in order. How to create or modify a simple System SSDT.aml by means of DSDT and IOREG ACPI information – KGP's Hackintosh Corner.zip Edited January 15, 2020 by cbutters Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704323 Share on other sites More sharing options...
canyondust Posted January 15, 2020 Share Posted January 15, 2020 12 hours ago, cbutters said: Hello All!Getting into OC and feeling a little intimidated. I've always struggled with modifying DSDT or SSDT protocol. Everywhere I look I still am having a hard time figuring out "what is what" in my ACPI tables. I'm using a different motherboard than a lot of the motherboards here (ASrock X299 OC Formula).I saw that KGP had a basic guide on How to create or modify a simple System SSDT.aml by means of DSDT and IOREG ACPI information. However, his website is down (permanently it looks like). I was able to find a version of it using web archives and thought I'd post it here. It was helpful for me to understand it a little better.So here is my setupI am a motion graphics artist and use the GPUs for 3D rendering. MacOS>Windows hahaClover BootloaderHigh Sierra 17G10021 Newest as of 1/10/20ASrock X299 OC FormulaIntel 9900X64GB Corsair RGB Vengence ProGTX 1080ti in PCIe SLOT-1GTX 1080ti in PCIe SLOT-3GTX 1080ti in PCIe SLOT-5Fenvi T919 in PCIe SLOT-7 Samsung EVO 970 500GB NVME in SLOT M2_1MACIASL is only showing 5 PCIe slots I think (screenshot attached)CPUs are mapped weird it think (screenshot attached)2 of the GRFX cards are thinking they are connected to the same PCIe slot maybe (screenshot attached)I'm looking for help in the right direction. I know I can do the work, it just hasn't clicked in my head yet. If anyone is wanting to take a crack at it, I can provide a RAW DSDT.aml or anything else you might need. Thank you and I love this community.Also, I have a CUDA issue that causes random reboots on my machine. Only CUDA, the web drivers are fine. The only way to stop it temporarily is to unload CUDA (per a script) when working day to day and then loading CUDA when I need to use it. Once it's loaded, my computer is unstable and will crash sometimes. Hoping OpenCore might help with everything in order. How to create or modify a simple System SSDT.aml by means of DSDT and IOREG ACPI information – KGP's Hackintosh Corner.zip Shot in the dark but possibly PCIE2 and PCIE6 are on the X299 chipset instead of PCIE bus? And do any of the PCIE slots share bandwith with other MB features? (M2 slots etc)? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704387 Share on other sites More sharing options...
hafnium Posted January 15, 2020 Share Posted January 15, 2020 On 1/13/2020 at 5:37 PM, Mike Ranger said: Sorted out my config.plis, got Serialize compiled..... was a wrong Data written in ROM Generic Section of Platform Data. So not critical, and now clean. Thanks again Vit9696 and Download-Fritz How did you locate the error based on the output from the Serialized tool? I have the same OCS error early in my boot sequence, but I was not able to see any error message when passing the config.plist to the Serialized tool... Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704441 Share on other sites More sharing options...
junologue Posted January 15, 2020 Share Posted January 15, 2020 18 hours ago, cbutters said: Also, I have a CUDA issue that causes random reboots on my machine. Only CUDA, the web drivers are fine. The only way to stop it temporarily is to unload CUDA (per a script) when working day to day and then loading CUDA when I need to use it. Once it's loaded, my computer is unstable and will crash sometimes. Hoping OpenCore might help with everything in order. Cuda has always been causing kernel panics on high sierra. So i doubt it will be fixed with oc. It has to do with apple implementing metal afaik. but if you succeed, please let me know Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704444 Share on other sites More sharing options...
jinbingmao Posted January 15, 2020 Share Posted January 15, 2020 (edited) @acidanthera What are the guidance methods for LPC of B85 and Z97 Edited January 16, 2020 by jinbingmao 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704452 Share on other sites More sharing options...
IUTniun Posted January 15, 2020 Share Posted January 15, 2020 yes please for ga-z97p 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704453 Share on other sites More sharing options...
jinbingmao Posted January 15, 2020 Share Posted January 15, 2020 2 minutes ago, IUTniun said: yes please for ga-z97p No, The most reasonable way to load applelpc. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704454 Share on other sites More sharing options...
gengik84 Posted January 15, 2020 Share Posted January 15, 2020 use gfxutil and check LPC path inject a compatible device-id Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704455 Share on other sites More sharing options...
IUTniun Posted January 15, 2020 Share Posted January 15, 2020 12 minutes ago, jinbingmao said: No, wtf is that mean Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704457 Share on other sites More sharing options...
jinbingmao Posted January 15, 2020 Share Posted January 15, 2020 What we hope to get is: the explanation of acidanthera. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704458 Share on other sites More sharing options...
IUTniun Posted January 15, 2020 Share Posted January 15, 2020 The guidance methods for GA Z97P-D3 / Core i7-4790K 4.0Ghz with open core bot loader please Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704460 Share on other sites More sharing options...
Pavo Posted January 15, 2020 Share Posted January 15, 2020 38 minutes ago, IUTniun said: The guidance methods for GA Z97P-D3 / Core i7-4790K 4.0Ghz with open core bot loader please https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/intel-config.plist/haswell 1 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704466 Share on other sites More sharing options...
hoffsta Posted January 16, 2020 Share Posted January 16, 2020 (edited) Question/Issue with PlatformInfo: I followed the OpenCore Vanilla Desktop Guide, which directed me to fill in the following info for PlatformInfo section: Automatic: True Generic: MLB: C02221405J9F2FR1M (iMac13,2 via GenSMBIOS) Rom: (mac address) SpoofVendor: True SupportsCSM: False SystemProductName: iMac13,2 SystemSerialNumber: C02HR7Z3DNCW (iMac13,2 via GenSMBIOS) SystemUUID: 197A98EE-127B-471E-B4DD-A3F3E0433A5D (iMac 13,2 via GenSMBIOS) UpdateDataHub: True UpdateNVRAM: True UpdateSMBIOS: True UpdateSMBIOSMode: Create (also tried Overwrite) My assumption was OC would insert this information only, or possibly use a database to generate other fields (Product Name, Version, Chassis Handle, Type, etc.) However, when I run dmidecode, the output finds a bunch of info for a Macbook10,1 # dmidecode 3.2b Scanning I/O Registry for entry point. SMBIOS 3.2 present. 54 structures occupying 2353 bytes. Table at 0xD9134000. Handle 0x0001, DMI type 0, 26 bytes 0000: 00 1a 01 00 01 02 00 00 03 7f 80 98 8b 3f 01 00 0010: 00 00 03 0d 04 06 ff ff 00 00 BIOS Information Vendor: Acidanthera Version: 183.0.0.0.0 Release Date: 10/30/2019 ROM Size: 8 MB Characteristics: PCI is supported BIOS is upgradeable BIOS shadowing is allowed Boot from CD is supported Selectable boot is supported BIOS ROM is socketed EDD is supported 5.25"/1.2 MB floppy services are supported (int 13h) 3.5"/720 kB floppy services are supported (int 13h) 3.5"/2.88 MB floppy services are supported (int 13h) Print screen service is supported (int 5h) 8042 keyboard services are supported (int 9h) Serial services are supported (int 14h) Printer services are supported (int 17h) ACPI is supported USB legacy is supported BIOS boot specification is supported Targeted content distribution is supported UEFI is supported BIOS Revision: 4.6 Handle 0x0002, DMI type 1, 27 bytes 0000: 01 1b 02 00 01 02 03 04 ee 98 7a 19 7b 12 1e 47 0010: b4 dd a3 f3 e0 43 3a 5d 06 00 05 System Information Manufacturer: Acidanthera Product Name: iMac13.2 Version: 1.0 Serial Number: C02HR7Z3DNCW UUID: 197a98ee-127b-471e-b4dd-a3f3e0433a5d Wake-up Type: Power Switch SKU Number: Not Specified Family: MacBook Handle 0x0003, DMI type 2, 15 bytes 0000: 02 0f 03 00 01 02 03 04 00 09 05 04 00 0a 00 Base Board Information Manufacturer: Acidanthera Product Name: Mac-EE2EBD4B90B839A8 Version: MacBook10,1 Serial Number: C02221405J9F2FR1M Asset Tag: Not Specified Features: Board is a hosting board Board is replaceable Location In Chassis: Part Component Chassis Handle: 0x0004 Type: Motherboard Contained Object Handles: 0 Handle 0x0004, DMI type 3, 22 bytes 0000: 03 16 04 00 01 09 02 03 04 03 03 03 03 00 00 00 0010: 00 00 01 00 00 00 Chassis Information Manufacturer: Acidanthera Type: Laptop Lock: Not Present Version: Mac-EE2EBD4B90B839A8 Serial Number: C02HR7Z3DNCW Asset Tag: MacBook-Aluminum Boot-up State: Safe Power Supply State: Safe Thermal State: Safe Security Status: None OEM Information: 0x00000000 Height: Unspecified Number Of Power Cords: 1 Contained Elements: 0 SKU Number: Not Specified * Where is OpenCore getting the Macbook10,1 info from and how do I update it? * Is the Automatic setting not able to populate the correct information for the additional fields, or is it broken/misconfigured? * If that is not the role of 'Automatic' can I assume I am expected to enter all of those additional fields manually into config.plist? * If so, what is a good source to find the correct values for each field? * Should the Desktop Guide be updated to include a solution for this issue? Thanks! Edited January 16, 2020 by hoffsta additional info Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704592 Share on other sites More sharing options...
Andrey1970 Posted January 16, 2020 Share Posted January 16, 2020 3 hours ago, hoffsta said: Question/Issue with PlatformInfo: I followed the OpenCore Vanilla Desktop Guide, which directed me to fill in the following info for PlatformInfo section: Automatic: True Generic: MLB: C02221405J9F2FR1M (iMac13,2 via GenSMBIOS) Rom: (mac address) SpoofVendor: True SupportsCSM: False SystemProductName: iMac13,2 SystemSerialNumber: C02HR7Z3DNCW (iMac13,2 via GenSMBIOS) SystemUUID: 197A98EE-127B-471E-B4DD-A3F3E0433A5D (iMac 13,2 via GenSMBIOS) UpdateDataHub: True UpdateNVRAM: True UpdateSMBIOS: True UpdateSMBIOSMode: Create (also tried Overwrite) My assumption was OC would insert this information only, or possibly use a database to generate other fields (Product Name, Version, Chassis Handle, Type, etc.) However, when I run dmidecode, the output finds a bunch of info for a Macbook10,1 # dmidecode 3.2b Scanning I/O Registry for entry point. SMBIOS 3.2 present. 54 structures occupying 2353 bytes. Table at 0xD9134000. Handle 0x0001, DMI type 0, 26 bytes 0000: 00 1a 01 00 01 02 00 00 03 7f 80 98 8b 3f 01 00 0010: 00 00 03 0d 04 06 ff ff 00 00 BIOS Information Vendor: Acidanthera Version: 183.0.0.0.0 Release Date: 10/30/2019 ROM Size: 8 MB Characteristics: PCI is supported BIOS is upgradeable BIOS shadowing is allowed Boot from CD is supported Selectable boot is supported BIOS ROM is socketed EDD is supported 5.25"/1.2 MB floppy services are supported (int 13h) 3.5"/720 kB floppy services are supported (int 13h) 3.5"/2.88 MB floppy services are supported (int 13h) Print screen service is supported (int 5h) 8042 keyboard services are supported (int 9h) Serial services are supported (int 14h) Printer services are supported (int 17h) ACPI is supported USB legacy is supported BIOS boot specification is supported Targeted content distribution is supported UEFI is supported BIOS Revision: 4.6 Handle 0x0002, DMI type 1, 27 bytes 0000: 01 1b 02 00 01 02 03 04 ee 98 7a 19 7b 12 1e 47 0010: b4 dd a3 f3 e0 43 3a 5d 06 00 05 System Information Manufacturer: Acidanthera Product Name: iMac13.2 Version: 1.0 Serial Number: C02HR7Z3DNCW UUID: 197a98ee-127b-471e-b4dd-a3f3e0433a5d Wake-up Type: Power Switch SKU Number: Not Specified Family: MacBook Handle 0x0003, DMI type 2, 15 bytes 0000: 02 0f 03 00 01 02 03 04 00 09 05 04 00 0a 00 Base Board Information Manufacturer: Acidanthera Product Name: Mac-EE2EBD4B90B839A8 Version: MacBook10,1 Serial Number: C02221405J9F2FR1M Asset Tag: Not Specified Features: Board is a hosting board Board is replaceable Location In Chassis: Part Component Chassis Handle: 0x0004 Type: Motherboard Contained Object Handles: 0 Handle 0x0004, DMI type 3, 22 bytes 0000: 03 16 04 00 01 09 02 03 04 03 03 03 03 00 00 00 0010: 00 00 01 00 00 00 Chassis Information Manufacturer: Acidanthera Type: Laptop Lock: Not Present Version: Mac-EE2EBD4B90B839A8 Serial Number: C02HR7Z3DNCW Asset Tag: MacBook-Aluminum Boot-up State: Safe Power Supply State: Safe Thermal State: Safe Security Status: None OEM Information: 0x00000000 Height: Unspecified Number Of Power Cords: 1 Contained Elements: 0 SKU Number: Not Specified * Where is OpenCore getting the Macbook10,1 info from and how do I update it? * Is the Automatic setting not able to populate the correct information for the additional fields, or is it broken/misconfigured? * If that is not the role of 'Automatic' can I assume I am expected to enter all of those additional fields manually into config.plist? * If so, what is a good source to find the correct values for each field? * Should the Desktop Guide be updated to include a solution for this issue? Thanks! It is nonsense. Check your config.plist in PlistEdit. Don't use OpenCore Configurator. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704614 Share on other sites More sharing options...
jinbingmao Posted January 17, 2020 Share Posted January 17, 2020 7 minutes ago, Andrey1970 said: It is nonsense. Check your config.plist in PlistEdit. Don't use OpenCore Configurator. What are the guidance methods for LPC of B85 and Z97? thanks。 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704617 Share on other sites More sharing options...
Andrey1970 Posted January 17, 2020 Share Posted January 17, 2020 5 minutes ago, jinbingmao said: What are the guidance methods for LPC of B85 and Z97? thanks。 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704618 Share on other sites More sharing options...
hoffsta Posted January 17, 2020 Share Posted January 17, 2020 26 minutes ago, Andrey1970 said: It is nonsense. Check your config.plist in PlistEdit. Don't use OpenCore Configurator. I have never used OpenCore Configurator. My config was hand made in ProperTree following the OpenCore Vanilla Desktop Guide. This is why I'm so confused about where the Macbook10,1 info is coming from. It really seems like there is a bug. But I certainly could have made a mistake. What is the expected behavior when PlatformInfo > Automatic = True, & and Generic variables are accurate for iMac13,2? Any chance you could take a quick look at my config? Thank you EFI.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/116/#findComment-2704621 Share on other sites More sharing options...
