[pre-release] macOS Monterey

[Shaneee]

20 minutes ago, miliuco said:

@Shaneee

The hackintosh with AMD still have work ahead for Monterey. At least the correct AMD CPU model is already shown with the recent OpenCore version.



It's working well so far. Bare metal install went without issues. CPU is showing thanks to RestricEvents.kext

[miliuco]

1 hour ago, Derty said:

I have tried photoshop 2021, illustrator 2021, but acrobat pro does not work for me... has someone checked... ??



No, I haven't tried Acrobat.

I have tried Pixelmator Pro, VideoProc and SuperDuper beta and all work fine.

[dogansan]

2 hours ago, Derty said:

I have tried photoshop 2021, illustrator 2021, but acrobat pro does not work for me ... has someone checked .. ??





I have tried Acrobat Pro , it did not work at first, then I reinstalled and it is now working.

[Guest 5T33Z0]

Any news on the Z490 i225-v Ethernet Controller Situation?



On research I found out that on macOS 11.4 you can get the I225 to work without the Kernel Patch and FakePCIID if you change the following in DeviceProperties of PciRoot(0x0)/Pci(0x1C,0x1)/Pci(0x0,0x0):



change device-id from F2150000 (Type: Data) to 0x15f28086 (Type: String). But no success in Monterey yet.



Edit: changing the device-id to F3158680 (Type: Data) also works. So if you have to switch between Big Sur and Catalina, you only have to change one digit to F2158680, re-enable the kernel patch from Dortania's guide to get it working in Catalina again.



@Henties @bluebyte: I've looked into the IONameMatch Section of the info.plist of the AppleIntelI210Ethernet.kext inside of IONetworkingFamily.kext and apart from the build number I couldn't see any difference, so I don't know why it does not work. But as @Mieze pointed out in the German Hackintosh Forum that "it could be related to mDNS Offload, because the driver needs to load an Apple-specific Firmware onto the NIC to do so. And if this is the case, I don't know if there is a permanent fix for it."



I checked IO Reg Explorer again, and searched for "Ethernet" and the results are: the AppleInel210.kext is loaded and everything is looking as it is supposed to be (from what I can tell) but it doesn't work still. I made some screenshots: Z490 I225 Driver loaded.zip



Edited June 13, 2021 by 5T33Z0
Providing Additional Info

[asdesoso]

Hi @chris1111 there is great news for our HD 4000 laptops, it seems that HD 4000 can now boot up and enable QE/CI with Metal in Monterey.



https://forums.macrumors.com/threads/macos-12-monterey-on-unsupported-macs-thread.2299557/post-30008993



Cheers.

[Guest 5T33Z0]

@asdesoso That's great news. I have an Intel HD 4000 based Laptop as well.

[PoMpIs]

I have been testing, and I have been able to load the kext of the HD4000 in my lenovo t430 ... but I still do not accelerate graphics ... what else is there to do? ¿? 😅







Greetings 🙂

[Guest 5T33Z0]

@pompis12 Nice. Did you take the IntelHD4000.kext from Big Sur and inject it through the bootloader or how did you get it to work? I had a look in System > Library > Extensions and it seems that there are more files associated with it than just the kext:





Maybe you have to manually install these on the system to get it fully working?

Edited June 13, 2021 by 5T33Z0

[Avery B]

https://github.com/dortania/OpenCore-Legacy-Patcher

HD4000 was figured out a little while ago today. Could use it for hackintoshes (need the latest commit, not release), though it's not officially supported.
They just ask that you don't go to them with issues on hackintoshes - they won't try to break support though.

@pompis12

[Guest 5T33Z0]

Just installed the latest Nightly Build of 0.7.1 and the timeout/stall during boot is gone, yay!

[polkaholga]

Updated yesterday my Z390 Designare , only things I've noticed so far:



- The RX580 fans spin up like hell for about 2-3 seconds during boot then go back to normal

- SmallTreeIntel82576.kext loads but ethernet not working

- WLAN and BT ( BRCM94360CD ) works without problems

- New item  called Passwords at "System Preferences" , looks like it picked up bookmarks from Safari.

  Not all of them but most...





Edited June 13, 2021 by polkaholga
Typo

[asdesoso]

2 hours ago, 5T33Z0 said:

Just installed the latest Nightly Build of 0.7.1 and the timeout/stall during boot is gone, yay!

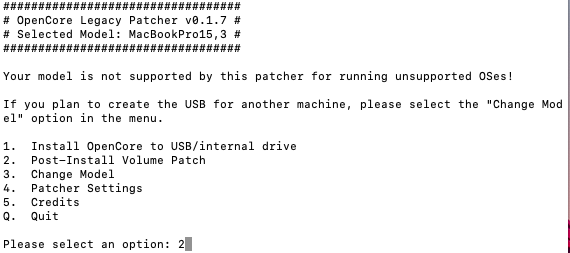

Did you choose the option 2? Post-Install Volume Patch?



I assume that this option maybe running from Monterey boot up, but I don´t know how to disable HD4000 to apply the patch over Monterey.



I tried several things such as: try to use the -wegnoigpu and also to boot into safe mode, but always the same boot loop, crashing WindowServer I think.



So I need to boot up Monterey disabling HD4000 and after that apply the patch to enable QE/CI with Metal.

Cheers.

[bisdak4920]

34 minutes ago, asdesoso said:



Did you choose the option 2? Post-Install Volume Patch?



I assume that this option maybe running from Monterey boot up, but I don´t know how to disable HD4000 to apply the patch over Monterey.



I tried several things such as: try to use the -wegnoigpu and also to boot into safe mode, but always the same boot loop, crashing WindowServer I think.



So I need to boot up Monterey disabling HD4000 and after that apply the patch to enable QE/CI with Metal.

Cheers.

I think you are talking on 2 different issues.

[PoMpIs]

5 hours ago, 5T33Z0 said:

@pompis12 Nice. Did you take the IntelHD4000.kext from Big Sur and inject it through the bootloader or how did you get it to work? I had a look in System > Library > Extensions and it seems that there are more files associated with it than just the kext:





Maybe you have to manually install these on the system to get it fully working?



Of course...

I have put them all in / S / L / E







Edited June 13, 2021 by pompis12

[asdesoso]

1 hour ago, pompis12 said:



Of course...

I have put them all in / S / L / E

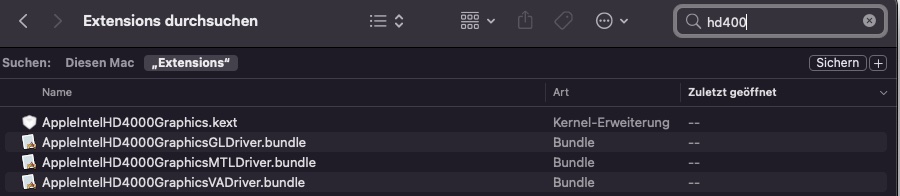

I can see in your screenshot, that there are 6 files related to HD 4000, last week I tried to put all files except AppleIntelGraphicsShared.bundle, but still the same as currently, I can´t reach to login screen, because loginwindow crash repeatedly.

Did you get QE/CI with Metal acceleration in Monterey?



Cheers.

[PoMpIs]

16 minutes ago, asdesoso said:

I can see in your screenshot, that there are 6 files related to HD 4000, last week I tried to put all files except AppleIntelGraphicsShared.bundle, but still the same as currently, I can´t reach to login screen, because loginwindow crash repeatedly.

Did you get QE/CI with Metal acceleration in Monterey?



Cheers.



You must put the automatic start of session in the first boot, but when you change any stop entering the desktop.. that's what happened to me once on my T430, and I had to reinstall  ..



I don't have graphic acceleration 😕



Regards





Veo que somos españoles los dos jajaja.... lo que dices me ha pasado a mi, si no pones el inicio de sesiòn automatico para que entre sin pedir contraseña, hay veces que cuando va cargar el escritorio, se va a modo verbose, y no sale de ahi.... y en cuanto cambies algùn kext o configuraciòn, deja de entrar al sistema para siempre.... yo no he sido capaz de solucionarlo y he tenido que volver a reinstalar Monterey.... Està verdisima la cosa, por lo menos en el tema de mi portatil y la aceleracion gràfica... no hay manera joer





Un Saludooteee compañero 🤗



Edited June 13, 2021 by pompis12

[Guest 5T33Z0]

5 minutes ago, pompis12 said:



You must put the automatic start of session in the first boot, but when you change any stop entering the desktop.. that's what happened to me once on my T430, and I had to reinstall  ..



I don't have graphic acceleration 😕



Regards



  Reveal hidden contents

Veo que somos españoles los dos jajaja.... lo que dices me ha pasado a mi, si no pones el inicio de sesiòn automatico para que entre sin pedir contraseña, hay veces que cuando va cargar el escritorio, se va a modo verbose, y no sale de ahi.... y en cuanto cambies algùn kext o configuraciòn, deja de entrar al sistema para siempre.... yo no he sido capaz de solucionarlo y he tenido que volver a reinstalar Monterey.... Està verdisima la cosa, por lo menos en el tema de mi portatil y la aceleracion gràfica... no hay manera joer





Un Saludooteee compañero 🤗





Can you elaborate on how to get this all working? I've neve used this OpenCore Patcher before but I'd like to try it.

[PoMpIs]

1 hour ago, 5T33Z0 said:

Can you elaborate on how to get this all working? I've neve used this OpenCore Patcher before but I'd like to try it.



The first thing after installing Monterey, is to put the automatic login ...



Then I enter Recovery and disable SIP:

csrutil disable

csrutil authenticated-root disable



Then I mount the Monterey hard disk in read write mode:



(locate disk )





once the disk is located we create a mounting folder



mkdir -p -m777 ~/mount



We mount the disc:



sudo mount -o nobrowse -t apfs /dev/disk3s5 ~/mount  ( Yes, it is so, I have not forgotten the final disk3s5s1 )



Now you can look at /Users/YourUserName/NameOfYourDrive/

there you can modify the kext in /S/L/E



And then Rebuilding Kernel Cache:



sudo kmutil install --volume-root ~/mount --update-all[/CODE]



Once you have finished, you'll need to create a new snapshot:



sudo bless --folder ~/mount/System/Library/CoreServices --bootefi --create-snapshot



And restart..



P.S:

I did that yesterday ...

but I have discovered today that it can be done much easier, with this app that I have found and it seems to work well in Monterey:



https://github.com/jacklukem/BigSurmountsrw/releases/tag/1.0



😑



But I still do not accelerate graphics 😩



The Kext I am using are these:



https://github.com/dortania/Apple-Binaries-OCLP/tree/main/Extensions/Graphics-Acceleration/Intel-Gen7-IvyBridge



Regards



Sorry for my bad english..... I have a hard time expressing myself in this language..







[pet1]

As smooth as a beta Mac OS can go. No issues.





Edited June 14, 2021 by pet1

[PG7]

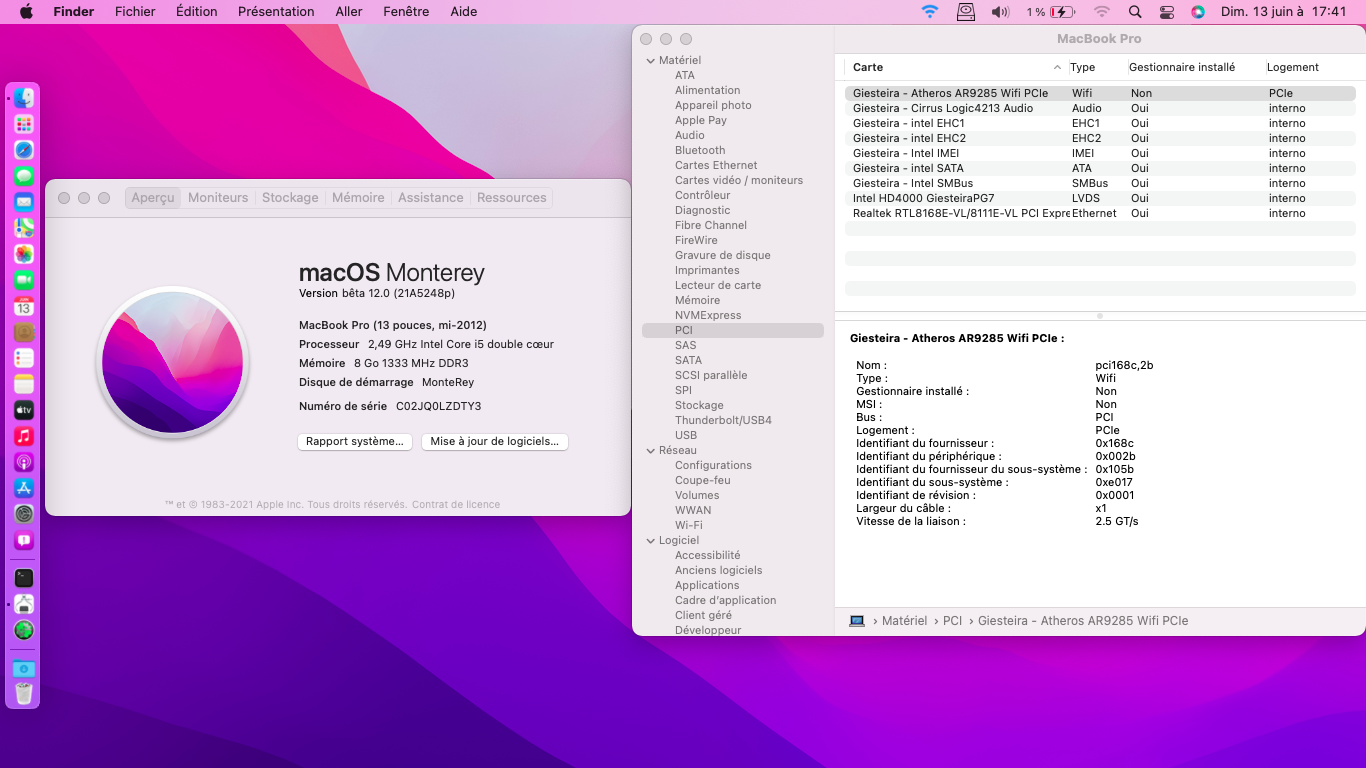

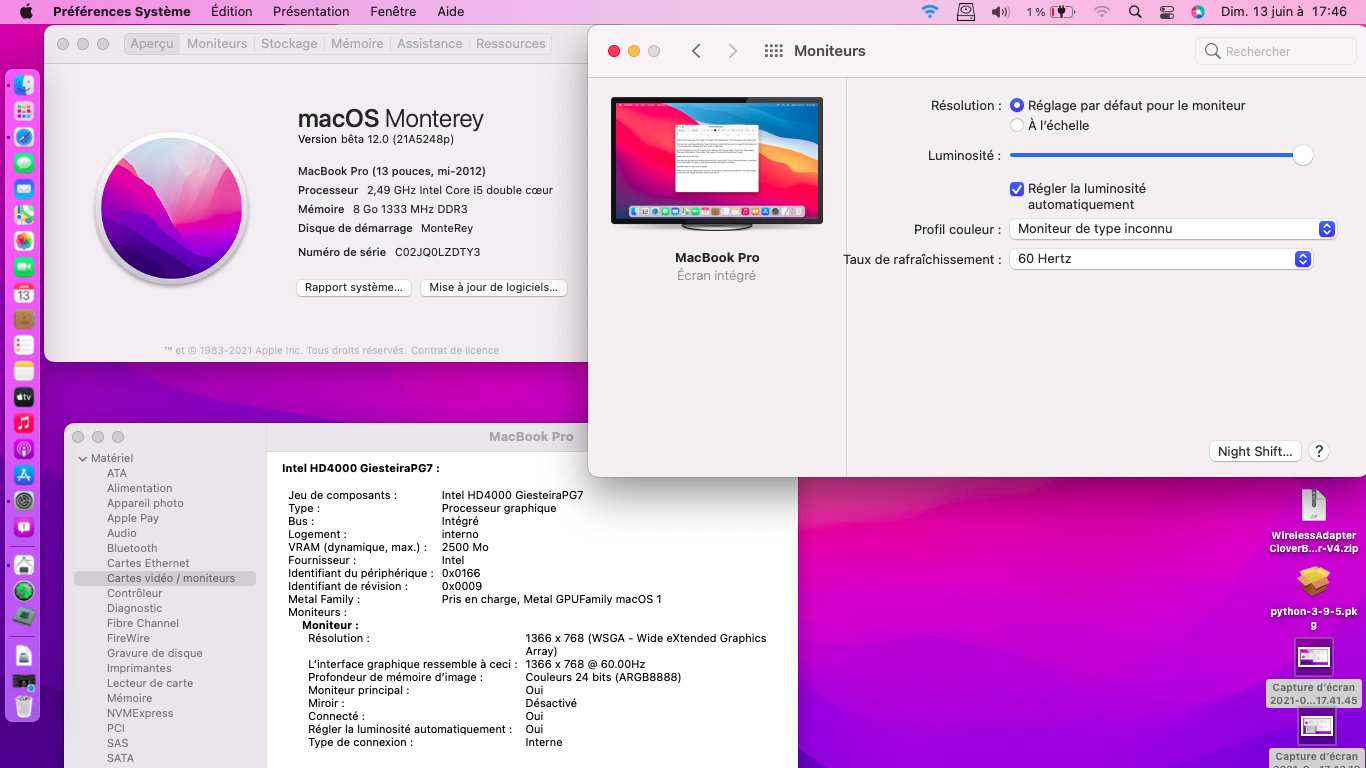

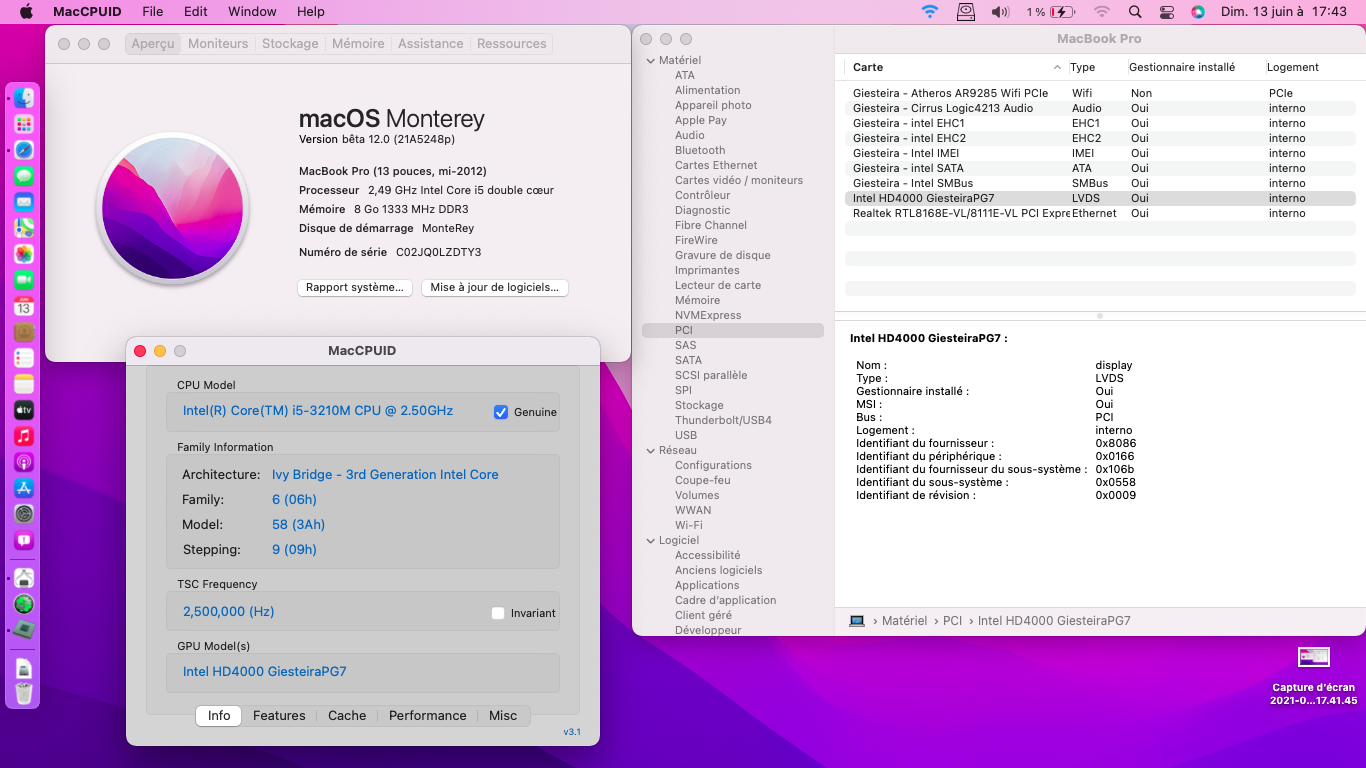

Dell Vostro 2520



MonteRey



Clover Bootloader



Intel i5-3210M

Intel HD4000

8go RAM

SSD



Full QE/CI

God Job Team !
Grats @JakeLuke ++++



Spoiler



[PoMpIs]

12 minutes ago, PG7 said:

Dell Vostro 2520



MonteRey



Clover Bootloader



Intel i5-3210M

Intel HD4000

8go RAM

SSD



Full QE/CI

God Job Team !
Grats @JakeLuke ++++



  Hide contents





But how do you do it? ? I don't know how it's going hahahaha 😆

[Guest 5T33Z0]

4 minutes ago, pompis12 said:



But how do you do it? ? I don't know how it's going hahahaha 😆



If you want a Clover config to get you started, you can check mine. It's for a T530 so you have to change the Framebuffer-Patch. But besides that, it should be pretty similar:  https://github.com/5T33Z0/Lenovo-T530-Hackinosh-OpenCore/releases/tag/r5134.2

[PG7]

29 minutes ago, pompis12 said:



But how do you do it? ? I don't know how it's going hahahaha 😆

config.plist -> ARGS -> "amfi_get_out_of_my_way=1" (Clover & OpenCore) + "-no_compat_check"
CsrActiveConfig -> 0xFEF

SMBIOS -> MacBookPro9,1 / MacBookPro9,2 (Install SMBIOS MacBookPro12,1)

Patch kext = OpenCore Legacy Patcher V 0.1.7 Last commit

mandatory Ethernet

Thanks @JakeLuke + Team OCLP

https://github.com/dortania/OpenCore-Legacy-Patcher/tree/0.1.6

[miliuco]

10 hours ago, polkaholga said:

... The RX580 fans spin up like hell for about 2-3 seconds during boot then go back to normal...

This is the normal behaviour in my hack every time after ResetNVRAM, Catalina, BS and Monterey.

In the following boots after ResetNVRAM fans are stopped.
I also observe this behaviour in Windows from time to time, it is not unique to macOS.

[miliuco]

5 hours ago, pompis12 said:

P.S:

I did that yesterday ...

but I have discovered today that it can be done much easier, with this app that I have found and it seems to work well in Monterey:



https://github.com/jacklukem/BigSurmountsrw/releases/tag/1.0

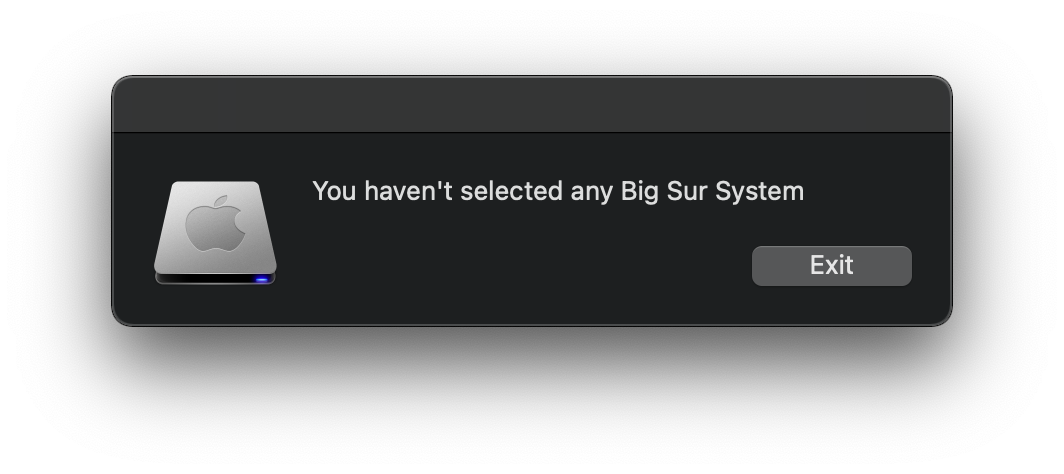

Hello, every time I use this application you are talking about, BigSurmountsrw, I get the same warning regardless of the volume I select in the initial window of the app.
In your case it works well?

Spoiler



Edited June 13, 2021 by miliuco
